USER MANUAL Magnum UFESA

Front view of a blackUFesa Magnum heat sink with digital display and control buttons (no text or symbols on main body)

Exploded view diagram of a microwave oven with numbered parts for identification

200C 48:00

ESPAÑOL

AGRADECEMOS QUE HAYA DEPOSITADO SU CONFIANZA EN UFESA Y DESEAMOS QUE EL FUNCIONAMIENTO DEL PRODUCTO LE SATISFAGA PLENAMENTE.

ATENCIÓN

CÓMO USAR EL PRODUCTO

WE WOULD LIKE TO THANKS YOUR FOR CHOOSING UFESA, WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

DESCRIPTION

1. Control Panel
2. Glass Door
3. Door Handle
4. Power Cord
5. Fetch Rack
6. Crumb Tray
7. Bake Tray
8. Oven Rack
9. Air Fryer basket
10. Rotisserie

CONTROL PANEL DESCRIPTION

1. Power ON/OFF
2. Temperature Regulation
3. Temperature Display
   4.Time Display
   5.Time Regulation
4. Start/Stop
5. French fries menu
6. Steak Menu
7. Chicken wings Menu
   10 Rostisserie Menu (Whole chicken)
   11.Light Switch
   12.Fish Menu
   13.Cake Menu
   14.Pizza Menu
8. Dehydrate Menu

SAFETY INSTRUCTIONS

If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

Keep the appliance and its cord out of reach of children less than 8 years.

Appliances are not intended to be operated by means of an external timer or separate remote-control system.

Disconnect the appliance when it is not in use and before cleaning it. Let it cool before putting on, taking off parts and cleaning it.

Do not submerge the appliance in water or any other liquid.

This appliance is intended for use at a maximum altitude of 2000m above sea level.

IMPORTANT WARNINGS

This appliance is designed exclusively for domestic use, in no case should be a commercial or industrial use.

Any incorrect use or improper handling of the product shall render the warranty null and void. Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label.

Place the appliance on a flat even surface. The mains connection cable must not be tangled or wrapped around the product during use.

Do not use the device, or connect and disconnect to the supply mains with the hands and/or feet wet. Do not pull on the connection cord in order to unplug it or use it as a handle

IMPORTANT. When operating this Air Fryer, keep at least ten centimeters of free space on all sides of the oven to allow for adequate air circulation.

DO NOT place your Air Fryer under cupboards, blinds or curtains. Risk of overheating / fire.

Do not cover any part of the Fryer with a cloth or similar, it will cause overheating. Risk of fire.

This is an AIR FRYER. It requires very little oil to cook.

Do not fill the pot with oil or fat as this may cause a fire hazard.

Do not use any accessories other than manufacturer recommended accessories in this Air Fryer.

Always wear protective, insulated oven gloves when inserting or removing items from the hot Air Fryer.

The appliance must be used on a level, stable heat-resistant surface. The first time you use your Air Fryer there may be a slight odor or a small amount of smoke given off.

This is normal and is just the manufacturing residues burning off.

Always place the ingredients to be fried in the basket to prevent it from coming into contact with the heating elements.

Unplug the product immediately from the mains in the event of any breakdown or damage and contact an official technical support service. In order to prevent any risk of danger, do not open the device.

Only qualified technical personnel from the brand's Official technical support service may carry out repairs or procedures on the device.

B&B TRENDS SL. disclaims all liability for damages that may occur to people, animals or objects, for the non-observance of these warnings.

BEFORE USING FOR THE FIRST TIME

1. Remove all packaging stickers, and labels from the unit.
2. Wash the Fry Basket, Oven Rack, Baking Pan, and Crumb Tray with hot water, some dishwashing liquid, and a non-abrasive sponge. Dry before placing trays into Air Fryer Oven.
3. Place the Crumb Tray in the bottom of the Air Fryer Oven.

CAUTION: Do not place the Air Fryer Oven against a wall or against other appliances. It is important to leave at least 10 cm of free space on the back and sides, and 10 cm of free space above the Air Fryer Oven to allow for proper ventilation. Do not put anything on top of the Air Fryer Oven.

HOW TO USE

1. Plug the air fryer into the power supply, the buzzer rings once and the power button (1) will be displayed on the screen showing the air fryer is now in Stand by mode.
2. Press the power button (1) to start the machine, the LED screen will be on, and the default menu "French fries" (7) will be displayed. If the control panel is not operated within 1 min after starting up, the buzzer will sound three times.
3. To select other menus touch the corresponding icon which will be highlighted, then press the start/stop button (6) to start cooking. Press again start/stop button (6) to pause the process. In pause mode the fan will be working for about 70 seconds and the time display (4) and Start/stop button (6) will flash.
4. Before start any menu you always have the possibility of adjusting the preset temperature and time by touching the regulation buttons (2) and (5).
5. Each time you press temperature regulation button (2) is +/- 5°C and the buzzer will ring once each time. Long press (2.5s) the temperature can be increased or decreased quickly.
6. Each time you press time regulation button (5) is +/- 1min and the buzzer will ring once each time. Long press (2.5s) the time can be increased or decreased quickly.
7. Press the light Switch (11) to turn the light on or off. It will be turned off automatically after 60s. The light icon is highlighted when the light is on.
8. When the program is working, the orange ring light of Start/stop button (6) is steady on. When paused, the orange ring light flashes at a frequency of 0.5S. In pause mode, time display is flashing and the buzzer will remind the user three times every 1min until the icon is pressed again to continue working.
9. During the program operation, when the oven door is opened the light comes on and the icon flashes synchronously. The time display screen (4) shows OPEN and flashes. Only when the door is closed, the light goes out and continues to work automatically.
10. Once the time set has finished the device will beep for 3 times indicating the menu has finished.

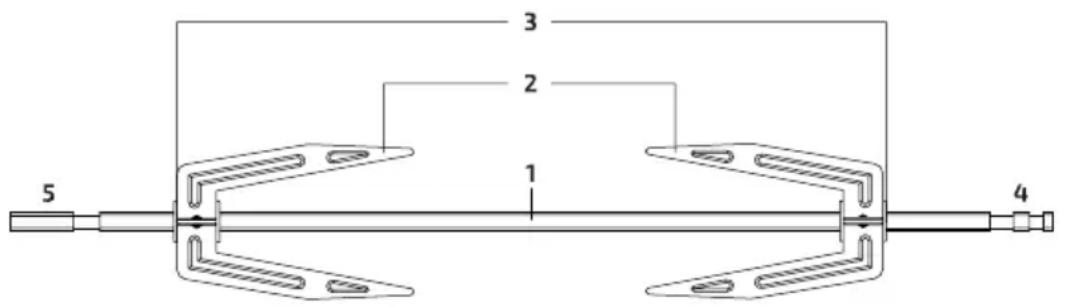

ROSTISSERIE

3 2 1 4 5

How to use the "Rostisserie" function:

1. Place the appliance on a flat, stable surface.
2. Make sure that the removable crumb tray (6) is placed under the lower heating elements when using the appliance.
3. Place a rostisserie fork (2) on the end of the stick (1) with the fork facing the centre, then tighten the screw of the rostisserie fork, and fix the rostisserie fork with the stick.
4. Fork the food from the other end of the stick (1) until it clicks into place with the fork.
5. Place the other fork (2) on the other end of the roasting stick (1) with the fork facing the

roast.

1. Adjust the roast so that it is positioned in the centre of the roasting stick (1). Make sure that the forks of the rotisserie hold the roast on the stick and then tighten the screws of the rotisserie.
2. When cooking poultry, it is necessary to tie or bind the legs and wings to the body with string to keep the roast as compact as possible so that the rotisserie moves smoothly.
3. Season or baste the roast as desired.
4. Place the solid end of the rotisserie stick (4) into the drive socket on the right inner wall of the Air Fryer.
5. Place the slotted end (5) of the rostisserie rotisserie stick into the left inner wall of the air fryer.
6. Cook the food by pressing the "Rostisserie" programme (10).
7. When the programme is finished, remove the roast from the oven using the rotisserie removal tool (5) by placing the tool under the slotted edges of the stick. Lift the left side up and towards you at a suitable angle and slide the right side of the rotisserie out of the rotisserie housing.
8. Place the roast on a cutting board or platter and let it rest for 10-15 min.
9. Hold the roast firmly to loosen the rotisserie screws from the forks and remove the rotisserie stick from the roast.
10. Carefully remove the rostisserie forks and remove the roast.

PRESET MENUS

As shown below, the air fryer-oven comes with 8 menus preset.

Select a program by touching the corresponding icon, the display will show the time and temperature, and the icon will light up. Press the start icon and the oven works according to the menu of your choice.

Icons Presets Time Temperature
	French Fry 20 minutes 190°C
	Steak 12 minutes 230°C
	Chicken wings 20 minutes 230°C
	Rostiserie(Whole chicken)	45 minutes 180°C
	Fish 25 minutes 230°C
	Cake 40 minutes 140°C

	Pizza 7 minutes 230°C
	Dehydrate 240 minutes 70°C

NOTE: Keep in mind that these settings are indications. As ingredients differ in origin, size, shape as well as brand, we cannot guarantee the best setting for your ingredients. This table is only a guide and does not contain exact recipes.

CLEANING AND MAINTENANCE

- Ensure the Air Fryer is unplugged and cool before cleaning. - Use a clean, dry cloth to clean the inside. Do not use a wet cloth to prevent water from getting inside the appliance.

Warning: Do not use abrasive cleaning agents or scouring pads.

• Gently wipe down exterior with a damp cloth or paper towel.
- Never immerse the Air Fryer or its plug in water or any other liquid.
• Dry all parts thoroughly before storage.
- Store the Air Fryer in a cool, dry place.

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection center closest to your home.

FRANÇAIS

NOUS VOUS REMERCIONS D'AVOIR CHOISI UFESA, NOUS SOUHAITONS QUE CE PRODUIT VOUS APPORTE SATISFACTION ET VOUS FASSE PLAISIR.

AVERTISSEMENT

VEUILLEZ LIRE ATTENTIVEMENT LE MODE D'EMPLOI AVANT D'UTILISER LE PRODUIT. VEUILLEZ CONSERVER CE DOCUMENT DANS UN ENDROIT SÛR POUR UN USAGE ULTÉRIEUR.

DESCRIPTION

B&B TRENDS, SL. guarantees compliance of this product, for the use for which it is, during the period established by the legislation in force in the country of sale. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfil or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by B & B TRENDS, SL. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a B&B TRENDS, SL., authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by B&B TRENDS, SL., or the careless or improper use of the same shall render this warranty null and void.

You must keep the purchase invoice, receipt or delivery docket in order to exercise your warranty rights.

For technical service and after-sales care outside the Spanish territory, please submit your query to the point of sale where you purchased the item.

BON DE GARANTIE

Check out your nearest service station at https://sat.ufesa.com/
