USER MANUAL Magister UFESA

Black ufesa Magister air fryer with digital display and control panel (no visible text or symbols on device body)

Simple diagram showing a vertical line with a black circle above a rectangle and a small droplet below (no text or symbols)

4 ①

9 5 10 6 + M . ↓|| ←

ESPAÑOL

AGRADECEMOS QUE HAYA DEPOSITADO SU CONFIANZA EN UFESA Y DESEAMOS QUE EL FUNCIONAMIENTO DEL PRODUCTO LE SATISFAGA PLENAMENTE.

ATENCIÓN

Diagram of two nested rectangular panels with a mesh pattern, no text or symbols present

Simple line drawing of a rectangular container with two concentric ovals (no text or symbols)

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Line drawing of a portable oven with internal shelves and a side-view inset showing a fan installation (no text or symbols)

Line drawing of a closed microwave oven with internal shelves and a close-up inset showing exterior wall structure (no text or symbols)

CÓMO USAR EL PRODUCTO

Diagram of two overlapping rectangular grids with mesh patterns, no text or symbols present

Simple line drawing of a rectangular tray with two concentric ovals (no text or symbols)

Pure diagram of a grid-patterned rectangular structure with no text, numbers, or symbols

Pure electrical circuit lines without any symbols

Technical line drawing of a portable oven with internal shelves and a side-view inset showing a window structure (no text or symbols)

Line drawing of a microwave oven with open lid and internal compartments, alongside an inset showing exterior wall-mounted equipment (no text or symbols)

INSTRUÇÕES DE SEGURANÇA

WE WOULD LIKE TO THANKS YOUR FOR CHOOSING UFESA, WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

DESCRIPTION

1. Control panel
2. Body
3. Door
4. Base
5. Drip tray

CONTROL PANEL DESCRIPTION

1. Rotation function
2. Temperature/Time -
3. Temperature display
4. Time display
5. Temperature/Time +
6. Start/Pause
7. Inside light
8. Time/Temperature setting
9. Menu Selection
10. Power button
11. French fries
12. Chicken wings
13. Chicken leg
14. Vegetables
15. Seafood
16. Fish
17. Steak
18. Pizza
19. Roast Chicken
20. Baking (cakes)
21. Dehydrate
22. Thaw

ACCESSORIES

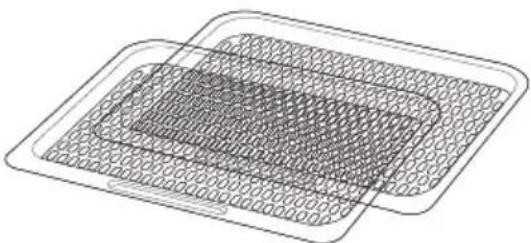

1. Crisper tray (x2)

Diagram of two nested rectangular panels with a mesh pattern, no text or symbols present

Can be used for dehydration, and can also be used to make crispy snacks or reheat foods such as pizza.

2. Oil drip tray

When cooking, put a drip pan for easy cleaning. Be sure to use a drip pan when cooking.

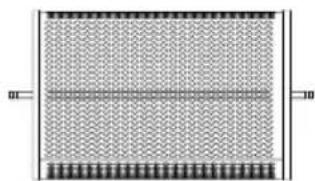

3. Rotating grid basket

Pure diagram of a grid pattern with no text, numbers, or symbols

Is suitable for French fries, roasted nuts and other snacks. Put the basket into the oven with pliers and remove the basket from the oven after baking.

4. Barbecue fork

Are used for roast chicken and whole chicken. Put the meat shaft longitudinally through the center of the meat. Slide the fork from both ends onto the shaft, and then onto the meat. Lock in place with the set screw. There are dents on the shaft for fixing screws. You can adjust the screw closer to the center of the shaft, but never more than the indentation. Note: make sure the roast chicken or chicken rotates freely in the machine.

5. Screws

For fastening to the barbecue stick. It is used with rotating basket and barbecue fork.

6. Holding pliers

Pure zigzag line drawing without any text, numbers, or symbols

Are used to insert and remove food prepared on the Rotating grid basket or Barbecue fork. Place the pliers under the baking stick, lift the food from the left, and then take it out gently.

WARNING

Metal parts will become very hot during use, so great care should be taken to avoid personal injury. Wear oven protective gloves or gloves.

HOW TO ASSEMBLE ROTATING BASKET AND BARBECUE FORK

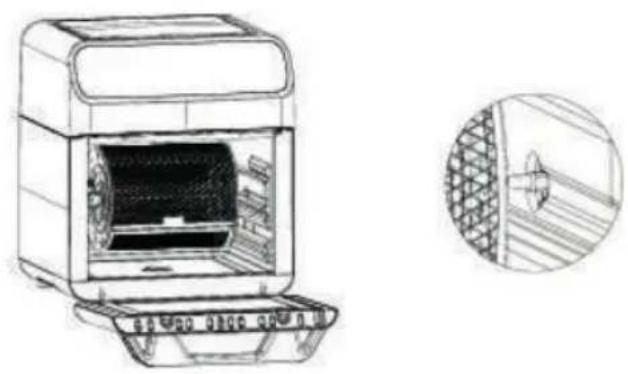

1. First insert the right side of the assembled rotating basket or barbecue fork into the shaft socket. Make sure that the shaft is in position for rotation.

Line drawing of a portable oven with internal shelves and a side-view inset showing a fan installation (no text or symbols)

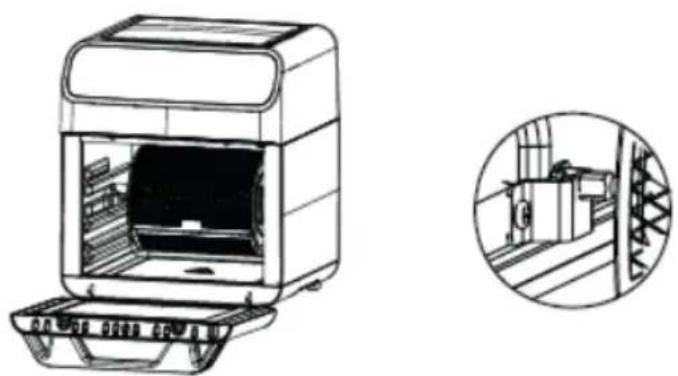

1. Place the left side on the support frame.

Technical line drawing of a portable kitchen appliance with open door and side view showing internal components (no text or symbols)

SAFETY INSTRUCTIONS

If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

Keep the appliance and its cord out of reach of children less than 8 years.

Appliances are not intended to be operated by means of an external timer or separate remote-control system. Disconnect the appliance when it is not in use and before cleaning it. Let it cool before putting on, taking off parts and cleaning it Do not submerge the appliance in water or any other liquid.

This appliance is intended for use at a maximum altitude of 2000m above sea level.

IMPORTANT WARNINGS

This appliance is designed exclusively for domestic use, in no case should be a commercial or industrial use. Any incorrect use or improper handling of the product shall render the warranty null and void.

Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label.

Place the appliance on a flat even surface. The mains connection cable must not be tangled or wrapped around the product during use.

Do not use the device, or connect and disconnect to the supply mains with the hands and/or feet wet. Do not pull on the connection cord in order to unplug it or use it as a handle.

IMPORTANT. When operating this Air Fryer, keep at least ten centimeters of free space on all sides of the oven to allow for adequate air circulation.

DO NOT place your Air Fryer under cupboards, blinds or curtains. Risk of overheating / fire.

Do not cover any part of the Fryer with a cloth or similar, it will cause overheating. Risk of fire.

This is an AIR FRYER. It requires very little oil to cook. Do not fill the pot with oil or fat as this may cause a fire hazard.

Do not use any accessories other than manufacturer recommended accessories in this Air Fryer. Always wear protective, insulated oven gloves when inserting or removing items from the hot Air Fryer.

The appliance must be used on a level, stable heat-resistant surface.

The first time you use your Air Fryer there may be a slight odor or a small amount of smoke given off. This is normal and is just the manufacturing residues burning off.

Always place the ingredients to be fried in the basket to prevent it from coming into contact with the heating elements.

Unplug the product immediately from the mains in the event of any breakdown or damage and contact an official technical support service.

In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand's Official technical support service may carry out repairs or procedures on the device.

B&B TRENDS SL. disclaims all liability for damages that may occur to people, animals or objects, for the non-observance of these warnings.

BEFORE ITS FIRST USE

Remove all packing materials and stickers from the inside and outside of the Air Fryer. Gently wipe down exterior with a damp cloth or paper towel.

WARNING: Do not use abrasive cleaning agents or scouring pads.

WARNING: Never immerse the Air Fryer or its plug in water or any other liquids.

HOW TO USE

1) Connect the mains plug to an earthed wall socket.

2) Press the power button (10) to turn on the Air Fryer. All lights will be on and a beep will sound. To turn it off press again power button. After 30 seconds with no action the machine will shut down automatically. In standby mode the power button (10) is blinking.

3) Preset programs:

This Air Fryer have 12 preset programs.

Icons Preset Time Temperature
	French fries 14 minutes 200°C
	Chicken wings 12 minutes 180°C
	Chicken leg 20 minutes 180°C
	Carrot * 35 minutes 200°C
	Seafood 12 minutes 180°C
	Fish 15 minutes 180°C
	Steak 10 minutes 190°C
	Pizza 8 minutes 150°C
	Roast Chicken	30 minutes	200°C
	Baking (cakes)	12 minutes 190°C
	Dehydrate	20 minutes	130°C
	Thaw 8 minutes	80°C

* For broccoli decrease the time to 18 min.

NOTE: Keep in mind that these settings are indications. As ingredients differ in origin, size, shape as well as brand, we cannot guarantee the best setting for your ingredients.

This table is only a guide and does not contain exact recipes.

To select your desired program press the menu selection button (9), the first program (French frites) will blink. The temperature and time preset for this program will be displayed on the display screen. Any time you press the menu button (9) the program will change from left to right. To confirm the program selected and start cooking press the Start/Pause button (6).

You can always modify the preset values (Time and temperature) of each program. Before confirm the program press the Time/Temperature setting button (8) once for temperatu-

re, and the value will bink on the display screen, then press – (2) or + (5) buttons to decrease or increase the temperature. To modify the time of the program press twice the Time/Temperature setting button (8) and decrease or increase the time in the same way.

You also can adjust the time and temperature during the program pressing the Time/Temperature setting button (8).

Temperature can be setted from 65^ to 200 (from 5^ each time), time from 1-60 min (from 1 min each time).

At any time of the program press the Start/Pause button (6) to pause it and stop cooking. The button will blink. To restart cooking press the button again.

During cooking you can always open the door of the Air fryer (The display will show "OPEN") and the program will be stopped. Once you close the door again the program will start from the same time it was.

When the preset time is finished the Air fryer will show "END" on the display and you can hear 5 beeps which means the program has finished.

Key 7 is an internal light. You can press key 7 at any time during machine operation. The internal light is on and key 7 flashes. When the door is opened, the light will also be on.

Key 1 is a rotation button. In any cooking mode, you can press key 1, and the internal rotating shaft / potato chip cage will rotate. In the working mode, the 1-key light flashes.

COOKING TIPS

• Almost any food that is traditionally cooked in the oven can be air fried.
• Foods cook best and most evenly when they are of similar size and thickness.
• Smaller pieces of food require less cooking time than larger pieces.
• For best results in the shortest amount of time, air fry food in small batches. Avoid stacking or layering when possible.
• Most prepackaged foods do not need to be tossed in oil before air frying. Most already contain oil and other ingredients that enhance browning and crispiness
• Frozen appetizers air fry very well. For best results, arrange them on the tray in a single layer.
• If layering foods, be sure to shake the basket halfway through (or flip food) to promote even cooking.
• Toss foods you are preparing from scratch, such as French fries or other vegetables, with a small amount of oil to promote browning and crispiness.
• When air frying fresh vegetables, make sure to pat them dry completely before tossing with oil and air frying to ensure maximum crispiness.
• Air fryers are great for reheating food, including pizza. To reheat your food, set the temperature to 150^ for up to 10 minutes.

CLEANING AND MAINTENANCE

• Ensure the Air Fryer is unplugged and cool before cleaning.
• Use a clean, dry cloth to clean the inside. Do not use a wet cloth to prevent water from getting inside the appliance.

Warning: Do not use abrasive cleaning agents or scouring pads.

- Gently wipe down exterior with a damp cloth or paper towel.

• Never immerse the Air Fryer or its plug in water or any other liquid.
• Dry all parts thoroughly before storage.
• Store the Air Fryer in a cool, dry place.

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection center closest to your home.

FRANÇAIS

NOUS VOUS REMERCIONS D'AVOIR CHOISI UFESA, NOUS SOUHAITONS QUE CE PRODUIT VOUS APPORTE SATISFACTION ET VOUS FASSE PLAISIR.

AVERTISSEMENT

VEUILLEZ LIRE ATTENTIVEMENT LE MODE D'EMPLOI AVANT D'UTILISER LE PRODUIT. VEUILLEZ CONSERVER CE DOCUMENT DANS UN ENDROIT SÛR POUR UN USAGE ULTÉRIEUR.

DESCRIPTION

Diagram of two overlapping rectangular grids with mesh patterns, no text or symbols present

Simple line drawing of a rectangular container with two concentric ovals (no text or symbols)

Pure grid pattern with no text, numbers, or symbols

Technical line drawing of a portable oven with internal components and a close-up inset showing a mesh structure (no text or symbols)

Technical line drawing of a portable appliance with internal compartments and a circular inset showing exterior view (no text or symbols)

CONSIGNES DE SÉCURITÉ

Diagram of two overlapping rectangular grids with mesh patterns, no text or symbols present

Simple line drawing of a rectangular container with two concentric ovals (no text or symbols)

Pure grid pattern with no text, numbers, or symbols

Technical line drawing of a portable oven with internal components and a close-up inset showing internal structure (no text or symbols)

Line drawing of a closed microwave oven with internal compartments and a close-up inset showing the exterior wall (no text or symbols)

Diagram of two overlapping rectangular grids with mesh patterns, no text or symbols present

Simple line drawing of a rectangular container with two concentric ovals (no text or symbols)

Pure grid pattern with no text, numbers, or symbols

Technical line drawing of a portable oven with internal shelves and a close-up inset showing a window structure (no text or symbols)

Line drawing of a microwave oven with internal compartments and a close-up inset showing exterior wall structure (no text or symbols)

SICHERHEITSHINWEISE

Diagram of two overlapping rectangular grids with mesh patterns, no text or symbols present

Simple line drawing of a rectangular container with two concentric ovals (no text or symbols)

Pure grid pattern with no text, numbers, or symbols

Pure electrical circuit lines without any symbols

Line drawing of a portable oven with internal shelves and a close-up inset showing a mesh structure (no text or symbols)

Line drawing of a closed microwave oven with internal compartments and a close-up inset showing exterior wall structure (no text or symbols)

Pure electrical circuit lines without any symbols

Line drawing of a portable oven with internal shelves and a close-up inset showing a window structure (no text or symbols)

Line drawing of a microwave oven with open lid and internal compartments, alongside a circular inset showing a cabinet (no text or symbols)

الملحقات

1. درج القرمشة (٢٧)

Diagram of two overlapping rectangular grids with mesh patterns, no text or symbols present

Simple line drawing of a rectangular tray with two concentric ovals (no text or symbols)

Pure diagram of a grid-patterned structure with no text, numbers, or symbols

B&B TRENDS, SL. guarantees compliance of this product, for the use for which it is, during the period established by the legislation in force in the country of sale. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfil or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by B & B TRENDS, SL. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a B&B TRENDS, SL., authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by B&B TRENDS, SL., or the careless or improper use of the same shall render this warranty null and void.

You must keep the purchase invoice, receipt or delivery docket in order to exercise your warranty rights.

For technical service and after-sales care outside the Spanish territory, please submit your query to the point of sale where you purchased the item.

BON DE GARANTIE

Check out your nearest service station at https://sat.ufesa.com/
