USER MANUAL RS64DG5303B1 SAMSUNG

French - Français ......10

German - Deutsch ......19

Dutch - Nederlands......28

Italian - Italiano 37

Hungarian - Magyar 64

Polish - Polski....73

Czech - Čeština....82

Slovakian - Slovenčina......91

Serbian - Srpski......109

Greek - ελληνικά......118

Croation - Hrvatski......136

Albanian - Shqip .....145

User servicing manual

1. You can check where to buy replacement parts at http://samsung.com/support
2. Visit the part purchase site and enter the model code of your product to check the parts available for purchase. The model code is labelled on the outer side of your product.

- You can check the model code and version on the barcode label at the bottom left of the product.

1. For replacement parts, make sure the part name matches that of the illustration in this manual.

- User-serviceable parts are limited to handles (some models only), gaskets, drawers, and hinges.

NOTE

Following the repair by a non-authorised service provider, self-repair or non-professional repair of the product, Samsung is not liable for any damage to the product, any injury or any other product safety issue caused by any attempt to repair the product which does not carefully follow these repair and maintenance instructions. Any damage to the product caused by an attempt to repair the product by any person other than a Samsung certified service provider will not be covered by the warranty.

CAUTION

• The part name listed on the site may di°er from that in this manual. Please make sure you choose the right part name.
• Replacing hinges requires extreme caution because it involves detaching the door.

- Be sure to wear safety gloves while making repairs.

The actual image and provided parts of the refrigerator may differ, depending on the model and the country.

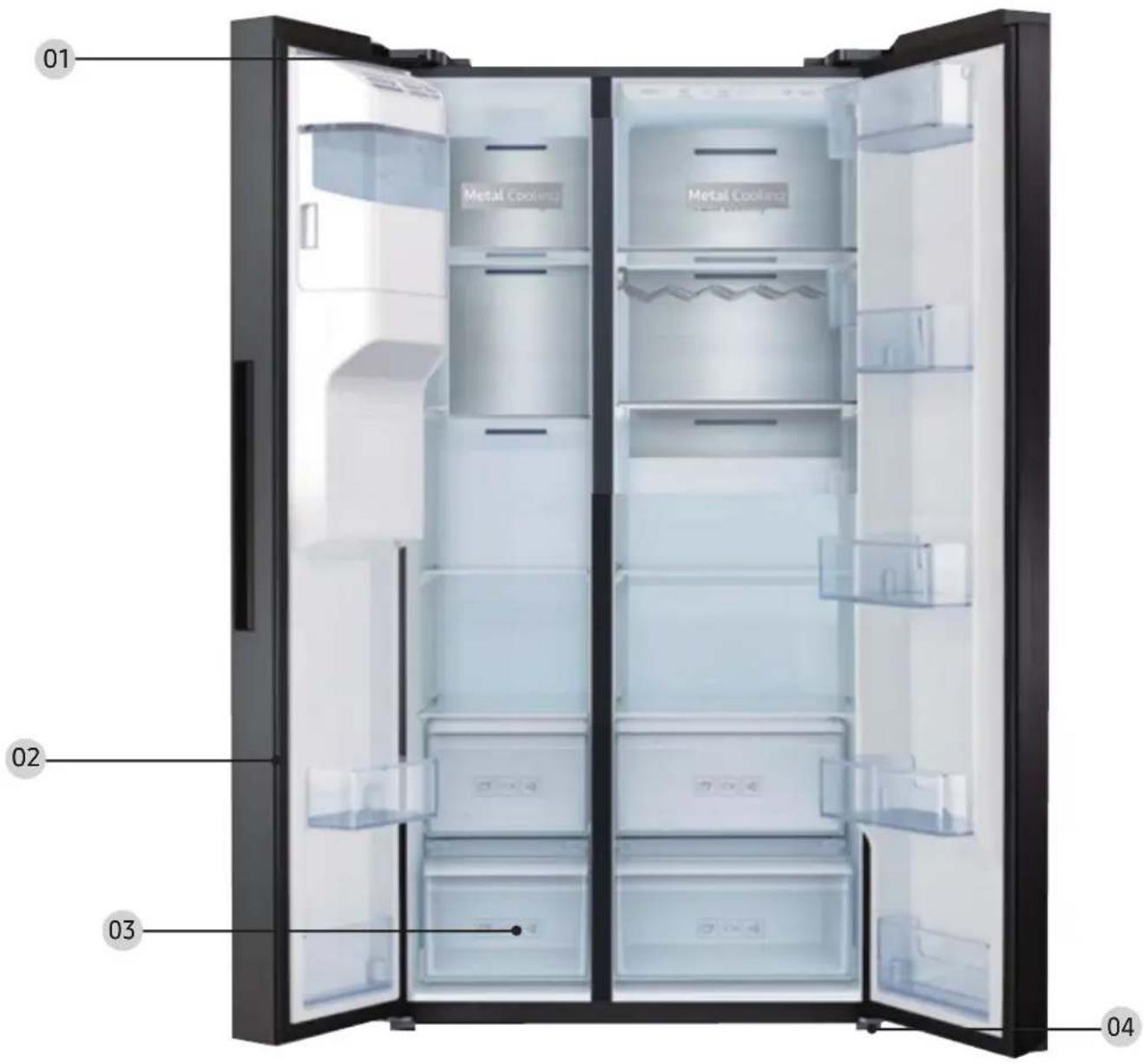

01 Metal Cooling 02 03 04

01 Top hinge (Left and Right) 02 Gasket (Ref and Fre Door)

03 Drawer (Tray and Basket)

04 Bottom hinge (Left and Right)

CAUTION

Make sure you firmly attach the gasket. Otherwise, cold air from the refrigerator may leak.

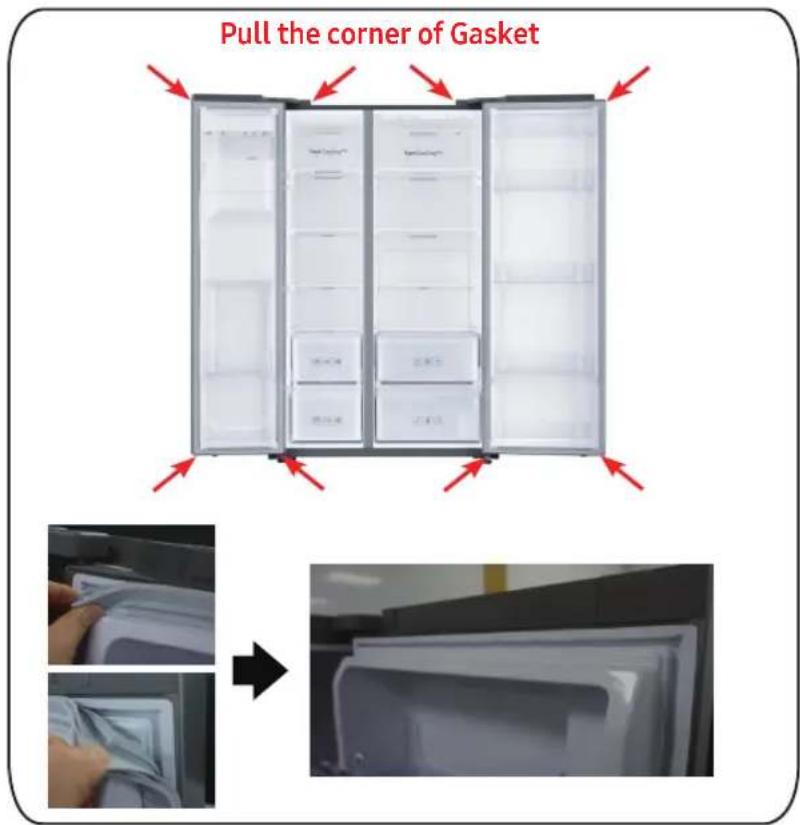

To remove the gasket

Pull the corner of Gasket →

Open the door and remove the gasket from the door.

[Disassembly]

1. Pull the 4 corners of gasket.
2. Pull the center of gasket.

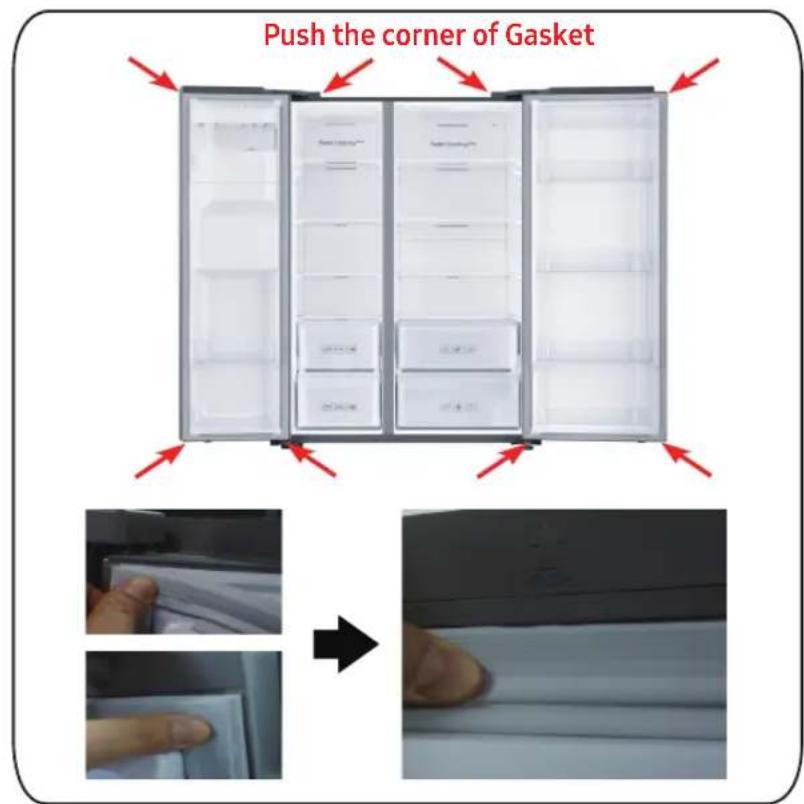

To replace the gasket

Push the corner of Gasket →

Attach a new gasket to the refrigerator door.

Make sure there is no gap between the new gasket and the door.

[Assembly]

1. Push the 4 corners of gasket.
2. Push the center of gasket.

Drawer replacement

CAUTION

Check that the drawer is inserted properly into the rail during assembly.

To remove the gasket

Person opening a white plastic refrigerator with a red arrow indicating the handle (no text or symbols visible)

Hand holding a plastic bag with a red arrow pointing to it, placed inside a transparent container (no text or symbols visible)

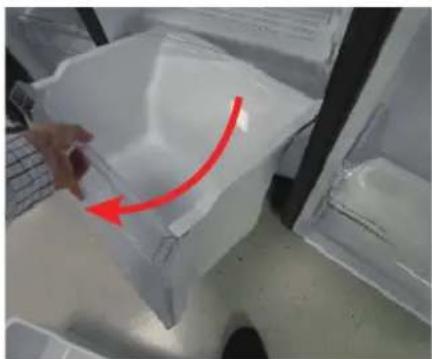

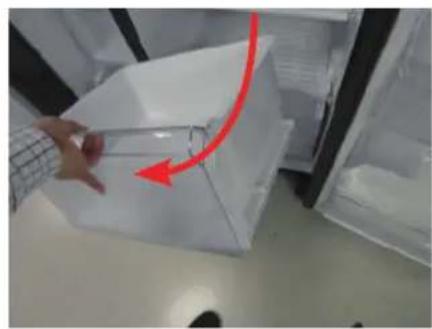

Gently lift up the front of the drawer and slide it out.

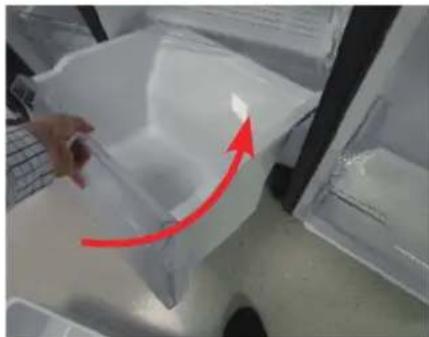

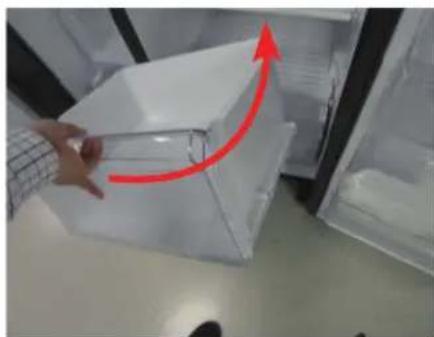

To reattach the drawers

Reattaching the drawers follows the reverse order of their respective removal steps.

Close-up of a hand holding a transparent plastic bag with a red arrow pointing upward, next to a laptop keyboard (no text or symbols visible)

Person handling a transparent plastic container with a red upward arrow, placed inside a refrigerator (no visible text or symbols)

Reattaching the drawers follows the reverse order of their respective removal steps.

Hinge replacement

To replace the hinges, you must remove the doors ÿrst.

CAUTION

• When removing the doors, take extreme caution because the doors are heavy.
• Before replacing the hinges, put a soft pad such as cardboard on the oor to prevent scratches on the door when you place the doors down.
• As the hinges must be handled carefully and replaced by two or more persons, we recommend you to call for professional technical service.
  • If you remove the hinge without holding the door, the door may fall and cause injury.
• Ensure that the shaft is rmly tightened on the hinge.
• Check that the hinge is rmly attached to the cabinet.
• Make sure the wire connectors are connected properly.
• Be careful not to damage the wires when fastening the top cover.

WARNING

• Tilting/laying the refrigerator requires a minimum of 2 people.
• Disconnect the power cord before reversing the doors.

Tools required (not provided)

Philips screwdriver Flat-head screwdriver 11 mm spanner

10 mm socket wrench 8 mm socket wrench 10 mm spanner

Top Hinge

Close-up of a mechanical component with a red circular hole and internal structure (no visible text or symbols)

Hand pressing a button on a computer monitor with a red arrow indicating rotation (no text or symbols visible)

Close-up of a hand holding a yellow and white 3D connector with wires, next to a black electronic device (no visible text or symbols)

Close-up of a mechanical component with three red-circled holes and yellow wiring (no visible text or symbols)

Close-up of a mechanical device with wires and connectors, no visible text or symbols

Close-up of a hand holding a black robotic arm with yellow and blue wires, no visible text or symbols

1. Disconnect the power cord, and remove 1 cover screws using a Phillips screwdriver.

Then open the Freezer door and pull the hooks on the sides to loosen the cover.

Lift up the cover towards you to detach it.

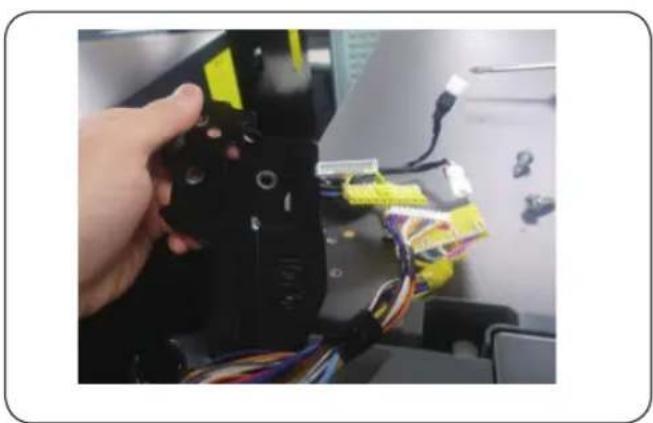

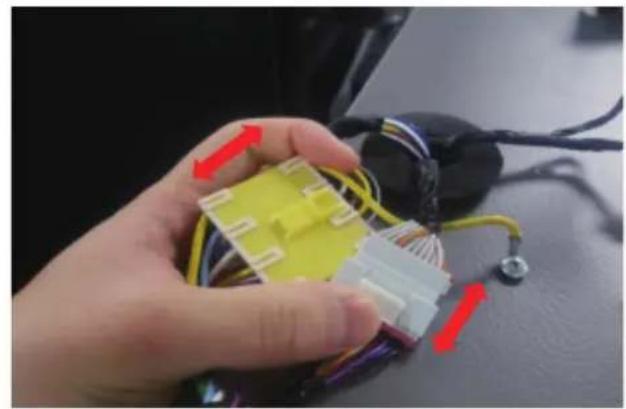

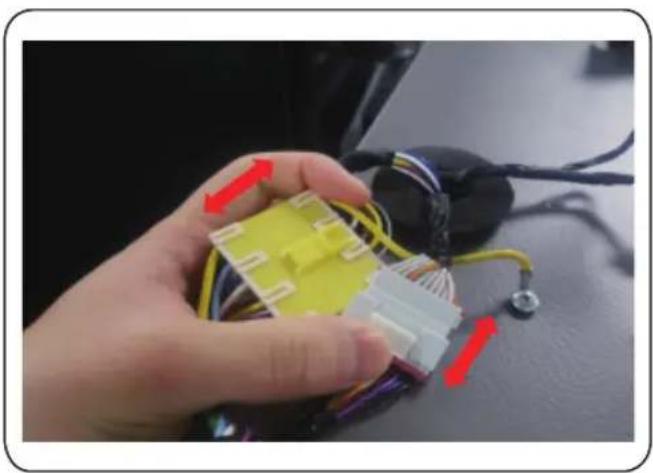

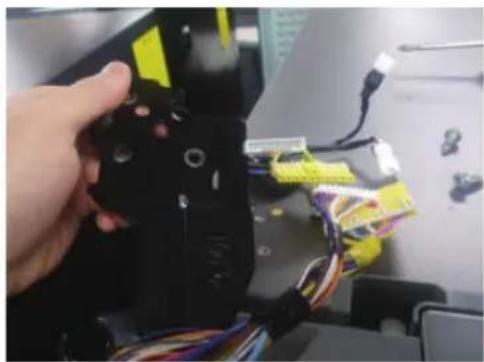

1. Disconnect the two top housings.

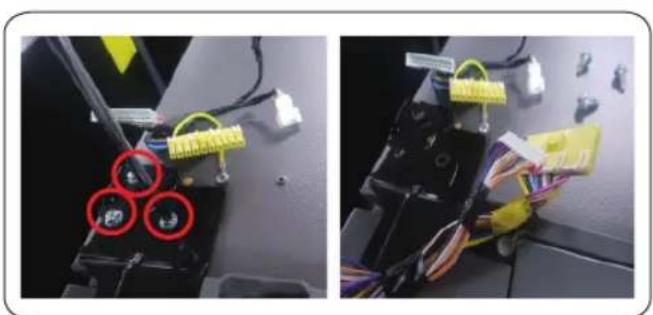

2. Remove the three bolts holding the hinge.

3. Disassemble the top hinge from the front of the door.

Hinge replacement

Model name looks like this: RS64R55**, RS64R56**, RS65R55**, RS65R56**, RS74R55**, RS75R56**, RS63R55**, RS63R56**

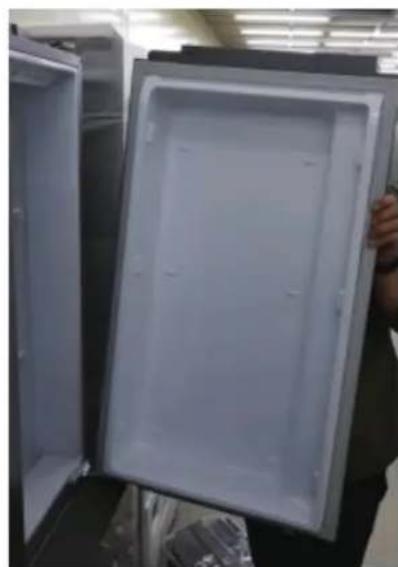

Mid Hinge (Only For 3-Door)

Interior view of a refrigerator with open door, showing front panel and side panels (no text or symbols visible)

1. After disassemble the top hingerihgt, disassemble the Fridge door up.

Close-up of a refrigerator interior showing a metallic handle and screw mechanism, with red circles highlighting specific points (no text or symbols visible)

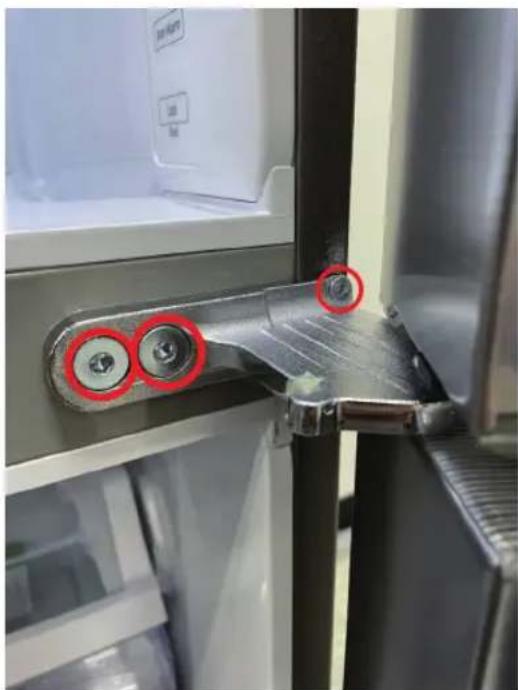

1. Remove the three bolts holding the hinge, disassemble the Hinge-Mid

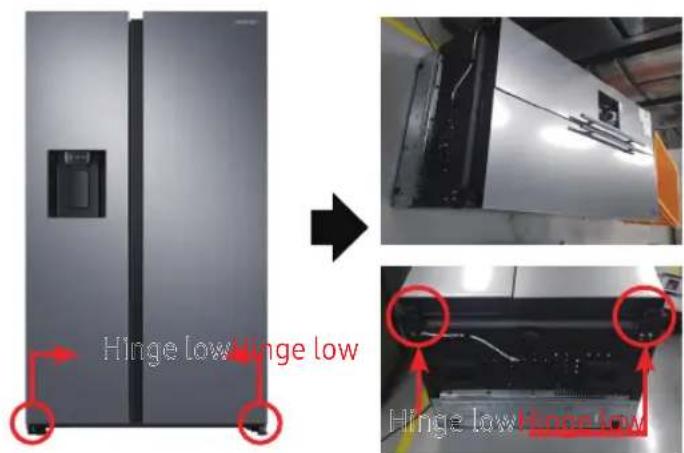

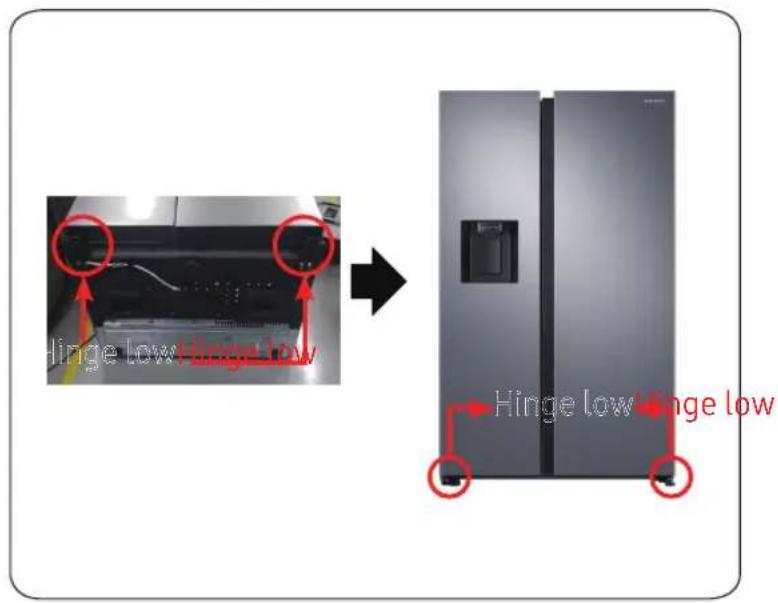

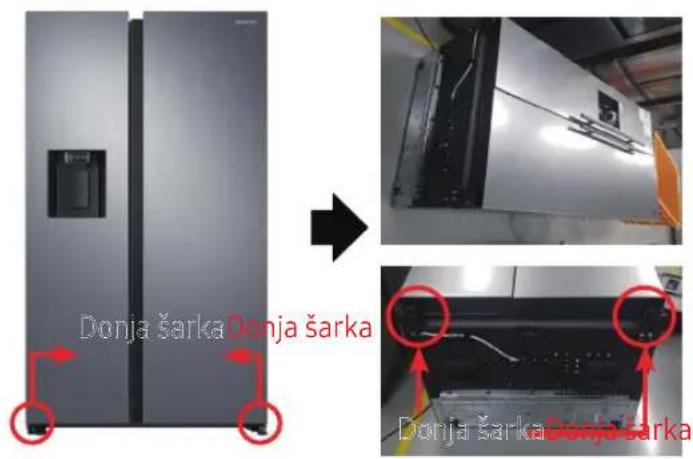

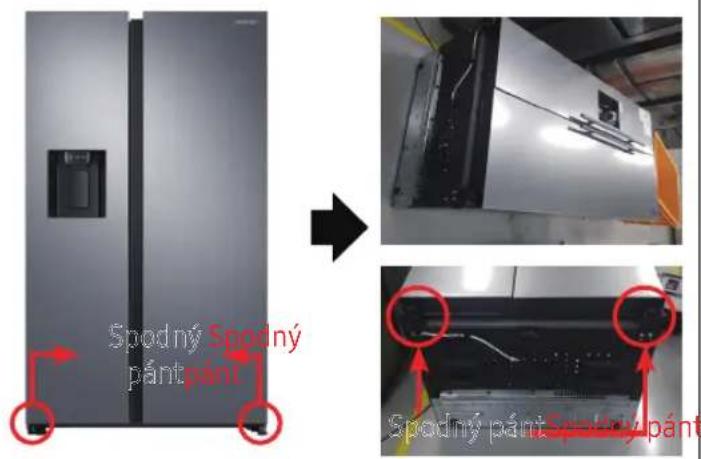

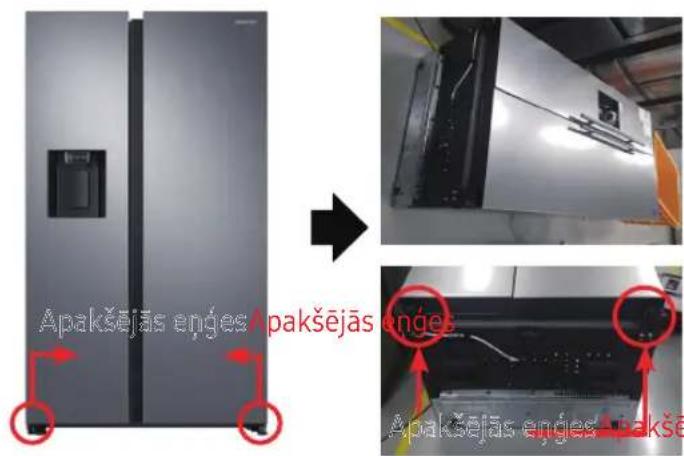

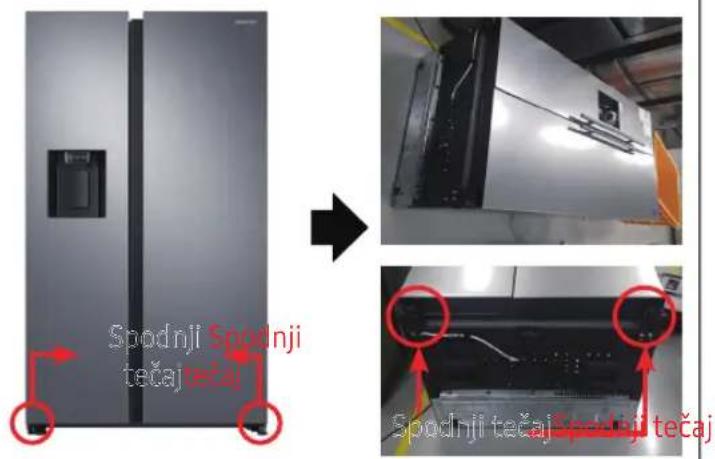

Bottom Hinge

Hinge low hinge low Hinge low hinge low


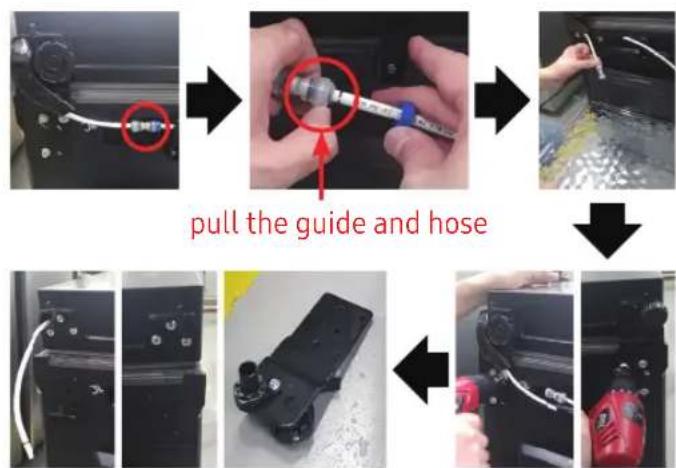

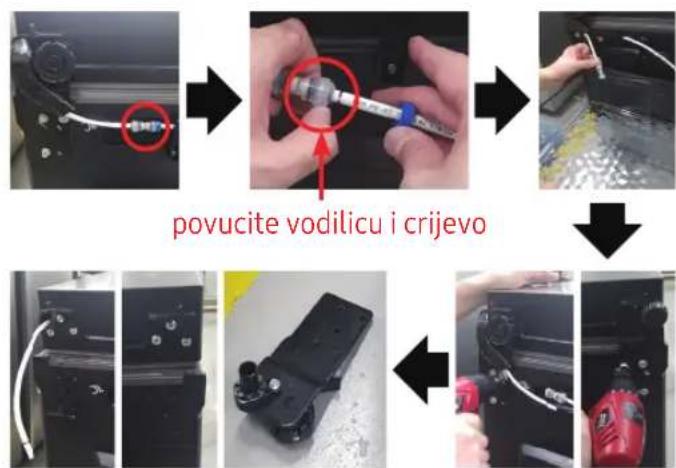

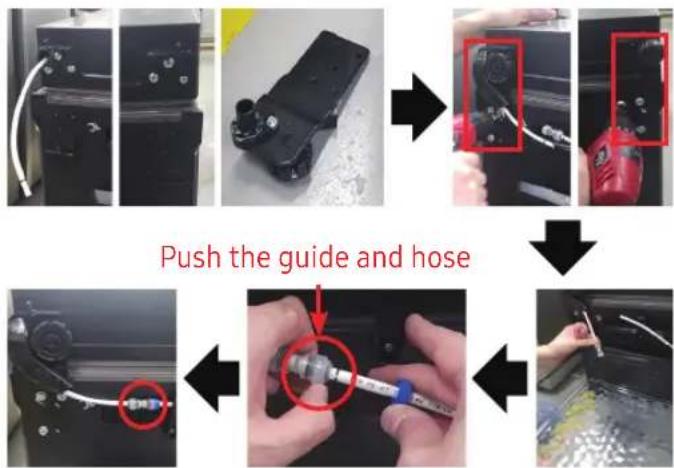

Push the guide and hose

[Disassembly]

1. Disconnect the Power Cord.
2. Lay down the set.

CAUTION

• Must working more than 2 people.
• Be sure to unplug the power cord beforeperforming the operation above.

[Disassembly]

1. DisconnectHose.
   (Only Hinge Low Left)
2. Exhaust water in Hose.
   (Only Hinge Low Left)
3. RemoveBolt(3ea).
   (Using spanner or 10mm Box wrench)
4. Remove Hinge Low R/L.

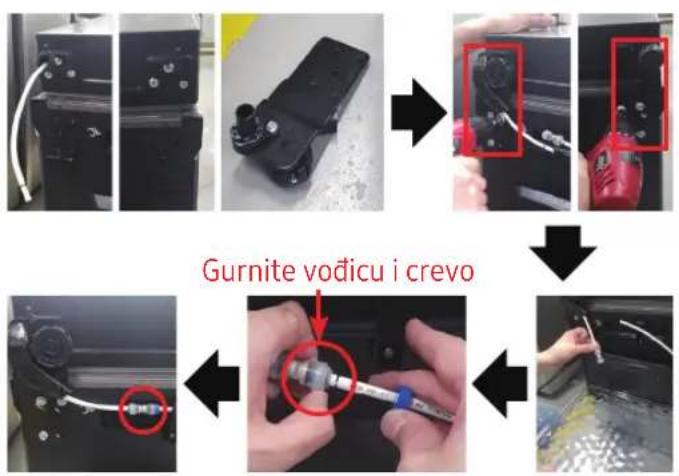

[Assembly]

1. Assemble hinge low on bottom. (Using spanner or 10mm Box wrench)
2. Connect Hose (Only Hinge Low Left)
3. Assemble water in Hose. (Only Hinge Low Left)

CAUTION

- Be sure to unplug the power cord before performing the operation above.

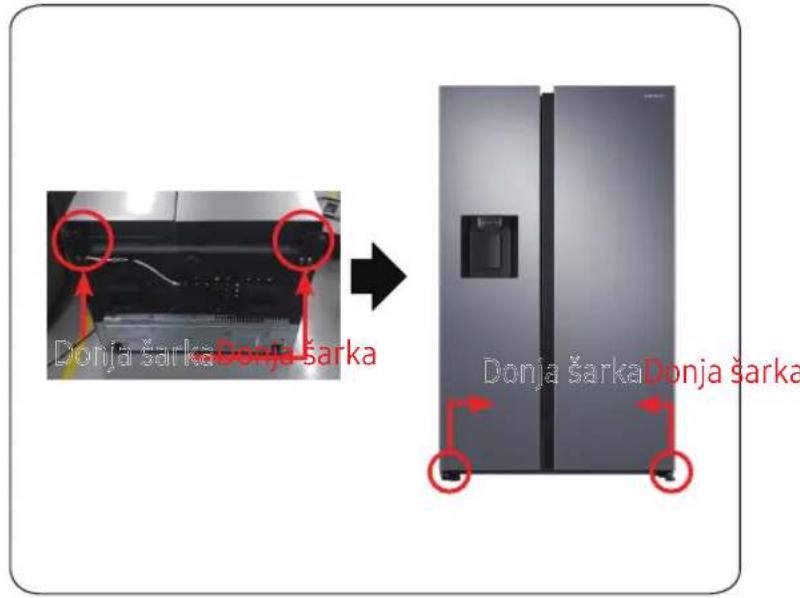

Bottom Hinge

Hinge low hinge low Hinge low hinge low

[Assembly]

1. Assemble Hinge low R/L.
2. Put up the set.

CAUTION

• Must working more than 2 people.
• Be sure to unplug the power cord before performing the operation above.
