Product Type	WiFi Repeater
Brand	TP-Link
Model	RE655BE
Dimensions (approx.)	100 x 60 x 30 mm
Weight (approx.)	150 g
Power Supply	Built-in power supply (direct plug)
WiFi Standards	WiFi 6 (802.11ax) dual band 2.4 GHz and 5 GHz
Maximum Theoretical Speed	Up to 3000 Mbps (574 Mbps on 2.4 GHz + 2402 Mbps on 5 GHz)
Ethernet Ports	1 Gigabit Ethernet port
Buttons	Reset, WPS
Main Functions	WiFi repeating, access point, WiFi client (via Ethernet port)
Configuration	TP-Link Tether app or web browser (http://tplinkrepeater.net)
Safety	Do not expose to water, fire or moisture. Do not open or repair yourself.
Maintenance and Cleaning	Unplug before cleaning. Use a soft, dry cloth.
Spare Parts and Repairability	Device not user-serviceable. No spare parts available.
General Information	2-year manufacturer warranty. Compliant with European directives.

Frequently Asked Questions - RE655BE TP-LINK

How to configure the RE655BE repeater?

You can configure the repeater via the TP-Link Tether app or via a web browser by connecting to the repeater's WiFi network (default SSID: TP-Link_Extender) and accessing http://tplinkrepeater.net.

What to do if I can't access the configuration page?

Make sure your computer is connected to the repeater's network (WiFi or Ethernet). Ensure the IP address is obtained automatically. If the problem persists, use the default IP address 192.168.0.254 or reset the repeater.

How to reset the repeater to factory settings?

Press and hold the RESET button (located on the repeater) for about 10 seconds until all LEDs briefly turn off, then release.

Where to place the repeater for best coverage?

Place the repeater at mid-distance between your router and the area to cover, where the router's WiFi signal is still good (ideally 50% strength).

What is the WiFi network name and password after configuration?

By default, the repeater copies your router's SSID and password. You can customize them during configuration via the app or browser.

Does the repeater have an Ethernet port? What is it used for?

Yes, the RE655BE has a Gigabit Ethernet port. It allows connecting wired devices (TV, console, PC) to the WiFi network via the repeater, or using the repeater in WiFi client mode to connect a non-WiFi Ethernet device.

How to interpret the repeater's LED indicators?

The main LED indicates signal quality: solid green = good connection, orange = average, red = weak or no signal. See the manual for full details.

Can I use the repeater with any router?

Yes, the repeater is compatible with most WiFi routers (802.11 a/b/g/n/ac/ax). It works in universal repeater mode.

How to update the repeater's firmware?

Log into the repeater's web interface, go to System Tools > Firmware Update and follow the instructions. You can also use the TP-Link Tether app.

What to do if the repeater cannot connect to the router?

Make sure the router is on and you entered the correct WiFi password. Try moving the repeater closer to the router during setup. Reset the repeater and start the setup again.

USER MANUAL RE655BE TP-LINK

Quick Installation Guide

Wi-Fi Range Extender

For technical support, replacement services, user guides, and other information, please visit https://www.tp-link.com/support, or simply scan the QR code.

© 2024 TP-Link 7106511130 REV3.2.1

*Images may differ from actual products.

Contents

Deutsch----1

English 4

Español ----7

Ελληνικά----10

Français----13

Italiano 16

Português 19

Suomi 22

Nederlands 25

Svenska----28

Norsk----31

Dansk 34

1 Konfigurieren

oder

→

Icon of a house with Wi-Fi signal inside, no text or symbols present

Methode 2: Per Webbrowser

Line drawing of five electronic devices: monitor, gaming console, desktop computer, wireless router, and network device (no text or symbols)

Set up your extender via one of the methods.

Method 1: Via TP-Link Tether App

Get the up-to-date Tether app, and follow the app instructions to complete the setup.

Or

→

Icon of a house with Wi-Fi signal inside, no text or symbols present

Method 2: Via a Web Browser

1 Plug the extender into an electrical outlet near your router and press the power button if it has one.
2 Connect your computer to the extender.

Via Wireless

Disconnect your Ethernet connection from your computer and connect to the extender's network (e.g. TP-Link_Extender or TP-Link_Extender_XXXX).

Via Ethernet Cable (If the extender has an Ethernet port)

Disable the Wi-Fi on your computer. Connect your computer to the extender via an Ethernet cable.

3 Launch a web browser and enter http://www.tplinkrepeater.net or http://192.168.0.254 in the address bar. Create a password to log in.

4 Follow the instructions on the web page to complete the initial configuration.

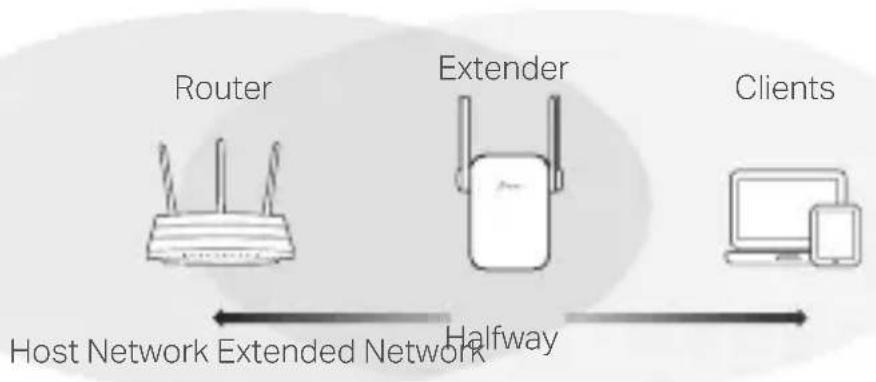

2 Relocate

To achieve better signal quality, plug in the extender halfway between your router and the Wi-Fi dead zone.

Enjoy!

Connect your device to the extender using the extended SSID and Wi-Fi password that you've set during the configuration. The default Wi-Fi password is the same as your host network.

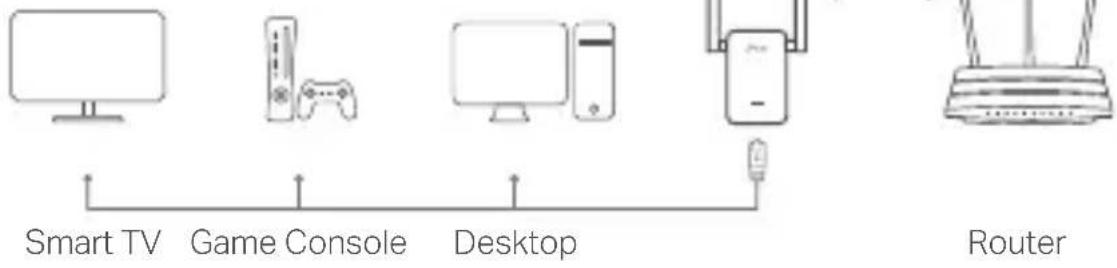

Entertainment Adapter

If your extender has an Ethernet port, it can be used as a wireless adapter to connect any Ethernet-only device such as a Blu-ray player, game console, DVR, or smart TV to your Wi-Fi network.

First, connect the extender to your router, then connect your Ethernet-only device to the extender via an Ethernet cable.

Ethernet Connection

FAQ (Frequently Asked Questions)

Q1 Why can't I see the login page after entering http://www.tplinkrepeater.net in the browser?

A1: Make sure your computer is connected to the extender either via the extended SSID or via an Ethernet cable (if the extender has an Ethernet port).

A2: Make sure your computer is set to obtain an IP address automatically.

A3: Use the IP address to access the extender. The default IP is 192.168.0.254. If the extender is connected to the router, you should go to your router's DHCP client list to obtain the extender's current IP address.

A4: Reset the extender and connect to its wireless network, enter http://www.tplinkrepeater.net or http://192.168.0.254 in a web browser and press Enter.

Q2 How do I reset the extender?

A: With the extender powered on, press the RESET button until the LEDs turn on momentarily, then release the button.

1 Configuración

Simple line drawing of a router with three antennas and a signal icon above (no text or labels)

Smart TV

Videoconsola

Desktop

Router

'H

→

Icon of a house with Wi-Fi signal inside, no text or symbols present

Ou

→

Icon of a house with Wi-Fi signal inside, no text or symbols present

Simple line drawing of a router with two antennas and a signal icon above (no text or symbols)

Routeur

Metodo 2: tramite Browser Web

Ou

Tai

→

Icon of a house with Wi-Fi signal inside, no text or symbols present

Tapa 2: Nettiselaimella

Of

→

Icon of a house with Wi-Fi signal inside, no text or symbols present

Eller

→

Icon of a house with Wi-Fi signal inside, no text or symbols present

Eller

Metode 2: Via a nettleser

1 Koble forsterkeren inn i en stikkontakt i nærheten av ruteren og trykk strømknappen hvis den har en.
2 Koble datamaskinen til forsterkeren.

via trådløst

Eller

Metode 2: Via en web-browser

Line drawings of five electronic devices connected by a cable, including monitor, tower, tower switch, router, and network device (no text or symbols)

Smart-TV Spillekonsol Computer
Router

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
• Do not use the device where wireless devices are not allowed.
• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

For TP-Link Branded Products Only. For the information about warranty period, policy and procedures, please visit https://www.tp-link.com/en/support THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for some period which depends on the local service from the date of original retail purchase by the end-user purchaser.

Español

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives (EU)2015/863, 2014/53/EU, 2009/125/EC and 2011/65/EU.
