RE3000X - Wifi repeater TP-LINK - Free user manual and instructions

Product Type	WiFi Repeater
Brand	TP-Link
Model	RE3000X
WiFi Standards	802.11ax (WiFi 6), backward compatible with 802.11a/b/g/n/ac
Frequencies	Dual band 2.4 GHz and 5 GHz
Maximum Data Rate	Up to 3000 Mbps (574 Mbps on 2.4 GHz + 2402 Mbps on 5 GHz)
Ethernet Port	1 Gigabit port
Power Supply	Built-in power plug (100-240 V AC, 50/60 Hz)
Dimensions	Approx. 86 × 86 × 40 mm
Weight	Approx. 150 g
Buttons	WPS, Reset
LEDs	Signal indicator, power indicator
Configuration Methods	Tether app, web browser (http://tplinkrepeater.net)
Main Functions	WiFi extension, WiFi client mode (via Ethernet port), access point mode
Wireless Security	WPA, WPA2, WPA3 (depending on host router)
Maintenance and Cleaning	Unplug before cleaning; use a dry, soft cloth
Usage Safety	Do not expose to water, fire, humidity; do not disassemble
Operating Temperature	0 °C to 40 °C
Operating Humidity	10% to 90% non-condensing
Warranty	See packaging or TP-Link website (typically 2 years)
Certifications	CE, RoHS
Package Contents	Repeater, quick installation guide, warranty card

Frequently Asked Questions - RE3000X TP-LINK

How to configure the TP-Link RE3000X repeater?

Two methods: via the TP-Link Tether app (downloadable on iOS/Android) or via a web browser by connecting to the repeater's WiFi network (e.g., TP-Link_Extender) and then accessing http://tplinkrepeater.net or 192.168.0.254.

Why can't I access the configuration page?

Make sure your computer is connected to the repeater (WiFi or Ethernet). Check that the IP address is obtained automatically. If the repeater is already connected to the router, use the IP address assigned by the router (viewable in the DHCP client list). As a last resort, reset the repeater by holding the RESET button until the LEDs flash.

How to reset the RE3000X repeater?

Plug in the repeater, then press and hold the RESET button for about 5 seconds until all LEDs briefly turn off and then turn on again. Release the button.

Where to place the repeater for optimal signal?

Plug the repeater halfway between your main router and the area to cover. The signal LED should indicate a strong connection (usually solid blue). Avoid metal obstacles or thick walls.

My repeater shows a red LED, what should I do?

A red LED indicates a poor connection with the router. Move the repeater closer to the router or change its location. You can also restart the configuration via the Tether app or browser.

Can I use the Ethernet port of the repeater?

Yes, the Ethernet port allows connecting a device without WiFi (e.g., TV, console) in WiFi client mode. The repeater acts as a wireless adapter: connect it to the WiFi network, then plug your device via an Ethernet cable.

Is the repeater compatible with my router?

The RE3000X is compatible with any standard WiFi router (802.11 a/b/g/n/ac/ax). It works by repeating the existing WiFi signal, requiring no specific compatibility.

How to change the WiFi network name (SSID) of the repeater?

Log in to the web interface or the Tether app. In the wireless settings, you can change the SSID and password. By default, the repeater copies the SSID of your router.

What if I forget the password for the configuration interface?

Reset the repeater (see previous question). After reset, you can access the interface without a password (or with the default password, often 'admin'). Create a new password during the first login.

Does the repeater support WiFi 6 (802.11ax)?

Yes, the RE3000X is a dual-band WiFi 6 repeater, offering speeds up to 3000 Mbps and better management of connected devices. It is backward compatible with previous standards.

USER MANUAL RE3000X TP-LINK

Quick Installation Guide

Wi-Fi Range Extender

For technical support, replacement services, user guides, and other information, please visit https://www.tp-link.com/support, or simply scan the QR code.

© 2024 TP-Link 7106511130 REV3.2.1

*Images may differ from actual products.

Contents

Deutsch----1

English 4

Español ----7

Ελληνικά----10

Français----13

Italiano 16

Português 19

Suomi 22

Nederlands 25

Svenska----28

Norsk----31

Dansk 34

1 Konfigurieren

Download on the App Store GET ON Google Play

oder

QR code image containing encoded data, no visible human-readable text

→

Icon of a house with Wi-Fi signal inside, no text or symbols present

Methode 2: Per Webbrowser

Diagram showing five connected devices: monitor, router, desktop, tower, and wireless router (no text or labels)

Set up your extender via one of the methods.

Method 1: Via TP-Link Tether App

Get the up-to-date Tether app, and follow the app instructions to complete the setup.

Download on the App Store GET ON Google Play

Or

QR code image containing encoded data, no visible human-readable text

→

Icon of a house with Wi-Fi signal inside, no text or symbols present

Method 2: Via a Web Browser

1 Plug the extender into an electrical outlet near your router and press the power button if it has one.
2 Connect your computer to the extender.

Via Wireless

Disconnect your Ethernet connection from your computer and connect to the extender's network (e.g. TP-Link_Extender or TP-Link_Extender_XXXX).

Via Ethernet Cable (If the extender has an Ethernet port)

Disable the Wi-Fi on your computer. Connect your computer to the extender via an Ethernet cable.

3 Launch a web browser and enter http://www.tplinkrepeater.net or http://192.168.0.254 in the address bar. Create a password to log in.

4 Follow the instructions on the web page to complete the initial configuration.

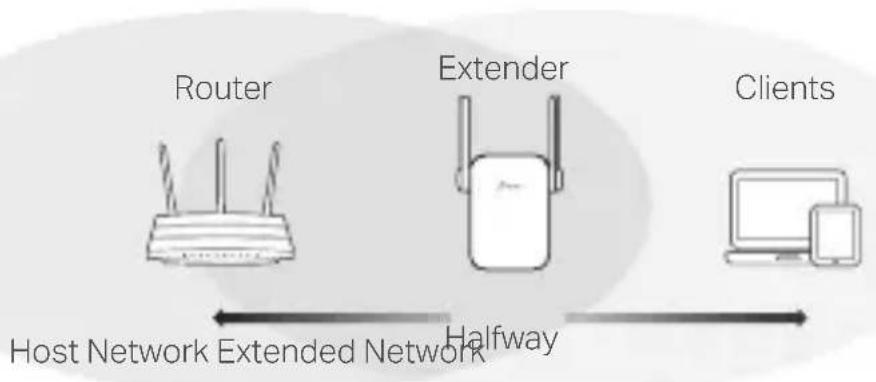

2 Relocate

To achieve better signal quality, plug in the extender halfway between your router and the Wi-Fi dead zone.

Enjoy!

Connect your device to the extender using the extended SSID and Wi-Fi password that you've set during the configuration. The default Wi-Fi password is the same as your host network.

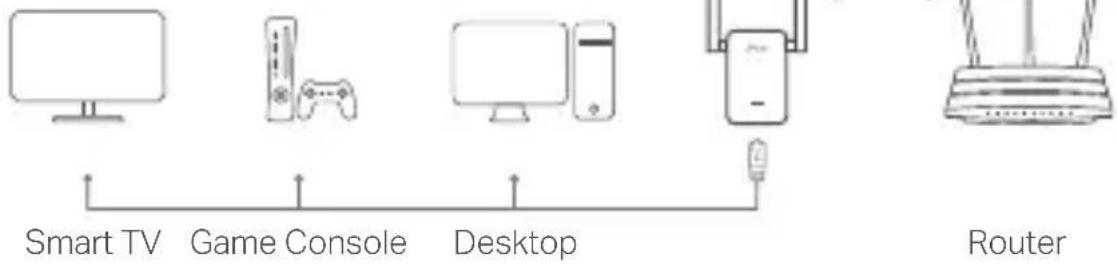

Entertainment Adapter

If your extender has an Ethernet port, it can be used as a wireless adapter to connect any Ethernet-only device such as a Blu-ray player, game console, DVR, or smart TV to your Wi-Fi network.

First, connect the extender to your router, then connect your Ethernet-only device to the extender via an Ethernet cable.

Ethernet Connection

Smart TV Game Console Desktop Router

FAQ (Frequently Asked Questions)

Q1 Why can't I see the login page after entering http://www.tplinkrepeater.net in the browser?

A1: Make sure your computer is connected to the extender either via the extended SSID or via an Ethernet cable (if the extender has an Ethernet port).

A2: Make sure your computer is set to obtain an IP address automatically.

A3: Use the IP address to access the extender. The default IP is 192.168.0.254. If the extender is connected to the router, you should go to your router's DHCP client list to obtain the extender's current IP address.

A4: Reset the extender and connect to its wireless network, enter http://www.tplinkrepeater.net or http://192.168.0.254 in a web browser and press Enter.

Q2 How do I reset the extender?

A: With the extender powered on, press the RESET button until the LEDs turn on momentarily, then release the button.

1 Configuración

Download on the App Store GET ON Google Play

O

QR code image containing encoded data, no visible human-readable text

→

Icon of a house with Wi-Fi signal inside, no text or symbols present

Simple line drawing of a router with three antennas and a signal icon above (no text or labels)

Smart TV

Videoconsola

Desktop

Router

Download on the App Store GET ON Google Play

'H

QR code image containing encoded data, no visible human-readable text

→

Icon of a house with Wi-Fi signal inside, no text or symbols present

Download on the App Store GET ON Google Play

Ou

QR code image containing encoded data, no visible human-readable text

→

Icon of a house with Wi-Fi signal inside, no text or symbols present

Diagram showing four connected devices: monitor, remote control, desktop computer, and router with power cable connections.

Simple line drawing of a router with two antennas and signal waves (no text or symbols)

Routeur

Download on the App Store Oppure GET ON Google Play

Metodo 2: tramite Browser Web

Diagram showing five connected devices: monitor, controller, desktop, wireless router, and network switch.

Download on the App Store GET ON Google Play

Ou

Image showing a QR code transforming into a house icon with Wi-Fi symbol, likely for mobile app or smart home access.

Download on the App Store GET ON Google Play

Tai

QR code image containing encoded data, no visible human-readable text

→

Icon of a house with Wi-Fi signal inside, no text or symbols present

Tapa 2: Nettiselaimella

Download on the App Store GET ON Google Play

Of

QR code image containing encoded data, no visible human-readable text

→

Icon of a house with Wi-Fi signal inside, no text or symbols present

Download on the App Store GET ON Google Play

Eller

QR code image containing encoded data, no visible human-readable text

→

Icon of a house with Wi-Fi signal inside, no text or symbols present

Download on the App Store GET ON Google Play

Eller

Image showing a QR code transforming into a house icon with Wi-Fi symbol, likely for mobile app or smart home access.

Metode 2: Via a nettleser

1 Koble forsterkeren inn i en stikkontakt i nærheten av ruteren og trykk strømknappen hvis den har en.
2 Koble datamaskinen til forsterkeren.

via trådløst

Download on the App Store GET ON Google Play

Eller

Image showing a QR code transforming into a house icon with Wi-Fi symbol, likely for mobile app or smart home access.

Metode 2: Via en web-browser

Line drawings of five electronic devices connected by a cable, including monitor, tower, tower switch, wireless router, and network device (no text or symbols)

Smart-TV Spillekonsol Computer
Router

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
• Do not use the device where wireless devices are not allowed.
• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

For TP-Link Branded Products Only. For the information about warranty period, policy and procedures, please visit https://www.tp-link.com/en/support THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for some period which depends on the local service from the date of original retail purchase by the end-user purchaser.

Español

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives (EU)2015/863, 2014/53/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at https://www.tp-link.com/en/ce.
