RE230 - Wifi repeater TP-LINK - Free user manual and instructions

Product Type	WiFi Repeater
Brand	TP-Link
Model	RE230
Dimensions (approx.)	100 x 60 x 30 mm
Weight (approx.)	200 g
Power Supply	Integrated power plug
WiFi Standards	802.11 b/g/n
Frequency Bands	2.4 GHz
Maximum Data Rate	300 Mbps
Ethernet Port	1 RJ45 10/100 Mbps port
Main Functions	WiFi extension, access point mode, WiFi client
Configuration Methods	TP-Link Tether app or web browser
Wireless Security	WPA/WPA2-PSK
WPS Button	Yes
Reset Button	Yes
LED Indicators	Signal, Power, Ethernet, WPS
Operating Temperature	0 °C to 40 °C
Operating Humidity	10% to 90% non-condensing
Maintenance and Cleaning	Clean with a dry, soft cloth. Do not use liquids.
Safety	Keep away from water, fire, humidity, or any heat source.
Repairability	Do not disassemble or repair yourself. Contact TP-Link support.
Warranty	Check the terms on the TP-Link website

Frequently Asked Questions - RE230 TP-LINK

How to configure the TP-Link RE230 repeater?

You can configure the repeater via the TP-Link Tether app (available on iOS and Android) or via a web browser by connecting to the repeater's WiFi network (e.g., TP-Link_Extender) and accessing http://www.tplinkrepeater.net. Follow the on-screen instructions.

What if I can't access the configuration page?

Make sure your computer is connected to the repeater's WiFi network or via an Ethernet cable. Check that the IP address is obtained automatically. Try using the default IP address 192.168.0.254. If the problem persists, reset the repeater by holding the RESET button until the LEDs flash.

How to reset the TP-Link RE230 repeater?

With the repeater powered on, press and hold the RESET button (located on the side or back) until all LEDs turn off briefly (about 5 seconds), then release. The repeater will restart with factory settings.

Where to place the repeater for best WiFi coverage?

Place the repeater halfway between your router and the area to cover. Make sure the repeater receives a good signal from the router (at least 50%). Avoid metal obstacles and thick walls.

Is the repeater's WiFi password the same as the router's?

Yes, by default, the repeater copies the router's WiFi password during setup. Thus, your devices automatically connect to the extended network without changing the password.

Can I use the repeater's Ethernet port to connect a wired device?

Yes, the repeater has an Ethernet port that can be used in WiFi client mode. Connect an Ethernet cable between the repeater and a device without WiFi (TV, console, computer) to provide it with internet access via the WiFi network.

What is the default IP address of the TP-Link RE230 repeater?

The default IP address is 192.168.0.254. You can also use the domain name http://www.tplinkrepeater.net to access the configuration page.

How to update the repeater's firmware?

Log into the repeater's administration interface. Go to System Tools then Firmware Upgrade. First download the latest firmware from the TP-Link website, then select the file and click Upgrade. Do not power off during the operation.

What if the repeater does not connect to my WiFi router?

Check that the router is on and the WiFi password is correct. Make sure the repeater is within range of the router (ideally less than 15 meters). Reset the repeater and restart the setup. If the problem persists, check the router's security settings (must be WPA/WPA2).

How to check the signal strength between the repeater and the router?

On the repeater, the signal LEDs indicate the connection quality: more LEDs lit means a better signal. You can also access the web interface and check the Status section to see the signal strength as a percentage.

USER MANUAL RE230 TP-LINK

Quick Installation Guide

Wi-Fi Range Extender

For technical support, replacement services, user guides, and other information, please visit https://www.tp-link.com/support, or simply scan the QR code.

© 2024 TP-Link 7106511130 REV3.2.1

*Images may differ from actual products.

Contents

Deutsch----1

English 4

Español ----7

Ελληνικά----10

Français----13

Italiano 16

Português 19

Suomi 22

Nederlands 25

Svenska----28

Norsk----31

Dansk 34

1 Konfigurieren

oder

Icon of a house with Wi-Fi signal inside, no text or symbols present

Methode 2: Per Webbrowser

Diagram showing five connected devices: monitor, router, desktop, tower, and wireless router (no text or labels)

Set up your extender via one of the methods.

Method 1: Via TP-Link Tether App

Get the up-to-date Tether app, and follow the app instructions to complete the setup.

Or

→

Icon of a house with Wi-Fi signal inside, no text or symbols present

Method 2: Via a Web Browser

1 Plug the extender into an electrical outlet near your router and press the power button if it has one.
2 Connect your computer to the extender.

Via Wireless

Disconnect your Ethernet connection from your computer and connect to the extender's network (e.g. TP-Link_Extender or TP-Link_Extender_XXXX).

Via Ethernet Cable (If the extender has an Ethernet port)

Disable the Wi-Fi on your computer. Connect your computer to the extender via an Ethernet cable.

3 Launch a web browser and enter http://www.tplinkrepeater.net or http://192.168.0.254 in the address bar. Create a password to log in.

4 Follow the instructions on the web page to complete the initial configuration.

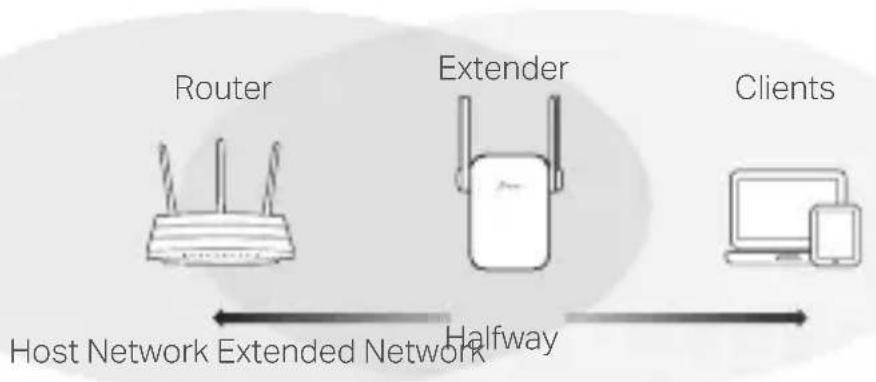

2 Relocate

To achieve better signal quality, plug in the extender halfway between your router and the Wi-Fi dead zone.

Enjoy!

Connect your device to the extender using the extended SSID and Wi-Fi password that you've set during the configuration. The default Wi-Fi password is the same as your host network.

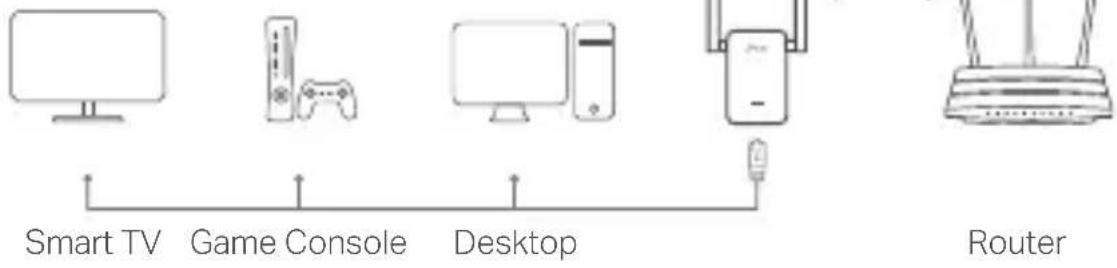

Entertainment Adapter

If your extender has an Ethernet port, it can be used as a wireless adapter to connect any Ethernet-only device such as a Blu-ray player, game console, DVR, or smart TV to your Wi-Fi network.

First, connect the extender to your router, then connect your Ethernet-only device to the extender via an Ethernet cable.

Ethernet Connection

FAQ (Frequently Asked Questions)

Q1 Why can't I see the login page after entering http://www.tplinkrepeater.net in the browser?

A1: Make sure your computer is connected to the extender either via the extended SSID or via an Ethernet cable (if the extender has an Ethernet port).

A2: Make sure your computer is set to obtain an IP address automatically.

A3: Use the IP address to access the extender. The default IP is 192.168.0.254. If the extender is connected to the router, you should go to your router's DHCP client list to obtain the extender's current IP address.

A4: Reset the extender and connect to its wireless network, enter http://www.tplinkrepeater.net or http://192.168.0.254 in a web browser and press Enter.

Q2 How do I reset the extender?

A: With the extender powered on, press the RESET button until the LEDs turn on momentarily, then release the button.

1 Configuración

Simple line drawing of a router with three antennas and a signal icon above (no text or labels)

Smart TV

Videoconsola

Desktop

Router

'H

→

Icon of a house with Wi-Fi signal inside, no text or symbols present

Ou

→

Icon of a house with Wi-Fi signal inside, no text or symbols present

Diagram showing four connected devices: monitor, remote control, desktop computer, and router (no text or symbols)

Simple line drawing of a router with two antennas and signal waves (no text or symbols)

Routeur

Metodo 2: tramite Browser Web

Ou

Tai

→

Icon of a house with Wi-Fi signal inside, no text or symbols present

Tapa 2: Nettiselaimella

Of

→

Icon of a house with Wi-Fi signal inside, no text or symbols present

Eller

→

Icon of a house with Wi-Fi signal inside, no text or symbols present

Eller

Metode 2: Via a nettleser

1 Koble forsterkeren inn i en stikkontakt i nærheten av ruteren og trykk strømknappen hvis den har en.
2 Koble datamaskinen til forsterkeren.

via trådløst

Eller

Metode 2: Via en web-browser

Line drawings of five electronic devices connected by a cable, including monitor, tower, tower switch, router, and network device (no text or symbols)

Smart-TV Spillekonsol Computer
Router

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
• Do not use the device where wireless devices are not allowed.
• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

For TP-Link Branded Products Only. For the information about warranty period, policy and procedures, please visit https://www.tp-link.com/en/support THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for some period which depends on the local service from the date of original retail purchase by the end-user purchaser.

Español

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives (EU)2015/863, 2014/53/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at https://www.tp-link.com/en/ce.
