Product Type	WiFi Repeater
Brand	TP-Link
Model	RE715X
Configuration	Via TP-Link Tether app or web browser (http://www.tplinkrepeater.net or 192.168.0.254)
Ethernet Port	1 Ethernet port for wired connection or WiFi client mode
Frequency Bands	Dual band (2.4 GHz and 5 GHz)
Power Supply	Direct mains plug, typical power consumption 10 W
Dimensions	Approx. 150 x 80 x 40 mm
Weight	Approx. 200 g
Maintenance	Clean with a dry, soft cloth. Do not use abrasive or liquid products.
Safety	Keep away from water, fire, humidity, and heat sources. Do not disassemble or repair yourself.
Reset	Press the RESET button until the LEDs turn off, then release.
Warranty	Manufacturer's warranty, duration indicated on the packaging.
Spare parts	Not available separately. Device not user-serviceable.
Operating Temperature	0 °C to 40 °C

Frequently Asked Questions - RE715X TP-LINK

Why can't I access the authentication page after entering http://www.tplinkrepeater.net ?

Make sure the computer is connected to the repeater (via Wi-Fi or Ethernet) and that it obtains an IP address automatically. Try the IP address 192.168.0.254 or reset the repeater if necessary.

How do I reset the RE715X repeater?

Press and hold the RESET button while the device is powered on until all LEDs briefly turn off, then release it.

How do I change the Wi-Fi network name (SSID)?

Log in to the repeater's web interface (via http://www.tplinkrepeater.net) and modify the Wi-Fi settings in the Wireless section. You can customize the SSID and password.

My repeater won't turn on, what should I do?

Check that the power outlet works and that the repeater is properly plugged in. Try another outlet. If the problem persists, contact TP-Link support.

How do I update the firmware of the RE715X?

Log in to the web interface, go to System Tools > Firmware Update. Download the latest version from the TP-Link website and follow the instructions.

Can I use the repeater without the Tether app?

Yes, you can configure it via a web browser by connecting to the repeater's Wi-Fi network (e.g., TP-Link_Extender) and entering http://www.tplinkrepeater.net.

What is the maximum range of the repeater?

Range depends on the environment. In optimal conditions, it can extend the signal up to 100 meters outdoors and 30 meters indoors. Place it halfway between the router and the area to cover.

Does the repeater work with any router?

Yes, it is compatible with most standard Wi-Fi routers. Simply follow the setup procedure to connect it to the existing network.

How do I know if the repeater is properly connected?

The repeater's LEDs indicate the status: a solid or blinking blue/green LED means a good connection. If the LED is red or off, check the proximity to the router.

Can I connect an Ethernet device to the repeater?

Yes, the Ethernet port can be used to connect a wired device (TV, console, computer) to the Wi-Fi network. Connect the device to the repeater with an Ethernet cable.

USER MANUAL RE715X TP-LINK

Quick Installation Guide

Wi-Fi Range Extender

For technical support, replacement services, user guides, and other information, please visit https://www.tp-link.com/support, or simply scan the QR code.

© 2024 TP-Link 7106511130 REV3.2.1

*Images may differ from actual products.

Contents

Deutsch- 1

English 4

Espanol -7

Eλληνικα- 10

Francais- 13

Italiano 16

Portugues 19

Suomi 22

Nederlands 25

Svenska- 28

Norsk- 31

Dansk 34

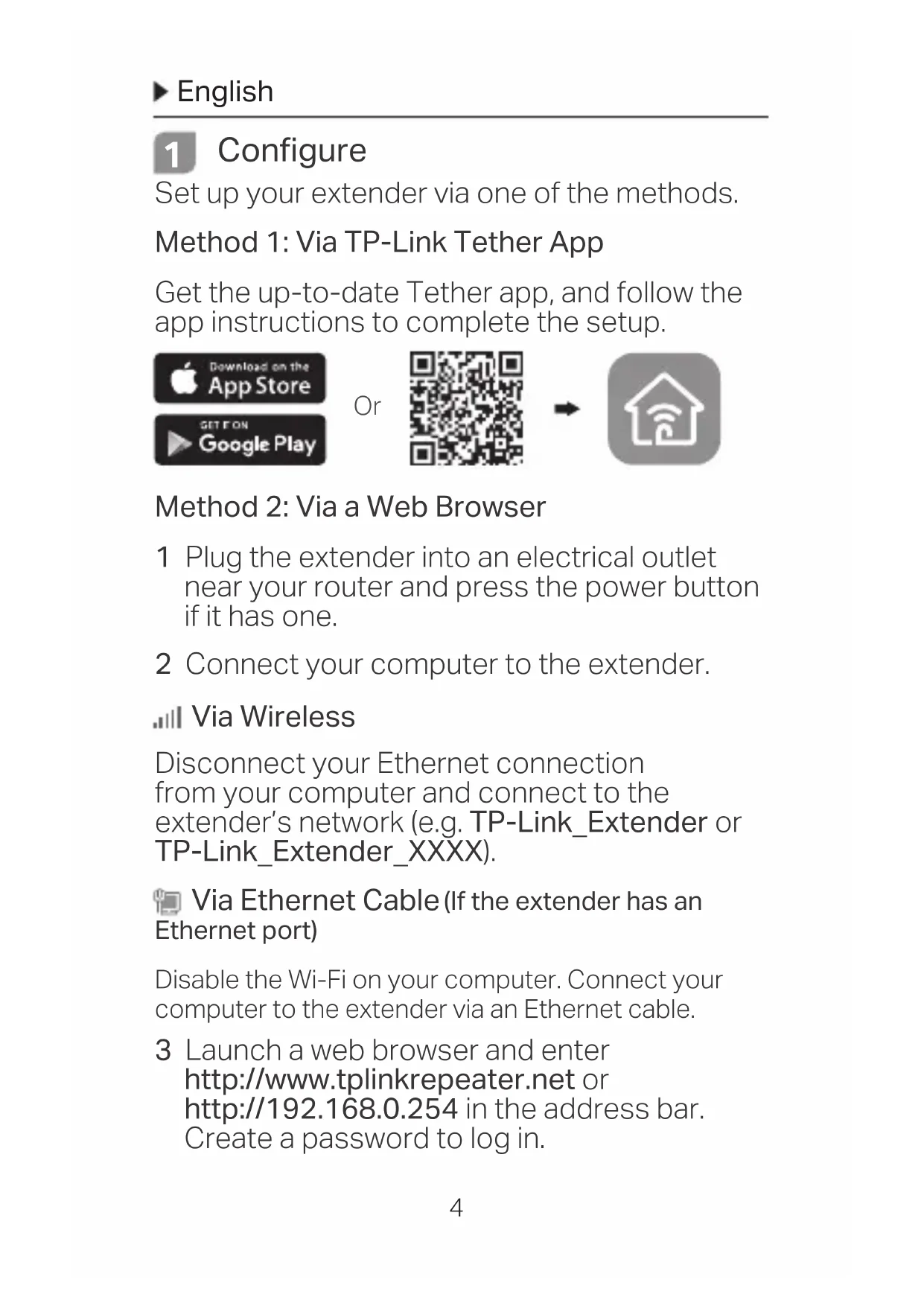

1 Konfigurieren

Set up your extender via one of the methods.

Method 1: Via TP-Link Tether App

Get the up-to-date Tether app, and follow the app instructions to complete the setup.

Method 2: Via a Web Browser

1 Plug the extender into an electrical outlet near your router and press the power button if it has one.
2 Connect your computer to the extender.

Via Wireless

Disconnect your Ethernet connection from your computer and connect to the extender's network (e.g. TP-Link_Extender or TP-Link_Extender_XXXX).

Via Ethernet Cable (If the extender has an Ethernet port)

Disable the Wi-Fi on your computer. Connect your computer to the extender via an Ethernet cable.

3 Launch a web browser and enter http://www.tplinkrepeater.net or http://192.168.0.254 in the address bar. Create a password to log in.

4 Follow the instructions on the web page to complete the initial configuration.

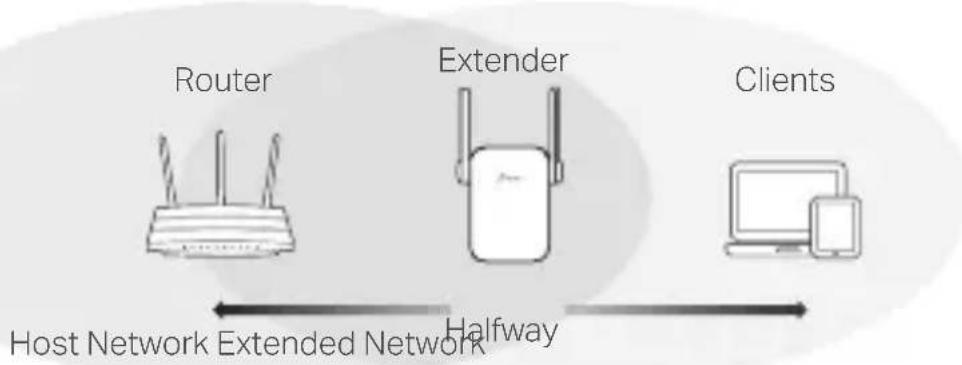

2 Relocate

To achieve better signal quality, plug in the extender halfway between your router and the Wi-Fi dead zone.

Enjoy!

Connect your device to the extender using the extended SSID and Wi-Fi password that you've set during the configuration. The default Wi-Fi password is the same as your host network.

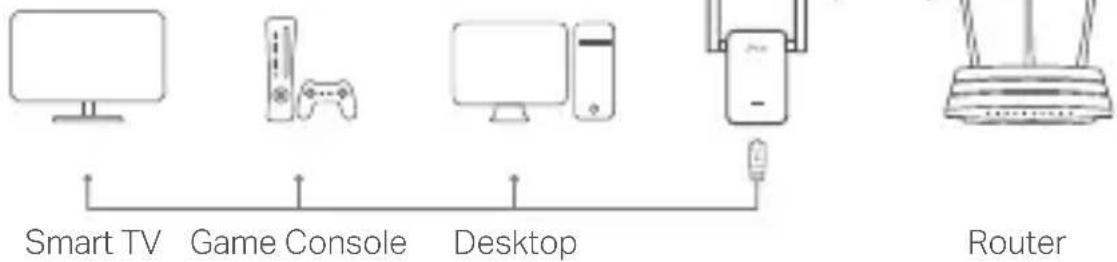

Entertainment Adapter

If your extender has an Ethernet port, it can be used as a wireless adapter to connect any Ethernet-only device such as a Blu-ray player, game console, DVR, or smart TV to your Wi-Fi network.

First, connect the extender to your router, then connect your Ethernet-only device to the extender via an Ethernet cable.

Ethernet Connection

FAQ (Frequently Asked Questions)

Q1 Why can't I see the login page after entering http://www.tplinkrepeater.net in the browser?

A1: Make sure your computer is connected to the extender either via the extended SSID or via an Ethernet cable (if the extender has an Ethernet port).
A2: Make sure your computer is set to obtain an IP address automatically.
A3: Use the IP address to access the extender. The default IP is 192.168.0.254. If the extender is connected to the router, you should go to your router's DHCP client list to obtain the extender's current IP address.
A4: Reset the extender and connect to its wireless network, enter http://www.tplinkrepeater.net or http://192.168.0.254 in a web browser and press Enter.

Q2 How do I reset the extender?

A: With the extender powered on, press the RESET button until the LEDs turn on momentarily, then release the button.

1 Configuración

Configure tu extensor a工程技术 de uno de los métodos.

Método 1: Via App Tether TP-Link

• Keep the device away from water, fire, humidity or hot environments.

• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.

• Do not use the device where wireless devices are not allowed.

• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

For TP-Link Branded Products Only. For the information about warranty period, policy and procedures, please visit https://www.tp-link.com/en/support THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTY, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for some period which depends on the local service from the date of original retail purchase by the end-user purchaser.
