RE615X - Wifi repeater TP-LINK - Free user manual and instructions

Product type	WiFi Repeater
Brand	TP-Link
Model	RE615X
Category	WiFi repeater
Supported frequencies	2.4 GHz and 5 GHz (dual band)
WiFi standards	802.11ac/n/g/b/a
Maximum data rate	Up to 1200 Mbps
Ethernet port	1 RJ45 port 10/100/1000 Mbps
Power supply	Direct plug (100-240V)
Dimensions (approx.)	87 x 60 x 38 mm
Weight (approx.)	200 g
Configuration methods	Tether app (iOS/Android) or web browser
Remote management	TP-Link Tether app
WiFi client function	Yes (via Ethernet port)
WPS button	Yes
Reset button	Yes (recessed)
LED indicators	Signal, power, Ethernet LEDs
Wireless security	WPA/WPA2-PSK, WPA3 (depending on version)
Maintenance	Clean with a dry, soft cloth. Do not use liquids.
Operating temperature	0°C to 40°C
Certifications	CE, RoHS
Warranty	2 years (depending on country)
Package contents	Repeater, quick installation guide, warranty card
Repairability	Spare parts not available. Contact TP-Link support.

Frequently Asked Questions - RE615X TP-LINK

How to configure the RE615X repeater?

You can configure the repeater via the TP-Link Tether app (download it from the App Store or Google Play) or via a web browser by connecting to the repeater's WiFi network (e.g., TP-Link_Extender) and accessing http://www.tplinkrepeater.net.

What to do if I cannot access the configuration page?

Make sure your computer is connected to the repeater (via WiFi or Ethernet). Verify that the IP address is obtained automatically and use the default IP address 192.168.0.254. If the repeater is already connected to the router, check the router's DHCP client list to find the assigned IP address.

How to reset the repeater to factory settings?

Press and hold the RESET button (located on the enclosure) for about 5 seconds until all LEDs blink briefly. Then release the button. The repeater will restart with factory settings.

Where to place the WiFi repeater for better coverage?

Plug the repeater halfway between your router and the area where you want to extend the WiFi. Avoid thick obstacles like concrete walls. Ideally, there should be good signal reception from the router at that location.

Can I connect a wired device to the repeater?

Yes, if your RE615X model has an Ethernet port, you can connect a device (TV, console, computer) via an Ethernet cable. The repeater will then act as a WiFi client for that device.

Does the repeater keep the same WiFi password as the router?

Yes, after configuration, the repeater uses the same SSID and password as your main WiFi network, allowing a smooth transition between the router and the repeater.

How to know if the repeater is properly connected to the router?

The Signal LED (often blue or green) indicates the quality of the link. A steady LED means a stable connection. If the LED blinks or is off, move the repeater closer to the router.

Can I use the repeater with any router?

Yes, the RE615X repeater is compatible with most WiFi routers from different brands. It operates on the 2.4 GHz and 5 GHz bands and supports 802.11 a/b/g/n/ac standards.

Can the repeater work as an access point?

The RE615X is primarily designed as a repeater. For use as an access point, you would need to connect it to the router via Ethernet and configure it in AP mode (if supported). Check the manual to verify available modes.

How to clean and maintain the repeater?

Unplug the device before cleaning. Use a soft, dry cloth to wipe the surface. Never use chemicals or liquids. Avoid exposure to water, excessive heat, and humidity.

USER MANUAL RE615X TP-LINK

Quick Installation Guide

Wi-Fi Range Extender

For technical support, replacement services, user guides, and other information, please visit https://www.tp-link.com/support, or simply scan the QR code.

© 2024 TP-Link 7106511130 REV3.2.1

*Images may differ from actual products.

Contents

Deutsch----1

English 4

Español ----7

Ελληνικά----10

Français----13

Italiano 16

Português 19

Suomi 22

Nederlands 25

Swedish----28

Norwegian----31

Danish 34

1 Configure

or

→

Method 2: Via a Web Browser

Set up your extender via one of the methods.

Method 1: Via TP-Link Tether App

Get the up-to-date Tether app, and follow the app instructions to complete the setup.

Or

→

Method 2: Via a Web Browser

1 Plug the extender into an electrical outlet near your router and press the power button if it has one. 2 Connect your computer to the extender.

Via Wireless

Disconnect your Ethernet connection from your computer and connect to the extender's network (e.g., TP-Link_Extender or TP-Link_Extender_XXXX).

Via Ethernet Cable (If the extender has an Ethernet port)

Disable the Wi-Fi on your computer. Connect your computer to the extender via an Ethernet cable.

3. Launch a web browser and enter http://www.tplinkrepeater.net or http://192.168.0.254 in the address bar. Create a password to log in.

4. Follow the instructions on the web page to complete the initial configuration.

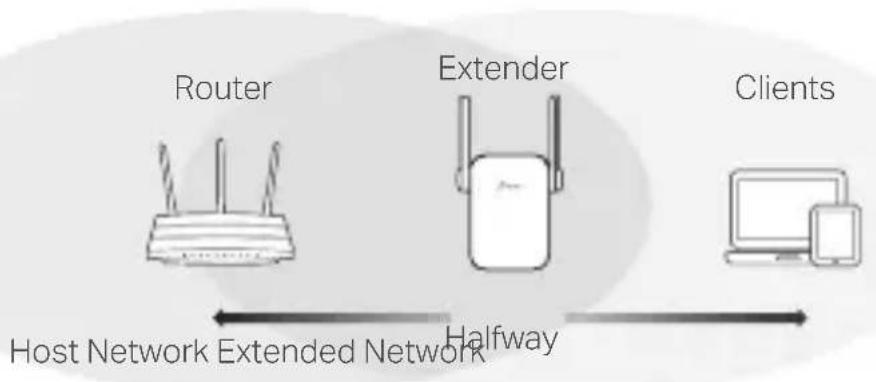

2. Relocate

To achieve better signal quality, plug in the extender halfway between your router and the Wi-Fi dead zone.

Enjoy!

Connect your device to the extender using the extended SSID and Wi-Fi password that you've set during the configuration. The default Wi-Fi password is the same as your host network.

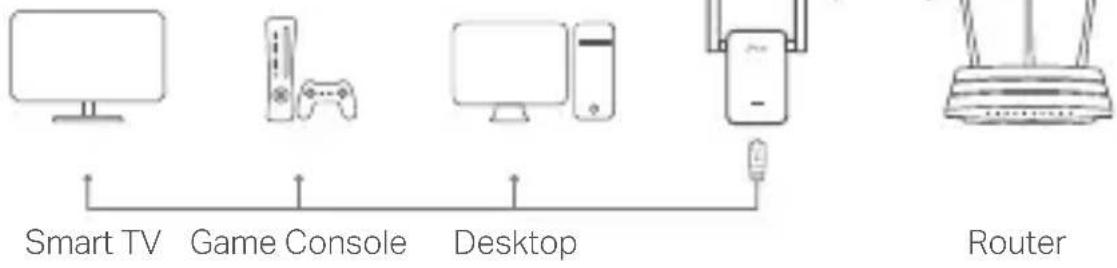

Entertainment Adapter

If your extender has an Ethernet port, it can be used as a wireless adapter to connect any Ethernet-only device such as a Blu-ray player, game console, DVR, or smart TV to your Wi-Fi network.

First, connect the extender to your router, then connect your Ethernet-only device to the extender via an Ethernet cable.

Ethernet Connection

FAQ (Frequently Asked Questions)

Q1: Why can't I see the login page after entering http://www.tplinkrepeater.net in the browser?

A1: Make sure your computer is connected to the extender either via the extended SSID or via an Ethernet cable (if the extender has an Ethernet port).

A2: Make sure your computer is set to obtain an IP address automatically.

A3: Use the IP address to access the extender. The default IP is 192.168.0.254. If the extender is connected to the router, you should go to your router's DHCP client list to obtain the extender's current IP address.

A4: Reset the extender and connect to its wireless network, enter http://www.tplinkrepeater.net or http://192.168.0.254 in a web browser and press Enter.

Q2 How do I reset the extender?

A: With the extender powered on, press the RESET button until the LEDs turn on momentarily, then release the button.

1 Configuration

Smart TV

Video game console

Desktop

Router

Or

→

Router

Method 2: Via Web Browser

Or

You

→

Step 2: Via Web Browser

Of

→

Or

→

Or

Method 2: Via a browser

1. Plug the amplifier into a power outlet near the router and press the power button if it has one. 2. Connect the computer to the amplifier.

via wireless

Or

Method 2: Via a web browser

Smart TV Game console Computer Router

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
• Do not use the device where wireless devices are not allowed.
• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

For TP-Link Branded Products Only. For the information about warranty period, policy and procedures, please visit https://www.tp-link.com/en/support THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for some period which depends on the local service from the date of original retail purchase by the end-user purchaser.

Spanish

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives (EU)2015/863, 2014/53/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at https://www.tp-link.com/en/ce.

Spanish

https://www.tp-link.com/en/ce.

Italian

https://www.tp-link.com/en/ce.

Portuguese
