USER MANUAL Naga 80 Majority

What's In the Box? 3

Basic Information.... 4

Controls and Functions.... 5

Connecting to the Power Outlet.... 7

Display Icons.... 8

Audio Settings.... 9

Instructions Guide.... 10

USB Input.... 10

ARC Input.... 11

Optical Input.... 12

AUX Input.... 13

Bluetooth.... 14

Troubleshooting.... 15

Specification.... 16

Warranty.... 16

Support.... 16

Regulatory Information.... 17

Safety Information.... 18

EU Declaration of Conformity.... 19

What's in the Box?

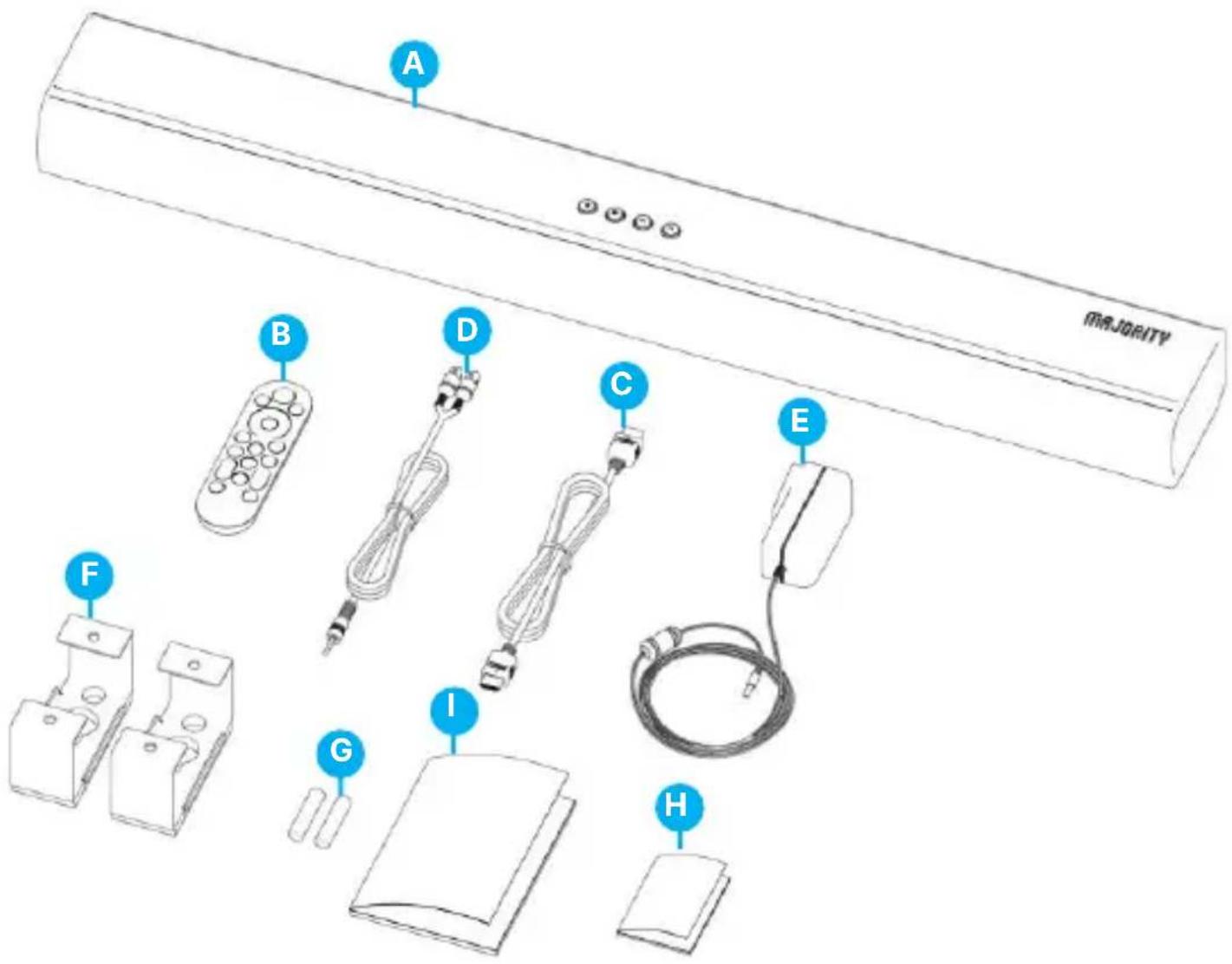

A. Majority NAGA 80 Soundbar
B. Remote Control
C. ARC Cable
D. 3.5mm to RCA stereo audio cable
E. Power Adaptor

F. Wall mount bracket x 2
G. 2 × AAA batteries
H. Welcome Guide
I. User Manual

A B D C E F G I H MAJORITY

Note: Remote control (B) requires 2 x AAA batteries (included). It is recommended to use alkaline or heavy-duty batteries as this will ensure a longer playtime.

Automatic Power Off Function

The Majority NAGA 80 will automatically go into Standby Mode after 180 minutes of no audio signal/sound received from the device that is connected with, or if the TV/ device is switched off.

Installing the Soundbar to the Wall

This part of instruction shows those steps on preparing the installation of the Soundbar before hanging it on the wall.

Distance between 2 wall-mount pillars at the rear panel of the soundbar.

Pure electrical circuit lines without any symbols

654mm

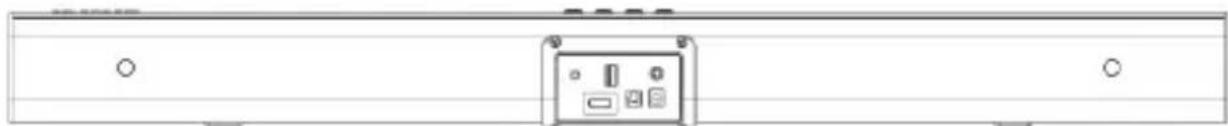

A. Mark and drill 4 holes with 654mm distance in same horizontal level.

Wall-Mount Brackets

Pure 3D coordinate system diagram with arrows and geometric shapes, no text or symbols present

i. Mark the position of 4 holes and drill holes accordingly.

ii. Insert 4 pcs of screws into 2 wall-mount brackets and fix them.

Place the soundbar to the wall-mount brackets as figure shown below.

Technical line drawing of a device component with internal structure and side view (no text or symbols)

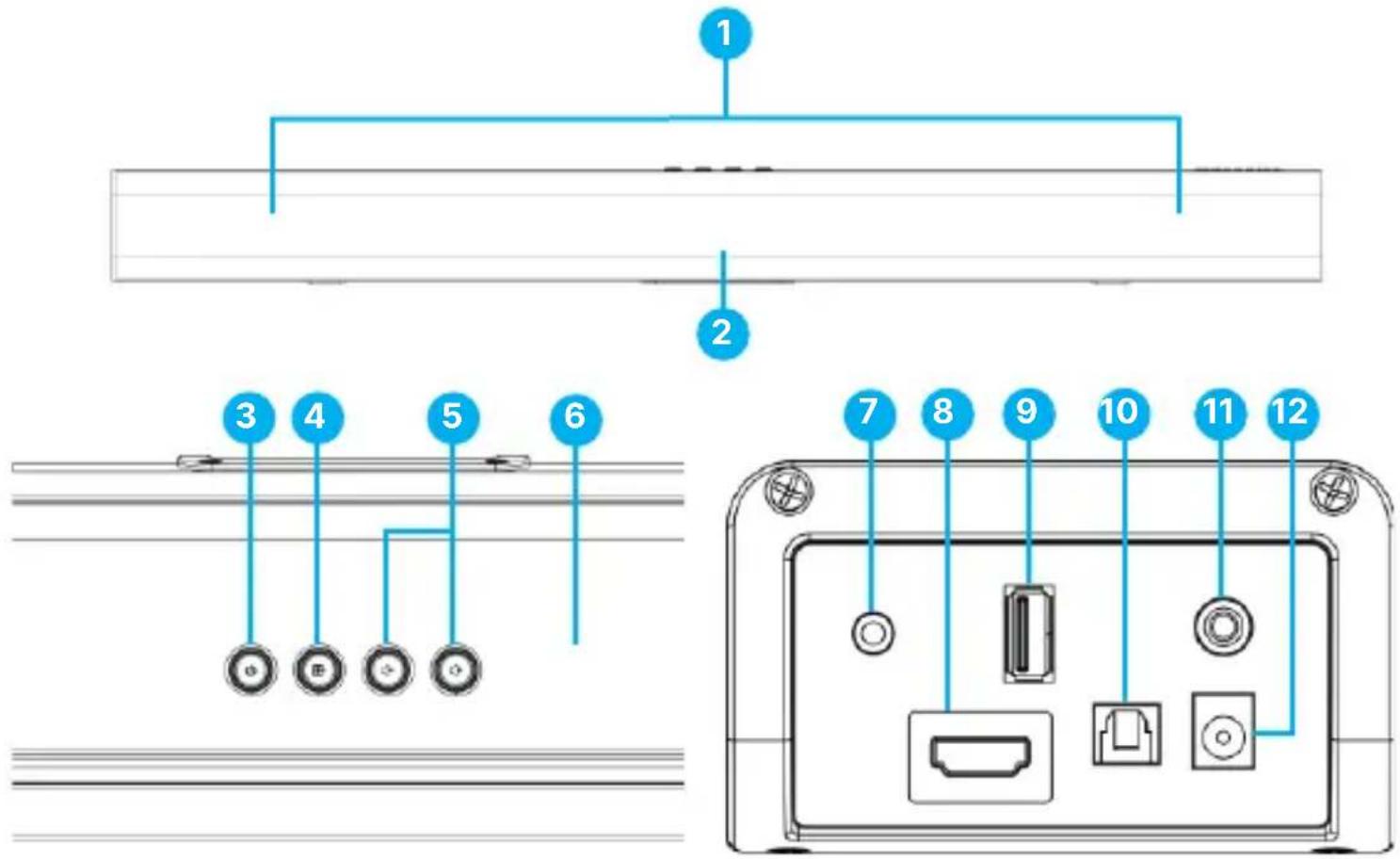

Majority Naga 80 Control Functions Front, Top & Rear View

1 2 3 4 5 6 7 8 9 10 11 12

1. Left & Right Speaker Drivers
2. 4 digits LED display screen & Remote Sensor
3. Power ON/OFF
4. Press INPUT button to change the modes between BT, OPTICAL, AUX, USB or ARC.

Press and hold for 2 seconds to disconnect existing Bluetooth device and search for other Bluetooth device.

1. Adjust volume up or down.
2. Subwoofer Speaker Driver
3. 3.5mm AUX Input port
4. ARC Input port
5. USB Playback port
6. OPTICAL Input port
7. SUBWOOFER OUT jack. To connect with external active subwoofer (not included).
8. DC 24V socket

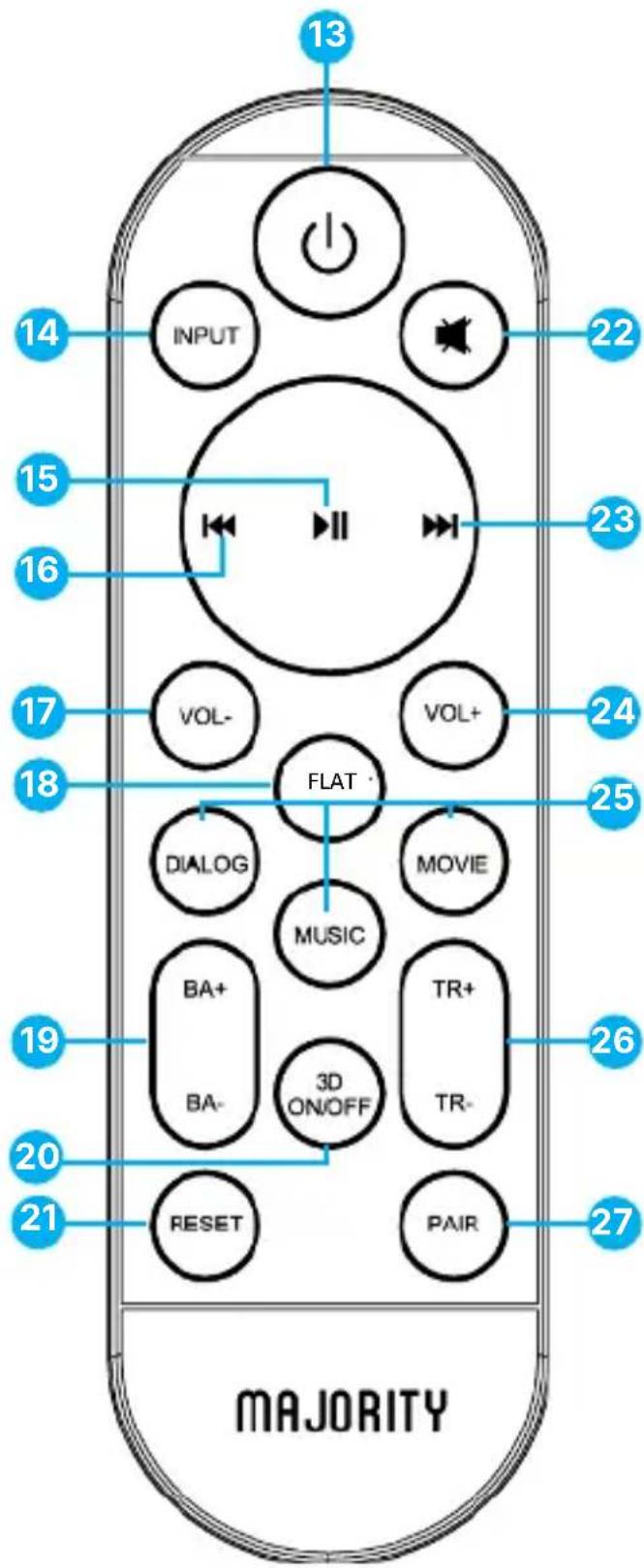

Remote Control Buttons

13 INPUT 22 15 16 23 17 VOL- VOL+ 24 18 FLAT 25 DIALOG MOVIE MUSIC 19 BA+ BA- 3D ON/OFF TR+ TR- 26 20 RESET PAIR 21 27 MAJORITY

1. Power On/Off.
2. INPUT: Press to switch between modes.
3. Play/Pause: In Bluetooth/USB mode, press to pause/play media.
4. Back: Use in Bluetooth and USB modes to go back a track.
5. Volume - Adjust volume.
6. Flat: To return factory settings.
7. Bass +/-: To adjust during MUSIC, MOVIE or DIALOG mode. It is invalid during DEFAULT mode.
8. 3D on/off- audio surround sound preset.
9. RESET: To reset the volume and the EQ mode back to the default value.
10. MUTE: Press the button to mute the sound. Press once again to unmute the sound.
11. Forward button: Use in Bluetooth/USB mode to go forward a track.
12. Volume +
13. Media Modes: Select Music, Dialog or Movie EQ mode.
14. Treble +/-: To adjust during MUSIC, MOVIE or DIALOG mode. It is invalid during DEFAULT mode.
15. PAIR: To connect or to disconnect from a Bluetooth device.

Connecting to The Power Outlet

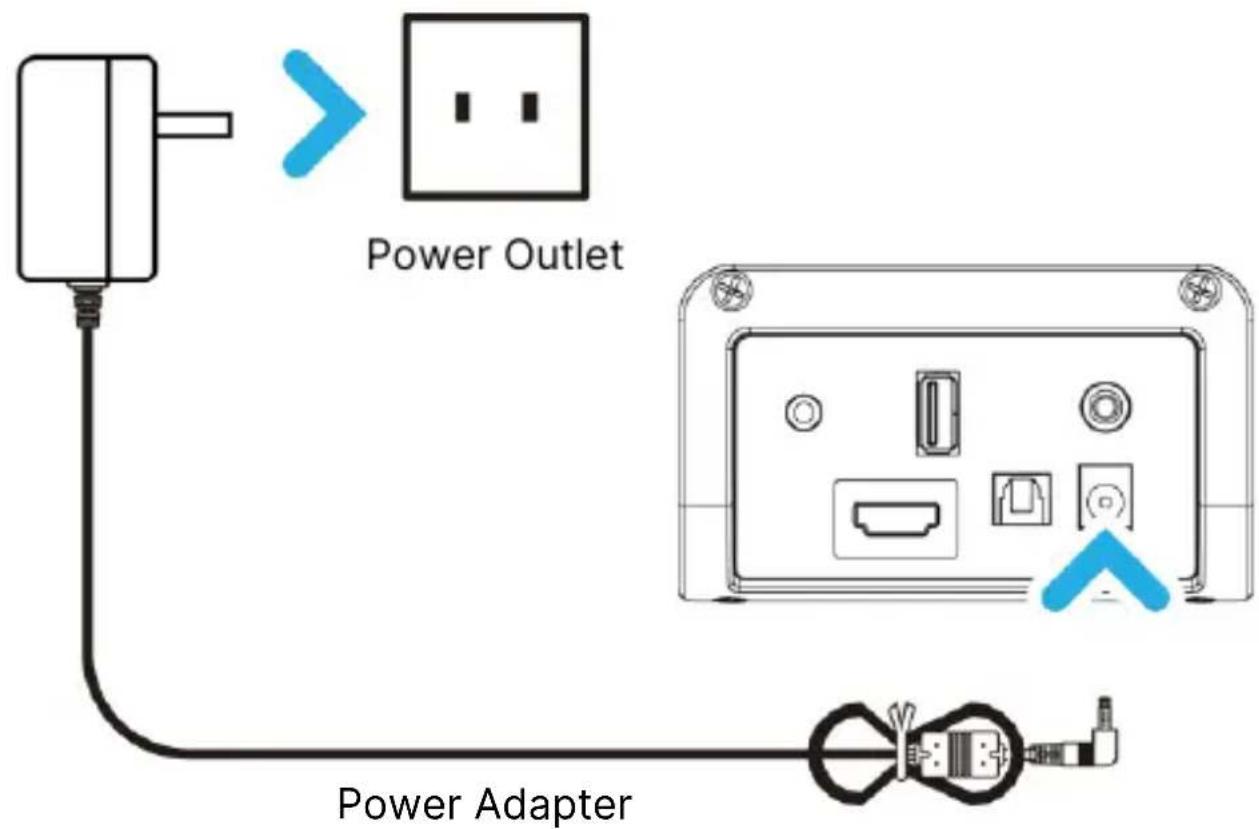

Connecting to the Mains Socket

Ensure that the power supply voltage is within the range of 100V\~240V. Any other voltage may cause damage to the unit.

Unwind the mains cable to its full length. Connect the mains plug to a mains socket.

Ensure that the mains plug is fully inserted into the mains socket.

The mains plug/appliance coupler is used as the disconnect device. The disconnect device must remain readily operable.

Insert the power adapter end into the Soundbar DC port (Ref.12).

Power Outlet Power Adapter

Ensure all audio cable connections of the unit are properly inserted before connecting the soundbar to the mains power socket. Unplug the power cord from the outlet when the unit is not in use for an extended period of time.

Display Icons

Input Use		Remote Control Button	Display
OPTICAL	Connecting the soundbar with the Optical Cable (not included), e.g. to the optical port of the TV/device.	OPTICAL	OPT
ARC	Connecting the soundbar with HDMI(ARC) Cable, to the HDMI(ARC) port of the TV.	ARC	Arc
Bluetooth	Pairing the soundbar via Bluetooth with a TV, phone, or other similar device to play audio from via NAGA80 soundbar
USB	USB Playback port-to be used to play audio from an USB stick (not included)	USB
AUX IN	Connecting the soundbar with 3.5mm stereo cable, with a TV, PC, or other similar devices	AUX IN

Audio Settings

Mode	Bass/Treble Options dB(decibels) refers to sound level.
MUSIC	Manually change BASS and TREBLE settings (between 0 dB and +8 dB).
DIALOG	Manually change bass and treble setting (between 0 dB and +8 dB).
MOVIE	Manually change bass and treble setting (between 0 dB and +4 dB).
FLAT	FLAT is the default EQ. BASS+ BASS-TRE+ TRE- functions are disabled.

Please note: The 3D surround sound effect button (Rem.20) is a predefined preset which cannot be used with other EQ. Bass and Treble cannot be manually changed while using 3D.

Please note that the instructions within this user manual will refer to the button number on the soundbar (Ref 'number'), or buttons on remote control e.g. (Rem. 'number'), in accordance with the diagrams from pages 5 and 6.

Using the USB Playback Port

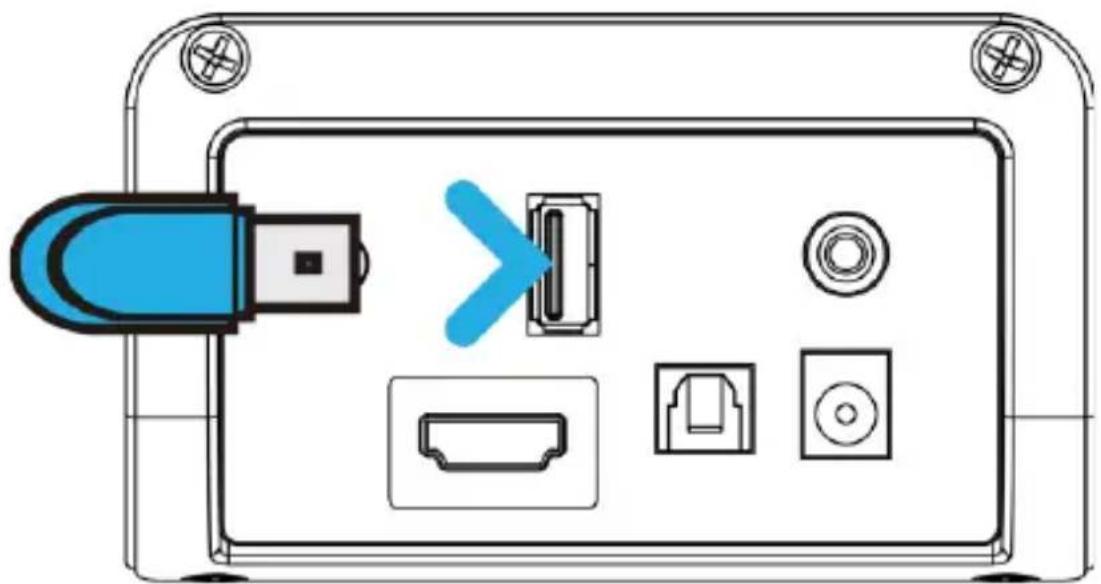

1. Plug in a USB stick to the USB jack port (Ref.9) on the soundbar.

2. Press the 'INPUT' button (Rem.14) on the remote control to change the mode into USB. The LED screen on soundbar will display 'USB'

3. Play music files from the USB stick through the soundbar.

Diagram of a device panel with labeled ports and connectors (no text or symbols)

USB Device

Please Note:

a. The maximum memory size of a USB sticker 64GB.
b. The USB sticker must be formatted into FAT32 before use.
c. The supported audio files format are MP3.

Please note: The USB port cannot be used as a port of connection with other devices as this is only for playback.

Using the ARC Input

Before connecting, switch off both the soundbar and TV.

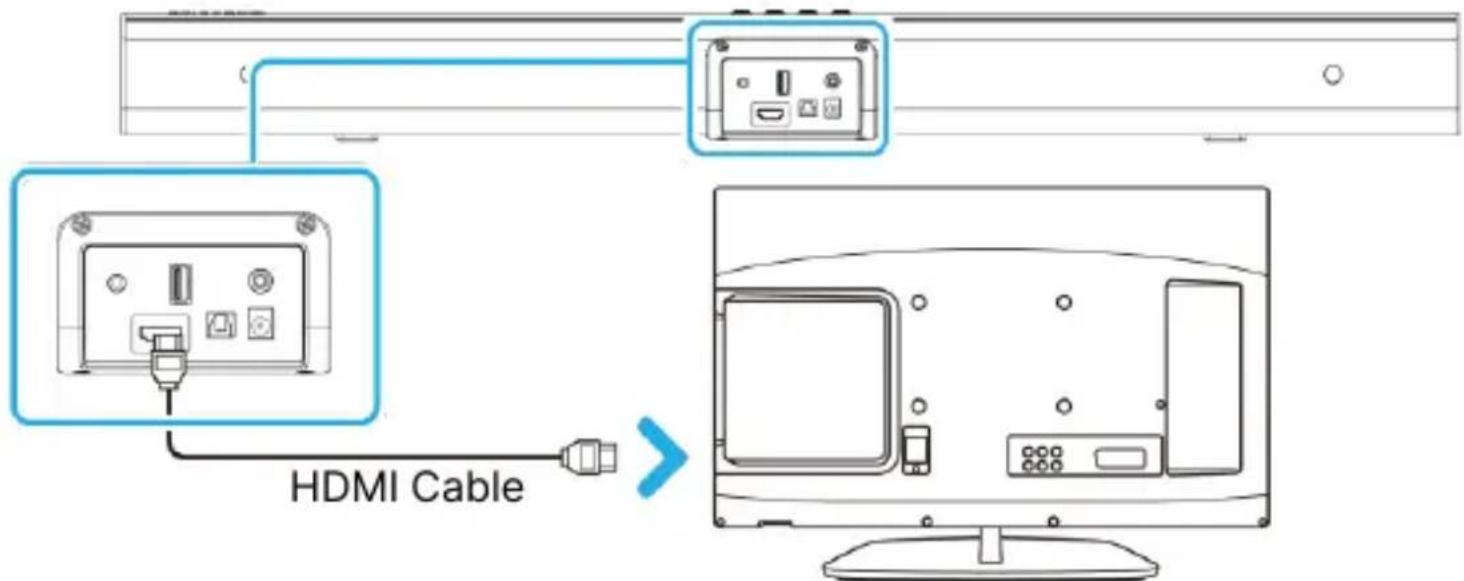

1. Plug in the ARC cable (included) to the ARC jack port on the rear panel of the Soundbar (Ref.8).

Plug the other end of the cable into the TV's HDMI ARC output port. Ensure the TV port that you are using is marked as ARC.

Press the 'POWER' button on the top panel of the soundbar or remote control to switch the soundbar on.

1. Press the 'INPUT' button repeatedly on the Soundbar (Ref.4) or on the remote control (Rem.14) until ARC Mode is selected. The LED screen must display 'Arc'.

2. Ensure your TV audio settings are set to HDMI ARC, and the audio format to PCM. The TV audio will now be heard through the soundbar.

Rear view of unit

Using the Optical Input

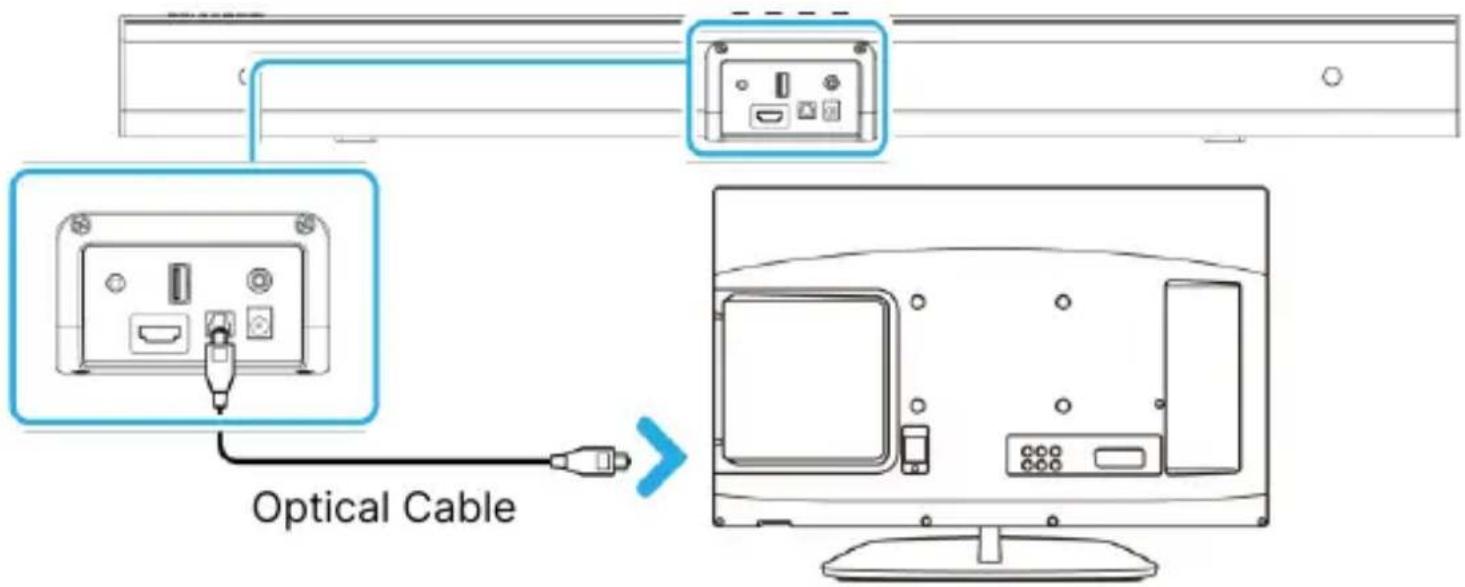

Connecting the Majority NAGA80 with an audio source/TV/PC with an Optical Audio Output using a Digital Optical Audio cable (not included).

1. Insert one end of the Digital Optical Audio cable to the optical output on the audio source and the other end to the Optical Input on the Soundbar (Ref.10).
2. Press the 'POWER' button on the side panel (Ref.3) or on the remote control (Rem.13) to switch the soundbar on.
3. Press the 'INPUT' button on the remote control repeatedly (Rem.14) to switch to Optical Mode or press the 'INPUT' button (Ref.4) repeatedly on the soundbar to select 'Optical Mode'. The mode displays 'OPE'.
4. Using the native controls on your connected device, make sure the audio settings are set to Digital Optical Audio and the audio format to PCM.

Audio from the connected audio source will now be heard through the NAGA 80.

Optical Cable

Rear view of unit

Using the AUX Input

Before use, switch off the soundbar.

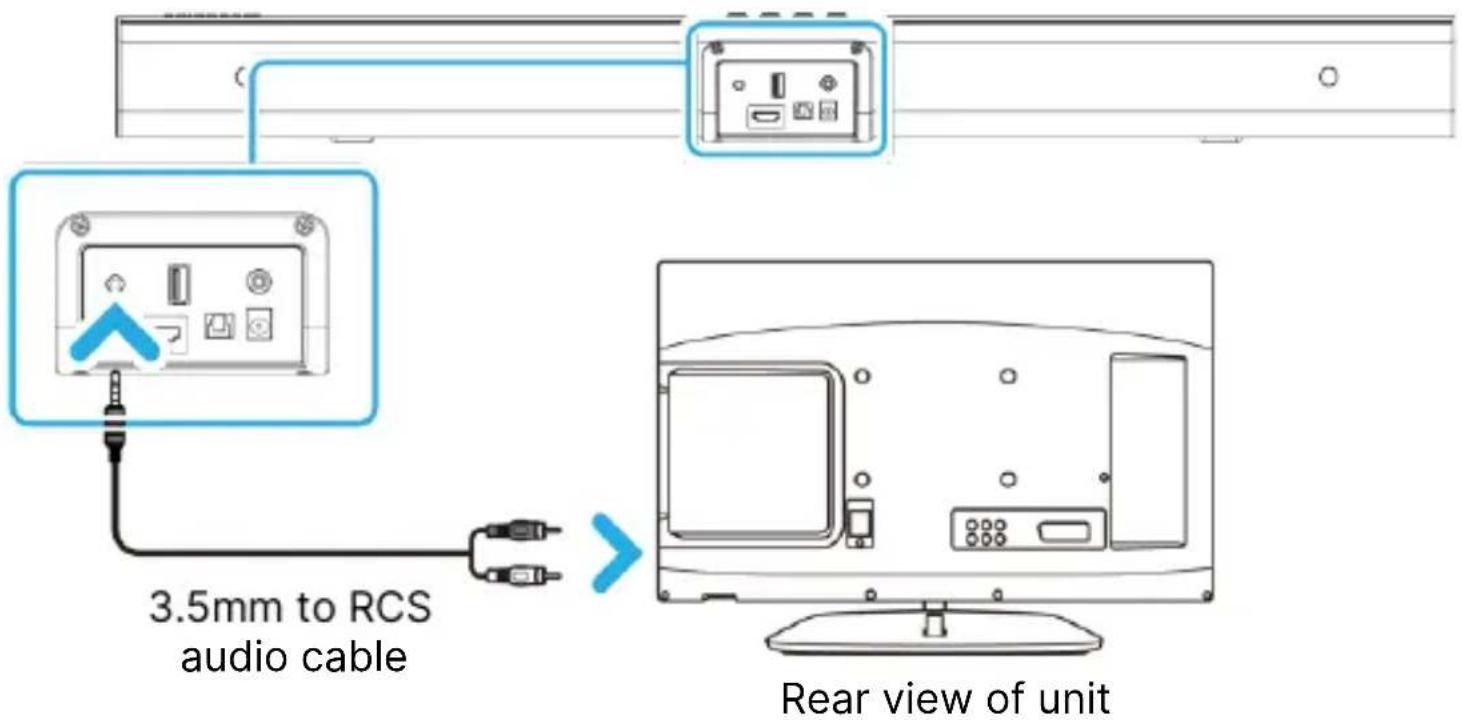

1. Connecting to external devices using a 3.5 mm to 3.5 mm audio cable (not included):

Insert one end of the 3.5mm audio cable into the AUX input socket on the rear panel of the Soundbar (Ref.7) and the other end into the audio output/headphone output on external devices, e.g. MP3 player, phone or other audio sources etc.

1. Connecting to the TV using the 3.5 mm to RCA cable (included):

Insert the 3.5mm cable end into the AUX in port on the rear panel of the Soundbar (Ref.7) and insert the other two RCA colored ends into TV's RCA audio output port.

Press the 'POWER' button on the panel of the soundbar or remote control to switch the soundbar on.

Press the 'INPUT' button repeatedly on the soundbar (Ref.4) or the remote control (Rem.14) repeatedly until AUX In Mode is selected. The LED screen must display 'RUK'.

Turn on the soundbar and TV or external devices etc. accordingly and audio will now be heard through the Majority NAGA 80.

3.5mm to RCS audio cable Rear view of unit

Bluetooth

The Majority NAGA 80 can be paired via Bluetooth with a Bluetooth-enabled device such as a Smart TV, PC, Phone, Tablet or similar that you would like to play audio from via the soundbar.

Press the 'POWER' button on the soundbar (Ref.3) or on the remote control (Rem.13) to switch on the unit.

Press the 'INPUT' button repeatedly on the remote control (Rem.14) or press the

INPUT button on the soundbar (Ref.4) repeatedly until Bluetooth Mode is selected. While searching for a device to pair with, the 'BT' flashing is displayed on the LCD screen.

Switch your device's Bluetooth connectivity on and start searching for the soundbar. Select the 'NAGA 80' from your device's list when prompted to pair with the soundbar.

If a password is required, enter '0000'. If you encounter issues at this stage, please refer to the user manual of your device for instructions on pairing and connecting with other Bluetooth devices.

When successfully connected, a beep will be heard from the soundbar, and the 'BT' will stop flashing. After initial pairing, the unit will stay paired unless manually unpaired by the user, or until the device is reset.

If your device should become unpaired or you find it is unable to connect, repeat the above steps.

To unpair the soundbar from a paired device press and hold the 'PAIR' button on remote control (Rem.27) for 3 seconds to disconnect.

Please note: The Majority NAGA 80 is not compatible with Bluetooth earbuds.

Observation Potential Cause/Solution
No power/function	Check that the power is switched on at the wall socket.Check that the power adapter is properly connected to the power outlet.
No sound	Check whether the unit is set to MUTE.Check that cables are properly installed. If cables are properly installed, please try connecting to your TV using an alternative cable.Check if the unit is switched on and set in the correct mode.
No sound in Bluetooth mode	Check that your Bluetooth device is paired.Check that you have pressed the 'PAIR' button before pairing.Check if the soundbar is paired with another device, unpair and try again.Increase volume on soundbar.Check whether external device requires password '0000'.
Function disturbance	Switch off and unplug the unit. Leave for 2 minutes and switch the soundbar on again.If a particular mode is causing problems, please try an alternative connection to your TV such as Optical or Bluetooth.
No sound when connected and switched to OPTICAL IN mode	Check and ensure the audio setting of the input source (e.g. TV, games console, DVD player etc.) is set to PCM mode while using digital connection.
No sound when connected and switched to ARC mode.	1.Check and ensure the audio setting of the input (e.g. TV, games console etc.) is set to ARC mode while using digital connection.2.Check whether the ARC cable is correctly connected to the ARC terminal.1.Check the supplied ARC cable and try and try a different ARC cable.3.If not, the soundbar is unable to play the input signal. Change the TV's audio output to other digital input - PCM, and so as the Soundbar - OPTICAL
Remote control function issues	Check whether the battery needs to be replaced, try new ones.Check whether there are obstacles blocking the remote sensor.

Specification

Power Supply DC24V 1.7A
Frequency Response 30Hz-20KHz
SNR 87dB
Separation 65dB
Bluetooth V5.0
Dimension (LxHxW) 810 × 77.7 × 117mm
Net Weight 2.38kg

Warranty

All products come with a standard 12-month warranty. All items must be registered within 30 days of purchase on www.majority.co.uk for the warranty to be valid. Once on the web page, use the menu to find 'Register Your Product'. You will also be given the chance to extend your warranty for an additional 24 months, free of charge.

Support

If you require further assistance with your new Majority NAGA 80, please contact our support team on the Majority website: www.majority.co.uk/support.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the retailer/seller or an experienced radio/TV technician for help.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC Radiation Exposure Statement

The device has been evaluated to meet general RF exposure requirements. The device can be used in fixed/mobile (min20cm) exposure conditions without restriction.

Solid dark blue rectangle with no visible text, symbols, or features.

Naga 80 Soundbar

Benutzerhandbuch

MAJORITY

A B D C E F G I H MAJORITY

Front view of a rectangular electronic device with indicator lights and ports (no text or symbols visible)

654mm

Pure 3D coordinate system diagram with arrows and dimension labels (no text or symbols)

Technical line drawing of a device component with an arrow indicating direction (no text or symbols)

Diagram of a device panel with labeled ports and connectors (no text or symbols)

USB-Gerät

Bitte beachten Sie:

A B D C E F G I H MAJORITY

Simple line drawing of a rectangular box with control panel and circular markers (no text or symbols)

654mm

Supports de fixation murale

Pure 3D diagram of a rectangular block with directional arrows indicating orientation (no text or symbols)

Technical line drawing of a device component with an arrow indicating transformation (no text or symbols)

Diagram of a device panel with labeled ports and indicators (no text or symbols)

Dispositif USB

Veuillfez noter:

A B D C E F G I H MAJORITY

Pure electrical circuit lines without any symbols

654mm

Pure 3D coordinate system diagram with arrows and geometric shapes, no text or symbols present

Technical line drawing of a device component with internal structure and side view (no text or symbols)

Diagram of a device panel with labeled ports and connectors (no text or symbols)

Dispositivo USB

Nota bene:

A B D C E F G I H MAJORITY

Front view of a rectangular electronic device with indicator lights and ports (no text or symbols visible)

654mm

Pure 3D coordinate system diagram with arrows indicating direction (no text or symbols)

Technical line drawing of a device component with top and side views (no text or symbols)

Power Outlet Power Adapter

Diagram of a device panel with ports, connectors, and icons (no text or labels)

Dispositivo USB

Tenga en cuenta:

EN Safety and Usage Guidelines (All where applicable)

General Safety Information - Read and Retain: Review all safety and operating instructions before use; keep them for future reference. Follow Instructions: Adhere strictly to all safety and operational guidelines. Water Exposure: Keep the device away from water; avoid placing liquids near it. Ventilation: Ensure ventilation openings are unobstructed to prevent overheating. Heat Sources: Keep the device away from heat-emitting appliances. Wall Mounting - Installation Safety: Follow the manufacturer's instructions and use approved mounting kits only. Avoid drilling into areas with cables, gas, or water lines. Use proper tools and safety apparatus. Regular Maintenance: Inspect regularly for wear or damage, especially if wall-mounted. Relocation: Detach from the wall mount before moving. Child Safety: Keep out of children's reach and ensure heavy items are securely mounted. Seismic Precautions: Use specialized mounts in earthquake-prone areas. Electrical Safety - Power Source: Use the specified power source; consult an electrician if unsure. Cable Management: Protect the power cord from damage. Power Disconnection: Keep the main plug accessible; unplug during storms or long periods of non-use. Battery Safety - Charging: Use the manufacturer's charger; avoid extreme conditions. Heat Exposure: Keep batteries away from heat to prevent explosion or leakage. Battery Condition: Discontinue use if the battery is damaged; dispose of it properly. Replacement: Only use recommended batteries; incorrect types can cause hazards. External Batteries: Use only specified types, observing correct polarity. Battery Removal: Remove batteries if not used for an extended period. Disposal: Follow local regulations for battery disposal; do not incinerate. Connectivity Safety - Cable Connections: Power off devices before connecting or disconnecting cables. Bluetooth Pairing: Ensure a secure connection; avoid interference from other devices. Volume Control: Keep volume moderate to prevent hearing damage. Connectivity and Data Security - Wireless Security: Review privacy policies and secure your network. Software Updates: Keep software updated for security and performance. Children's Safety Warnings - Product Use: Intended for adults; keep away from children. Battery Warning: Keep batteries and items containing batteries out of children's reach. Volume Control: Maintain a safe volume level to protect children's hearing. Fire Hazard - Flammable Materials: Do not place open flames near the product. Overheating: Avoid covering the product to prevent overheating and fire risks. Disposal and Recycling - Product Disposal: Dispose of at a recycling centre according to local laws. Environmental Compliance: Follow regulations for battery and electronic waste disposal. User Maintenance - Cleaning: Unplug before cleaning; use a dry cloth only. Servicing: Only qualified personnel should perform repairs. Data Protection: Reset to factory settings before returning or disposing of the product. Disclaimer: Failure to follow these instructions may result in injury, death, or property damage. The manufacturer is not liable for damage caused by improper use.

Declaration of Conformity:

We, Izilla Ltd, Newton House, 2 Pioneer Court, Histon, Cambridge, CB24 9PT declare under our sole responsibility that the product:

Product Name: Naga 80 Soundbar Model: 1000003047/1000003048/1000002969

Brand Name: Majority

To which this declaration referred is in conformity to the following harmonized standards or normative documents (CE G Rohs 2.0);

EN 55035:2017, EN 55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EEN62368-1:2004+A11:2017, ETSI EN 301 489-1 V2.2.3(2019-11), ETSI EN 301 489-17, V3.2.2(2019-12), ETSI EN 300 328 V2.2.2 (2019-07), EN 62479: 2010, IEC 62321-3-1:2013, IEC 62321-4:2013, IEC 62321-5:2013, IEC 62321-6:2015, IEC 62321-7-1:2015, IEC 62321-7-2:2017, IEC 62321-8:2017, (EC)NO 1275/2008,EN50564:2011, (EC)NO 801/2013.

Complying with the requirements or provisions of Council Directives which relate to:

EMC Directive 2014/30/EU, RED Directive 2014/53/EU, LVD Directive 2014/35/EU, Directive (2011/65/EU) and its amendment directives 2015/863/EU (RoHS 2.0) of the European parliament, ERP Directive 2009/125/EC.

All essential test suites have been carried out.

Point of Contact: Eddie Latham | Founder

Signed:

E.Latham

Date of Issue: January 2024

Place of Issue: Cambridge, UK

Importer's Addresses:

UK: iZilla Ltd, Newton House, 2 Pioneer Court, Histon, Cambridge, CB249PT

Email:[e-mail]

EU RP: AR Experts, Po Box 5047, 3620 AA Breukelen, The Netherlands

Email: [e-mail]

US: iZilla Ltd C/O A.N.Deringer Inc, 19520 Wilmington Ave, Rando Dominguez, CA, 90220

Email:[e-mail]

ATTENTION

RISK OFELECTRIC SHOCK DO NOT OPEN

CAUTION

RISQUE D'ELECTROCUTION NE PAS OUVRIR

IMPORTANT: Please read all instructions carefully before use and keep for future reference

MAJORITY

www.majority.co.uk

FR + + + + @
