USER MANUAL Rigel UFESA

Suitable for well insulated spaces or occasional use

ESPAÑOL

AGRADECEmos QUE HAYA DEPOSITADO SU CONFIANZA EN UFESA Y DESEAMOS QUE EL FUNCIONAMENTO DEL PRODUCTO LE SATISFAGA PLENAMENTE.

ATENCIón

WE WOULD LIKE TO THANKS YOUR FOR CHOOSING UFESA, WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

GENERAL INFORMATION

First check that the appliance is complete and undamaged. Contact the store where you purchased the product in the event of any doubt.

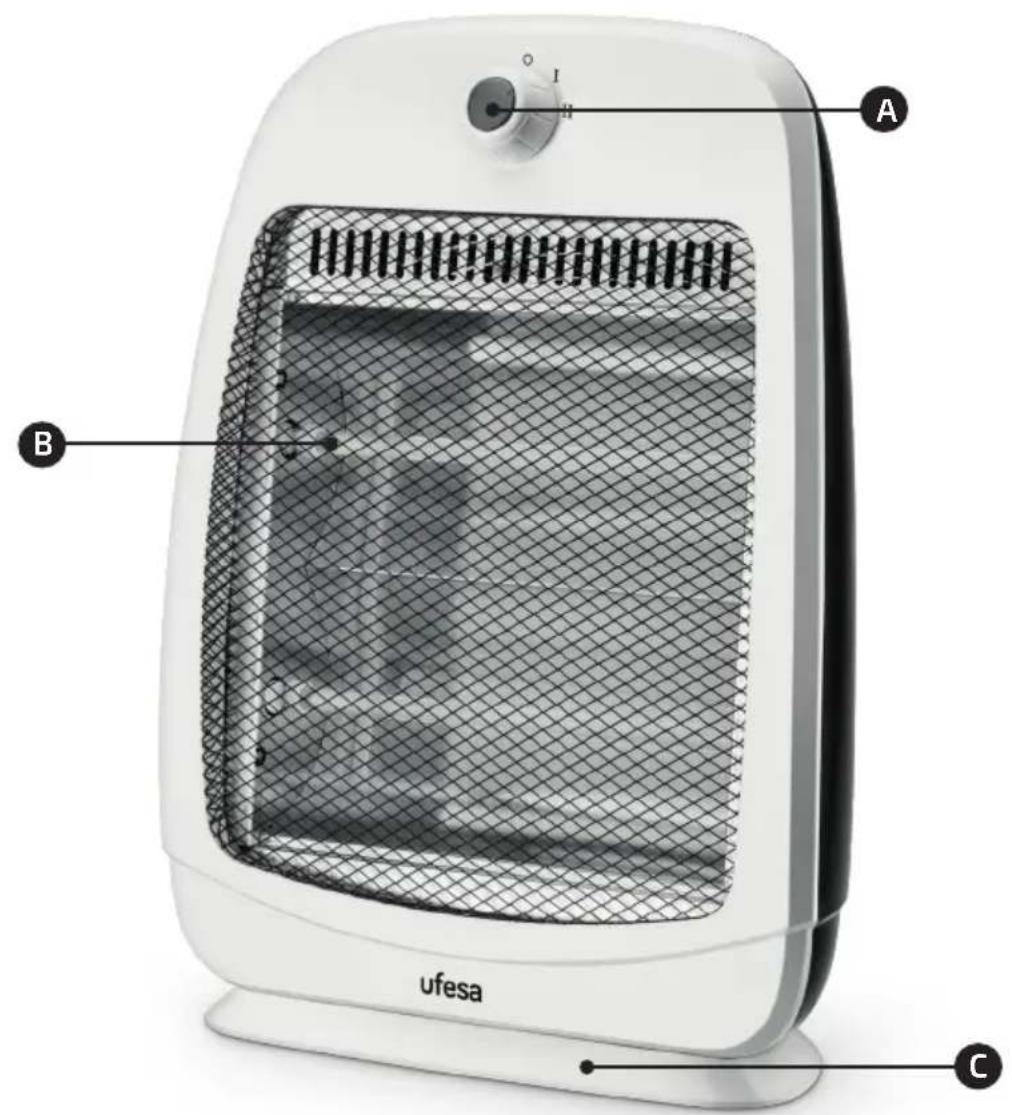

With your purchase you have acquired:

1 Quartz Heater Ufesa

A) Swith
B) Quartz tube
C) Basement

SAFETY MEASURES

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the cable is damaged it must be replaced by the manufacturer, its customer service department or by qualified persons to avoid a hazard.

WARNING: In order to avoid overheating, do not cover the heater. Heater must be not located imme

diatly below socket outlet. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool. Children under 3 should be kept away from the appliance unless they are constantly supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has benn placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulated and clean the appliance or perform user maintenance.

CAUTION: Some parts of the appliance can become very hot and cause burns. When children and vulnerable people are present special attention should be paid.

This symbol means that the product should not be covered.

This appliance is intended for use at a maximum altitude of 2000m above sea level.

IMPORTANT WARNING

• This device is intended solely for domestic use.
• Before connecting the product to the mains, check that your mains voltage is the same as or is within the limits indicated on the product label.
• Keep this appliance out of the reach of children and people with disabilities.
• Do not move the device while in use.
• Do not leave the power on if you will not be in the same room where the appliance is.

• Keep the appliance clean. Do not allow any object into the ventilation system as it could cause an electric shock, fire or damage the unit.

• Do not use the appliance to dry clothes.

• Do not use the heater in the immediate surroundings of a bath, a shower or a swimming pool.
• Do not use the heater if it has been dropped:
• Do not use is the is a visible sign of damage to the heater.
• Use this heater on a horizontal and stable surface or fix it to the wall, as applicable.
• Always use the device in an upright position.
• Unplug the unit whenever not in use. Do not pull the cord to unplug the appliance.
• Do not use the device if it is cracked or broken.
• Do not use the appliance in rooms with a surface less than 4m2
• The appliance has a security system to be disconnected in case of accidental overheating. To keep the unit working again unplug the power for a few minutes, check that has no object obstructing the air inlet, let the device cool down and plug it back.
• Improper use of the product may involve danger and revoke the warranty and liability. Do not use, connect or disconnect the device to the network with wet hands and/or feet.
• Do not wrap the cord around the control button.
• WARNING: Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
• WARNING: to reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1m from the air outlet.

B&B TRENDS SL accepts no liability for any damage that may be caused to people, animals or objects owing to failure to observe this warning correctly.

OPERATION

1. Remove the appliance from the outer packaging and ensure that the appliance is intact. Do not leave packaging materials such as bags and staples within reach of children or animals/pets.
2. Plug in the appliance. Ensure that the outlet has at least a 10 amp current carrying capacity.
3. The heater can be operated electronically using manually, using the control knobs.

MODELS WITH SWITCHES

2 heating setting switch 400W/800W.

SAFETY DEVICE

This appliance is provided with one safety device, the safety device disconnects the appliance when the heater is tilted or when is tipped by means of a switch situated in the lower part of the heater.

MAINTENANCE

1. The appliance needs only an external regular cleaning.
2. After use and before cleaning always unplug the appliance and wait till the item is cool
   Clean the grilles from dust.
   3.Do not clean the painted parts with emery flour or solvents and use only a moistened cloth.

TROUBLESHOOTING GUIDE

Possible operating anomalies

INCIDENT CAUSE SOLUTION
The device does not work.	Appliance not switched on.	Switch on the appliance using the speed button.
	The unit is on but the selected temperature level in the thermostat is lower than the temperature of the room.	Increase the temperature level of the thermostat (D)

Information requirements for electric local space heaters

Scuti
Item Symbol Value Unit Item Unit
Heat output				Type of heat input, for electric storage local space heaters only
Nominal heat output	P nom 1,2 KW			Manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	P min 0,4 KW			Manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	P max,c 1,2 KW			Electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				Fan assisted heat output No
At nominal heat output	el max	N/A	KW	Type of heat output/room temperature control (select one)
At minimum heat output	el min	N/A	KW	Single stage heat output and no room temperature control	No
In standby mode	el SB	0	KW	Two or more manual stages, no room temperature control	No
				With mechanic thermostat room temperature control	Yes
				With electronic room temperature control	No
				Electronic room temperature control plus day timer	No
				Electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				Room temperature control, with presence detection	No
				Room temperature control, with open window detection	No
				With distance control option No
				With adaptive start control No
				With working time limitation No
				With black bulb sensor No
Contact details				B&B TRENS, S.L. - C. Cataluña, 24 P.I. Ca N'Oller 08130 Santa Perpètua de Mogoda (Barcelona) - España C.I.F. B-86880473

CLEANING AND MANTENANCE

Unplug the device when you do not intend to use the product for an extended period of time to prolong its shelflife.

Let it cool down before storing it. This product can only be cleaned by hand, using a soft damp cloth and mild soap. The use of abrasive cleaning products or brushes, solvents, benzine, thinner or alcohol is completely prohibited. Never immerse the appliance or any of its parts in water or excessively moisten it in order to clean it. Do not reuse the appliance until it is completely dry. Make sure there are no obstructions or dirt build-up on the air inlet or outlet of the device.

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection center closest to your home.

NOUS VOUS REMERCIONS D'AVoir CHOISI UFESA, NOUS SOUHAITONS QUE CE PRODUIT VOUS APPORTE SATISFACTION ET VOUS FASSE PLAISIR.

AVENTISSEMENT

VEUILLEZ LIRE ATTENTIVEMENT LE MODE D'EMPLOI AVANT D'UTILISER LE PRODUIT. VEUILLEZ CONSERVER CE DOCUMENT DANS UN ENDROIT SÜR POUR UN USAGE ULTERIEUR.

INFORMATIONS GÉNÉRALES

J J J J J J J J J J J J J J J J J J J J

j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j

.19 jlaa 1 aai g 1 paaai yg . jlaai Jao ge

. 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

. 2ii61 a.b.c.v.

OTOF aoo 10

INFORME DE GARANTÍA

B&B TRENDS, SL. guarantees compliance of this product, for the use for which it is, during the period established by the legislation in force in the country of sale. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfil or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by B & B TRENDS, SL. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a B&B TRENS, SL., authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by B&B TRENS, SL., or the careless or improper use of the same shall render this warranty null and void.

You must keep the purchase invoice, receipt or delivery docket in order to exercise your warranty rights.

For technical service and after-sales care outside the Spanish territory, please submit your query to the point of sale where you purchased the item.

BON DE GARANTIE

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

ufesa

SERVICIOS DE ATENCION TECNICA (SAT)

TECHNICAL ASSITANCE SERVICE (TAS), SERVICO DE ATENCAO TECNICA (SAT) SERVICE TECHNIQUE (ST), SERVIZIO DI ASSISTENZA TECNICA (SDAT)

([phone]

[e-mail]

B&B TRENDS, S.L.

C.Cataluna,24

P.I. Ca N'Oller 08130

Santa Perpètua de Mogoda (Barcelona) España

C.I.F.B-86880473

www.bbtrends.es

Encuentra tu servicios专业技术 más cercano en https://sat.ufesa.com/ Check out your nearest service station at https://sat.ufesa.com/
