USER MANUAL CU2000T UFESA

White electronic device labeled 'ufesa' mounted on a stand, enclosed in a circular frame (no additional text or symbols visible)

This product is only suitable for well insulated spaces or occasional use

ER mode d'emploi

Illustration of hands holding a device with an arrow indicating rotation (no text or symbols)

Technical diagram of a mechanical assembly with two plates and a textured base (no text or symbols)

INSTRUCCIONES DE USO

Illustration of a hand pressing down on a device with an arrow indicating rotation (no text or symbols)

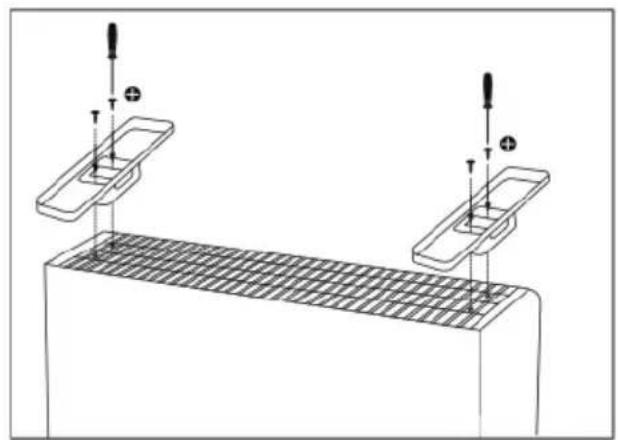

Technical diagram of a mechanical assembly with two plates and a grid-patterned base (no text or symbols)

We would like to thank you for choosing UFESA.

First check that the appliance is complete and undamaged. Contact the store where you purchased the product in the event of any doubt.

With your purchase you have acquired:

• 1 UFESA Convector

A) Air outlet

B) Speed selector

C) Thermostat

D) Feet

E) Handle

SAFETY MEASURES

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Heater must not be located immediately below a socket-outlet.

Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

Children of less than 3 years should be kept away unless continuously supervised.

Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision of instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

CAUTION-Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

The heater is to be installed so that switches and other controls cannot be touched by a person in the bath or shower.

Proceed according to INSTALLATION section of this manual for installation instructions.

This symbol means that the product should not be covered

WARNING: In order to avoid overheating, do not cover the heater.

IMPORTANT WARNING

This appliance is designed for home use and should never be used for commercial or industrial use under any circumstances. Any incorrect use or improper handling of the product shall render the warranty null and void.

Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label.

The mains connection cable must not be tangled or wrapped around the product during use.

Do not use the device, or connect and disconnect to the supply mains with the hands and / or feet wet.

Do not pull on the connection cord in order to unplug it or use it as a handle

Unplug the product immediately from the mains in the event of any breakdown or damage and contact an official

technical support service. In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand's Official technical support service may carry out repairs or procedures on the device.

B&B TRENDS SL. disclaims all liability for damages that may occur to people, animals or objects, for the non-observance of these warnings.

INSTALLATION

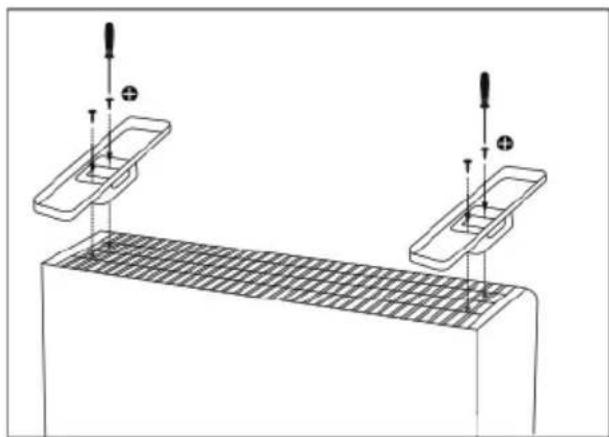

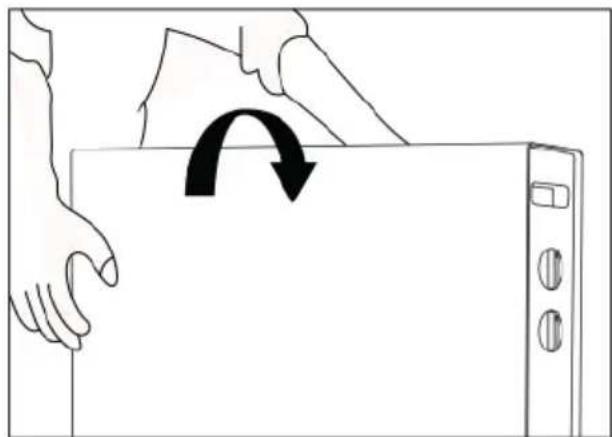

Put the heater on a flat, dry and clean surface. Install the rollers as shown on the below drawing.

Illustration of hands holding a device with an arrow indicating rotation (no text or symbols)

Technical diagram of a mechanical assembly with two plates and a textured base (no text or symbols)

INSTRUCTIONS FOR USE

• Plug the appliance to AC 220-240V 50-60Hz socket. If you are not sure, we advise you to contact a professional electrician for more details.
• To start the heater, choose power like below:
• Set the temperature with the thermostat
• To stop the heater, turn the switch to the position "O".
• Unplug the product when it's not in use

Information requirements for electric local space heaters

MODEL IDENTIFIER(S): CU2000T
Item Symbol Value Unit	Item Unit
Heat output Type of heat input, for electric storage local space heaters only
Nominal heat output	P nom	2.0	KW	Manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	P min	0,9	KW	Manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	P max,c	2.0	KW	Electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				Fan assisted heat output No
At nominal heat output	el max	N/A	KW	Type of heat output/room temperature control (select one)
At minimum heat output	el min	N/A	KW	single stage heat output and no room temperature control	No
In standby mode	el SB	0	KW	Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control Yes
				with electronic room temperature control No
				electronic room temperature control plus day timer No
				electronic room temperature control plus week timer No
				Other control options (multiple selections possible)
				room temperature control, with presence detection No
				room temperature control, with open window detection No
				with distance control option No
				with adaptive start control	No
				with working time limitation No
				with black bulb sensor	No
Contact details				B&B TRENDS, S.L. - C. Cataluña, 24 P.I. Ca N'Oller 08130Santa Perpètua de Mogoda (Barcelona) - España . C.I.F. B-86880473

CLEANING AND MANTENANCE OF THE PRODUCT

Unplug the device when you do not intend to use the product for an extended period of time to prolong its shelflife.

Let it cool down before storing it.

This product can only be cleaned by hand, using a soft damp cloth and mild soap. The use of abrasive cleaning products or brushes, solvents, benzine, thinner or alcohol is completely prohibited. Never immerse the appliance or any of its parts in water or excessively moisten it in order to clean it. Do not reuse the appliance until it is completely dry.

Make sure there are no obstructions or dirt build-up on the air inlet or outlet of the device.

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), that provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices.

Do not dispose of this product in the rubbish. Go to the electrical and electronic waste collection centre closest to your home.

MERCI D'AVOIR PLACÉ LEUR CONFIANCE EN UFESA ET NOUS ESPÉRONS QUE CE PRODUIT VOUS DONNERA ENTIÈRE SATISFACTION ET PLAISIR.

INFORMATIONS GÉNÉRALES

Illustration of a hand pressing down on a device with an arrow indicating rotation (no text or symbols)

Technical diagram of a mechanical assembly with two plates and a textured base (no text or symbols)

MODE D'EMPLOI

Illustration of hands holding a device with an arrow indicating rotation (no text or symbols)

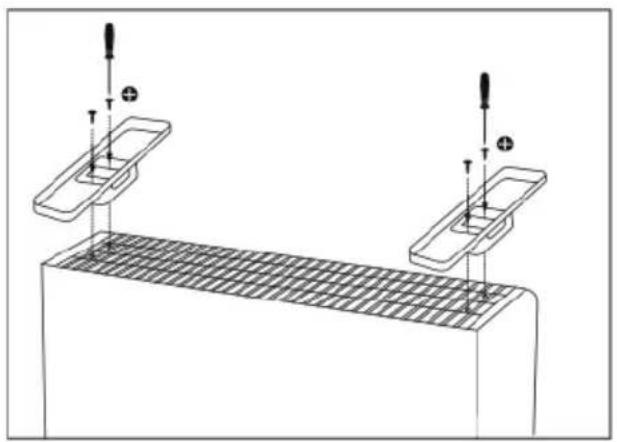

Technical diagram of a mechanical assembly with two plates and a grid base, no visible text or symbols

Начин на употреба:

Illustration of a hand pressing down on a device with an arrow indicating rotation (no text or symbols)

Technical diagram of a mechanical assembly with two plates and a textured base, no visible text or symbols

طريقة استخدام

B&B TRENDS, SL. guarantees compliance of this product for the use for which it is intended for a period of two years. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfill or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by B&B TRENDS, SL. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a B&B TRENDS, SL., authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by B&B TRENDS, SL., or the careless or improper use of the same shall render this warranty null and void. The warranty must be fully completed and delivered along with the receipt or delivery docket for the effective exercise of rights under this warranty.

This warranty should be retained by the user as well as the invoice, receipt or the delivery docket to facilitate the exercise of these rights. For technical service and after-sales care outside the Spanish territory, please submit your query to the point of sale where you purchased the item.
