USER MANUAL Connect RD2500D UFESA

Black rectangular solar oil heater with cooling fins and wheels, no visible text or symbols on the device body.

This product is only suitable for well insulated spaces or occasional use

mode d'emploi

Technical line drawing of a mechanical assembly with no visible text or symbols

FIG. 1
1 للكشلا

ESPAÑOL

AGRADECEMOS QUE HAYA DEPOSITADO SU CONFIANZA EN UFESA Y DESEAMOS QUE EL FUNCIONAMIENTO DEL PRODUCTO LE SATISFAGA PLENAMENTE.

ATENCIÓN

Diagram of a mobile device control panel with icons for signal, Wi-Fi, and battery status indicators

I 1000 W
II 1500 W
III(I+II) 2500 W

Front view of a mobile device control panel with icons for signal, power, and battery (no text or labels)

I 1000 W
II 1500 W
III(I+II) 2500 W

WE WOULD LIKE TO THANKS YOUR FOR CHOOSING UFESA, WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

DESCRIPTION

1. Wheels
2. Switch
3. Front control panel
4. Radiator housing
5. Power cable holder

SAFETY MEASURES

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Heater must not be located immediately below a socket-outlet. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

This heater is filled with a precise quantity of special oil. Repairs requiring opening of the oil container are only to be made by the manufacturer or his service agent who should be contacted if

there is an oil leak.

When scrapping the heater, follow the regulations concerning the disposal of oil.

Children of less than 3 years should be kept away unless continuously supervised.

Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision of instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

CAUTION-Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

This symbol means that the product should not be covered

WARNING: In order to avoid overheating, do not cover the heater.

IMPORTANT WARNING

This appliance is designed for home use and should never be used for commercial or industrial use under any circumstances. Any incorrect use or improper handling of the product shall render the warranty null and void.

Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label.

The mains connection cable must not be tangled or wrapped around the product during use.

Do not use the device, or connect and disconnect to the supply mains with the hands and / or feet wet.

Do not pull on the connection cord in order to unplug it or use it as a handle

Unplug the product immediately from the mains in the event of any breakdown or damage and contact an official

technical support service. In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand's Official technical support service may carry out repairs or procedures on the device.

To Hereby, B&B Trends, S.L. declares that the type of radio equipment RD2500D CONNECT complies with Directive 2014/53 / EU.

ASSEMBLY (FIG. 1):

1. To prevent damage, place the radiator upside down on a soft surface (for example a carpet)
2. Fix wheels on two plates with cap nuts. Wheels should be installed between the two first and two last fins.
3. Insert the U-shaped hook into the wheels plate and fix it on the radiator by wing nuts.
4. Turn the heater upright. Wait one minute before to connect the heater to power outlet.

OPERATION:

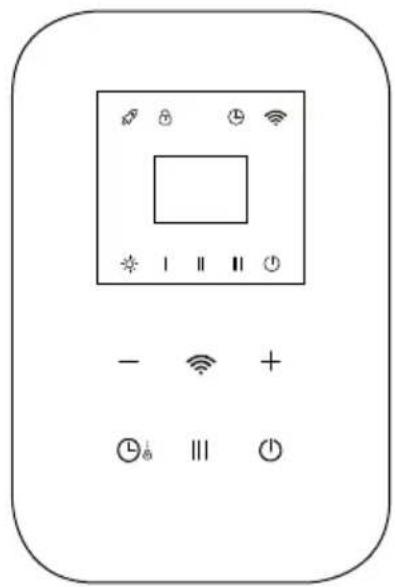

FIG. 3

Front view of a mobile device control panel with icons for signal, Wi-Fi, and function buttons (no text or labels)

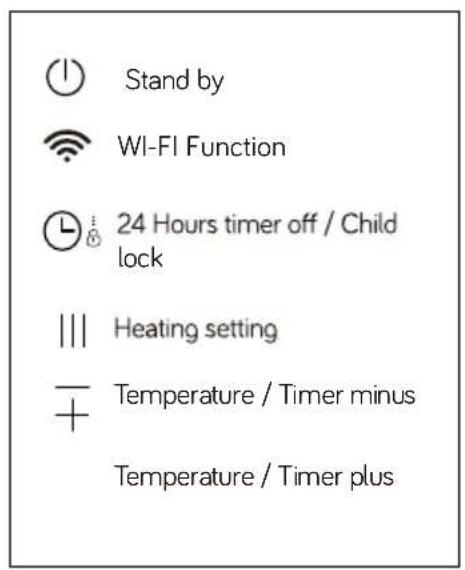

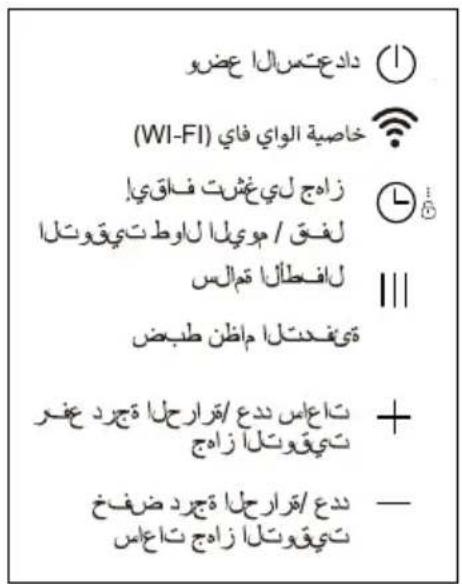

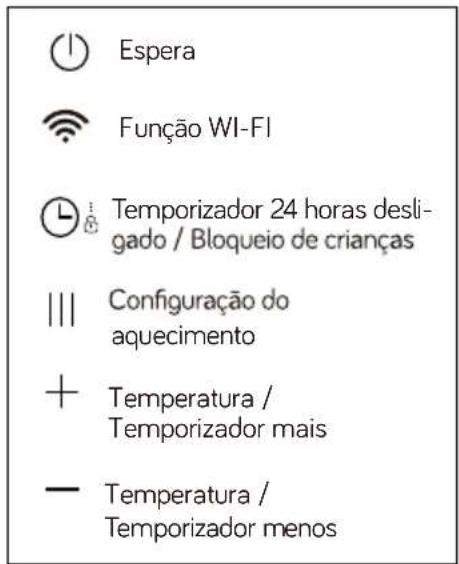

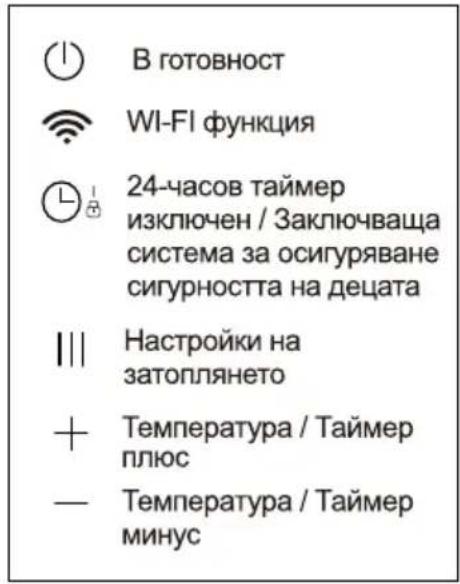

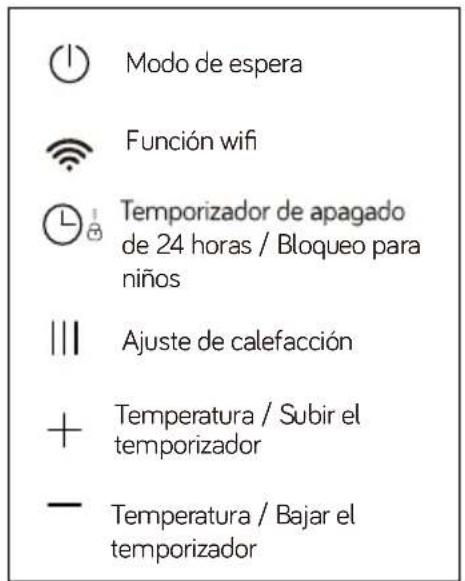

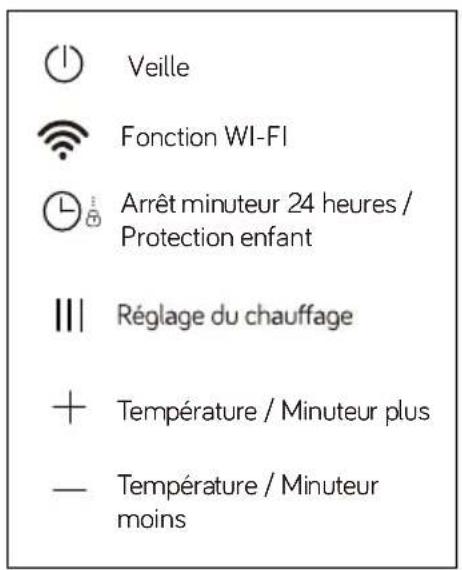

Stand by WI-FI Function 24 Hours timer off / Child lock Heating setting Temperature / Timer minus Temperature / Timer plus

Note: Connect the appliance to a safety socket 220-240 V\~50-60 Hz.

1. Turn on switch and press ⏻ to start the setting. The default setting of target temperature is 25^ C and the heating setting is II.
2. Press + or — to adjust the target temperature, 5-35 °C
3. Press ||| to adjust the heating position (I, II or III).

I 1000 W
II 1500 W
III(I+II) 2500 W

1. Press ⏻ to set the 24 hours timer off, "O" means the timer function is off. The indicator light will light up when this function is activated.
2. Press ⏱ for 3 seconds, the screen will be locked, the light will be dim. To unlock the heater, press ⏱ for

3 seconds again.

1. The heater has heating boost function, heater will continuously work for 12 hours, while the temperature sensor does not work. In this mode, the indicator will be light up. (The function needs to be set on the Ufesa App only)
2. When the heater is working, the ⚙ will be light up.
3. For all the operation, the indicator light will stop twinkle when user don't operation for 10 seconds, it will work based on the setting before the twinkle stops.
4. The light of screen will be dim after stopping the operation for 30 seconds.

Wifi connection

Press 📋 button more than 3 seconds, the indicator 📋 on the top right corner will flash rapidly, open the Ufesa APP and follow the instruction to connect it.

Press 📤 button one time to turn on or turn off WIFI function.

TIP-OFF SAFETY DEVICE:

This appliance is provided with a safety device which will switch off the heater in case of accidental tipping off. To reset, disconnect the plug from the power for a few minutes, remove the cause of tipping off, then plug the appliance in again. If it still cannot be reset, ask a qualified technician to check and repair.

Information requirements for electric local space heaters

MODEL IDENTIFIER(S): RD2500D CONNECT
Item Symbol Value Unit	Item Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P nom	2.5	KW	manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	P min 1.0	KW		manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	P max,c 2	5 KW		electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				fan assisted heat output No
At nominal heat output	el max	2.467	KW	Type of heat output/room temperature control (select one)
At minimum heat output	el min	0.984	KW	single stage heat output and no room temperature control	No
In standby mode	el SB	0.0014	KW	Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	No
				with electronic room temperature control	No
				electronic room temperature control plus day timer	Yes
				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	Yes
				with adaptive start control No
				with working time limitation	No
				with black bulb sensor	No
Contact details	B&B TRENDS, S.L. - C. Cataluña, 24 P.I. Ca N'Oller 08130Santa Perpètua de Mogoda (Barcelona) - España. C.I.F.B-86880473

MANTENANCE

1. Always disconnect the appliance and let it completely cool before any maintenance.
2. Use a vacuum cleaner to remove dust on grilles.
3. Clean the outside of the unit with a damp cloth and then dry it with a dry cloth. Never immerse the unit in water, nor let water drip into the unit.

STORING

Always disconnect the appliance, let it completely cool and clean it before storing.

If you do not use the device for a long period, put back the unit and the instruction manual to the original carton and store in a dry and ventilated place.

Do not place any heavy items on top of carton during storing as this may damage the appliance.

CLEANING & MAINTENANCE

• Switch off and unplug from the power supply before cleaning.
• Using a soft, moist cloth, with or without a mild soap solution, carefully clean the exterior surface of the product.
• CAUTION: Allow the product to completely cool before handling or cleaning it.
• Do not allow water or other liquids to run into the interior of the product, as this could create a fire and/or electrical hazard.
• We also recommend the periodic cleaning of this appliance by lightly running a vacuum cleaner nozzle over the guards to remove any dust or dirt that may have accumulated inside or on the unit.
• CAUTION: Do not use harsh detergents, chemical cleaners or solvents as they may damage the surface finish of the plastic components.

This product complies with European Directive 2012/19/EU on electrical and electronic devices, aste Electrical and Electronic Equipment), that provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices.

Do not dispose of this product in the rubbish. Go to the electrical and electronic waste collection centre closest to your home.
