USER MANUAL DS-4400D TRUST

Black desktop computer keyboard and mouse (no visible text or symbols)

UK

DE

FR

IT

ES

PL

NL

PT

GR

DK

SE

HU

CZ

SK

FI

NO

TR

RU

RO

BU

CN

A B C D E Xrust

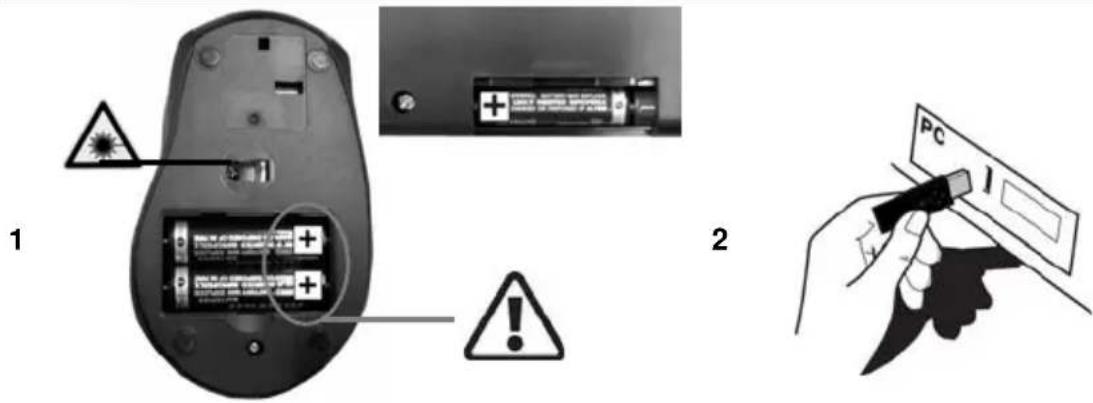

Installation

Diagram showing a remote control device with warning symbols and a hand inserting a 'PC I' to a paper, labeled 1 and 2.

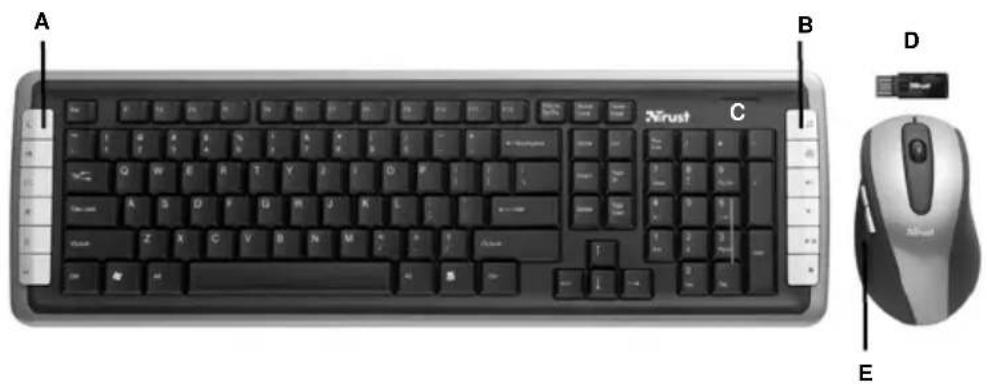

Product information

A: System and Application Keys

	Sleep / Standby
	Start Internet Browser
	Start E-mail program
	Favorites
	Calculator*
	My computer*

Media Center Functions

PrvScr	Previous Screen
ChUp	Channel Up
ChDn	Channel Down
OK	OK

B: Media Keys

	Windows default Media player*
	Mute
	Volume down
	Volume up
	Play / Pause
	Stop

C: Battery empty LED
D: USB Receiver
E: Mouse 4 ^th and 5 ^th buttons (Browser Back/Forward)

* Driver from Trust website needed to support function in Windows 2000

Installation

1 Open battery compartments on bottom side of keyboard and mouse to insert batteries.
2 Connect USB Transmitter to PC; wait until automatic installation has completed → Ready to use.

Note

Multimedia and Office keys

- Launch keys will start the default internet browser, E-mail program and Mediaplayer installed on your PC. Configure default programs:

XP: Start → Control Panel → Add/Remove Programs → Set Program Access and Defaults.

Vista: Start → Control Panel→Default Programs→Set programs access and computer defaults→Custom

• The multimedia keys also work with other media player software like Itunes.

- 4th and 5^th Mouse button only work in games that support standard 5 button mice.

Special characters

- The keyboard country layout settings in Windows should correspond with the keyboard layout of your Trust keyboard. Layout of the Trust keyboard is specified by a sticker on the Box. To set the keyboard Layout in Windows: Go to: Start → Control Panel (classic view) → Regional and Language Options → Languages → Details (Vista: "Change Keyboards")

- The Alt Gr key gives access to special characters like the € sign. An overview of the special characters per country is available at www.trust.com/keyboardlayout.

Performance

• Maximum Wireless working distance is around 8 meter.

- Reduced wireless performance can be caused by:

- (Metal) objects close to or between transmitter and keyboard → Remove objects.

- Other wireless devices close by → Remove devices or reconnect USB transmitter to get different communication ID.

- Empty batteries → Replace batteries.

• Mouse will have reduced tracking performance on very shiny or transparent surfaces.

Energy

- Never recharge the batteries provided and never throw them onto a fire.

- Observe local regulations when disposing of batteries.

Safety instructions

- Do not open or repair this device.

- Do not use the device in a damp environment. Clean the device with a dry cloth.

See www.trust.com/15207 for up-to-date FAQs, driver and instruction manuals. For extensive service, register at www.trust.com/register.

USER'S MANUAL

Trust

- This device meets the essential requirements and other relevant conditions of the applicable European directives. The Declaration of Conformity (DoC) is available at www.trust.com/15207/ce.

UK

- If possible, dispose of the device at a recycling centre. Do not dispose of the device with the household waste.

Wireless

• This class 1 wireless device works at a frequency of 2.4 GHz. It meets the essential requirements and other relevant conditions of R&TTE Directive 1999/5/EC.
• Be careful when using wireless devices if you have a pacemaker or are dependent on other life-saving, sensitive electronic equipment, because this device transmits radio signals.

Warranty & copyright

• This device has a two-year product warranty which is valid from the date of purchase. See www.trust.com/warranty for more information.
• It is forbidden to reproduce any part of this instruction manual without the permission of Trust International B.V.
