USER MANUAL IS-TC1A.2 i.safe Mobile

www.isafe-mobile.com Template:TEMPMM01REV10

CONTENTS

English....4

Deutsch....10

Česky 16

Español....23

Suomi....29

Français....35

Magyar 42

Italiano 48

Nederlands 54

Norsk 61

Polski 66

Português (BR) 73

Русский....80

Svenska....86

Korean....92

Japanese....98

Chinese....105

Arabic 111

ENGLISH

>READ AND UNDERSTAND THE INSTRUCTIONS

PROTECT YOUR LIFE AND READ THE OPERATING MANUAL

This Operating Manual is part of the device IS-TC1A.2 (model MTC1A01). This Operating Manual provides important information for safe use of the device.

» Before using the device, read this Operating Manual carefully and pay particular attention to the "Safety" section and the warnings highlighted with the warning symbol.
» Make sure you have access to this Operating Manual when you need it. You can find the current Operating Manual at www.isafe-mobile.com/en/support/downloads
» Follow all instructions given on the device and on the packaging.
» Follow local safety regulations.

INTENDED USE

The IS-TC1A.2 is an intrinsically safe, rugged Thermal Camera for use in explosion hazardous areas of Zone 2/22, according to directive 2014/34/EU, SI 2016 No. 1107, SI 2016 No. 1107, 1999/92/EC and IECEx. In combination with the IS530.2 the IS-TC1A.2 can record and display temperatures.

Only use the device as described in this Operating Manual. Any other use is considered improper and can lead to death, severe injuries and damage to the device.

The manufacturer i.safe MOBILE GmbH does not assume any liability for damage caused by improper use. The warranty expires in the event of improper use.

WARRANTY

You can find the warranty conditions at www.isafe-mobile.com/en/support/service

EX MARKINGS

ATEX:

Ea II 3G Ex ic IIC T4 Gc
II 3D Ex ic IIIC T135°C Dc

Certificate of Conformity:

EPS 21 ATEX 1 207 X

CE-designation: €

IECEx:

Ex ic IIC T4 Gc

Ex ic IIIC T135°C Dc

IECEx Certificate: IECEx EPS 21.0064X

UKEX:

II 3G Ex ic IIC T4 Gc

II 3D Ex ic IIIC T135°C Dc

CSAE 22UKEX1060 X

UKCA-designation: UK CA

> North America:

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA22CA80115539X

> Temperature range:

-20°C ... +55°C (EN/IEC 60079-0)

-10°C ... +50°C (EN/IEC 62368-1)

Manufactured by:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Germany

EU/UK DECLARATION OF CONFORMITY

You will find the EU/UK declaration of conformity at the end of this Operating Manual or at www.isafe-mobile.com/en/support/downloads

PRODUCT COMPLIANCE FOR NORTH AMERICA

Conforms to:

STD UL 62368-1, STD UL 121201

Certified to:

CSA STD CSA C22.2#213-17, CSA STD CSA C22.2#62368-1

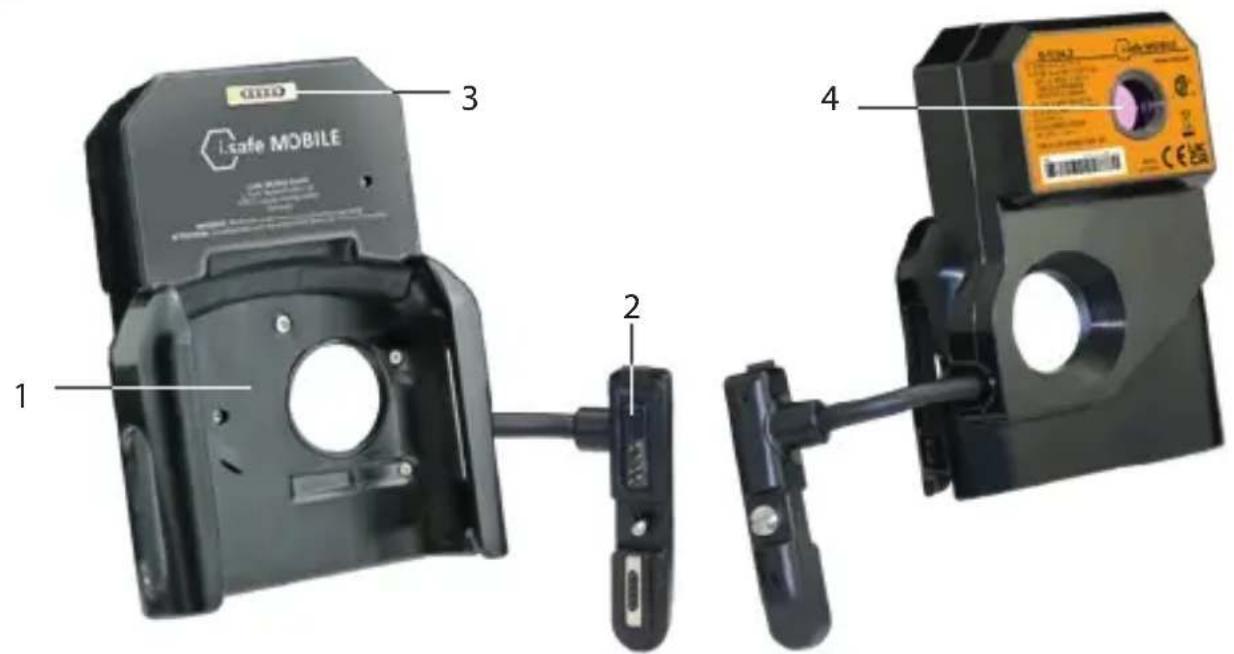

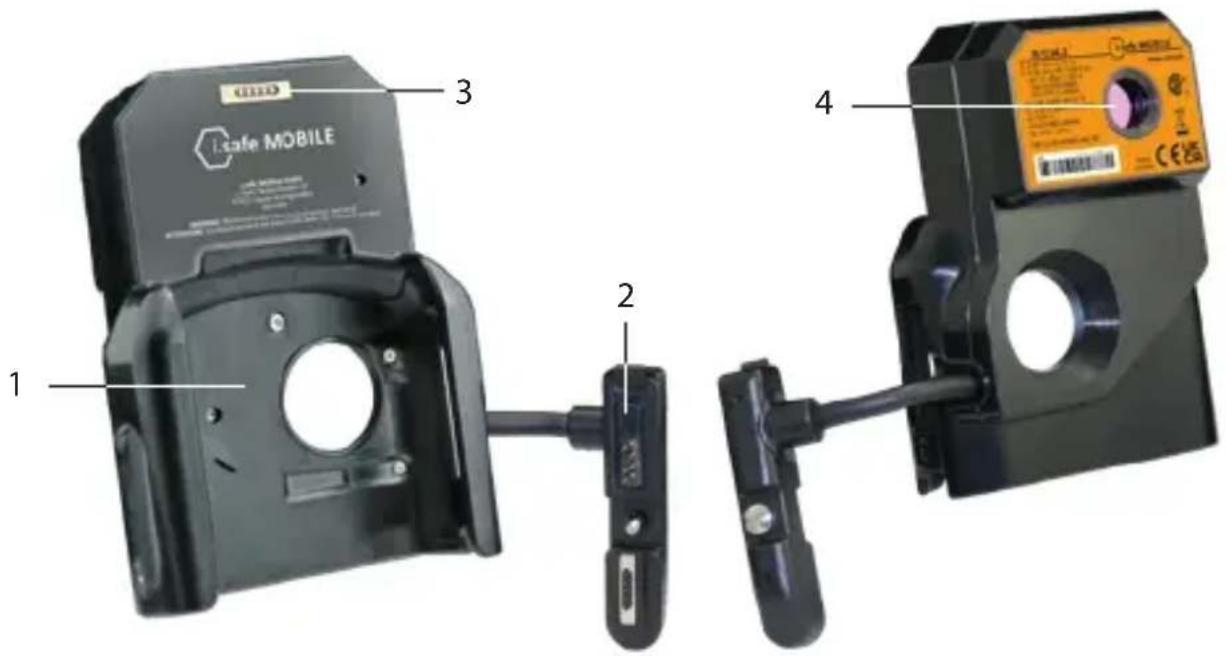

>DEVICE OVERVIEW

iISA i safe MOBILE 1 2 3 4

1> HOLDER: Holder for IS530.2.
2> PLUG: Connecting to IS530.2.
3) MAGNETIC CHARGER PORT: Connection for the Magnetic Charger Cable (included in the IS530.2 package) for charging the IS530.2.
4) THERMAL CAMERA: Recording temperatures.

> SAFETY

Read the "Safety" section of this Operating Manual carefully before using the device. If you do not follow these instructions or do not understand them, this could lead to death, severe injuries and damage to the device.

USER

Only trained users who are qualified in the use of Ex devices in explosion hazardous areas and who have read and understood this Operating Manual may use this device.

EX-RELEVANT SAFETY REGULATIONS

Use of this device assumes that the operator observes the conventional safety regulations and has read and understood Operating Manual, Safety Instructions and certificate. When used in explosion hazardous areas, the following Safety Instructions must also be complied with:

» To ensure the IP-protection, it has to be ensured that all gaskets are present and functional. There must be no large gap between the two halves of the housing.
» The device must be securely fastened to the ISM interface when used in ex-hazardous areas.
» The device may not be exposed to any aggressive acids or alkalis.
» The device may only be used in zones 2 or 22.
» Only accessories approved by i.safe MOBILE GmbH may be used.
» Do not open the device or carry out any repairs yourself.

EX-RELEVANT SAFETY REGULATIONS FOR NORTH AMERICA

Conditions of Acceptability:

» The 13-Pin connector of the IS-TC1A.2 may only be assembled or disassembled from the ISM interface outside hazardous areas.
» The device must be protected from impacts with high impact energy, against excessive UV light emission and high electrostatic charge processes.
» The permitted ambient temperature range is -20 °C to +55 °C.
» Unauthorized repair is not allowed.
» Apparatus is for use in pollution degree 2 or better.
» Only designated charger may be connected to the charging contacts.
» Not suitable for hazardous locations when enclosure is damaged.

USE IN EXPLOSION HAZARDOUS AREAS

DANGER

Improper use can result in death or severe injuries!

» Only use the device in explosion hazardous areas of zones 2/22 or outside of explosion hazardous areas.
» Only connect the device outside explosion hazardous areas to the ISM interface of the IS530.2.

» Before entering an explosion hazardous area with the device,

• make sure that the device is securely fastened to the ISM interface of the IS530.2,
• make sure that no gap can be seen between the two halves of the device,
• make sure the device is not damaged,
• make sure that all the labels on the device are readable.

» If you use the device in an explosion hazardous area, read and follow the instructions in the "Possible User Errors" section.

» Switch off the device immediately and leave the explosion hazardous area without delay if

• malfunctions occur on the device,
• you have damaged the housing of the device,
• you have exposed the device to excessive loads,
• the labels on the device are no longer readable.

POSSIBLE USER ERRORS

DANGER

Improper use can result in death or severe injuries! Follow the instructions below:

» Do not modify the device structurally.
» Do not expose the device to high temperatures.
» Do not expose the device to strong UV radiation.
» Do not expose the device to processes with high electrical charges.
» Do not expose the device to aggressive acids or bases.

When working in explosion hazardous areas, please note:

» Do not loosen the screws on the device.
» Do not open any interface cover.
» Do not charge the IS530.2.
» Do not open the device.
» Do not damage the device.

>SCOPE OF DELIVERY

Your device packaging contains the following:

1 x IS-TC1A.2
1 x Operating Manual Safety Instructions
1 x Screwdriver

INSTALLATION

DANGER

Improper use can result in death or severe injuries! Only connect the device outside explosion hazardous areas to the ISM interface of the IS530.2.

1 2 3 4 5 Life MOBILE

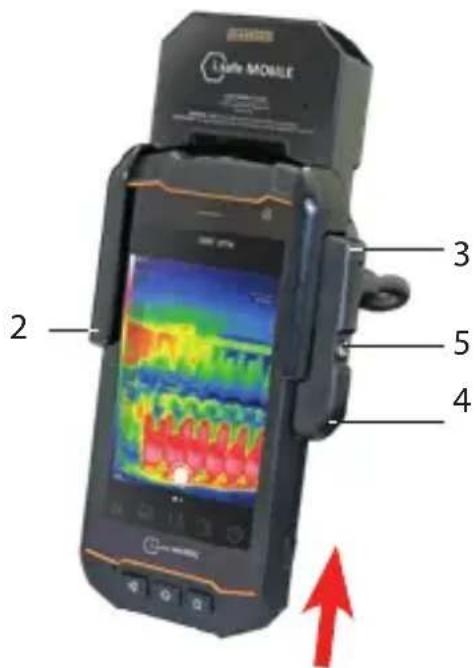

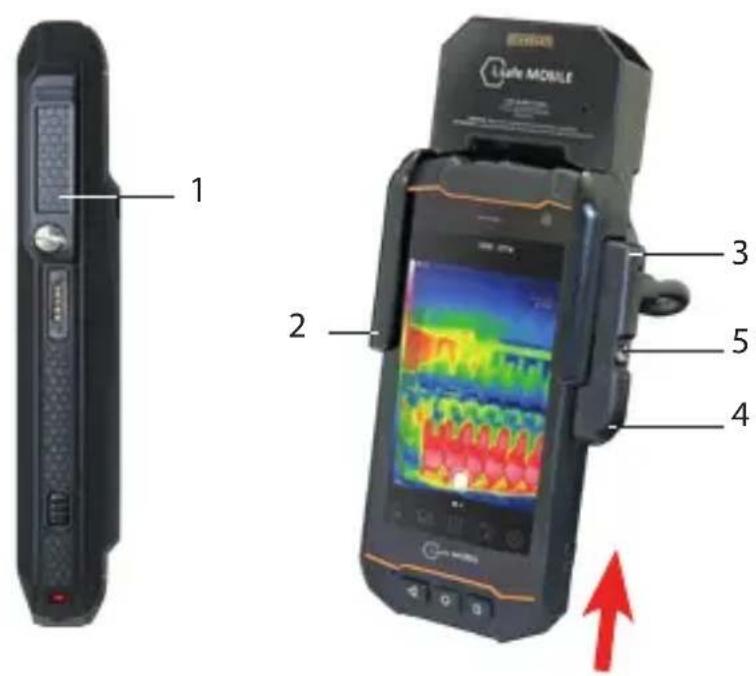

» Unscrew the cover of the ISM interface (1) located on the IS530.2.
» Push the IS530.2 completely into the holder (2) of the device.
» Attach the plug on top of the ISM interface (3).
» Fix the plug by pressing the rounded end of the plug (4).
» Tighten the screw (5).
» Check whether the plug is correctly and firmly attached to the ISM interface.

The device can now be used together with the IS530.2 in explosion hazardous areas.

> INITIATION

NOTE:

The following information applies to IS-TC1A.2 in combination with the IS530.2.

» Download and install the Seek Thermal application from the Google Playstore.
» Open the Seek Thermal application at the IS530.2 and you can start immediately.

CHARGING THE IS530.2

You can charge the IS530.2 via the magnetic charger port on the IS-TC1A.2.

DANGER

An incorrect procedure in explosion hazardous areas poses risk of death or severe injuries! Only charge the IS530.2 outside of explosion hazardous areas. Do not charge the IS530.2 in the vicinity of flammable substances.

NOTICE

Incorrect charging can cause damage to the device.

» Follow the instructions in the „Charging“ section of the IS530.2 operating manual.
» Only charge the IS530.2 using the Magnetic Charger Cable (included in the IS530.2 package).
» Connect the Magnetic Charger Cable to the magnetic charger port on the IS-TC1A.2.

POSSIBLE DEVICE PROBLEMS

You can find information on possible device problems and how to rectify them at www.isafe-mobile.com/en/support/service under the menu item "FAQ".

If you have any further questions, please contact the i.safe MOBILE repair service at www.isafe-mobile.com/en/support/service

MAINTENANCE/REPAIR

The device itself has no serviceable parts.

WARNING

Incorrect repairs present a risk of explosion or fire, which can result in death or severe injuries! Do not open the device or carry out any repairs yourself.

» Contact the i.safe MOBILE repair service at www.isafe-mobile.com/en/support/service if the device is not working normally, if the device needs to be repaired or if a replacement part is required.

RETURN SHIPMENT

Contact the i.safe MOBILE repair service at www.isafe-mobile.com/en/support/service

DISTRIBUTION PARTNER

You can find the specialist distribution partner responsible for your country at www.isafe-mobile.com/en/contact

CLEANING

NOTICE

Incorrect cleaning can cause damage to the device. Please note the following when cleaning:

» Do not use chemical agents for cleaning.

» Clean the device with a soft, moistened antistatic cloth.

STORAGE

NOTICE

Incorrect storage can cause damage to the device. Store the device at ambient temperatures between +5 °C to +35 °C (41 °F to +95 °F) and a humidity between 10 % to 60 %.

RECYCLING

NOTICE

Incorrect disposal of electronic products, batteries and packaging material puts the environment at risk. Please note the following when disposing of items:

» DO NOT throw away batteries with household waste.

» Always dispose electronic products, batteries and packaging material at the appropriate collection points. This way, you prevent uncontrolled waste disposal and promote the recycling of material resources.

You can obtain further information from regional waste disposal companies, state authorities or the i.safe MOBILE service centre responsible for your country or region at www.isafe-mobile.com/en/support/service

TRADEMARKS

i.safe MOBILE and the i.safe MOBILE logo are registered trademarks of the i.safe MOBILE GmbH. All other trademarks and copyrights are the properties of their respective owners.

DEUTSCH

CSA STD CSA C22.2#213-17, CSA STD CSA C22.2#62368-1

EX-KENNZEICHNUNGEN

> ATEX:

Class I Div 2 Groups A, B, C, D, T4
Class II Div 2 Groups F, G, T135°C
Class III Div 2
CSA22CA80115539X

www.isafe-mobile.com/de/support/service

MARKEN

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA22CA80115539X

> Teplotní rozsah:

-20°C ... +55°C (EN/IEC 60079-0)

-10°C ... +50°C (EN/IEC 62368-1)

Výrobce:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Německo

SHODA VÝROBKŮ PRO SEVERNÍ AMERIKU

Vyhovuje:

STD UL 62368-1, STD UL 121201

CSA STD CSA C22.2#213-17, CSA STD CSA C22.2#62368-1

PŘEHLED ZAŘÍZENÍ

1 2 3 4 I.Cafe MOBILE

www.isafe-mobile.com/en/support/service

CONTRA EXPLOSIÓN

ATEX:

II 3G Ex ic IIC T4 Gc
① II 3D Ex ic IIIC T135°C Dc
Certificado de examen de tipo de UE:
EPS 21 ATEX 1 207 X
Distintivo CE: 2004

IECEx:

Ex ic IIC T4 Gc
Ex ic IIIC T135°C Dc
Certificado IECEx: IECEx EPS 21.0064X

UKEX:

① II 3G Ex ic IIC T4 Gc
II 3D Ex ic IIIC T135°C Dc
Certificado de examen de tipo de UK:
CSAE 22UKEX1060X
Distinctivo UKCA:

América del Norte:

Class I Div 2 Groups A, B, C, D, T4 Class II Div 2 Groups F, G, T135°C Class III Div 2 CSA22CA80115539X

> Intervalo de temperatura:

-20°C ... +55°C (EN/IEC 60079-0) -10°C ... +50°C (EN/IEC 62368-1)

CSA STD CSA C22.2#213-17, CSA STD CSA C22.2#62368-1

1 x Operating Manual Safety Instructions

1 x Destornillador

> INSTALACIÓN

PELIGRO

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA22CA80115539X

Lämpötila-alue:

-20°C ... +55°C (EN/IEC 60079-0)

-10°C ... +50°C (EN/IEC 62368-1)

> Valmistaja:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Saksa

TUOTTEIDEN VAATIMUSTENMUKAISUUS POHJOIS-AMERIKASSA

CSA STD CSA C22.2#213-17, CSA STD CSA C22.2#62368-1

> LAITTEEN YLEISKUVA

1 2 3 4 ISafe MOBILE 2 3 4

DÉCLARATION DE CONFORMITÉ UE/UK

Certification CE: 2004

IECEx:

Ex ic IIC T4 Gc

Ex ic IIIC T135°C Dc

Certificat IECEx: IECEx EPS 21.0064X

UKEX:

① II 3G Ex ic IIC T4 Gc

Ex II 3D Ex ic IIIC T135°C Dc

Certification UKCA: UK CA

Amérique du Nord:

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA22CA80115539X

> Plage de temperature:

-20°C ... +55°C (EN/IEC 60079-0)

-10°C ... +50°C (EN/IEC 62368-1)

> Fabrique par:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Allemagne

CONFORMITÉ DU PRODUIT POUR L'AMÉRIQUE DU NORD

Conforme à :

STD UL 62368-1, STD UL 121201

Certifié conforme :

CSA STD CSA C22.2#213-17, CSA STD CSA C22.2#62368-1

VUE D'ENSEMBLE DE L'APPAREIL

1 2 3 4 iSafe MOBILE

1 x Operating Manual Safety Instructions

1 x Tournevis

INSTALLATION

DANGER

CSA STD CSA C22.2#213-17, CSA STD CSA C22.2#62368-1

EX-JELÖLÉSEK

> ATEX:

④ II 3G Ex ic IIC T4 Gc
II 3D Ex ic IIIC T135°C Dc

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA22CA80115539X

> Hömerseklet tartomany:

-20°C ... +55°C (EN/IEC 60079-0)
-10°C ... +50°C (EN/IEC 62368-1)

> Gyarto:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Németország

> A ESZKÖZ ÁTTEKINTÉSE

iSafe MOBILE 1 2 3 4

1 x Operating Manual Safety Instructions

1 x csavarhúzó

>TELEPÍTÉS

VESZÉLY

www.isafe-mobile.com/en/support/service

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA22CA80115539X

CSA STD CSA C22.2#213-17, CSA STD CSA C22.2#62368-1

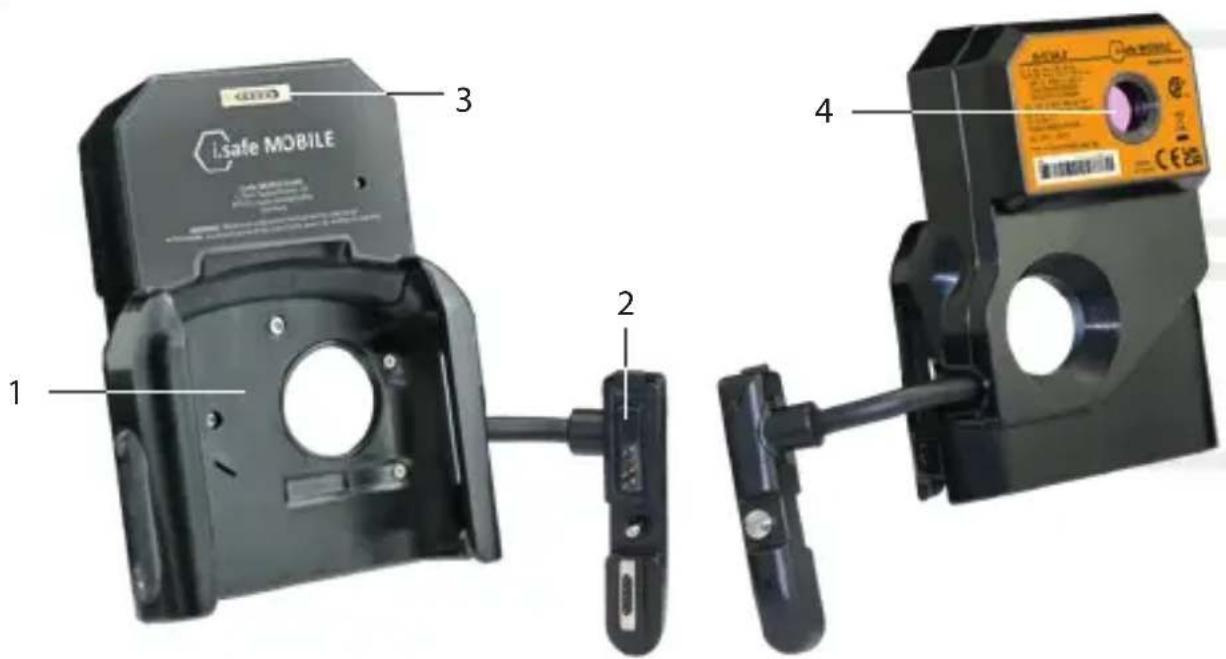

PANORAMICA

1 2 3 4 i safe MOBILE

USO IN AREE A RISCHIO DI ESPLOSIONE

PERICOLO

1 x IS-TC1A.2
1 x Operating Manual Safety Instructions
1 x cacciavite

INSTALLAZIONE

PERICOLO

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA22CA80115539X

CSA STD CSA C22.2#213-17, CSA STD CSA C22.2#62368-1

> APPARAATOVERZICHT

1 2 3 4 I.Cafe MOBILE

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA22CA80115539X

> Temperaturomrade:

-20°C ... +55°C (EN/IEC 60079-0)

-10°C ... +50°C (EN/IEC 62368-1)

> Produsert av:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Tyskland

PRODUKTOVERHOLDELSE FOR NORD-AMERIKA

Samsvarer med:

STD UL 62368-1, STD UL 121201

Sertifisert til:

CSA STD CSA C22.2#213-17, CSA STD CSA C22.2#62368-1

ENHETSOVERSIKT

1 2 3 4 ISafe MOBILE

1) BRAKETT: Brakett til IS530.2
2> PLUG: Koble til IS530.2
3) MEGNETLADER-TILKOBLING: Tilkobling for magnetisk laderkabel (inkludert i IS530.2-pakken) for lading av IS530.2. Se også avsnittet "Lading".
4) TERMISK KAMERA: Opptak av temperaturer.

SIKKERHET

1 x IS-TC1A.2
1 x Operating Manual Safety Instructions
1 x Skrutrekker

INSTALLASJON

FARE

VEDLIKEHOLD / REPARASJON

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA22CA80115539X

Zakres temperatur:

-20°C ... +55°C (EN/IEC 60079-0)

-10°C ... +50°C (EN/IEC 62368-1)

> Producent:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Niemcy

ZGODNOŚĆ PRODUKTU DLA AMERYKI PÓŁNOCNEJ

Zgodność z:

STD UL 62368-1, STD UL 121201

CSA STD CSA C22.2#213-17, CSA STD CSA C22.2#62368-1

>OPIS OGÓLNY

1 2 3 4 ISafe MOBILE

www.isafe-mobile.com/en/support/service

www.isafe-mobile.com/en/support/downloads

CSA STD CSA C22.2#213-17, CSA STD CSA C22.2#62368-1

MARCAS

> ATEX:

II 3G Ex ic IIC T4 Gc
Ex II 3D Ex ic IIIC T135°C Dc

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA22CA80115539X

1 x IS-TC1A.2
1 x Operating Manual Safety Instructions
1 x Chave

> INSTALAÇÃO

PERIGO

www.isafe-mobile.com/en/support/service

CSA STD CSA C22.2#213-17, CSA STD CSA C22.2#62368-1

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA22CA80115539X

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA22CA80115539X

> Temperaturintervall:

-20°C ... +55°C (EN/IEC 60079-0)

-10°C ... +50°C (EN/IEC 62368-1)

> Tillverkad av:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Tyskland

EU/UK-FÖRSÄKRAN OM ÖVERENSSTÄMMELSE

CSA STD CSA C22.2#213-17, CSA STD CSA C22.2#62368-1

ÖVERSIKT ÖVER ENHETEN

1 2 3 4 I.Cafe MOBILE

1 x Operating Manual Safety Instructions

1 x Mejsel

INSTALLATION

FARA

Class I Div 2 Groups A, B, C, D, T4
Class II Div 2 Groups F, G, T135°C
Class III Div 2
CSA22CA80115539X

온도 범위:

-20°C ... +55°C (EN/IEC 60079-0)
-10°C ... +50°C (EN/IEC 62368-1)

제조업체:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Germany

북미 제품 규정 준수

준수:

STD UL 62368-1, STD UL 121201

인증:

CSA STD CSA C22.2#213-17, CSA STD CSA C22.2#62368-1

>장치 개요/기능

1 2 3 4 I safe MOBILE 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA22CA80115539X

温度範囲:

-20°C ... +55°C (EN/IEC 60079-0)

-10°C ... +50°C (EN/IEC 62368-1)

製造元:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Germany

北米向け製品コンプライアンス

に適合している:

STD UL 62368-1, STD UL 121201

に認定されています。:

CSA STD CSA C22.2#213-17, CSA STD CSA C22.2#62368-1

装置の概要

1 2 3 4 ISafe MOBILE

1 x IS-TC1A.2
1 x Operating Manual Safety Instructions

1 x ドライバー

> インストール

危险

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135° C

Class III Div 2

CSA22CA80115539X

温度范围:

-20^·s +55^ (EN/IEC 60079-0)

-10^ C ·s + 50^ C (EN/IEC 62368-1)

制造商：

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Germany

符合北美地区的产品标准

符合。:

STD UL 62368-1, STD UL 121201

经认证符合。:

CSA STD CSA C22.2#213-17, CSA STD CSA C22.2#62368-1

设备总览/功能

1 2 3 4 I Safe MOBILE

1 x IS-TC1A.2
1 x Operating Manual Safety Instructions
1x螺丝刀

>安装

危险

www.isafe-mobile.com/en/support/downloads

www.isafe-mobile.com/en/support/service

www.isafe-mobile.com/en/support/downloads

نطاق درجة الحرارة

-20°C ... +55°C (EN/IEC 60079-0)

-10°C ... +50°C (EN/IEC 62368-1)

المُصْنَع:

i.safe MOBILE GmbH

i Park Tauberfranken 10

Lauda-Koenigshofen 97922

اللمانيا

Operating Manual Safety Instructions -

1 x -

التركيب

خطر

Close-up of a black handheld electronic device with labeled component (no visible text or symbols)

Life MOBILE 2 3 5 4

FOR FURTHER QUESTIONS PLEASE CONTACT OUR SERVICE CENTRE:

» i.safe MOBILE GmbH, i_Park Tauberfranken 10, 97922 Lauda-Koenigshofen, Germany
» [e-mail]
» https://support.isafe-mobile.com

EU/UK DECLARATION OF CONFORMITY

i.safe MOBILE

EU/UK – Declaration of Conformity

according to directive 2014/34/EU, SI 2016 No. 1107, 2014/30/EU, SI 2016 No. 1091,

2011/65/EU (2015/863/EU), SI 2020 No. 1647 amending SI 2012 No. 3032

The company i.safe MOBILE GmbH declares under its sole responsibility that the product to which this declaration relates is in accordance with the provisions of the following data, directives and standards:

EU/UK DECLARATION OF CONFORMITY

i.safe MOBILE

Conformity statement 2014/30/EU issued byKonformitätsaussage 2014/30/EU ausgestellt durchApplied harmonized standardsAngewandte harmonisierte Standards	Shenzhen Morlab Communications Technology Co., Ltd.FL.3, Building A, FeiYang Science Park, Block 67, BaoAn District, Shenzhen, Guangdong, ChinaEN IEC 61326-1:2021
Conformity statement SI 2016 No. 1091 issued ByKonformitätsaussage SI 2016 No. 1091 ausgestellt durchApplied standardsAngewandte Standards	Shenzhen Morlab Communications Technology Co., Ltd.FL.3, Building A, FeiYang Science Park, Block 67, BaoAn District, Shenzhen, Guangdong, ChinaBS EN IEC 61326-1:2021
Conformity statement 2015/863/EU amending 2011/65/EU issued byKonformitätsaussage 2015/863/EU ergänzt 2011/65/EU ausgestellt durchApplied harmonized standardsAngewandte harmonisierte Standards	Shenzhen Morlab Communications Technology Co., Ltd.FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. ChinaIEC 62321-3-1: 2013; IEC 62321-5: 2013; IEC 62321-4: 2013 + A1: 2017; IEC 62321-7-1: 2015; IEC 62321-7-2: 2017; IEC 62321-6: 2015; IEC 62321-8: 2017
Conformity statement SI 2020 No. 1647 amending SI 2012 No. 3032 issued byKonformitätsaussage SI 2020 No. 1647 ergänzt SI 2012 No. 3032 ausgestellt durchApplied standardsAngewandte Standards	Shenzhen Morlab Communications Technology Co., Ltd.FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. ChinaIEC 62321-3-1: 2013; IEC 62321-5: 2013; IEC 6231-4: 2013 + A1: 2017; IEC 62321-7-1: 2015; IEC 62321-7-2: 2017; IEC 62321-6: 2015; IEC 62321-8: 2017
CE/UKCA MarkingCE/UKCA-Kennzeichnung	CE UK CA

EU/UK DECLARATION OF CONFORMITY

i.safe MOBILE

Lauda – Koenigshofen 02.11.2022

Dirk Amann

Managing Director

Nighttime exterior view of a large industrial chemical plant with illuminated towers and piping (no visible text or signage)

WWW.ISAFE-MOBILE.COM
