Table of Contents Welcome

Welcome 23

Optional accessories 23

Technical data 23

Safety information 24

Installation and start-up 26

Use 28

Maintenance and care 30

Disassembly 30

Warranty 31

Disposal 31

Intended use

The product serves as a device for the protection of the human body from solar radiation. The product may only be used in private households, in the catering and hotel sector or in a comparable environment. The product may only be used in accordance with these installation and operating instructions. Any use other than the uses described in these installation and operating instructions shall be considered improper use. We reserve the right to make modifications due to technical advances. In these instructions the FORTANO may also be referred to as 'the product' or 'parasol'.

Warning words used

!DANGEROUS Immediately dangerous situation which can result in death or severe injuries.

!CAUTION Potentially dangerous situation which can result in minor or moderate injuries.

!NOTICE A situation that can lead to property damage.

23

Congratulations on the purchase of your new FORTANO. You have purchased a high quality parasol. These instructions form part of this product. It contains important safety, usage and disposal information for users of the product. Please familiarise yourself with all the information listed before using the product. The product may only be used as described herein and for the use scenarios stated. If you continue to use it and care for it properly, your FORTANO parasol will serve you well for many years to come.

Optional accessories

A high quality range of accessories is included with your parasol: It includes, among other things, the following products, which go perfectly with your parasol:

• Base
• Mounting plate
• Ground Socket
• Wall console
• Support tube
• Swivel Adapter
• Protective cover
• OSYRION Spot

Consult your GLATZ dealer about this.

Technical data

Size [cm]	Base area [ m^2 ]	Closing height [cm]	Passage height [cm]	Overall height [cm]
300×300	9	105	215	320
400×300	12	65	215	320

Details when using the M4 ground socket

Safety information

READ ALL THE SAFETY INFORMATION CAREFULLY AND MAKE SURE THAT YOU UNDERSTAND THEM.

• Follow all the instructions to avoid accidents, fire, explosions, electric shock or other hazards that could cause property damage and / or severe or fatal injuries.
• Ensure that each person using the product has read and observes these warnings and instructions.
• Keep these installation and operating instructions for the future. It must be passed on to subsequent users of the product.
• The manufacturer is not liable for material damages or injuries caused by incorrect use or the failure to observe the safety instructions. The warranty becomes invalid in such cases.
• The protective effect against hazardous UV radiation varies depending on the environment. Additional measures to protect your skin are possibly also necessary.
  • Children must not play with the product.
• !DANGER Always keep children away from packaging material - this constitutes a choking hazard. Children underestimate risks. This product is not a toy.
• Children aged 8 years or over and persons with reduced physical, sensory or mental capabilities, lack of experience or knowledge may only use the appliance if they are supervised by a person who is responsible for their safety or if they have been shown how to use the appliance safely and they have understood the risks inherent in its use. Cleaning and maintenance tasks may not be carried out by children without supervision.
• Do not use the device if you are suffering from a lack of concentration /attention or under the influence of drugs, alcohol or medication.
• The product must be placed in a base or a ground sleeve that is firmly anchored.
• Do not allow the product to fall or knock against anything.
• Check the span of the parasol before opening / closing it.
• Make sure there are no persons / objects in the movement area when opening / closing it. Otherwise, injuries / damage may occur.
• !DANGER Close the parasol when the wind picks up, in stormy weather conditions and / or when snow is falling.
• Observe the specifications concerning the maximum per-

missible wind speed for a fixed ground anchorage (ground sleeve inserted in concrete). The permissible wind speed is reduced if a different anchorage method is used.

• Unattended parasols may not remain opened. Any damage is not covered by the warranty. Always secure closed parasols with a binding belt.
• Only use original accessories / spare parts.
• Product and technical modifications are not permitted.
• The parasol must be monitored during opening and closing.
• Check parasol and accessories regularly to be sure that no undue wear and tear or damage has occurred. If defects are found, have them repaired before further use.
• Do not use any solvents or abrasive cleaning agents.
• Dismantled parasols should only be stored lying down.
• When using a fixed floor anchorage, the installation must be performed by specially trained persons in accordance with the separate installation instructions.
• Do no ignite a naked flame in the proximity of, or under, the parasol.

Installation and start-up

Technical diagram showing exploded view of a drill bit with labeled parts including screw, nut, and adjustment tools

1

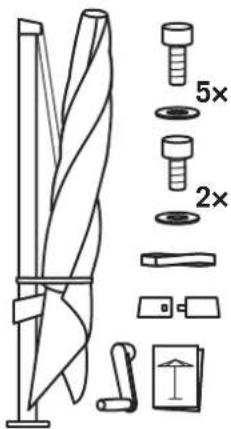

Unpacking the parasol

Supplied with:

• parasol
• Crank with stud
• binding
• protective cover
• 5 fastening screws (floor fastening)
• 5 support screws
• 2 round-headed screws (standpipe fastening)
• 2 washers
• 3 allen key
• Standpipe cover
• Operating instructions

! Dispose of packaging material properly and keep away from children.

Do not make use of defective material. In the event of any damage, inform the transport service provider immediately.

PI 2

2

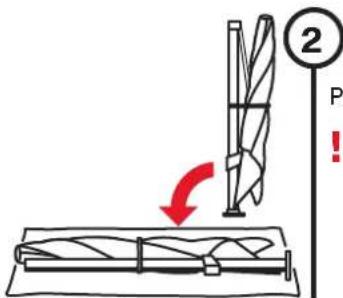

Placing the parasol down

Carefully place the parasol on a
clean, horizontal surface. The parasol is very heavy. Work in a threesome and hold the parasol securely.

Diagram of a cylindrical container with particles inside, showing liquid level and downward arrow (no text or symbols)

3

Prepare the floor fastening

Place the floor fastening in accordance with the separate instructions.

Size [cm] [kg] [km/h (Bft.)]	minimum weight	maximum wind speed*
300 x 300 120 55 (7)
400 x 300 150 45 (6)

* maximum wind speed when it is securely anchored in the ground.

4.1

4

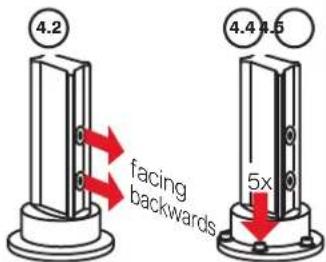

Pre-assemble standpipe

1. Pull standpipe out of the mast
2. Place parasol on standpipe The side with the two thread holes must face backwards (away from the parasol)
3. Adjust holes / position
4. Place 5 washers in position
5. Pre-assemble standpipe with 5 hexagonal screws

! The side with the two thread holes must face backwards (away from the parasol).

4.2 facing backwards 4.4 4.5 5x

5

Pre-assemble parasol

1. Place parasol on standpipe
2. Attach parasol tightly to standpipe, using 2 washers and 2 round headed screws
3. Put crank in place and screw tightly
4. Remove strap
5. Open parasol with the crank
6. Make sure that the inner parts are engaging
   ! The parasol is very heavy. Work in a threesome and hold the parasol securely.

5.15.36.2

5.5 ↑ G 5.6

⑥

Fixing the parasol in place

1. Make final adjustments of parasol position
2. Fix parasol in place by tightening the 5 hexagonal screws
3. Push standpipe cover on both sides, click into place
4. Push standpipe cover down as far as it will go
5. Close parasol

Use

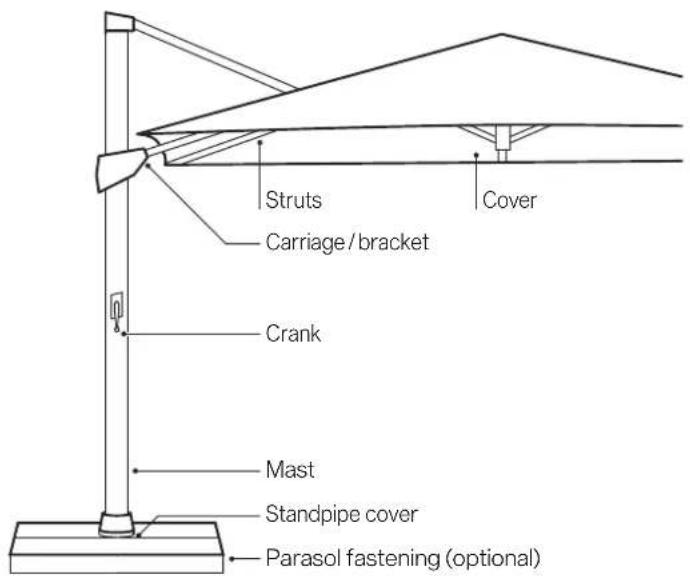

Struts Carriage/bracket Crank Mast Standpipe cover Parasol fastening (optional)

1.3 1.4

Opening the parasol

1. Remove protective cover
2. Detach strap
3. Completely open the parasol through use of the crack
4. Make sure that the inner parts are engaging

! The parasol will be automatically aligned horizontally. For safe operation, the inner parts must be completely engaged.

Diagram showing a mechanical device with a circular symbol and a rotating arm mechanism, illustrating motion or rotation.

2

Closing the parasol

1. Turn crank anticlockwise until the parasol is completely closed
   ! Keep the parasol as compact as possible.

3

3.33 3.2

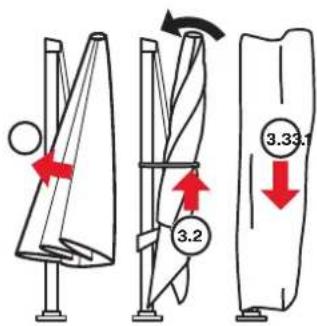

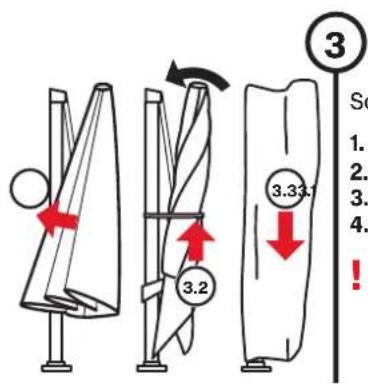

Bind/protect the parasol

1. Pull out / wrap fabric segments
2. Secure the parasol with a binding strap
3. Lift the protective cover above the parasol section
4. Close the protective cover

To extend the service life of the covering material, GLATZ strongly recommends the use of a protective sleeve when the parasol is closed.

Handling and maintenance

• Allow the parasol to dry when open to prevent the formation of mould and discolouration.
• A protective sleeve protects the parasol and will extend its service life.
• Only pull the protective sleeve over the dry parasol when it is dry.
• Do not clean the protective sleeve in the washing machine. Do not use chemicals.
• Clean the parasol cover when needed with lukewarm water, fine detergents and a sponge.
• Do not use any bleach or sharp objects, to avoid damage to the cover.
• Check the tightness of all screws from time to time and tighten them if necessary.
• If the parasol is located in a highly exposed position, increased wear and tear must be expected. In such cases we recommend more intensive care and maintenance.
• In most cases, defective parasols can be repaired by your GLATZ partner. Only use original replacement parts FROM GLATZ.

Disassembly

Dismantle the parasol if it is not going to be used for a long time.

DANGER! DANGER OF TIPPING DANGER OF INJURY IF THE PARASOL TOPPLES OVER

1. Close and tie the parasol properly.
2. Dismantle the parasol in reverse mounting direction.
3. Store the parasol in lying position together with all accessories in a dry place.

Warranty

Please contact your GLATZ partner before returning the product. The warranty on the parasol lasts for 24 months from the date of purchase. The warranty expires in the following cases:

• External application of excessive force
- Inappropriate operation or maintenance of the parasol
• Damage arising from force majeure

The wind guarantee for an open parasol is limited. The maximum permissible wind speeds always require a fixed anchorage in the ground. If there are several parasols, a minimum distance of 20 cm must be maintained between any two of them. Likewise, a minimum distance of 20 cm must be maintained between the parasol and walls.

Disposal

This symbol on the product, accessories or packaging indicates that the product must not be treated as unsorted domestic waste but must be disposed of separately. Dispose of the product at a designated recycling collection point.

The packaging is made of environmentally friendly materials that can be disposed of at your local recycling facilities. By disposing of the product correctly, you will help to avoid possible environmental and health hazards. The product is made of metal and synthetic parts. End-of-life disposal must be carried out in accordance with regional environmental and waste regulations.
