USER MANUAL VT-8217-3 V-TAC

When using electrical appliances, basic safety precautions should always be followed. These instructions should be saved for future reference:

• Read and familiarise yourself with all operating instructions before using this Pedestal Fan.
• Before plugging your unit into the mains, visually check that the unit is intact and has not suffered any transit damage.
• Do not use this product with a programmer, timer, separate remote-control system or any other device.
• Check that the voltage indicated on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. And Children should be supervised to ensure that they do not play with the appliance

• Do not immerse the appliance or its cord in water or any other liquids.

• Do not leave the appliance unattended during use.
• Do not leave the appliance unattended whilst connected to the mains supply.
  • Always use this appliance on a solid, level, surface.
• Do not use this appliance outdoors.
• It is imperative to unplug the power cord after the appliance has been used, before it is cleaned and whilst being repaired.
• Repairs to electrical appliances should only be performed by a qualified electrician. Improper repairs may place user at serious risk.
• Do not operate this appliance with a damaged plug or cord, after a malfunction or after being dropped or damaged in any way.
• Regular, periodic checks should be carried out on the mains cable to ensure no damage is evident. Should there be any signs of damage the appliance should not be used.
• If the power cable is damaged, it should only be replaced by the manufacturer or a suitable qualified after-sales-service in order to avoid a hazard.
• Do not allow the mains cable to hang over sharp edges or come in contact with hot surfaces.
• Do not run the mains cable under carpets, rugs, etc.
• This appliance is intended for household use only and should not be used for industrial purposes.
• Do not use any accessories or attachments with this appliance other than those supplied or recommended by the supplier.

• Do not use this appliance for anything other than its intended use.

• Do not push objects (including fingers) into the fan grill or any openings as this could risk injury, damage to the appliance and/or electric shock.

• Unplug after each use. Grasp the plug, not the cord.
• Please make sure to turn off the power before starting the installation.
  • Installation should only be done by a certified electrician.
• Unplug from electrical supply source before cleaning. After servicing, any safety device (including grilles and blades) must be reinstalled or remounted as previously installed. Use soft damp cloth then wipe with dry cloth. Do not use harmful cleaners. Do not bend the blades.
• If the plug and supply cord are damaged, it must be replaced by the manufacturer, its service agent or a suitable qualified person in order to avoid a hazard.

This marking indicates that this product should not be disposed of with other household wastes.

Caution, risk of electric shock.

INTRODUCTION

Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best.

WEEE Number: 80133970

INSTRUCTION MANUAL

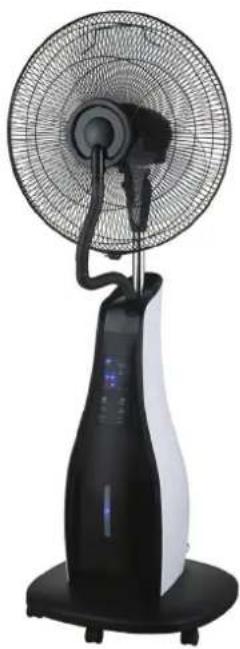

MIST FAN

Modern outdoor fan with black and white casing, no visible text or symbols

TECHNICAL DATA

MODEL	VT-8217-3
WATTS	80W
FAN SPEED	LOW-MED-HIGH
MAX MIST CAPACITY	280ML/H
DIAMETER RADIAL GRILL	430MM
TIMER 7.5H (with Remote)
WATER TANK CAPACITY	3.2 LITRE
INPUT POWER	AC: 220-240~, 50/60Hz

INTRODUCTION

This product has both fan and humidifier functions, which can be used together or separately. The humidifier is especially useful on very hot days, when the extra mist in the air helps not only to cool you down, but also to increase the humidity in the dry heat.

DESCRIPTION OF PARTS

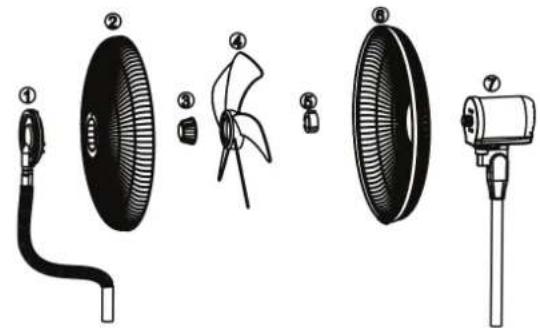

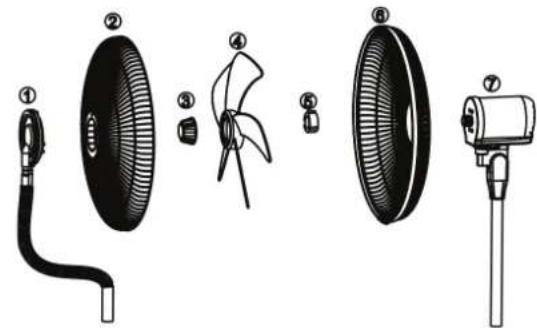

Exploded diagram of a fan with numbered parts including head, blade, and camera

1. Front mist plate and turbo [includes 3 screws]
2. Front Guard
3. Blade cap
4. Blade
5. Guard Mounting Nut
6. Rear Guard
7. Motor
8. Fan Body with Mounting Cap 1 and Cap 2
9. Base and 4 Castor wheels

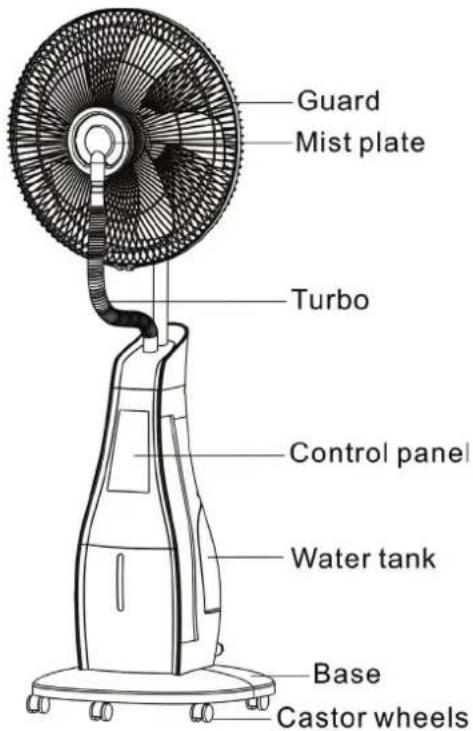

Guard Mist plate Turbo Control panel Water tank Base Castor wheels

PRODUCT ASSEMBLY

1

2

Simple diagram of a circular object with upward arrows indicating motion or force direction (no text or symbols)

3

Line drawing of a cleaning machine with a base platform and mounting feet (no text or symbols)

4

Diagram showing a mechanical device with a downward arrow and a separate view of a bracket with motion arrows (no text or symbols)

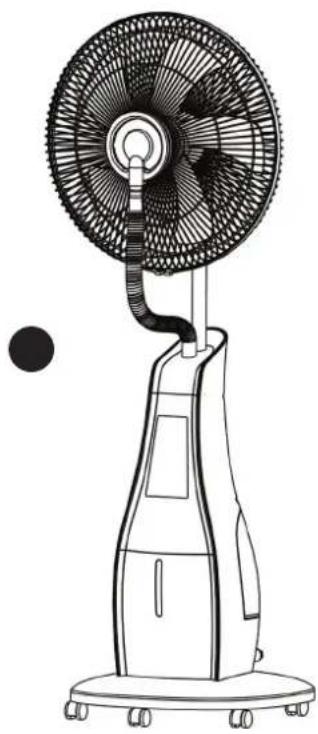

• Install the 4 castor wheels into the the holes of base

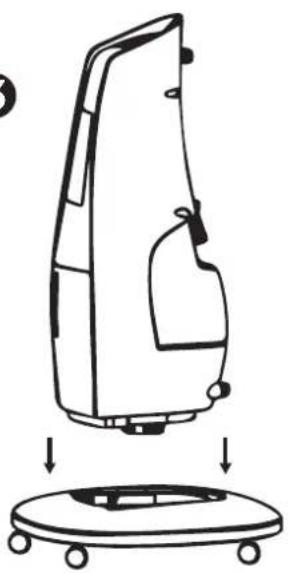

- Attach the fan body on the base with the help of mounting cap1
- Fix the fan motor part into the fan body hole and tighten it with the mounting cap2

PRODUCT ASSEMBLY

Line drawing of a portable air conditioner with fan and base mount (no text or symbols)

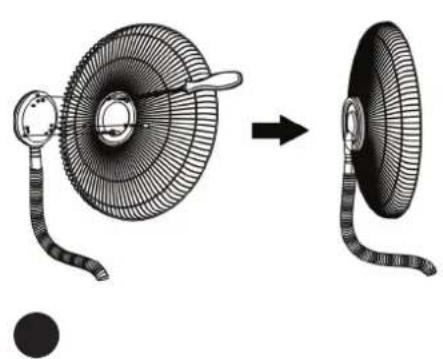

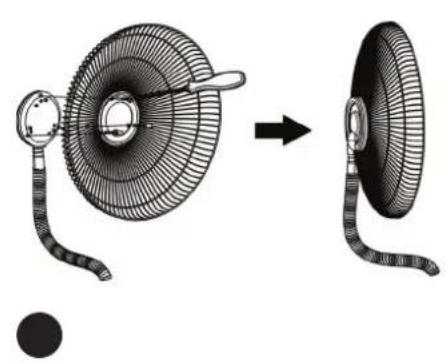

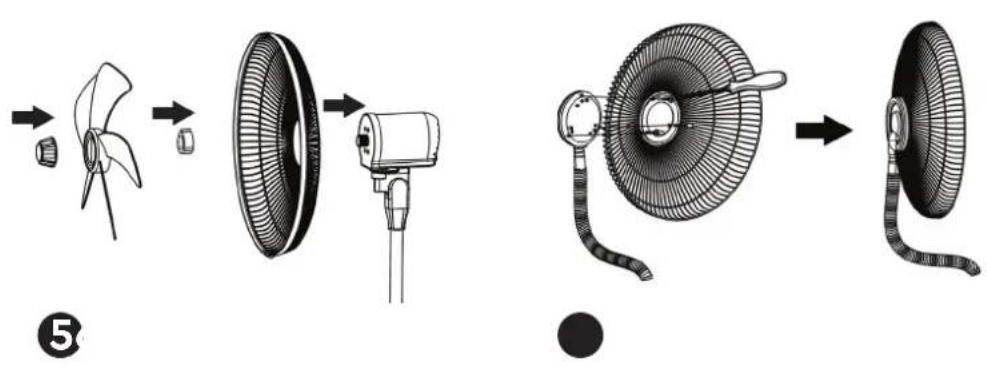

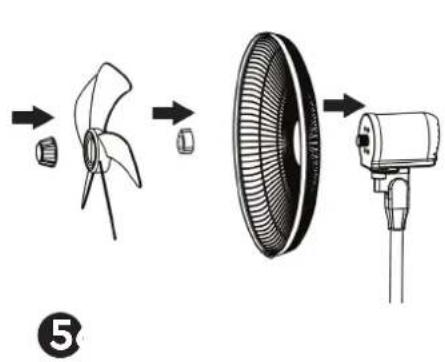

• Unscrew the guard mounting nut and blade cap from the motor and then install the rear guard
  • Install the blade and screw it with blade cap
  • Install front mist plate to front guard with 3 screws
  • Fix the front guard to rear guard and fix the turbo on the fan body

FILLING THE WATER TANK

Place the fan on a flat, stable floor, then add water for the humidifying function as follows:

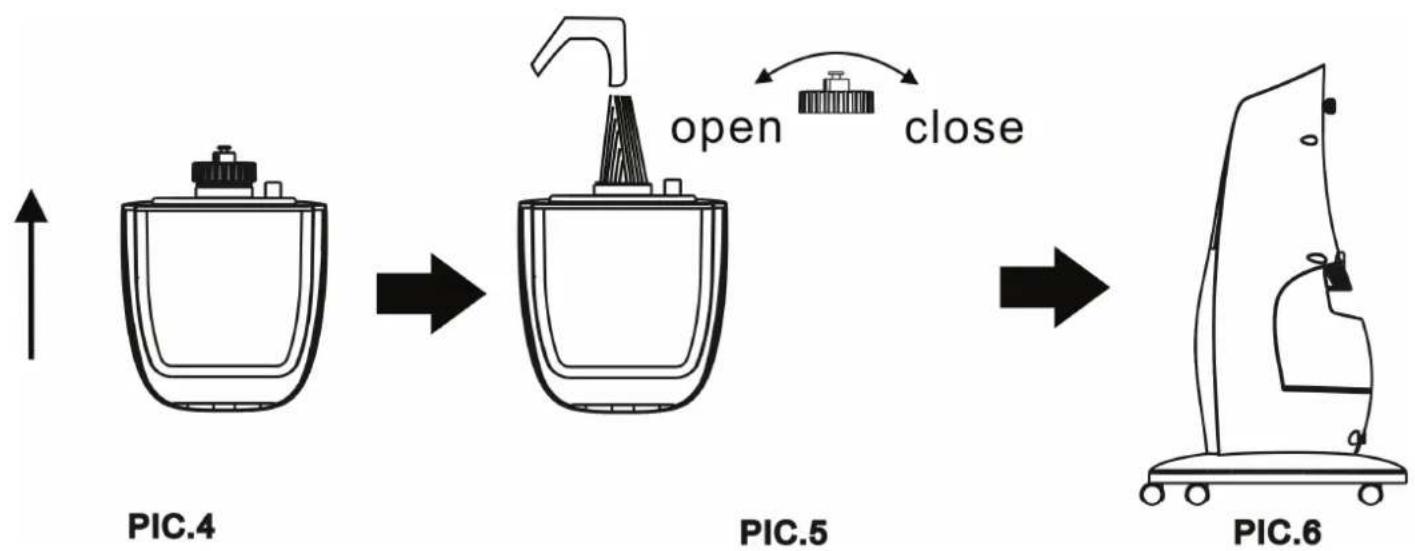

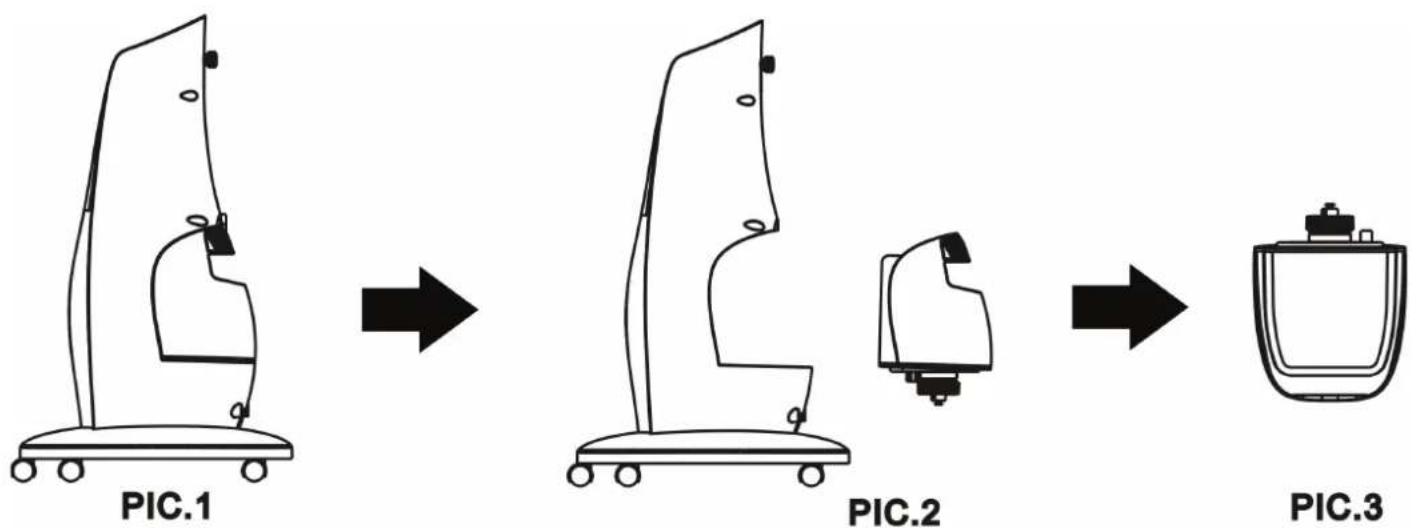

1. Open the water tank cover.

2. Lift the water tank straight Up to disengage

3. Carefully remove the water tank from the unit (watch for spills)

1. Over a sink, turn the water tank water the tank upside-down

2. Unscrew the lid and fill the tank with clean water. Replace the lid and tighten it securely

3. Carefully put back into the unit. Make sure it is seated properly to avoid leaks.

REMOTE CONTROL

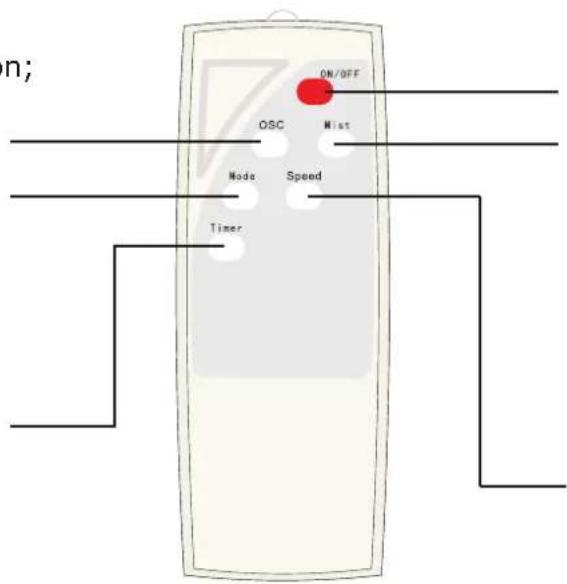

Press "OCS" to start oscillation; press again to fix the airflow direction.

Press "MODE" to choose the wind type

Press "TIMER" button to set the working time of the unit.

n; ON/OFF OSC Mist Mode Speed Timer

Turn "ON/OFF" the Power

Press "MIST" to start the mist function. Mist comes out of the front plate if there is water in the tank. The MIST function can be used on its own or along with the fan function to blow the mist into the room.

Press "SPEED" button to open the fan function and choose the wind

CAUTION

* Do not touch / pull out / put back the water tank when the unit is plugged into a power source. Make sure it is physically disconnected from the mains before doing anything with the water tank.
* When the water level is too low, the safety switch will cut out operation of the mist function. Unplug the unit and refill the water tank for further operation.
* Do not let dust or other particles collect on the mist plate - if the mist outlets are blocked, the mist function could malfunction.
* Before cleaning the unit, make sure it is completely disconnected from the power source. Make sure your hands are not wet when unplugging the unit.
* Do not use very hot water in the water tank - use water less than 40 degrees Celsius.
* Use only water in the water tank. Do not add chemicals or oils or any other additive.
* Infants, the disabled and the elderly should not be in the direct airflow from the fan for long periods of time.
- This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely.
- Young children should be supervised to ensure that they do not play with the appliance.
- If the supply cord is damaged, it must be replaced by the manufacturer. Its service agent or similarly qualified person in order to avoid a hazard.

CLEANING AND MAINTENANCE

* Make sure power is disconnected before any cleaning or maintenance is performed.
* It is recommended that you clean the water tank every 2-3 weeks of use, and clean the flume every week.
* Pull out the water tank before cleaning it - pull the plastic tube out of the mist cask properly, then take out the mist cask and water tank.
* Use a dry cloth to clean the mist cask. If there are stubborn stains on the mist cask, use a cloth lightly dampened with mild detergent.
* If the mist feature will not be used for a long time, empty the water tank and leave it to dry before recapping it.

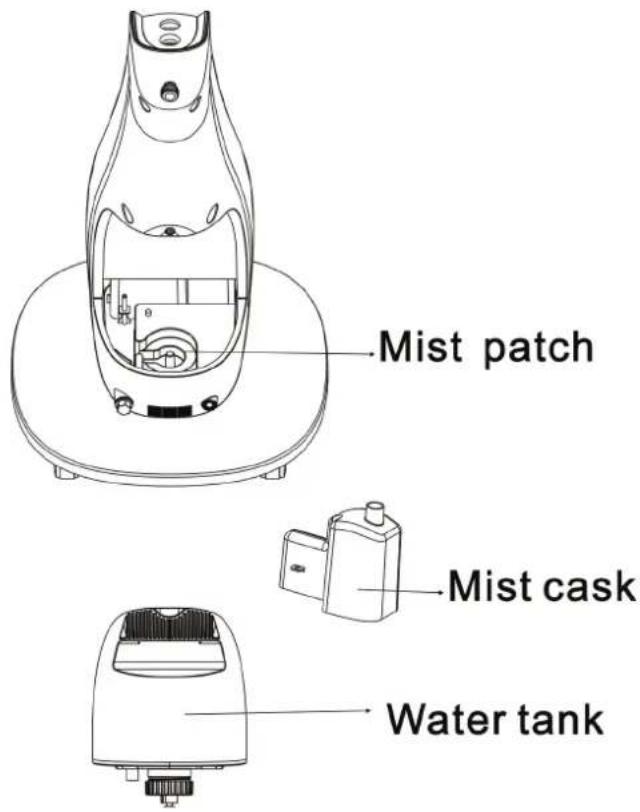

Mist patch Mist cask Water tank

TROUBLESHOOTING

Fault Phenomenon	Reason	Solution
1. Mist projector works normally, but without mist spray	a. Water could be contaminated with other substances or chemicalsb. Water tank could be crackedc. Water tank could be empty	a. Clean out the water tank and replace with clean waterb. Pour out the water and check for cracksc. Refill the water tank. A full tank of water will last approximately 8 hours
2. Mist projector doesn't work	a. Bobber doesn't floatb. Water tank could be empty	a. Free the bobber and allow it to float freely.b. Refill the water tank. A full tank of water will last approximately 8 hours
3. No indicator light, no wind, no mist.	a. Power cord is unplugged, and electric power is power off	a. Plug the power cord, and turn on the electric power
4.Peculiar smell from the mist	a. When new, there might be residue in the water tank/mist plate.b. The water in the water tank many be contaminated.	a. The smell should disappear after further use.b. Clean out the water tank and refill with fresh water
5.The fan doesn't work as normal	a. The plug and supply cord are damagedb. The blades are bendc. Don't safety device	a. Find service agent or a suitable qualified person to change or service b. Don't play the blades. Use soft damp cloth then wipe with dry clothc. Installed correctly in accordance with the manual. Can not be installed until there is no electricity

In case of any query/issue with the product, please reach out to us at: [e-mail] For More products range, inquiry please contact our distributor or nearest dealers. V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B

V-TAC®

BULGARIAN

ПРЕДПАЗНИ МЕРКИ

Modern outdoor fan with black and white design, no visible text or symbols

ТЕХНИЧЕСКИ ДАННИ

Diagram showing exploded view of a fan assembly with numbered parts including head, blade, fan blade, and air purifier.

Technical line drawing of a cleaning machine with base plate and mounting bracket (no text or symbols)

Guard Mist plate Turbo Control panel Water tank Base Castor wheels

СГЛОБЯВАНЕ НА ПРОДУКТА

1

2

Simple diagram of a circular object with upward arrows indicating motion or force, no text or symbols present.

3

Line drawing of a cleaning machine with a base plate and mounting feet (no text or symbols)

4

Diagram showing a mechanical device with a downward arrow and a separate view of a curved component with motion arrows (no text or symbols)

Line drawing of a portable air conditioner with fan and base mount (no text or symbols)

Line drawing of a mobile phone with a device and control panel (no text or symbols)

PIC.1

Simple line drawing of a chair-like object with wheels and a seat, no text or symbols present

PIC.2

PIC.3

Mist patch Mist cask Water tank

ОТКРИВАНЕ И ОТСТРАНЯВАНЕ НА НЕИЗПРАВНОСТИ

Modern outdoor fan with black and white design, mounted on a stand (no visible text or symbols)

DATI TECNICI

is product has both fan and humidifier functions, which can be used together or separately. The humidifier is especially useful on very hot days, when the extra mist in the air helps not only to cool you down, but also to increase the humidity in the dry heat.

Diagram showing exploded view of a fan assembly with numbered parts including head, blade, fan blade, and air purifier.

Line drawing of a mechanical device with no visible text or symbols

Guard Mist plate Turbo Control panel Water tank Base Castor wheels

ASSEMBLAGGIO DEL PRODOTTO

1

2

Simple diagram of a circular object with upward arrows indicating motion or force direction (no text or symbols)

3

Line drawing of a cleaning machine with a base plate and mounting feet (no text or symbols)

4

Diagram showing a mechanical device with a downward arrow and a close-up of its internal structure (no text or symbols)

Line drawing of a portable air conditioner with fan and base mount (no text or symbols)

Mist patch Mist cask Water tank

Modern outdoor fan with black and white casing, mounted on a stand (no visible text or symbols)

MÜSZAKI ADATOK

Exploded diagram of a fan with numbered parts including head, blade, and camera

Technical line drawing of a cleaning machine with base plate and mounting bracket (no text or symbols)

Guard Mist plate Turbo Control panel Water tank Base Castor wheels

TERMÉK ASSZERELÉS

1

2

Simple diagram of a circular object with upward arrows indicating motion or force, no text or symbols present.

3

Line drawing of a handheld device with a circular base and mechanical components, no text or symbols present

4

Diagram showing a mechanical device with a downward arrow and a curved component with rotation arrows (no text or symbols)

Line drawing of a portable air conditioner with fan and base mount (no text or symbols)

on is OSC Mist Mode Speed Timer ON/OFF

Mist patch Mist cask Water tank

HIBAELHÁRÍTÁS

Modern outdoor fan with black and white design, mounted on a stand (no visible text or symbols)

TECHNISCHE ANGABEN

Exploded diagram of a fan assembly with numbered parts for identification

Line drawing of a cleaning machine with labeled parts (no text or symbols present)

Guard Mist plate Turbo Control panel Water tank Base Castor wheels

PRODUCT ASSEMBLY

1

2

Simple diagram of a circular object with upward arrows indicating motion or force, no text or symbols present.

3

Line drawing of a cleaning machine with a base platform and mechanical components (no text or symbols)

4

Diagram showing a mechanical device with a downward arrow and a separate view of a bracket with motion arrows (no text or symbols)

Diagram showing three stages of a fan assembly: pin, fan blade, and camera setup with labeled parts.

Diagram showing a mechanical component before and after transformation, with no visible text or symbols.

Line drawing of a portable air conditioner with fan and base mount (no text or symbols)

Line drawing of a mobile phone with a device and control panel (no text or symbols)

PIC.1

Simple line drawing of a chair-like object with wheels and a seat, no text or symbols present

PIC.2

PIC.3

Mist patch Mist cask Water tank

FEHLERBEHEBUNG

Modern outdoor fan with black and white casing, no visible text or symbols

DATOS TÉCNICOS

Exploded diagram of a fan assembly with numbered parts for identification

Line drawing of a mechanical device with no visible text or symbols

Guard Mist plate Turbo Control panel Water tank Base Castor wheels

PRODUCTO ASSEMBLY

1

2

Simple diagram of a circular object with upward arrows indicating motion or force, no text or symbols present.

3

Line drawing of a handheld device with a circular base and mechanical components, no text or symbols present

4

Diagram showing a mechanical device with a downward arrow and a curved component with rotation arrows (no text or symbols)

Diagram showing three stages of a fan assembly: propeller, fan blade, and lamp (no text or labels)

Diagram showing a mechanical component before and after transformation, with no visible text or symbols.

Line drawing of a portable air conditioner with fan and handle (no text or symbols)

Mist patch Mist cask Water tank

INTRODUCTION & GARANTIE

MANUEL D'INSTRUCTIONS

VENTILATEUR DE BRUME

Modern outdoor fan with black and white design, mounted on a stand (no visible text or symbols)

DONNÉES TECHNIQUES

Diagram showing exploded view of a fan assembly with numbered parts for identification

Line drawing of a mechanical device with no visible text or symbols

Guard Mist plate Turbo Control panel Water tank Base Castor wheels

ASSEMBLAGE DU PRODUIT

1

2

Simple line drawing of a circular object with upward arrows indicating motion or force (no text or symbols)

3

Line drawing of a handheld device with a circular base and mechanical components, no text or symbols present

4

Diagram showing a mechanical device with a downward arrow and a curved component with rotation arrows (no text or symbols)

ASSEMBLAGE DU PRODUIT

Line drawing of a portable air conditioner with fan and base mount (no text or symbols)

Line drawing of a mobile phone with a device and control panel (no text or symbols)

PIC.1

Simple line drawing of a chair-like object with wheels and a small inset panel (no text or symbols)

PIC.2

PIC.3

FRENCH

Mist patch Mist cask Water tank

DÉPANNAGE

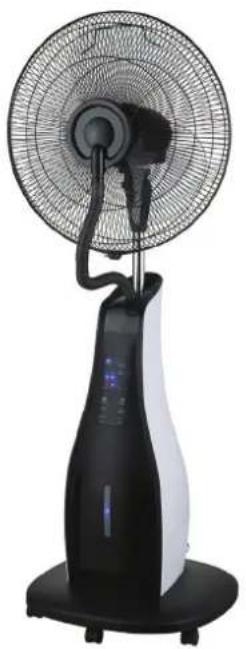

Modern outdoor fan with black and white design, mounted on a stand (no visible text or symbols)

TEHNIČKI PODACI

Model VT-8217-3
Snaga 9W
Lumeni 500LM
SNAGA 80W
Brzina ventilatora mala-srednja-velika
Maks. kapacitet vodene magle	280 мл/ч
Promjer radijalne rešetke 430MM
TIMER 7.5 sati (s daljinskim upravljanjem)
Kapacitet spremnika za vodu 3.2 litra
ULAZNA SNAGA AC: 220-240~, 50/60Hz

UVOD:

Ovaj proizvod obalja funkcije ventilatora i ovlaživača zraka, koji se mogu koristiti zajedno ili odvojeno. Ovlaživač zraka posebno je prikladan u izuzetno vrućim danima, kada dodatna vodena magla u zraku ne samo da pomaže hlađenju, već i povećava vlažnost kod suhe vrućine.

SASTAVNI DIJELOVI PROIZVODA / NAZIV DIJELOVA

Exploded diagram of a fan assembly with numbered parts for identification

1. Prednja ploča za maglu i turbo [uključuje 3 vijka]
2. Prednji zaštitnik
3. Poklopac lopatica
4. Lopatica
5. Montažna matica za zaštitnik
6. Stražnji zaštitnik
7. Motor
8. Kućište ventilatora s montažnim poklopcem 1 i poklopcem 2
9. Osnova i 4 transportni kotači

Guard Mist plate Turbo Control panel Water tank Base Castor wheels

PROIZVOD ASSEMBLY

1

2

Simple diagram of a circular object with upward arrows indicating motion or force, no text or symbols present.

3

Line drawing of a cleaning machine with a base platform and mechanical components (no text or symbols)

4

Diagram showing a mechanical device with a downward arrow and a close-up of its internal structure (no text or symbols)

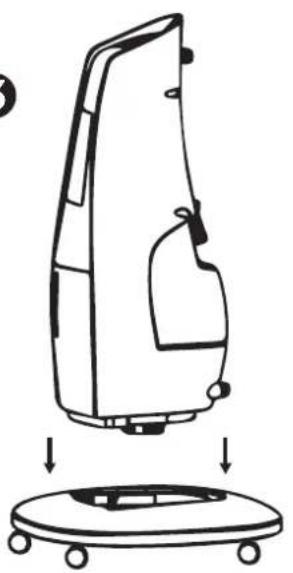

• Montirjte četiri pokretna kotača u rupe na temeljnom dijelu.
• Pričvrstite kućište ventilatora na podnožje pomoću montažnog poklopca 1
• Pričvrstite motor ventilatora u otvor u kućištu ventilatora i zategnite ga s montažnim poklopcem 2.

PROIZVOD ASSEMBLY

Diagram showing three stages of a fan assembly: pin, fan blade, and camera setup with labeled parts.

Diagram showing a mechanical component before and after transformation, with no visible text or symbols.

Line drawing of a portable air conditioner with fan and base mount (no text or symbols)

• Odvijte maticu za pričvršćivanje osigurača i poklopac lopatica motora i montirajte stražnji osigurač.
• Montirajte lopaticu i čvrsto je pritegnite s poklopcem za lopatice.
• Montirajte prednju ploču za maglu na prednjem osiguraču pomoću 3 vijka.
• Pričvrstite prednji osigurač na stražnji osigurač, i pričvrstite turbo na kućište ventilatora.

PUNJENJE SPREMNIKA ZA VODU

Postavite ventilator na ravni, stabilni pod i ulijte vodu za funkciju vlaženja na sljedeći način:

1. Otvorite poklopac spremnika za vodu.

2. Podignite spremnik za vodu izravno da biste ga odspojili.

3. Pažljivo izvadite spremnik za vodu iz uređaja (pazite da ne prolijete vodu).

1. okrenite spremnik za vodu naopako iznad sudopera da bi ispraznili vodu.

2. Odvijte poklopac i napunite spremnik čistom vodom. Vratite poklopac i zategnite ga.

3. Pažljivo umetnite spremnik natrag u uređaj. Provjerite je li pravilno postavljen, kako biste izbjegli curenje.

DALJINSKO UPRAVLJANJE

Mist patch Mist cask Water tank

USTANOVLJAVANJE I OTKLANJANJE PROBLEMA I KVAROVA

Kvarovi i greške Razlog Rješenje
1. Čujete da raspršivač magle radi normalno, ali ne izlazi magla.	a. Možda je voda onečišćena drugim tvarima ili kemikalijama.	a. Očistite spremnik za vodu i ulijte čistu vodu.
	b. Možeda je napuknut spremnik za vodu	b. Izlijte vodu i provjerite ima li nekakvih
	c. Možda je prazan spremnik za vodu.	c. Dolijte vodu u spremnik za vodu. Kad se napuni, voda u spremnikutraje približno 8 sati.
2. Raspršivač magle ne funkcionira.	a. Plovak ne pluta.	a. Otpustite plovak i pustite ga da slobodno
	b. Možda je prazan spremnik za vodu .	b. Dolijte vodu u spremnik za vodu. Kad se napuni, voda u spremnikutraje približno 8 sati.
3. Lampica indikator je ugašena, nema zračne struje, nema magle.	a. Kabel za napajanje je odspojen i ne napaja se strujom.	a. Priključite kabel za napajanje i uključite struju .
4. Čudan miris magle .	a. Kad je proizvod nov, u spremniku za vodu / ploči s maglom mogu se nalaziti ostaci.	a. Miris bi trebao nestati daljnjom uporabom.
	b. Voda u spremniku za vodu može biti onečišćena.	b. Operite spremnik za vodu i dodajte svježu
5. Ventilator ne funkcionira normalnim načinom rada .	a. Kabel za napajanje i utikač su oštećeni.	a. Obratite se predstavniku ovlaštenog servisa ili osobi s odgovarajućom stručnom kvalifikacijom za zamjenu ili servisnu uslugu.
	b. Lopatice su savijene.	b. Ne igrajte se lopaticama. Upotrijebite mekanu vlažnu krpu, a zatim obrišite suhom
	c. Nema sigurnosnog uređaja.	c. Montirajte ga ispravno, u skladu s priručnikom. Ne može se montirati dok se ne

V-TAC®

PORTUGUESE

PRECAUÇÕES

MANUAL DE INSTRUÇÕES

VENTILADOR DE NÉVOA

Modern outdoor fan with black and white casing, mounted on a stand (no visible text or symbols)

DADOS TÉCNICOS

Diagram showing exploded view of a fan assembly with numbered parts for identification

Guard Mist plate Turbo Control panel Water tank Base Castor wheels

MONTAGEM DO PRODUTO

1

2

Simple diagram of a circular object with upward arrows indicating motion or force direction (no text or symbols)

3

Line drawing of a handheld device with a circular base and mechanical components, no text or symbols present

4

Diagram showing a mechanical device with a downward arrow and a curved component with rotation arrows (no text or symbols)

Line drawing of a portable air conditioner with fan and base mount (no text or symbols)

• Desaparafuse a porca de montagem do protector e a tampa das aspas do motor e instale o protector posterior.
• Instale a aspa e aparafuse-a com a tampa das aspas.
• Instale a placa frontal de névoa no protector frontal com o uso de 3 parafusos.
• Prenda o protector frontal ao protector posterior e fixe o turbo à carcaça do ventilador.

ENCHER O TANQUE DE ÁGUA

Line drawing of a mobile phone with a device and control panel (no text or symbols)

PIC.1

Simple line drawing of a chair with wheels and legs, no text or symbols present

PIC.2

PIC.3

PORTUGUESE

Mist patch Mist cask Water tank

Modern outdoor fan with black and white casing, no visible text or symbols

DANE TECHNICZNE

Exploded diagram of a fan assembly with numbered parts for identification

Guard Mist plate Turbo Control panel Water tank Base Castor wheels

MONTAŻ PRODUKTU

1

2

Simple diagram of a circular object with upward arrows indicating motion or force, no text or symbols present.

3

Line drawing of a cleaning machine with a base plate and mechanical components (no text or symbols)

4

Diagram showing a mechanical device with a downward arrow and a curved component with rotation arrows (no text or symbols)

Line drawing of a portable air conditioner with fan and base mount (no text or symbols)

Mist patch Mist cask Water tank

WYKRAWANIE I ROZWIĄZYWANIE USTEREK

Modern outdoor fan with black and white casing, no visible text or symbols

TECHNICAL DATA

MODEL	VT-8217-3
WATTS	80W
FAN SPEED	LOW-MED-HIGH
MAX MIST CAPACITY	280ML/H
DIAMETER RADIAL GRILL	430MM
TIMER 7.5H (with Remote)
WATER TANK CAPACITY	3.2 LITRE
INPUT POWER	AC: 220-240~, 50/60Hz

ΕΙΣΑΓΩΓΗ:

Exploded diagram of a fan assembly with numbered parts for identification

Technical line drawing of a cleaning machine with labeled parts (a and b), no text or symbols present.

Guard Mist plate Turbo Control panel Water tank Base Castor wheels

ΠΡΟΪΟΝ ASS ASSEMBLY

1

2

Simple diagram of a circular object with upward arrows indicating motion or force (no text or symbols)

3

Line drawing of a cleaning machine with a base plate and mounting feet (no text or symbols)

4

Diagram showing a mechanical device with a downward arrow and a separate view of a curved component with rotation arrows (no text or symbols)

Line drawing of a portable air conditioner with fan and cooling tower (no text or symbols)

Line drawing of a mobile phone with a device and control panel (no text or symbols)

PIC.1

Line drawing of a vertical chair with wheels and seat, no text or symbols present

PIC.2

PIC.3

Mist patch Mist cask Water tank

ANIXNEYZH KAI ANTIMETΩΠΙΣΗ ΒΛΑΒΩΝ

INTRODUCERE, GARANTIA

MANUAL DE INSTRUCTIUNI

FAN DE CEATĂ

Modern outdoor fan with black and white design, mounted on a stand (no visible text or symbols)

DATE TEHNICE

Diagram showing exploded view of a fan assembly with numbered parts including head, blade, and fan components

Line drawing of a mechanical device with no visible text or symbols

Guard Mist plate Turbo Control panel Water tank Base Castor wheels

ASAMBLAREA PRODUSULUI

1

2

Simple diagram of a circular object with upward arrows indicating motion or force, no text or symbols present.

3

Line drawing of a cleaning machine with a base platform and mechanical components (no text or symbols)

4

Diagram showing a mechanical device with a downward arrow and a separate view of a bracket with motion arrows (no text or symbols)

Line drawing of a portable air conditioner with fan and base mount (no text or symbols)

Mist patch Mist cask Water tank

DEPISTAREA ŞI ÎNDEPĂRTAREA NEREGULILOR

Modern outdoor fan with black and white casing, mounted on a stand (no visible text or symbols)

TECHNICKÉ ÚDAJE

Exploded diagram of a fan assembly with numbered parts for identification

Guard Mist plate Turbo Control panel Water tank Base Castor wheels

SESTAVENÍ PRODUKTU

1

2

Simple diagram of a circular object with upward arrows indicating motion or force, no text or symbols present.

3

Line drawing of a cleaning machine with a base plate and mechanical components (no text or symbols)

4

Diagram showing a mechanical device with a downward arrow and a curved component with rotation arrows (no text or symbols)

Diagram showing three stages of a fan assembly: pin, fan blade, and camera setup with labeled parts.

Diagram showing a mechanical component before and after transformation, with no visible text or symbols.

Line drawing of a portable air conditioner with fan and base mount (no text or symbols)

Line drawing of a mobile phone with a device and control panel (no text or symbols)

PIC.1

Simple line drawing of a chair-like object with wheels and a seat, no text or symbols present

PIC.2

PIC.3

Mist patch Mist cask Water tank

ZJIŠTĚNÍ A ODSTRAŇOVÁNÍ ZÁVAD
