USER MANUAL 3421 CA SKIL

Illustration of a SKIL video camera with no visible text or symbols on the device body

QR code image containing encoded data, no visible human-readable text

GB ORIGINAL INSTRUCTIONS 12
(F) NOTICE ORIGINALE 15
D ORIGINALBETRIEBSANLEITUNG 19
NL ORIGINELE GEBRUIKSAANWIJZING 23
S BRUKSANVISNING I ORIGINAL 27
DK ORIGINAL BRUGSANVISNING 30
N ORIGINAL BRUKSANVISNING 34
FIN ALKUPERÄISET OHJEET 37
E MANUAL ORIGINAL 41
(P) MANUAL ORIGINAL 45
(1) ISTRUZIONI ORIGINALI 49
H EREDETI HASZNÁLATI UTASÍTÁS 53
CZ PÜVODNÍM NÁVODEM K POUŽÍVÁNÍ 57
TR ORİJINAL İŞLETME TALİMATI 60
(PL) INSTRUKCJA ORYGINALNA 64
RU ПОДЛИННИК РУКОВОДСТВА ПО 68
ЭКСПЛУАТАЦИИ

UA ОРИГИНАЛЬНА ІНСТРУКЦІЯ 73
З ЕКСПЛУАТАЦІЇ
GR ΠΡΩΤΟΥΠΟ ΟΔΗΓΙΩΝ ΧΡΗΣΗΣ 77
(RO) INSTRUCTIUNI DE FOLOSIRE 81
ORIGINALE
BG ОРИГИНАЛНО РЪКОВОДСТВО 85
ЗА ЕКСПЛОАТАЦИЯ
SK PÔVODNÝ NÁVOD NA POUŽITIE 89
HR ORIGINALNE UPUTE ZA RAD 93
SRB ORIGINALNO UPUTSTVO ZA RAD 97
SLO IZVIRNA NAVODILA 100
EST ALGUPÄRANE KASUTUSJUHEND 104
LV ORIGINĀLĀ LIETOŠANAS PAMĀCĪBA 107
(LT) ORIGINALI INSTRUKCIJA 111
ИЗВОРНО УПАТСТВО ЗА РАБОТА 115
(AL) UDHËZIMET ORIGJINALE 119
AR دليل الاستعمال 128
FA راهنمای اصلی 126

www.skil.com

GB	EU Declaration of conformityBrushless jig saw Article number	We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards.Technical file at:
F	Déclaration de conformité UEScie sauteusesans balais Numéro d'article	Nous déclarons sous notre propre responsabilité que les produits décrits sont en conformité avec les directives, règlements normatifs et normes énumérés ci-dessous.Dossier technique auprès de:*
D	EU-KonformitätserklärungBürstenlose Stichsäge Sachnummer	Wir erklären in alleiniger Verantwortung, dass die genannten Produkte allen einschlägigen Bestimmungen der nachfolgend aufgeführten Richtlinien und Verordnungen entsprechen und mit folgenden Normen übereinstimmen.Technische Unterlagen bei:
NL	EU-conformiteitsverklaringBorstelloze decoupeerzaag Productnummer	Wij verklaren op eigen verantwoordelijkheid dat de genoemde producten voldoen aan alle desbetreffende bepalingen van de hierna genoemde richtlijnen en verordningen en overeenstemmen met de volgende normen.Technisch dossier bij*
S	EU-konformitetsförklaringBorstlös figursåg Produktnummer	Vi förklarar under eget ansvar att de nämnda produkterna uppfyller kraven i alla gällande bestämmelser i de nedan angivna direktiven och förordningarnas och att de stämmer överens med följande normer.Teknisk dokumentation:
DK	EU-overensstemmelseserklæringBørsteløs stiksav Typenummer	Vi erklærer som eneansvarlige, at det beskrevne produkt er i overensstemmelse med alle gældende bestemmelser i fölgende direktiver og forordninger og opfylder følgende standarder.Tekniske bilag ved*
N	EU-samsvarserklæringBørsteløs stikksag Produktnummer	Vi erklærer under eneansvar at de nevnte produktene er i overensstemmelse med alle relevante bestemmelser i direktivene og forordningene nedenfor og med følgende standarder.Teknisk dokumentasjon hos*
FIN	EU-vaatimustenmukaisuusvakuutusHarjaton lehtisaha Tuotenumero	Vakuutamme täten, että mainitut tuotteet vastaavat kaikkia seuraavien direktiivien ja asetusten asiaankuuluvia vaatimuksia ja ovat seuraavien standardien vaatimusten mukaisia.Tekniset asiakirjat saatavana:
E	Declaración de conformidad UESierra de calar sin escobillas Número de artículo	Declaramos bajo nuestra exclusiva responsabilidad, que los productos nombrados cumplen con todas las disposiciones correspondientes de las directivas y los reglamentos mencionados a continuación y están en conformidad con las siguientes normas.Documentos técnicos de:*
P	Declaração de conformidade CESerra tico-ticosem escovas Número do produto	Declaramos sob nossa exclusiva responsabilidade que os produtos mencionados cumprem todas as disposições e os regulamentos indicados e estão em conformidade com as seguintes normas.Documentação técnica pertencente à:*
I	Dichiarazione di conformità UESeghetto alternativobrushless Codice prodotto	Dichiariamo sotto la nostra piena responsabilità che i prodotti indicati sono conformi a tutte le disposizioni pertinenti delle direttive e dei regolamenti elencati di seguito, nonché alle seguenti normative.Documentatione tecnica presso:*
H	EU konformitási nyilatkozatSzénkefe nélküli szúrófűrész Cikkszám	Egyedüli felelőséggel kijelentjük, hogy a megnevezett termékek megfelelnek az afábbiakban felsorólásra kerülő irányelvek és rendeletek valamennyi idevágó előírásainak és megfelelnek a következő szabványoknak.Műszaki dokumentumok megőrzési pontja:*
CZ	EU prohlásení o shoděBezkontaktní přímočará pila Objednací číslo	Prohlašujeme na výhradní zodpovědnost, že uvedený výrobek splňuje všechna příslušná ustanovení niže uvedených směrnic a nařízení a je v souladu s následujícimi normami.Technické podklady u*
TR	AB Uygunluk beyaníFırçasız dekupaj testeresi Ürün kodu	Tek sorumlul olarak, tanımlanan örünün aşağıdaki yönetmelik ve direktiflerin geçerli bútún hükümlerine ve așağıdaki standartlara uygun olduğunu beyan ederiz.Teknik belgelerin bulunduğu yer:*
PL	Deklaracja zgodności UEWyrzynarka bezszczotkowa Numer katalogowy	Oświadczamy z pełną odpowiedzialnością, że niniejsze produkty odpowiadają wszystkim wymaganiom poniżej wyszczególnionych dyrektyw i rozporządzeń, oraz że są zgodne z następującymi normami.Dokumentacja techniczna:*
RU	Заявление о соответствии ЕСБесщеточный лобзик Товарный номер	Мы заявляем под нашу единоличную ответственность, что названные продукты соответствуют всем действующим предписаниям нижеуказанных директив и распоряжений, а также нижеуказанных норм.Техническая документация хранится у»
UA	Заява про відповідність ЄСЕлектричний лобзикіз безщітковим мотором Товарный номер	Мизаявляємо під нашу одноособову відповідальність, що названі вироби відповідають усім чинним положенням нищеозначених директив і розпоряджень, а також никчеозначеним нормам.Технічна документація зберігається у»

GR	Δήλωση πιστότητας EEΣέγα χωρίς ψήκτρες	Αριθμός ευρετηρίου	Δηλώνουμε με αποκλειστική μας ευθύνη, ότι τα αναφερόμενα προϊόντα αντιστοιχούν σε όλες τις σχετικές διατάξεις των πιο κάτω αναφερόμενων οδηγιών και κανονισμών και ταυτίζονται με τα ακόλουθα πρότυπα.Τεχνικά εγγραφα στηλ»
RO	Declarație de conformitate UEFerăstrău pendular fără perii	Număr de identificare	Declarăm pe proprie răspundere că produsele menționate corespund tuturor dispozițiilor relevante ale directivelor și reglementărilor enumerate in cele ce urmează și sunt în conformitate cu următoarele standarde.Documentație tehnică la:*
BG	EC декларация за съответствиеБезчетков прободен трион	Каталожен номер	С пълна отговорност ние декларираме, че посочените продукти отговарят на всички валидни изисквания на директивите и разпоредбите по-долу и съответства на следните стандарти.Техническа документация при»
SK	Pôvodnej EU vyhlásenie o zhodeBezkontaktná priamočiara píla Vecné číslo		Vyhlasujeme na výhradnú zodpovednosť, že uvedený výrobok splňa všetky prislušné ustanovenia nižšie uvedených smernic a nariadení a je v súlade s nasledujúcimi normami.Technické podklady má spoločnosť.*
HR	EU izjava o sukladnostiUbodna pila bez četkica Kataloški broj		Pod punom odgovornošću izjavljujemo da navedeni proizvodi odgovaraju svim relevantnim odredbama direktiva i propisima navedenima u nastavku i da su sukladni sa sljedećim normama.Tehnička dokumentacija se može dobiti kod»
SRB	EU-izjava o usaglašenostiUbodna testera bez četkica Broj predmeta		Na sopstvenu odgovornost izjavljujemo, da navedeni proizvodi odgovaraju svim dotičnim odredbama naknadno navedenih smernica u uredaba i da su u skladu sa sledećim standardima.Tehnička dokumentacija kod*
SLO	Izjava o skladnosti ES Vbodna žagaz brezkrtačnim motorjem Številka artikla		Izjavljamo pod izključno odgovornostjo, da je omenjen izdelek v skladu z vsemi relevantnimi določili direktiv in uredb ter ustreza naslednjim standardom.Tehnična dokumentacija pri*
EST	EL-vastavusdeklaratsioonHarjadeta tikksaag Tootenumber		Kinnitame ainuvastutajateņa, et nimetatud tooted vastavad järgnevalt loetletud direktiivide ja määruste köikidele asjaomastele nõuetele ja on kooskõlas järgmiste normidega.Tehnilised dokumentid saadaval»
LV	Deklarăcija par atbilstību EK standartiemBezkontaktu finierzágis Izstrădājuma numurs		Mēs ar pilnu atbildību paziņojam, ka šeit aplūkotie izstrădājumi atbilst visiem tālāk minėtajas direktivas un rikojumos ietvertajam saistošajam nostādném, kā ari sekojošiem standartiem.Tehniskā dokumentacija no.*
LT	ES atitikties deklaracijaSiaurapjūklissu bešepečiu varikliu Gaminio numeris		Atsakingai pareiškiamе, kad išvardyti gaminiai atitinka visus privalomus žemiau nurodytu direktyvų ir reglamentų reikalavimus ir šiuos standartus.Techninė dokumentacija saugoma»
MK	EU-Изjava za сообразностУбодна пила без четки Број на артикл		Со целосна одговорност изјавуваме, дека опишаните производи се во согласност со сите релевантни одредби на следните регулативи и прописи и се во согласност со следните норми.Техничка документација кaj.*
AL	EU Deklarata e konformitetitSharrë sekë pa karbonçina Numri i nenit		Ne deklarojmë me përgjegjësinë tonë të vetme se produktet e paraqitura janë në përputhje me të gjitha dispozitat e zbatueshme të direktivave dhe rregulloreve të listuara më poshtë dhe janë në përputhje me standardet si më poshtë.Dosja teknike né:*
	3421 SW1*3421**		2006/42/EC EN 62841-1:2015+A11:20222014/30/EU EN 62841-2-11:2016+A1:20202011/65/EUEN 55014-1: 2021EN 55014-2: 2021EN 63000: 2018
			SKIL *Skil BVRithmeesterpark 22 A14838 GZ BredaThe Netherlands
			Olaf DijkgraafApproval ManagerSkil BV, Rithmeesterpark 22 A1, 4838 GZ Breda, NL28.12.2023

Declaration of ConformityBrushless jig saw Article number	We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standardsTechnical file at:Chervon Europe Ltd., 34 Bridge Street, Reading, RG1 2LU, United Kingdom
3421 SW1*3421**	Supply of Machinery (Safety) Regulations 2008 (SI 2008/1597)Electromagnetic Compatibility Regulations 2016 (SI 2016/1091)The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 (SI 2012/3032)EN 62841-1:2015+A11:2022EN 62841-2-11:2016 + A1:2020EN 55014-1:2021EN 55014-2:2021IEC EN 63000:2018
	Chervon Europe Ltd., 34 Bridge Street, Reading, RG1 2LU, United Kingdom, as authorized representative (in terms of above regulations) acting on behalf of Skil BV, Rithmeesterpark 22 A1, 4838GZ Breda, The Netherlands
	James McCroryTechnical Service ManagerPlace of issue: ReadingDate of issue: 28/12/2023

①

3421

20V Max

18

Volt

2,1 kg

2,3 kg

120mm

10 mm

8 mm

②

B A D G SKIL 20 E C F H J

③

4

5

⑥

⑦ J ⑦a ⑦b ⑦c

Illustration of a hand holding a turtle with a turtle approaching it, symbolizing protection or rescue (no text or symbols present)

(10) E "T" "U"

11

Technical line drawing of a mechanical component or assembly (no visible text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Warning symbol and process arrow indicating hazard and action

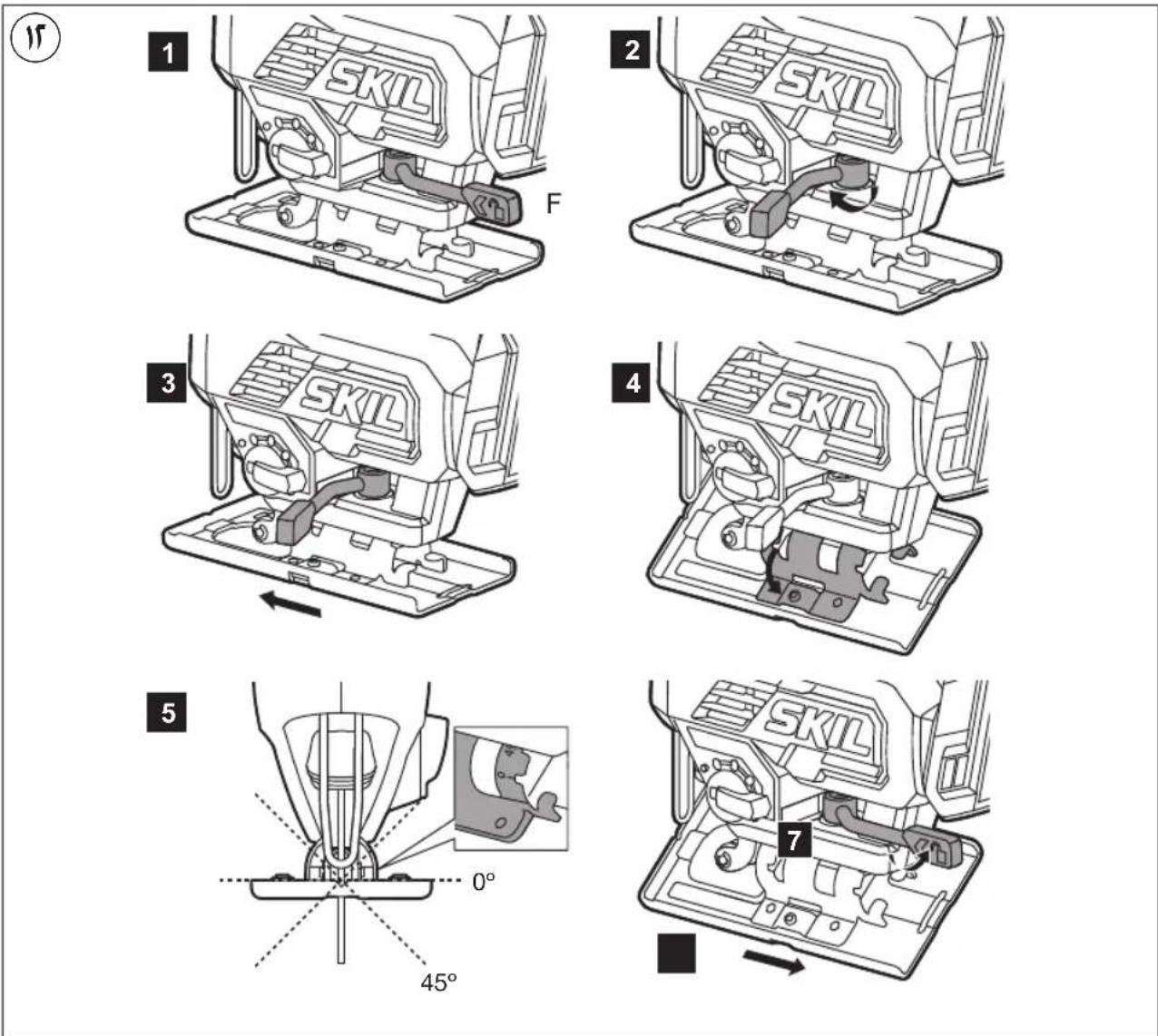

12

1 SKIL F

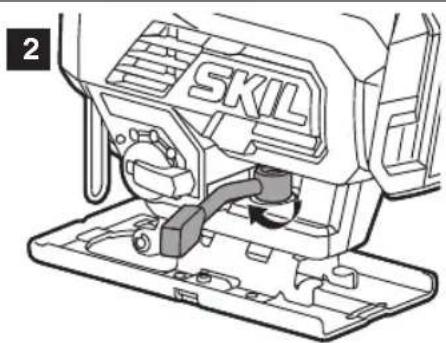

2 SKIL

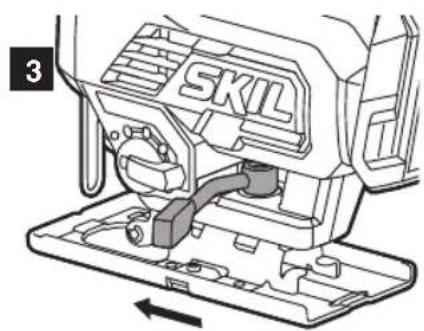

3 SKIL

SKIL 4

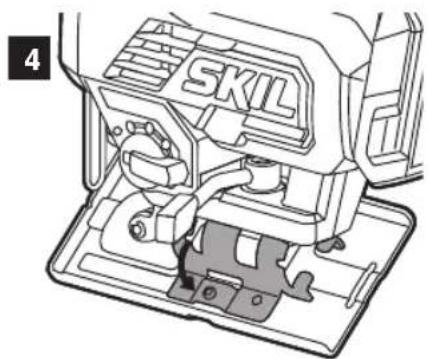

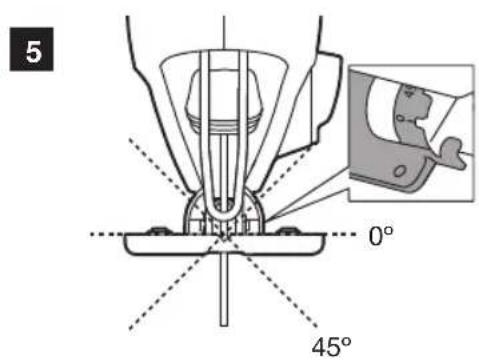

5 0° 45°

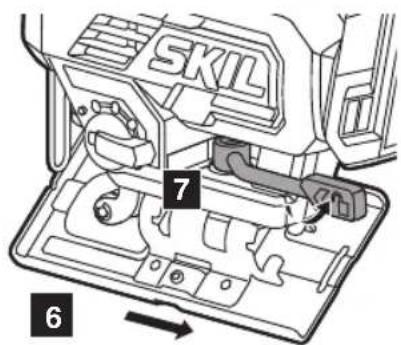

SKIL 7 6

13

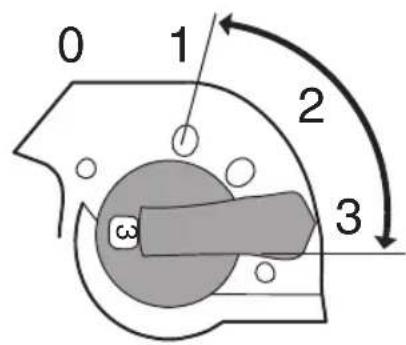

0 1 c 2 3

0 1 2 3

14

Technical line drawing of a mechanical component with no visible text or symbols

15 SKIL H

Line drawing of a SKIL 2000E-20 device with no visible text or symbols on the body itself

* NOT STANDARD INCLUDED

ACCESSORIES

WWW.SKIL.COM

GB

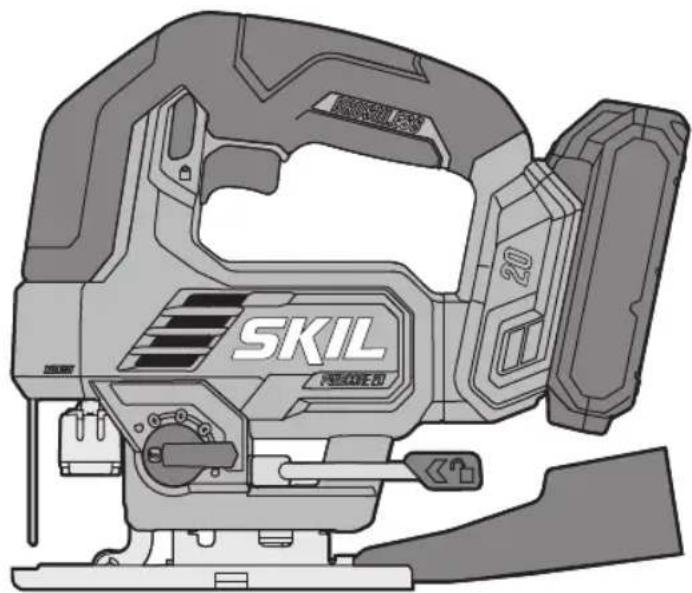

Brushless jig saw 3421 INTRODUCTION

• This tool is intended for making cut-throughs and cut-outs in wood, plastic, metal, ceramic plates and rubber, and is suitable for straight and curved cuts with mitre angles to 45°
• Read and save this instruction manual ③

TECHNICAL DATA①

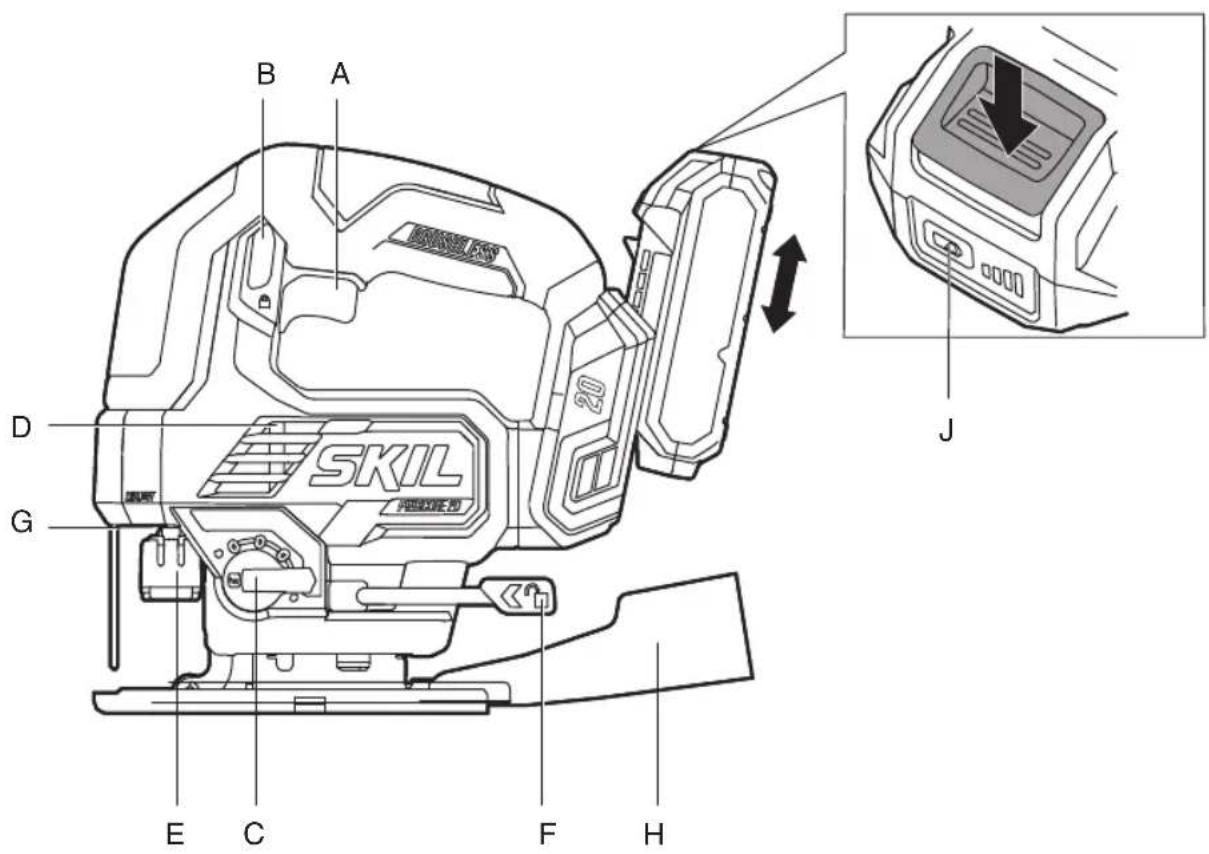

TOOL ELEMENTS ②

A Switch for on/off and speed control

B Button for switch locking

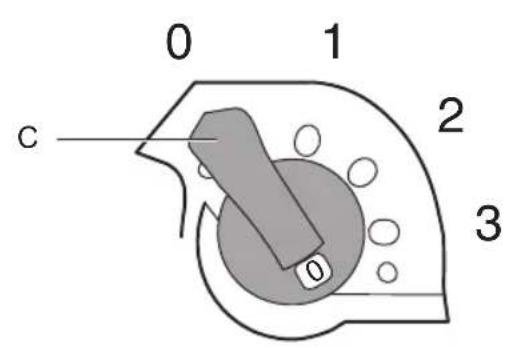

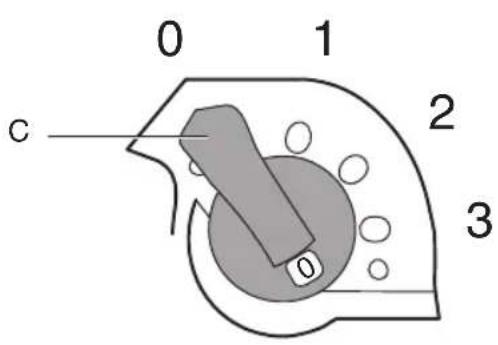

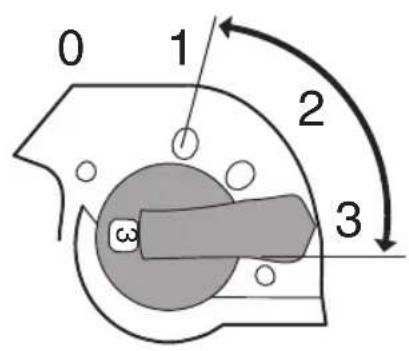

C Lever for selecting sawing mode

D Ventilation slots

E Clic-system for changing saw blades

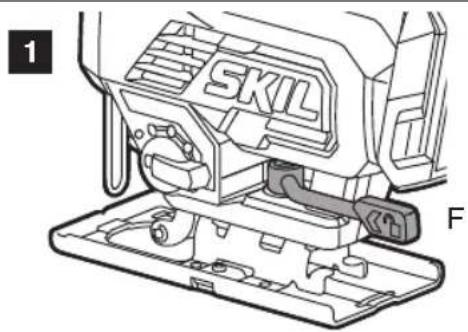

F Lever for adjusting footplate

G LED-light

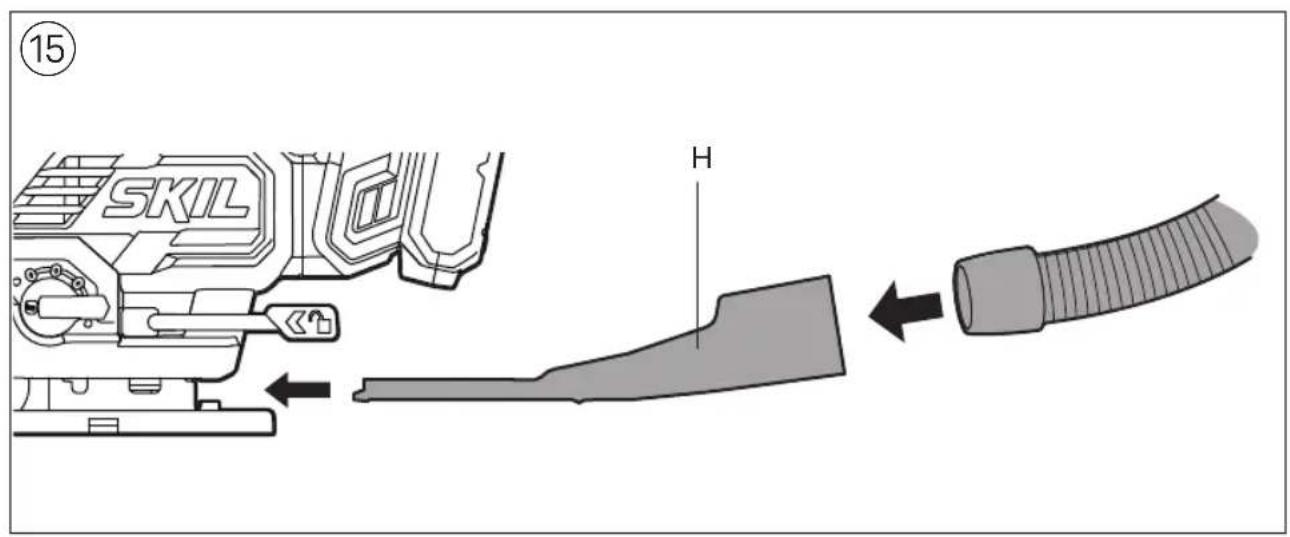

H Vacuum cleaner adapter

J Battery level indicator

K Set screw

L Lock screw

SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of

electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such

preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) BATTERY TOOL USE AND CARE

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.

g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

b) Never service damaged battery packs. Service of battery packs should only be performed by the

manufacturer or authorized service providers.

SAFETY INSTRUCTIONS FOR CORDLESS JIG SAWS

- Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory or fastener may contact hidden wiring (cutting accessory and fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock)

- Use clamps or another practical way to secure and support the workpiece to a stable platform (holding the workpiece by hand or against your body leaves it unstable and may lead to loss of control)

GENERAL

- Do not work materials containing asbestos (asbestos is considered carcinogenic)

- This tool should not be used by people under the age of 16 years

- The noise level when working can exceed 85 dB(A); wear ear protection

- Wear protective goggles when working with materials which produce chips

- Dust from material such as paint containing lead, some wood species, minerals and metal may be harmful (contact with or inhalation of the dust may cause allergic reactions and/or respiratory diseases to the operator or bystanders); wear a dust mask and work with a dust extraction device when connectable

- Certain kinds of dust are classified as carcinogenic (such as oak and beech dust) especially in conjunction with additives for wood conditioning; wear a dust mask and work with a dust extraction device when connectable

- Follow the dust-related national requirements for the materials you want to work with

- Remove battery from tool before making any adjustments or changing accessories

BEFORE USE

- Remove all obstacles on top of as well as underneath the cutting path before you start cutting

- Avoid damage that can be caused by screws, nails and other elements in your workpiece; remove them before you start working

DURING USE

- Keep hands away from the saw blade while the tool is in use

ACCESSORIES

- SKIL can assure flawless functioning of the tool only when original accessories are used

- Do not use a saw blade which is cracked, deformed or dull

AFTER USE

- When you put away the tool, switch off the motor and ensure that all moving parts have come to a complete standstill

BATTERIES

- The battery supplied, if any, is partially charged (to ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time)

- Only use the following batteries and chargers with this tool

-SKIL battery: BR1*31****

-SKIL charger: CR1*31****

- Do not use the battery when damaged; it should be

replaced

- Do not disassemble the battery

- Do not expose tool/battery to rain

- Permitted ambient temperature (tool/charger/battery):

-when charging 4...40°C

-during operation -20...+50°C

-during storage -20...+50°C

EXPLANATION OF SYMBOLS ON TOOL/BATTERY

③ Read the instruction manual before use
④ Batteries may explode when disposed of in fire, so do not burn battery for any reason
⑤ Store tool/charger/battery in locations where temperature will not exceed 50°C
⑥ Do not dispose of electric tools and batteries together with household waste material

USE

• Charging battery
  ! read the safety warnings and instructions provided with the charger
• Removing/installing the battery ②

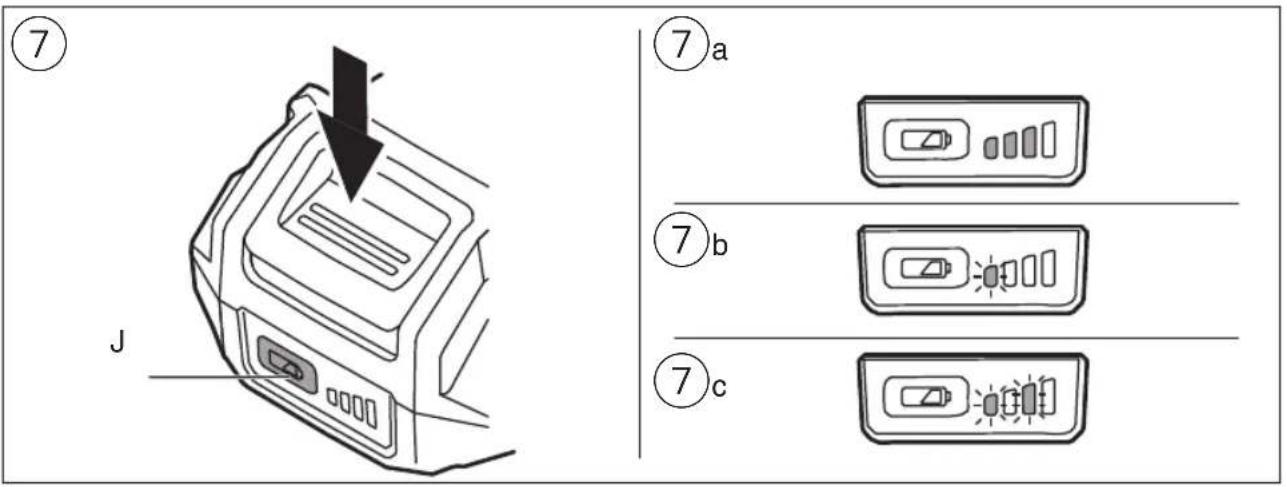

• Battery level indicator ⑦

-press the battery level indicator button J to show the current battery level ⑦a

! when the lowest level of the battery indicator starts flashing after pressing button J ⑦b, the battery is empty

! when 2 levels of the battery indicator start flashing after pressing button J ⑦c, the battery is not within the allowable operating temperature range

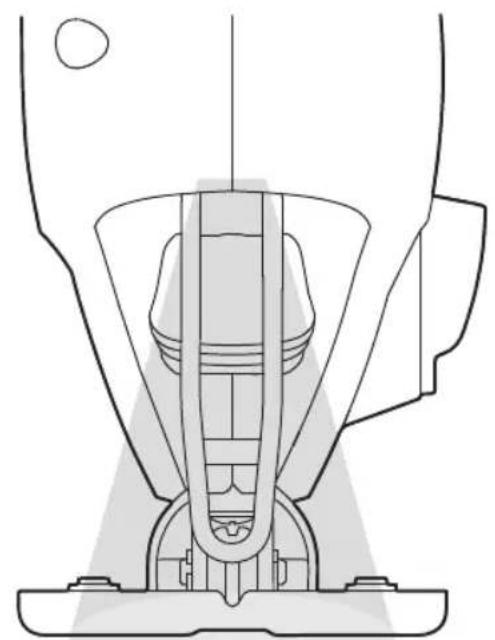

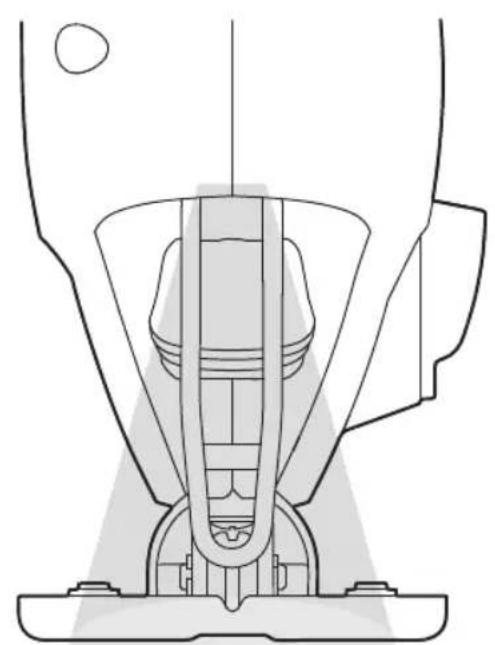

- LED-light ⑭

ED-light automatically lights on when activating the on/ff switch

! when LED-light starts flashing, the battery protection is activated (see below)

- Battery protection

The tool is suddenly being switched off or prevented from being switched on, when

- the load is too high --> remove load and restart -the battery temperature is not within the allowable operating temperature range of -20 to +50°C --> 2 levels of the battery level indicator start flashing when pressing button J ⑦c; wait until battery has returned within the allowable operating temperature range -the battery is nearly empty (to protect against deep discharge) --> a low battery level or flashing low battery level ⑦b is shown by the battery level indicator when pressing button J; charge battery ! do not continue to press the on/off switch after the tool is switched off automatically; battery may be damaged

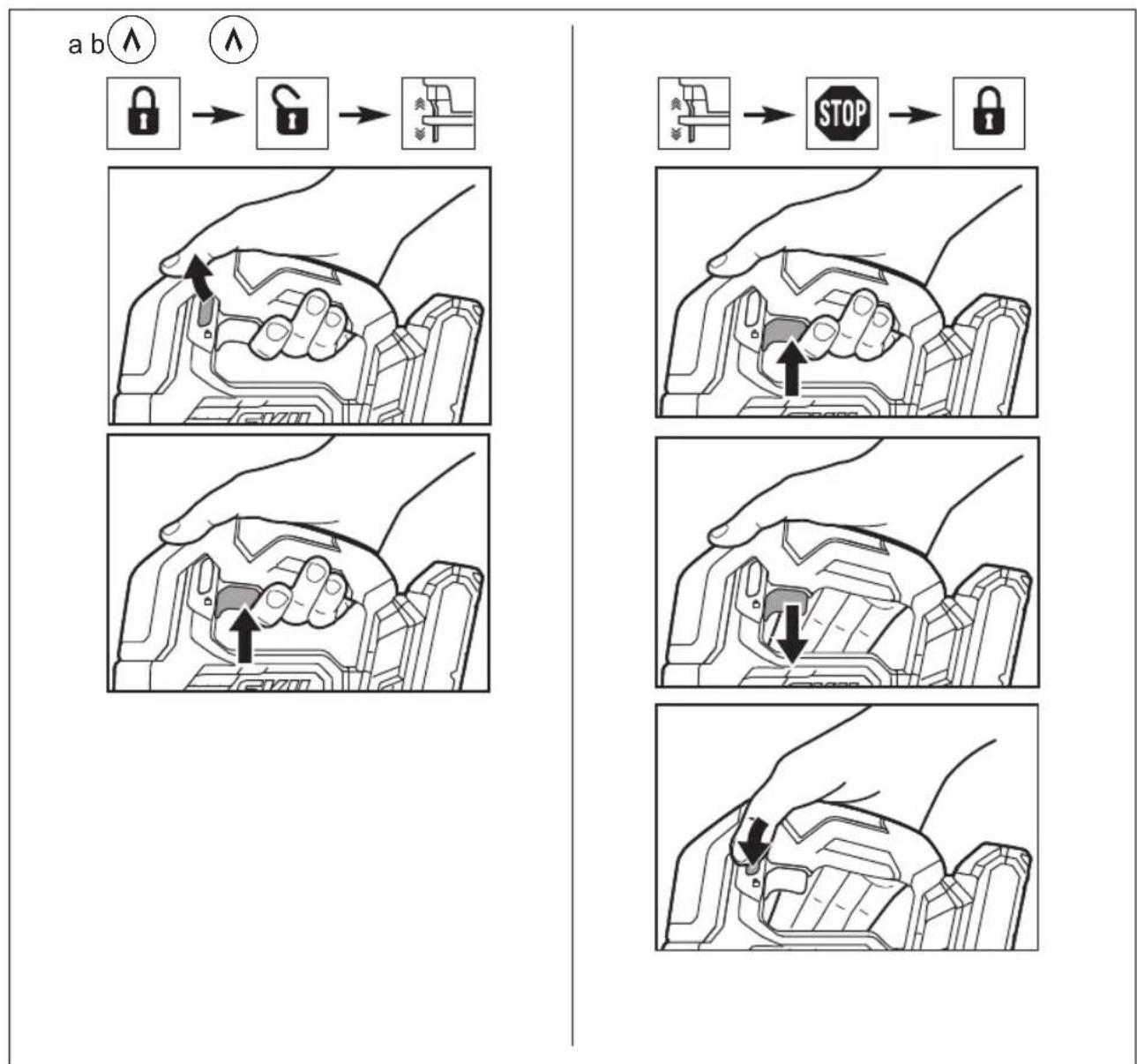

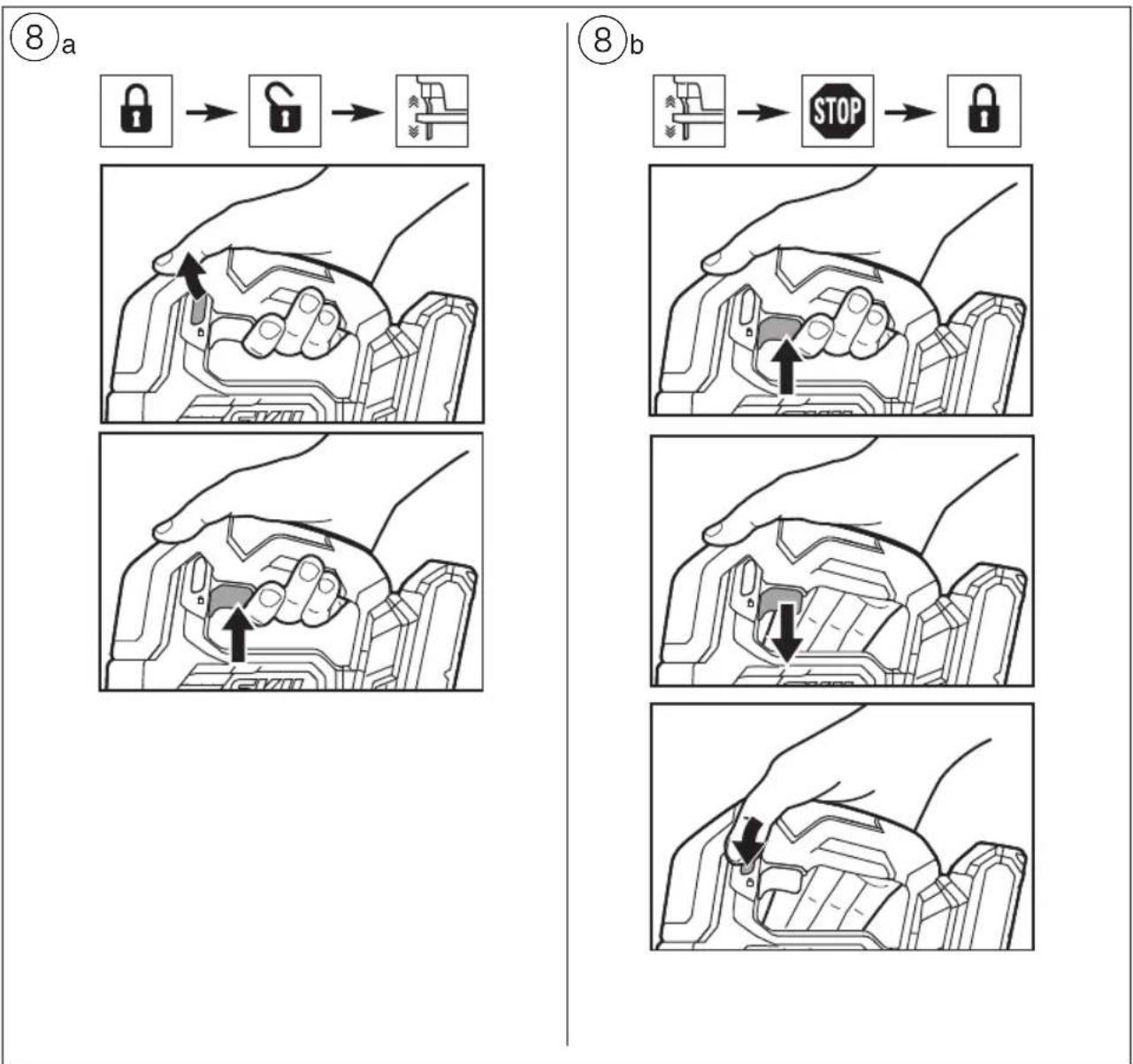

- On/off ⑧ a

-move the button for switch locking B to the left to unlock -press switch A to start the tool -release switch A to stop the tool

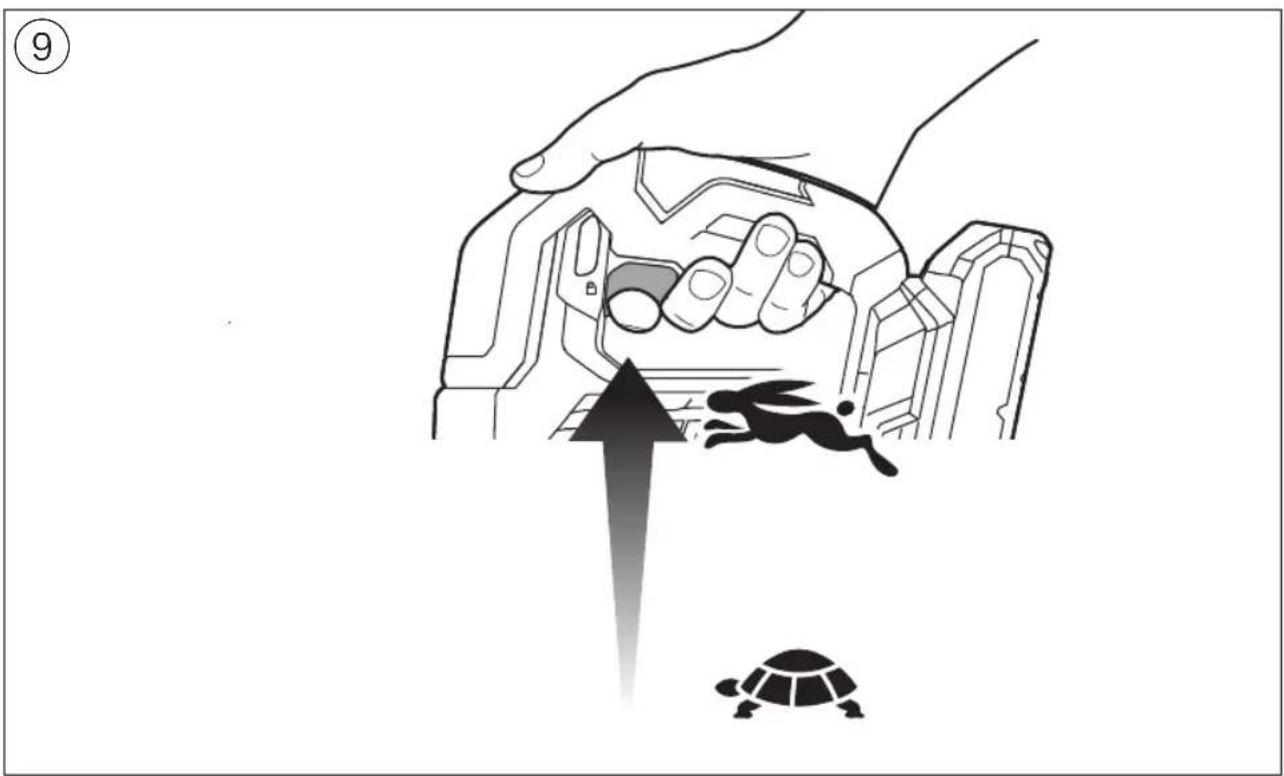

• Speed control for smooth starting ⑨

• Transportation mode ⑧ b

-release trigger switch A to stop the tool -put button B in the right position to prevent accidentally switching on the tool

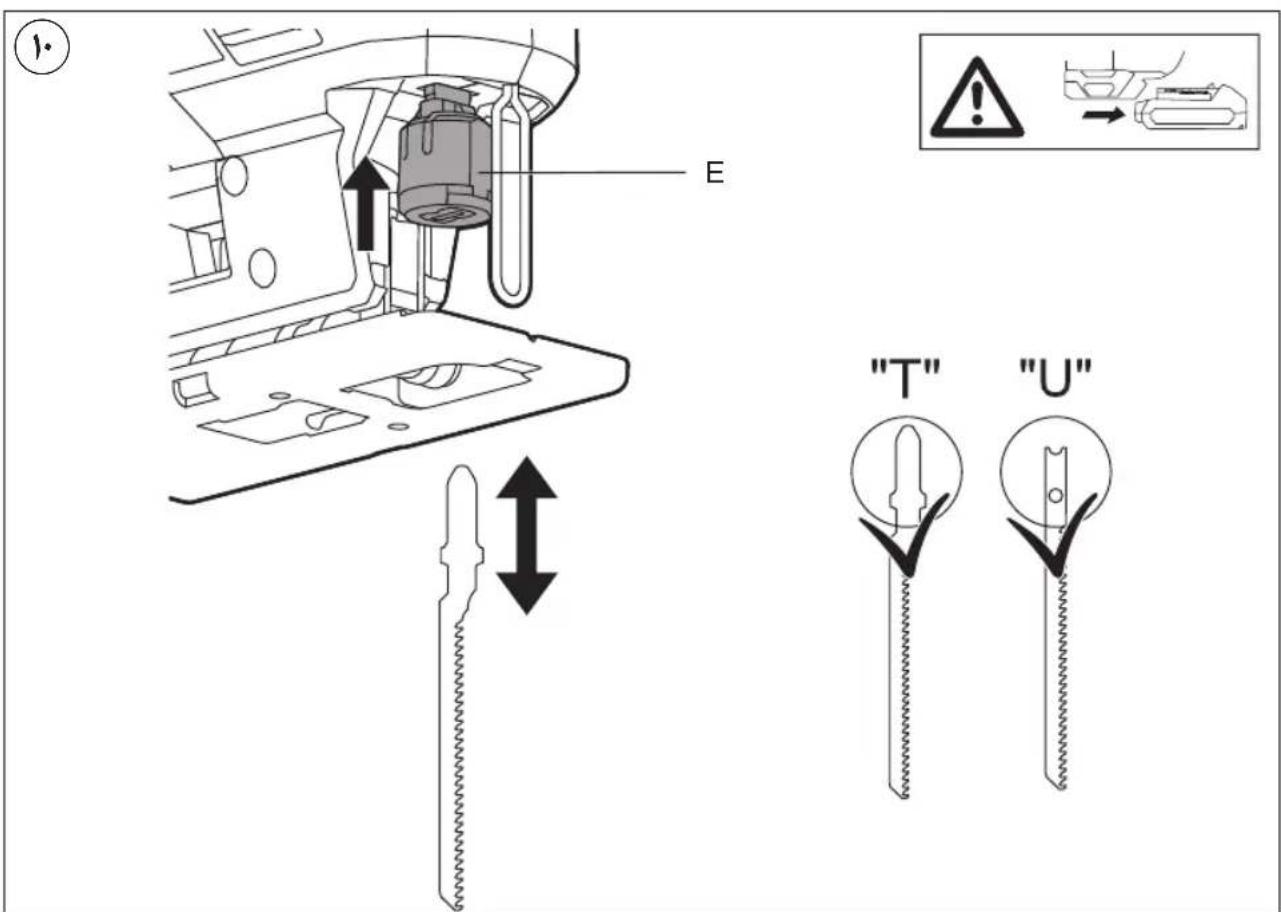

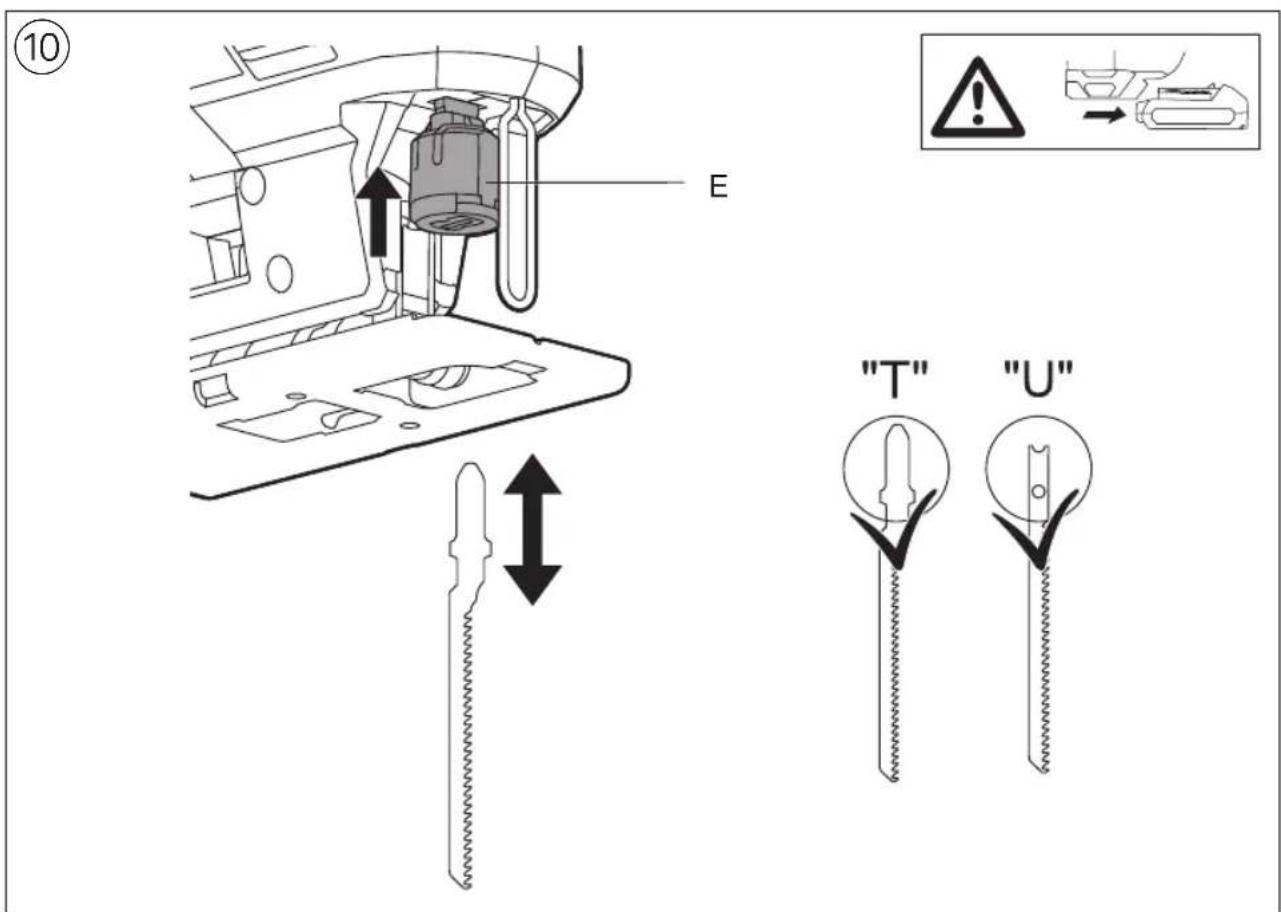

- Changing saw blades ⑩

! remove battery from tool before making any

adjustments or changing accessories

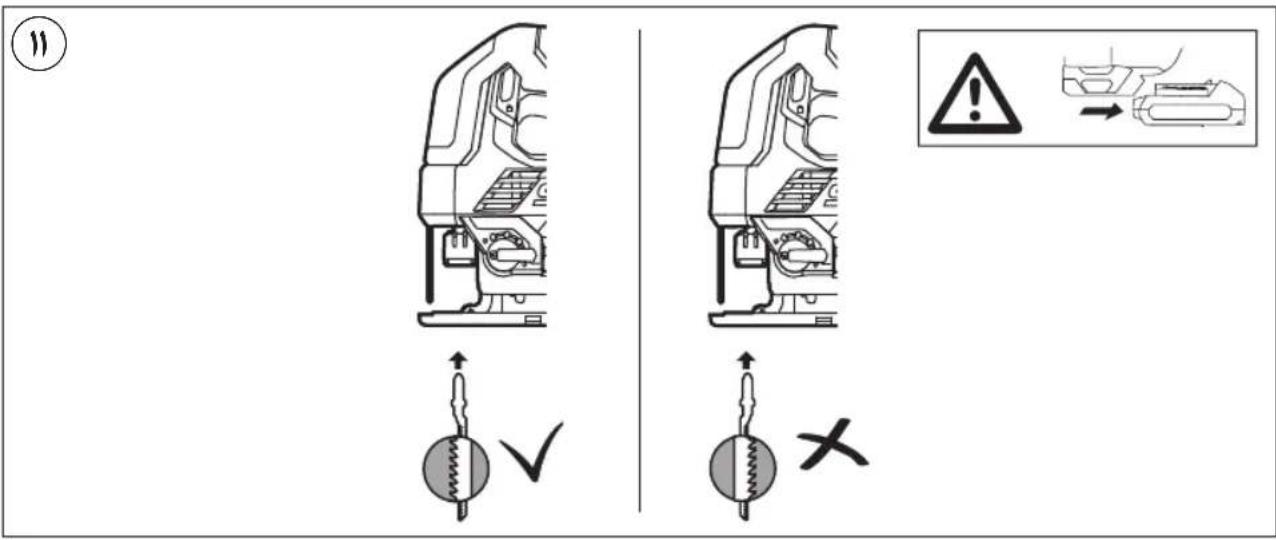

! insert blade to full depth with teeth facing forward ⑪

-tool accepts most commonly available T-shank and U-shank blades ⑩

- Sawing at 45^ ⑫

- Selecting sawing mode ⑬

Use lever C ② for adjusting the orbital action from accurate cutting (= 0) to fast cutting (= 3)

-1 setting ("0") for accurate cutting in all materials, straight + curved

-3 settings for fast cutting in different materials, straight cuts only

1 = aluminum, plastic

2 = hard wood

3 = soft wood

! always select "0" when sawing splinter-sensitive material

- Dust suction ⑮

-connect vacuum cleaner adapter H to foot

-connect vacuum cleaner hose to vacuum cleaner adapter H

- Operating the tool

-before switching on the tool, ensure that front end of footplate rests flat on the workpiece

-hold tool firmly with both hands, so you will have full control of the tool at all times

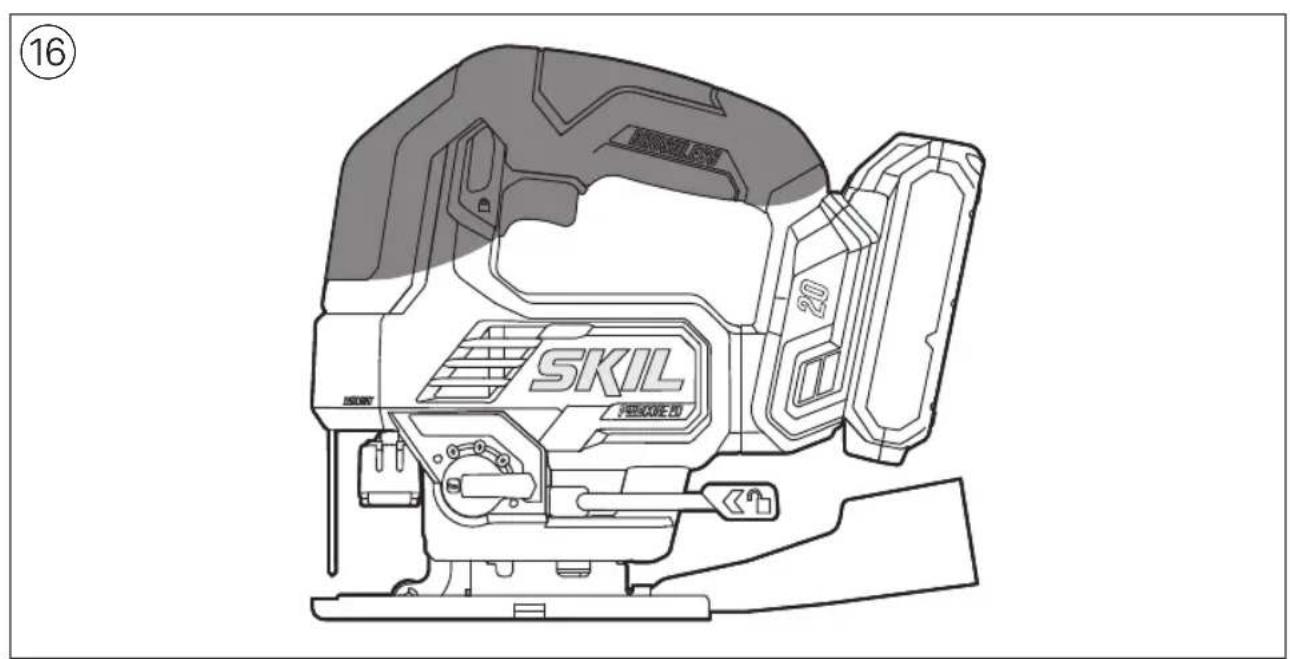

! while working, always hold the tool at the grey-coloured grip area(s) ^16

-ensure that complete surface of footplate rests firmly on the workpiece

! ensure that the blade has come to a complete standstill, before you lift the tool from the workpiece

-keep ventilation slots D② uncovered

APPLICATION ADVICE

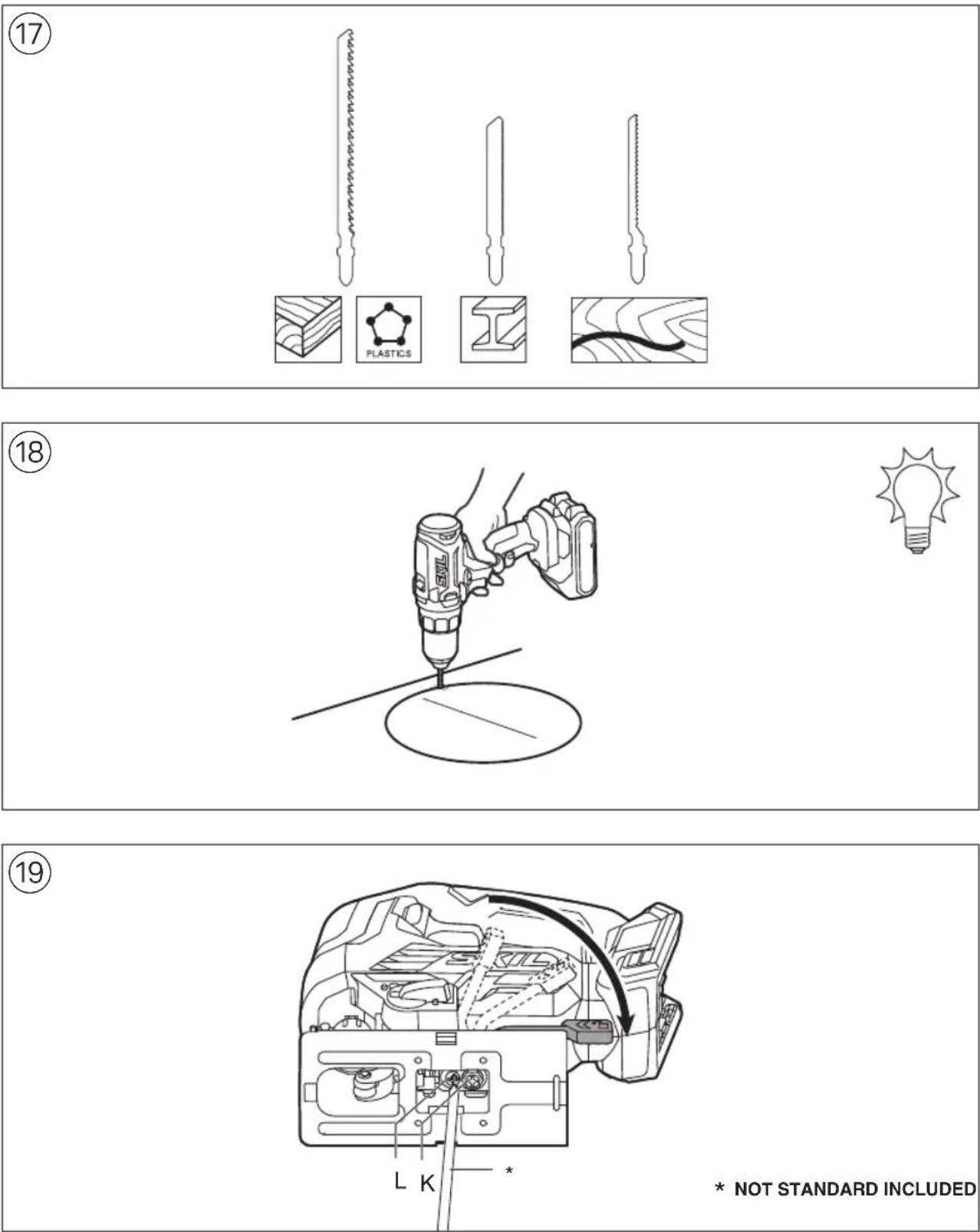

• Use the appropriate saw blades ⑰

! tool accepts most commonly available T-shank and U-shank blades ⑩

- When cutting metals, lubricate saw blade regularly with oil

• Pre-drill a hole before making cut-outs ⑱

- Splinter-free cutting

-cover cutting-line with several layers of wide tape before cutting

-always face the good side of the workpiece down

• For more information see www.skil.com

MAINTENANCE / SERVICE

- Always keep tool clean (especially ventilation slots D ②) ! remove battery from tool before cleaning

- If lever F loosens during use, set the tightness of lever F ^19

-place lever F in lock position

-remove lock screw L and the washer underneath it with PH2 screw driver counter clockwise

-tighten set screw K finger tight with PH2 screw driver counter clockwise

! set screw K uses left hand thread

-install the washer and tighten lock screw L with PH2 screw driver clockwise

• If the tool should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for SKIL power tools
• send the tool undismantled together with proof of purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skil.com)
• Be aware that damage due to overload or improper handling of the tool will be excluded from the warranty (for the SKIL warranty conditions see www.skil.com or ask your dealer)

ENVIRONMENT

Only for EU countries

- Do not dispose of electric tools, accessories and packaging together with household waste material

- in observance of European Directive 2012/19/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility

- symbol ^⑥ will remind you of this when the need for disposing occurs

! prior to disposal protect battery terminals with heavy tape to prevent short-circuit

Only for UK

- Do not dispose of electric tools, accessories and packaging together with household waste material

- in observance of on Waste Electric and Electronic Equipment Regulations 2013 (SI 2013/3113), electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility

- symbol ^⑥ will remind you of this when the need for disposing occurs

! prior to disposal protect battery terminals with heavy tape to prevent short-circuit

NOISE / VIBRATION

- Measured in accordance with EN 62841 the sound pressure level of this tool is 84 dB(A) and the sound power level 92 dB(A) (uncertainty K = 5 dB), and the vibration * (triax vector sum; uncertainty K = 1.5 m/s^2 )

* cutting board 4.54 m/s²

* cutting sheet metal 5.46 m/s ^2

- The vibration emission level has been measured in accordance with a standardised test given in EN 62841; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

- using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level

- the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

! protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

F

2 = Hartholz
3 = Weichholz

1 = aluminium, plastic

2 = hard hout

3 = zacht hout

1 = aluminium, plast

2 = hard tre

3 = mykt tre

VEDLIKEHOLD / SERVICE

1 = aluminiu, plastic

2 = lemn tare

3 = lemn moale

APKALPOŠANA / APKOPE

TECHNINIAI DUOMENYS ①

PRIETAISO ELEMENTAI②

(1)ATICALAMANAKHIRBANI

Line drawing of a SKIL brand camera with visible branding and control panel (no text or symbols beyond branding)

17

0 1 c 2 3

0 1 2 3

13

Technical line drawing of a mechanical component with no visible text or symbols

Diagram illustrating vehicle safety rules with correct and incorrect actions, showing correct vs. incorrect states of a device.

Illustration of a hand holding a device with a turtle and a turtle nearby, no text or symbols present

E "T" "U"

V J V a V b V c

1

3421

20V Max

18

Volt

2,1 kg

2,3 kg

120mm

10 mm

8 mm

①

B A D G E C F H SKIL POTATO 20 210 J

F

③

①

1

QR code image containing encoded data, no visible human-readable text

Illustration of a SKIL Juzuki 80 video camera with open lid and blade (no text or symbols on body)

دليل الاستعمال AR راهنماي اصلی FA
