USER MANUAL vibe 2 Phil & Teds

INSTRUCTIONS - INSTRUCTIES - INSTRUCCIONES - GERBRAUCHS ANWEISUNG - INSTRUKSJONER - INSTRUKTIONER phil&teds FOR YOUR CHILD'S SAFETY READ THESE INSTRUCTIONS CAREFULLY BEFORE USE

KEEP FOR FUTURE REFERENCE

phil&teds®

verve ^TM / vibe ^TM

philandteds.com

Congratulations on choosing the verve™/ vibe™!

Product Care / Conseils d'entretien / Produktpflege / Cuidado del producto / Productverzorging

Safety Warnings / Avertissements / Warnungen / Advertencias / Waarschuwing

Configurations / Konfigurationen / Configuraciones / Configuratives

Features / Caractérisiques / Produkteigenschaften / Características / Kenmerken

Instructions / Gebrauchsanweisung / Instrucciones / Instructies

VERVETM/VIBETM

Product Care / Conseils d'entretien / Produktpflege / Cuidado del producto / Productverzorging

GENERAL INSTRUCTIONS

This document contains important information and must be kept for future reference.

Please read thoroughly before commencing installation as incorrect installation can be dangerous.

Please register your product purchase through our online warranty registration by visiting: www.philandteds.com/register

This vehicle is intended for children from newborn to 5 years.

Maximum weight in the newborn position 20lbs/9kg

Maximum weight in the upright main seat 44lbs/20kg

Maximum weight in the double kit - on rear 33lbs/15kg

Maximum weight in the double kit - on front 44lbs/20kg

Maximum weight in the parent facing seat 33lbs/15kg

CLEANING & CARING

Check the verve™/vibe™ for cuts & bruises. If your product is damaged in any way, or you're not sure how to use it, please consult our web support (www.philandteds.com/support) from where you can access a local customer care team.

Caring for verve™/vibe™

Unlike children, your verve™/vibe™ likes to stay clean.

• Brush dirt off frame and wheels regularly.
- Clean with non-abrasive household cleaner and a soft cloth.
• Wash off sand and salt after visiting the beach.
• Always dry frame if wet.
- Fabrics can be sponge cleaned with warm water, using a mild natural soap.
• Do not use detergents or bleach.
- Store in a well ventilated space, away from direct sunlight (which can harm and fade fabric), and moisture.
- Improper care will void any warranties. Do not use the verve™/vibe™ if deterioration is detected or suspected.

IMPORTANT IMPORTANT

• Always load/unload your children on level ground.
- Ensure the brake is engaged during the loading and unloading of children.
- Care should be taken if the stroller is used on stairs or escalators.
• Always use the safety strap.
- Excessive wear can reduce effectiveness and safety. Parts may need lubrication. Inspect essential components for:
- Fraying - especially webbing straps and safety harness.
- Wear - locks, snap fasteners, tyres, plastic and moving parts.
• Safety - locks must not be loose.

Tyres & Tubes

• The valve is car-size. Manually inflate to 20 – 22psi max. releasing air gives a softer ride but lower pressure reduces tread life.
• New inner tubes and tyres are generally available (21/4" x 12 1/2" tyre) from your dealer, cycle or specialist wheel shops. Standard tyre kits can repair punctures.
• A flat tyre can result from grit holding the valve open; to check: inflate tyre, deflate rapidly, and re-inflate.
• Tyres and tubes are not under warranty. Do not over inflate. Tyre pressure is affected by heat especially when inside parked cars.
• Rubber tyres can react with some surfaces (including, but not limited to, vinyl floor coverings, carpets, synthetic laminates, parquet and linoleum) and cause stains. Always stand the stroller on a protective surface when indoors.

EVA Tyres

• Tyres are not under warranty.
- The verve™ uses EVA tyres on the front - these are immune from punctures and eliminate the need for tube replacements etc.
- With use, the surface of the EVA tyre can show signs of minor pitting - this is normal for this material, and this does not affect performance of the product.

For rights & remedies, refer www.philandteds.com/warranty

VERVETM/VIBE™

Safety Warnings / Avertissements / Wamungen / Advertencias / Waarschuwing

The verve™/vibe™ complies with requirements applicable in market of sale, refer www.philandteds.com/certification

WARNINGS

European Safety Standard states:

Read the instructions carefully before use and keep them for future reference. Your child's safety may be affected if you do not follow these instructions.

• This vehicle is intended for children from newborn up to 5 years and up to a maximum weight of 20kg/44lbs.
• The buggy shall only be used for a maximum of 2 children.
  • Never leave your child unattended.
• Accessories or replacement parts that are not approved by the manufacturer or distributor should not be used.
  • Any load attached to the handle and/or back

of the backrest and/or the sides of the stroller will affect stability of the stroller.

• Always use the restraint system.
• Always use the crotch strap in combination with the waist belt.
- Check that the pram body or seat unit attachment devices are correctly engaged before use.
- This product is not suitable for running or skating.
- Ensure that all locking devices are engaged before use.
- Use a harness as soon as your child can sit unaided.
- The parking device shall be engaged during the loading and unloading of children.
- The carry handles must be left out of the reclined position when in use (if applicable).
- The reclined position is suitable for a child who cannot sit up by itself, roll over and cannot push itself up on its hands and knees.

Maximum weight of child in reclined position is 9kg.

• To avoid injury ensure that your child is kept away when unfolding and folding this product.
• Do not let your child play with this product.
- It is recommended that the most reclined position be used for newborn babies.
- Do not place more than 5kg/11lbs in the parcel tray.

- Do not add a mattress thicker than 20mm.

WARNINGS

American Safety Standard states:

• This vehicle is intended for children from newborn to 5 years.
  • Maximum weight in the newborn position is 20lbs/9kg.
  • Maximum weight in the upright main seat is 44lbs/20kg
  • Maximum weight in the double kit - on rear is 33lbs/15kg.

• Maximum weight in the double kit - on front is 44lbs/20kg.
• Never leave your child unattended.
• Always use the safety harness to avoid serious injury from falling or sliding out.
- Child may slip into leg openings and strangle. Never use in a reclined carriage position unless child securely restrained - see pages 65–66.
- Do not place more than 5kg/11lbs in the parcel tray.
- Parcels and/or package carrying accessories placed on the stroller may cause the unit to become unstable.
- Excessive weight may cause a hazardous unstable condition to exist. Do not place parcels or accessory items anywhere except in the storage basket and pockets provided. Do not hang items such as shopping bags from the frame.

VERVE™/VIBE™

Safety Warnings / Avertissements / Wamungen / Advertencias / Waarschuwing

WARNINGS

Australian / New Zealand Safety Standard states:

To avoid injury or death:

• Always apply the brakes whenever the stroller is stationary.
  • Do not leave children unattended.
• Secure the child in the harness at all times.
• Do not carry extra children or bags on this stroller.
  • Make sure children are clear of any moving parts if you adjust the stroller.
  • Use the harness at all times.
• Use the tether strap to stop the stroller rolling away.
• Do not use the accessory seat with any other models of stroller.
• This vehicle is intended for children from newborn to 5 years.

• Maximum weight in the newborn position is 20lbs/9kg.
- Maximum weight in the upright main seat is 44lbs/20kg.
- Maximum weight in the double kit - on rear is 33lbs/15kg.
• Maximum weight in the double kit - on front is 44lbs/20kg.
- Do not place more than 11lbs/5kg in the storage tray.
- It is unsafe to use accessories other than those approved by the vehicles manufacturer.
- Care should be taken if the stroller is used on stairs or escalators.
- The stroller should not be used near an open fire or exposed flame.
- Never leave the harness buckled when not fitted to a child in the stroller. Harness can form loops which may pose a strangulation hazard.
- Ensure storage latch is engaged when lifting or carrying the stroller.

• This stroller is designed for use on flat or gently sloping surfaces and may be unstable on higher sloping and uneven surfaces. A lack of stability can lead to the stroller tipping over.
• Do not use the bassinet/newborn position once the child can sit up unaided.
• Take care when folding and unfolding the stroller, as there is potential for fingers or parts of the body to become entrapped or injured.

bag, other than one recommended by the manufacturer, is used.

• The stroller may become unstable if the recommended load is exceeded.
• Take care when folding or unfolding the stroller to prevent your fingers being entrapped.

WARNINGS

Canadian Safety Standard states:

• Never leave your child unattended in the stroller.
  • Always use the safety harness to avoid serious injury from falling or sliding out.
• Do not place more than 5kg/11lbs in the parcel tray.
  • The stroller may become unstable if a parcel

Solid gray vertical bar with no text, symbols, or markings

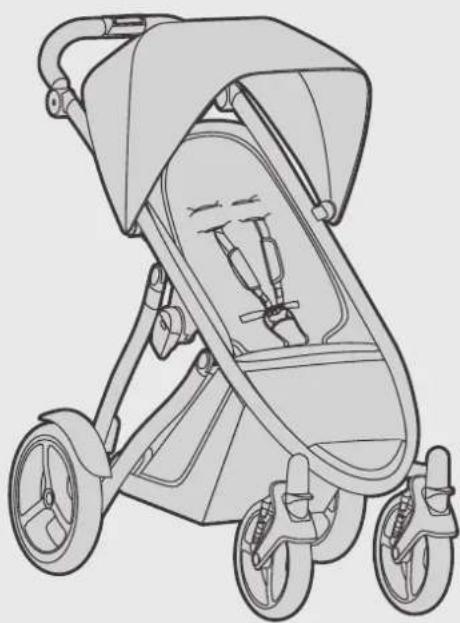

European Safety Standard:

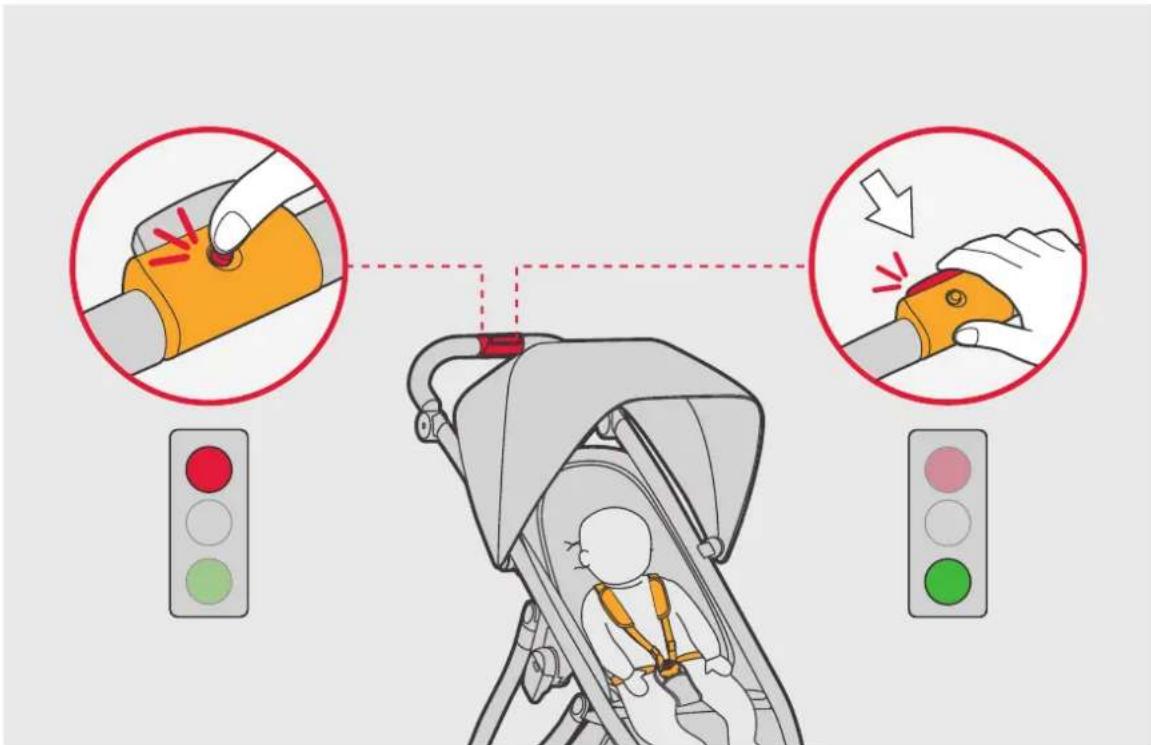

01 Hand brake
02 Handlebar

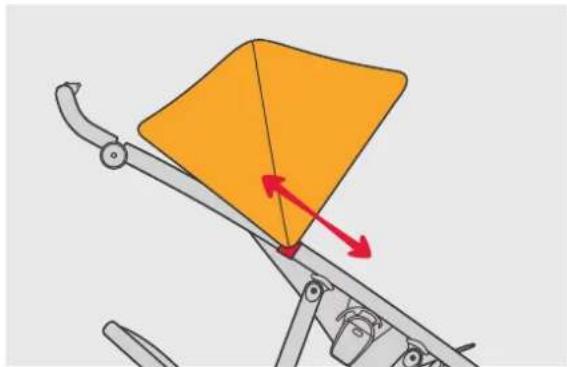

03 Sun hood
04 Quick release fold
05 Rear wheels
06 Bumper Bar
07 Harness
08 Footwell
09 Front wheels

verve only vibe only

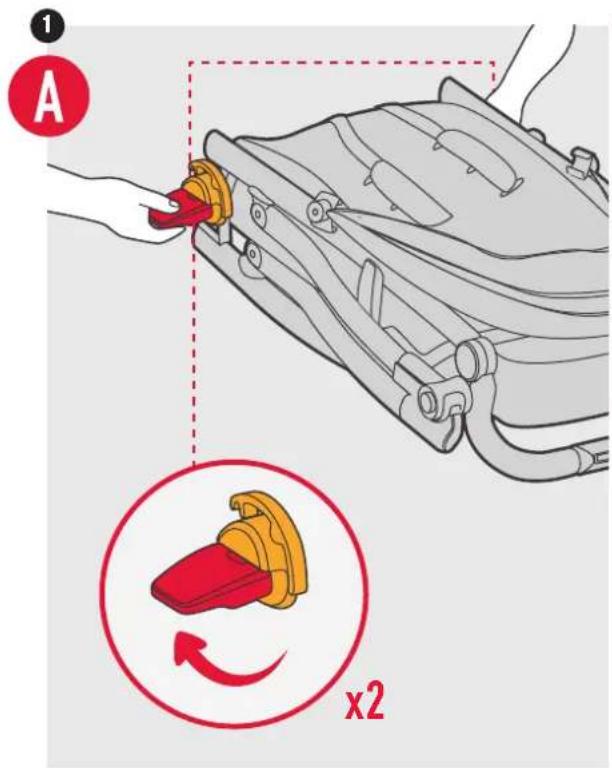

A x2

Diagram illustrating two steps of car seat replacement, showing hand positioning and tool application on a vehicle chassis.

VERVETM/VIBETM

Instructions / gebrauchsanweisung / instrucciones / instructies

Diagram illustrating three stages of a robotic device with labeled parts (1c, 1d, 1e) and directional arrows indicating movement.

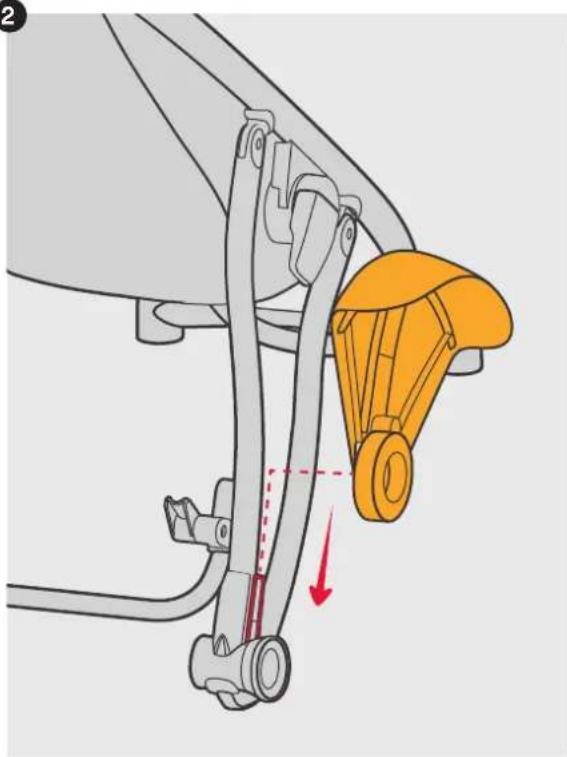

2

Mechanical assembly diagram showing a yellow vehicle wheel with red motion arrow indicating movement (no text or symbols)

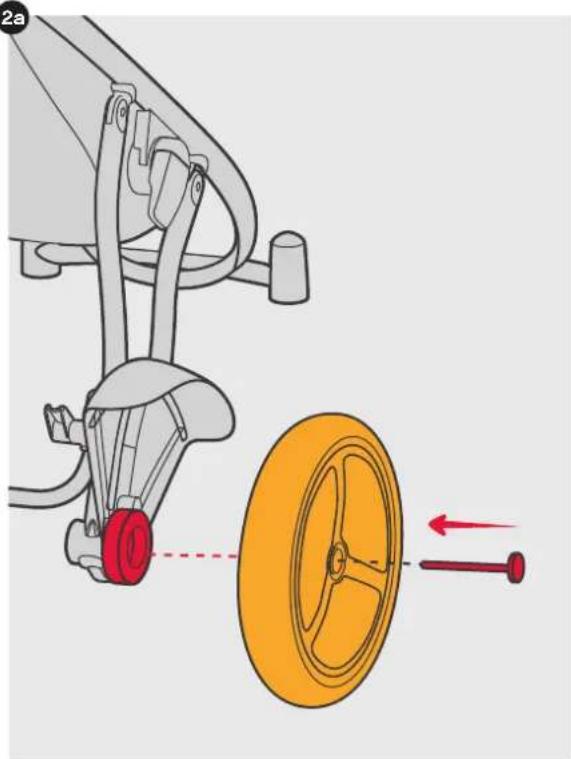

2a

Mechanical diagram showing a wheel and steering wheel assembly with red motion arrows (no text or symbols)

VERVE™/VIBE™

Instructions / gebrauchsanweisung / instrucciones / instructies

Diagram illustrating car seat mounting mechanism with labeled parts and directional arrows

Diagram illustrating how to adjust the wheel rim and handle using a valve, with red arrows indicating motion direction.

verve vibe

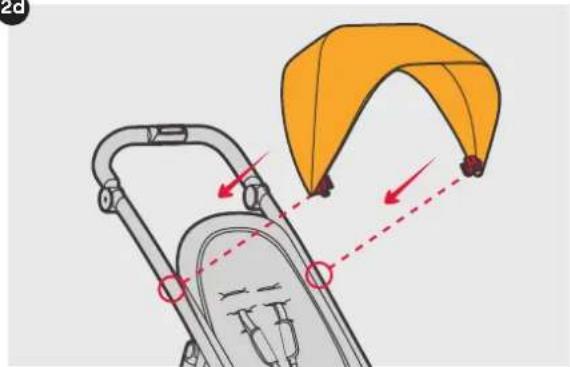

2d

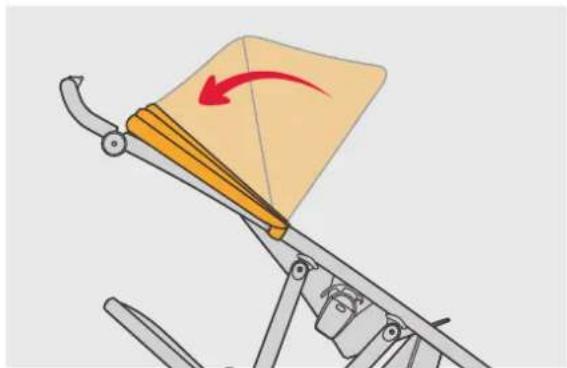

Illustration of a stroller with an orange canopy and red directional arrows indicating motion (no text or symbols)

Diagram of a mechanical device with an orange cover and red directional arrows indicating motion (no text or symbols)

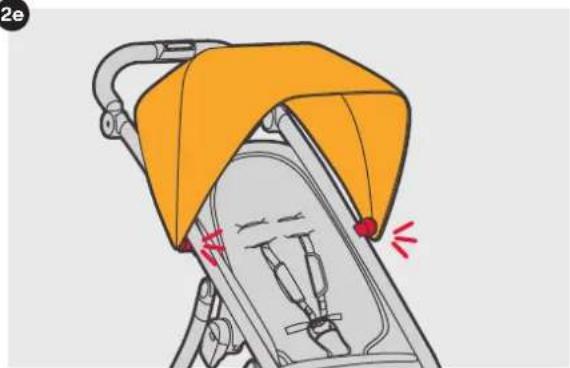

2e

Illustration of a yellow safety umbrella cover on a mechanical device (no text or symbols)

Diagram of a folding chair with an orange band and red arrow indicating rotation (no text or symbols)

VERVE™/VIBE™

Instructions / gebrauchsanweisung / instrucciones / instructies

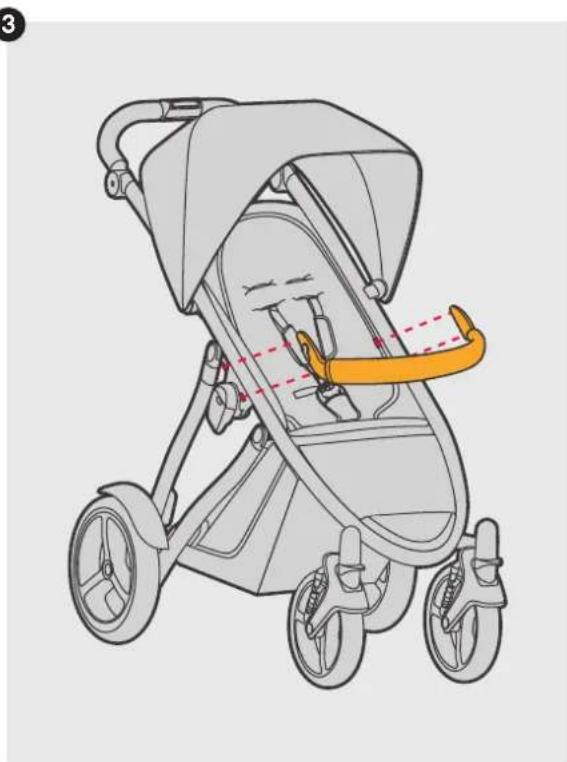

3

Illustration of a baby stroller with orange belt and dashed red line indicating motion (no text or symbols)

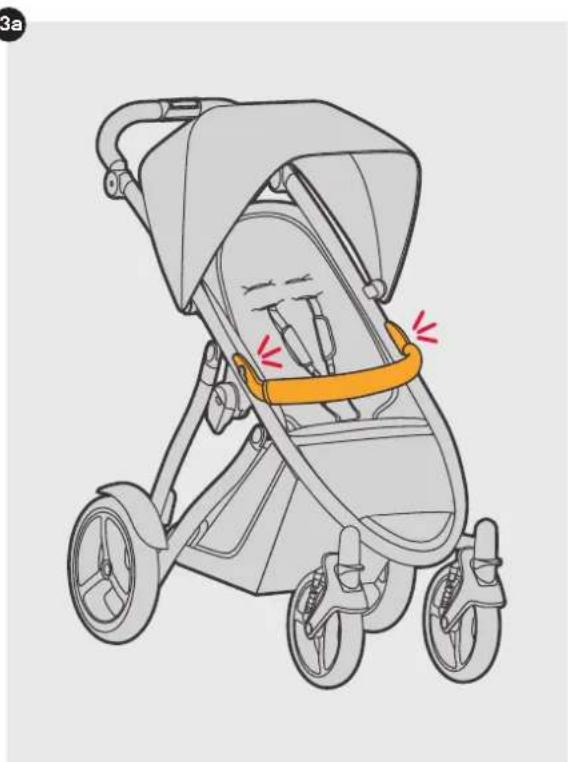

3a

Illustration of a baby stroller with orange belt and red warning symbols (no text or labels)

verve lock lock

vibe

VERVE™/VIBE™

Instructions / gebrauchsanweisung / instrucciones / instructies

Diagram illustrating car safety instructions with labeled icons and directional arrows indicating correct and incorrect actions.

Diagram illustrating banana processing steps with labeled components and a magnified view of the process.

VERVETM/VIBETM

Instructions / gebrauchsanweisung / instrucciones / instructies

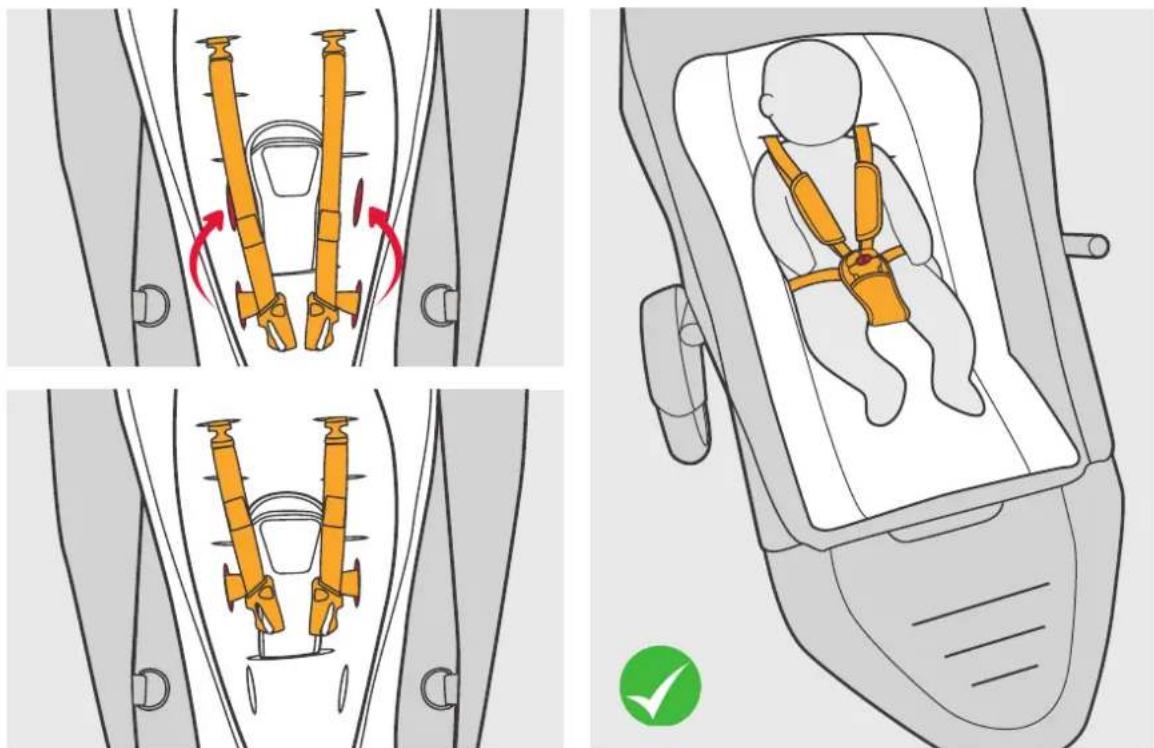

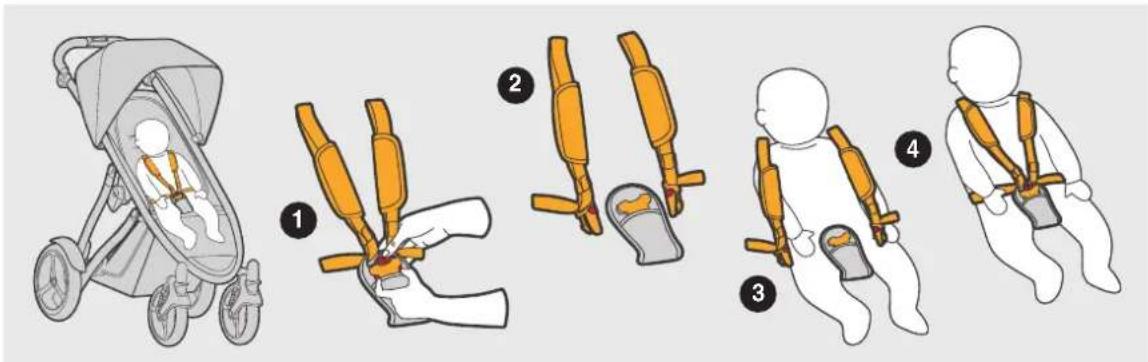

Illustration showing five different types of baby seatbelt and seatbelt configurations, from stroller to infant.

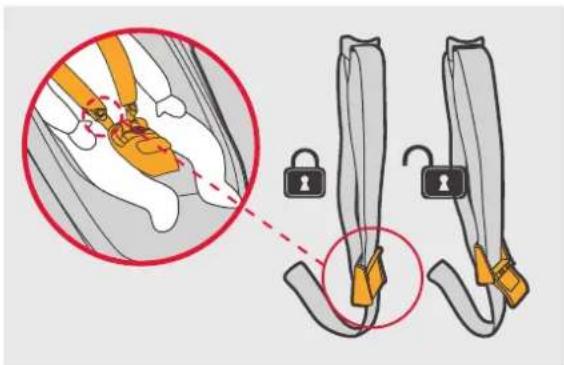

Diagram illustrating the use of a seatbelt buckle with highlighted safety features and lock symbols

Illustration of two hands tying a rope knot, showing motion direction (no text or symbols)

Diagram of a robotic arm with two orange bars and red directional arrows indicating motion or force (no text or symbols)

Diagram illustrating a person wearing a harness with safety belt, alongside a magnified view of the same body.

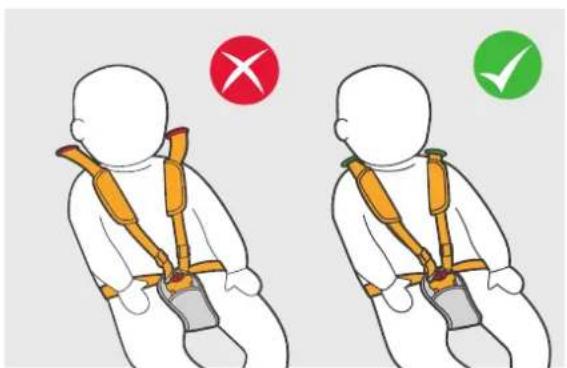

Illustration showing two children wearing orange safety harnesses with red and green checkmarks indicating failure or compliance status.

Safety instruction diagram showing car seatbelting and safety harness installation for a child wearing a full-body safety harness.

VERVE™/VIBE™

Instructions / gebrauchsanweisung / instrucciones / instructies

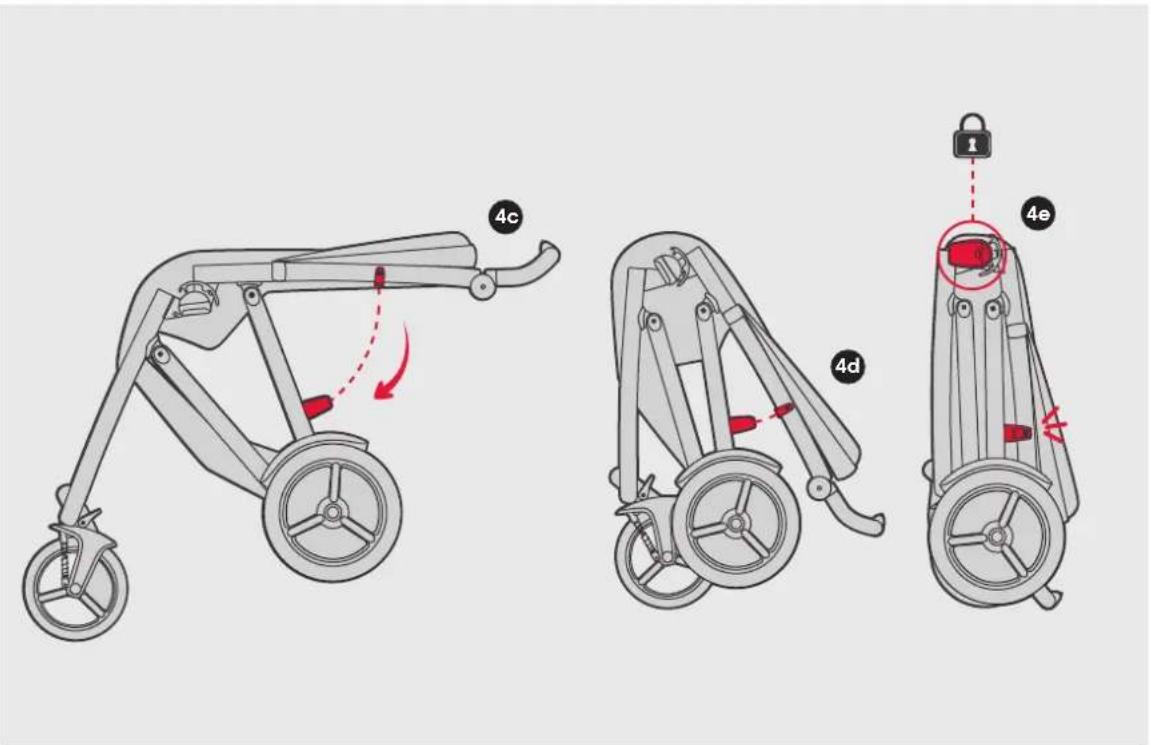

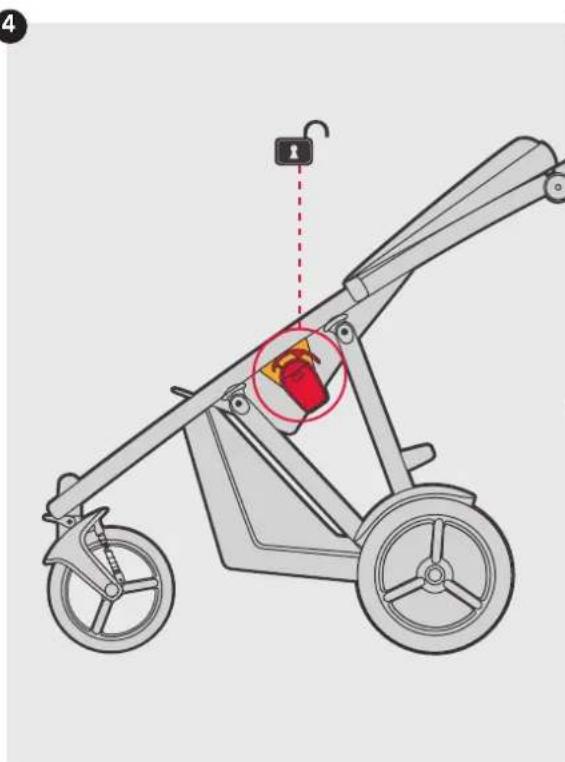

4

Diagram of a two-wheeled cart with a lock and highlighted safety camera, showing a red object inside the handle.

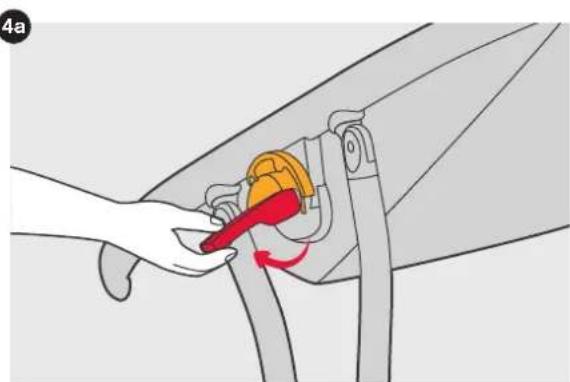

4a

Illustration of a hand holding a tool interacting with a mechanical component, showing a red-handled lever and orange handle (no text or symbols)

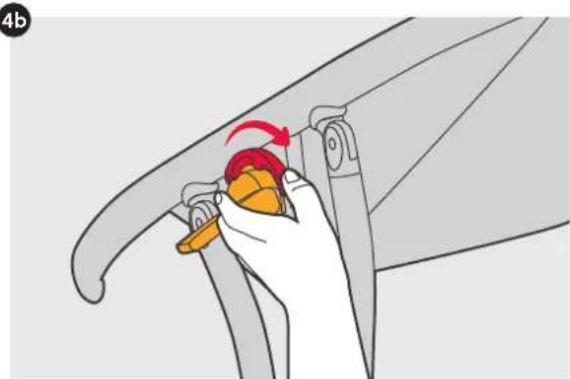

4b

Illustration of a hand using a tool to adjust or install a curved mechanical component, with no visible text or symbols.

Diagram illustrating the motion of a wheelchair baluster with labeled parts and directional arrows indicating movement.

VERVETM/VIBETM

Instructions / gebrauchsanweisung / instrucciones / instructies

Illustration of a stroller with orange seat and orange seatbelt, no text or symbols present

Illustration showing two-step automotive assembly process: top shows yellow bucket cover attachment, bottom shows hand pulling a cart with red motion arrows (no text or symbols)

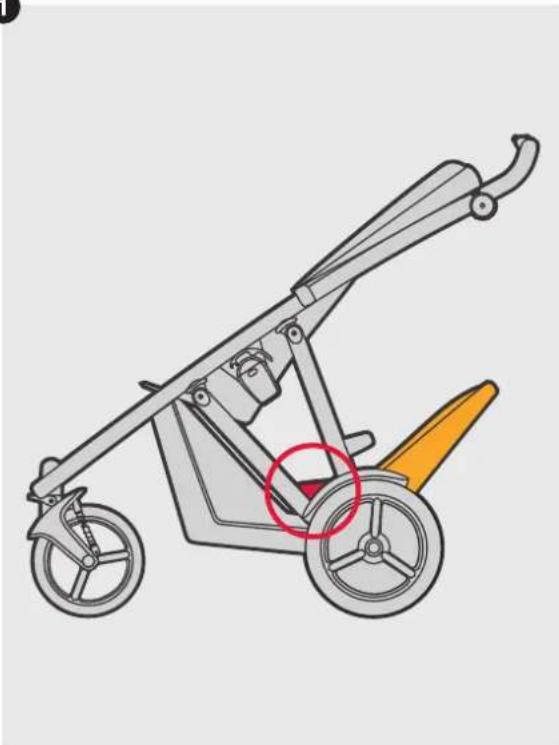

1

Illustration of a stroller with wheels and handle, highlighting a red circle on the front wheel (no text or symbols present)

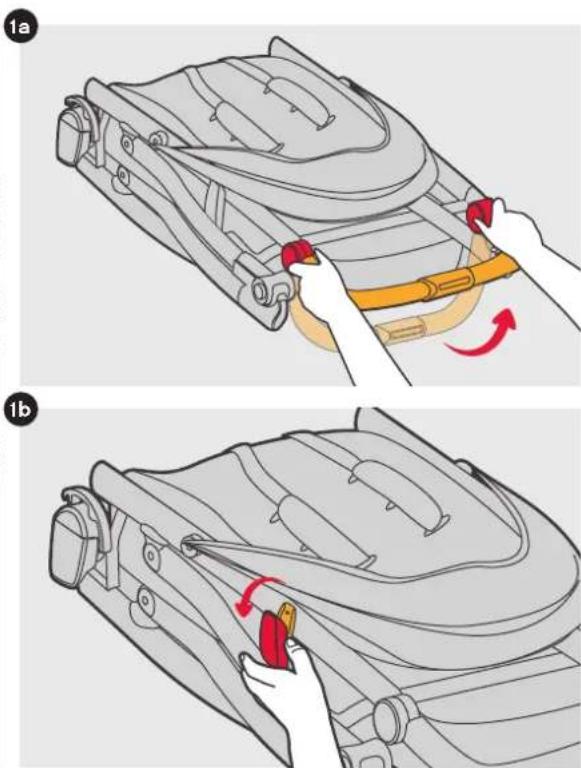

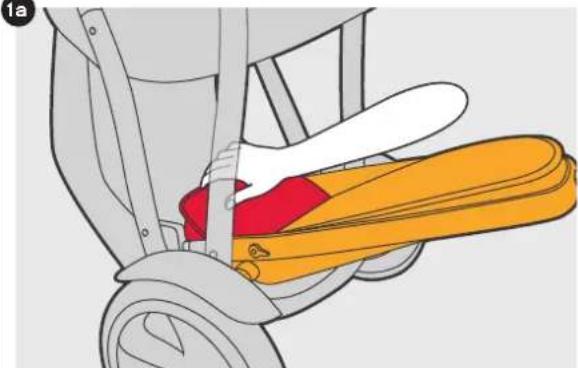

1a

Illustration of a car seatbelt with orange belt and red seat, no text or symbols present

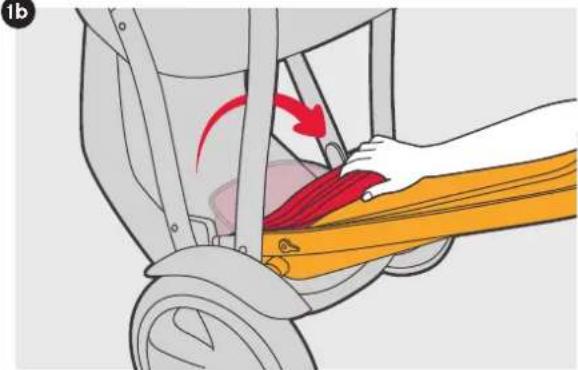

1b

Illustration of a hand pressing down a seatbelt with red motion arrows indicating movement (no text or symbols)

VERVE™/VIBE™

Instructions / gebrauchsanweisung / instrucciones / instructies

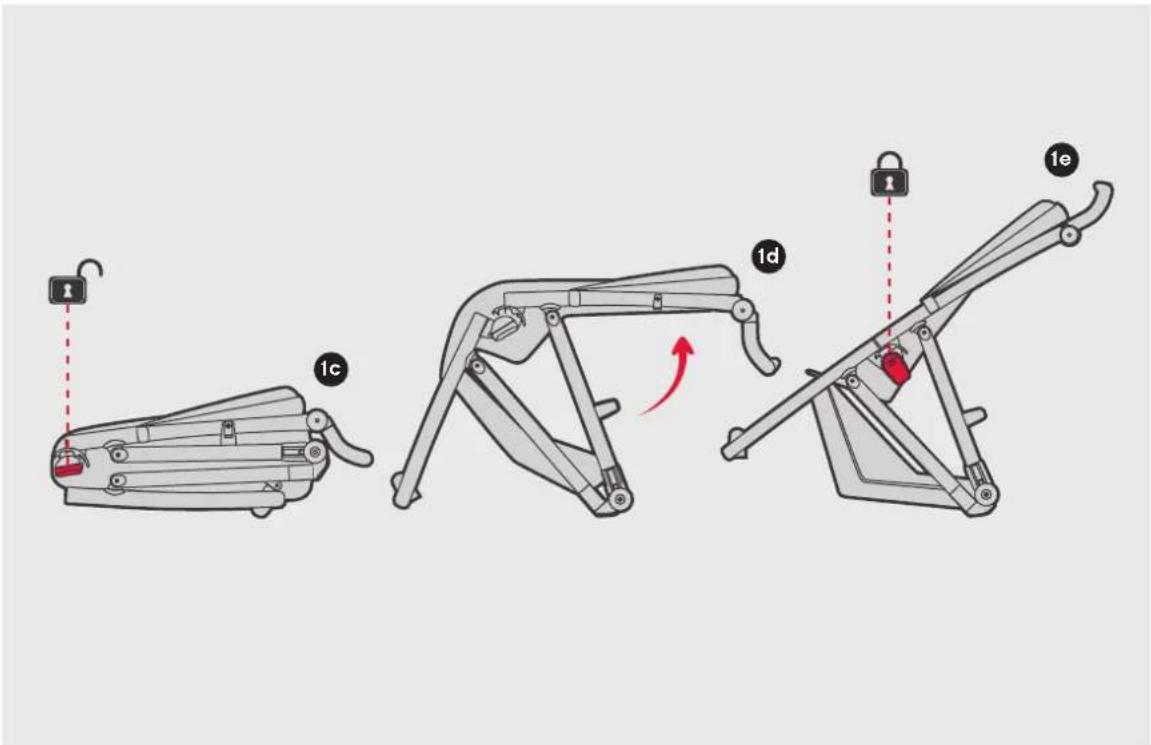

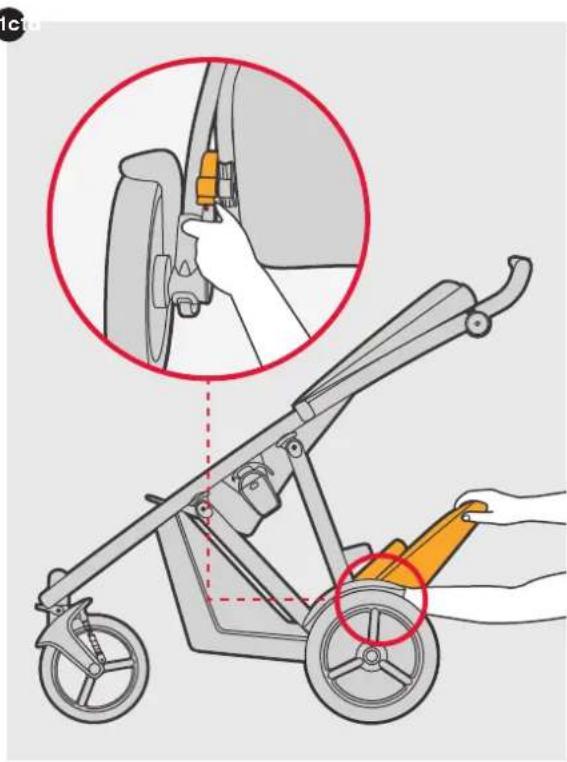

1c

Illustration of a stroller with a hand adjusting the wheel, showing a close-up of the handle and seat (no text or symbols present)

Diagram illustrating car wheel assembly with highlighted components and red arrows indicating motion direction

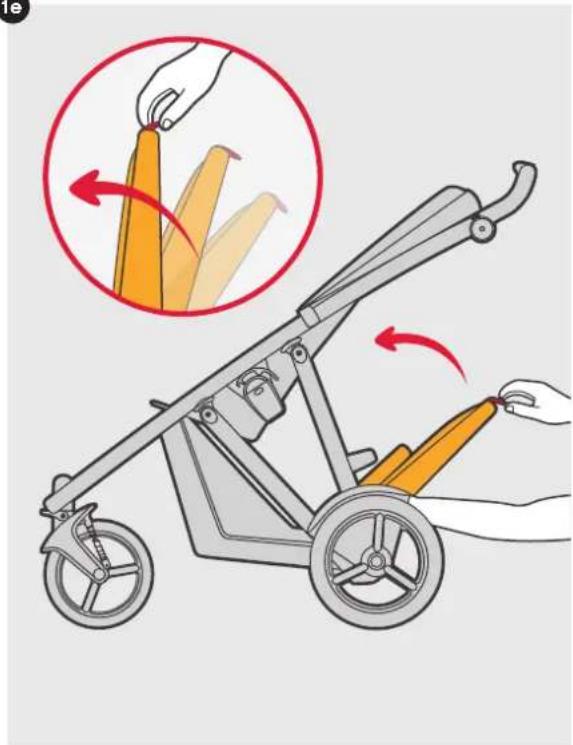

1e

Illustration of a stroller with hand positioning and a magnified view showing orange sticks being pulled (no text or symbols)

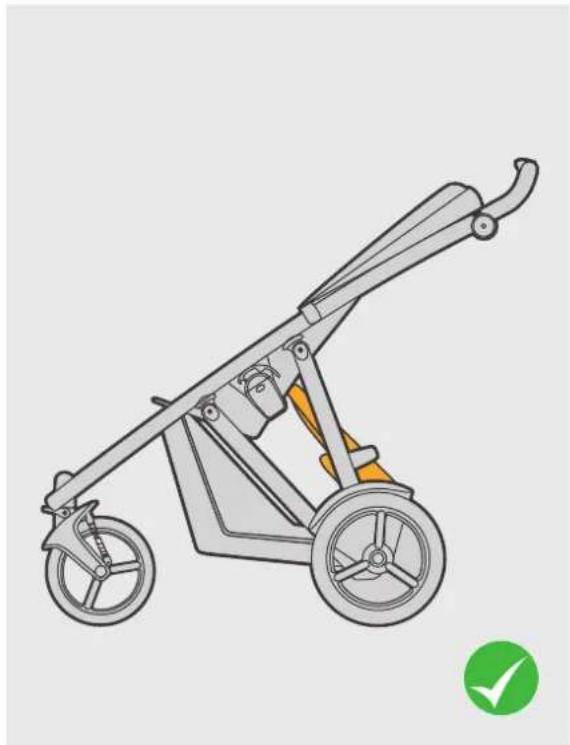

Illustration of a stroller with two wheels and handlebars, no text or symbols present

VERVE™/VIBE™

Instructions / gebrauchsanweisung / instrucciones / instructies

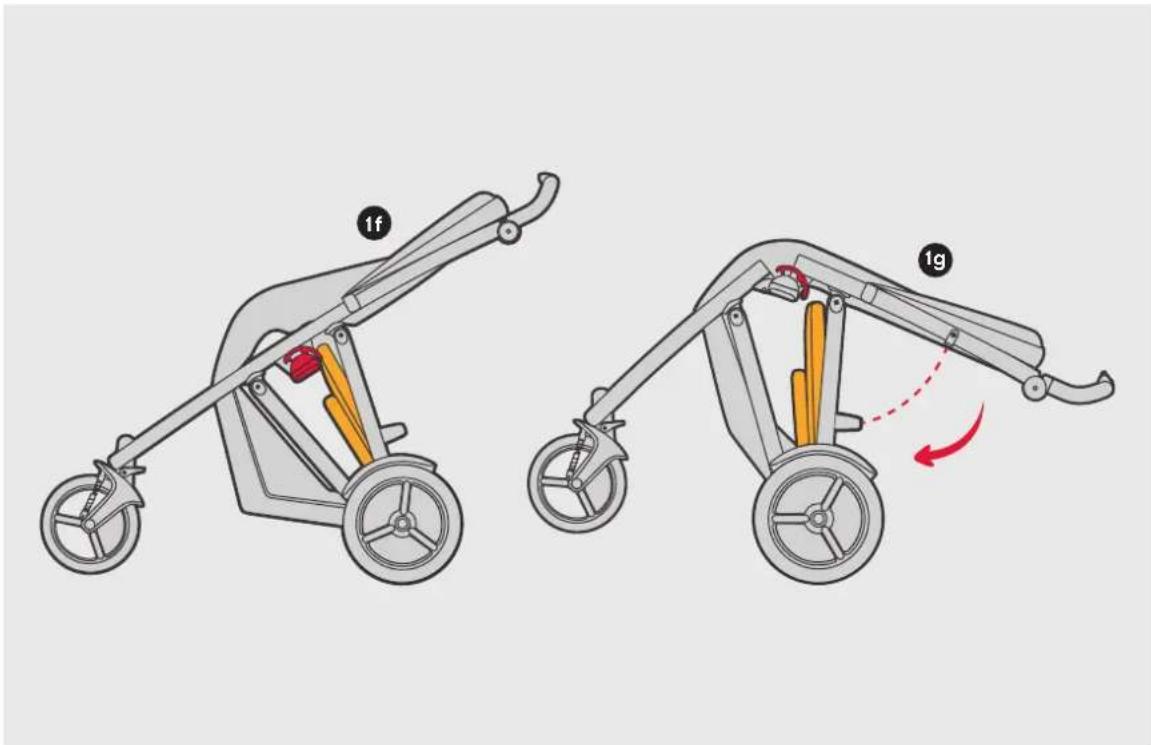

Diagram illustrating two types of bicycle trawling machines labeled 1f and 1g, showing mechanical components and motion direction with red arrows indicating rotation.

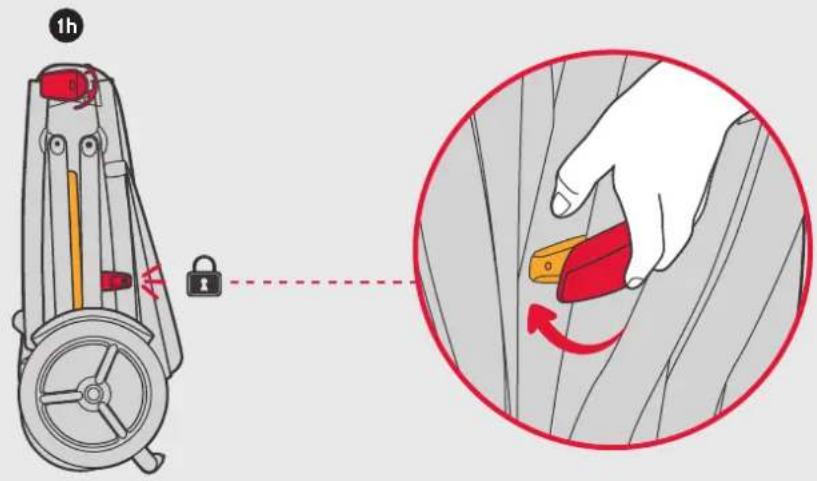

1h Lock

VERVETM/VIBETM

Instructions / gebrauchsanweisung / instrucciones / instructies

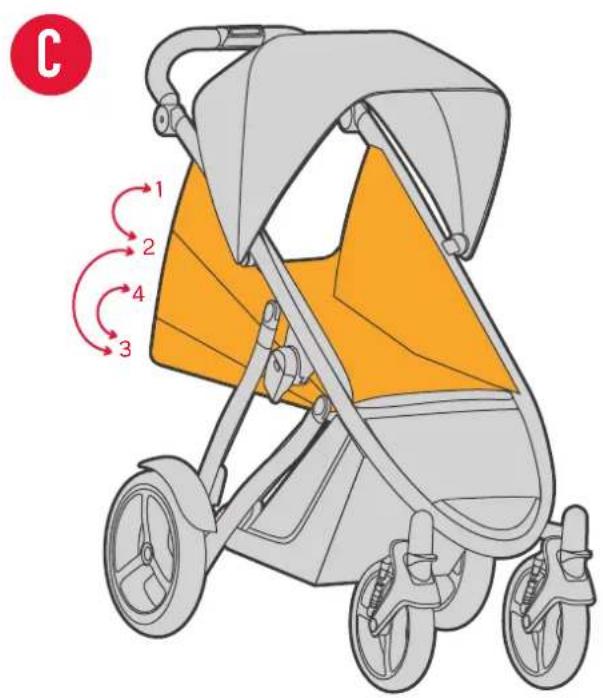

C 1 2 3 4

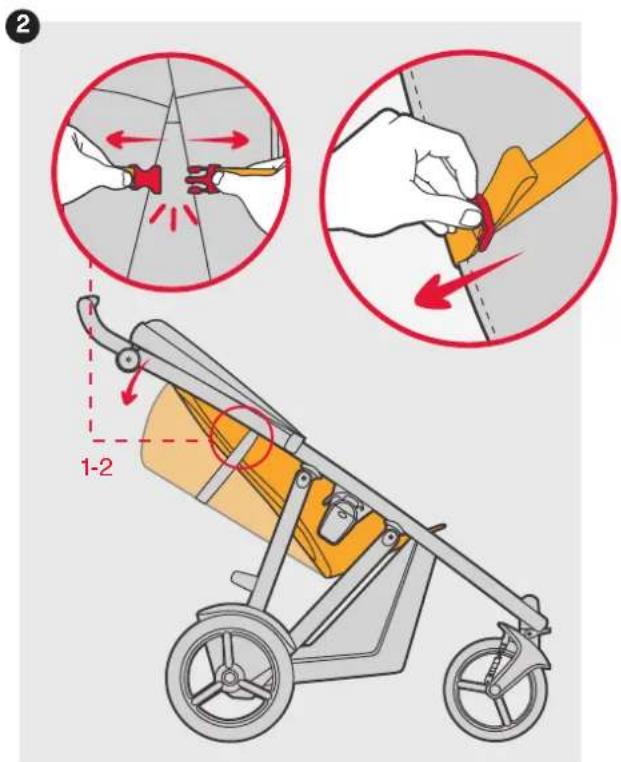

2 1-2

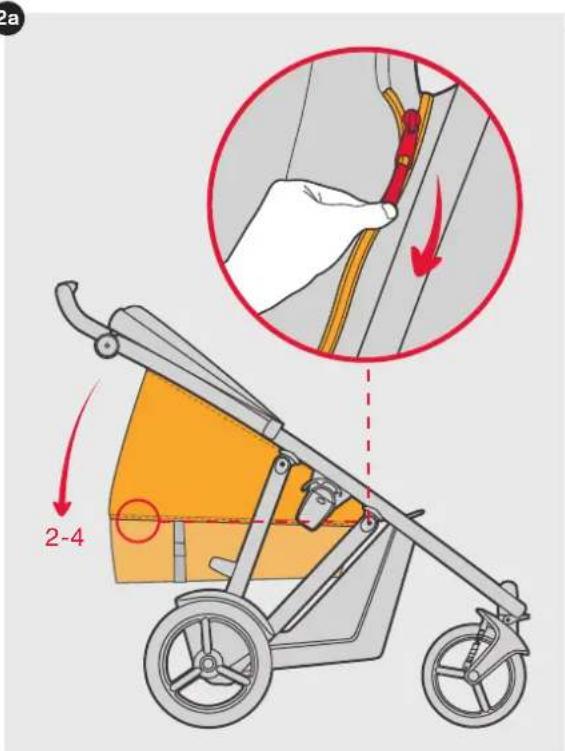

2a

2a 2-4

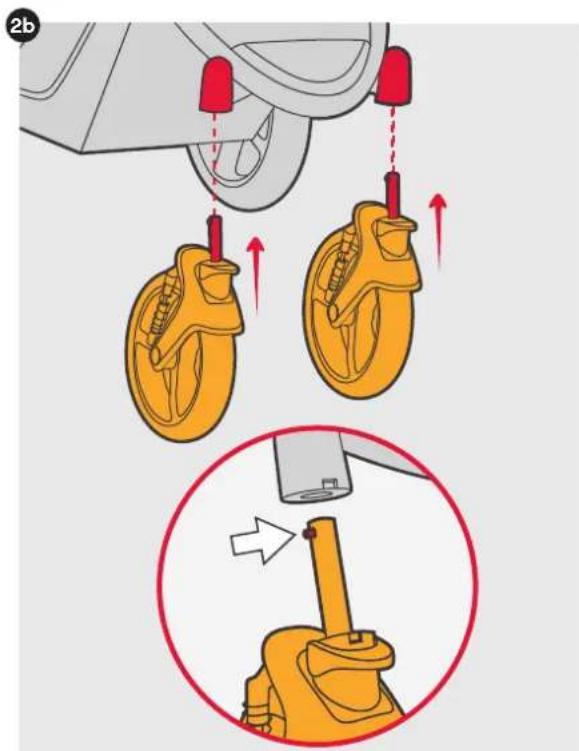

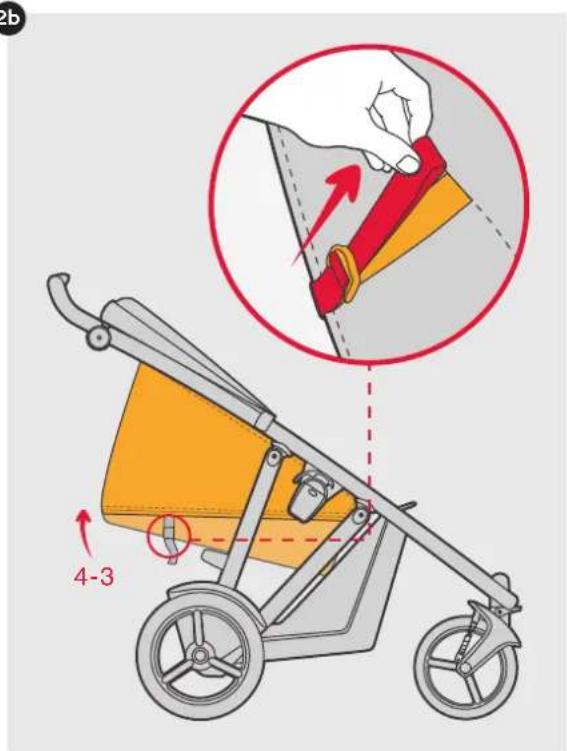

2b

2b 4-3

VERVETM/VIBE™

Instructions / gebrauchsanweisung / instrucciones / instructies

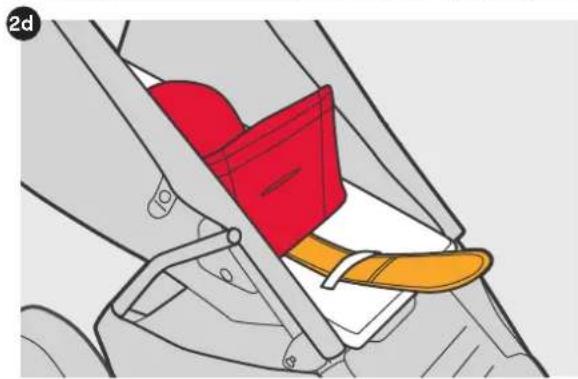

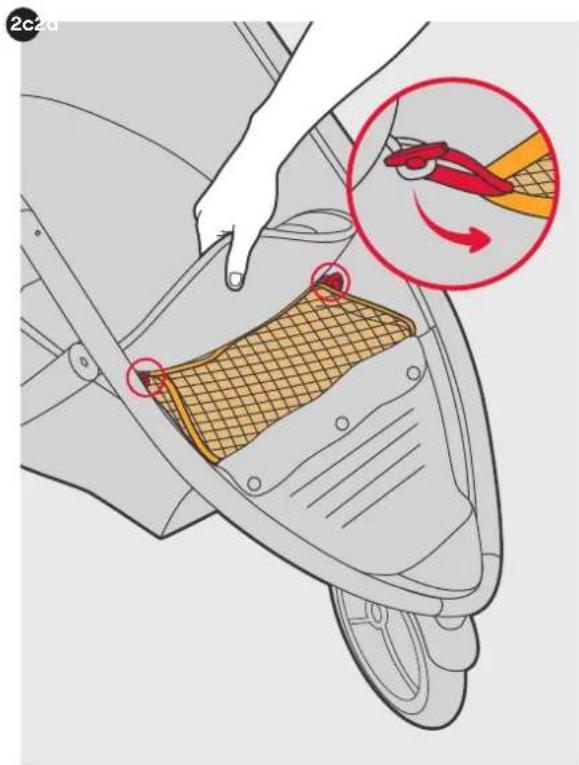

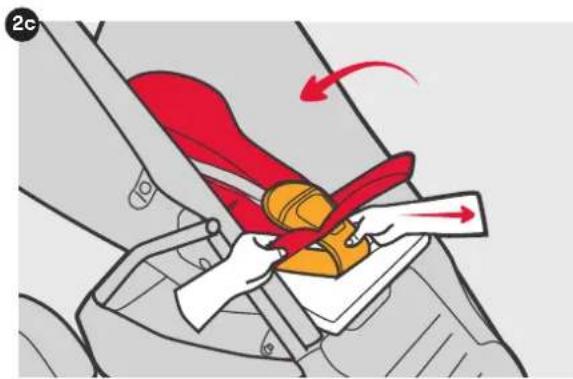

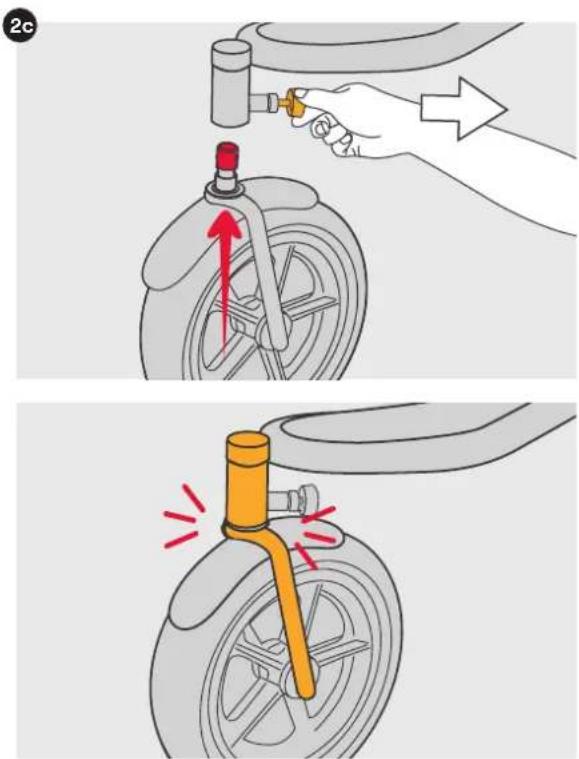

2c2d

Illustration of hands adjusting a car wheel rim with a meshed orange band (no text or symbols)

In USA, use the mesh wall as shown above

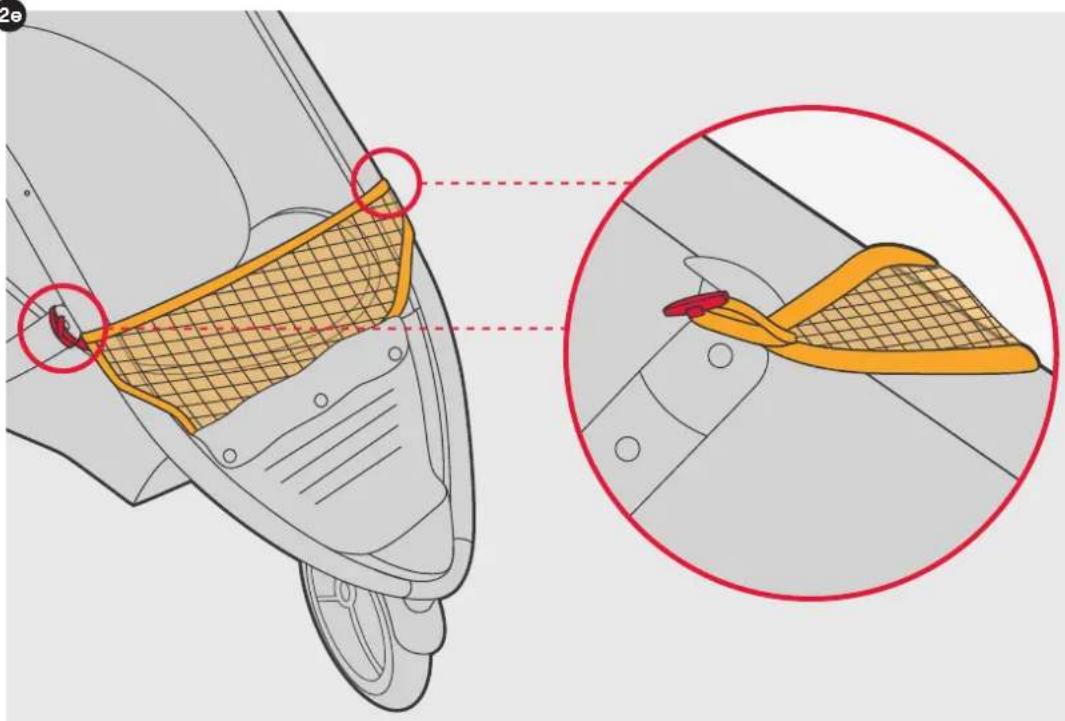

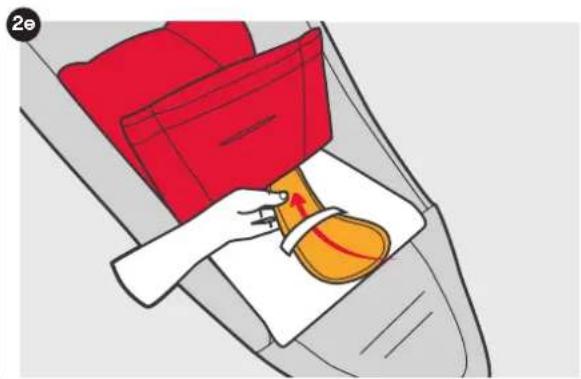

2e

Technical diagram showing a mechanical component with highlighted parts and a close-up view of the assembly detail.

VERVETM/VIBETM

Instructions / gebrauchsanweisung / instrucciones / instructies

Illustration of a car seatbelt buckle being adjusted, showing red ribbon and orange belt (no text or symbols)

Illustration of a hand pressing down on a yellow object with a red cover, no text or symbols present

Illustration of a red and orange seatbelt buckle securing a vehicle seat (no text or symbols)

Illustration of a person's seatbelt being adjusted for a red panel, with no text or symbols present.

VERVE™/VIBE™

Instructions / gebrauchsanweisung / instrucciones / instructies

Diagram of a car seatbelt buckle with orange straps and red directional arrows indicating rotation (no text or symbols)

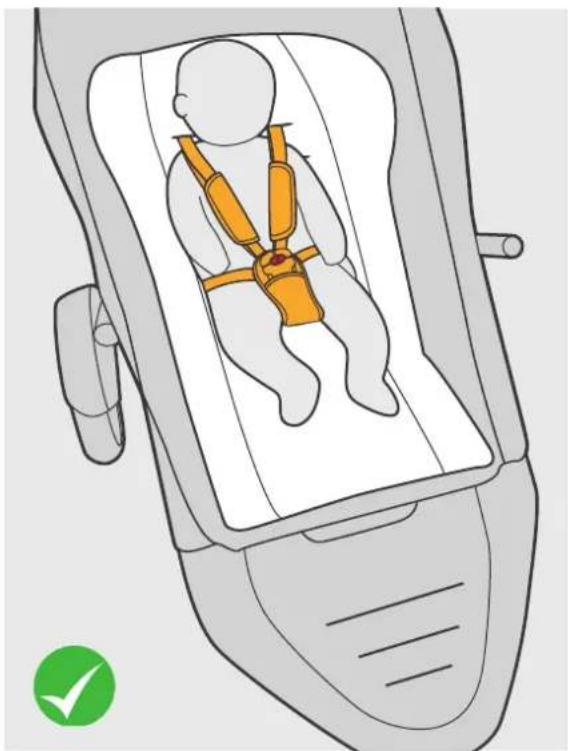

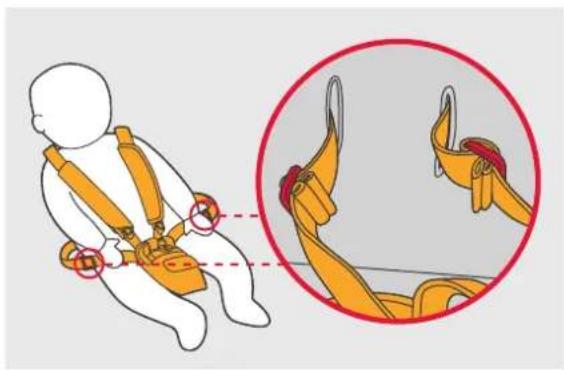

Illustration of a baby in a car seatbelt with orange safety harness (no text or symbols)

Diagram of a car seatbelt with orange bands and seat connectors, no text or symbols present

Diagram of a car seatbelt with orange bands and seat connectors, no text or symbols present

Diagram of a car seatbelt with orange bands and seat connectors, no text or symbols present

Diagram of a car seatbelt with orange bands and seat connectors, no text or symbols present

Diagram of a car seatbelt with orange bands and seat connectors, no text or symbols present

Diagram illustrating car seatbelt usage with orange safety harnesses and a child inside a car seatbelt, showing step-by-step instructions.

3a

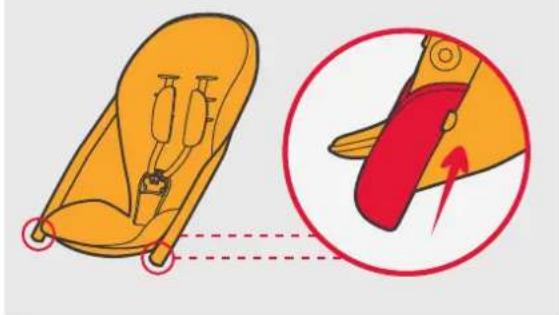

Illustration of a baby's seat with a magnified view showing the red tongue being held (no text or symbols)

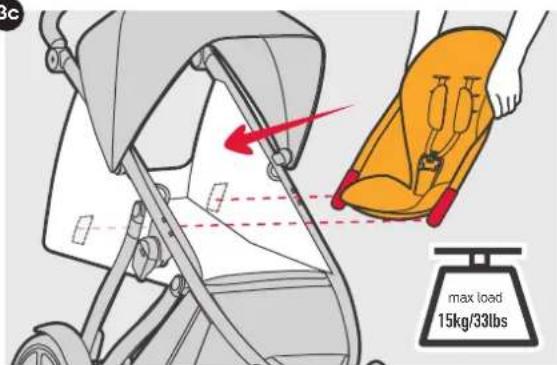

3c

max load 15kg/33lbs

3b

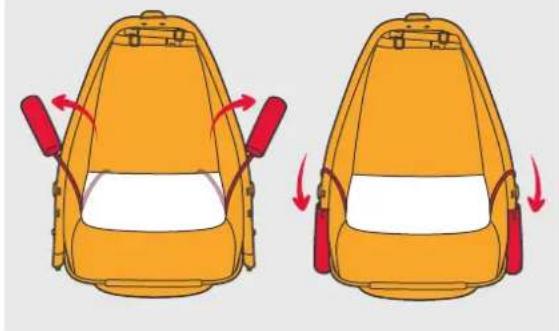

Illustration of two orange backpacks with red tassels, showing seat positioning and movement arrows (no text or symbols)

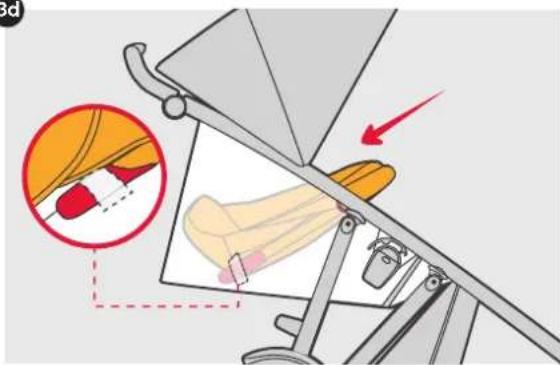

3d

Medical illustration showing surgical procedure with labeled anatomical view and red arrow indicating direction

VERVETM/VIBETM

Instructions / gebrauchsanweisung / instrucciones / instructies

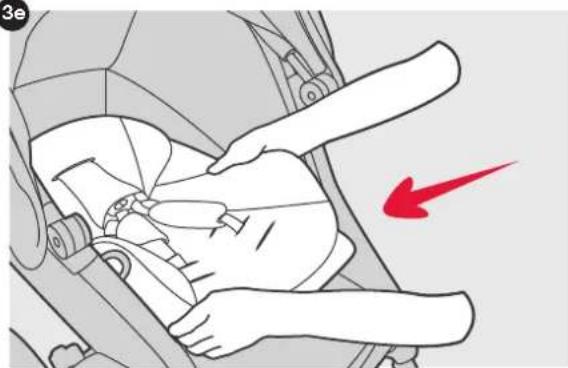

3e

Illustration of a person adjusting a car seat with a red arrow indicating motion (no text or symbols)

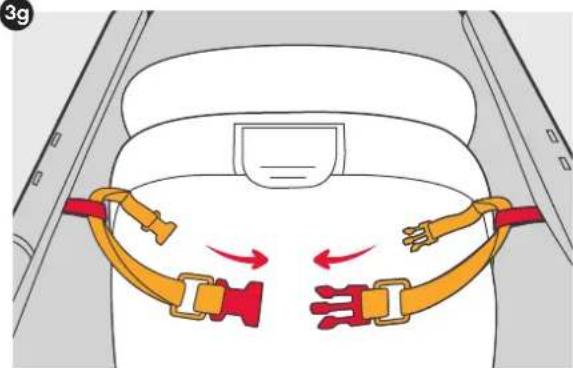

3g

Diagram of a car seatbelt buckle assembly with red and orange belt bands (no text or symbols)

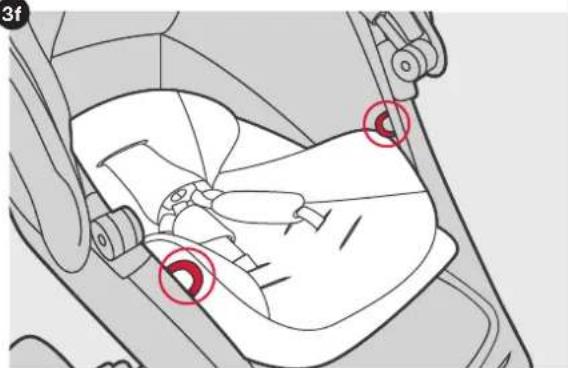

3f

3f

3h

Diagram of a vehicle seat assembly with highlighted components and a green checkmark (no text or symbols)

*covers sold separately

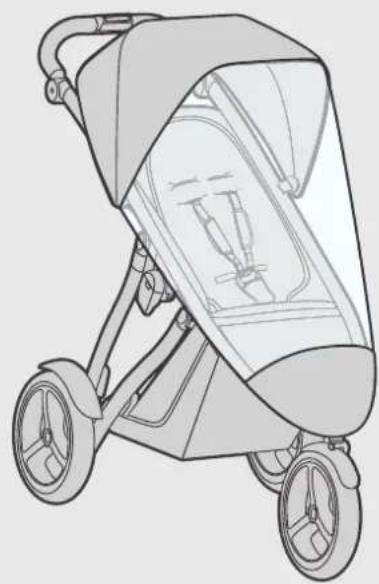

Line drawing of a baby stroller with wheels and mesh cover (no text or symbols)

Line drawing of a stroller with wheels and seat cover (no text or symbols)

*covers fit both verve™ and vibe™

Solid gray vertical bar with no text, symbols, or markings

© Phil and Teds Most Excellent Buggy Company Ltd 2012.

We (Phil and Teds Most Excellent Buggy Company Ltd) own the intellectual property rights in our brands, designs and inventions featured in this publication. These include, without limitation, the phil&teds, adapt&survive!, &, INLINE trade marks and INLINE DOUBLE BUGGY shape. We actively pursue people who infringe our intellectual property.

©Phil & Teds Most Excellent Buggy Company Ltd 2012.

© Phil and Teds Most Excellent Buggy Company Ltd 2012.

© Phil and Teds Most Excellent Buggy Company Ltd 2012.

© Phil and Teds Most Excellent Buggy Company Ltd 2012.

Line drawing of a baby stroller with four wheels and a canopy (no text or symbols)

Line drawing of a stroller with four wheels and a back cover (no text or symbols)
