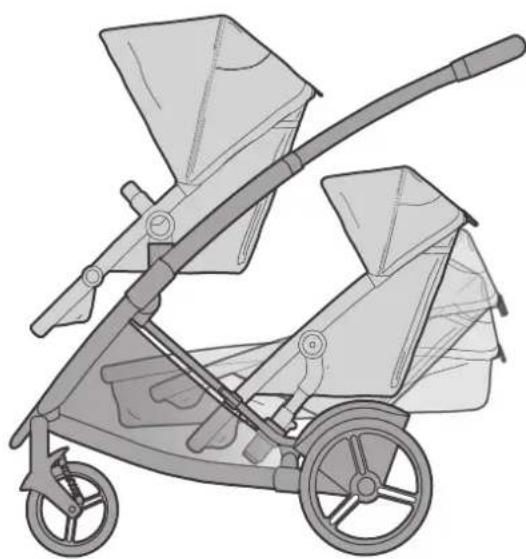

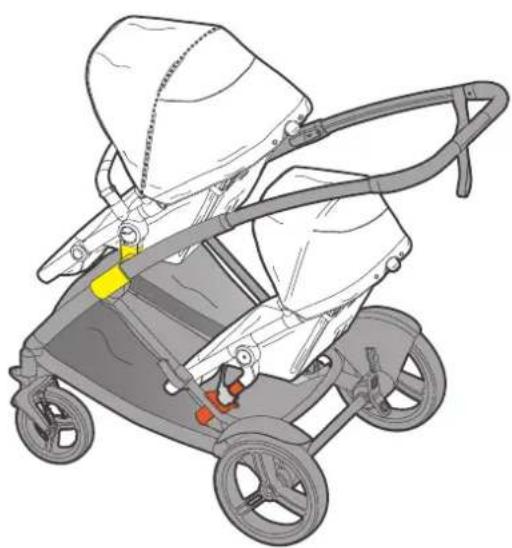

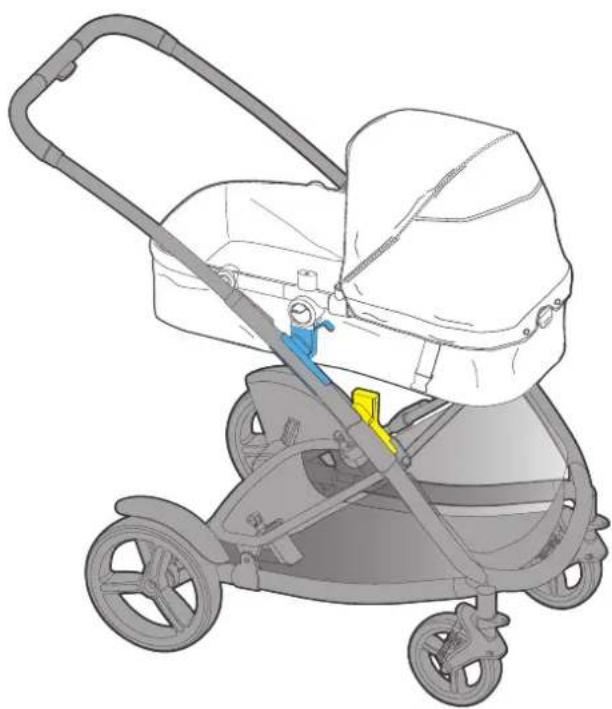

Configurations / Konfigurationen / Configuraciones / Configuratives

Features / Caractéristiques / Produkteigenschaften / Características / Kenmerken

Instructions / Gebrauchsanweisung / Instrucciones / Instructies

Product Care / Conseils d'entretien / Produktpflege / Cuidado del producto / Productverzorging

Safety Warnings / Avertissements / Warnungen / Advertencias / Waarschuwingen

PROMENADE™

Product care / Conseils d'entretien / Produktpflege / Cuidado del producto / Productverzorging

GENERAL INSTRUCTIONS

This document contains important information and must be kept for future reference.

Please read thoroughly before commencing installation as incorrect installation can be dangerous.

Please register your product purchase through our online warranty registration by visiting: www.philandteds.com/register

This vehicle is intended for children from newborn to 4 years.

Maximum weight in the upright main seat 40lbs/18kg

Maximum weight in the newborn position 20lbs/9kg

Maximum weight in travel system 20lbs/9kg

CLEANING & CARING

Check the promenade™ for cuts & bruises. If your product is damaged in any way, or you're not sure how to use it, please consult our web support (www.philandteds.com/support) from where you can access a local customer care team.

Caring for promenade™

Unlike children, your promenade™ likes to stay clean.

• Brush dirt off frame and wheels regularly.
• Clean with non-abrasive household cleaner and a soft cloth.
• Wash off sand and salt after visiting the beach.
  • Always dry frame if wet.
• Fabrics can be sponge cleaned with warm water, using a mild natural soap.
• Do not use detergents or bleach.
• Store in a well ventilated space, away from direct sunlight (which can harm and fade fabric), and moisture.
• Improper care will void any warranties. Do not use the promenade™ if deterioration is detected or suspected.

IMPORTANT

• Always load/unload your children on level ground.
- Ensure the brake is engaged during the loading and unloading of children.
- Care should be taken if the stroller is used on stairs or escalators.
• Always use the safety strap.
- Excessive wear can reduce effectiveness and safety. Parts may need lubrication. Inspect essential components for:
- Fraying - especially webbing straps and safety harness.
- Wear - locks, snap fasteners, tyres, plastic and moving parts.
- Safety - locks must not be loose.

IMPORTANT

Air Tyres & Tubes

• The valve is car-size. Manually inflate to 20 – 22psi max. releasing air gives a softer ride but lower pressure reduces tread life.
• New inner tubes and tyres are generally available (21/4" x 121/2" tyre) from your dealer, cycle or specialist wheel shops. Standard tyre kits can repair punctures.
• A flat tyre can result from grit holding the valve open; to check: inflate tyre, deflate rapidly, and re-inflate.
• Tyres and tubes are not under warranty. Do not over Inflate. Tyre pressure is affected by heat especially when inside parked cars.

EVA Tyres

• Tyres are not under warranty.
• The promenade™ uses EVA tyres - these are immune from punctures and eliminate the need for tube replacements etc.
• With use, the surface of the EVA tyre can show signs of minor pitting - this is normal for this material, and this does not affect performance of the product.

For rights & remedies, refer www.philandteds.com/warranty

PROMENADE™

Safety Warnings / Avertissements / Warnungen / Advertencias / Waarschuwingen / Advarsler / Varningar

The promenade™ complies with requirements applicable in market of sale, refer www.philandteds.com/certification

WARNINGS

To avoid injury:

• Only use with phil&teds promenade accessories.
  • DO NOT use seats as a carry cot.
• Before placing your child in the stoller, always ensure the green indicators are visible (refer to pg. 41).

WARNINGS

European Safety Standard states:

Read the instructions carefully before use and keep them for future reference. Your child's safety may be affected if you do not follow these instructions.

• This vehicle is intended for children from newborn up to 4 years and up to a maximum weight of 18kg/40lbs in upright seat position, and 9kg/20lbs in reclined position.
• The buggy shall only be used for a maximum of 2 children.
  • Never leave your child unattended.
• Accessories or replacement parts that are not approved by the manufacturer or distributor should not be used.
• Any load attached to the handle and/or the back of the backrest and/or on the sides of the vehicle will affect the stability of the vehicle.
  • Always use the restraint system.
  • Always use the crotch strap in combination with the waist belt.
• Check that the pram body or seat unit attachment devices are correctly engaged before use.

• This product is not suitable for running or skating.

• Ensure that all locking devices are engaged before use.

• Use a harness as soon as your child can sit unaided.
• The parking device shall be engaged during the loading and unloading of children.
• The carry handles must be left out of the reclined position when in use (if applicable).
• The reclined position is suitable for a child who cannot sit up by itself, roll over and cannot push itself up on its hands and knees. Maximum weight of child in reclined position is 9kg.
• To avoid injury ensure that your child is kept away when unfolding and folding this product.
• Do not let your child play with this product.
• It is recommended that the most reclined position be used for new born babies.
• Do not place more than 5kg/11lbs in the parcel tray.
• Do not add a mattress thicker than 20mm.

WARNINGS

American Safety Standard states:

• Never leave your child unattended in the stroller.
• Always use the safety harness to avoid serious injury from falling or sliding out.
• Always secure all safety harness straps. Child may slip into leg openings and strangle.
• This vehicle is intended for children from newborn to 4 years and up to a maximum weight of 18kg/40lbs.
• To prevent the stroller from becoming unstable, do not place parcels or accessory items anywhere except in the storage basket and pockets provided. Do not hang items such as shopping bags from the frame.
• Do not place more than 5kg/11lbs in the parcel tray.

PROMENADE™

Safety Warnings / Avertissements / Warnungen / Advertencias / Waarschuwingen / Advarsler / Varningar

WARNINGS

Australia / New Zealand Safety Standard states:

To avoid injury or death:

• Use the strap to stop the stroller rolling away
  • Always apply the brakes whenever the stroller is stationary.
• Do not leave children unattended.
• Secure the child in the harness at all times.
• Do not carry extra children or bags on this stroller.
• Make sure children are clear of any moving parts if you adjust the stroller.
  • Use the harness at all times.
• Do not use this seat with any other models of stroller.
• It is unsafe to use accessories other than those approved by the vehicles manufacturer.

• Care should be taken if the stroller is used on stairs or escalators.

• The stroller should not be used near an open fire or exposed flame.

• This vehicle is intended for children up to a maximum weight of 18kg/40lbs.
• Never leave the harness buckled when not fitted to a child in the stroller. Harness can form loops which may pose a strangulation hazard.
• Ensure storage latch is engaged when lifting or carrying the stroller.
• This stroller is designed for use on flat or gently sloping surfaces and may be unstable on higher sloping and uneven surfaces. A lack of stability can lead to the stroller tipping over.
  • Take care when folding and unfolding the stroller, as there is potential for fingers or parts of the body to become entrapped or injured.

WARNINGS

Canadian Safety Standard states:

• Never leave your child unattended in the stroller.
• Always use the safety harness to avoid serious injury from falling or sliding out.
• Do not place more than 5kg/11lbs in the parcel tray.
• The stroller may become unstable if a parcel bag, other than one recommended by the manufacturer, is used.
• The stroller may become unstable if the recommended load is exceeded.
• Take care when folding or unfolding the stroller to prevent your fingers being entrapped.

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

European Safety Standard:

Illustration of a baby stroller with a canopy and handle (no text or symbols)

Illustration of a baby stroller with a canopy and wheels (no text or symbols)

Illustration of a baby stroller with a basket and two wheels (no text or symbols)

Illustration of a two-wheeled baby stroller with twin canopy (no text or symbols)

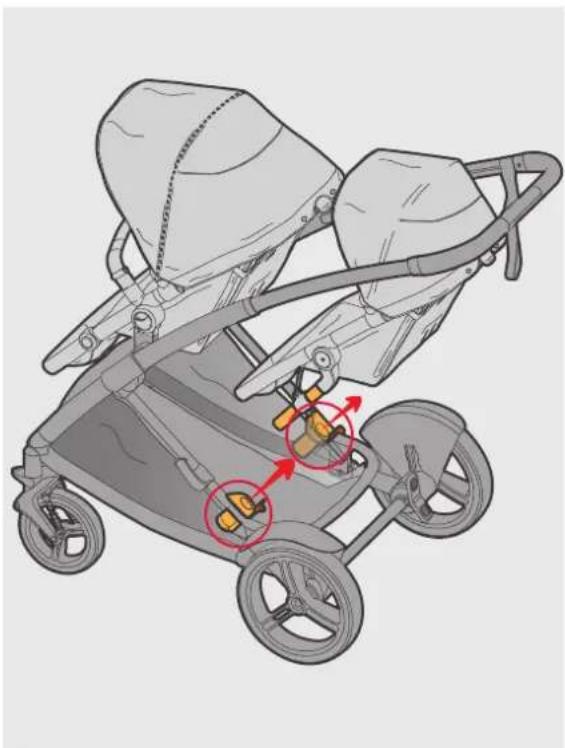

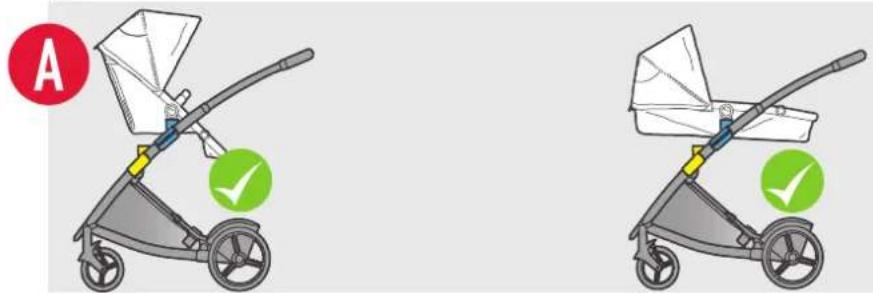

A

B

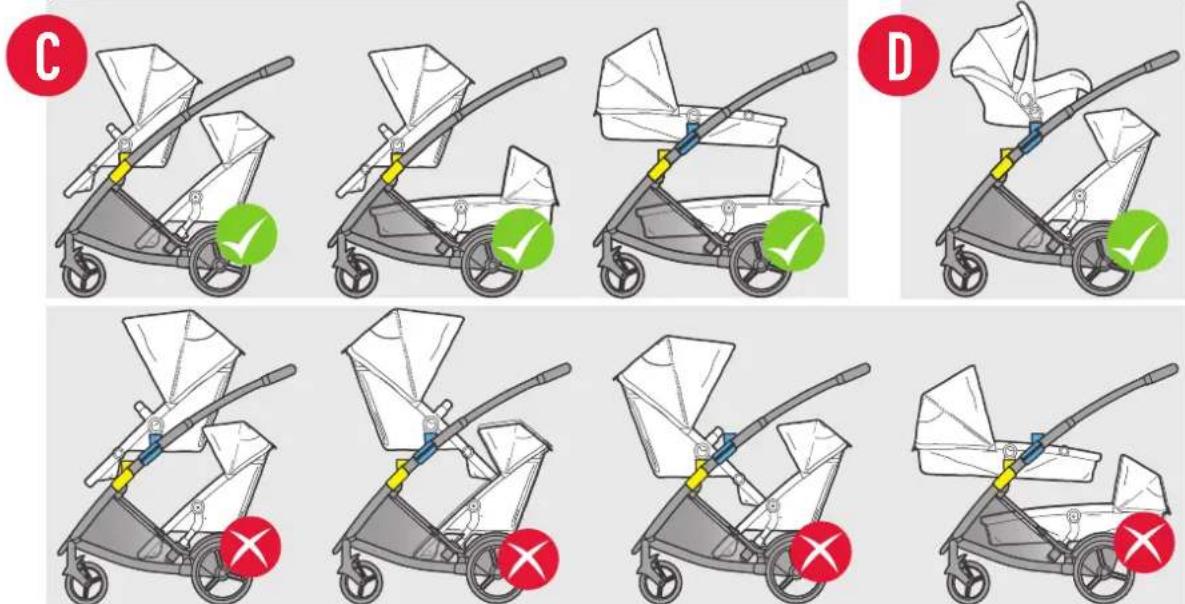

C

Illustration of a baby stroller with two canopy covers and wheels (no text or symbols)

Illustration of a baby stroller with open rear frame and handle (no text or symbols)

Illustration of a two-wheeled baby stroller with two children's backpacks (no text or symbols)

Illustration of a two-child stroller with two children's backpacks (no text or symbols)

Illustration of a baby stroller with a canopy and two wheels (no text or symbols)

D

PROMENADE™

Features / Caractéristiques / Produkteigenschaften / Características / Kenmerken

Labeled diagram of a baby stroller with numbered parts for identification

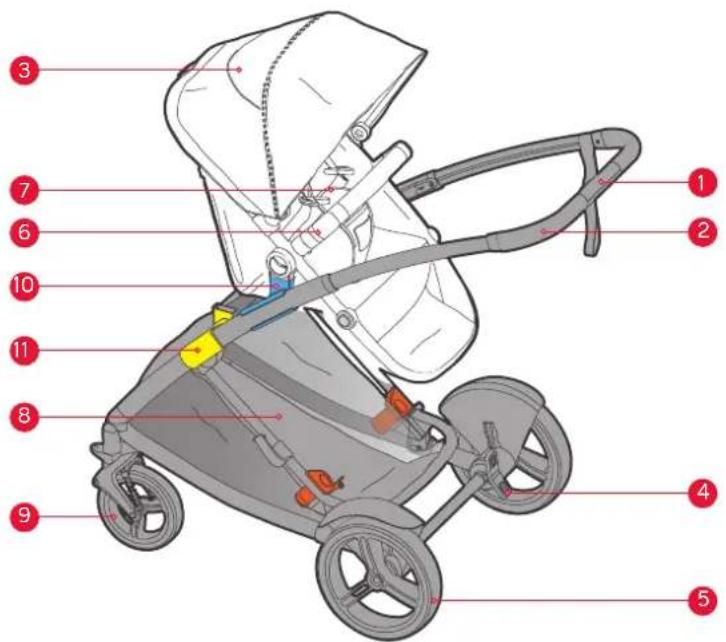

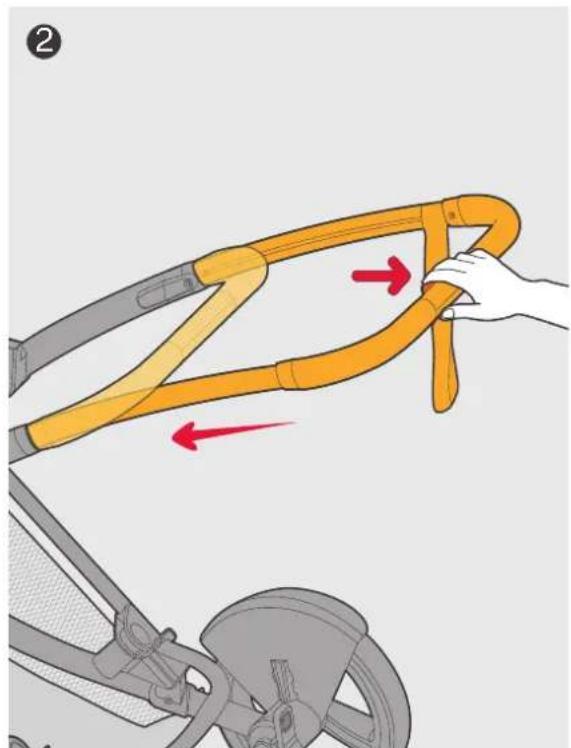

01 Handle adjuster
02 Handle bar

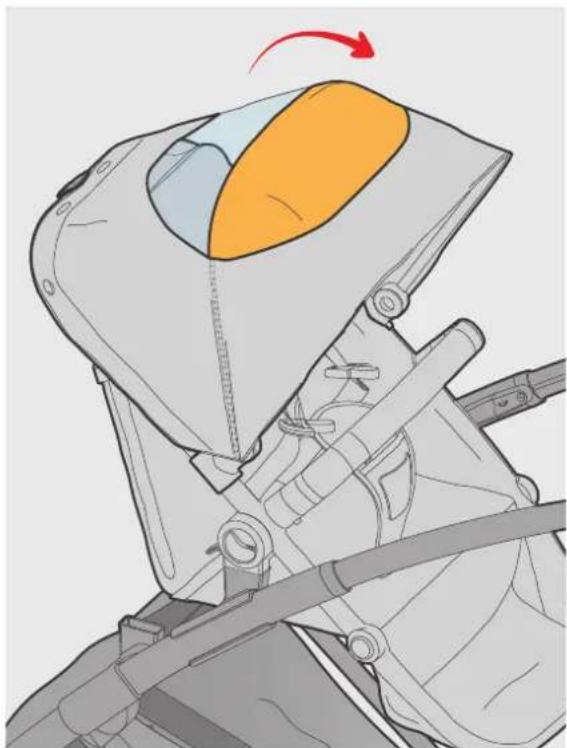

03 Sunhood
04 Brake
05 Rear wheels
06 Grab Bar
07 Harness
08 Parcel tray
09 Front wheels
10 Rear facing seat clip
11 Forward facing seat clip

Illustration of various automotive components including a scooter, wheel rim, and red cardboard boxes (no text or symbols)

Illustration of a car chassis with orange and gray components, showing motion arrows (no text or symbols)

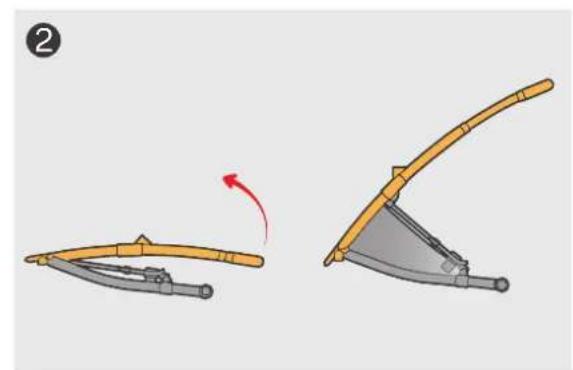

Illustration of two mechanical lever mechanisms with a red arrow indicating motion (no text or symbols)

Diagram illustrating vehicle seatbelting with warning symbols and safety icons

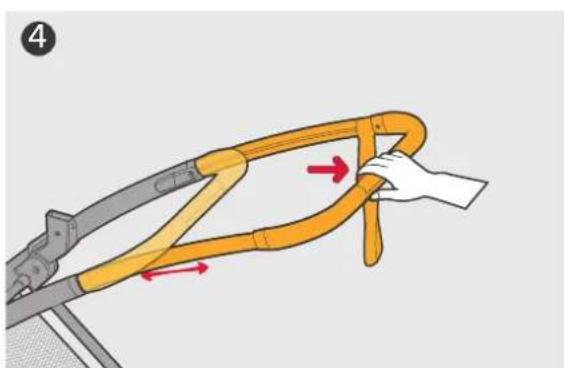

Illustration of a hand holding a yellow cable with orange bands, showing motion direction (no text or symbols)

PROMENADE™

Instructions / Gebrauchsanweisung / Instrucciones / Instructies

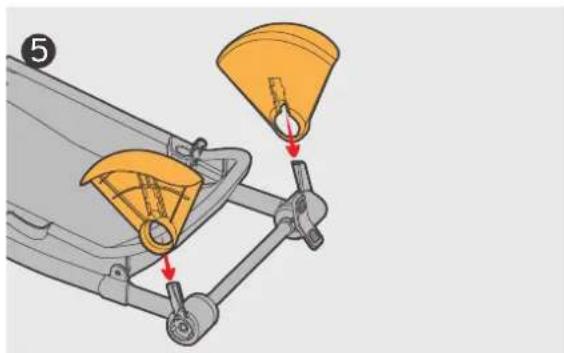

Mechanical assembly diagram showing two yellow funnel components connected by a handle, with arrows indicating motion direction (no text or symbols)

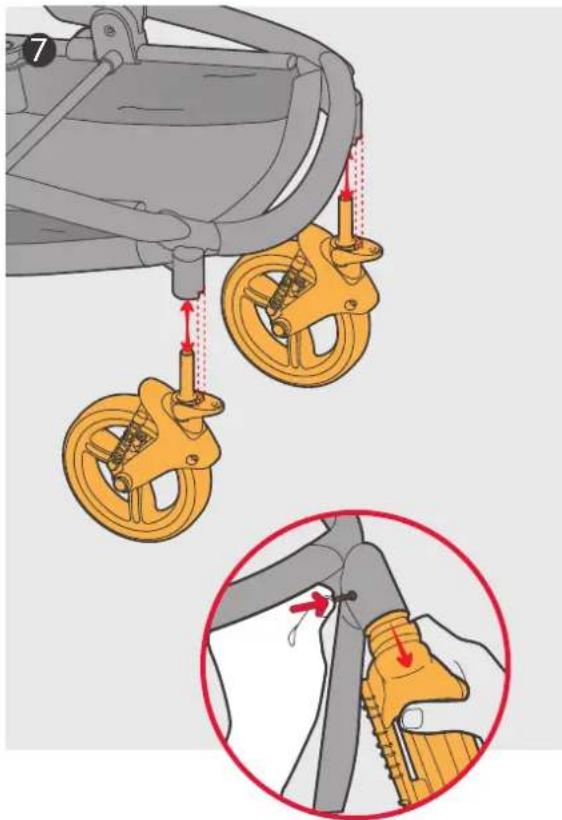

Diagram illustrating the step of lifting a car seat using two yellow-handled wheels, with an inset showing the mechanism and motion direction.

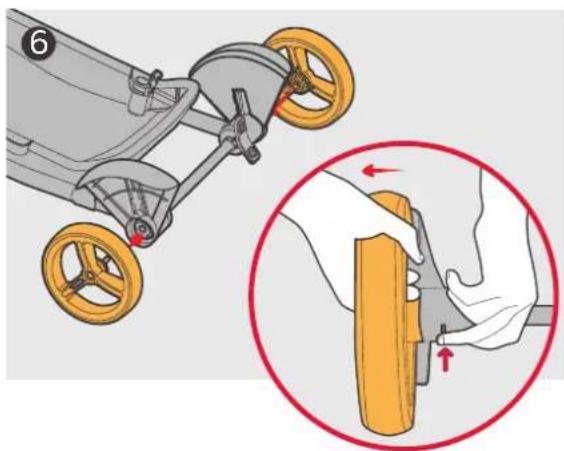

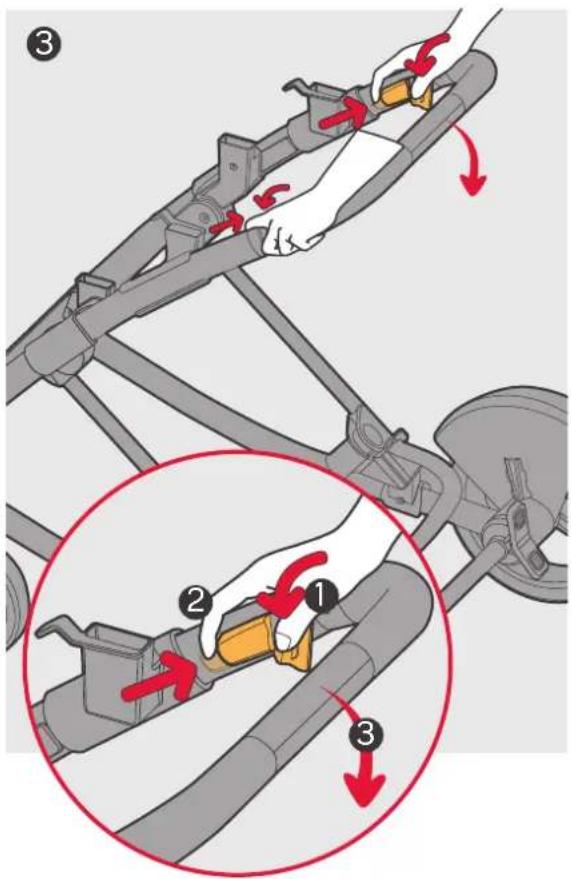

Illustration of a car steering wheel assembly with a magnified inset showing hand positioning and adjustment (no text or symbols)

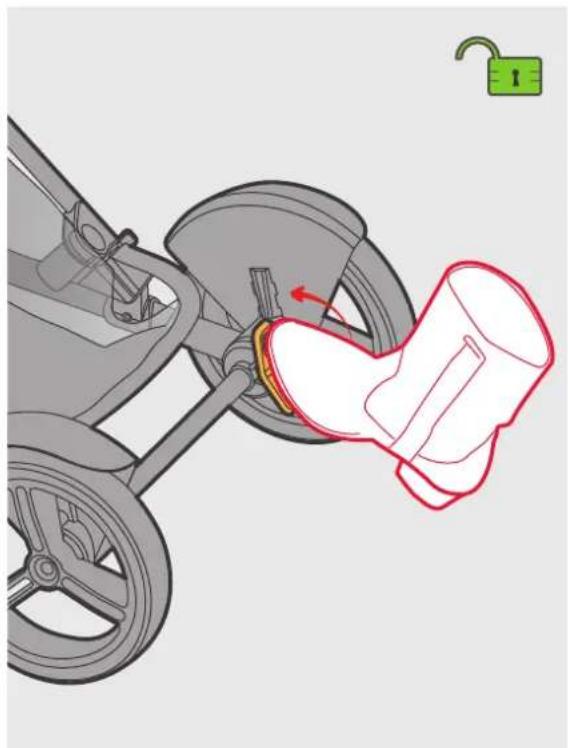

Illustration showing a hand holding a car tire with lock mechanism and a close-up of a stroller with motion arrows, accompanied by a red lock icon.

PROMENADE™

Instructions / Gebrauchsanweisung / Instrucciones / Instructies

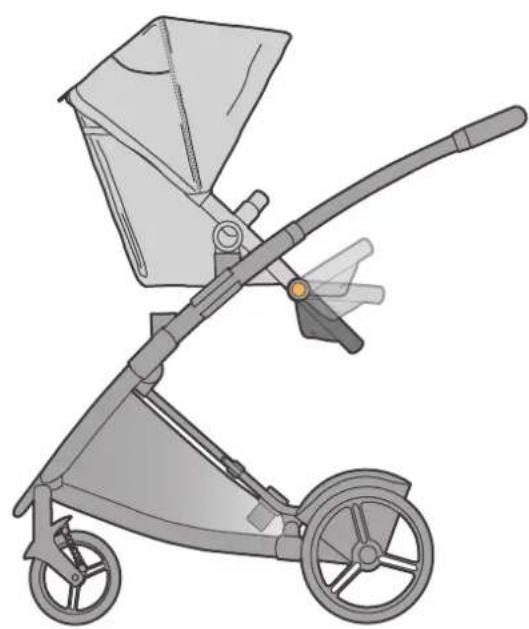

Illustration of a two-wheeled baby stroller with handlebars and wheels (no text or symbols)

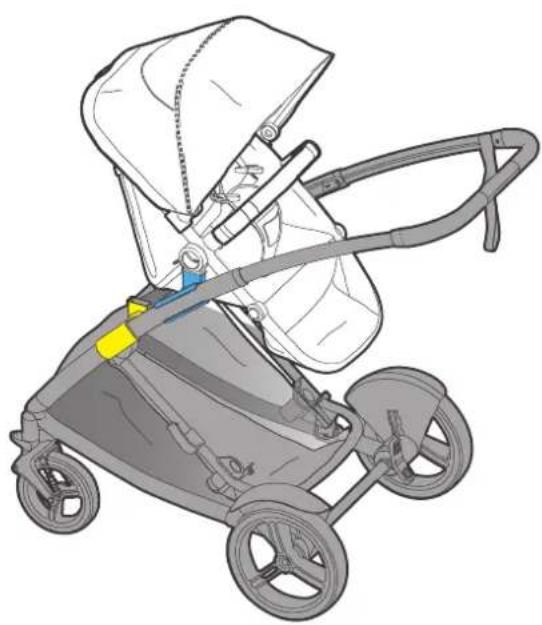

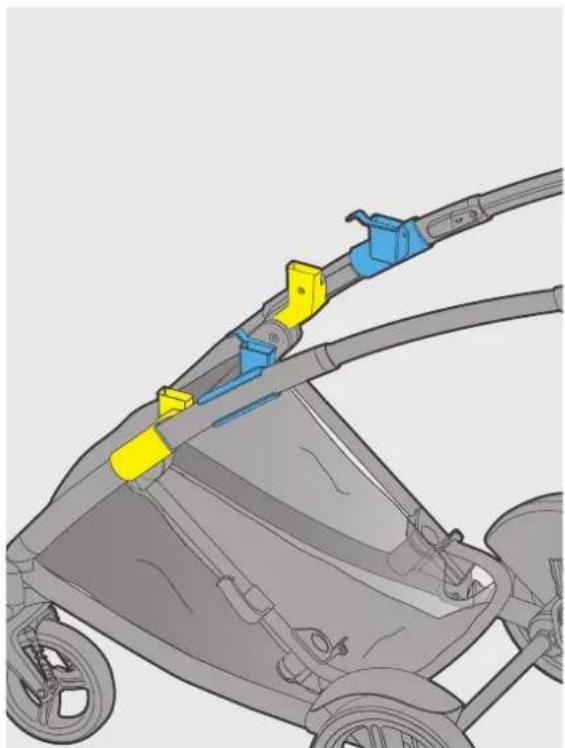

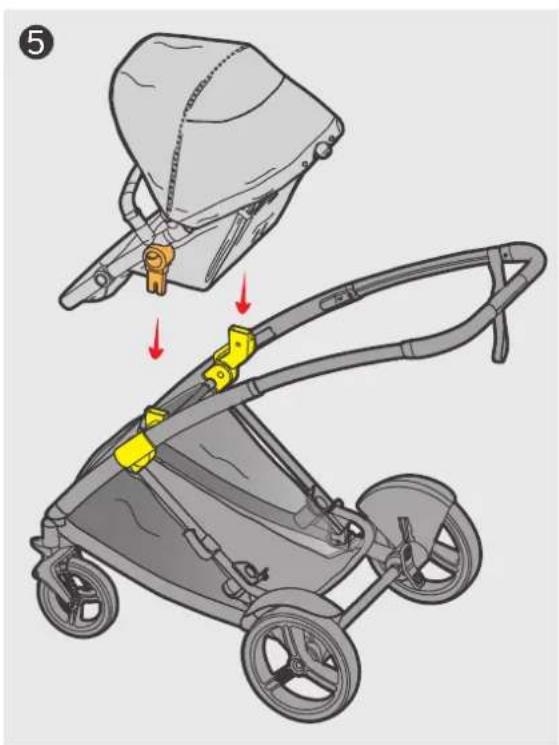

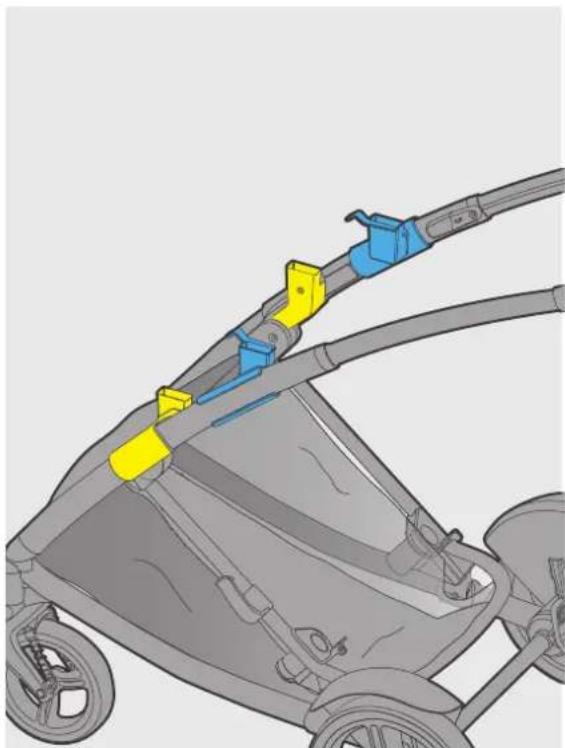

3D illustration of a stroller with yellow and blue plastic components attached to the body (no text or symbols)

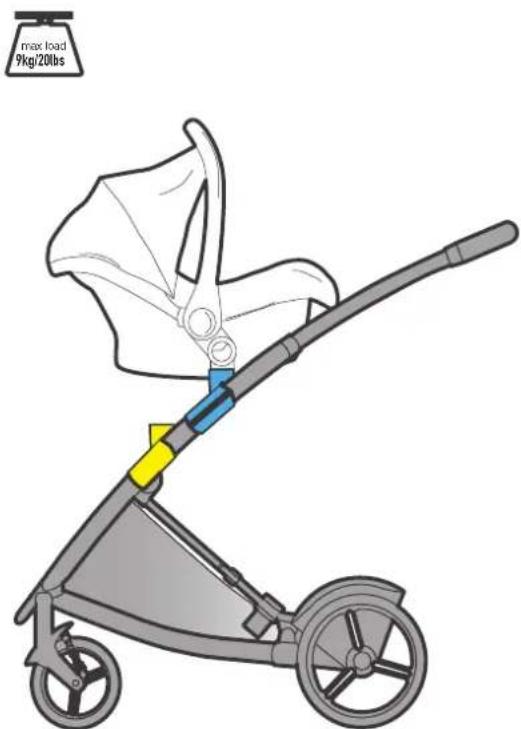

max load 16kg/40lbs max load 9kg/20lbs

A

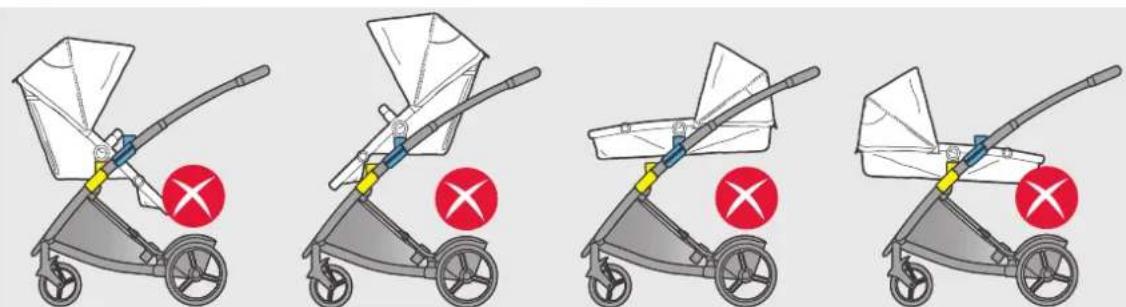

Illustration of a stroller with four different stages showing a device, marked with red X symbols indicating failure or absence.

PROMENADE™

Instructions / Gebrauchsanweisung / Instrucciones / Instructies

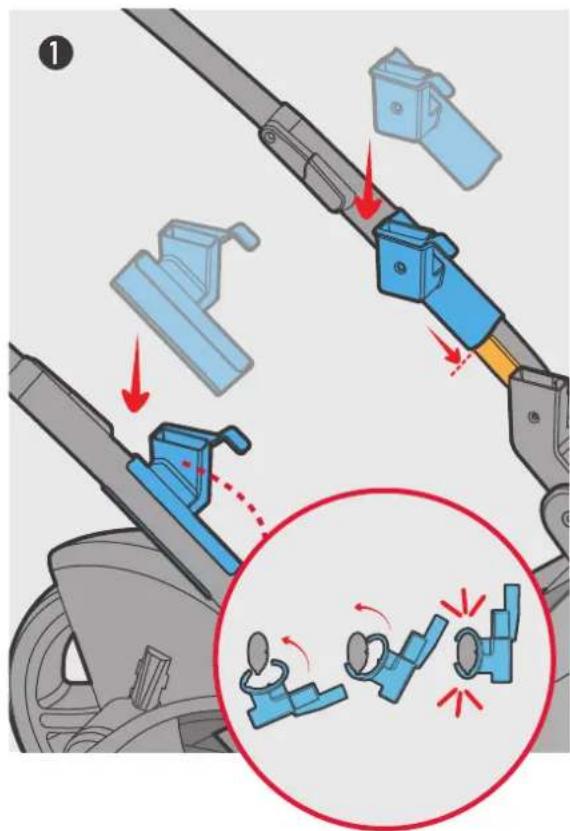

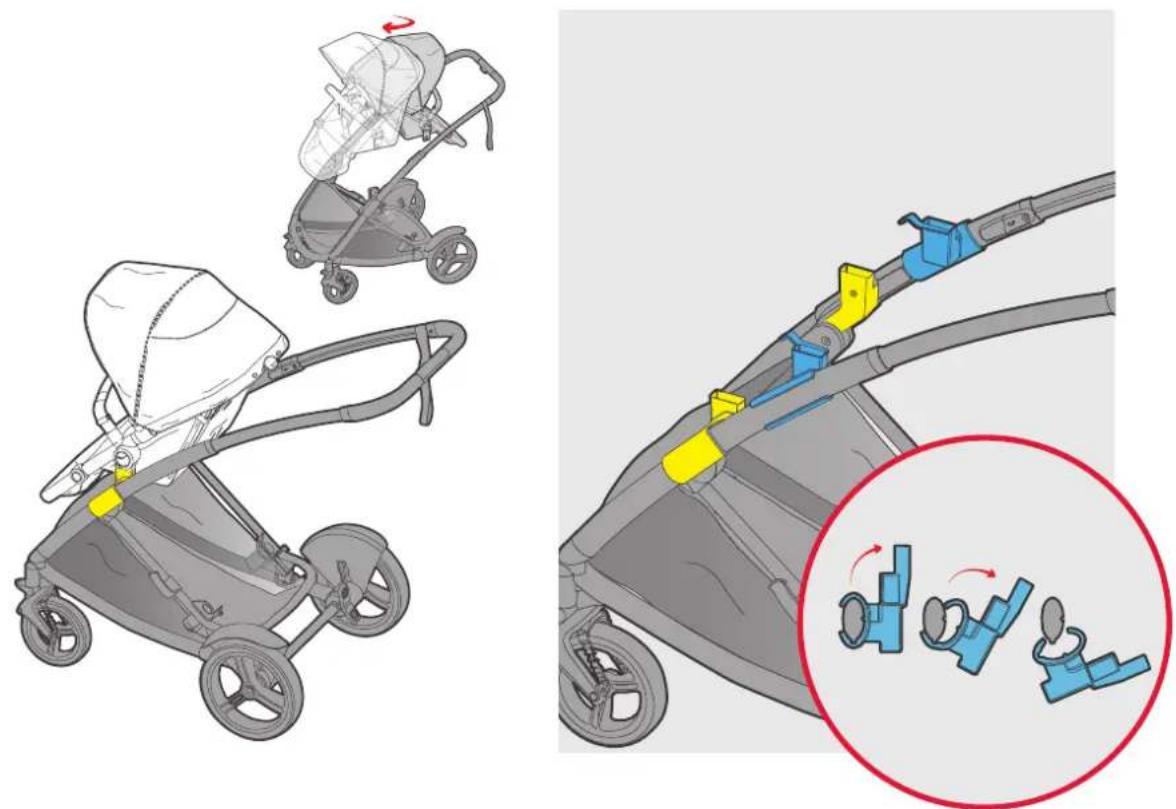

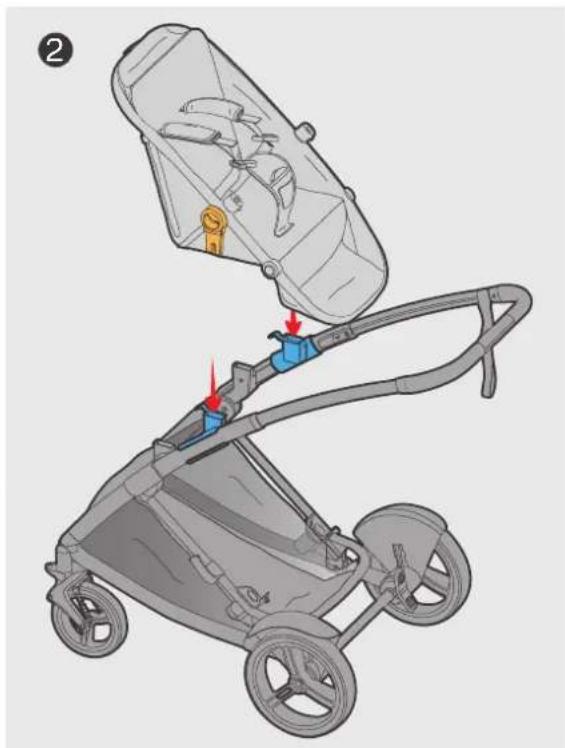

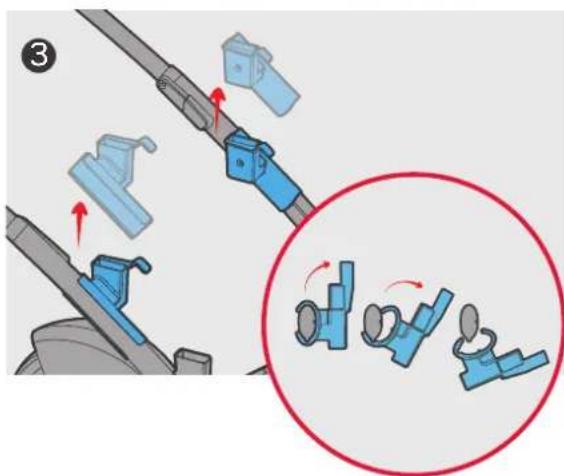

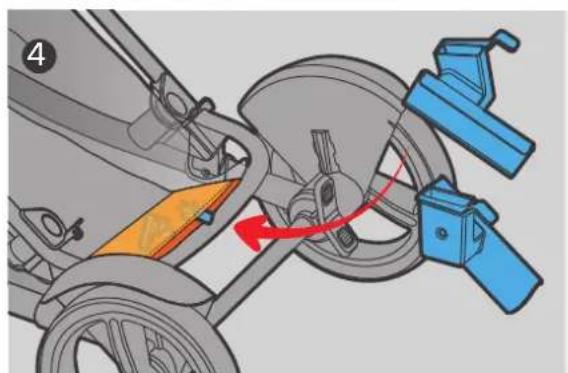

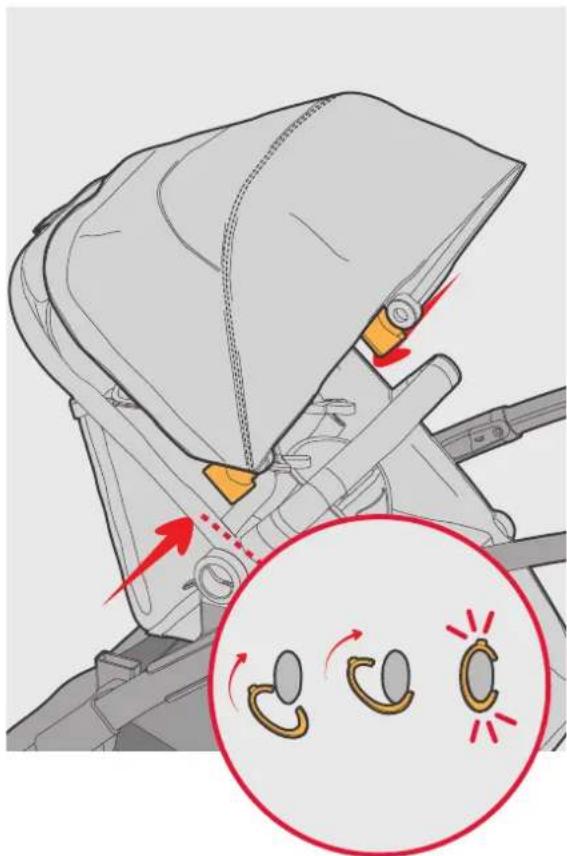

Diagram illustrating mechanical assembly steps with blue components and red directional arrows, including a magnified inset showing motion changes.

Illustration of a stroller with a car interior and blue adjustment knobs, no text or symbols present

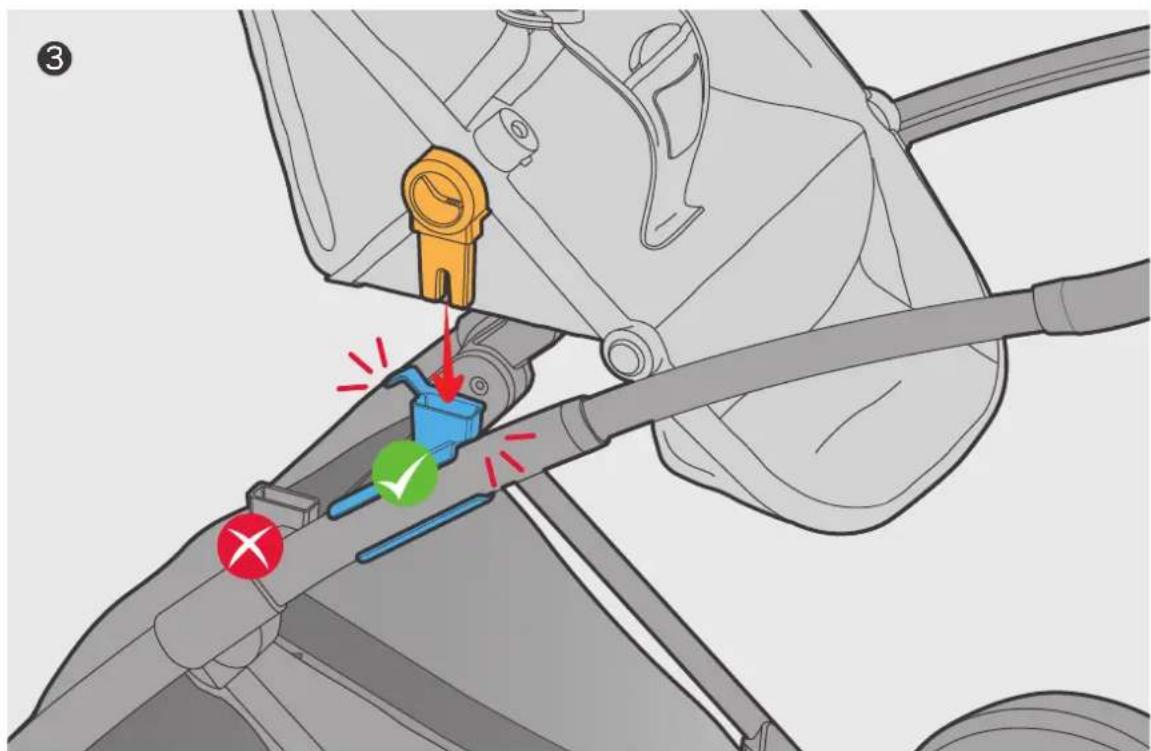

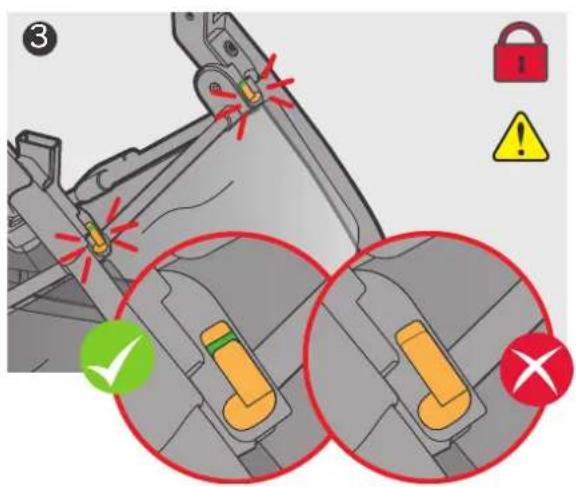

Diagram illustrating mechanical assembly with labeled components and directional arrows, including a checkmark and red/green checkmark indicators.

PROMENADE™

Instructions / Gebrauchsanweisung / Instrucciones / Instructies

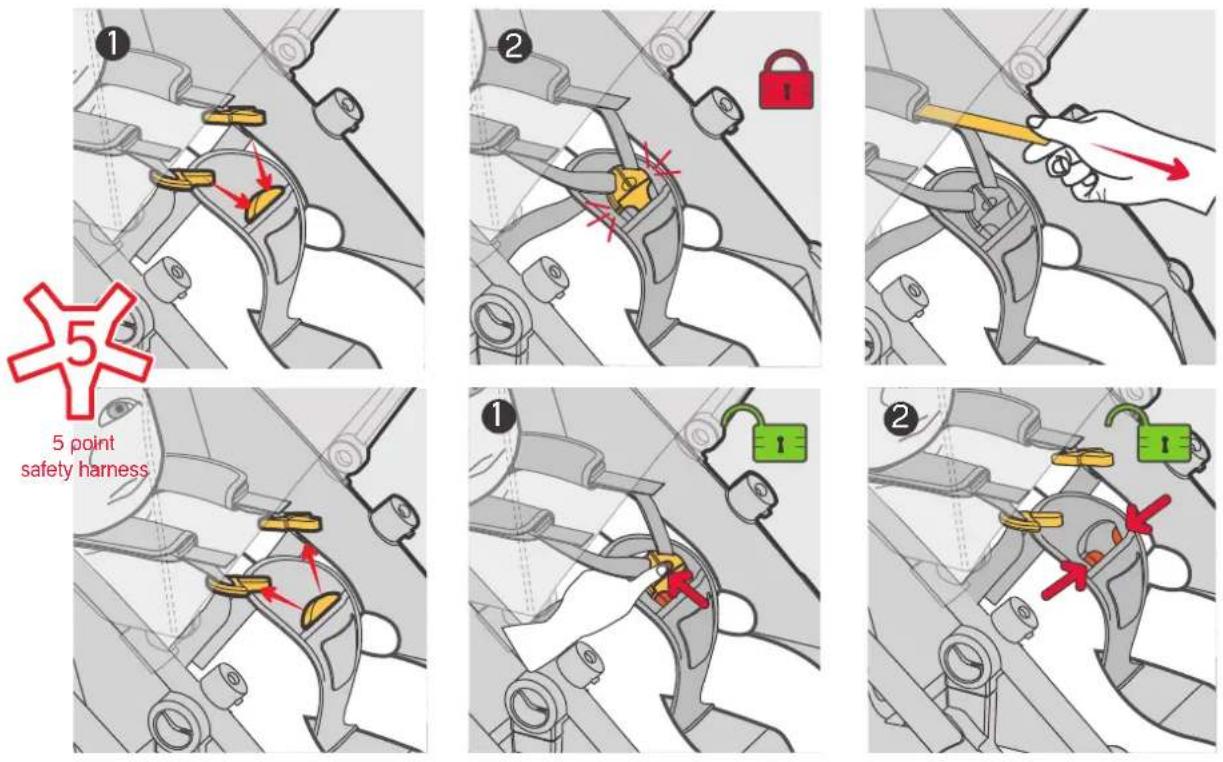

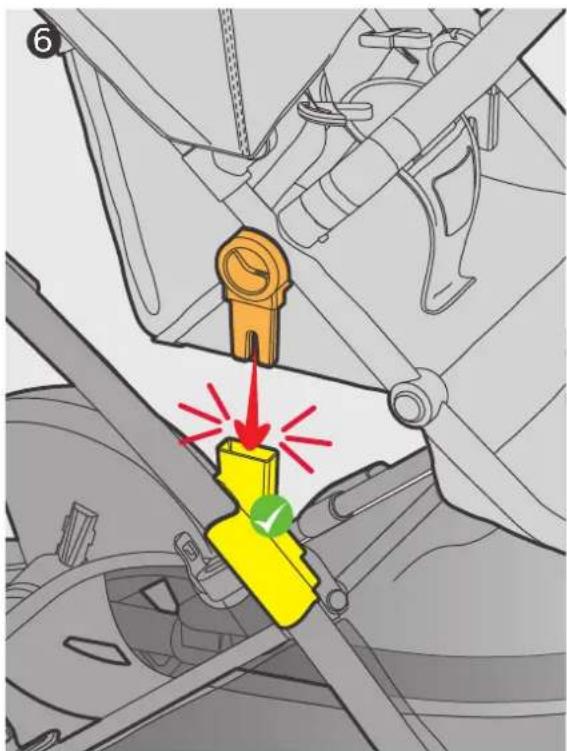

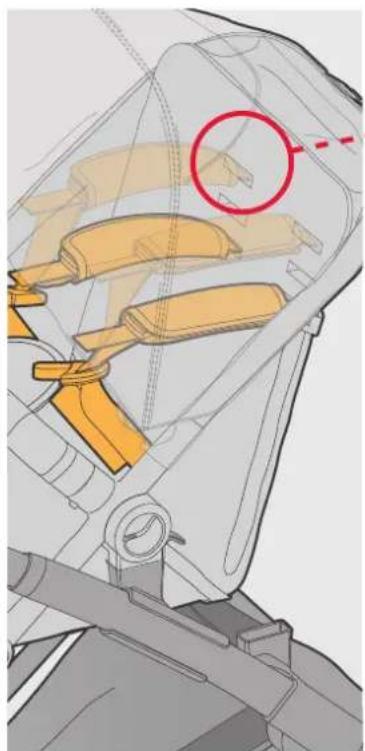

Technical diagram of a mechanical assembly with orange components and a red circle highlighting a specific area (no text or symbols present)

Diagram showing a mechanical or optical setup with labeled components and directional arrow, likely illustrating a motion or interaction.

Diagram showing a red arrow pointing to a brown ribbon or cable between two vertical bars (no text or symbols)

Diagram showing a rope knot with a red curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical lever with a red curved arrow indicating motion (no text or symbols)

Diagram showing a rope knot with a red arrow indicating direction, no text or symbols present

6

PROMENADE™

Instructions / Gebrauchsanweisung / Instrucciones / Instructies

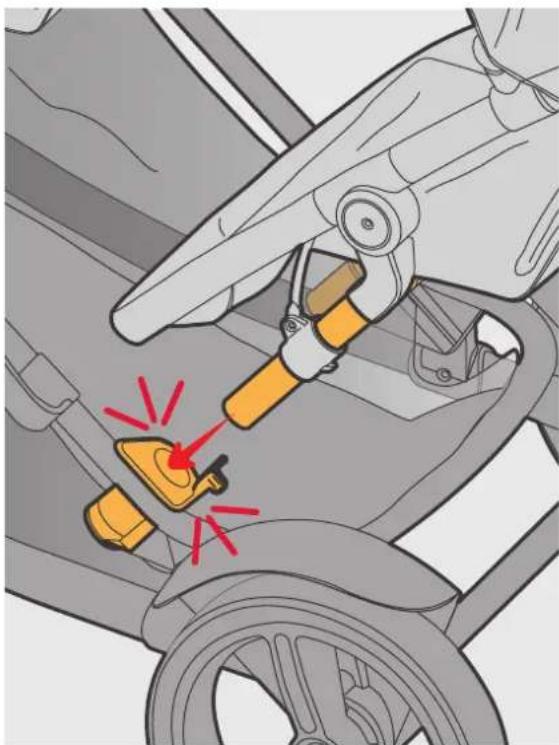

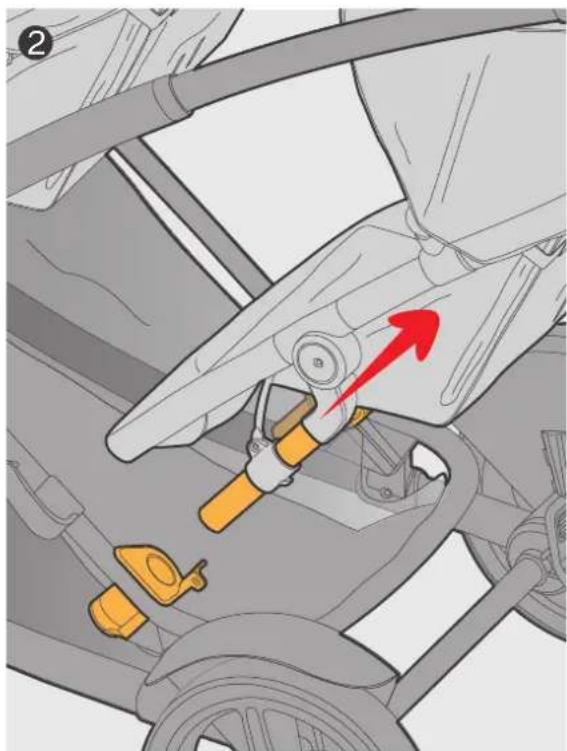

Mechanical assembly diagram showing a yellow cylindrical component inserted into a mechanical housing with red arrows indicating motion or force (no text or symbols present)

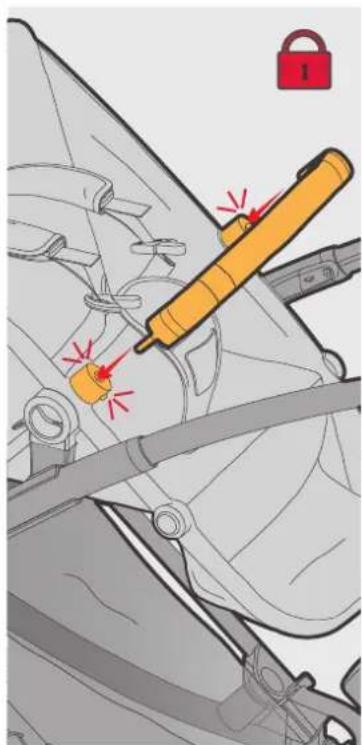

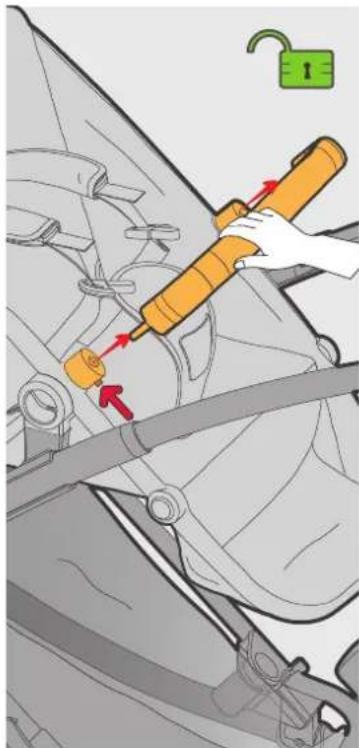

Diagram showing a hand using a tool to adjust or install a car body panel, with red arrows indicating movement and a green scale icon labeled '1'.

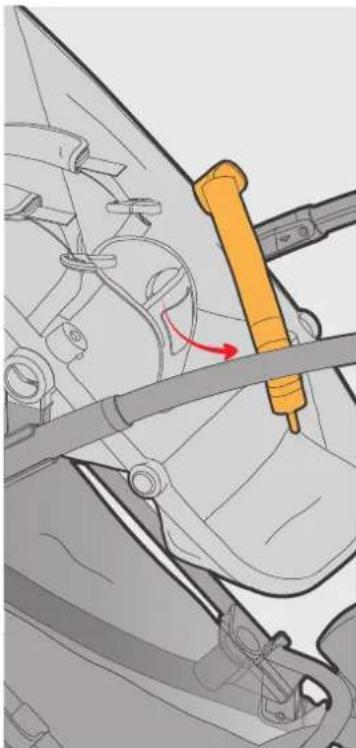

Mechanical assembly diagram showing a yellow tool inserted into a component with a red arrow indicating motion (no text or symbols present)

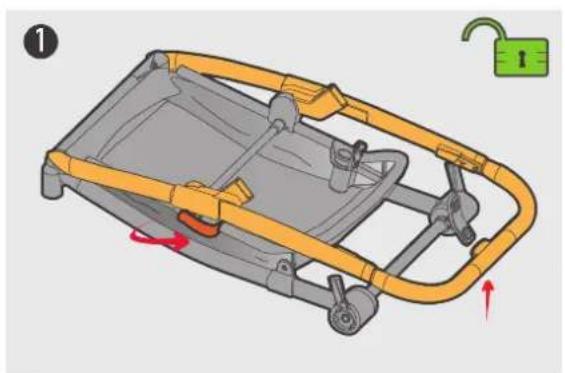

Illustration of a car stroller with a red-handled foot and green key (no text or symbols)

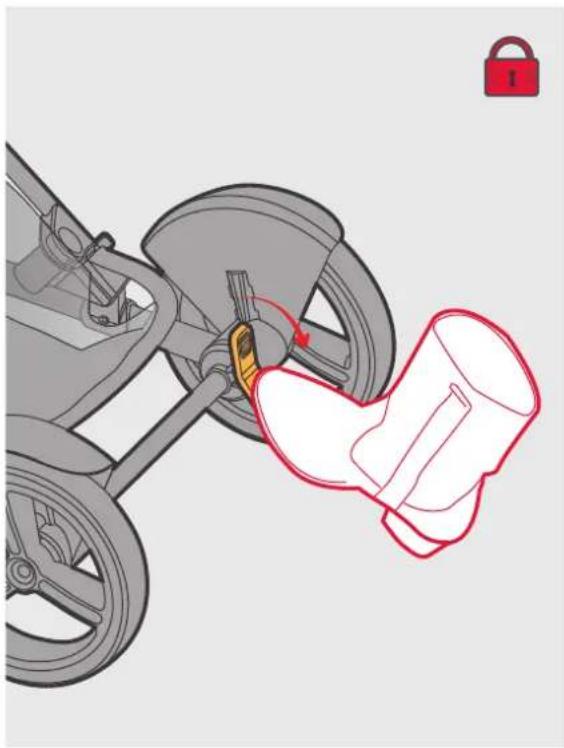

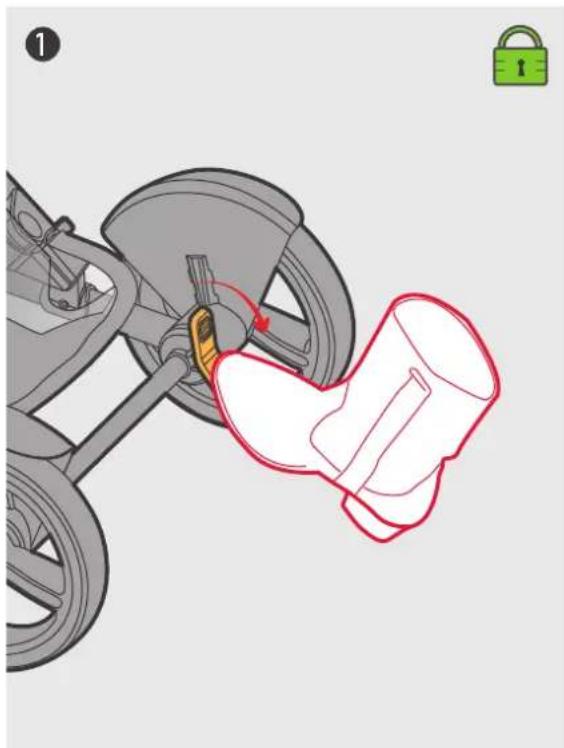

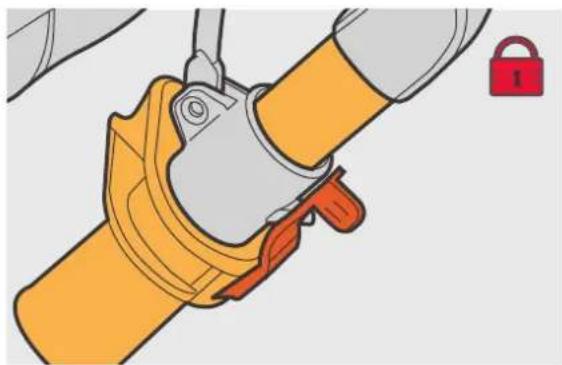

Illustration of a car steering wheel with a red lock icon and a white foot, no text or symbols present

PROMENADE™

Instructions / Gebrauchsanweisung / Instrucciones / Instructies

Mechanical device with highlighted circular diagram showing two curved components and red arrows indicating motion (no text or symbols)

Mechanical component diagram showing a clamped device with red arrows indicating motion or force direction (no text or symbols present)

Mechanical assembly diagram showing a component with red arrows indicating motion or force direction (no text or symbols present)

Mechanical assembly diagram showing a component with highlighted yellow area and red arrow indicating rotation (no text or symbols)

PROMENADE™

Instructions / Gebrauchsanweisung / Instrucciones / Instructies

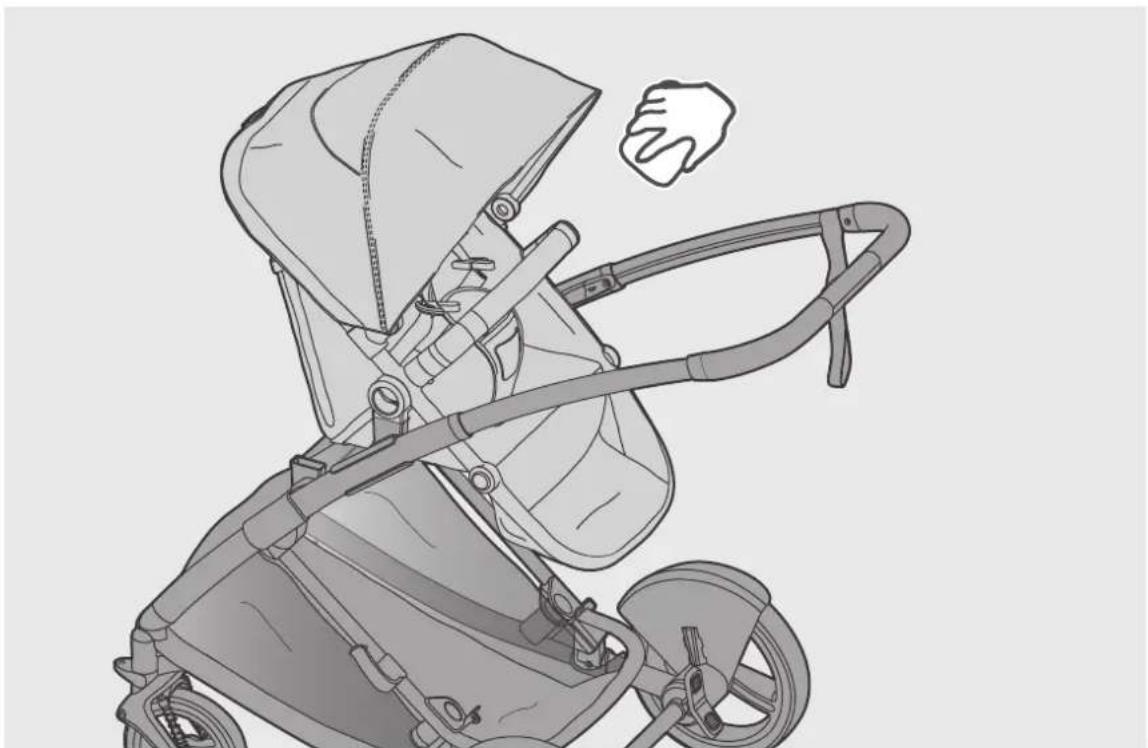

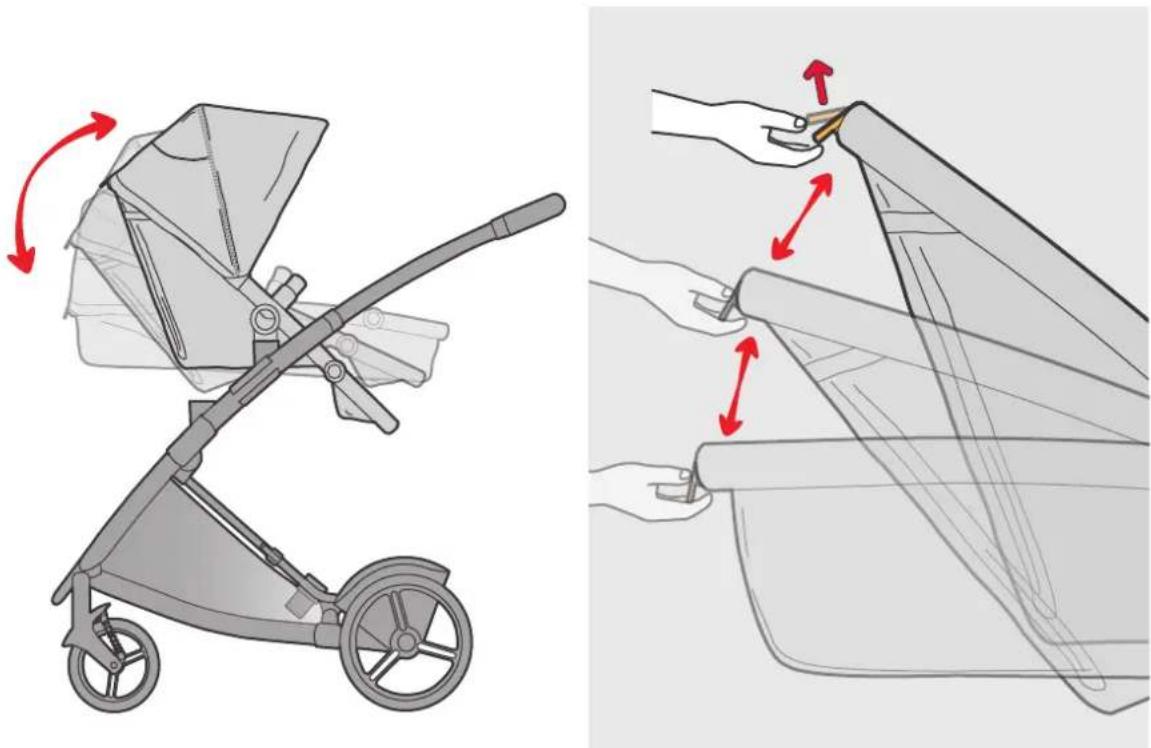

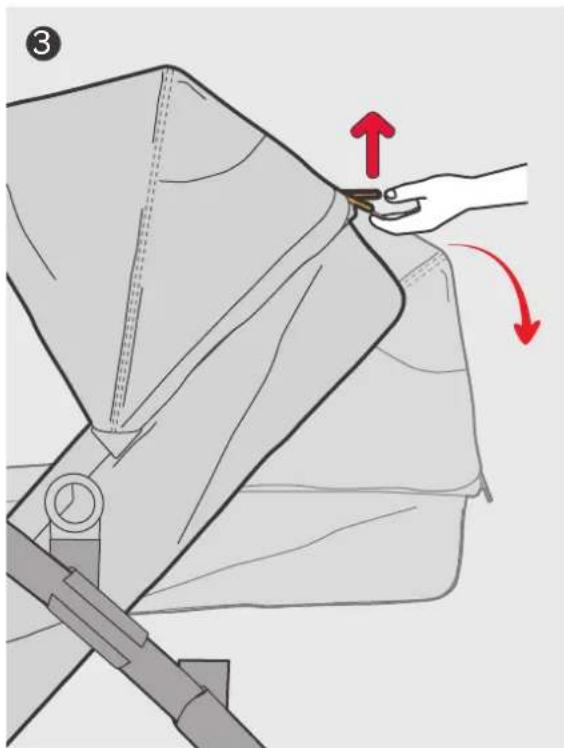

Illustration of a stroller and its side view showing hand positioning and red directional arrows (no text or symbols)

Illustration of a baby stroller with a canopy and handle (no text or symbols)

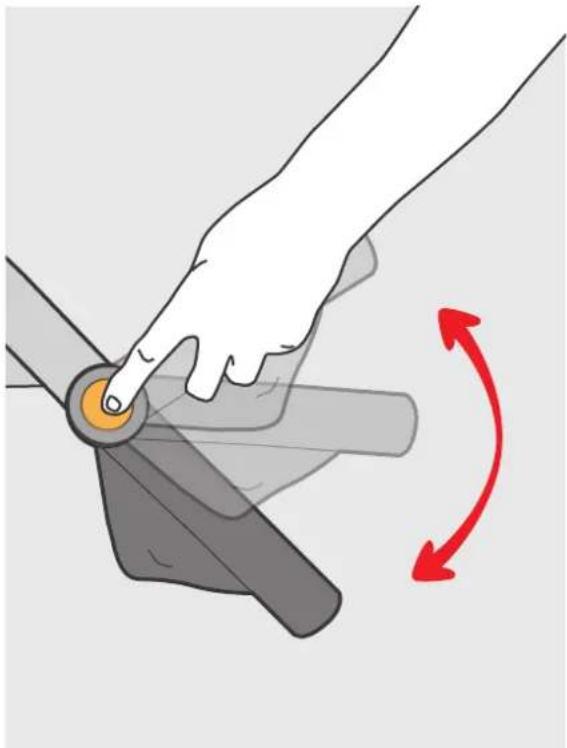

Illustration of a hand pressing down on a mechanical component with a red curved arrow indicating rotation (no text or symbols)

PROMENADE™

Instructions / Gebrauchsanweisung / Instrucciones / Instructies

Illustration of a baby stroller with handle and seat, no text or symbols present

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Mechanical assembly diagram showing a yellow component being inserted into a mechanical bracket (no text or symbols visible)

PROMENADE™

Instructions / Gebrauchsanweisung / Instrucciones / Instructies

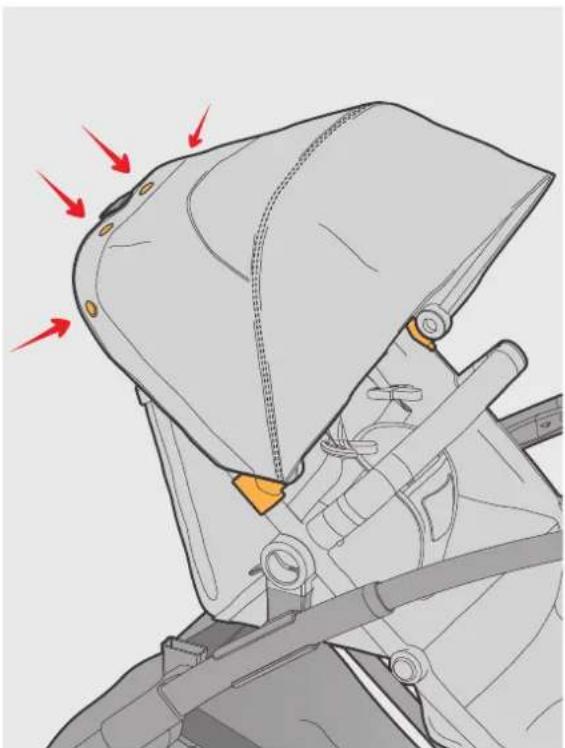

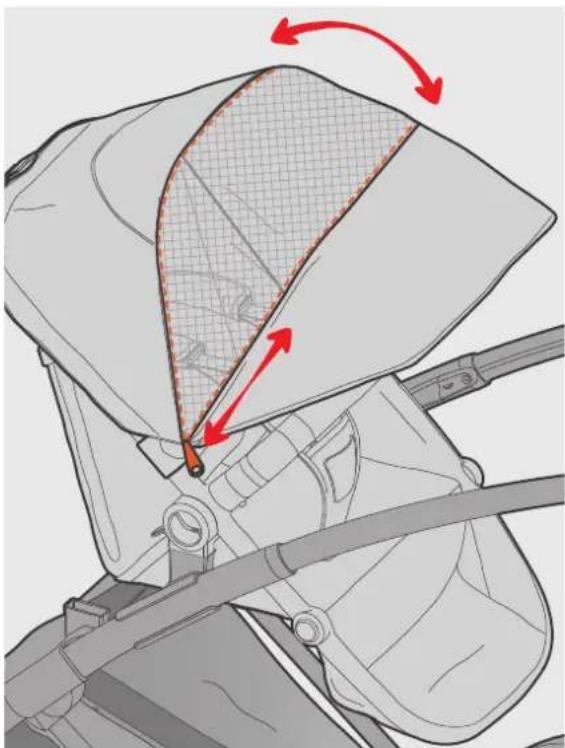

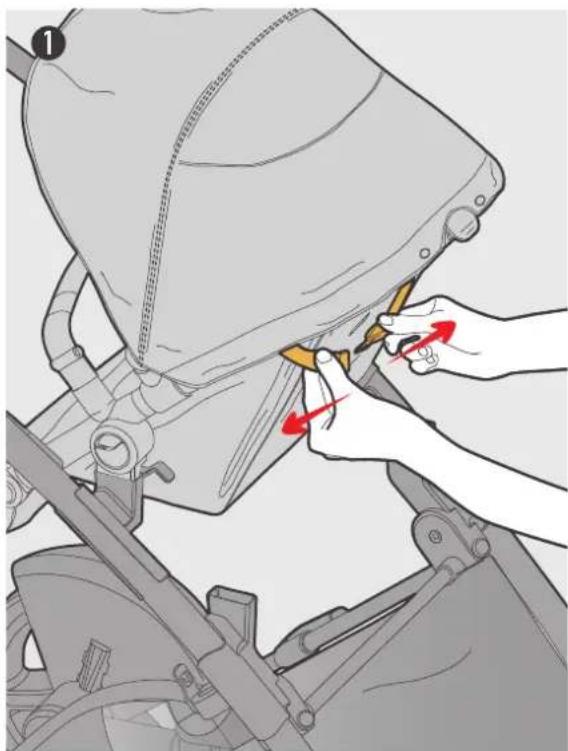

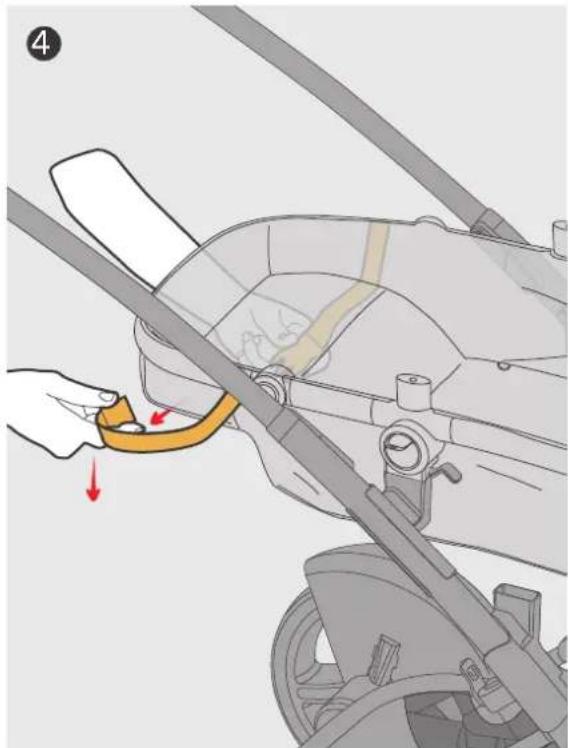

Diagram illustrating garment sewing process with red arrows indicating direction of movement and measurement steps

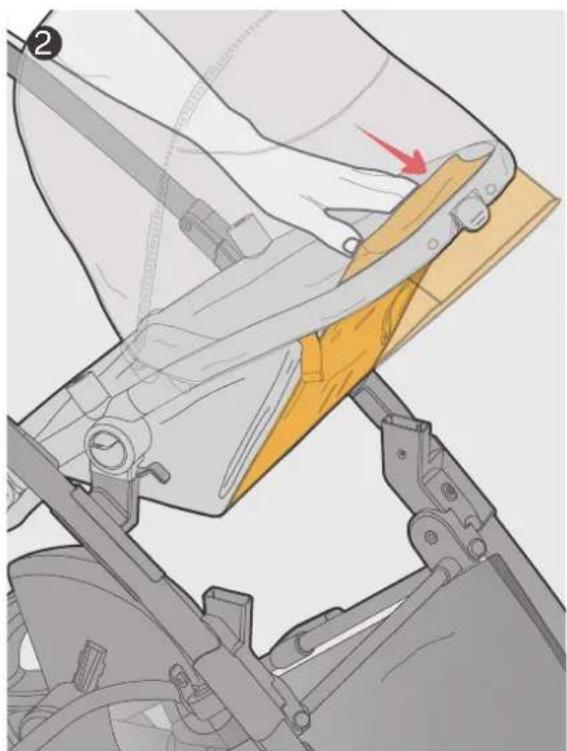

Illustration of a car wheel assembly with a hand adjusting a belt, showing no text or symbols.

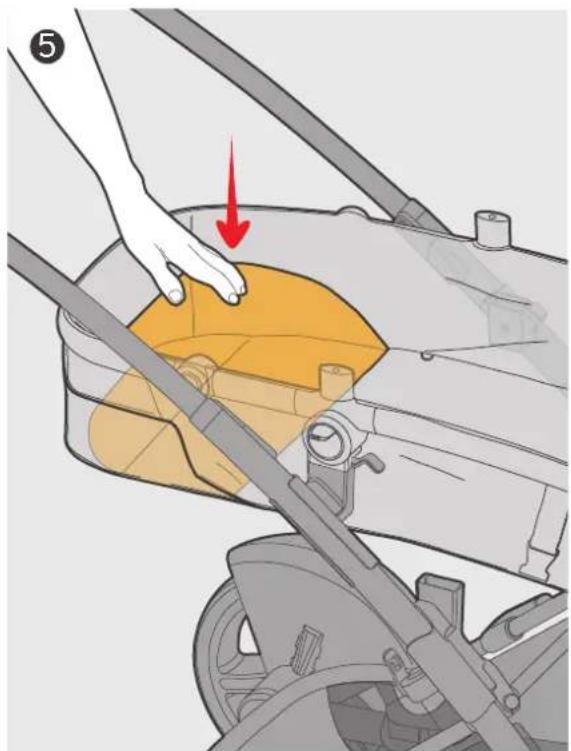

Illustration of a hand pressing down on a car hood with a red arrow indicating the pressure point (no text or symbols present)

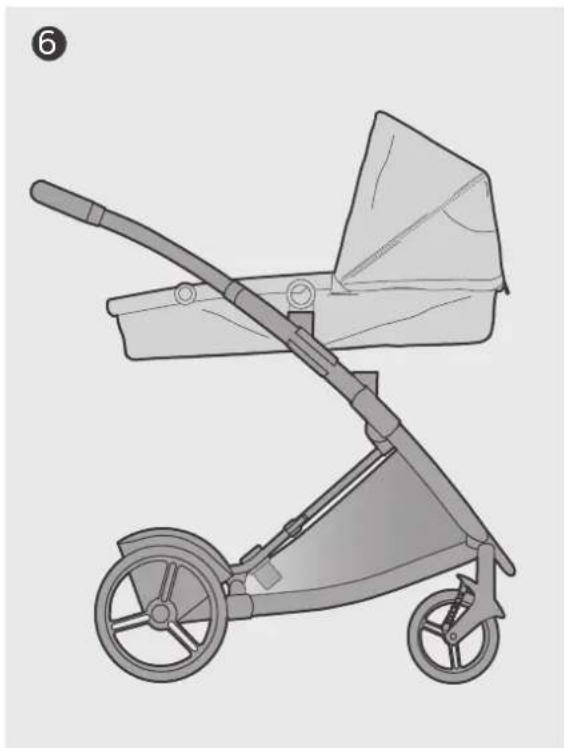

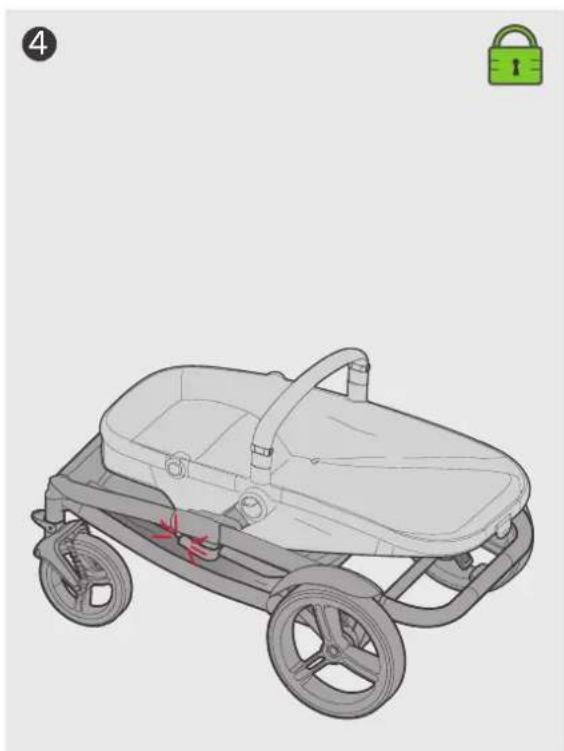

Illustration of a baby stroller with wheels and a back panel (no text or symbols)

PROMENADE™

Instructions / Gebrauchsanweisung / Instrucciones / Instructies

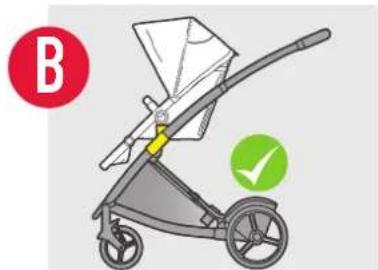

Illustration of a baby stroller with a green checkmark indicating selection (no text or symbols)

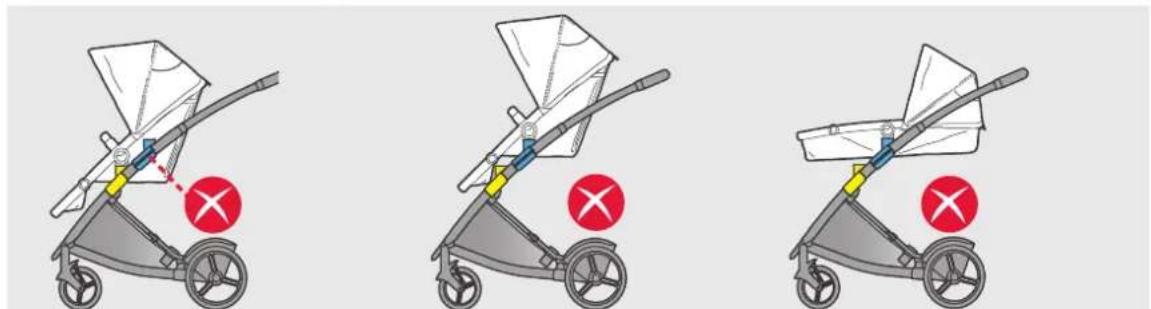

Illustration showing three stages of a stroller with red X marks indicating failure or absence.

PROMENADE™

Instructions / Gebrauchsanweisung / Instrucciones / Instructies

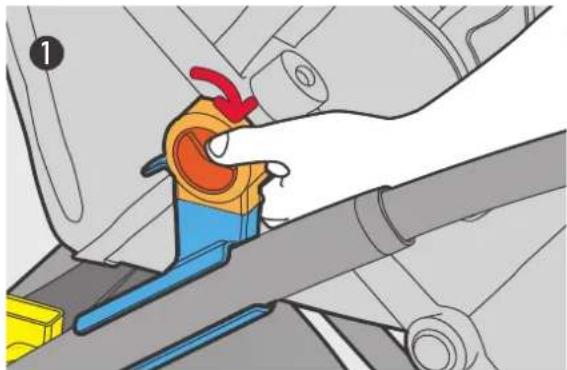

Illustration of a hand using a tool to adjust or install a component, with no visible text or symbols.

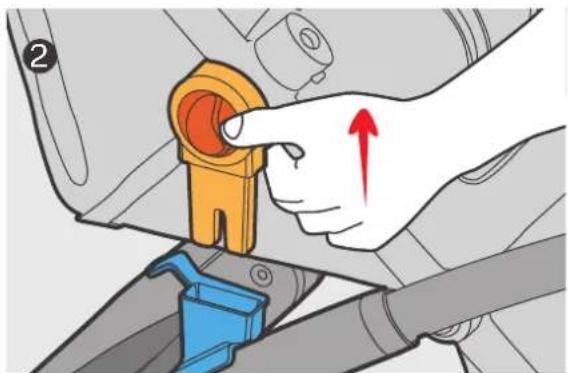

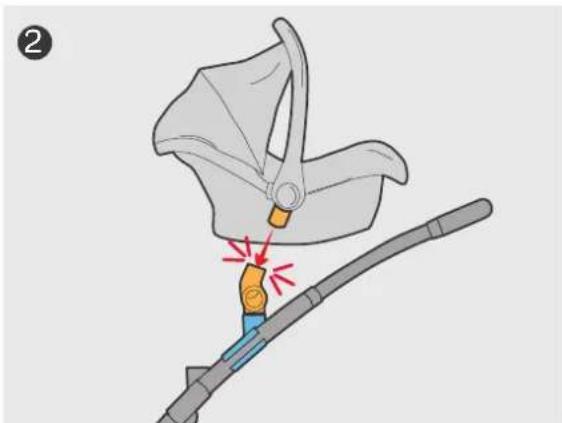

Diagram showing a hand pressing a component with an arrow indicating upward motion, labeled with number 2

Diagram illustrating mechanical assembly steps with blue components and directional arrows, including a magnified inset showing rotational motion.

Mechanical assembly diagram showing a stroller with a blue clamp and red directional arrow (no text or symbols)

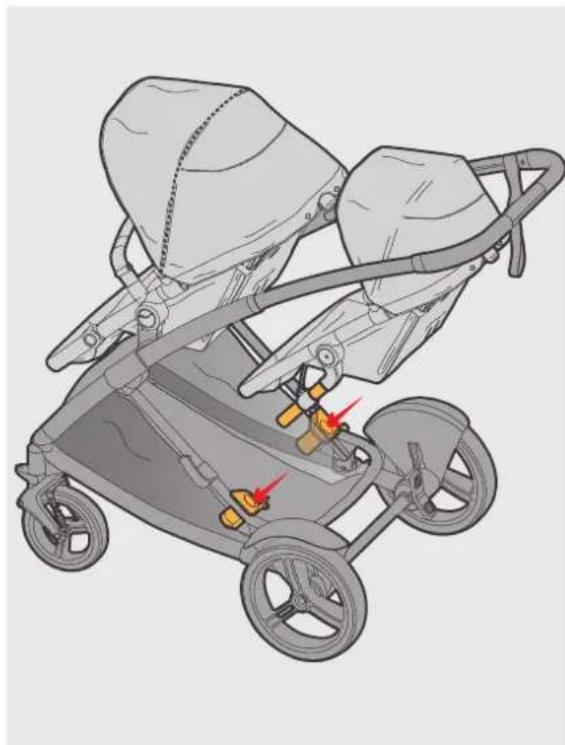

Illustration of a baby stroller with yellow safety clips and red arrows indicating motion (no text or symbols)

Diagram showing mechanical assembly with highlighted component and red warning symbol indicating failure or damage

PROMENADE™

Instructions / Gebrauchsanweisung / Instrucciones / Instructies

Illustration of a baby stroller with a yellow belt and orange buttons, no text or symbols present

Illustration of a stroller with yellow and blue plastic components attached to the body (no text or symbols)

PROMENADE™

Instructions / Gebrauchsanweisung / Instrucciones / Instructies

Illustration of a two-wheeled stroller with handlebars and wheels, showing no text or symbols

Mechanical assembly diagram showing a belt switch mechanism with red laser lines (no text or symbols)

Instructions / Gebrauchsanweisung / Instrucciones / Instructies

Illustration of a two-wheeled stroller with highlighted parts and directional arrows indicating motion (no text or symbols)

Illustration of a mechanical clamp or grip assembly with an orange and yellow component, no text or symbols present.

Illustration of a mechanical clamp or grip assembly with a red arrow indicating direction (no text or symbols present)

PROMENADE™

Instructions / Gebrauchsanweisung / Instrucciones / Instructies

Mechanical assembly diagram showing a valve mechanism with a red arrow indicating direction (no text or symbols present)

Illustration of a two-wheeled stroller with canopy cover (no text or symbols)

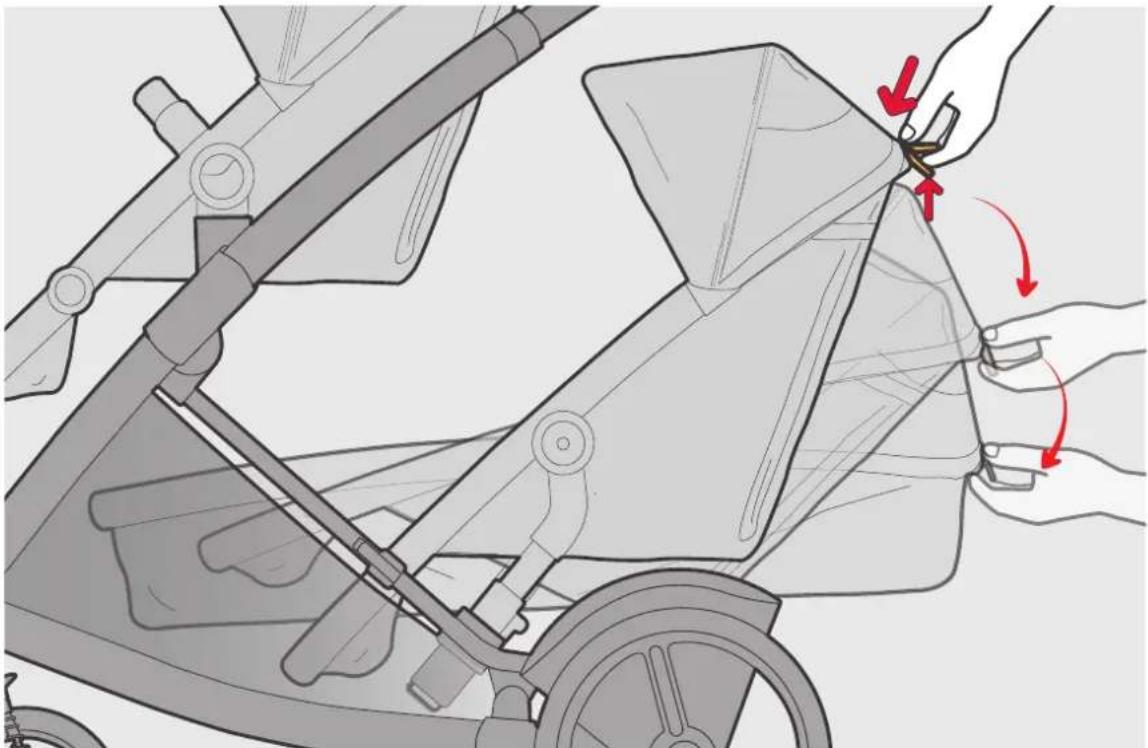

Illustration of a stroller mechanism with hand and arrow indicators (no text or symbols)

PROMENADE™

Instructions / Gebrauchsanweisung / Instrucciones / Instructies

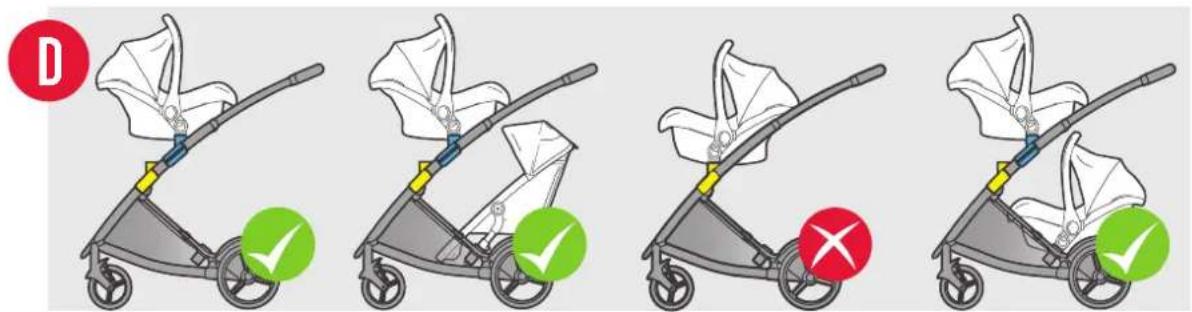

max load 9kg/20lbs

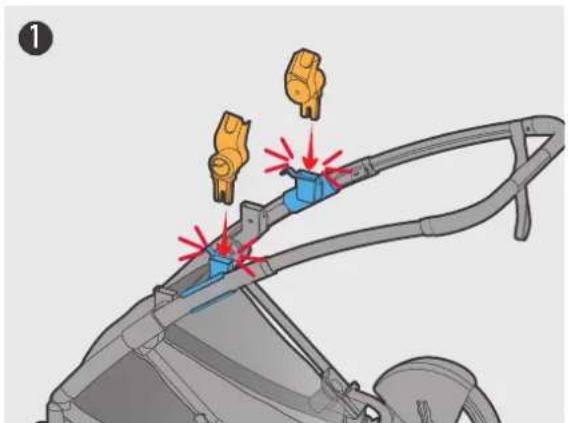

3D illustration of a stroller with yellow and blue connectors, no text or symbols present

D

Mechanical assembly diagram showing a connector with red laser indicators and yellow components (no text or symbols)

Illustration of a mechanical device with a lever and handle, showing red motion arrows (no text or symbols)

PROMENADE™

Instructions / Gebrauchsanweisung / Instrucciones / Instructies

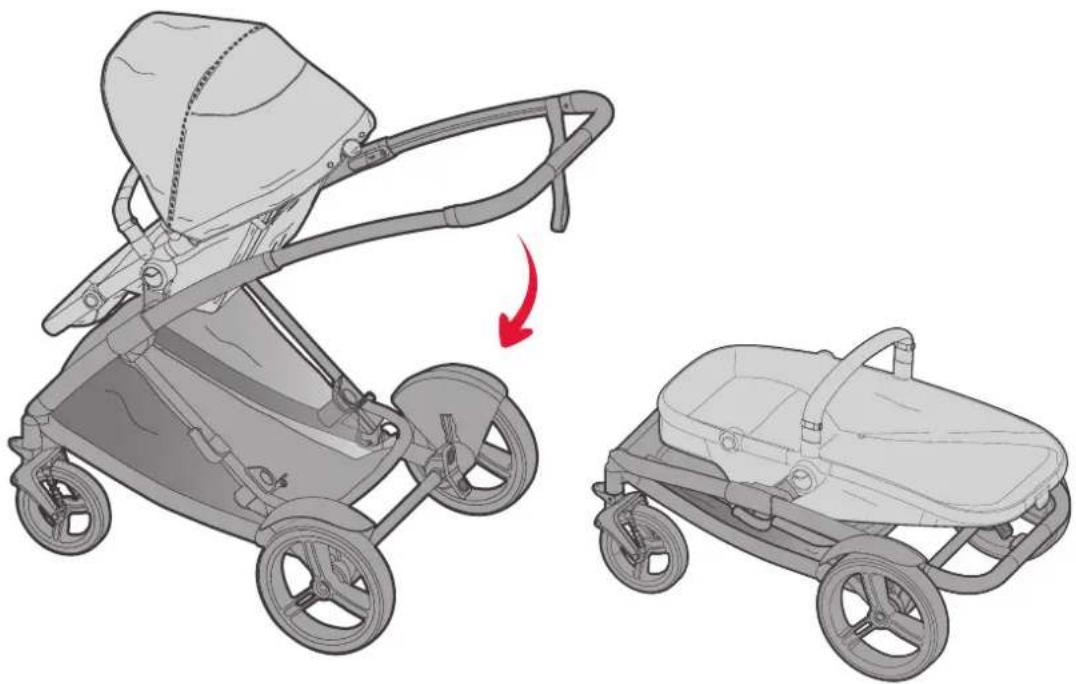

Illustration of a stroller with a baby in use, showing the shift from carrying to body (no text or symbols present)

PROMENADE™

Instructions / Gebrauchsanweisung / Instrucciones / Instructies

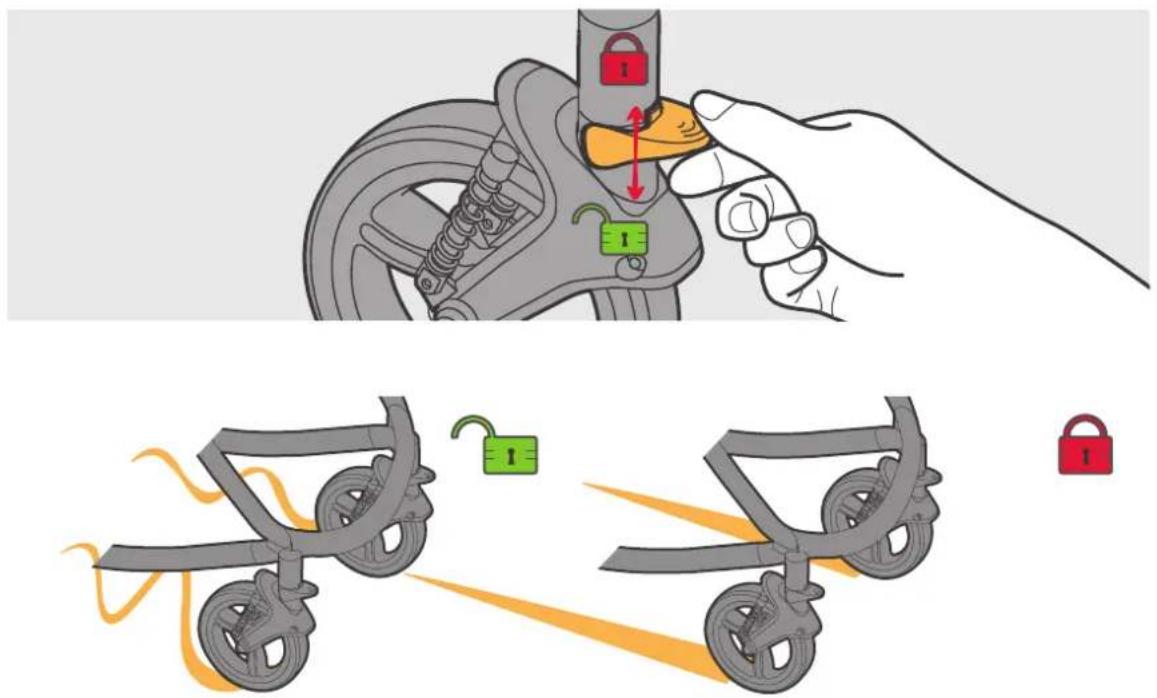

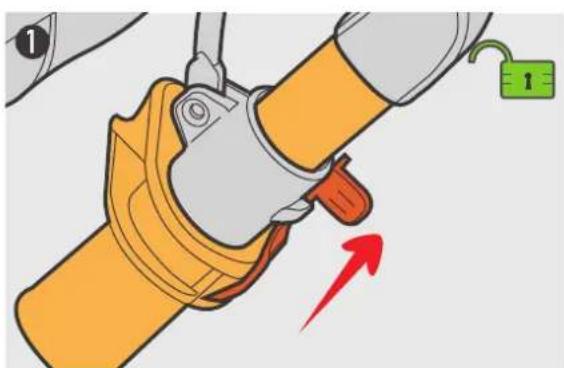

Illustration of a bicycle steering wheel with a red hand gesture and a padlock icon (no text or symbols)

Illustration of a hand holding a yellow cable with red directional arrows indicating motion (no text or symbols)

Diagram illustrating vehicle suspension system steps with numbered instructions and directional arrows indicating movement

Illustration of a two-wheeled baby car with wheels and a backrest, no text or symbols present

PROMENADE™

Instructions / Gebrauchsanweisung / Instrucciones / Instructies

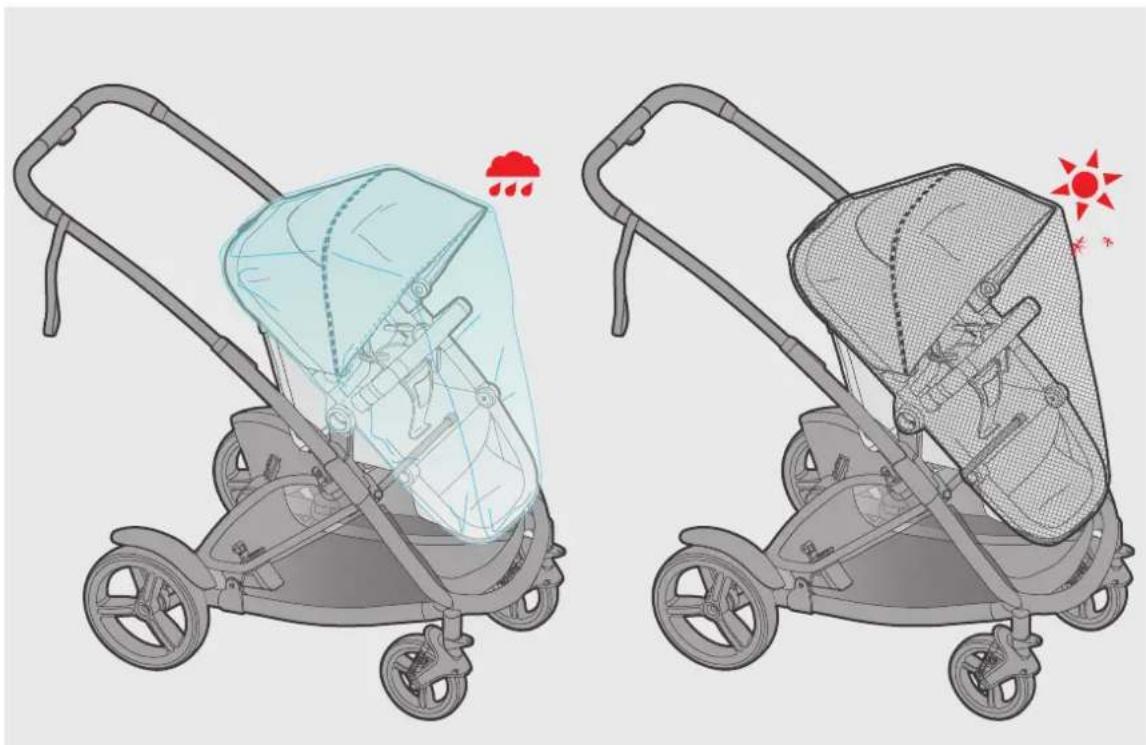

Illustration of two baby strollers with protective netting and sun symbols (no text or labels)

PROMENADE

Product care / Conseils d'entretien / Produktpflege / Cuidado del producto / Productverzorging

Line drawing of a baby stroller with handrail and helmet (no text or symbols)

Solid red vertical rectangle with no text, symbols, or patterns

Solid red vertical rectangle with no text, symbols, or patterns

A solid red vertical stripe on a white background, no text or symbols present.

© Phil and Teds Most Excellent Buggy Company Ltd 2010.

We (Phil and Teds Most Excellent Buggy Company Ltd) own the intellectual property rights in our brands, designs and inventions featured in this publication. These include, without limitation, the phil&teds, adapt&survivel!, &, INLINE trade marks and INLINE DOUBLE BUGGY shape. We actively pursue people who infringe our Intellectual property.

© Phil & Teds Most Excellent Buggy Company Ltd 2010.

© Phill and Teds Most Excellent Buggy Company Ltd 2010.

© Phil and Teds Most Excellent Buggy Company Ltd 2010.

© Phil and Teds Most Excellent Buggy Company Ltd 2010.

Designed in New Zealand. Made in China

Line drawing of a two-wheeled baby stroller with front and back panels (no text or symbols)
