USER MANUAL verve v1 Phil & Teds

Line drawing of a stroller with visible seat, wheels, and camera (no text or symbols)

phil&teds®

VERVE™

Congratulations on choosing the verve™!

Features / Caractéristiques / Produkteigenschaften / Características / Kenmerken

Instructions / Gebrauchsanweisung / Instrucciones / Instructies

Product Care / Conseils d'entretien / Produktpflege / Cuidado del producto / Productverzorging

Safety Warnings / Avertissements / Warnungen / Advertencias / Waarschuwingen

VERVE™

Product Care / Conseils d'entretien / Produktpflege / Cuidado del producto / Productverzorging

GENERAL INSTRUCTIONS

This document contains important information and must be kept for future reference.

Please read thoroughly before commencing installation as incorrect installation can be dangerous.

Please register your product purchase through our online warranty registration by visiting: www.philandteds.com/register

This vehicle is intended for children from newborn to 5 years.

Maximum weight in the newborn position 20lbs/9kg

Maximum weight in the upright main seat 44lbs/20kg

Maximum weight in the double kit - on rear 33lbs/15kg

Maximum weight in the double kit - on front 44lbs/20kg

CLEANING & CARING

Check the verve™ for cuts & bruises. If your product is damaged in any way, or you're not sure how to use it, please consult our web support (www.philandteds.com/support) from where you can access a local customer care team.

Caring for verve™

Unlike children, your verve™ likes to stay clean.

• Brush dirt off frame and wheels regularly.
- Clean with non-abrasive household cleaner and a soft cloth.
- Wash off sand and salt after visiting the beach.
• Always dry frame if wet.
- Fabrics can be sponge cleaned with warm water, using a mild natural soap.
- Do not use detergents or bleach.
- Store in a well ventilated space, away from direct sunlight (which can harm and fade fabric), and moisture.
- Improper care will void any warranties. Do not use the verve™ if deterioration is detected or suspected.

IMPORTANT IMPORTANT

• Always load/unload your children on level ground.
- Ensure the brake is engaged during the loading and unloading of children.
- Care should be taken if the stroller is used on stairs or escalators.
• Always use the safety strap.
- Excessive wear can reduce effectiveness and safety. Parts may need lubrication. Inspect essential components for:
Fraying - especially webbing straps and safety harness.
Wear - locks, snap fasteners, tyres, plastic and moving parts.
Safety - locks must not be loose.

Tyres & Tubes

• The valve is car-size. Manually inflate to 20 – 22psi max. releasing air gives a softer ride but lower pressure reduces tread life.
• New inner tubes and tyres are generally available (21/4" x 121/2" tyre) from your dealer, cycle or specialist wheel shops. Standard tyre kits can repair punctures.
• A flat tyre can result from grit holding the valve open; to check: inflate tyre, deflate rapidly, and re-inflate.
• Tyres and tubes are not under warranty. Do not over inflate. Tyre pressure is affected by heat especially when inside parked cars.
• Rubber tyres can react with some surfaces (including, but not limited to, vinyl floor coverings, carpets, synthetic laminates, parquet and linoleum) and cause stains. Always stand the stroller on a protective surface when indoors.

For rights & remedies, refer www.philandteds.com/warranty

VERVE™

Safety Warnings / Avertissements / Warnungen / Advertencias / Waarschuwing

The verve™ complies with requirements applicable in market of sale, refer www.philandteds.com/certification

WARNINGS

To avoid injury:

• Only use with phil&teds verve™ accessories.

WARNINGS

European Safety Standard states:

Read the instructions carefully before use and keep them for future reference. Your child's safety may be affected if you do not follow these instructions.

• This vehicle is intended for children from newborn up to 5 years and up to a maximum weight of 20kg/44lbs.
• It may be dangerous to leave your child unattended.

• The buggy shall only be used for a maximum of 2 children.

• Accessories or replacement parts that are not approved by the manufacturer or distributor should not be used.

• Any load attached to the handle affects the stability of the stroller.
• Always use the crotch strap in combination with the waist belt.
• Check that the stroller body or seat unit attachment devices are correctly engaged before use.
• This product is not suitable for running or skating.
• Ensure that all locking devices are engaged before use.
• Use a harness as soon as your child can sit unaided.
• Do not place more than 5kg/11lbs in the parcel tray.
• The parking device shall be engaged during the loading and unloading of children.
• Do not add a mattress thicker than 20mm.

WARNINGS

American Safety Standard states:

• Never leave your child unattended in the stroller.
• Always use the safety harness to avoid serious injury from falling or sliding out.
• Always secure all safety harness straps. Child may slip into leg openings and strangle. Never use in a reclined carriage position unless child securely restrained.
• This vehicle is intended for children from newborn to 5 years and up to a maximum weight of 20kg/44lbs.
• To prevent the stroller from becoming unstable, do not place parcels or accessory items anywhere except in the storage basket and pockets provided. Do not hang items such as shopping bags from the frame.
• Do not place more than 5kg/11lbs in the parcel tray.

WARNINGS

Australia / New Zealand Safety Standard states:

To avoid injury or death:

• Always apply the brakes whenever the stroller is stationary.
  • Do not leave children unattended.
• Secure the child in the harness at all times.
• Do not carry extra children or bags on this stroller.
• Make sure children are clear of any moving parts if you adjust the stroller.
  • Use the harness at all times.
• When not in use disconnect shoulder straps from the waist buckle or strap as harness can form loops that can lead to strangulation.
• Do not use this seat with any other models of stroller.
• It is unsafe to use accessories other than those approved by the vehicles manufacturer.

VERVE™

Product Care / Conseils d'entretien / Produktpflege / Cuidado del producto / Productverzorging

• Care should be taken if the stroller is used on stairs or escalators.
• The stroller should not be used near an open fire or exposed flame.
• This vehicle is intended for children up to a maximum weight of 20kg/44lbs.

WARNINGS

European Safety Standard states:

• Never leave your child unattended in the stroller.
• Always use the safety harness to avoid serious injury from falling or sliding out.
• Do not place more than 5kg/11lbs in the parcel tray.
• The stroller may become unstable if a parcel bag, other than one recommended by the manufacturer, is used.
• The stroller may become unstable if the recommended load is exceeded.
• Take care when folding or unfolding the stroller to prevent your fingers being entrapped.

European Safety Standard:

American Safety Standard:

Australia / New Zealand Safety Standard:

Canadian Safety Standard:

01 Hand brake
02 Handle bar
03 Sunhood
04 Quick release fold
05 Rear wheels
06 Grab Bar
07 Harness
08 Footwell
09 Front wheels

Technical line drawings of a car seat assembly and accessories, including plastic parts and red cardboard boxes (no text or symbols)

VERVE™

Instructions / gebrauchsanweisung / instrucciones / instructies

Mechanical linkage diagram showing a lever system with a red arrow indicating motion direction (no text or labels)

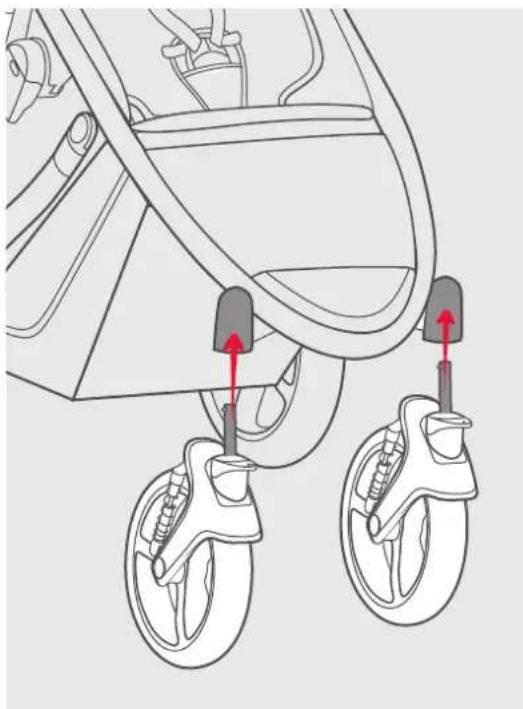

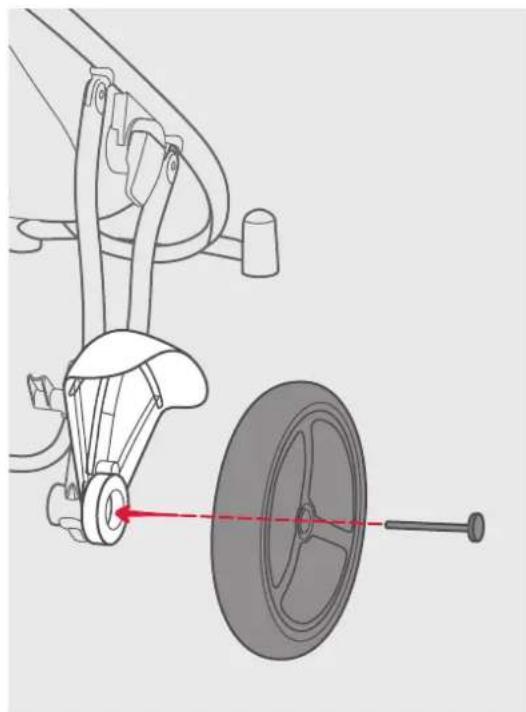

Mechanical diagram showing a vehicle's wheel and suspension system with a red dashed line indicating motion (no text or symbols)

Technical line drawing of a car's seatbelt mechanism with two wheels and adjustment knobs (no text or symbols)

Diagram of a mechanical device with a lever and handle, showing a red arrow pointing to a component (no text or symbols present)

VERVE™

Instructions / gebrauchsanweisung / instrucciones / instructies

Technical line drawing of a stroller with red directional arrows indicating motion (no text or symbols)

Diagram of a car seatbelt mechanism with red arrows indicating movement or force (no text or symbols present)

Diagram of a car seatbelt buckle being adjusted, showing hand placement and red directional arrow (no text or symbols)

VERVE™

Instructions / gebrauchsanweisung / instrucciones / instructies

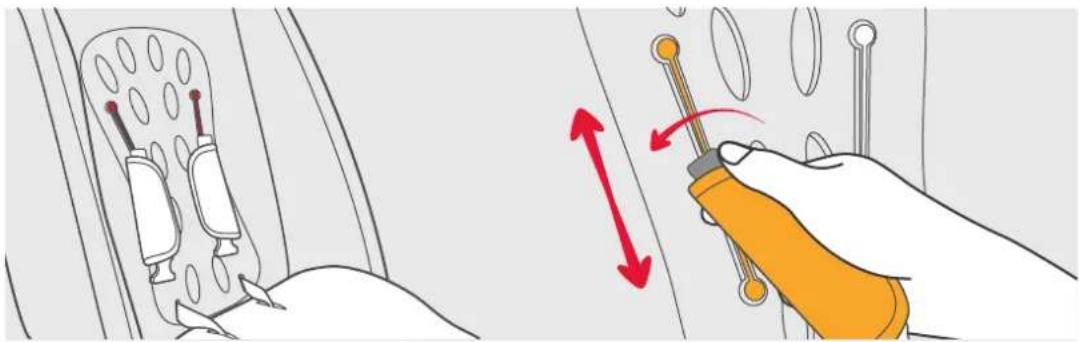

Illustration showing a hand using a screwdriver to adjust a screwdriver inside a vehicle (no text or symbols present)

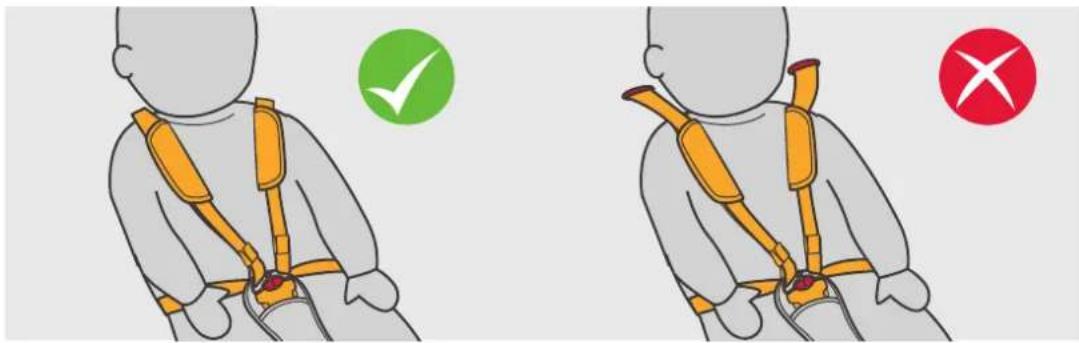

Illustration showing two scenarios of a child wearing a safety harness, with green checkmark and red cross symbols indicating correct and incorrect responses.

VERVE™

Instructions / gebrauchsanweisung / instrucciones / instructies

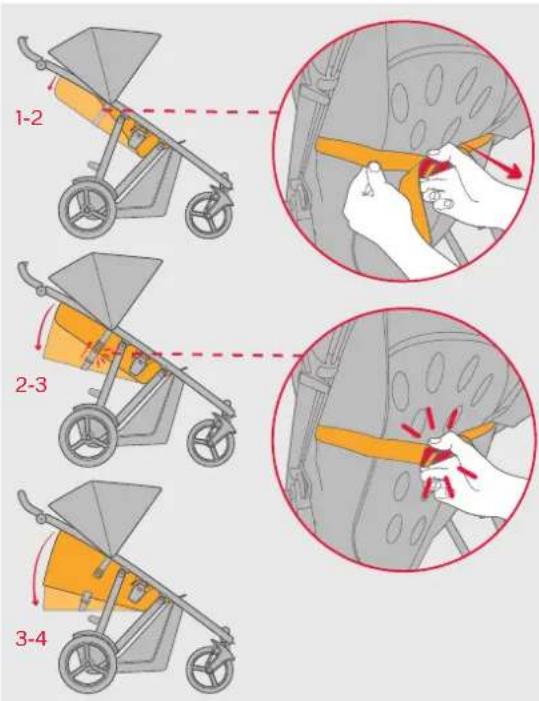

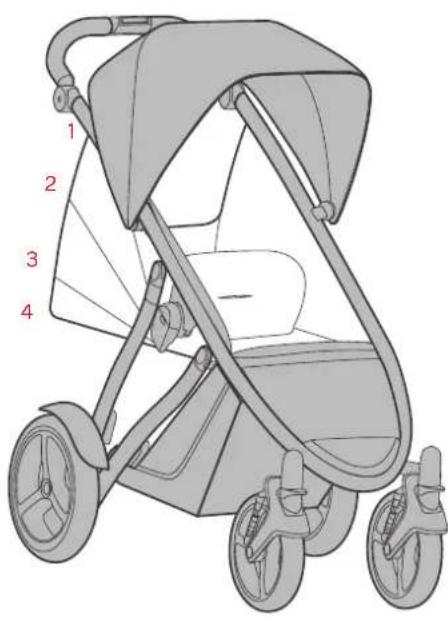

1 2 3 4

1-2 2-3 3-4

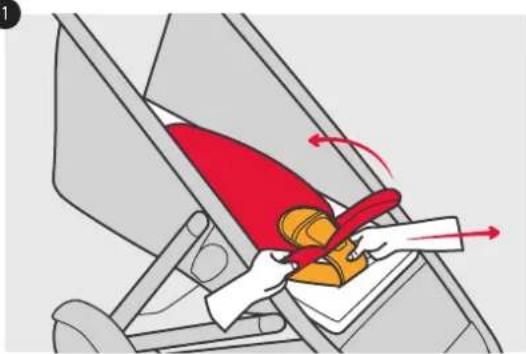

1

Illustration of a red and orange object being cleaned or washed, with arrows indicating motion (no text or symbols)

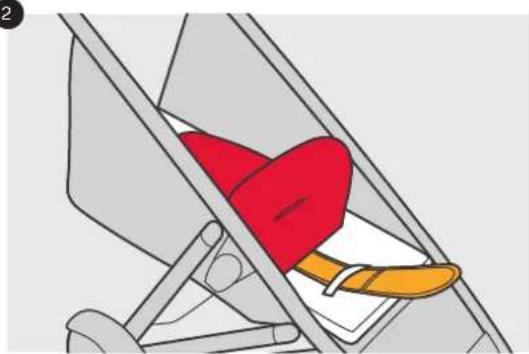

2

Illustration of a red and orange seatbelt buckle resting inside a chair (no text or symbols)

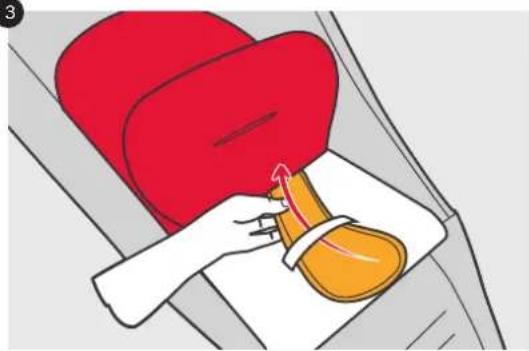

3

Illustration of a red and orange object being placed on a white surface, with a hand adjusting it (no text or symbols)

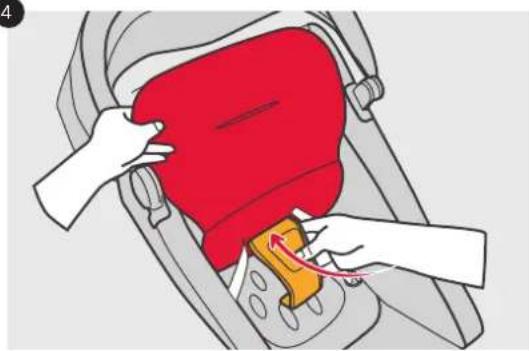

4

Illustration of a red and yellow object being inserted into a car seatbelt, with hands adjusting the component (no text or symbols present)

VERVE™

Instructions / gebrauchsanweisung / instrucciones / instructies

5a

Anatomical illustration of pelvic and hip joint structures with orange surgical hardware (no text or labels)

5b

Anatomical illustration of pelvic anatomy with orange surgical instruments (no text or labels)

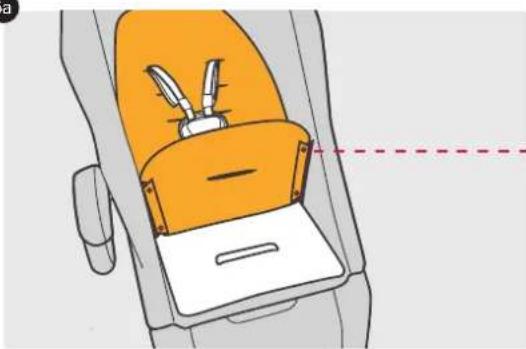

6a

Illustration of a car seatbelt with orange seat cover and white seat tray (no text or symbols)

6b

Diagram of a vehicle seat frame with orange cushion and gray connectors, no text or symbols present

Illustration showing a child in a stroller connected to a hand holding a device with a traffic light (no text or symbols present)

Illustration showing a mechanical device with a blade being adjusted, and hands holding a cable or clamp (no text or symbols present)

VERVE™

Instructions / gebrauchsanweisung / instrucciones / instructies

Diagram showing how to move a bicycle seatbelt via a lock mechanism, with no text or symbols present.

Illustration of a hand holding a lock attached to a device component, with no visible text or symbols.

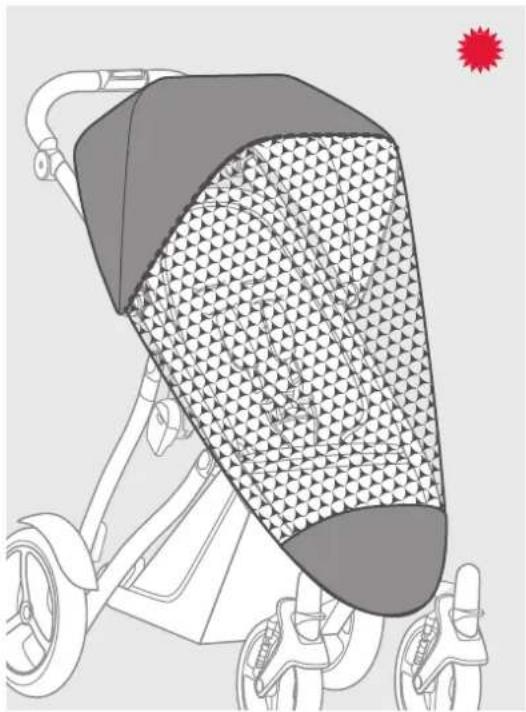

Illustration of a stroller with mesh pattern covering the body, no text or symbols present

Line drawing of a stroller with a hooded seat and wheels, showing internal components (no text or symbols)

VERVE™

Instructions / gebrauchsanweisung / instrucciones / instructies

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a stroller with wheels and a highlighted seat (no text or symbols)

Illustration of a hand adjusting a mechanical component with a red arrow indicating rotation (no text or symbols)

Three line drawings of a children's wheelchair mobility device, showing different frame and wheel configurations (no text or symbols)

VERVE™

Instructions / gebrauchsanweisung / instrucciones / instructies

Line drawing of a baby stroller with wheels and canopy (no text or symbols)

Mechanical diagram showing a seatbelt mechanism with red arrows indicating motion (no text or symbols present)

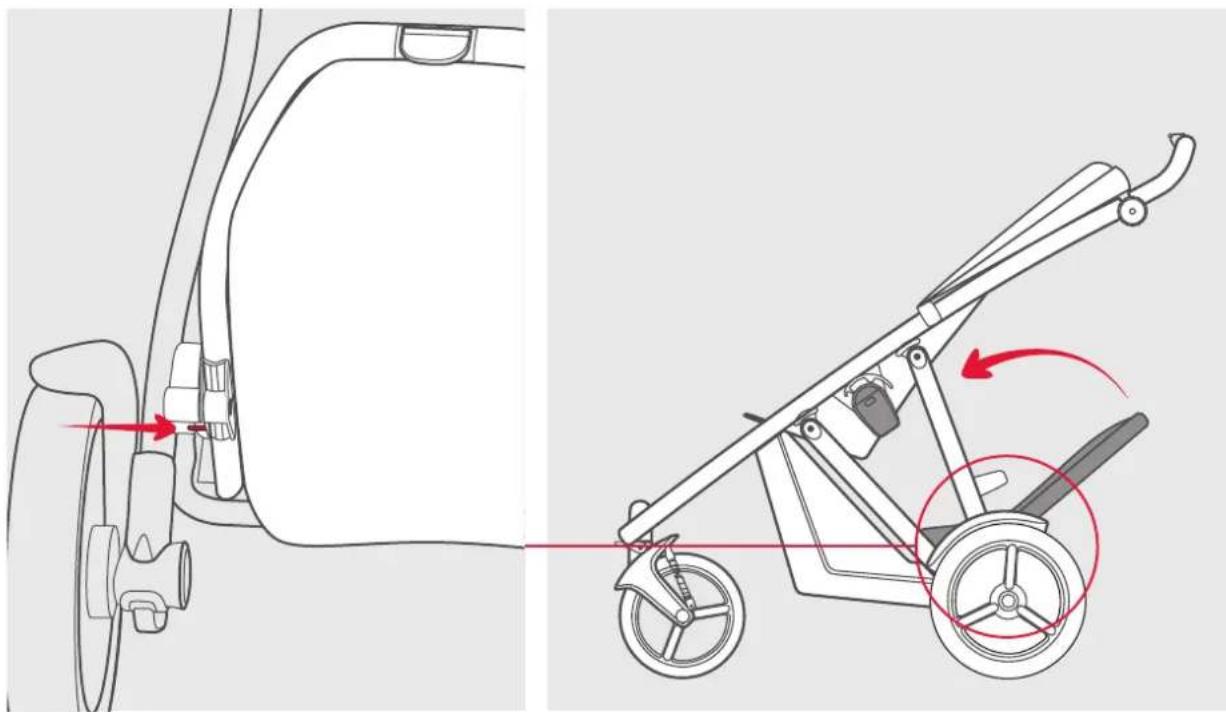

Technical diagram of a stroller with close-up inset showing hand positioning and safety instructions

Diagram illustrating seatbelt usage and adjustment, showing hand positioning and red arrows indicating movement or change.

VERVE™

Instructions / gebrauchsanweisung / instrucciones / instructies

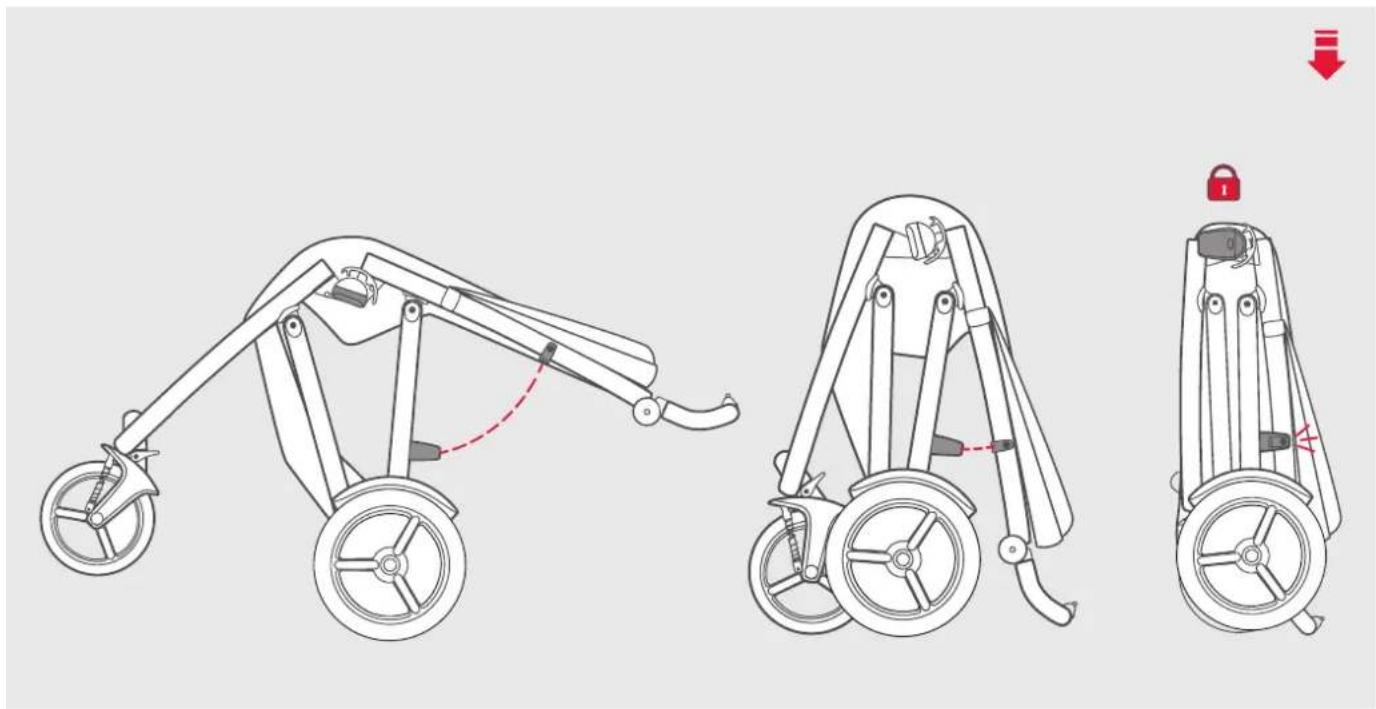

Side-by-side line drawing of a stroller with red motion arrows indicating rotation (no text or symbols)

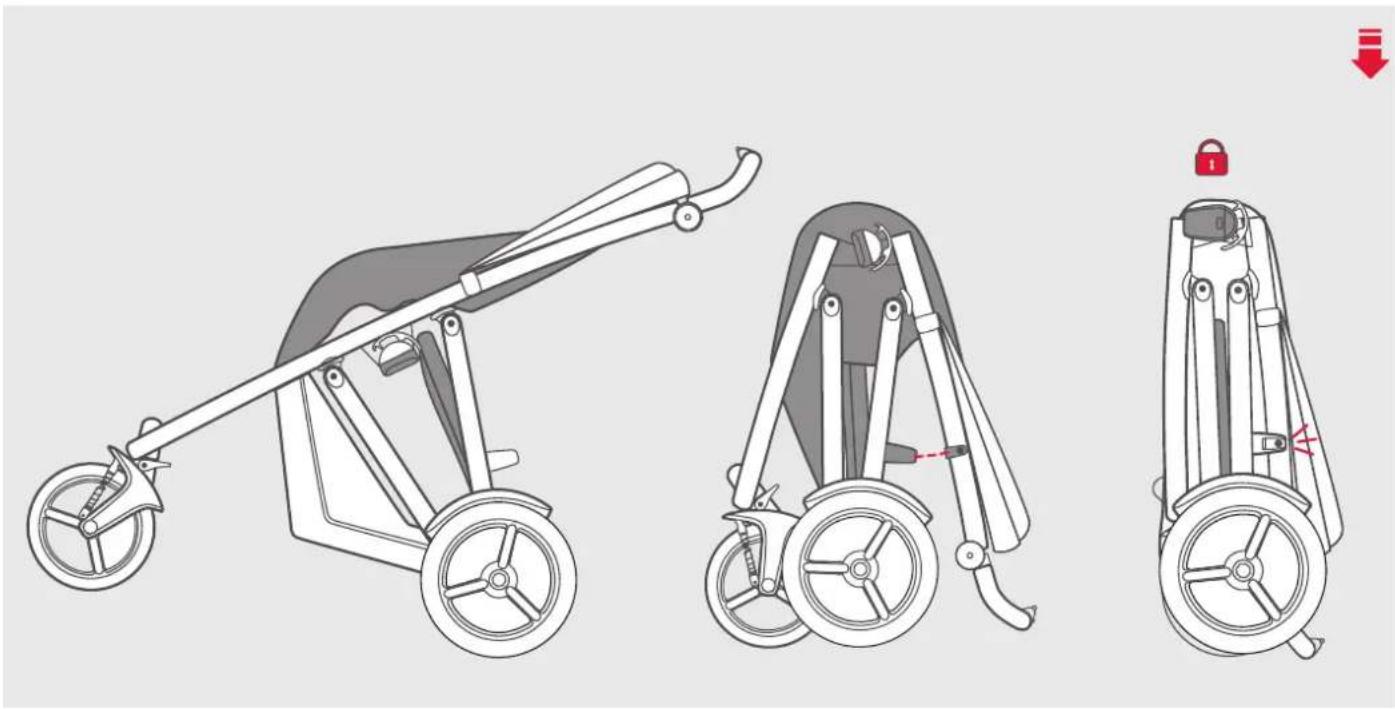

Technical line drawings of a stroller with three different frame views and a lock mechanism (no text or symbols)

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

© Phil and Teds Most Excellent Buggy Company Ltd 2010.

We (Phil and Teds Most Excellent Buggy Company Ltd) own the intellectual property rights in our brands, designs and Inventions featured in this publication. These include, without limitation, the phil&teds, adapt&survive!, &, INLINE trade marks and INLINE DOUBLE BUGGY shape. We actively pursue people who infringe our intellectual property.

©Phil & Teds Most Excellent Buggy Company Ltd 2010.

© Phil and Teds Most Excellent Buggy Company Ltd 2010.

© Phll and Teds Most Excellent Buggy Company Ltd 2010.

© Phil and Teds Most Excellent Buggy Company Ltd 2010.

Designed in New Zealand. Made in China
