Congratulations on choosing the sub4™!

Product Care / Conseils d'entretien / Produktpflege / Cuidado del producto / Productverzorging

Safety Warnings / Avertissements / Warnungen / Advertencias / Waarschuwing

Features / Caractérisiques / Produkteigenschaften / Características / Kenmerken

Instructions / Gebrauchsanweisung / Instrucciones / Instructies

SUB4™

Product care / Conseils d'entretien / Produktpflege / Cuidado del producto / Productverzorging

GENERAL INSTRUCTIONS CLEANING & CARING

This document contains important information and must be kept for future reference.

Please read thoroughly before commencing use as incorrect use can be dangerous.

Please register your product purchase through our online warranty registration by visiting: www.philandteds.com/register

This vehicle is intended for children from 6 months up to a maximum weight of 20kg/44lbs.

Maximum height - 100cm/39.4"

Check the sub4™ for cuts & bruises. If your product is damaged in any way, or you're not sure how to use it, please consult our web support (www.philandteds.com/support) from where you can access a local customer care team.

Caring for sub4 ^TM

Unlike children, your sub4 ^™ likes to stay clean.

• Brush dirt off the frame and wheels regularly.
• Clean with a non-abrasive household cleaner and a soft cloth.
• Wash off sand and salt after visiting the beach.
  • Always dry the frame if wet.
• Fabrics can be sponge cleaned with warm water, using a mild natural soap.
• Do not use detergents or bleach.
• Store in a well ventilated space, away from direct sunlight (which can harm and fade fabric), and moisture.
  • Take care to avoid damage to the foam rubber, which is not covered under warranty.
• Improper care will void any warranties. Do not use the sub4™ if deterioration is detected or suspected.

IMPORTANT IMPORTANT

• Always load/unload your children on level ground.
- Ensure the brake is engaged during the loading and unloading of children.
- Care should be taken if the stroller is used on stairs or escalators.
• Always use the safety strap.
- Excessive wear can reduce effectiveness and safety. Parts may need lubrication. Inspect essential components for: Fraying - especially webbing straps and safety harness.
Wear - locks, snap fasteners, tyres, plastic and moving parts.
Safety - locks must not be loose.

Tyres & Tubes

• The valve is car-size. Manually inflate to 40psi max. Releasing air delivers a softer ride, but lower pressure reduces tread life.
• New inner tubes and tyres are generally available from your dealer, cycle or specialist wheel shops. Standard tyre kits can repair punctures.
• A flat tyre can result from grit holding the valve open. To check: inflate tyre, deflate rapidly, and re-inflate.
• Tyres and tubes are not covered under warranty. Do not over inflate. Tyre pressure is affected by heat especially when inside parked cars.

For rights & remedies, refer www.philandteds.com/warranty

SUB4™

Safety Warnings / Avertissements / Warnungen / Advertencias / Waarschuwing

The sub4™ complies with requirements applicable in market of sale, refer www.philandteds.com/certification

WARNINGS

Australia / New Zealand Safety Standard states:

To avoid injury or death:

• Always apply the brakes whenever the stroller is stationary.
- Do not leave children unattended.
- Secure the child in the harness at all times.
- Do not carry extra children or bags on this stroller.
- Make sure children are clear of any moving parts if you adjust the stroller.
• Use the harness at all times.
- When not in use disconnect shoulder straps from the waist buckle or strap as harness can form loops that can lead to strangulation.

• It is unsafe to use accessories other than those approved by the vehicle's manufacturer.
• Care should be taken if the stroller is used on stairs or escalators.
• The stroller should not be used near an open fire or exposed flame.
• This vehicle is intended for children up to a maximum weight of 20kg/44lbs.
• This seat unit is not suitable for children under 6 months.
• Do not place more than 3kg/6.5lbs in the jet pack.

WARNINGS

European Safety Guidelines state:

Read the instructions carefully before use and keep them for future reference. Your child's safety may be affected if you do not follow these instructions.

• This vehicle is intended for children from 6 months up to a maximum weight of 20kg/44lbs.
• The buggy shall only be used for a maximum of 1 child.
• Never leave your child unattended.
• Accessories or replacement parts that are not approved by the manufacturer or distributor should not be used.
• Any load attached to the handle and/or back of the backrest and/or the sides of the stroller will affect stability of the stroller.
  • Always use the restraint system.

Safety Warnings / Avertissements / Warnungen / Advertencias / Waarschuwing

• Always use the crotch strap in combination with the waist belt.
• Check that the seat unit attachment devices are correctly engaged before use.
• Ensure that all locking devices are engaged before use.
• The parking device shall be engaged during the loading and unloading of children.
• To avoid injury ensure that your child is kept away when unfolding and folding this product.
• Do not let your child play with this product.
• This seat is not suitable for children under 6 months old.
• The EN1888 Standard dictates that we include the following warning: This product is not suitable for running or skating.
• Do not place more than 3kg/6.5lbs in the jet pack.

SUB4™

Safety Warnings

WARNINGS

American Safety Guidelines state:

• Never leave your child unattended in the stroller.
  • Always use the safety harness to avoid serious injury from falling or sliding out.
• To prevent the stroller from becoming unstable, do not place parcels or accessory items anywhere except in the storage pockets provided. Do not hang items such as shopping bags from the frame.
• Excessive weight may cause a hazardous unstable condition to exist.
• The vehicle is intended for a maximum weight of 20kg/44lbs.
• Do not place more than 3kg/6.5lbs in the jet pack.

WARNINGS

Canadian Safety Guidelines state:

• Never leave your child unattended in the stroller.
  • Always use the safety harness to avoid serious injury from falling or sliding out.
• Do not place more than 3kg/6.5lbs in the jet pack.
• The stroller may become unstable if a parcel bag, other than one recommended by the manufacturer, is used.
• The stroller may become unstable if the recommended load is exceeded.
  • Take care when folding or unfolding the stroller to prevent your fingers being entrapped.

SUB4™

Product care / Conseils d'entretien / Produktpflege / Cuidado del producto / Productverzorging

NOTICE PRÉCAUTIONS & ENTRETIEN

Maximum height - 100cm/39.4"

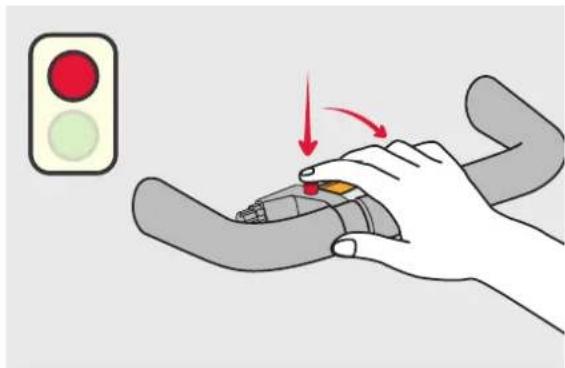

01 Hand brake
02 Handle bar

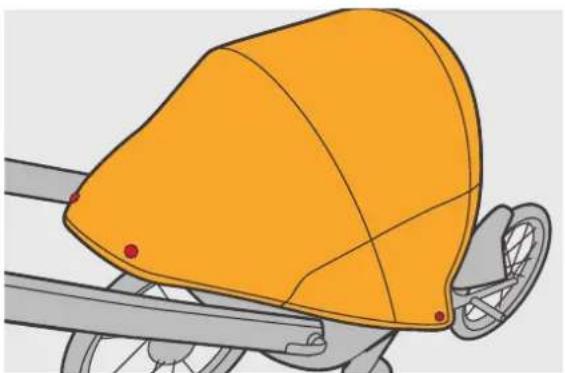

03 Sunhood
04 Quick release fold levers
05 Rear wheels
06 Aerocore seat
07 Harness
08 Front wheel

Illustration of a scooter with three wheels and a red box nearby (no text or symbols)

SUB4™

Instructions

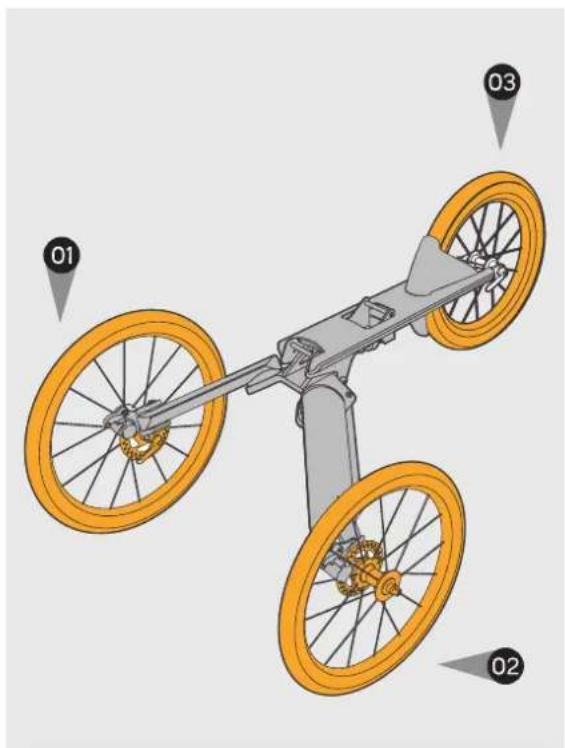

L 01 03 R 02

SUB4™

Instructions

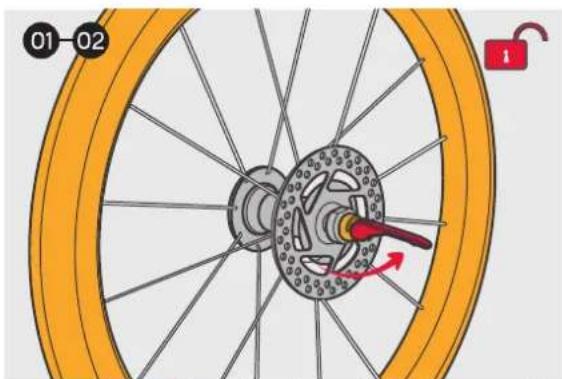

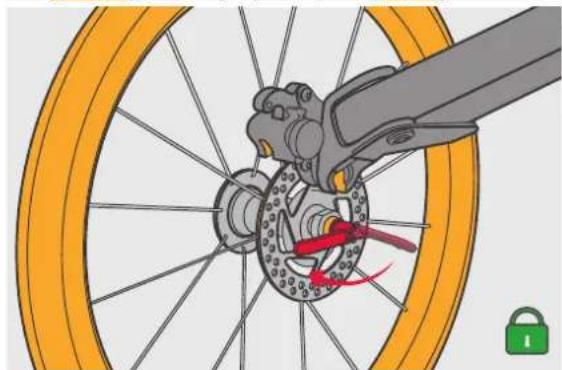

01-02

Illustration of a bicycle wheel with a hand operating the steering wheel, showing red motion arrows (no text or symbols)

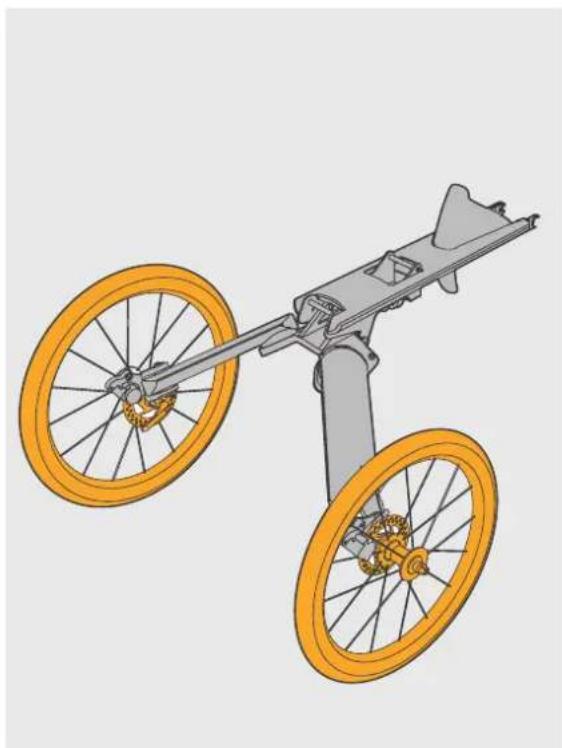

Illustration of a two-wheel bicycle with yellow wheels and a mounted gun (no text or symbols)

SUB4™

Instructions

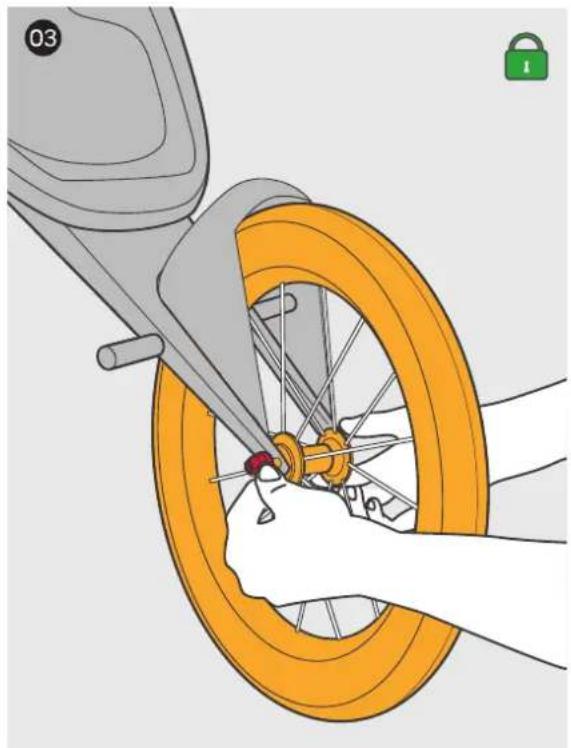

Illustration of a hand using a bicycle to adjust the wheel rim, with no text or symbols present.

01 02 03

SUB4™

Instructions

Illustration of a bamboo tool with a red arrow indicating rotation or movement (no text or symbols)

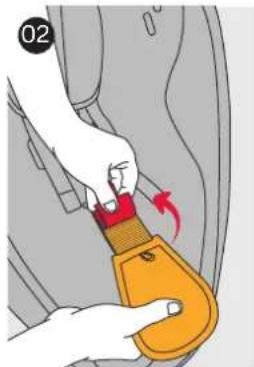

Illustration of a hand holding a yellow tool with a red arrow indicating rotation, next to a gray vehicle interior (no text or symbols)

Illustration of a hand using a yellow belt to lift a car's seatbelt, with a red arrow indicating clockwise motion (no text or symbols)

SUB4™

Instructions

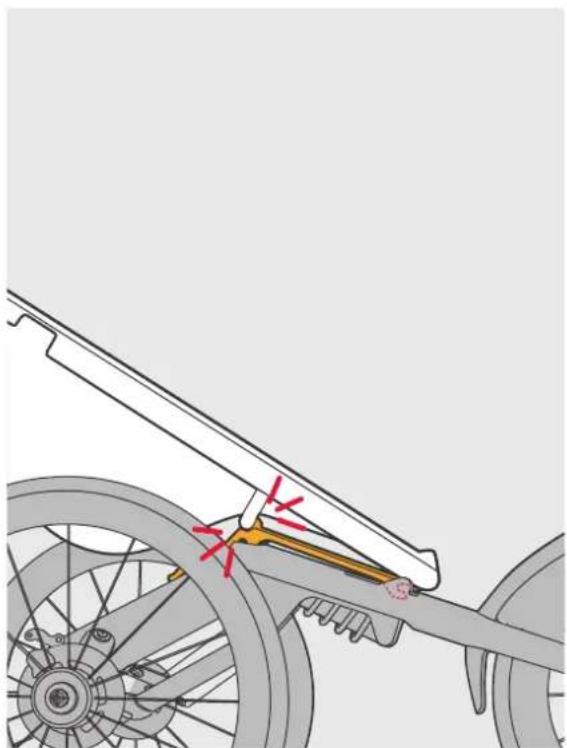

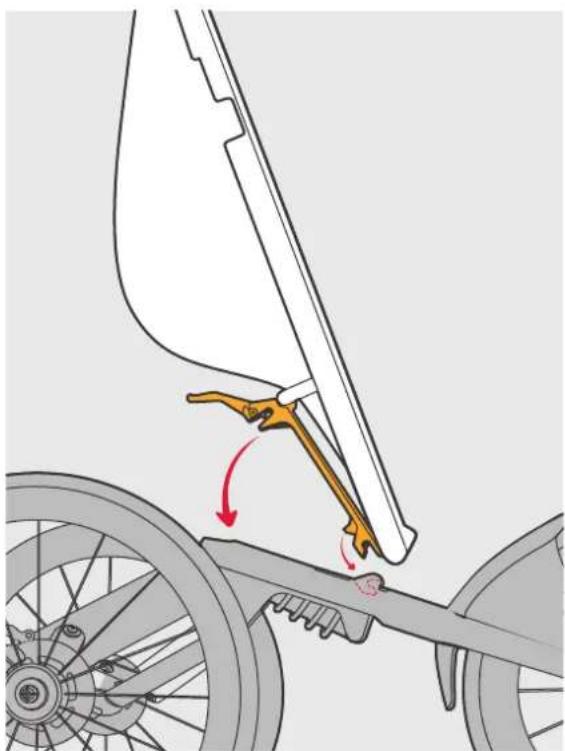

Mechanical assembly diagram showing a lever mechanism with motion arrows (no text or symbols)

Mechanical assembly diagram showing a cart with levers and wheel, no text or symbols present

SUB4™

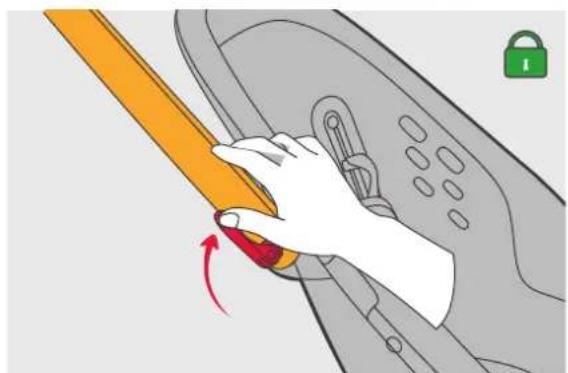

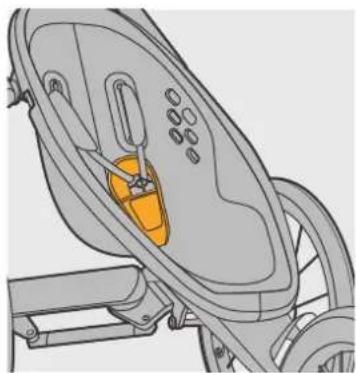

Instructions

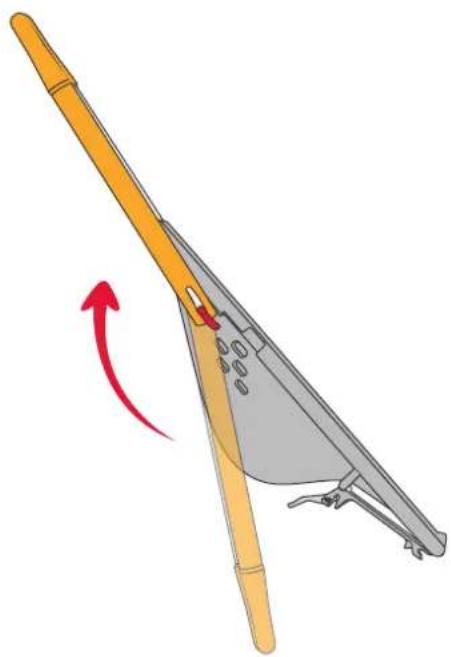

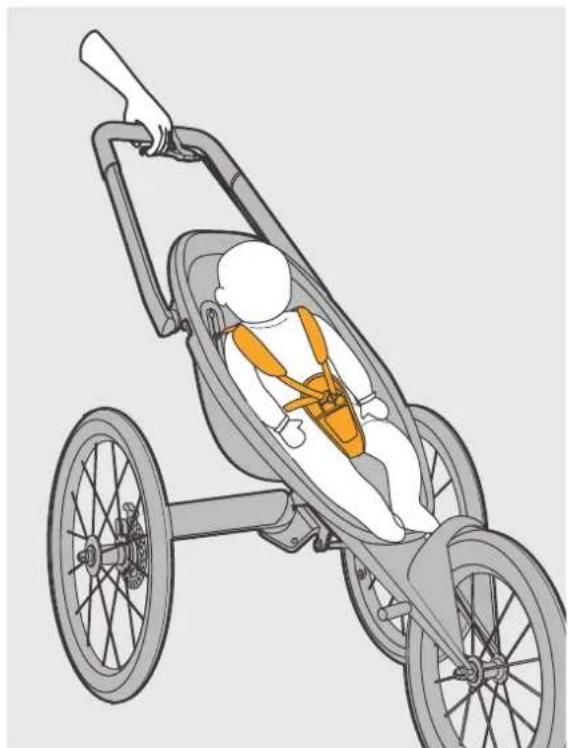

Illustration of a baby car with orange seatbelt inside a two-wheeled stroller (no text or symbols)

Illustration of a hand pressing down on a gray ergonomic seat with orange buttons and red directional arrows indicating movement (no text or symbols)

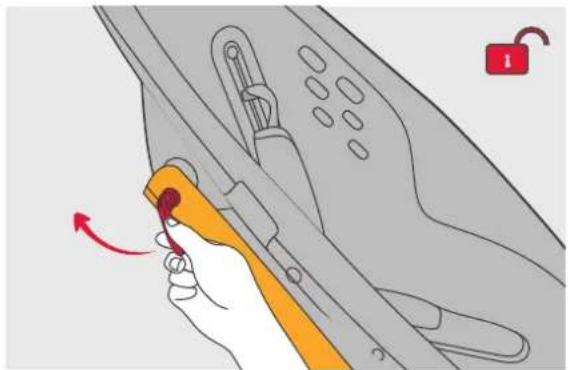

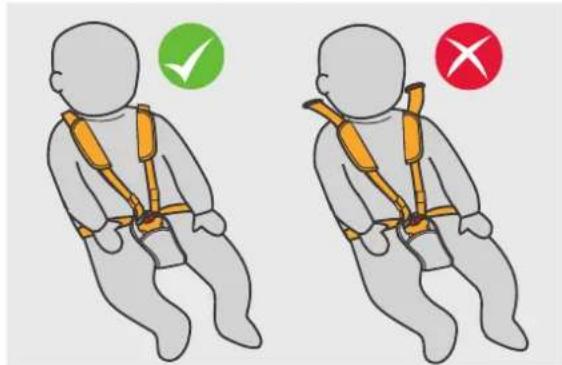

Illustration of a child wearing a safety harness with check and cross icons indicating status or compliance.

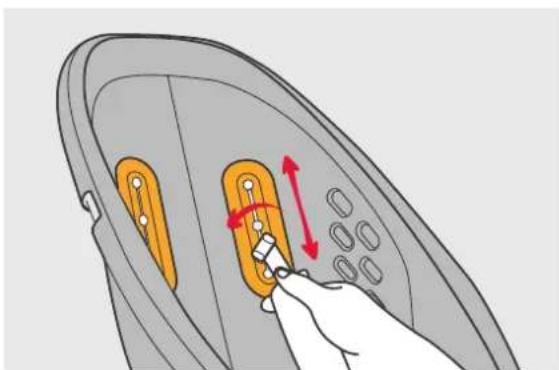

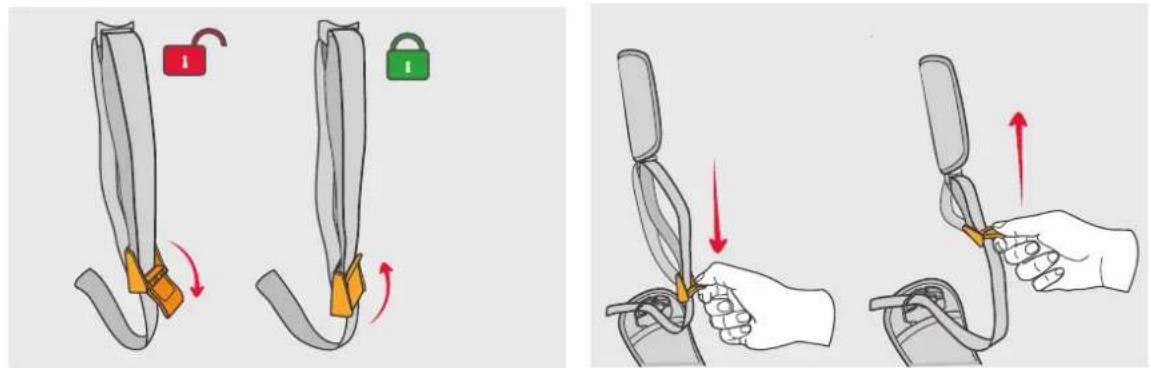

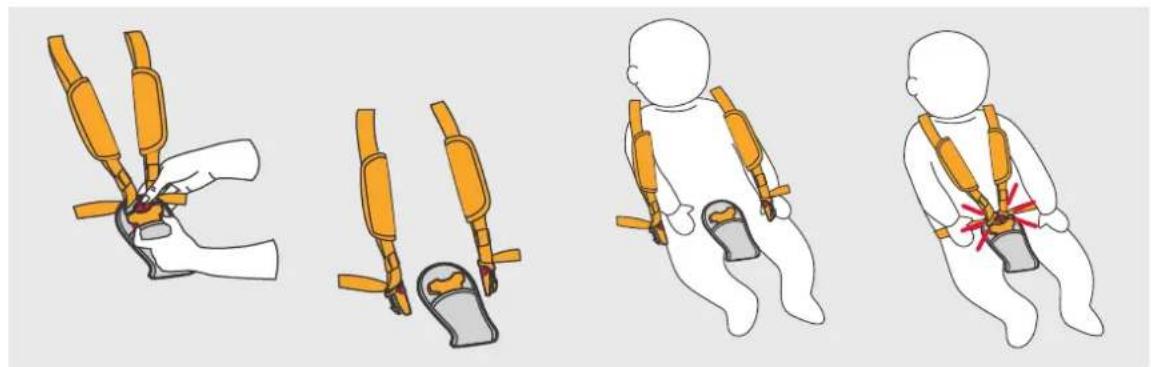

Illustration of four different child car seatbelt configurations, showing different seatbelt types (no text or symbols present)

Illustration showing three steps of a car seatbelt buckle being adjusted, with red and green arrows indicating movement.

SUB4™

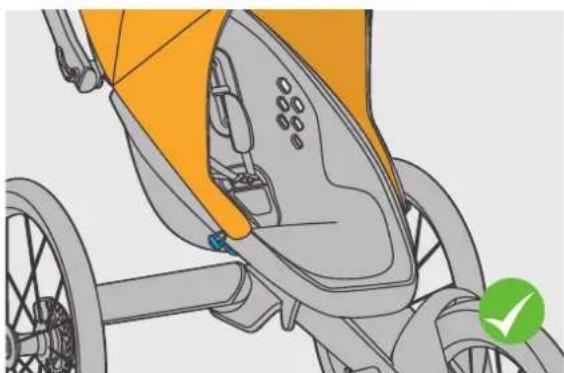

Instructions

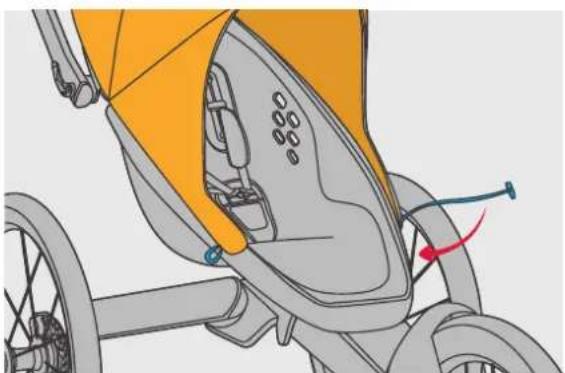

Technical illustration of a baby stroller with orange interior panel (no text or symbols)

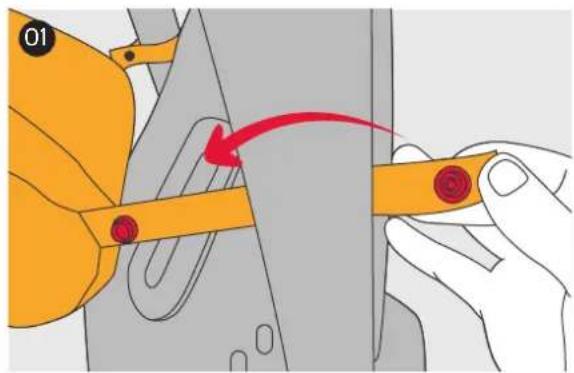

01

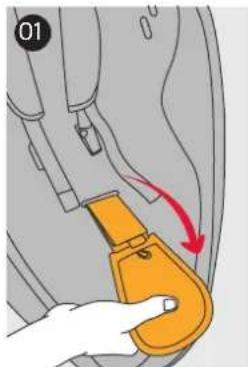

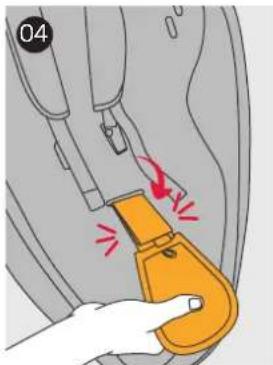

Illustration of a hand using a tool to adjust or install a car interior component, with no visible text or symbols.

03

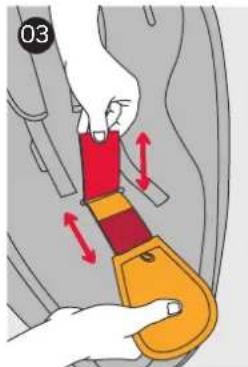

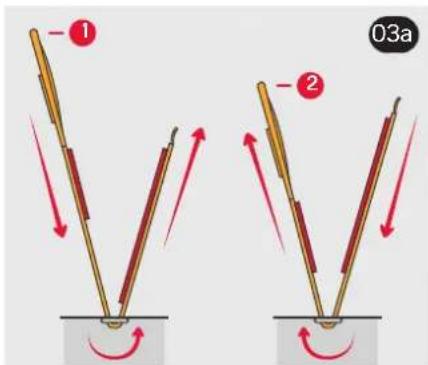

-① -② 03a

Two vertical poles with red segments and wooden posts, one marked with a green checkmark (no text or symbols)

Two vertical structures with red and brown elements, possibly structural elements or tools, against a plain background (no text or symbols)

04

SUB4™

Instructions

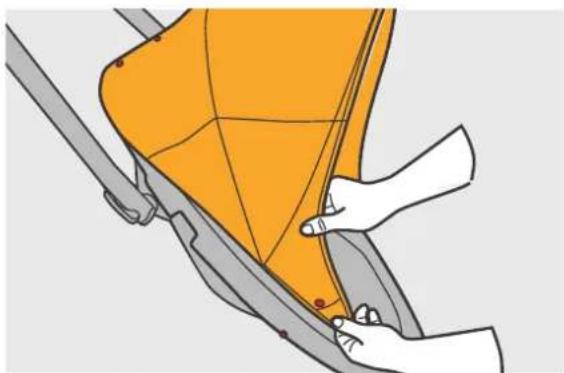

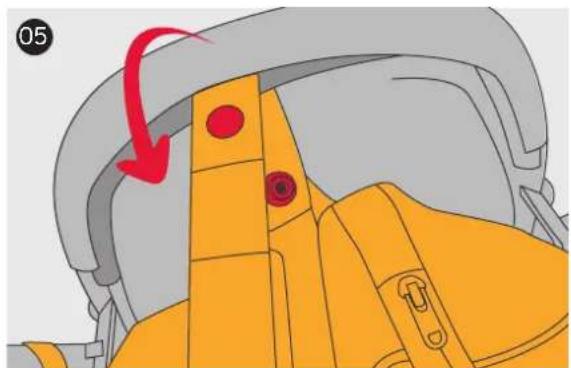

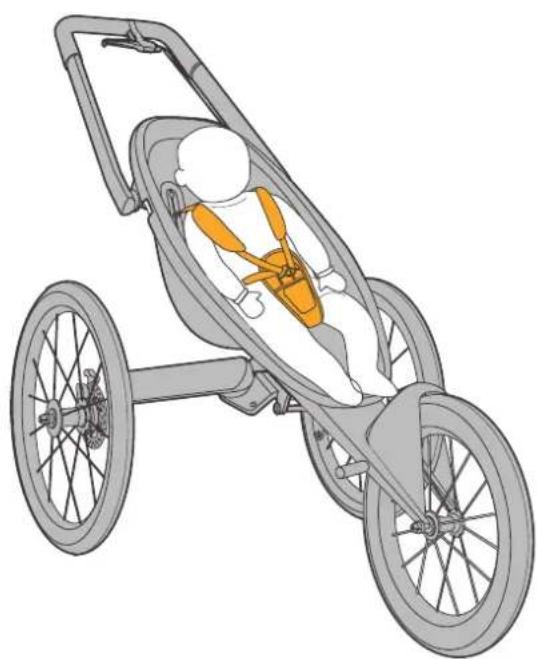

Illustration of a baby car with orange safety harness inside a two-wheeled stroller (no text or symbols)

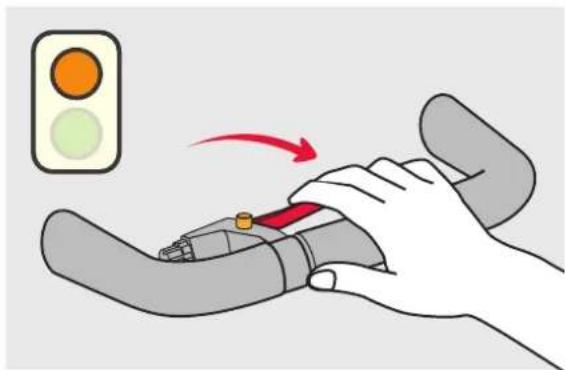

Illustration of a hand pressing a device with a traffic light indicator (no text or symbols)

Illustration of a hand pressing down on a device with red and orange buttons, next to a traffic light indicator (no text or symbols)

SUB4™

Instructions

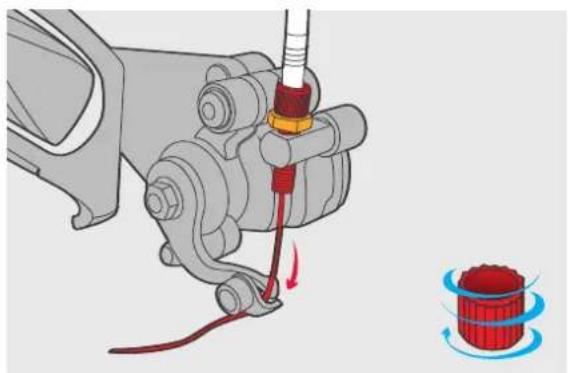

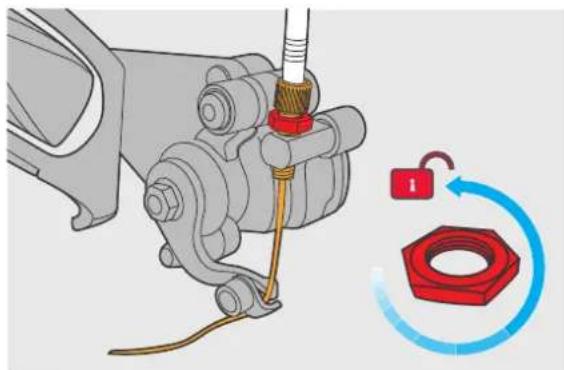

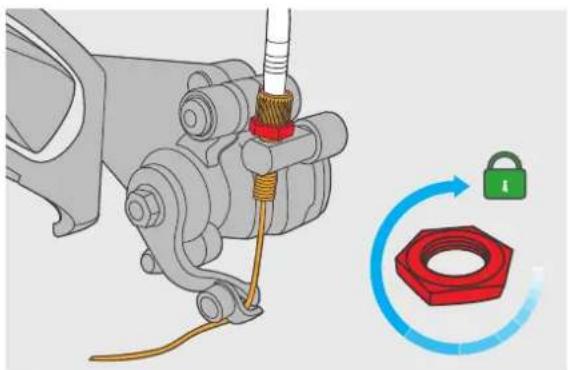

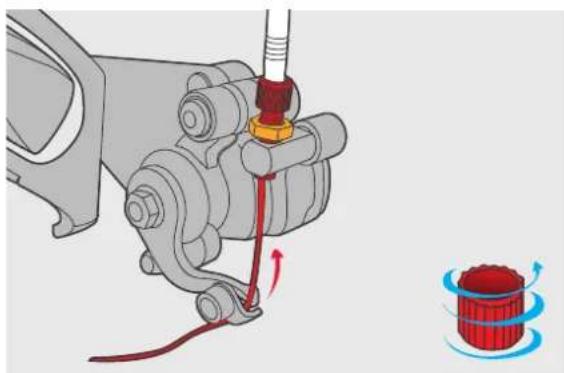

Mechanical assembly diagram showing a valve inserted into a housing with a red hex nut and blue circular arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a connector with a nut, spring, and lock mechanism (no text or symbols)

Mechanical assembly diagram showing a motor with red wiring and a rotating component (no text or symbols)

Mechanical assembly diagram showing a valve inserted into a motor with red tubing, accompanied by a close-up of a red cylindrical component (no text or symbols)

SUB4™

Instructions

Illustration of a yellow hard hat mounted on a bicycle (no text or symbols)

Illustration of a hand adjusting an orange geometric shape on a gray surface (no text or symbols)

Illustration of a bicycle's front wheel assembly with orange and gray components, showing no text or symbols

Illustration of a bicycle's front wheel assembly with orange safety netting and a green checkmark (no text or symbols)

SUB4™

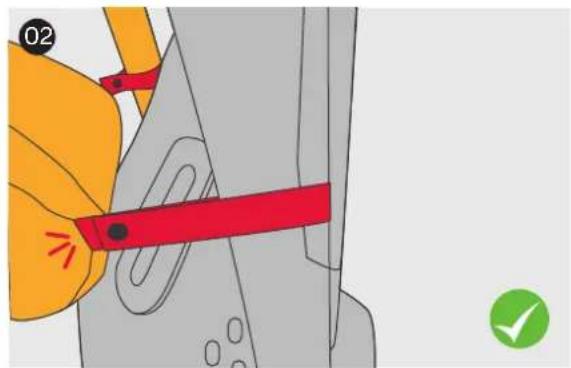

Instructions

Philieeds

Illustration of a hand holding a yellow tool with red buttons, showing a red arrow indicating direction (no text or symbols present)

Illustration of a hand holding a red belt over a mechanical component, with a green checkmark indicating approval (no text or symbols present)

Illustration of a yellow bicycle pallet with 'phill&teds' label, mounted on a gray vehicle wheel (no text beyond label)

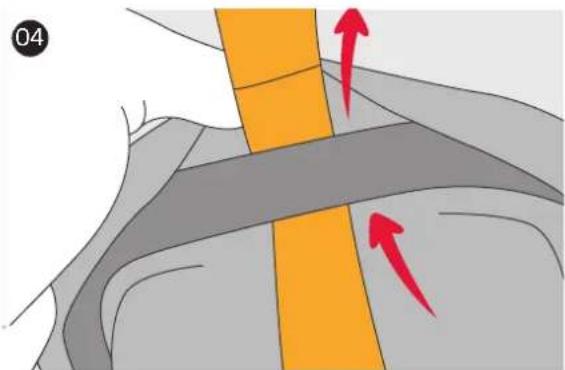

Diagram showing a mechanical or anatomical structure with two red arrows indicating direction, no text or symbols present.

Close-up of a yellow mechanical component with red arrows indicating a process or movement (no text or symbols present)

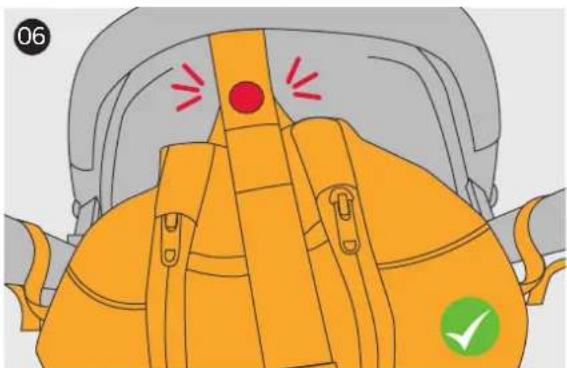

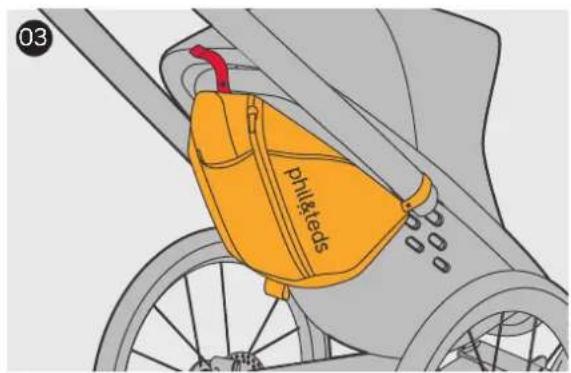

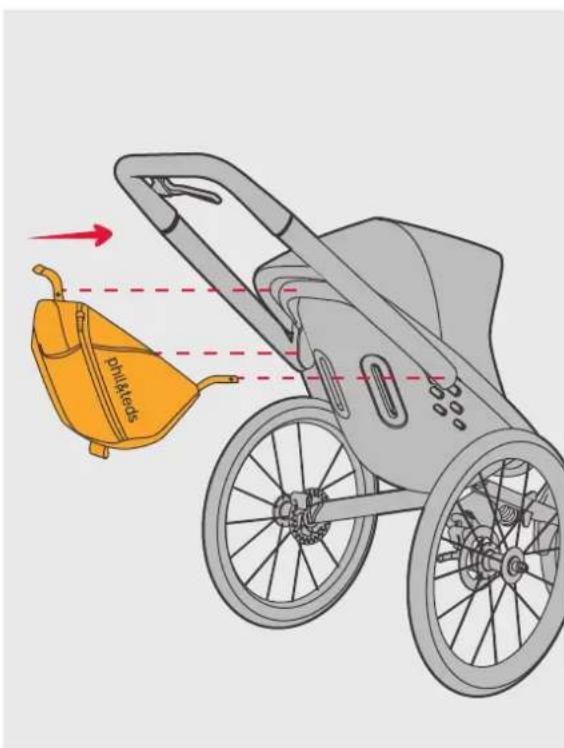

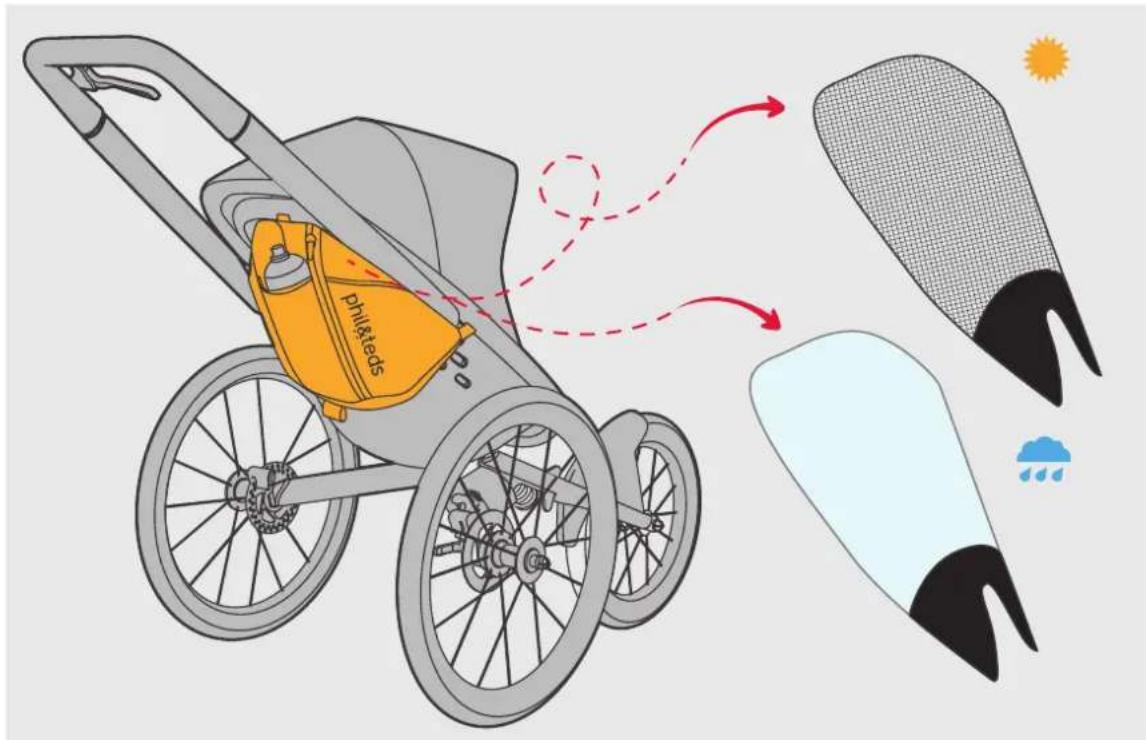

Illustration of a yellow backpack with red warning symbols and a green checkmark (no text or labels)

SUB4™

Instructions

philateds

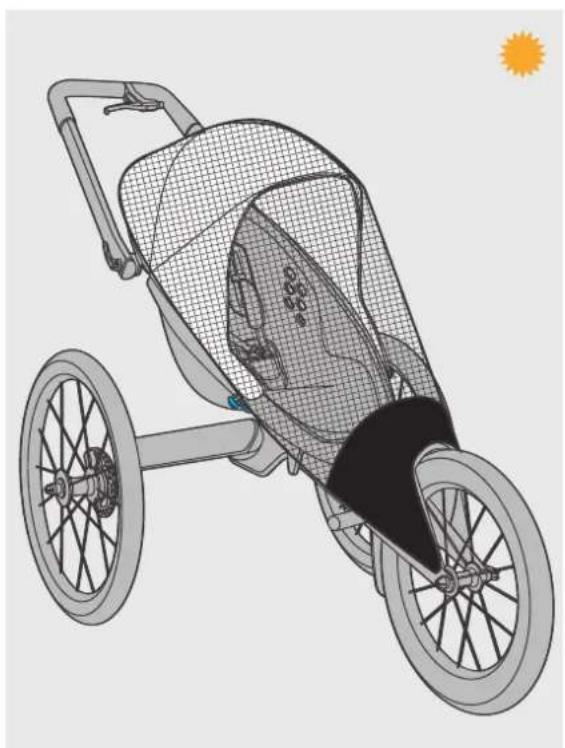

SUB4™

Instructions

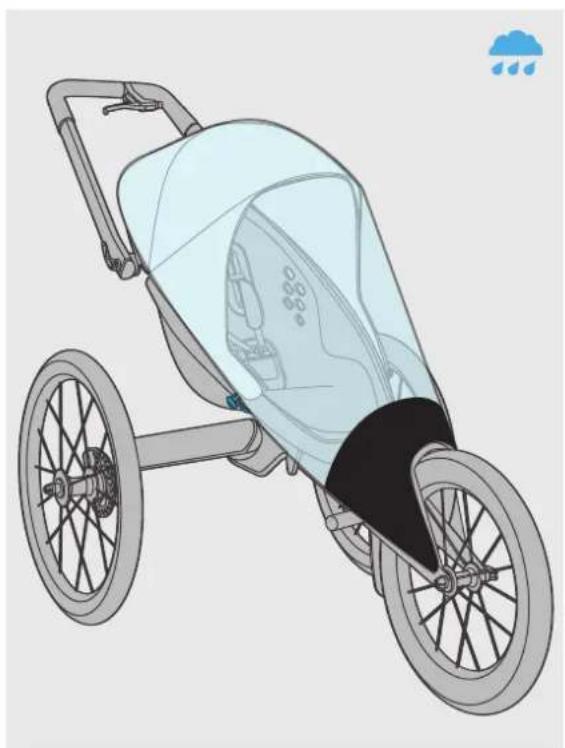

Illustration of a two-wheeled stroller with mesh backrest and wheels, no text or symbols present

Illustration of a two-wheeled stroller with wheels and seat cover, no text or symbols present

Solid red vertical rectangle with no text, symbols, or discernible features
