USER MANUAL 305039 Brandson

DC-Tower Fan, Remote Control

Mod.-Nr.: 305039

Mod.-Nr.: 304978

Table of contents

1. Deutsch .... 3
2. English 14
3. Français 25
4. Italiano 36
5. Español....47

Important safety guidelines for this device

• Use the device for the private and intended purpose only. This device is not intended for commercial use. Do not use the device outdoors and keep it away from heat and direct sunlight.
• Please do not keep the device in the immediate vicinity of water sources such as bathtub, shower, washbasin or swimming pool.
• Do not use this device with wet hands.

• If the device becomes moist or wet, pull out the power plug immediately. Pay attention to your own safety and do not touch any conductive material on the device.

• Protect the device from moisture (this device should not be immersed in liquids under any circumstances), sharp edges or large sources of dust.

• Do not keep the device in the immediate vicinity of heat sources (e.g. ovens or heaters).
• Keep it on an appropriate surface so that it does not tip over.
• Unplug the power plug when the device is not in use, during transport or during cleaning.

• Never leave the fan unattended and choose a location in which the device is safe from the reach of animals and children.

• Operate the device only with the voltage mentioned on the device label.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children without supervision

• Children shall not play with the appliance

• For the safety of your children, keep the packaging parts away from their reach (plastic bag, foils, carton or polystyrene)

• Do not allow small children to play with the foil or plastic bags as there is a risk of suffocation!
• The fan, rotary knob and switches should not be blocked!
• It is not allowed to remove the cage for cleaning purposes once the fan is mounted.

• Never insert your body parts (e.g. fingers) or objects through the protective cage.

• Ensure that your hair is not within the range of the protective cage as it may get caught in the air current.

• If the power cable of this device is damaged, it should be replaced by the manufacturer, his after-sales service personnel or by an equally qualified person, so as to prevent any risk.
• Cleaning and user maintenance shall not be made by children without supervision.

Thank you for choosing a Brandon product. Please read the following user manual carefully to have an enjoyable experience with your purchased product.

1. Scope of supply

• Fan
• Fan pedestal
• Remote control
• User manual

2. Technical data

Input voltage 220-240V AC /	50Hz, 25W, safety class II
Noise emission Workplace related emission value less than 63 dB(A)
Oscillation Approx. 65° can be enabled / disabled
Dimensions Height about 86,5cm,ø approx. 24.5cm
Features • Remote control	9 speed levelsTimer functionOscillationDC motor (direct current motor)Two different modes

3. Functions

The Brandon stand fan with an efficient DC motor ensures optimal ventilation even on warm days. With 9 speed levels and an oscillation function, you can adjust the fan to your individual needs. Compared to conventional AC fans, the fan with DC motor can save up to 60% in energy costs with the same air flow in m^3 . The input voltage of 220-240 VAC is converted by an internal power supply to the 24V DC required by the DC motor.

4. Assembly

Take the fan out of the package and check the unit as well as the scope of delivery mentioned above. Please contact the vendor if any part is missing or has been damaged.

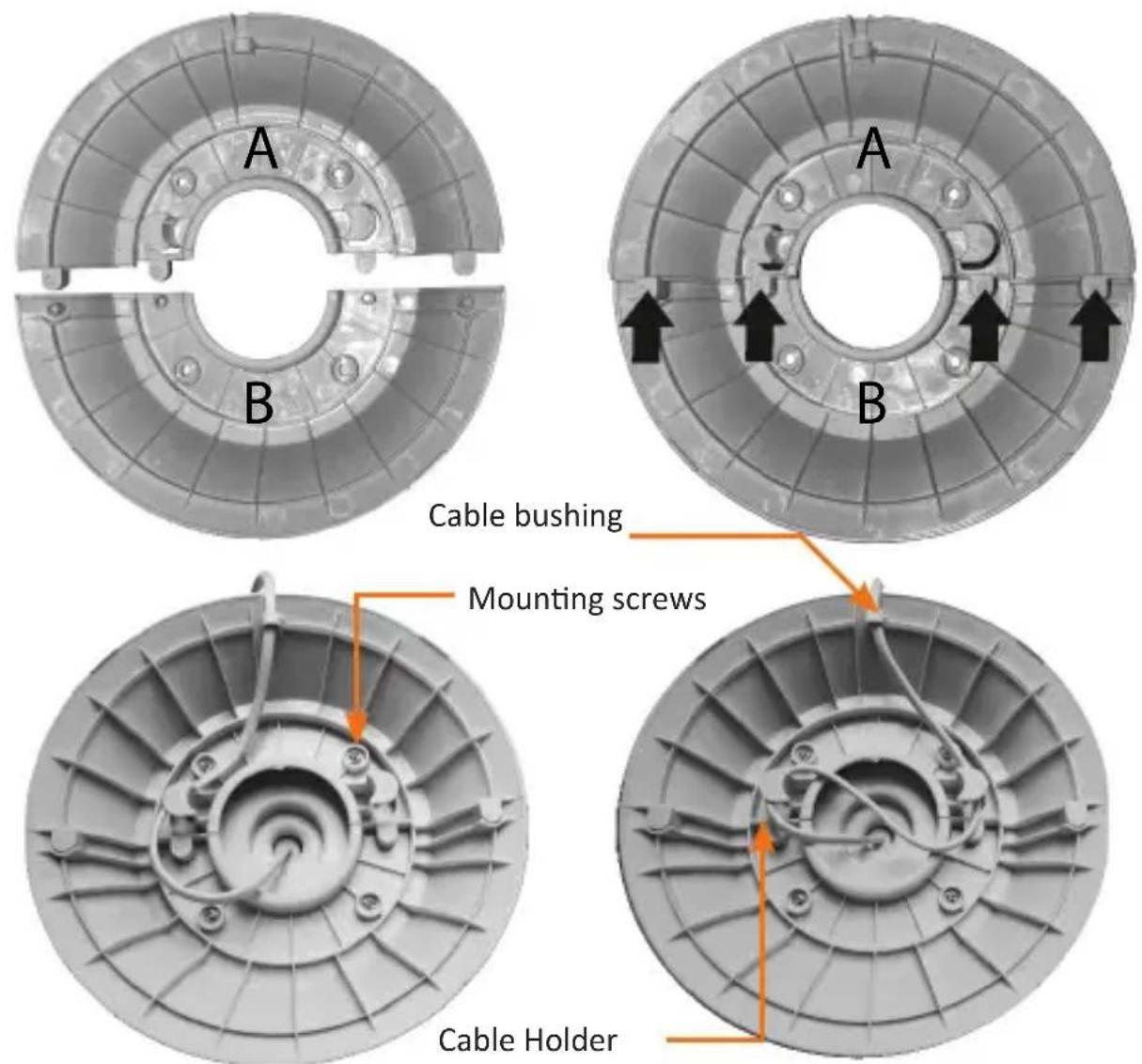

First assemble the pedestal. Make sure that you route the cable through the cable-entry and place it in the cable guide.

A B A B Cable bushing Mounting screws Cable Holder

Then fix the pedestal to the fan using the mounting screws.

5. Usage

Keep the fan in an appropriate location and connect the device to a properly installed power socket. Insert 2x AAA batteries into the remote control. Pay attention to the correct polarity of the contacts.

Press the "OSC" button on the remote control or on the fan, to enable the oscillation. Press the "ON" button on the remote control or on the fan, to switch the fan on. Press the "SPEED" button on the remote control to adjust the speed of the fan.

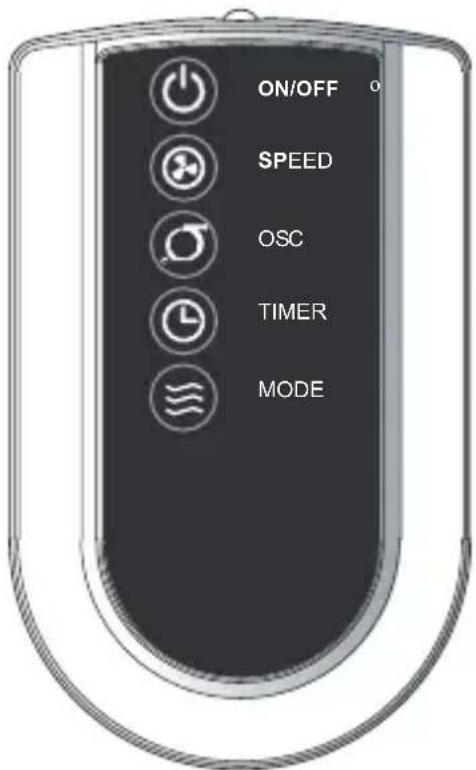

ON/OFF SPEED OSC TIMER MODE

Key Function
ON/OFF Switches the device on or off
SPEED Changes the speed level of the fan
TIMER Turns the timer function on
OSC Enables the Oscillation
MODE Press briefly: Switches the mode of the fanLong press: switches the buzzer on/off

Auto display off function

The display is shown for 20 seconds and goes out until it is woken up again by pressing any button on the remote control or the fan.

Buzzer on/off function

The buzzer is switched on/off by pressing the „MODE“ button on the remote control or on the fan for three seconds. The setting is retained until it is adjusted again manually or when the power supply is disconnected (e.g. the mains plug is pulled out of the socket or there is a power failure).

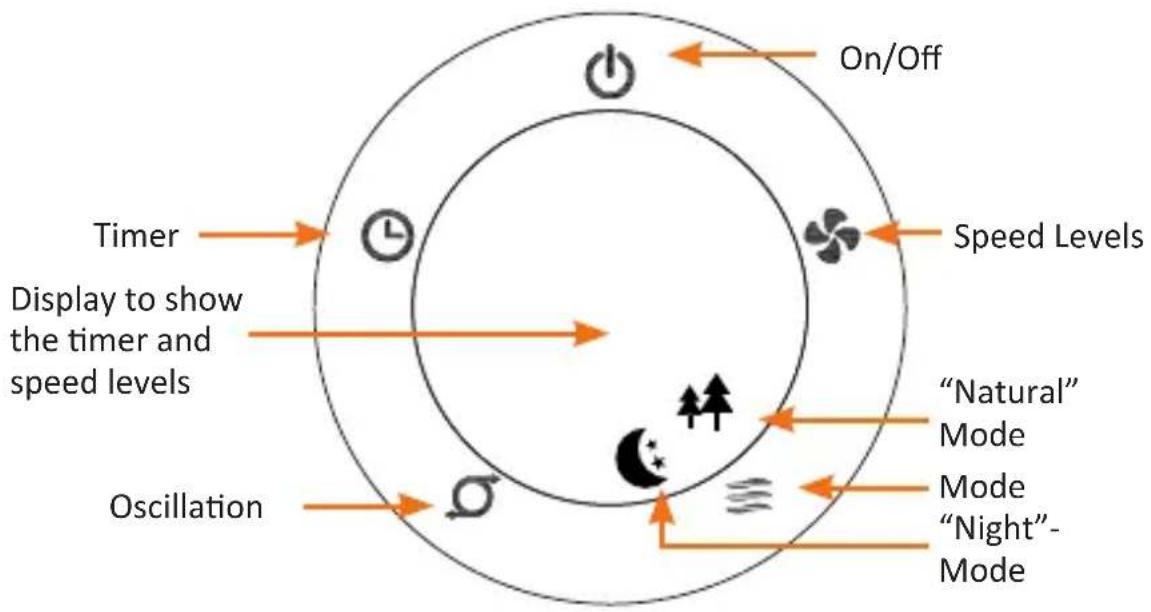


The fan offers 9 different timer levels that can be adjusted hourly up to a maximum time of 9 hours. For this purpose, press the "Timer" button on the remote control or the operating panel of the fan.

Increase the duration of the timer by pressing the button repeatedly.

Press the "Mode" button to set the fan mode. Here you can choose between two different modes. The "night" mode and the "natural" mode have the same speed levels.

Mode Different speed levels
	The fan simulates a “natural wind breeze”. The device will change the speed level in Low Medium High in different sequences. The intensity depends on the previously selected speed level.
	The night mode simulates a “natural wind breeze” like the nature mode, but over time with decreasing intensity.If the night mode is started in the “High” speed level, it automatically reduces the intensity every 30 minutes up to the “Low” speed level.The speed changes from “High” to “Medium” and from “Medium” to “Low”. The fan remains at “Low” for the rest of the operating time.

6. Cleaning

Attention! Pull out the power plug from the socket before starting with the cleaning process!

Use a slightly moist cloth for cleaning (wetted with water). For cleaning, never immerse the device into water! This could lead to electric shock or fire!

7. Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

8. Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE guideline: 2012/19/EU WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 305039/304978 conforms to the principle requirements and other relevant stipulations of Directive 2014/35/EU, 2014/30/EU and 2011/65/EU. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30719 Hanover, https://downloads.ganzeinfach.de/
