USER MANUAL Rasty PR120 Eldom

Line drawing of a microwave oven with control knobs and a door (no text or symbols)

/EN/ The disposal of used electrical and electronic equipment (applies to European Union countries and other European countries with separate waste-collection systems).

This symbol on the product or its packaging indicates that it should not be classified as household waste. It should be handed over to an appropriate company dealing with the collection and recycling of electrical and electronic equipment. The correct disposal of the product will prevent potential negative consequences for the environment and human health resulting from hazardous substances present in the product. Electrical devices must be handed over to restrict their re-use and further treatment. If the device contains batte ries, remove them, and hand them over to a storage point separately. DO NOT THROW EQUIPMENT INTO THE MUNICIPAL WASTE BIN. Material recycling helps to preserve natural resources. For detailed information on how to recycle this product, please contact your local authority, the recycling company, or the shop where you bought it.

Labeled diagram of a microwave oven with numbered parts for identification

- PRZEZNACZENIE

Before first use, please thoroughly read the entire manual.

It is recommended to keep this instructions manual for future reference.

1. Set the appliance on a flat, stable and high temperature resistant surface.
2. Always disconnect the appliance from the mains by pulling the plug, not the power cord.
3. Disconnect the appliance from the mains whenever it is not used or before cleaning it.
4. Do not immerse the cord or the appliance in water.
5. Do not hang the cord on sharp edges and do not let it touch hot surfaces.
6. Do not use in open air.
7. Do not use nearby inflammable materials such as furniture, bedding, paper, clothes, lace curtains, linings etc.
8. Do not leave children without care nearby the appliance parts of the appliance become hot when the appliance.
9. Is being used, you should hold the appliance only by the handgrip.
10. Be careful when taking out the sandwiches. Ready made sandwiches are hot and can burn.
11. Do not leave the appliance unattended when it is being used,
12. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
13. Pay attention to make sure that the appliance is not played with by children.
14. Do not carry or move the appliance when it is being used.
15. Do not cover the appliance when it is being used.

16. Do not put any products in metal foils into the appliance.

17. Do not grasp the appliance with wet hands.

18. The appliance is intended for household use only.
19. A very hot stream of steam may come out of the appliance when the cover is being opened do not use the appliance.
20. If the power cord has been damages or when the appliance has fallen down or was damaged in another way. The appliance should be repaired by an authorized service shop; see the annexe or visit the site www.eldom.eu for the list of authorized service shops.
21. The appliance may be repaired only by an authorized service outlet.
22. Modernizing the appliance or using other spare parts or components for the appliance with the genuine ones is forbidden and threatens the safety of use.
23. Eldom sp. z o. o. is not responsible for any potential damages caused by improper use of the appliance.

WARNING:

Improper use of the appliance may cause injury.

Do not obstruct the air inlet and outlet openings.

Ensure adequate space around the appliance.

WARNING: Plastic bag can be dangerous, to avoid danger of suffocation keep this bag away from babies and children.

This symbol is a warning against the high temperature of the appliance surface.

Special recommendations:

• Do not place the appliance on or near a hot gas or electric burner, a hot oven or microwave.
• Place the appliance on a flat, stable and heat-resistant surface. When handling the appliance, maintain at least 12 cm of space on all sides to ensure adequate air circulation.
• Take special care when using containers made of materials other than metal or glass.
• Do not place any of the following materials in the oven: cardboard, plastic, paper, etc.
• Take care when removing products. Finished products are hot and may burn.
• Always wear protective, insulated oven gloves when inserting or removing items from a hot appliance.
• A very hot stream of steam may escape when opening the door.
• This appliance has a tempered safety glass door. The glass is stronger than normal glass and more resistant to breakage. Avoid scratching the door surface or scraping the edges. If the glass of the door has scratches or is dinged, contact the nearest authorised service centre for inspection and repair before using the appliance again.

- WARRANTY

• This appliance is designed for domestic use only.
• It cannot be used for professional purposes or for other than the intended use.
• Improper use will nullify the guarantee.

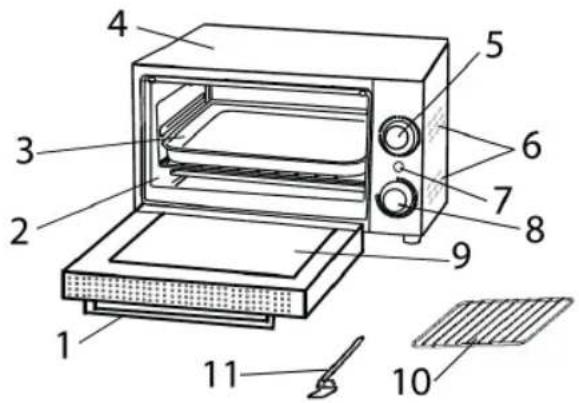

1. Door handle
2. Baking plate
3. Heating chamber
4. Body
5. Temperature control knob
6. Vents
7. Indicator light
8. Timer knob
9. Door
10. Grill
11. Universal holder

Labeled diagram of a microwave oven with numbered parts for identification

• TECHNICAL DATA:

• power: 1050 W
  – supply voltage: 220-240V \~ 50/60Hz
• capacity: 12 l
• temperature control: 100 - 230°C

- INTENDED USE

The PR120 oven is designed for grilling, roasting, baking and general cooking in heat-resistant vessels.

• SETTING UP THE APPLIANCE

- Make sure that the appliance, the plug and the power cord are in order and that all parts of the packaging have been removed before you start using the appliance.

Important: The appliance may give off a smell while being used for the first time. The smell is associated with the manufacturing procedure. It is a natural process which ceases to occur after a certain period of time. Ensure a suitable ventilation in the room, e.g. by opening a window. Use the toaster with any food products while using it for the first time.

• USE

Before using the appliance for the first time:

• Read the instruction manual.
• Make sure that the appliance is disconnected from the mains and that the knobs (5, 8) are turned all the way to the left, indicating that the appliance is switched off.
• Place the appliance on a flat, hard, stable, and heat-resistant surface, taking care to ensure that there is enough room around the appliance.
• Plug the appliance into the mains, in line with the parameters specified in the instruction manual.
• Set the operating parameters.

Temperature setting

- Use the knob (5) to set the temperature. The temperature can be set from low to 230^ C .

Time setting

• Set the operating time by turning the knob (8). To start the timer, turn the knob (8) to the right.
• A sound signal will be heard after the programmed time has elapsed.

NOTE. In order for the appliance to start operating, you need to set the temperature, the operating time and choose one of the functions.

• The indicator lamp (7) indicates that the appliance is switched on and is lit all the time.
• The lamp (7) does not go out after the oven has heated up.

Accessories

• grill (10) – used for grilling, roasting, baking and general cooking in heat-resistant vessels,
• plate (3) – used for baking various dishes containing water or releasing water or oil during cooking (e.g. meat, poultry, fish, etc.),
• universal holder (11) – facilitates inserting and removing the grill (10) and the plate (3) from the appliance.

• USE

- Place the products directly on the grill (10) or plate (3), place them in the heating chamber (2) and close the oven door (9).

NOTE. Do not use any paper or plastic containers. Products should be placed evenly on the grill (10) or plate (11).

• Set the temperature.
• The appliance will start once the time has been set using the knob (8).

NOTE. In order for the appliance to start operating, you need to set the temperature, the operating time and choose one of the functions.

- To check the baking progress during operation, turn the knob (8) to the "OFF" position and open the door (9) by pulling the handle (1).

NOTE. When the door (2) is opened, hot steam may escape from the interior.

• Use kitchen gloves and the holder (11) to remove the food.
• After the set time has elapsed, a sound signal will be heard and the appliance will switch off.
• When cooking is finished, turn the knob (5) to the "OFF" position and disconnect the appliance from the mains.

• TIPS

• A maximum of 2 kg can be placed on the grill (10) and the plate (3), but the products must not come into contact with the walls, the door or the heating elements.
  – Products must be distributed evenly.
• The baking time should be adapted to the size, type and initial temperature of the products.
• Consecutive portions of the same food can be cooked faster due to the warming up of the interior.

- STORAGE

• Turn the knobs (5, 8) to the left as far as possible before putting the product away, disconnect it from the power supply and let it cool down.
• Never put the appliance away when it is hot or still plugged in to the power supply.
  – Clean the appliance and all its components.
• Store the oven in the box (preferably the original one) in a clean and dry place.
• Do not wrap the cable around the appliance. Do not tighten the cable, as this may weaken or tear the cable.

• CLEANING AND MAINTENANCE

• Turn the knobs (5, 8) to the left as far as possible before cleaning the appliance, disconnect it from the power supply and let it cool down.
• Do not use sharp-edged or sharp objects to clean the appliance, as they may damage functional parts or compromise the safety of the unit.
• All moving parts should be washed with warm water and washing-up liquid. It is best to wash them directly after use. After rinsing with clean water, they must be dried immediately.
• Never immerse the body (4) in water or wash under running water. Clean the body (4) and the heating chamber (2) with a damp cloth.
• If it is difficult to wash the grill (10) or plate (3) they can be immersed in hot water with washing-up liquid and left for a few minutes.
