| Product type | Radio alarm clock |
| Brand | Techno Line |
| Model | WT 245 |
| Power supply | 2 AA 1.5 V batteries (not included) |
| Display | LCD with time, day, month, temperature, alarm icons |
| Radio-controlled reception | DCF77 (frequency 77.5 kHz) |
| Adjustable time zone | From -11 to +12 |
| Number of alarms | 4 independent alarms |
| Alarm snooze | 5 minutes |
| Alarm duration | 2 minutes if not interrupted |
| Indoor temperature range | -9.9 °C ~ 49.9 °C |
| Temperature unit | °C or °F (switchable) |
| Calendar | Up to 2099, with day of the week |
| Day of the week languages | DE, EN, FR, ES, IT, NL |
| Time format | 12/24 hours |
| Dimensions (approx.) | Not specified, standard radio alarm clock size |
| Weight (approx.) | Approximately 200 g (with batteries) |
| Intended use | Indoor only |
| Care and cleaning | Wipe with a dry cloth; do not immerse in water |
| Precautions | Avoid shocks, direct sunlight, extreme temperatures, humidity, dust |
| Recycling | Do not dispose of with household waste; take to a collection point |
| Used batteries | Do not dispose of with household waste; return to retailer or collection point |
Frequently Asked Questions - WT 245 Techno Line
User questions about WT 245 Techno Line
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Alarm clock radio in PDF format for free! Find your manual WT 245 - Techno Line and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. WT 245 by Techno Line.
USER MANUAL WT 245 Techno Line
B9 – ALARM SET Taste
Funktionen:

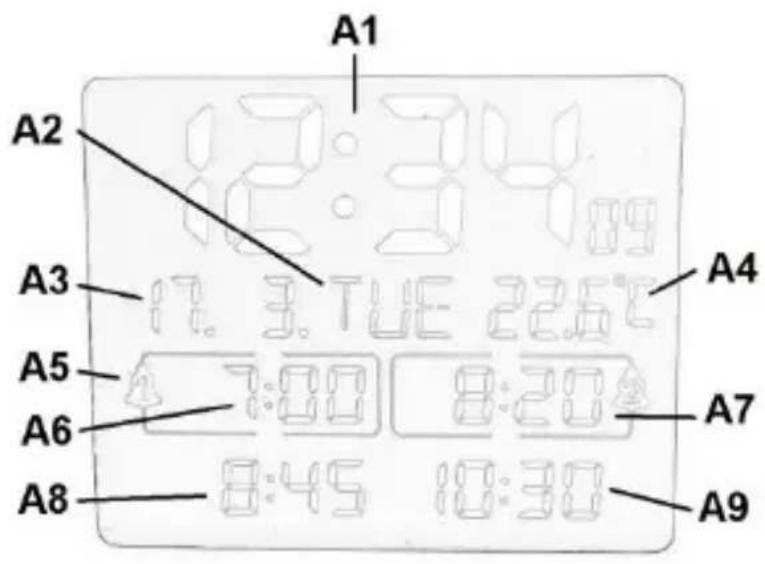

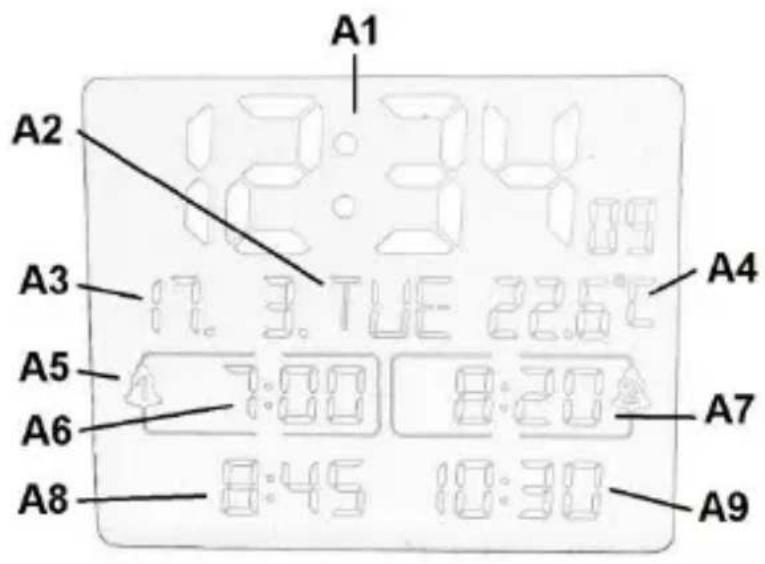

A4 – Indoor temperature
A5 – Alarm bell icon
A6 – Alarm time of alarm 1
A7 – Alarm time of alarm 2
A8 – Alarm time of alarm 3
A9– Alarm time of alarm 4

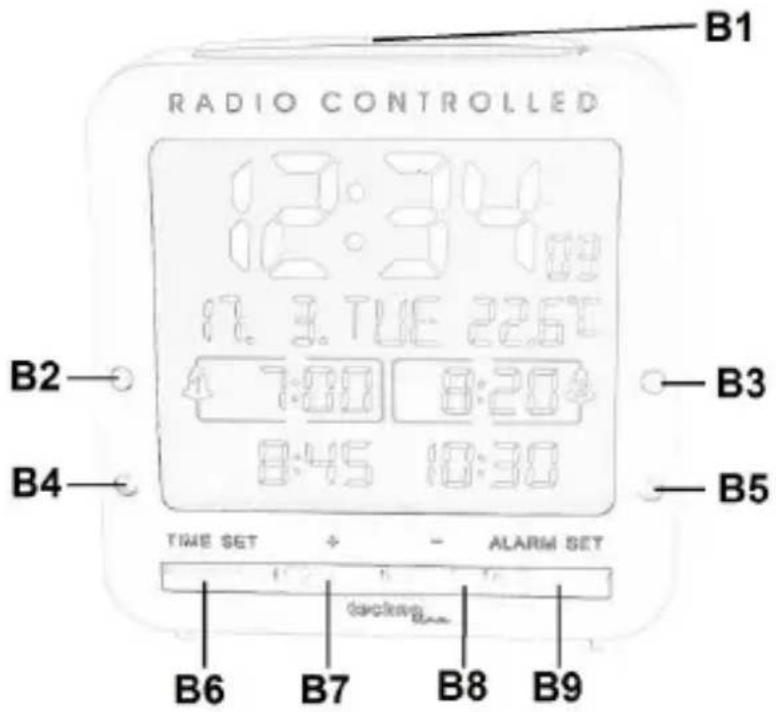

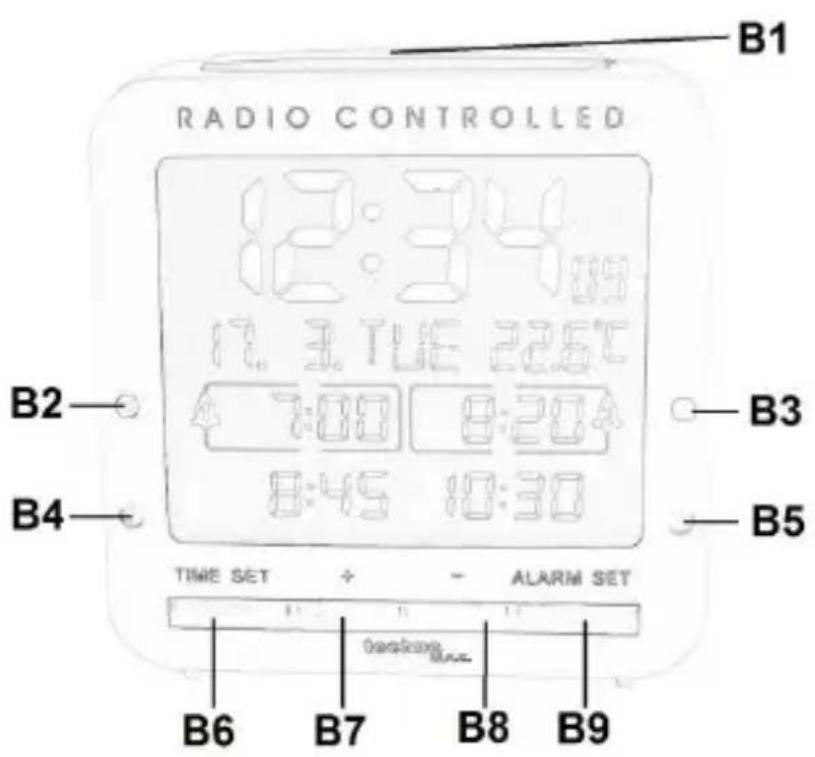

B - Case
B1 - SNOOZE / LIGHT button
B2 – ALARM-1 switch and indicator
B3 – ALARM-2 switch and indicator
B4 – ALARM-3 switch and indicator
B5 – ALARM-4 switch and indicator
B6 - TIME SET button
B7 - + (plus) button
B8 -- (minus) button
B9- ALARM SET button
Functions:
• Radio controlled time via DCF77 frequency
• Time in 12/24 hour format
- Manual time setting
• Calendar up to year 2099
• Date and weekday display
• Temperature alternatively in °C or °F
- Snooze function (5 minutes)
- Thermometer: Indoor measurement ranges: -9.9°C \~ 49.9°C
• Power requirements: 2 x 1.5V "AA" size batteries (not included)
Initial operation
- Open the cover from the clocks battery compartment.
- Insert 2 x AA batteries into the battery compartment while observing polarity (“+” and “−” marks).
- Close the cover on the battery compartment again.
- When you insert the batteries, all segments of the LCD display will light up for 3 seconds, you will hear a beep tone and the clock starts to measure the indoor temperature.
- Then the clock will enter the radio controlled time signal reception mode.
Reception of the DCF-77 signal
- The clock automatically starts the DCF-77 signal search after any restart or changing of new fresh batteries. The radio mast icon starts to flash.
- At 2:00 AM, the clock automatically carries out the synchronization procedure with the DCF
signal to correct any deviations to the exact time. If this synchronization attempt is unsuccessful (the radio mast icon disappears from the display), the system will automatically attempt synchronization at the next full hour. This procedure is repeated automatically up to total 5 times.
- To start manual DCF-77 signal reception, press and hold down the “-” button for 3 seconds. If no signals received within 7 minutes, then the DCF-77 signal search stops (the radio mast icon disappears) and start again at the next full one hour.
Notes:
- A flashing radio mast icon indicates that the DCF-77 signal reception has started
- A continuously displayed radio mast icon indicates that the DCF-77 signal was received successfully
- We recommend a minimum distance of 2.5 meters to all sources of interference, such as televisions or computer monitors
- Radio reception is weaker in rooms with concrete walls (e.g.: in cellars) and in offices. In such extreme circumstances, place the system close to the window.
- During the time signal reception mode, press the "SNOOZE/LIGHT" button to stop time signal reception mode
Manual time setting:
- Press the “TIME SET” button to enter time setting mode and “dcf ON” blinks on the display. Press the “+” or “-” button to set DCF reception off with OFF or set DCF on with ON.
-
Press the “TIME SET” button to confirm your setting and “TZ 0” blinks on the display. Press the “+” or “-” button to set a time zone difference from -11 to +12. For example, set 0 for Germany or -1 for the UK.
-
Press the “TIME SET” button to confirm your setting and the hour of the current time blinks on the display. Press the “+” or “-” button to set the hour.
- Press the “TIME SET” button to confirm your setting and the minutes of the current time blinks on the display. Press the “+” or “-” button to set the minute.
- Press the “TIME SET” button to confirm your setting and the seconds of the current time blinks on the display. Press the “+” or “-” button to set the seconds to 00.
- Press the “TIME SET” button to confirm your setting, Yr is displayed and the currently set year blinks on the display. Press the “+” or “-” button to set the year.
- Press the “TIME SET” button to confirm your setting and the month blinks on the display. Press the “+” or “-” button to set the month.
- Press the “TIME SET” button to confirm your setting and the date blinks on the display. Press the “+” or “-” button to set the date.
- Press the “TIME SET” button to confirm your setting, the temperature is displayed and “C” blinks on the display. Press the “+” or “-” button to change between temperature display in °C or °F.
- Press the “TIME SET” button to confirm your setting, “D” blinks on the display. Press the “+” or “-” button to set one of the following weekday languages: D (German), EN (English), FR (French), ES (Spanish), IT (Italian) or NL (Dutch)
- Press the “TIME SET” button to confirm and end your setting. The clock goes back to normal time display.
Notes:
- After 30 seconds without pressing any button, the clock switches automatically from time setting mode to normal time display.
- Press and hold the “+” or “-” button to accelerate the setting process.
Alarm time setting:
- Press the “ALARM SET” button to enter alarm setting mode and the alarm time of ALARM-1 blinks on the display. Press the “+” or “-” button to set the alarm time of ALARM-1.
- Press the “ALARM SET” button to confirm your setting and the alarm time of ALARM-2 blinks on the display. Press the “+” or “-” button to set the alarm time of ALARM-2.
- Press the “ALARM SET” button to confirm your setting and the alarm time of ALARM-3 blinks on the display. Press the “+” or “-” button to set the alarm time of ALARM-3.
- Press the “ALARM SET” button to confirm your setting and the alarm time of ALARM-4 blinks on the display. Press the “+” or “-” button to set the alarm time of ALARM-4.
- Press the “ALARM SET” button to confirm and end your setting. The clock goes back to normal time display.
Notes:
- After 30 seconds without pressing any button, the clock switches automatically from alarm setting mode to normal time display.
- Press and hold the “+” or “-” button to accelerate the setting process.
Alarm setting switches:
- On the side of the clock there are 4 ALARM ON/OFF-switches for ALARM-1, ALARM-2, ALARM-3 and ALARM-4.
- Slide an “ALARM ON/OFF” switch to the ON position and the corresponding alarm will be activated. As long as the alarm is activated, the corresponding alarm bell symbol with the
number of the alarm will be displayed with the alarm time.
- Slide the same “ALARM ON/OFF” switch to the OFF position, the corresponding alarm is deactivated and the alarm bell symbol is no longer displayed.
Notes:
- Any combination of alarms can be set on or off at the same time.
- The alarm tone will sound, when the time of the clock reaches an activated alarm time.
- When the alarm sound is active, press any button except the "SNOOZE/LIGHT" button to end the alarm. The alarm will automatically sound again on the next day.
- Slide the "ALARM ON/OFF" switch to OFF to end and deactivate the alarm. The alarm will not sound again.
- The alarm tone will automatically stop after 2 minutes if no button is pressed.
Snooze function:
- Press the “SNOOZE/LIGHT” button during the active alarm tone to silence the alarm and enter snooze mode. The “Zz” icon flashes on the display during snooze mode and the alarm will sound again after 5 minutes.
- Press any buttons to stop the alarm and or slide the “ALARM ON/OFF” switch to OFF to stop and deactivate the alarm.
Temperature display:
- The indoor temperature is displayed either in ^ or ^ .
Hereby, Technotrade declares that this product WT 245 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and ROHS 2011/65/EC. The original EU declaration of conformity may be found at: www.technoline.de/doc/4029665002453
Environmental reception effects
The clock obtains the accurate time with wireless technology. Same as all wireless devices, the reception is maybe affected by the following circumstances:
- long transmitting distance
• nearby mountains and valleys - near freeway, railway, airports, high voltage cable etc.
- near construction site
- among tall buildings
• inside concrete buildings
• near electrical appliances (computers, TV's, etc) and metallic structures
• inside moving vehicles
Place the clock at a location with optimal signal, i.e. close to a window and away from metal surfaces or electrical appliances.
Precautions
- This main unit is intended to be used only indoors.
- Do not subject the unit to excessive force or shock.
- Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity.
- Do not immerse in water.
- Avoid contact with any corrosive materials.
- Do not dispose this unit in a fire as it may explode.
- Do not open the inner back case or tamper with any components of this unit.
Batteries safety warnings
- Use only alkaline batteries, not rechargeable batteries.
• Install batteries correctly by matching the polarities (+/-).
• Always replace a complete set of batteries.
- Never mix used and new batteries.
- Remove exhausted batteries immediately.
- Remove batteries when not in use.
- Do not recharge and do not dispose of batteries in fire as the batteries may explode.
- Ensure batteries are stored away from metal objects as contact may cause a short circuit.
- Avoid exposing batteries to extreme temperature or humidity or direct sunlight.
- Keep all batteries out of reach from children. They are a choking hazard.
Use the product only for its intended purpose!
Consideration of duty according to the battery law
Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your dealer and collection points. As end-user you are committed by law to
bring back needed batteries to distributors and other collecting points!
Consideration of duty according to the law of electrical devices
This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This applies to all countries of the European Union, and to other European countries with a separate
waste collection system.
