Product type	Radio alarm clock
Brand	Techno Line
Model	WT 235
Power supply	2 AAA 1.5 V batteries (not included)
Time reception	Radio-controlled via DCF signal (77.5 kHz)
Time display	12 or 24 hours
Calendar	Continuous until 2099, with day of week and date
Alarm	1 daily alarm with 5-minute snooze and progressive volume (crescendo)
Indoor thermometer	Range: -9.9 °C to 49.9 °C, display in °C or °F
Manual setting	Time, time zone, date, month, year, language
Display languages	German, English, etc. (selectable)
DCF reception	Automatic every hour (max 5 attempts), manual search possible
Housing material	ABS plastic
Approximate dimensions	110 x 60 x 40 mm (estimate)
Approximate weight	150 g (estimate)
Care and cleaning	Wipe with a soft, dry cloth. Do not use solvents or abrasive cleaners.
Safety	Do not open the casing. Avoid water, shocks, extreme temperatures. Keep out of reach of children (choking hazard from batteries).
Batteries	Use only alkaline batteries, observe polarity, do not mix new and used batteries, remove if not used for extended period.
Repairability	No user-serviceable parts. Contact customer service in case of defect.
Recycling instructions	Appliance and batteries must not be disposed of with household waste. Dispose at a recycling center or collection point.

Frequently Asked Questions - WT 235 Techno Line

How to set the time manually on the WT 235?

Press and hold the time button for 2 seconds. The time zone flashes: use + or - to set it (0 for Germany, -1 for UK). Press time to confirm. The hours flash: set with +/-, confirm. Then set minutes, year, month, date and language in the same way. After confirming the language, the setting ends.

How to set the daily alarm?

Press and hold the alarm button for 2 seconds. The alarm icon flashes. Use +/- to choose the alarm hour, then press time to confirm. The hours flash: set with +/-, confirm. Then the minutes: set and confirm. The procedure ends automatically. To activate/deactivate the alarm, briefly press time in clock mode: the icon appears or disappears.

How to use the snooze function?

When the alarm sounds, press the z=0/z^2 button (snooze button). The Z^ symbol appears and the alarm is delayed by 5 minutes. You can turn off the snooze by pressing any other button.

How to switch between °C and °F display?

Briefly press the - button to toggle between °C and °F.

What to do if the clock does not receive the DCF signal?

Make sure the clock is placed at least 2.5 m away from interference sources (TVs, monitors) and preferably near a window. Avoid concrete walls and basements. You can start a manual search by holding the - button for 2 seconds. The search takes 7 minutes. If it fails, try again at the next full hour. You can also set the time manually (see manual setting question).

What type of batteries to use and how to install them?

Use two AAA (LR03) 1.5 V batteries, preferably alkaline. Insert them respecting the polarities (+/-) indicated in the compartment. Do not use rechargeable batteries. Replace both batteries at the same time and remove used batteries quickly.

How to change the time format from 12h to 24h?

In normal clock mode, briefly press the + button to switch between 12 and 24 hour formats.

What to do if the display is abnormal or unresponsive?

Remove the batteries, wait a few seconds, then reinsert them. All icons light up and the clock starts DCF reception. If the problem persists, contact customer service.

What is the measured indoor temperature range?

The thermometer measures temperature from -9.9 °C to 49.9 °C. The display can be in °C or °F.

How to maintain the WT 235 radio alarm clock?

Clean the device with a soft, dry cloth. Do not use solvents, detergents or damp cloths. Avoid exposure to water, dust, extreme temperatures and shocks. Remove the batteries if not using for an extended period.

USER MANUAL WT 235 Techno Line

(GER, FRA, ITA, NET, ESP, DAN, ENG)

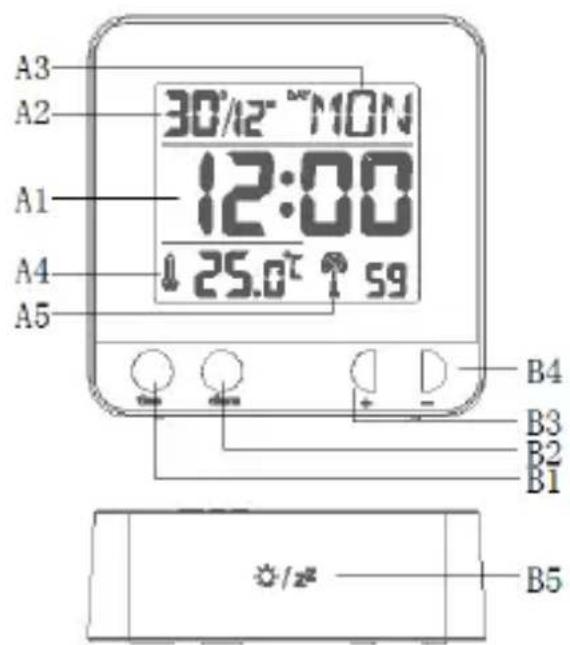

Production Appearance

Part A-LCD

1: Time
2: Date
3:Week
4: Temperature

Part B-Button

1:"time" button
2:"alarm" button
3:"+" button
4:"-button

EN 1

5: DCF symbol

Technical data:

Radio controlled Clock via - DCF frequency
Time in 12/24 hour format
Manual time setting
Continuous calendar up to year 2099
Date and weekday display
Temperature alternatively in ^ C or ^
Automatic snooze function (5 minutes)
Thermometer: Indoor measurement ranges: -9.9^ 49.9^
Battery: battery 1.5V "AAA" size x 2 pcs (not included)

Important information:

• When you insert the batteries all the symbols on the display will briefly light up, LCD full display for 2 seconds with beeping, then enter DCF reception seven minute.

EN 2

Manual time setting:

Press and hold down the "time" button for 2 seconds, the time zone starts to flash. Now use "+" and "-" buttons to set the time zone. (0 for Germany, -1 for UK)
Press "time" to confirm your setting, the hour display starts to flash. Now use "+" and "-" buttons to set the hour.
Press "time" to confirm your setting, the minute displays starts to flash. Now use "+" and "-" buttons to set the minute.
Press "time" to confirm your setting, the year display 2011 starts to flash. Now use "+" and "-" buttons to set the year.
Press "time" to confirm your setting, the month display starts to flash. Now use "+" and "-" buttons to set the month.
Press "time" to confirm your setting, the date display starts to flash. Now use "+" and "-" buttons to set the date.
Press "time" to confirm your setting, the language display starts to flash. Now use "+" and "-" buttons to set the language.

EN 3

Press "time" to confirm your setting and to end the setting procedures, enter the clock mode.
In the clock mode, press the "+" button to switch between 12/24 hour mode.

Please note:

• After 30 seconds without pressing any button, the clock switches automatically from Set Mode to Normal Time Mode.

Setting the daily alarms:

This clock has 1 daily alarm. To activate or deactivate the daily alarms, press the "time" button

once LCD will display the " " icon, when the alarm is activated.

• Press and hold down the "alarm" button for 2 seconds until alarm time flashing icon is displayed. Now use the "+" and "-" buttons to select the alarm time you require and briefly press the "time" button to set this Alarm time.
  The Hour display of the Alarm time starts to flash. Use the "+" and "-" buttons to set the hour. Press "time" button to confirm your setting
  The Minute display of the Alarm time starts to flash. Use the "+" and "-" buttons to set the minute.

EN 4

Press "time" button to confirm your setting and to end the setting procedure.

Please note:

After 30 seconds without pressing any button the clock switches automatically from setting mode to Normal clock mode.
The alarm will sound for 2 minutes if you do not deactivate it by pressing any button. In this case the alarm will be repeated automatically after 24 hours.
Rising alarm sound (crescendo, duration: 2 minutes) changes the volume 4 times whilst the alarm signal is heard.

Automatic Snooze function:

Proceed as follows to activate the automatic Snooze function: While the alarm is sounding, Touch the “ / z^Z ” to activate snooze function. When Snooze function is active the “ z^Z ” icon appears on the display.
This operation moves the alarm back by 5 minutes and the alarm will restart at this time.
The Snooze function can be interrupted by pressing any button.

EN 5

^ / ^ temperature display:

The temperature is displayed either in ^ C or ^ F . Briefly pressing the “-” button allows you to switch between the individual models.

Reception of the Radio signal:

The clock automatically starts the DCF signal search on the batteries are changed. The radio mast symbol starts to flash.
At 1:00am the Radio Controlled clock automatically carries out a synchronization procedure with the DCF signal to correct any deviations to the exact time. If this synchronization attempt is unsuccessful (The radio mast symbol disappears from the display), the system will automatically attempt another synchronization at the next full hour. This procedure is repeated automatically up to 5 times.
To start manual DCF signal reception, press and hold the “-” button, If no signal is received within seven minutes, then the DCF signal search stops (the radio mast symbol disappears) and starts again the next full hour.

Please note:

In the process of receiving the RCC, except the “ / ^ ” key, any buttons are not functional, until press and hold down the “-” button for 2 seconds, to exit the RCC receiver function.
- If the clock cannot receive the DCF signal (because the distance is too great to receive a signal from the transmitter in Colorado), you have the option of setting the time manually as mentioned above. As soon as the reception of the DCF signal is possible, then the clock is readjusted automatically.
We recommend a minimum distance of 2.5 meters (8.2 Feet) to all sources of interference, such as televisions or computer monitors, Radio reception is weaker in rooms with concrete walls and in offices. In such extreme circumstances, place the system close to the window.

Hereby, Technotrade declares that this product WT235 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and ROHS 2011/65/EC. The original EU declaration of conformity may be found at: www.technoline.de/doc/4029665002354

EN7

Environmental reception effects

The clock obtains the accurate time with wireless technology. Same as all wireless devices, the reception is maybe affected by the following circumstances:

• long transmitting distance
• nearby mountains and valleys
• near freeway, railway, airports, high voltage cable etc.
• near construction site
  among tall buildings
• inside concrete buildings
• near electrical appliances (computers, TV's, etc) and metallic structures
• inside moving vehicles

Place the clock at a location with optimal signal, i.e. close to a window and away from metal surfaces or electrical appliances.

Precautions

• This main unit is intended to be used only indoors.
• Do not subject the unit to excessive force or shock.

EN 8

• Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity.
• Do not immerse in water.
• Avoid contact with any corrosive materials.
• Do not dispose this unit in a fire as it may explode.
• Do not open the inner back case or tamper with any components of this unit.

Batteries safety warnings

• Use only alkaline batteries, not rechargeable batteries.
  Install batteries correctly by matching the polarities (+ / - )
• Always replace a complete set of batteries.
• Never mix used and new batteries.
• Remove exhausted batteries immediately.
• Remove batteries when not in use.
• Do not recharge and do not dispose of batteries in fire as the batteries may explode.
• Ensure batteries are stored away from metal objects as contact may cause a short circuit.
• Avoid exposing batteries to extreme temperature or humidity or direct sunlight.
• Keep all batteries out of reach from children. They are a choking hazard.

Use the product only for its intended purpose!

EN 9

Consideration of duty according to the battery law

Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your dealer and collection points. As end-user you are committed by law to

bring back needed batteries to distributors and other collecting points!

Consideration of duty according to the law of electrical devices

This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This applies to all countries of the European Union, and to other European countries with a separate

waste collection system.

WT 235

1: Toets "time"
2: Toets "alarm"

NL1

3:Week

3: “+”toets

4: Temperatuur

4:"toets

5: DCF-symbol
