Product type	TENS/EMS/Massage stimulator
Brand	TensCare
Model	Sports TENS 2
Dimensions	114 x 56 x 23 mm
Weight	90 g (with belt clip)
Power supply	Li-ion battery 900 mAh, 3.7 V rechargeable via 5 V / 1 A adapter
Battery life	Approximately 15 hours at 50 mA, 300 μs, 50 Hz
Charging time	Approximately 2 hours
Channels	Independent dual channel (Ch1 and Ch2)
Programs	10 preset TENS + 2 manual TENS; 27 preset EMS (9 × 3 modes) + 6 manual EMS; 10 Massage
Modes	TENS, EMS I/II/III, Massage
Frequency range	2 – 150 Hz (TENS); 1 – 120 Hz (EMS)
Pulse width	20 – 350 μs
Intensity	0 – 99 mA per channel
Waveform	Symmetrical rectangular biphasic
Electrical safety	Type BF, internal power supply
Protection rating	IP22
Operating conditions	5 °C to 40 °C, 15 – 90% RH non-condensing
Storage conditions	-10 °C to 60 °C, 15 – 75% RH non-condensing
Cleaning	Damp cloth and mild soap; do not immerse
Warranty	2 years (device only)
Included accessories	2 lead wires, 4 electrodes 50×50 mm, charger adapter, belt clip, storage pouch
Repairability	No user-serviceable parts; replace electrodes and lead wires regularly
Intended use	Home: improve muscle tone, relieve localized pain, rehabilitation
Contraindications	Pacemaker, pregnancy (1st trimester), active cancer, epilepsy, bleeding disorders

Frequently Asked Questions - Sports TENS 2 TensCare

What is the purpose of the Sports TENS 2?

The Sports TENS 2 combines TENS (pain relief), EMS (muscle stimulation) and Massage functions. It is designed to improve muscle tone, relieve acute or chronic localized pain, aid rehabilitation and promote muscle relaxation.

Can I use this device if I have a pacemaker?

No, use is contraindicated for people with pacemakers or any other electronic medical device. The electrical current could interfere with the implanted device's operation and cause serious risks.

How to choose the right program for pain relief?

For acute pain, choose high-frequency TENS programs (80-150 Hz) such as programs 1, 2 or 10. For chronic pain, low-frequency programs (2-10 Hz) like program 3 are recommended to release endorphins. Programs 4 to 9 combine both mechanisms. It is advisable to try several programs and electrode positions.

What is the difference between TENS and EMS modes?

TENS (transcutaneous electrical nerve stimulation) mode acts on nerves to block pain signals and release endorphins. EMS (electrical muscle stimulation) mode causes muscle contractions to tone, strengthen or rehabilitate muscles. The Sports TENS 2 also offers a Massage mode for relaxation.

How to clean the device and electrodes?

Clean the unit and wires with a damp cloth and a solution of water and mild soap. Never immerse the device in water. Electrodes should be placed back on their plastic liner after use and stored in the resealable bag. Replace electrodes when they no longer stick.

How long does a typical session last?

The duration depends on the program. For TENS programs, use can be continuous (several hours) but it is recommended to reposition electrodes every 12 hours. EMS programs typically last between 20 and 60 minutes. Massage programs last 30 minutes on average. The adjustable timer ranges from 1 to 90 minutes or continuous mode (C).

Can I use the device on my face?

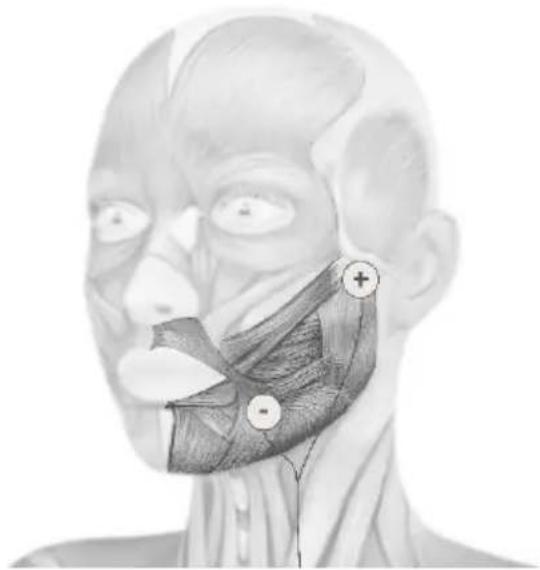

Yes, using EMS I mode (small muscles) with special facial electrodes (optional). Adjust intensity carefully and never exceed 40 mA. Keep a distance of at least 3 cm between electrode and eye. Facial toning programs are possible but require regular use (5 days/week for 12 weeks).

What to do if the screen shows nothing?

First check that the battery is charged. Plug the device into the supplied charger: the word BATT should appear. If after charging the screen remains off, the battery may be defective; contact customer service. Do not attempt to repair the device yourself.

Are the electrodes reusable?

Yes, the supplied electrodes are reusable but have a limited lifespan (12 to 20 applications depending on conditions). They are hydrogel and latex-free. Place them back on their plastic liner after each use to maintain adhesion. Replace them as soon as they no longer stick or the stimulation quality decreases.

What is the warranty for the Sports TENS 2?

The device has a 2-year warranty against manufacturing defects from the date of purchase. The warranty does not cover electrodes, lead wires, power adapter, or damage due to misuse. Keep your proof of purchase and warranty card for any returns.

USER MANUAL Sports TENS 2 TensCare

Illustration of a mobile phone connected to four labeled pins (no text or symbols on the device)

Thank you for choosing Sports TENS 2. TensCare stands for high-quality, thoroughly tested products for the applications in the areas of gentle electrotherapy, muscle toning, continence management and pain relief during labour.

Please read these instructions for use carefully and keep them for later use, be sure to make them accessible to other users and observe the information they contain.

Best regards,

Your TensCare Team

CONTENTS

1. INTRODUCTION....6
2. INTENDED USE 6
3. CONTRAINDICATIONS, WARNINGS & CAUTIONS 6
4. INFORMATION ABOUT THE PROGRAMME SETTINGS....8
5. TENS PROGRAMMES 10

5.1. TENS PROGRAMMES SETTINGS 10
5.2. PRESET PROGRAMMES....11
5.3. MANUAL PROGRAMMES 11
5.4. PROGRAMME USAGE 11

1. EMS PROGRAMMES 12

6.1. EMS PROGRAMMES SETTINGS.... 12
6.2. PRESET PROGRAMMES....13
6.3. MANUAL PROGRAMMES 13
6.4. PROGRAMME USAGE 14

1. MASSAGE PROGRAMMES 15

7.1. MASSAGE PROGRAMMES SETTINGS.... 15
7.2. PROGRAMME USAGE 17

1. MANUAL PROGRAMMES....17
2. ELECTRODE PADS 18

9.1. TENS ELECTRODE PLACEMENT.... 18
9.2. EMS ELECTRODE PLACEMENT 19
9.3. MASSAGE ELECTRODE PLACEMENT.... 23
9.4. PAD ADVICE....23

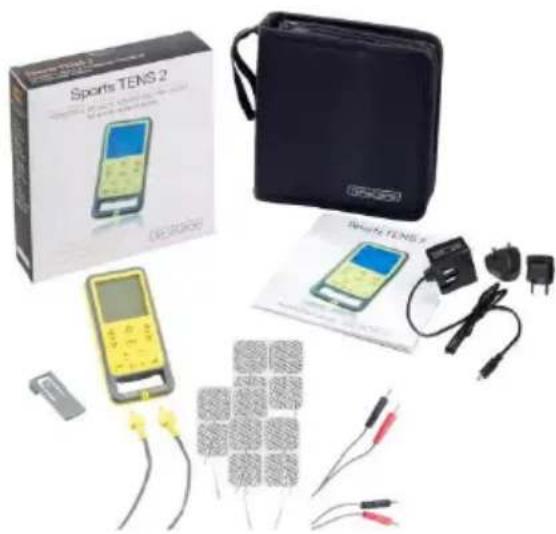

1. CONTENT....24
2. UNIT INFORMATION.... 25

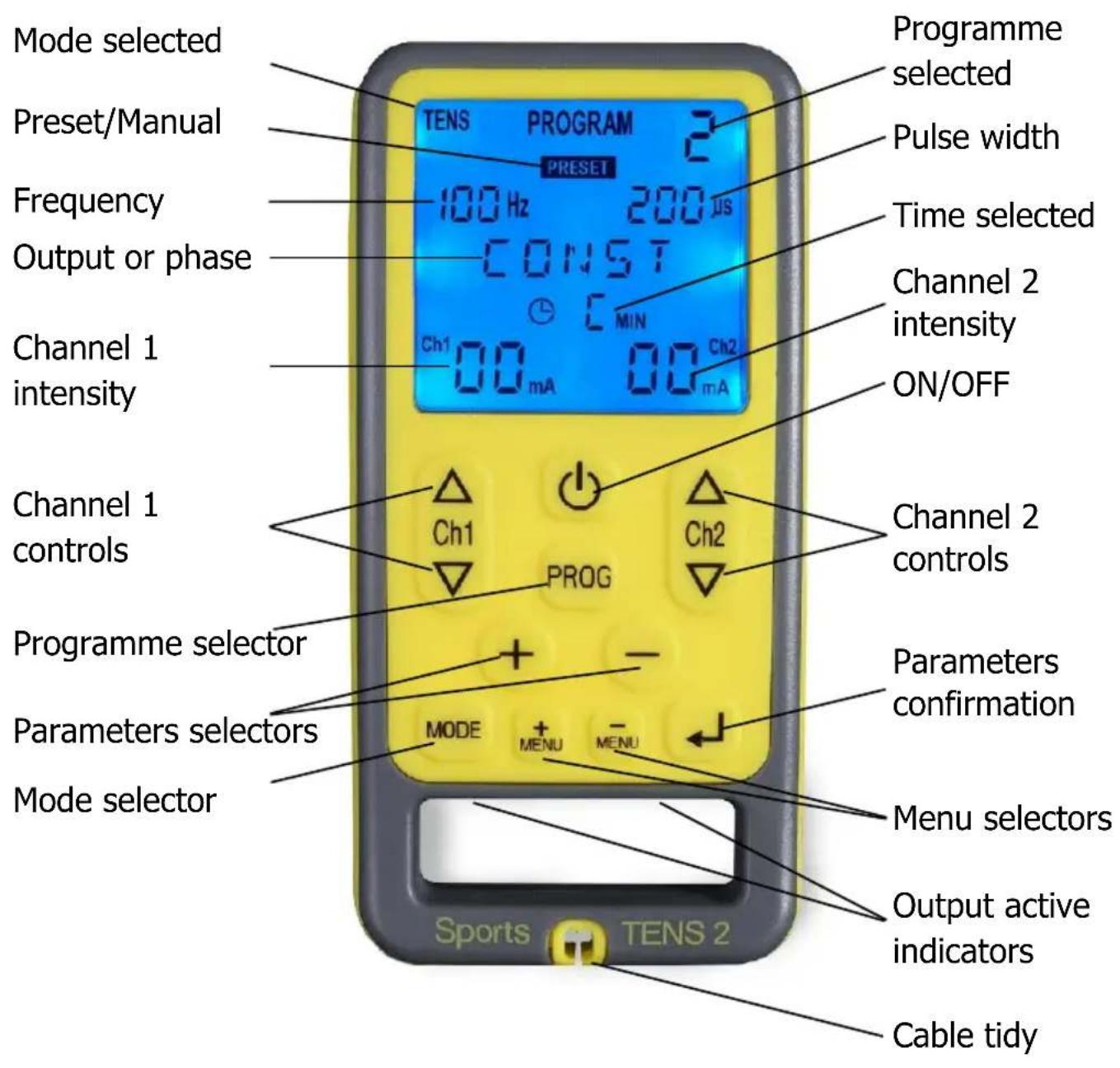

11.1. CONTROLS & DISPLAY 25
11.2. OPERATING INSTRUCTIONS.... 26

1. SETTING UP AND USING SPORTS TENS 2 28

12.1. CHARGING THE BATTERY.... 28
12.2. CONNECTING LEAD WIRES.... 29
12.3. PREPARING FOR SESSION 30
12.4. TRAINING SESSION 30
12.5. AFTER YOUR TRAINING SESSION.... 30

1. CLEANING & STORAGE 30
2. EMC 31
3. DISPOSAL OF WASTE ELECTRICAL AND ELECTRONIC PRODUCTS (WEEE).... 31
4. ACCESSORIES 31
5. WARRANTY.... 32
6. TROUBLESHOOTING 33
7. GENERAL SPECIFICATION.... 34

SYMBOLS USED

TYPE BF APPLIED PART: Equipment providing a degree of protection against electric shock, with isolated applied part. Indicates that this device has conductive contact with the end user.

This symbol on the unit means "Refer to instructions for use".

Temperature Limitation: indicates the temperature limits to which the medical device can be safely exposed.

Lot Number: indicates the manufacturer's batch code so that the batch or lot can be identified.

Humidity Limitation: indicates the humidity limits to which the medical device can be safely exposed.

Serial Number: indicates the manufacturer's serial number so that a specific medical device can be identified.

Do not dispose in household waste.

REF	Catalogue Number: indicates the manufacturer's catalogue number so that the device can be identified.
	Atmospheric Pressure: indicates the atmospheric limits to which the medical device can be safely exposed.
	Manufacturer Symbol
	Date of Manufacture: indicates the date which the medical device was manufactured. This is included within the serial number found on the device (usually on the back of the device), either as “E/Year/Number” (YY/123456) or “E/Month/Year/Number” (MM/YY/123456).
	CE Mark
	Medical Device
	This medical device is indicated for home use.
	Importer Symbol
	This medical device is not water resistant and should be protected from liquids.The first number 2: Protected against access to hazardous parts with a finger, and the jointed test finger of 12 mm ø, 80 mm length, shall have adequate clearance from hazardous parts, and protected against solid foreign objects of 12.5 mm ø and greater.The second number 2: Protected against vertically falling water drops when enclosure is tilted up to 15°. Vertically falling drops shall have no harmful effects when the enclosure is tilted at any angle up to 15° on either side of the vertical.
	Notes are used to provide clarification or recommendation.
	A Warning is used when failure to follow the instructions may result in serious injury or. death
	A Caution is used when failure to follow the instructions may result in a minor or moderate injury, or damage to the device or other property.
	A Contraindication is used when a device should not be used because the risk of use clearly outweighs any foreseeable benefits and may result in serious injury or death.

1. INTRODUCTION

Device Description & Principles of Design

The Sports TENS 2 combines the treatment capabilities of a TENS device, an EMS or NMES device, and a relaxing massage stimulator in one unit.

It sends a small and gentle stimulation (similar to your natural nerve impulses) to the muscles being treated via two or four auto-adhesive electrode pads, in order to help you to firm and tone your body.

Rehabilitation: neuromuscular facilitation, muscle re-education, muscle training, prevention/slowing of atrophy/hypotrophy. EMS has been shown to improve blood flow and circulation.

Sports training: improve muscle strength and performance; warm up, strength, speed, power, resistance, endurance and recovery.

Muscle relaxation: loosening up of muscular tension, improving muscular fatigue symptoms and reduced fatigue and muscle tension.

2. INTENDED USE

Sports TENS 2 is a medical device designed to be used in the home healthcare environment to improve muscle tone and bulk, as well as provide symptomatic relief and management of acute or chronic localised pain and muscle pain. It is suitable for use by all who can control the device and understand the instructions.

Do not use the device for any purpose other than this intended use.

Warning: Not suitable for use in children without medical supervision.

3. CONTRAINDICATIONS, WARNINGS & CAUTIONS

CONTRAINDICATIONS:

Do NOT use if you have a pacemaker (or if you have a heart rhythm problem) or with any electronic medical devices. Using this unit with electronic medical devices may cause erroneous operation of the device. Stimulation in the direct vicinity of an implanted device may affect some models.

Do NOT use during the first three months of pregnancy. It is not known whether TENS and EMS may affect foetal development.

Do NOT use on the abdomen in the later stages of pregnancy. Stop using immediately if you experience unexpected contractions.

WARNINGS:

Do NOT use when driving, operating machinery, or similar actions needing muscular control. Loose electrode pads, damaged leads, or sudden changes in contact may cause brief involuntary muscle movements.

Do NOT use to mask or relieve undiagnosed pain. This may delay diagnosis of a progressive condition.

Do NOT use if you have, in the area being treated: active or suspected cancer or undiagnosed pain with a history of cancer. Stimulation directly through a confirmed or suspected malignancy should be avoided as it may stimulate growth and promote spread of cancer cells.

Do NOT use simultaneously with high frequency hospital diagnostic/therapeutic

equipment. Doing so may result in burns at the site of the electrodes and possible damage to device.

Do NOT use electrodes on the front of the neck. Stimulation on the front of the neck can affect your heart rate or cause contraction of the throat.

Do NOT use electrodes across the chest. Very strong stimulation across the chest may cause an extra heartbeat and/or rhythm disturbances to your heart, which could be lethal.

Do NOT use in close proximity (e.g. 1 m) to a shortwave or microwave as this may produce instability in the stimulator output.

Do NOT apply near the thorax because the introduction of electrical current may increase the risk of cardiac fibrillation.

Stimulation should not be applied across or through the head, directly on the eyes, covering the mouth, on the front of the neck (especially the carotid sinus), or from electrodes placed on the upper back or crossing over the heart.

CAUTIONS:

Caution should be used if you have a bleeding disorder as stimulation may increase blood flow to the stimulated region.

Caution should be used if you have suspected or diagnosed epilepsy as electrical stimulation may affect seizure threshold.

Caution should be observed when using the device at the same time as being connected to monitoring equipment with body worn electrode pads. It may interfere with the signals being monitored.

Caution should be used following recent surgical procedures. Stimulation may disrupt the healing process.

Caution Do not permit use by children unable to understand the instructions or persons with cognitive disabilities, i.e.; Alzheimer's disease or dementia.

Caution Keep away from children under 5 years of age, pets and pests. Long lead wires and charging cable - risk of strangulation in infants.

Caution should be observed when using the Sports TENS at high strength settings. Sports TENS has a Yellow LED light on output socket which means the output will exceed 10 mA (R.M.S) or 10 V (R.M.S) averaged over any period of 1 sec. Prolonged use at high settings may cause muscle injury or tissue inflammation.

Caution Not intended for use in an oxygen rich environment.

Caution Not intended for use in conjunction with flammable anaesthetics or flammable agents.

Caution The patient is an intended operator.

Caution Do not service and maintain the device while in use with a patient

Caution Maintenance and all repairs should only be carried out by an authorized agency. The manufacturer will not be held responsible for the results of maintenance or repairs by unauthorized persons.

If necessary, we will provide circuit diagrams, component part lists or other information that will assist authorized service personnel to repair the device.

DO NOT PLACE ELECTRODE PADS:

- On skin, which does not have normal sensation. If the skin is numb too great a

strength may be used, which could result in skin inflammation.

• On broken skin. The electrode pads could encourage infection.
• On the front of the neck. This could cause the airway to close, giving breathing problems. May cause sudden drop in blood pressure (vasovagal response).
  • Over the eyes. May affect eyesight or cause headaches.
• Across the front of the head. Effect on patients who have had strokes or seizures is not known. May affect your sense of balance. The effects of stimulation on the brain are unknown.

ELECTRODE PADS CAUTION:

Caution: Do not ignore any allergic reaction to the electrode pads: If a skin irritation develops, stop using the device, as this type of electrodes may not be suitable for you. Alternative electrode pads specially made for sensitive skin are available (see E-696-SS).

Caution: Do not use this device with leads or electrode pads other than those recommended by the manufacturer. Performance may vary from specification. Electrodes with smaller surface area may cause tissue irritation.

Caution: Do not use high intensity settings if electrodes are smaller than 50x50mm.

Note: Electrode pads supplied have no measurable latex content.

TO KEEP YOUR DEVICE IN GOOD WORKING ORDER, OBSERVE THE FOLLOWING ADDITIONAL CAUTIONS:

Caution: Do not immerse your device in water or place it close to excessive heat such as a fireplace or radiant heater or sources of high

humidity such as a nebulizer or kettle as this may cause it to cease to operate correctly.

Caution: Keep the device away from sunlight, as long-term exposure to sunlight may affect the rubber causing it to become less elastic and crack.

Caution: Keep the device away from lint and dust, as long-term exposure to lint or dust may affect the sockets or cause the battery connector to develop a bad contact.

Caution: Temperature & Relative Humidity of storage: -10^ to +60^ , 15% to 75% R.H.

Temperature & Relative Humidity of transportation: -10°C to +60°C, 15% to 75% R.H.

Caution: There are no user serviceable parts. Do not attempt to open or modify the unit. This may affect the safe operation of the unit and will invalidate the warranty.

Note: There are no known side effects to use and long-term use is not harmful. However, the device works

your muscles and unaccustomed amounts of exercise may produce muscle ache. If this happens, simply reduce the strength of the machine or allow your muscles to rest until the aching disappears.

4. INFORMATION ABOUT THE PROGRAMME SETTINGS

Each programme has its own combination of Frequency and Pulse Width settings which allow for different muscle groups to be exercised and toned through the electrode pads.

- Frequency (measured in Hz - pulses per second)

For EMS programmes:

Low frequencies (1-10 Hz) have a purifying and relaxing effect through individual contractions.

Medium frequencies (20-50 Hz) can put a high level of strain on the muscle, thus promoting the muscular structure.

Higher frequencies, there is permanent tension in the muscle (tetany) combined with premature muscle fatigue. They are therefore preferably used for elasticity and maximum strength training.

For TENS programmes:

Pain gate: A high frequency of 110 Hz is good at blocking pain signals.

Endorphine release: A low frequency of 4 or 10 Hz allows for the release of endorphins, the body's natural morphine-like substances.

- Pulse Width (measured in s - millionths of a second)

The Sports TENS 2 unit has pulse widths of 20 to 350 s. Generally speaking, the higher the pulse width, the more "aggressive" the stimulation feels, if the pulse width is set high enough, it will usually elicit a muscle contraction, which is required for an effective toning of the muscle group selected.

For the TENS programmes (pain relief), it is not desired to elicit a muscle contraction, however Pulse Rate is important because different frequency settings target different nerve groups and the setting will determine if the "Gate Theory" or "Endorphin Theory" of TENS will be used.

- Work/Rest

All the EMS programmes include a WARM UP, TRAIN, and COOL DOWN phase. In the TRAIN phase, the stimulation is intermittent.

Once you have reached a comfortable level, 5 seconds after you stop pressing the button, the intermittent Work/Active Rest phase will start.

For each programme, the unit will go through a stimulation phase (Work) for 1-40 seconds, followed by a phase without stimulation (Active Rest) for a similar time.

This is to allow your muscles to recover from exercise and avoid fatigue.

During the Work period (W), the unit will generate contractions, try to contract the muscle voluntarily at the time to get the best possible results.

This cycle Work/Rest will continue for the duration of the programme selected.

W and R are displayed on the screen.

- Ramp

RAMP is the time in seconds taken to move up and down between zero and the set stimulation strength (i.e. the time taken to move between the Work stimulation and the Rest period). The Sports TENS 2 has a fixed ramp time of 1.5 s up and 0.75 s down.

- Constant and Burst Modes

Constant mode is when the sensation is continuous versus Burst mode when the sensation, as its name implies, is one of on and off. Constant mode is often used for acute pain via Pain Gate effect whereas Burst mode is useful in chronic pain relief. Burst gives a combination of Pain Gate and Endorphin Release, but the squeezing feeling may not be as comfortable. The stimulation intensity will need to be relatively high. In Constant mode,

the sensation is continuous and is more of a tingling pins and needles type.

- Modulation Modes

Modulation is when either the frequency or pulse width sweep across range of settings. In modulation mode, the machine delivers a less regular pattern of TENS stimulation in an attempt to reduce or minimise the accommodation effects of regular, patterned stimulation. This is potentially most useful for patients who use TENS for several hours a day, if for no other reason than accommodation occurs at a slower rate and therefore less

intensity adjustment may be required. See programmes F and G.

• HAN Stimulation

Invented by Professor Han, it is an alternating mode or shifting between high and low frequencies; stimulation works at a high frequency and a relatively low pulse width; and a low frequency and a relatively high pulse width. This is thought to produce a better analgesic effect and could be used to relieve both acute and chronic pain.

5. TENS PROGRAMMES

5.1. TENS PROGRAMMES SETTINGS

Prog	Preset / Manual	Frequency (Hz)	Pulse width (μs)	Output	Prog time (min)	P or E *
1	Preset	80	150	Constant	C	P
2	Preset	100	200	Constant	C	P
3	Preset	2	250	Constant	30	E
4	Preset	100 (in 2 Hz burst)	150	Burst	30	P+E
5	Preset	150 (in 2 Hz burst)	200	Burst	30	P+E
6	Preset	2/80	200/100	Han	30	P+E
7	Preset	2/100	200/150	Han	30	P+E
8	Preset	10/100	250	PFM	C	P+E
9	Preset	2/120	200/100	FM	C	P+E
10	Preset	100	75	DTENS	C	P
11	Manual	2-150	50-300	Constant	5-90/C	P or E
12	Manual	2-150	50-300	Burst 2Hz	5-90/C	P+E or E

* P=Pain Gate. Gives relief when being used. Wears off after a few hours.
E= Endorphin Release. Builds up over 40 mins. Lasts several hours after use.
There is not one programme for a particular condition, and the best choice varies from one

person to another, even if they have the same type of pain.

Each user needs to select both the programme and the positioning of the electrode pads that is best for them. You may need to try a few positions/programmes before finding the one that suits you.

5.2. PRESET PROGRAMMES

Programme 1 & 2:

P – Constant stimulation, the programme generates a uniform smooth sensation. This is the gentlest programme. It is advisable to use for your first trial of TENS while you get used to the sensation.

Programme 3:

E - Pulsing or tapping sensation associated with muscle contractions. Uses the Endorphin release mechanism. It is suitable to be used for chronic pains such as back pain & arthritis, but not for injured muscles where the contractions may delay healing.

This low frequency is also known as Acupuncture-Like TENS and can be used on acupuncture points. One example of this is application on acupuncture point C6 for nausea, travel and morning sickness.

Programme 4 & 5:

P + E – This programme combines P and E, and is thought to be the most effective for radiating pain in arms and legs and deep muscular pain (Osteoarthritic pain in the knee, Sciatica central pain).

Programme 6 & 7:

P + E – Han stimulation. This programme alternates between low and high frequency every 3 seconds. The effective pain relief is provided by a combination of P and E.

Programme 8:

P+E - PFM, Pulse Width and Frequency Modulation. PW decreases as F increases. This programme gives a pleasant slow relaxing

massage sensation. The continuous change helps prevent accommodation occurring.

Programme 9:

P+E – FM, Frequency Modulation, this programme constantly varies the sensation, and is ideal for treating chronic pain over long period (example 5+ hours). Neck, shoulder, Elbow pain, Rheumatic pain, Lumbago, Hip pain, Osteoarthritic pain in the knee.

Programme 10:

P – DTENS: Reduced pulse width is ideal for treating nerve rich areas (tension type headache, facial pain, neck pain, post herpetic neuralgia, migraine).

5.3. MANUAL PROGRAMMES

Programme 11:

Manual programme with constant stimulation.

Programme 12:

Manual programme with burst stimulation.

5.4. PROGRAMME USAGE

TENS can be used for as long as it is necessary. Continuous treatment is fine, but the electrode pads should be repositioned regularly (at least every 12 hours) to allow the skin to be exposed to the air.

The Endorphin Release programmes work better when the strength is high enough to cause small muscle contractions. Best results are achieved with a session duration between 20 and 40 minutes. Longer use may cause muscle ache.

6. EMS PROGRAMMES

6.1. EMS PROGRAMMES SETTINGS

Prog	Preset/Manual	Phase	Work						Active Rest				Prog time (min)
			Frequen cy (Hz)	Pulse width (μs)			Time (s)	Amplitu- de %	Freq (Hz)	PW (μs)	Time (s)	Amp %
				I	II	III
1	Preset	Warm	6	200	280	340	300	100					5
		Train	10	200	280	340	9	80	4	200	2	50	41
		Cool	3	200	280	340	600	70					10
2	Preset	Warm	6	200	280	340	120	100					2
		Train	22	200	280	340	7	80	4	200	11	70	18
		Cool	3	200	280	340	180	70					3
3	Preset	Warm	6	200	280	340	120	100					2
		Train	25	200	280	340	7	80	4	200	11	50	21
		Cool	3	200	280	340	180	70					3
4	Preset	Warm	6	200	280	340	120	100					2
		Train	40	200	280	340	7	80	4	200	11	50	18
		Cool	3	200	280	340	180	70					3
5	Preset	Warm	6	200	280	340	120	100					2
		Train	55	200	280	340	5	80	4	235	11	50	27
		Cool	3	200	280	340	180	70					3
6	Preset	Warm	5	200	280	340	300	100					5
		Train	60	200	280	340	4	80	5	200	10	50	41
		Cool	3	200	280	340	600	70					10
7	Preset	Warm	5	200	280	340	300	100					5
		Train	65	200	280	340	4	80	4	200	11	25	20
		Cool	3	200	280	340	600	70					10
8	Preset	Warm	6	200	280	340	120	100
		Train	75	200	280	340	4	80	4	200	14	50	25
		Cool	3	200	280	340	180	70
9	Preset	Warm	5	200	280	340	300	100
		Train	100	200	280	340	6	80	4	200	36	25	28
		Cool	3	200	280	340	600	70
10	Manual	Warm	6	200	280	340	120	100
		Train	10-120	100-350			1-30	80			1-60*		1-90
		Cool	3	200	280	340	180	70
10 Default			35	280			5				9		20
11	Manual	Warm	6	200	280	340	120	100
		Train	10-120	100-350			1-30	80			1-60*		1-90
		Cool	3	200	280	340	18O	70
11 Default			50	300			5

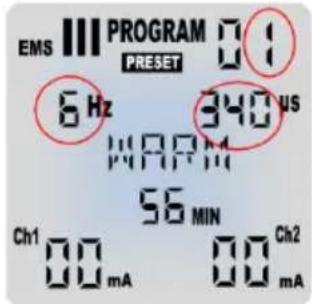

Before selecting an EMS programme, you will need to select a mode:

MODE I is for small muscles like the face and hands.

MODE II is for medium sized muscles like arms and feet.

Mode III is for large muscles like thighs, buttocks, and abdomen.

6.2. PRESET PROGRAMMES

Programme 1: Muscle Calming

Relaxing the muscles as much as possible and to promote the body's natural endorphins to promote pain relief and to improve the blood circulation and provide oxygen into the muscle.

Programme 2: Resume Training 1

To promote the slow twitch fibres to build muscle strength to help reduce muscle atrophy ready for resuming training activities. Used for all type of sports.

Programme 3: Resume Training 2

Progress from programme 2 as tolerance increases.

Programme 4: Resistance 1

Improving and increasing the capacity to develop very high level of muscle force over a long period of time. Improving the efficacy of the oxygen consumption at the muscle level and the capacity to withstand toxin accretion, such as lactic acid. For sports activities that require very high levels of prolonged muscle activity: Rowing, Cycling, Middle distance running.

Programme 5: Resistance 2

Progress from programme 4 as tolerance increases.

Alternative application: Lipolysis

Increasing the flow of blood circulation and modifying the metabolism of the lipocytes. To help stimulate the subcutaneous deposits of fat. To assist reduce or eliminate the Orange Peel effect of the skin surface

Programme 6: Maximum Muscle Contraction

To increase muscle bulk and volume and to improve muscle force. Searching for muscular hypertrophy.

Programme 7: Muscle toning 1

Strengthening the muscles, improving blood circulation and capillary bed density. Ideal for applying to the Thigh, Legs, Bottom and Abdomen.

Programme 8: Muscle toning 2

Similar to programme 7, but adding bulk in preference to endurance

Programme 9: Force Output, Anaerobic activity

Increasing the muscle capacity to a level of instantaneous maximum muscle force, changing muscle force into explosive action. Used for all activities requiring maximum muscle output in a very short space of time, such as Judo, short distance sprinting, throwing the discus or shot-put.

All preset TRAIN phases have Ramp up 1.5 s, Ramp Down 0.75 s.

Most Active Rest phases are at 4 Hz, 200 s.

6.3. MANUAL PROGRAMMES

Warning: Consult your healthcare professional before altering these settings. Correct settings depend on

your muscle tone and exercise goals. Inappropriate settings could cause discomfort,

undesired muscle balance, or even muscle injury.

Programme 10 & 11:

Manual programmes, you can select the frequency, the pulse width, the work and active rest time.

At first use, the default values are shown.

The Warning triangle is displayed if the Active Rest period is less than:

Rest Time = Work Time * (WorkHz-16.66) / 16.66 seconds.

This is because muscle fibres can only activate a limited number of times a minute (about 1000) without becoming fatigued.

6.4. PROGRAMME USAGE

Recommended use for all body parts except the face:

Generally, 3 sessions per week, over a period of 4 to 6 weeks, gives good initial results depending on the body shaping, toning, sports training or rehabilitation and recovery needs.

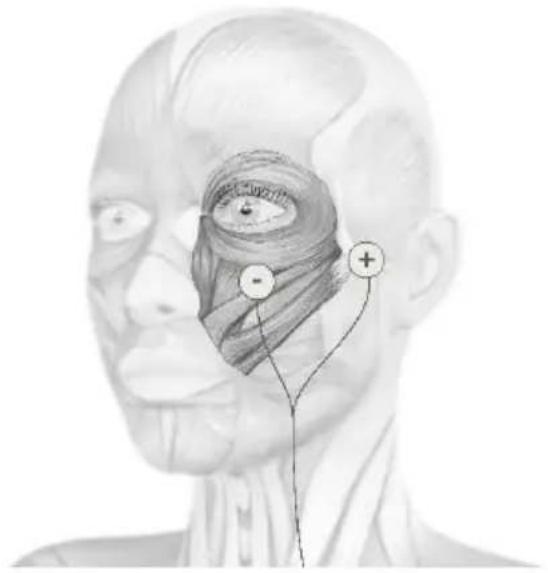

Face (Mode I):

Using the Sports TENS 2 is a non-invasive option for helping lift and/or tighten the soft tissues of the face, improving facial muscle tone and reducing the signs of ageing.

Recommended use for Face: One treatment session daily, 5 days/week, for 12 weeks.

You may notice some positive effects after just one session, but normally it will take about 6 weeks before you notice a difference.

Take care when adjusting the intensity as facial muscles are particularly sensitive; intensity should be increased gradually, starting with a very low level of stimulation (just above perception) and increasing with care until you reach a good level of stimulation, represented by good muscle activation.

On the face, it is not necessary to reach levels of intensity capable of causing discomfort! Great and significant results are obtained through consistency and patience.

Warning: Use the programme of your choice on mode I and never bring the intensity higher than 40 mA.

Always use small electrode pads (see E-CM25) or the face electrode pads* (see E-CM3050).

*Sold separately.

A minimum distance of 3 cm. must be kept between the electrode pad and the eyeball.

Note: You might notice mild skin redness at the site of the electrode pads after the treatment session. It de within 10 to 20 minutes.

Very rarely temporary after-effects, such as mild eyelid flutter, have been reported after facial stimulation. This has always resolved within a few days.

GENERAL ADVICE:

Ideally, use Sports TENS 2 once every two days for each muscle with a day of rest in between. It is possible to work on pairs of muscles, for example thighs and abdominal muscles, treating one set one day and the other the next day.

Warning: Working on too many muscles at the same time is not recommended.

The object of EMS treatment is to produce powerful muscle contractions.

The strength of the current should be increased to about three times the level at which you can first feel the tingling, or to as high as you can stand without causing pain.

Increase the intensity until you feel a very smooth tensing under the pads, there should be little visible movement.

Use a low intensity for the first session to help you to understand how the machine works.

Voluntary muscular activity is more effective than stimulation, and it may improve progress if you combine voluntary contraction with stimulation. For best results, always try to contract voluntarily during the work phases.

During the programme and over the next few days the intensity should be increased gradually to produce marked, but not painful muscle contractions.

After treatment tingling sensations may continue or your skin may feel numb, this is normal.

Once good results have been obtained the sessions may be reduced to once or twice a week until the user feels that optimum body shaping has been achieved.

Note: The stimulation should remain comfortable and relaxing at all times.

7. MASSAGE PROGRAMMES

IM = Intensity Modulation
FM = Frequency Modulation, this programme constantly varies the sensation.
7.1. MASSAGE PROGRAMMES SETTINGS

Prog	Prog time (min)	Phase	Phase time (min)	1		2		Output
				Frequency (Hz)	Pulse width(μs)	Freq (Hz)	PW (μs)
1	30	1	30	85	200	135	100	Burst
2	30	1	2	1	200	15	200	Burst
3	30	1	2	25	200	80	200	Burst
4	44	1	4	1	250	4	250	FM
		2	6	20	250			IM
		3		4	250			IM
		4	4	1	250	4	250	FM
		5	6	30	250			IM
		6		4	250			IM
		7	4	1	250	8	250	FM
		8	6	40	250			IM
		9		4	250			IM
		10	4	1	250	8	250	FM
		11	6	50	250			IM
		12		4	250			IM
		13	4	1	250	8	250	FM
5	30	1	30	5	300			Constant
		2		8	300			Constant
6	30	1	30	5	200			Constant
		2		8	200			Constant
7	30	1	30	5	300			Constant
		2		8	300			Constant
8		1	5	250	25	250	250	Burst 1Hz
		2	5					Burst 1.25 Hz
		3	5					Burst 1.42 Hz
		4	5					Burst 1.66 Hz
9	30	1		25	200			2/2
		2		30	200			2/2
		3		40	200			1/1
		4		50	200			1/1
		5		70	200			0.5/1
		6		80	200			0.5/1
10	30	1		1	200			15 pulses
		2		2	200			11 pulses
		3		3	200			18 pulses
		4		4	200			11 pulses
		5		5	200			15 pulses
		6		6	200			20 pulses
		7		9	200			26 pulses
		8		11	200			33 pulses
		9		15	200			30 pulses
		10		25	200			1 pulses
		11		15	200			30 pulses
		12		11	200			33 pulses
		13		9	200			26 pulses
		14		6	200			20 pulses
		15		5	200			15 pulses
		16		4	200			11 pulses
		17		3	200			18 pulses
		18		2	200			11 pulses

7.2. PROGRAMME USAGE

Massage programmes can be used to relieve stiffness in the muscles. Simply experiment with the different programmes to find the one that you find the most relaxing.

Programme 1 alternates between two strong squeezing/kneading feelings.

Programme 2 alternates between slow and fast tapping.

Programme 3 alternates between gentle and strong kneading.

Programme 4 has five steps of gradually increasing strength of kneading, alternating with tapping.

Programme 5 and 7 alternates between slow and medium-strong tapping.

Programme 6 is a gentler form of programme 5.

Programme 8 is a pumping sensation at about your own heart rate, that slowly increases in speed over the course of the 20 min treatment. It is especially effective with swollen legs and veins.

Programme 9 is squeezing/kneading in 6 steps of increasing intensity.

Programme 10 generates a tapping sensation gradually speeding up, then slowing down.

8. MANUAL PROGRAMMES

When a programme has manual settings available, MANUAL will be displayed. The manual programmes are the TENS programmes 11 and 12 as well as the EMS programmes 10 and 11.

In the manual programmes, you can select and change the following parameters:

Parameter to Change	Display Symbol Flashes
Frequency	Hz
Pulse Width	μs
Treatment Timer (minutes)	min
DATE	0 on the right
HOUR	0 on the left
MEM D	0 on the right
MEM H	0 on the left
And for the EMS programmes only:
Work Time (seconds)	WORK sec
Rest Time (seconds)	REST sec

1. Select the mode TENS or EMS using the MODE button, then select one of the manual programmes pressing P.
2. Press the +MENU to start changing the parameters.
3. In the TENS programmes, you can change the parameters frequency, pulse width, treatment timer, date, hour, MEM D and MEM H. In the EMS programmes, you can change the parameters: frequency, pulse width, work time, rest time, treatment timer, date, hour, MEM D and MEM H.
4. To adjust the parameter flashing on the screen, use the + and - buttons.
5. To confirm your selection and go to the next (or previous) parameter press +MENU or -MENU.
6. Once the changes are complete, press the return button ↻ to confirm. The flashing will stop.

See section 7 for more information on the choice of settings.

Manual Programme Lock

Once you are back on the main screen after adjusting the parameters, you can protect the manual settings by pressing and holding button for 5 seconds.

The key symbol 1 will start flashing on the screen.

If you try to adjust the parameters, the key symbol 1 will flash.

Press and hold ← for 5 seconds to unlock the settings of the programme.

Warning triangle

In the EMS manual programmes a Warning triangle will be displayed if the Rest period is less than Rest Time=Work Time*(WorkHz-16.66)/16.66 seconds

Date and Time Setting

To set date and time, press +MENU and cycle through parameters to DATE.

Centre left shows the day of month and centre right shows the time.

When DATE appears and the number on the left is flashing, adjust the day with the + and - buttons and confirm with the return button

11 DATE 22

When HOUR appears and the number of the right is flashing, adjust the time with the + and - buttons and confirm with the return button

9. ELECTRODE PADS

The electrode pads must always be used in pairs (two electrode pads on each channel), so that the signal can flow in a circuit.

You may feel more sensation in one pad than the other. This is normal – it depends on where the electrode pads are in relation to your nerves.

Use the square electrode pads (see E-CM5050) for all areas except the face where specific optional electrode pads are required (see E-CM25 and E-CM3050).

Always check that the unit is OFF before attaching or removing electrode pads.

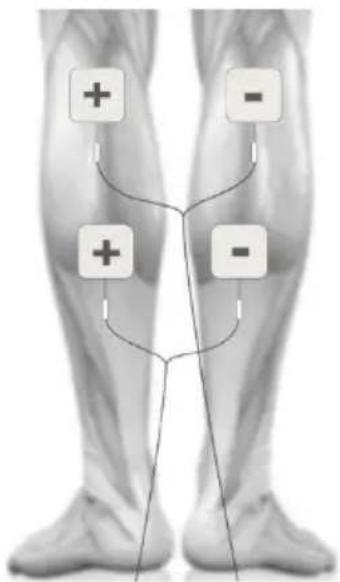

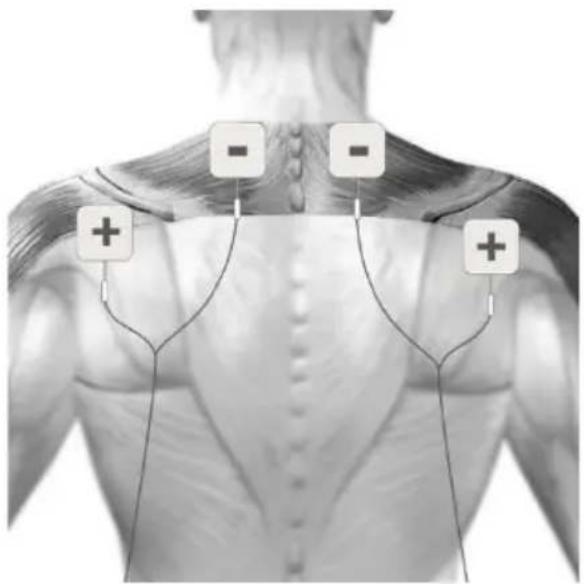

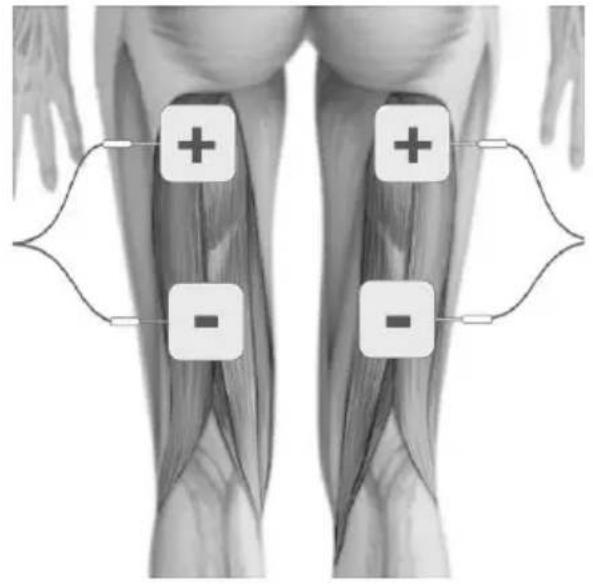

9.1. TENS ELECTRODE PLACEMENT

Around the area of pain

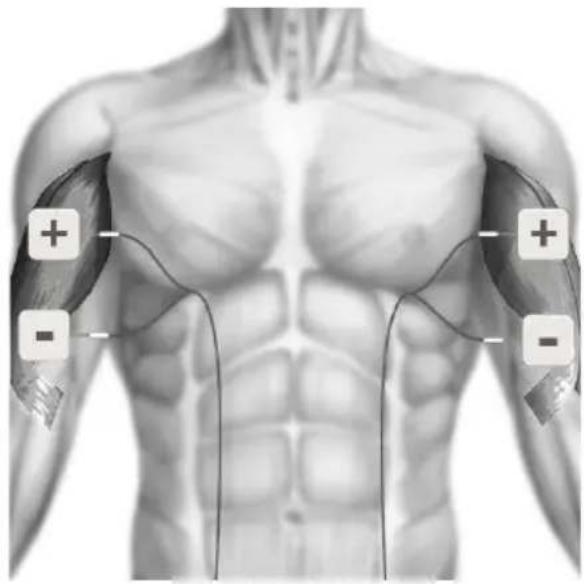

The easiest way is to apply the electrode pads around/near the source of the pain.

TENS activates the nerves best if it travels along the nerve rather than across it. So, place one pad further from the spine than the source of the pain, and one closer.

If the pain is in, or close to, your spine you can place one pad either side of the spine.

Note: See examples of positioning in the instructions enclosed with your electrode pads.

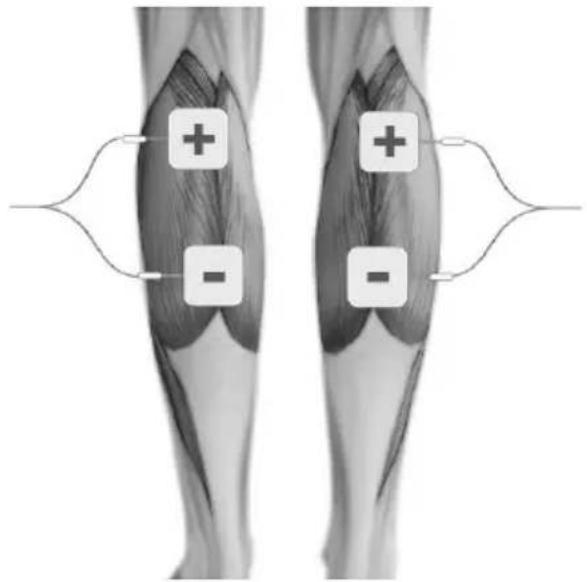

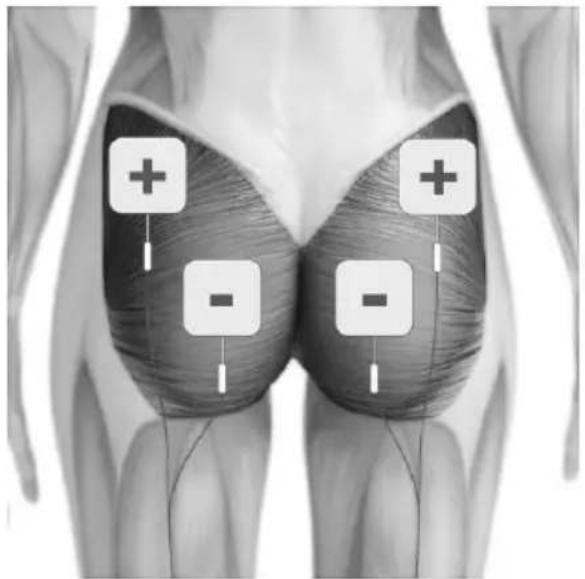

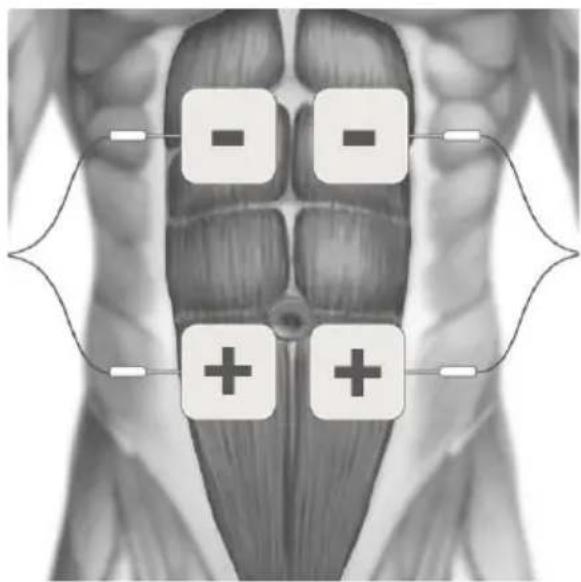

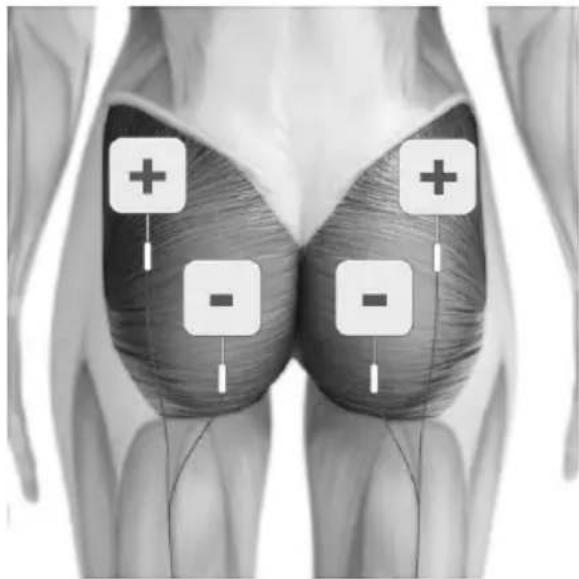

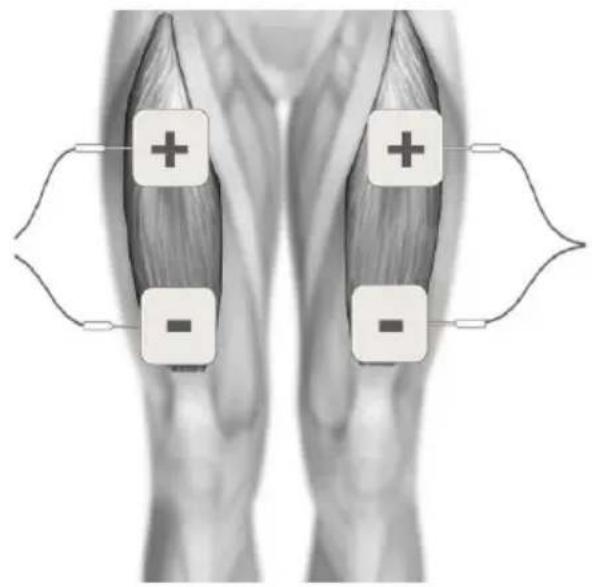

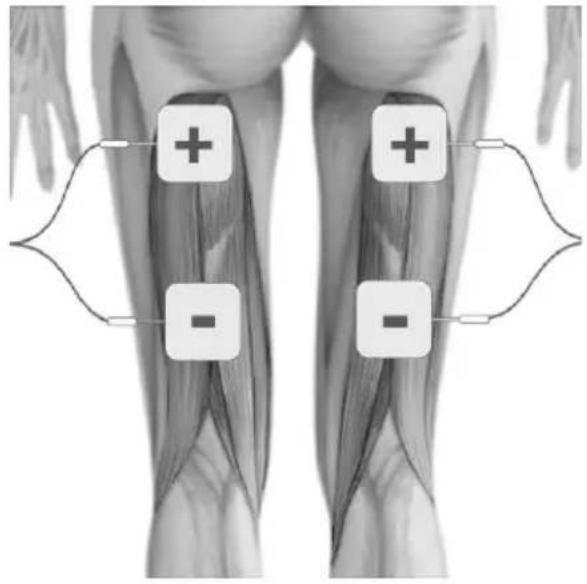

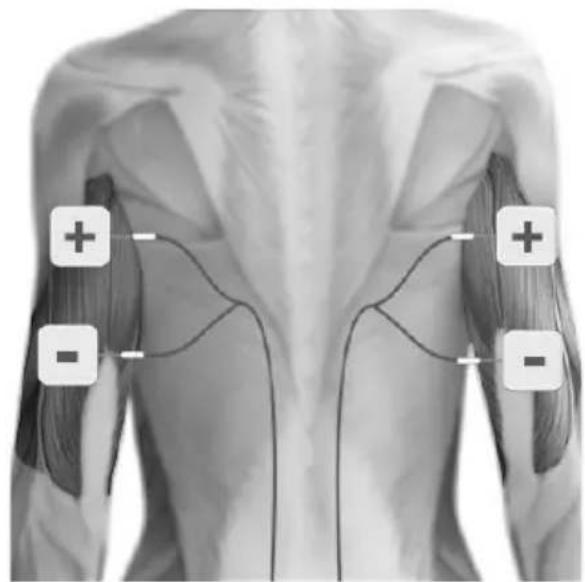

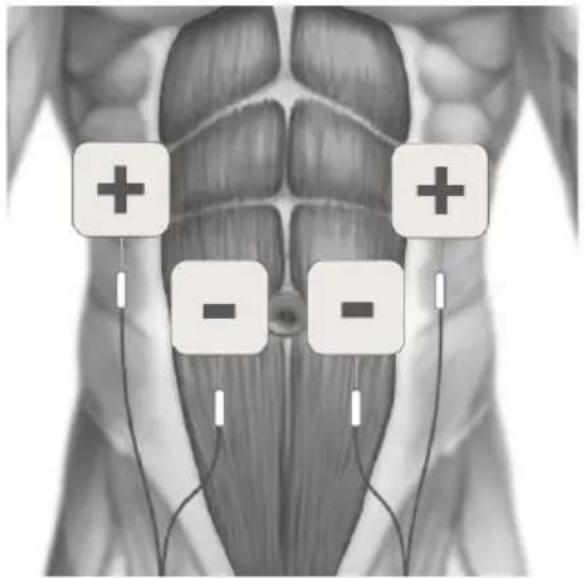

9.2. EMS ELECTRODE PLACEMENT

Electrode placement for EMS is very important for obtaining the best results.

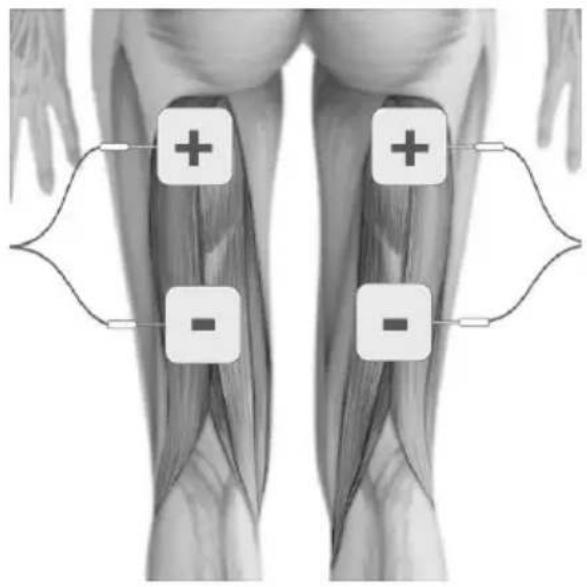

Place two electrode pads over the bulk of the muscle, with one electrode over the muscle's motor point. The motor point is the area on the skin that is located closest to the motor nerve's entry into the muscle – about 1/3 of the way down the muscle from the spine. Here, it is easiest to trigger a contraction by electrical stimulation.

Experiment by moving the electrode pads across the skin until you locate the point over the muscle that gives the cleanest contraction.

Note: The + electrode pad needs to be plugged in to the red lead wire connector, the – refers to the one for

the black lead wire connector.

CHEST - PECTORALS

Human torso with two medical electrodes labeled '+' and '-' on chest, showing muscle anatomy (no text or symbols beyond electrode labels)

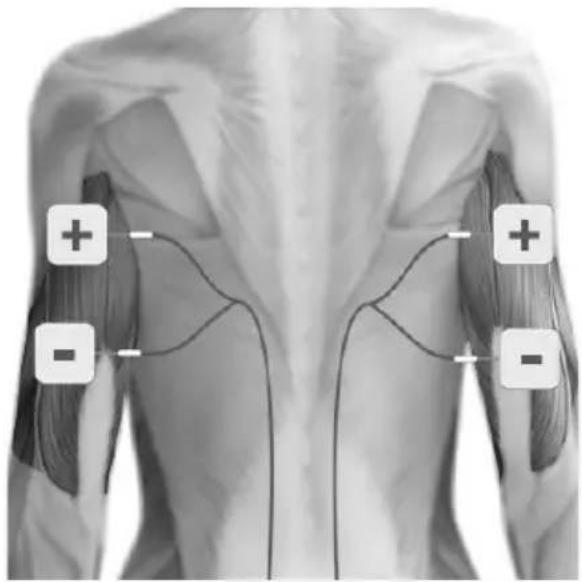

BACK OF ARM - TRICEPS

Anatomical diagram of human musculature with marked muscle regions (no text or labels)

FRONT OF ARM - BICEPS

Anatomical diagram of human torso with labeled muscle and electrode placement zones marked with plus and minus signs.

Medical diagram showing electrode placement on human back with plus and minus signs indicating electrocardiogram placement

STOMACH - ABDOMINALS 2

Anatomical diagram of human musculature with labeled electrical or electrocardiogram indicators (+, -, +) and electrode points.

STOMACH - ABDOMINALS 1

Anatomical diagram of human musculature with four labeled regions marked by negative and positive signs, connected by lines.

BUTTOCKS - GLUTE

Anatomical diagram of human hip joint with labeled regions marked by plus and minus signs

BACK OF THIGH - HAMSTRINGS

Anatomical diagram of human leg muscles with positive and negative signs indicating muscle activation or movement, surrounded by force vectors.

BACK OF LOWER LEG - CALF

Anatomical diagram of human leg muscles with labeled regions marked as + and -

FRONT OF THIGH – QUADRICEPS

Diagram showing two human legs with positive and negative signs indicating movement or force, connected by wires to the sides.

Face treatment with optional electrode pads

You can use the programme 7 (with MODE I) stimulate the muscles around the face muscles. You will notice the muscles working straight away from the slight twitching. The activation of the muscles stimulates the circulation. This relaxing skin care also contributes to an increase in well-being, making you appear more awake and content.

To target specific muscles in the face it is best to use the small circular electrode pads (see E-CM25).

FOREHEAD & EYE – Pad placement with the optional small circular electrode pads (E-CM25).

Anatomical diagram of human head with labeled acupuncture points and directional arrows indicating movement or point of interest.

CHEEKS & EYE – Pad placement with the optional small circular electrode pads (E-CM25).

Anatomical illustration of human head and neck showing muscle and facial structures with labeled points (no text or symbols present)

JAW & NECK - Pad placement with the optional small circular electrode pads (E-CM25).

Anatomical illustration of a human head with labeled muscle fibers and a marked area (no text or symbols present)

To stimulate all the muscles on one or either side of the face, it is recommended to use the face electrode pads (see E-CM3050).

FACE – Pad placement with the optional face electrode pads (E-CM3050)

Anatomical sketch of a human head with internal organs and a marked electrical device (no text or labels)

9.3. MASSAGE ELECTRODE PLACEMENT

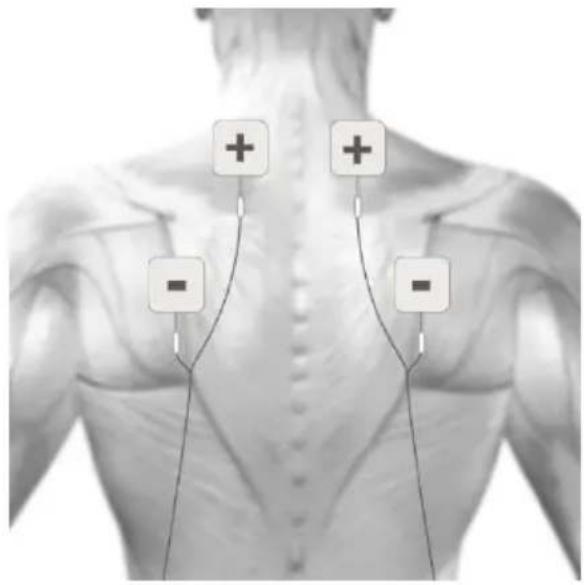

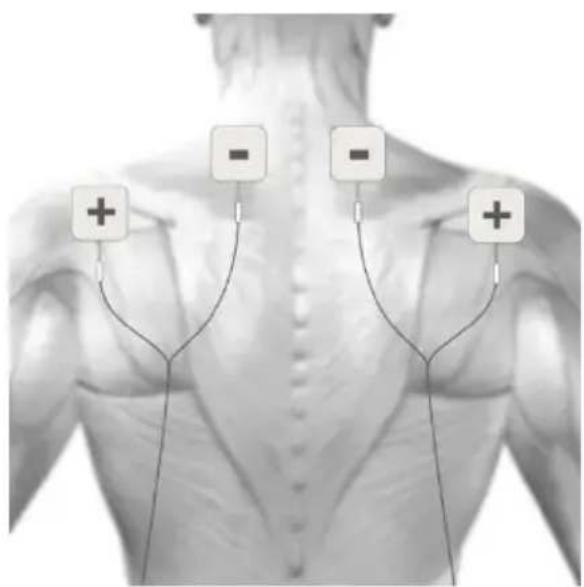

NECK & TENSION HEADACHE

Medical diagram showing electrode placement on human back with plus and minus signs indicating electrical or diagnostic points.

Medical diagram showing electrode placement on human back with plus and minus signs indicating electrical or diagnostic points.

CIRCULATION & SWOLLEN LEGS

Anatomical diagram of human legs with positive and negative signs indicating muscle or neural pathways, likely for body analysis.

Poor return of blood to the heart is a common problem leading to swollen legs and varicose veins. The programme 8 supports what is known as the venous pump. Waste products are discharged which in turn eases the flow of blood.

9.4. PAD ADVICE

• The electrode pads supplied are reusable but for single patient use. The adhesive is a peelable hydrogel (water based).
• In order to obtain the best conductivity through the electrode pads always ensure that they are in good condition and tacky.
• Before use make sure your skin is clean and dry.

• Peel the electrode pads from their protective plastic shield by holding and lifting one corner of the pad and pulling. Do not pull on the pigtail wire of the pad.
  • After use always replace the electrode pads on the plastic liner and replace them in the re-sealable plastic bag.

• If the electrode pads dry out, then it is best to buy a replacement pack. In an emergency, it may be possible to restore some of the tackiness of the pad by adding a tiny drop of water on each pad and spreading around. If too much water is added, the electrode pad will become too soft. If that happens then it is suggested in order to try and re-establish some adhesiveness, to place them sticky side up in a refrigerator for a few hours.

• In very hot weather the gel on the electrode pads may become soft. In such cases place them, still on their plastic liners and in their pouch into a fridge until they return to their normal condition.
• The electrode pads provided are latex-free.
• Replace the electrode pads when they lose their stickiness.

Poor connection may cause discomfort and skin irritation.

- Storage life of an unopened pack of electrode pads is 2 years. This may be affected by very high temperatures or very low humidity.

10. CONTENT

The pack contains:

• 1 x Sports TENS 2 unit
- 2 x Lead wires (L-ST2)
- 4 x 50x50 mm electrode pads (E-CM5050)
• 1 x Charging adaptor (EU/UK)
- 1 x Detachable belt clip
- 1 x Storage pouch
- 1 x Instructions for use

Product display of Sports TENS 2 electronic devices including a handheld device, a black case, and various earplugs (no visible text or symbols on main components)

11. UNIT INFORMATION

11.1. CONTROLS & DISPLAY

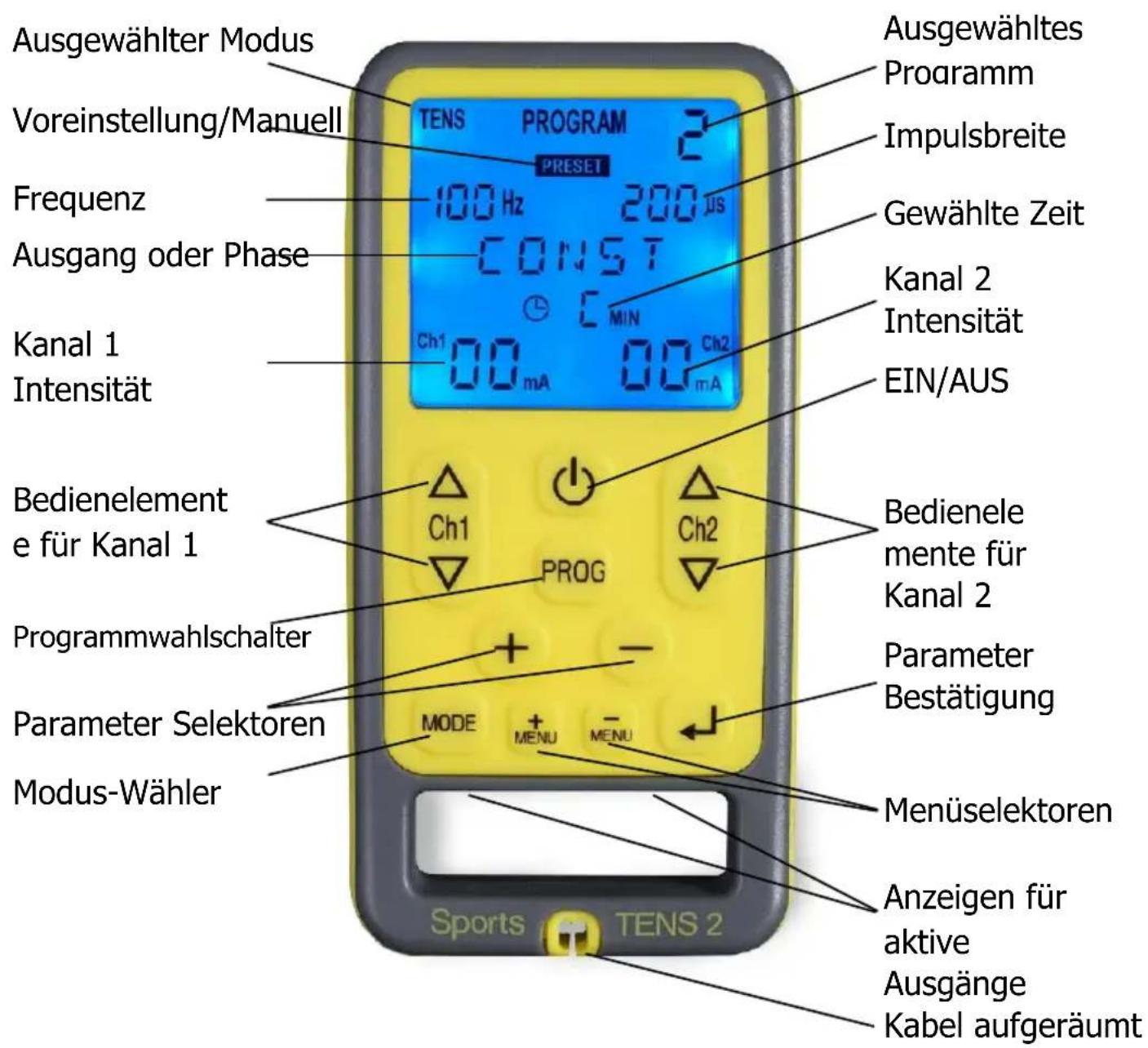

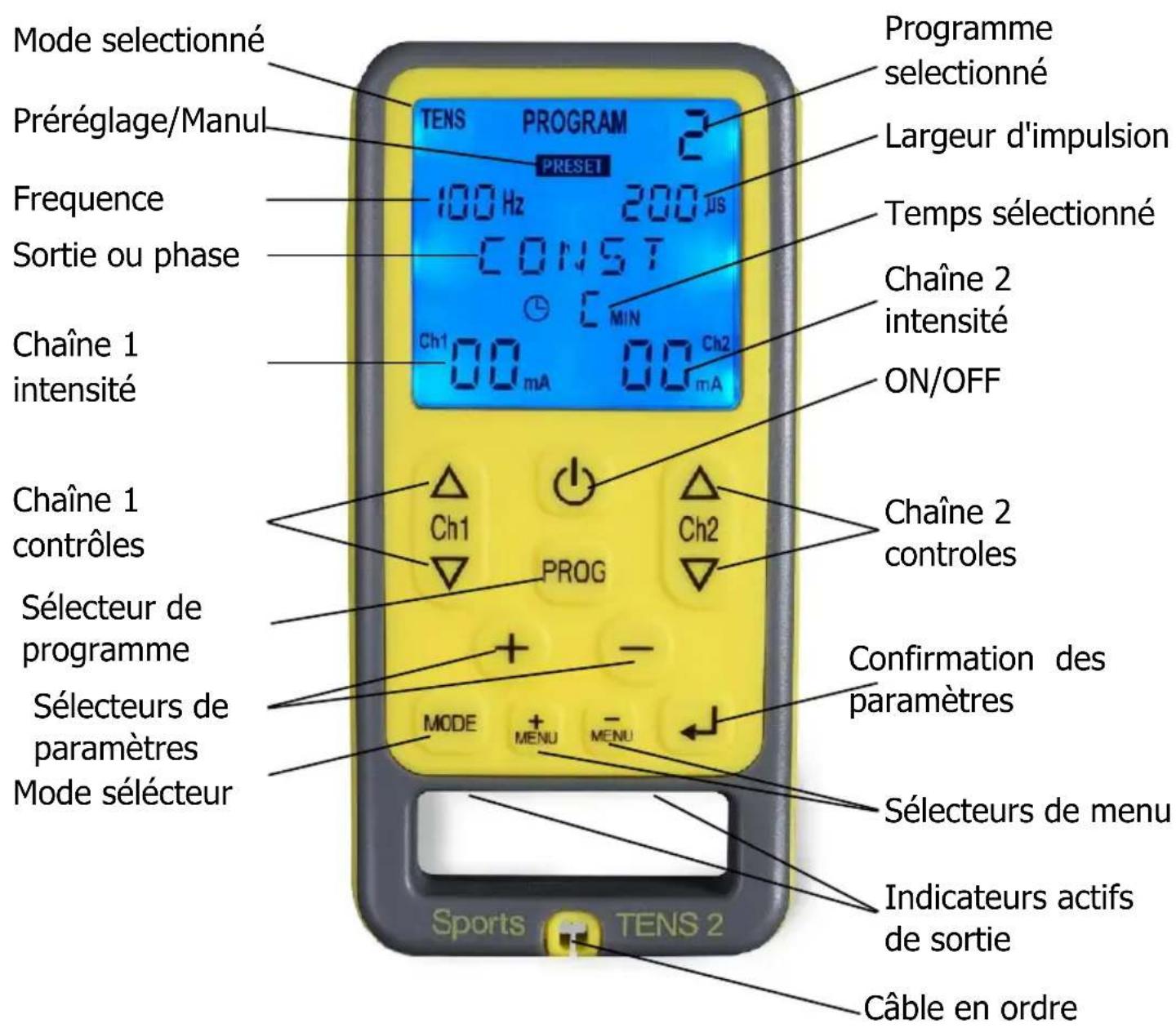

Mode selected Preset/Manual Frequency Output or phase Channel 1 intensity Channel 1 controls Programme selector Parameters selectors Mode selector TENS PROGRAM 2 PRESET 100 Hz 200 µs CONST Ch1 MIN Ch2 Ch1 CH2 PROG Ch1 MODE MENU MENU Sports TENS 2 Programme selected Pulse width Time selected Channel 2 intensity ON/OFF Channel 2 controls Parameters confirmation Menu selectors Output active indicators Cable tidy

11.2. OPERATING INSTRUCTIONS

ON/OFF

To turn the unit ON, press the ON/OFF button and hold for 3 to 5 seconds until the display shows.

To turn the unit OFF, press the ON/OFF button on the top of the unit and hold for 3 to 5 seconds until the display stops

The unit will turn OFF automatically:

When the Timer reaches zero,

If it is left at zero strength for more than 5 minutes.

The unit will start with the programme you used last.

Note: Always check unit is OFF before applying or removing electrode pads.

The backlight will turn off 10 seconds after the last button press.

MODE CONTROL

TENS PROGRAM PRESET 80 Hz 150 µs Ch1 MIN Ch2 00 mA 00 mA

Press the MODE button to select a mode.

Display will cycle through TENS, EMS I, EMS II, EMS III and MASSAGE (5 choices). Modes EMS I, II, and III are

for use on body areas with small, medium and large muscles (see section 9.1.).

Note: The intensity must be reset to zero before MODE can be changed, otherwise PAUSE is activated.

PROGRAMME CONTROL

The button marked P is the programme control. The Sports TENS 2 has:

• 10 preset TENS
• 2 manual TENS
  • 27 preset EMS (9 preset with 3 modes each)
• 6 manual EMS (2 manual with 3 modes each)
  • 10 massage programmes

EMS III PROGRAM 01 PRESET 6 Hz 340 US MAPM 56 MIN Ch1 00 mA 00 mA Ch2

Each time you press and release the P button, the programme changes and is shown on the LCD. The Hz and s settings for each programme are also

displayed.

Each time you change the programme, the strength level reverts back to zero. This is a safety feature to alleviate any sudden feeling of a surge, as each programme gives a different sensation.

STRENGTH CONTROLS

The buttons marked Ch1▲, Ch1▼, Ch2▲, Ch2▼ are the strength controls.

The left-hand buttons change strength in the left-hand lead, Ch1, and the right-hand buttons change the right-hand lead, Ch2.

To increase strength in steps of 1 mA, press and release

the top part of the channel buttons, Ch1▲ and Ch2▲.

The strength levels are shown on the LCD.

The strength control buttons will not operate until the unit is properly connected to you. If the Sports TENS 2 detects a disconnection in either channel it will automatically return the strength to zero in that channel and flash '00'.

The unit has 99 levels of strength.

If you hold down the strength controls for 3 to 5 seconds, the strength will start increasing continuously.

You may feel nothing over the first few presses. Continue pressing until the sensation is strong but comfortable. At each phase of the programme the intensity automatically adjusts to give a comfortable stimulation, however further increases during use may be necessary if your body becomes used to the sensation. To decrease the strength, press and release the lower part of the buttons marked Ch1▼ and Ch2▼.

The yellow LED on the output socket indicates that there is an active output which can be high enough to be harmful if not used correctly. The display will remain on for 5 seconds after the plug is removed.

TREATMENT TIMER

The default setting for preset programmes is shown. To alter the treatment timer setting see section 11.

You can select any time between 1 and 90 or continuous (marked as C).

LOW BATTERY

An empty battery symbol will show when you need to charge the battery.

KEYPAD LOCK

If you do not press any keys for 10 seconds, the keypad will lock so that

only the keys marked Ch1▼ or Ch2▼ will work.

This is to avoid accidental changes in setting.

To unlock, press either Ch1▼ or Ch2▼ keys.

OPEN CIRCUIT CUTOUT

Note: The electrode pads need to be applied directly to the skin before the intensity increase buttons will

operate. If the Sports TENS 2 is not correctly connected to your body, the strength in the channel which is not properly connected will automatically reset to zero. This is to prevent sudden changes if a broken connection is re-made.

PAUSE

Pressing the MODE button while a programme is in use stops the stimulation and the timer.

The pause symbol is displayed on the screen

Press the MODE button again to resume the programme.

MEMORY

To view the memory, press +MENU or -MENU to cycle through parameters until MEM D is displayed (to view the records on that date),

If no programme has been used for more than 19 minutes, 0 is displayed.

When MEM D is displayed, use the + and - buttons to select the day (shown on the left of the screen).

Having selected the required date, press +MENU or -MENU to cycle to MEM H (to display hour of individual recordings on that date).

Then use the + and - buttons to view the different recordings (up to 3 per day).

For each recording the hour is shown on the right side, and the values are displayed for MODE, PROGRAMME, Time of treatment in minutes (0-99), and the average intensity (0-99) used in each channel.

To clear the memory, press and hold the +MENU and -MENU buttons together for 5 seconds while in memory mode MEM D or MEM H.

12. SETTING UP AND USING SPORTS TENS 2

12.1. CHARGING THE BATTERY

The Sports TENS 2 is powered by a built-in rechargeable Li-ion battery. A charging adapter is included in the kit. The battery should need charging about once a month. The battery should last at least 15 hours at 50mA, 300 s, 50Hz. To fully charge the battery it will take about 2 hours.

When the battery is running low, the low battery symbol will be displayed on the screen. Although the display

fades as the batteries run down, the strength of the output does not change until the warning is shown.

Warning: Use only the power adaptor supplied. Use of other

chargers could be hazardous and will negate the warranty.

Note: Charging adapter specification:

• Output: DC 5 V; 1A
- Rated input voltage shall not exceed 240 V
• Classification of protection against electric shock: Class II
• IP classification: at least IP21
• The adapter need to comply with IEC 60601-1 or IEC 60950-1

To charge the battery:

Connect the charger to the unit and plug it onto the mains socket.

The word BATT and three flashing lines will show on the screen display – that means the battery is being charged.

When the battery is charged, the word FULL will display

Note: The device should be charged at least once every 3 months to ensure the battery life is maintained.

Note: The device cannot be used while being charged.

Note: Charging voltage: DC 5V, charging current: 90mA.

Battery Warnings

This product is equipped with a Lithium-ion battery. Failure to follow these instructions could cause the lithium-ion battery to leak acid, become hot, explode or ignite and cause injury and/or damage:

Do NOT pierce, open, disassemble, or use in a humid and/or corrosive environment.

Do NOT expose to temperatures over 60°C(140F).

Do NOT put, store or leave near sources of heat, in direct strong sunlight, in a high temperature location, in a pressurized container or in a microwave oven.

Do NOT immerse in water or sea water, or get wet.

Do NOT short-circuit.

Do NOT directly solder the pack or battery, tamper with the circuit or reverse the positive and negative terminals

Do NOT transport and store the battery together with sharp metal objects that could pierce the battery. i.e. necklaces, hairpins, nail etc.

Do NOT strike at pack with any sharp edge or throw the pack.

Warning: To avoid the risk of electric shock, this equipment must only be connected to a supply mains with protective earth.

Do not position the equipment during charging such that it is difficult to use the charging adapter. The provided charging adapter is used to isolate the equipment circuits from the mains power supply.

Only use the battery charger provided for recharging batteries. Do not connect the pack to an electrical outlet.

Keep batteries out of the reach of children to prevent them from swallowing them by mistake. If swallowed by child, contact your healthcare professional immediately.

If battery leakage occurs and comes in contact with the skin or eyes, wash thoroughly with lots of water and immediately seek medical attention.

Battery Caution

Caution: Do NOT use in a location where there is a large amount of static electricity, otherwise, the safety devices in the battery pack may be compromised.

Caution: If the battery pack creates an odour, generates heat, becomes discoloured or deformed, or in any way appear abnormal during use, recharging or storage, immediately remove it from the device or battery charge and stop using it.

Disposal: Always dispose of batteries and device responsibly according to local government guidelines. Do not throw batteries onto a fire. Risk of explosion.

12.2. CONNECTING LEAD WIRES

Insert the lead wire plug into the base of the unit.

Rotate the body of the plug 90^ to lock the lead wire in place.

Attaching the electrode pads to the lead wire.

Line drawing of two hands holding a small object, possibly a tool or component (no text or symbols)

Push the pin ends firmly into the pigtail ends of the electrode pads.

Lead wire colour coding.

The ends of the lead wires are coloured red or black. When using the EMS and Massage programmes, one of the electrode pads should be positioned over the motor point (see sections 12.2. and 12.3.).

12.3. PREPARING FOR SESSION

1) Before use make sure your skin is clean and dry.
2) Place the electrode pads on the skin, see section 12.
3) If you are using your Sports TENS 2 while moving, you can attach the unit to your belt using the belt clip or hang it around your neck using a neck cord (not included). For safety, use thread or wool that will snap easily if the unit snags on something.
4) You can safely lean on the electrode pads. The sensation might change.

Warning: Ensure the Sports TENS 2 is switched OFF before applying the electrode pads on the skin.

12.4. TRAINING SESSION

1) Press and hold the ON/OFF button on the control unit for 3 to 5 seconds to switch the control unit on.
2) When switched on for the first time, the
Sports TENS 2 will automatically select the TENS programme 1. Next time, it will automatically select the programme you were using the last t was switched off.
3) Select one of the 5 modes (TENS, EMS I, EMS II, EMS III or Massage), and then select a programme. Details in section 8, 9 and 10 will help you identify the best programme to suit you.
4) Identify the correct pads positioning for the selected area and apply the electrode pads as described in section 12.2. for EMS programmes, in section 12.3. for Massage programmes and as described on the

electrode pads insert for TENS programmes.

5) Once the electrode pads are correctly positioned, adjust the intensity with the buttons Ch1▼, Ch1▲, Ch2▼ and Ch2▲. The LCD display shows the strength of intensity used for each channel.

Note: If the sensation becomes uncomfortable, reduce the intensity.

12.5. AFTER YOUR TRAINING SESSION

When the timer reaches zero, your session is complete, and the unit turns off.

1) Check that the control unit is OFF. If it is not, hold down the OFF button to switch off then remove the electrode pads from your skin by holding the electrode pad itself and gently pulling. Be careful not to pull the wires as this may damage them.
2) Replace the electrode pads to their protective plastic shield and return them to the re-sealable plastic bag.

Note: When removing the electrode pads, DO NOT PULL ON LEAD WIRES.

13. CLEANING & STORAGE

Clean the case and lead wires at least once a week by wiping with a damp cloth and a solution of mild soap and water. Wipe dry.

• Do not immerse your Sports TENS 2 unit in water.
• Do not use any other cleaning solution than soap and water.

Storage life

• Storage life of an unopened pack of self-adhesive electrode pads is 2 years. This may be affected by very high temperatures or very low humidity.
• The unit has no fixed shelf life.

14. EMC

Wireless communications equipment such as wireless home network devices, mobile phones, cordless telephones and their base stations, walkie-talkies can affect this equipment and should be used no closer than 30cm (12 inches) to any part of the device.

(Note. As indicated in 5.2.1.1(f) of IEC 60601-1-2:2014 for ME EQUIPMENT).

Note: For hospital use, full EMC advice tables are available on request.

15. DISPOSAL OF WASTE ELECTRICAL AND ELECTRONIC PRODUCTS (WEEE)

One of the provisions of the European Directive 2012/19/EU is that anything electrical or electronic should not be treated as domestic waste and simply thrown away. To remind you of this Directive all affected products are now being marked with a crossed-out wheelie bin symbol, as depicted below.

To comply with the Directive, you can return your old electro-therapy unit to us for disposal. Simply print a postage-paid PACKETPOST RETURNS label from our website www.tenscare.co.uk, attach this to an envelope or padded bag with the unit enclosed, and post

it back to us. Upon receipt, we will process your old device for components recovery and recycling to help conserve the world's resources and minimise adverse effects on the environment.

16. ACCESSORIES

Expected Service Life

• The machine will often last for more than 5 years, but is warranted for 2 years. Accessories (lead wires, electrode pads, and batteries) are not covered by the warranty.
• Lead life depends greatly on use. Always handle the leads with care. We recommend to replace the lead wires regularly (about every 6 months).
• Electrode pads should last 12 to 20 applications, depending on skin condition and humidity.

Replacement electrode pads, new battery and lead wires are available from your supplier or distributor (see back cover for contact details), by mail order from TensCare, by telephone using a credit or debit card, or through the TensCare website.

The following replacement parts may be ordered from TensCare at www.tenscare.co.uk or [phone].

E-CM5050	Square electrode padsPack of 4
E-CM25	Small round electrode pads
E-CM3050	Face electrode padsPack of 4 pairs
E-CMR60130	Breast electrode padsPack of 4 (2 pairs)

E-CM50100 Large electrode pads

Pack of 4

E-696-SS Square hypoallergenic

electrode pads

Pack of 4

L-ST2 Lead wire

X-MDA534627-1000 Charging adaptor

X-MULTIPA-UK UK socket

X-MULTIPA-EU EU socket

X-MULTIPA-USA US socket

17. WARRANTY

This warranty refers to the unit only. It does not cover, electrode pads, charging adapter or the lead wires.

PRODUCT WARRANTY INFORMATION

This product is warranted to be free from manufacturing defects for 2 years from date of purchase.

This warranty is void if the product is modified or altered, is subject to misuse or abuse; damaged in transit; lack of responsible care; is dropped; if incorrect battery has been fitted; if the unit has been immersed in water; if damage occurs by reason of failure to follow the written instruction booklet enclosed; or if product repairs are carried out without authority from TensCare Ltd.

We will repair, or at our option replace free of charge, any parts necessary to correct material or workmanship, or replace the entire unit and return to you during the period of the warranty. Otherwise, we will quote for any repair which will be carried out on acceptance of our quotation. The benefits conferred by this warranty are in addition to all other rights and remedies in respect of the product, which the consumer has under the Consumer Protection Act 1987.

Our goods come with guarantees that cannot be excluded under the UK consumer Law. You

are entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality.

Before you send your unit for service

Before sending in your unit for service, please take a few minutes to do the following:

Read your manual and make sure you follow all the instructions.

Returning your unit for service

Should repair be needed within the warranty period, enclose the tear off section of the warranty card (see page 36) and your proof of purchase receipt. Please ensure all relevant details are completed before sending your unit in for service. Please ensure your contact details are still current and include a brief description of the problem you are experiencing together with your purchase receipt.

For hygiene reasons, please do not include used electrode pads. Send only the unit and lead wires.

Please return the unit and warranty card (see page 36) at your cost to:

TensCare Ltd

PainAway House,

9 Blenheim Road,

Longmead Business Park,

Epsom, Surrey

KT19 9BE, UK

Should you require any further information please do not hesitate to contact us by calling our number:

[phone].

18. TROUBLESHOOTING

If your Sports TENS 2 is not working properly, please check the following:

Problem	Possible causes	Solution
No display	Flat battery	Charge battery. See section 15.1.
	Damaged battery	Contact supplier. There is no maintenance or calibration other than replacement of gel pads and battery charging. Do not modify the device as this may reduce safety or effectiveness.
Low battery display	Low batteries.	Charge battery.
Controls won’t work	Keypad is locked.	If LOCK is shown on display, press and hold the▼button.
No sensation	Intensity is not strong enough.	Increase strength.Most users will feel something at a setting below 20 mA.
Output will not increase above zero	Open circuit cut-out operating. Lead not connected to body or faulty/damaged.	Ensure machine is attached to your body correctly.Try using the second lead wire.Purchase replacement if necessary.
	(Lead wires can break at the bend where they leave the machine giving no, or intermittent, output).
Sudden change in sensation	If you disconnect and re-connect a few minutes later, the signal will feel quite a lot stronger.	Always return strength to zero after disconnecting the leads or electrode pads.

If the above review has failed to resolve your problem, or to report unexpected operation or events, or to provide feedback call TensCare or your local supplier or distributor (address on back cover) for advice.

Contact TensCare customer service on [phone]. Our staff are trained to assist you with most issues you may have experienced, without the need to send your product in for service.

European Medical Device Regulation requires that any serious incident that has occurred in relation to this device should be reported to the manufacturer and the competent authority in your country. This can be found at:

https://ec.europa.eu/docsroom/documents/36683/attachments/1/translations/en/renditions/pdf

1. GENERAL SPECIFICATION

Waveform	Symmetrical rectangular bi-phasic
Amplitude (over 1 kOhm load)	99 mA zero to peak +ve in 99 steps +/- 10%
Output plug	Fully shielded: touch proof
Channels	Dual channel
Batteries	Built-in lithium-ion batteryModel: WEL 703048 -900 MaH/3.7vManufacturer: We Action Electronics Co., LtdRatings: 900 mAh, 3.33Wh, 3.7V
Weight	90g with belt clip
Dimensions	114 x 56 x 23 mm
Safety Classification	Internal power source.Designed for continuous use.No special moisture protection.
Environmental specifications:
Operating:	Temperature range: 5 to 40°CHumidity: 15 to 90% RH non-condensingAtmospheric pressure: 700 hPa to 1060 hPa
Storage:	Temperature range: -10 to +60°CHumidity: 15 to 75% RH non-condensingAtmospheric pressure: 700 hPa to 1060 hPa
TYPE BF EQUIPMENT	Equipment providing a degree of protection against electric shock, with isolated applied part.
	This symbol on the unit means “Refer to Instructions for use”.
IP22	This medical device is not water resistant and should be protected from liquids.
	Complies with EU WEEE regulations

Note: The electrical specifications are nominal and subject to variation from the listed values due to normal production tolerances of at least 5%.

Note: At least 30min required for the device to warm / cool from the minimum / maximum storage temperature between uses until it is ready for intended use.

RETURN THIS PORTION ONLY WHEN YOU RETURN YOUR PRODUCT FOR REPAIR UNDER WARRANTY.

NAME:

ADDRESS:

POSTCODE:

DAYTIME TELEPHONE: ____

E-MAIL:

MODEL:

DATE OF PURCHASE: ____

ATTACH PROOF OF PURCHASE DO NOT SEND IN LEADS OR ELECTRODE PADS

RETAILER'S NAME: ____

RETAILER'S ADDRESS:

RETAILER'S POSTCODE:

BRIEF DESCRIPTION OF PROBLEM YOU ARE EXPERIENCING:

WARRANTY IS VOID UNLESS THE ABOVE INFORMATION IS COMPLETED AND CORRECT

Estimado cliente,

Para programas TENS:

9.1. TENS ELECTRODE PLACEMENT

Human torso with two medical electrodes labeled '+' and '-' connected to the chest area, showing electrical connections (no text or symbols beyond polarity indicators)

PARTE POSTERIOR DEL BRAZO - TRÍCEPS

Anatomical diagram of human musculature with labeled muscle regions marked by plus and minus signs

PARTE DELANTERA DEL BRAZO - BÍCEPS

Anatomical illustration of a human torso with marked muscle and tendon regions (no text or symbols present)

HOMBROS Y TRAPECIOS

Medical diagram showing electrode placement on human back with three marked points (+) and two marked negative (-) on the spine

ESTOMAGO - ABDOMINALES 2

Medical diagram showing a human torso with four marked electrical or diagnostic symbols: plus, minus, and minus signs.

STOMAGO - ABDOMINALES 1

Anatomical diagram of human musculature with labeled regions marked by negative and positive signs, possibly indicating muscle or neural activity.

NALGAS - GLÚTEO

Anatomical diagram of human upper body with labeled regions marked by plus and minus signs, likely indicating muscle or neural activity zones.

POSTERIOR DEL MUSLO- TENDON ISQUIO

Anatomical diagram of human leg muscles with positive and negative signs indicating muscle activation or movement, surrounded by force vectors.

POSTERIOR DE LA PIERNA -GEMELOS

Anatomical diagram of human leg muscles with labeled regions marked as + and -, likely indicating muscle areas or regions of interest.

MUSLOS- CUÁDRICEPS

Anatomical illustration of human leg muscles with positive and negative signs indicating muscle activation or movement (no text or labels present)

Anatomical diagram of human head with labeled acupuncture points and measurement lines

Anatomical illustration of human head and neck with labeled regions (no text or symbols present)

Anatomical illustration of human head and neck with labeled muscle areas (no text or symbols present)

Anatomical sketch of a human head and neck showing internal organs and muscle structures (no text or labels)

Medical diagram showing electrode placement on human back with plus and minus signs indicating electrical or diagnostic points.

Medical diagram showing electrode placement on human back with plus and minus signs indicating electrical or diagnostic points.

Anatomical diagram of human legs with positive and negative signs indicating blood flow or movement, likely for body therapy or therapeutic advice.

Product display of Sports TENS 2 electronic device with labeled components including a handheld probe, battery pack, and earplugs (no readable text or symbols)

Line drawing of two hands holding a small object, possibly a tool or device (no text or symbols visible)

L-ST2 Cable conductor

X-MDA534627-1000 Adaptador de carga

X-MULTIPA-UK Enchufes de UK

X-MULTIPA-EU Enchufes de UE

X-MULTIPA-USA Enchufes de EE

17. GARANTÍA

Longmead Business Park

Epsom, Surrey

KT19 9BE, UK

https://ec.europa.eu/docsroom/documents/36683/attachments/1/translations/en/renditions/pdf

Programme 4: Resistance 1

Programme 5: Resistance 2

6.3. PROGRAMMES MANUELS

Temps de Repos (seconds) REPOS sec

Human torso with two medical electrodes labeled '+' and '-' connected to the chest area, showing electrode placement (no text or symbols beyond labels)

DOS DU BRAS - TRICEPS

Anatomical diagram of human musculature with marked muscle fibers and joint markers (no text or labels)

AVANT DU BRAS - BICEPS

Anatomical diagram of human torso with labeled muscle and electrode placement zones marked with plus and minus signs.

ÉPAULES ET TRAPÈZES

Medical diagram showing electrode placement on human back with plus and minus signs indicating anatomical regions

ESTOMAC - ABDOMINAUX 2

Medical diagram showing a human torso with marked electrical or diagnostic symbols (+, -) and connections to electrodes.

ESTOMAC - ABDOMINAUX 1

Anatomical diagram of human musculature with labeled regions marked by negative and positive signs, possibly indicating muscle or neural activity.

FESSES - FESSIER

Anatomical diagram of human upper body with labeled regions marked by plus and minus signs, likely indicating muscle or neural activity zones.

ARRIÈRE DE LA CUISSE - TENDONS

Anatomical diagram of human leg muscles with positive and negative signs indicating muscle activation or movement, surrounded by force vectors.

ARRIÈRE DE LA PARTIE INFÉRIEURE DE LA JAMBE - MOLLET

Anatomical diagram of human leg muscles with labeled regions marked by plus and minus signs

AVANT DE LA CUISSE - QUADRICEPS

Anatomical illustration of human leg muscles with positive and negative signs indicating muscle activation or movement (no text or labels present)

Anatomical diagram of human head with labeled acupuncture points and measurement lines

Anatomical illustration of human head and neck with labeled regions (no text or symbols present)

Anatomical illustration of human head and neck with labeled muscle fibers (no text or symbols present)

FACE – Pad placement with the optional face electrode pads (E-CM3050)

Anatomical illustration of human head and neck with a marked electrical device (no text or labels)

9.3. PLACEMENT DES ÉLECTRODES DE MASSAGE

CÉPHALÉE DE TENSION ET DE COU

Medical diagram showing electrode placement on human back with plus and minus signs indicating electrical or diagnostic points.

Medical diagram showing electrode placement on human back with plus and minus signs indicating electrical or diagnostic points.

CIRCULATION ET JAMBES GONFLÉES

Anatomical diagram of human legs with positive and negative signs indicating blood flow or neural pathways

Product display of Sports TENS 2 electronic devices including a card case, handheld devices, and earplugs (no visible text or symbols on main components)

11. INFORMATIONS SUR LES UNITÉS

11.1. COMMANDES ET AFFICHAGE

Line drawing of two hands holding a small object, possibly a tool or component (no text or symbols)

12.4. SESSION D'ENTRAINNEMENT

INFORMATIONS SUR LA GARANTIE DES PRODUITS

Longmead Business Park,

Epsom, Surrey

KT19 9BE, UK

https://ec.europa.eu/docsroom/documents/36683/attachments/1/translations/en/renditions/pdf

19. SPÉCIFICATION GÉNÉRALE

1. MASSAGE-PROGRAMME....127

7.1. EINSTELLUNGEN DER MASSAGEPROGRAMME 127
7.2. PROGRAMMNUTZUNG....128

1. MANUELLE PROGRAMME 128
2. ELEKTRODENPADS 130

9.1. TENS-ELEKTRODENPLATZIERUNG....130
9.2. EMS-ELEKTRODENPLATZIERUNG....131
9.3. MASSAGE-ELEKTRODENPLATZIERUNG....135
9.4. PAD HINWEISE 135

1. INHALT 136
2. GERÄTEINFORMATIONEN....137

11.1. BEDIENELEMENTE & DISPLAY....137
11.2. BEDIENUNGSANLEITUNG....138

Programm 7: Muskeltraining 1

Programm 8: Muskeltraining 2

Human torso with two medical electrodes labeled '+' and '-' connected to the chest area (no text or symbols beyond electrode labels)

RÜCKSEITE DES ARMS - TRIZEPS

Anatomical illustration of human musculature with marked muscle regions (no text or labels)

VORDERSEITE DES ARMS - BIZEPS

Anatomical diagram of human torso with labeled muscle and electrode placement zones marked with plus and minus signs.

SCHULTERN & TRAPEZIUS

Medical diagram showing electrode placement on human back with three marked points (+) and two marked '−' positions

BAUCH - BAUCHMUSKELN 2

Medical diagram showing a human abdominal with marked electrical or diagnostic symbols (+, -) and connections to electrodes.

BAUCH - BAUCHMUSKELN 1

Anatomical diagram of human musculature with labeled regions marked by negative and positive signs, possibly indicating muscle or neural activity.

GESÄSS - OBERSCHENKEL

Anatomical diagram of human upper body with marked electrical or diagnostic symbols (+, -, +) indicating positive and negative values.

Anatomical diagram of human leg muscles with positive and negative signs indicating muscle activation or movement, surrounded by force vectors.

VORDERSEITE DES OBERSCHENKELS -- QUADRICEPS

Medical diagram showing two human legs with positive and negative signs indicating muscle or neural activity, connected by wires.

Anatomical diagram of human leg muscles with labeled regions marked by plus and minus signs

Anatomical illustration of human head and neck with labeled regions (no text or symbols present)

Anatomical illustration of human head and neck with labeled muscles (no text or symbols present)

Anatomical illustration of human head and neck showing muscle and tendon structures (no text or labels)

Anatomical illustration of a human head with visible neural structures and a marked electrode (no text or labels)

9.3. MASSAGE- ELEKTRODENPLATZIERUNG

Medical diagram showing electrode placement on human back with plus and minus signs indicating electrical or diagnostic points.

SCHULTERN & OBERER RÜCKEN

Medical diagram showing electrode placement on human back with plus and minus signs indicating electrical or diagnostic points.

Anatomical diagram of human legs with labeled electrical or therapeutic markers (+/-) indicating blood flow or stimulation points.

Product display of Sports TENS 2 electronic devices including a mobile phone, charging case, and multimeter (no visible text or symbols)

11. GERÄTEINFORMATIONEN

11.1. BEDIENELEMENTE & DISPLAY

Illustration of two hands holding a small object, possibly a tool or component (no text or symbols visible)

INFORMATIONEN ZUR PRODUKTGARANTIE

Longmead Business Park,

Epsom, Surrey

KT19 9BE, UK

https://ec.europa.eu/docsroom/documents/36683/attachments/1/translations/en/renditions/pdf

1. ALLGEMEINE SPEZIFIKATION

TensCare aim to give you the best possible product and service. We listen to your suggestions and are constantly trying to improve our products. We also want to learn about the way our products are used, and the benefits they give. If you have anything you would like to share with us, please get in touch.

www.tenscare.co.uk

Follow us:

TensCare Ltd

@TensCareLtd

TensCare Limited

@tenscareltd

CE

2797

EC Declaration of Conformity

Tenscare Ltd herewith declare that the product meets the provisions of REGULATION (EU) 2017/745 which apply to it. The medical device has been assigned to class IIa according to Annex IV of the REGULATION (EU) 2017/745. The product concerned has been designed and manufactured under a quality management system according to Annex IX, of REGULATION (EU) 2017/745. This EU declaration of conformity is issued under the sole responsibility of the manufacturer. No “Common Specification” is applicable.

Distributed by:

TensCare Ltd

9 Blenheim Road, Epsom,

Surrey KT19 9BE, UK

Tel: [phone]

www.tenscare.co.uk

EC

REP

Advena Ltd

Tower Business Centre,

2 ^nd Flr, Tower Street,

Swatar, BKR 4013, Malta

TensCare Europe BV
