USER MANUAL HBW7518C HAIER

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

WARNING: Risk of fire/flammable material EN

The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by igniting flammable material.

" Energy saving tips

"! Care and cleaning

" # Troubleshooting

" ' Installation

Technical data

% Customer service

Before first use 6

Installation 6

Daily use 7

Refrigerant gas information 9

Lock/unlock panel 13

Adjust the temperature for fridge 13

Adjust the temperature for freezer 13

Interconnection function 14

ECO function 15

Holiday function 15

Super Cool function 15

Super Freeze function 16

My Zone function select 17

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.

Accessories

Check the accessories and literature in accordance with this list:

Ice cube tray

Egg tray

Energy lable

Warranty card

User manual

Screw Cover

Sponge block Slide guide Slide asm.

Fixed plate Hinge cover Fixed plate II

Bottom fixed plate

Top fixed plate

Pure technical line drawing of a mechanical part (no text or symbols)

Bottom cover

Bottom side cover

Simple line drawing of a diagonal line with a small protrusion at the end (no text or symbols)

Seal strip

Seal sponge

Bottom hinge cover

WARNING – Important Safety information

NOTICE-General information and tips

Environmental information

Disposal

Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

aÊÛ×Ô×D

Risk of injury or suffocation!

Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals, to prevent children and pets to get closed in the appliance.

Before switching on the appliance for the first time read the following safety hints!:

Before first use

\~ Make sure there is no transport damage.
\~ - Wait at least two hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient.
\~ Handle the appliance always with at least two persons because it is heavy.
\~ Remove all packaging materials, keep them out of children's reach and dispose them in an environmentally friendly manner.
\~ Clean the inside and outside of the appliance with water and a mild detergent before putting any food in it.
\~ After the appliance has been levelled and cleaned, wait for at least 2-5 hours before connecting it to the power supply. See Section INSTALLATION.
\~ Precool the compartments at high settings before loading with food. The function Power- Freeze helps to cool down the compartments quickly.
\~ The refrigerator temperature and freezer temperature are automatically set to 5°C and -18°C respectively. These are the recommended settings. If desired, you can change these temperatures manually. Please see ADJUST THE TEMPERATURE.

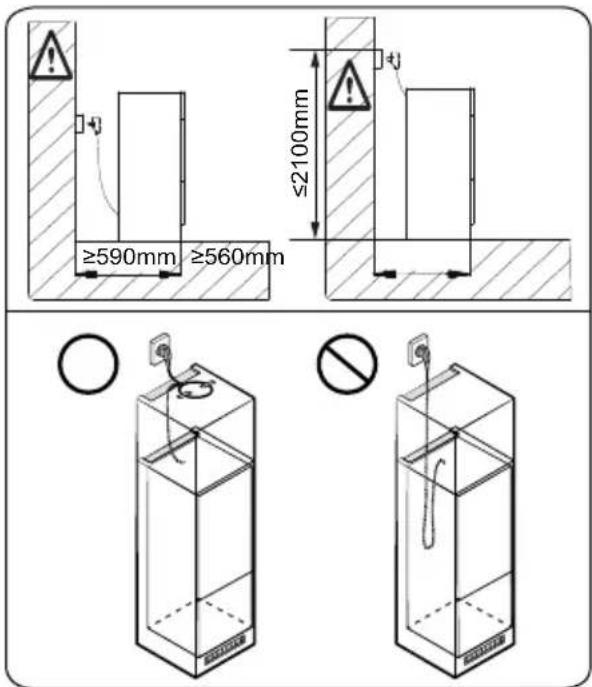

Installation

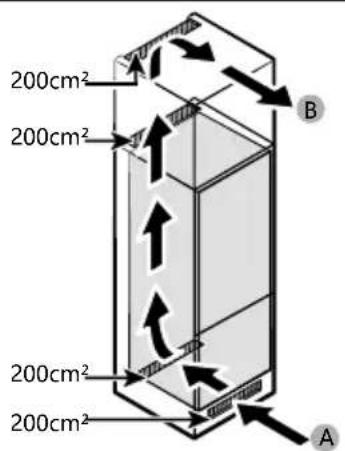

\~ The appliance should be placed in a well-ventilated place. Ensure a space of at least 10 cm above and around the appliance.
\~ Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth.
\~ Do not install the appliance in direct sunlight or in the near of heat sources(e.g. stoves, heaters).

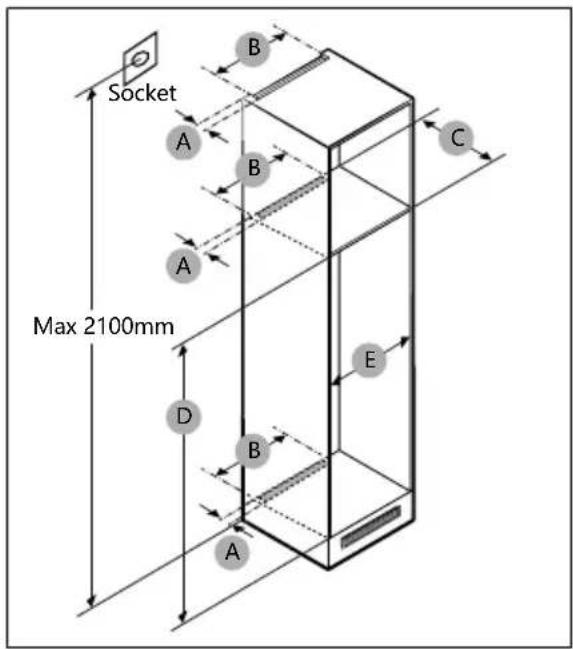

\~ Install and level the appliance in an area suitable for its size and use.
\~ Keep ventilation openings in the appliance or in the in-built structure clear of obstruction.
\~ Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.
\~ The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.
\~ Do not use multi-plug adapters and extension cables.
\~ Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
\~ Ensure that the power cable is not trapped by the refrigerator. Do not step on the power cable.

aÊÛ×Ô×D

\~ Use a separate earthed socket for the power supply which is easy accessible. The appliance must be earthed.

Only for UK: The appliance's power cable is fitted with 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.

\~ Do not damage the refrigerant circuit.

Daily use

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
\~ Children aged from 3 to 8 years are allowed to load and unload, but not allowed to clean or install the refrigerating appliances.
\~ Keep away children under 3 years of age from the appliance unless they are constantly supervised.
\~ Children shall not play with the appliance.
\~ If cool gas or other inflammable gas is leaking in the vicinity of the appliance, turn off the valve of the leaking gas, open the doors and windows and do not unplug a plug in the power cable of the refrigerator or any other appliance.
\~ Notice that the appliance is set for operation at a specific ambient range between 10 and 43°C. The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range.
\~ Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator, to ovoid personal injury caused by falling or electric shock caused by contact with water.
\~ Do not pull on the door shelves. The door may be pulled slant, the bottle rack, may be pulled away, or the appliance may topple.
\~ Open and close the doors only with the handles. The gap between the doors and between the doors and the cabinet is very narrow. Do not extend your hands in these areas to avoid pinching your fingers. Open or close the refrigerator doors only when there are no children standing within the range of door movement.

a!ÊÛ×Ô×Đ

• Do not store or use inflammable, explosive or corrosive materials in the appliance or in the vicinity.
• Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures.
  \~ Never store liquids in bottles or cans (besides high percentage spirits) especially carbonated beverages in the freezer, as these will burst during freezing.
  \~ Check the condition of food if a warming in the freezer has taken place.
• Do not set unnecessarily low temperature in the refrigerator compartment. Minus temperatures may occur at high settings. Attention: Bottles can burst
  Do not touch frozen goods with wet hands (wear gloves). Especially do not eat ice lollies immediately after removal from the freezer compartment. There is the risk to freeze or the formation of frost blisters. FIRST aid: keep immediately under running cold water. Do not pull away!
  Do not touch the inside surface of the freezer storage compartment when in operation, especially with wet hands, as your hands may freeze onto the surface.
• Unplug the appliance in the event of a power interruption or before cleaning. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.
• Do not use electrical devices inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Maintenance / cleaning
  \~ Make sure children are supervised if they carry out cleaning and maintenance.
• Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 5 minutes before restarting the appliance, as frequent starting may damage the compressor.

a!ÊÛ×Ô×Đ

\~ Hold the plug, not the cable, when unplugging the appliance.
\~ Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.
\~ Do not scrape off frost and ice with sharp objects. Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts.
Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
\~ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
\~ Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact our customer service.
\~ Eliminate the dust on the back of the unit at least once in the year to avoid hazard by fire, as well as increased energy consumption.
\~ Do not spray or flush the appliance during cleaning.
\~ Do not use water spray or steam to clean the appliance.
\~ Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.

Refrigerant gas information

a!ÊÛ×Ô×Đ

The appliance contains the flammable refrigerant ISOBUTANE (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred, keep away open fire sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service.

In case of eyes get into contact with the refrigerant, rinse immediately it under running water and call immediately the eye specialist.

Intended use

This appliance is intended for cooling and freezing food. It has been designed exclusively for use in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments as well as in bed-and-breakfast and catering business. It is not intended for commercial or industrial use.

Changes or modifications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims.

Standards and directives

This product meets the requirements of all applicable EC directives with the corresponding harmonised standards, which provide for CE marking.

NOTICE

Due to technical changes and different models, some of the illustrations in this manul may differ from your model.

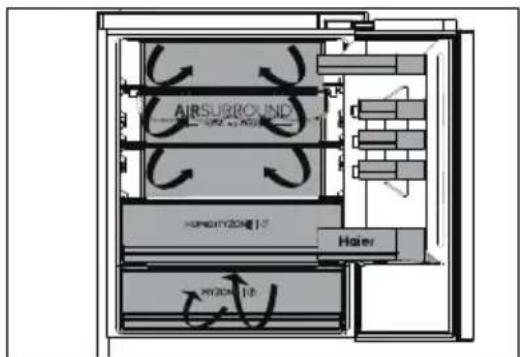

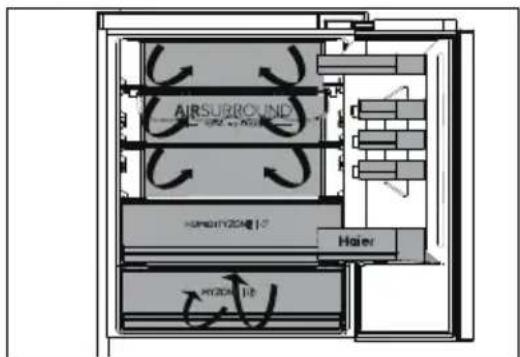

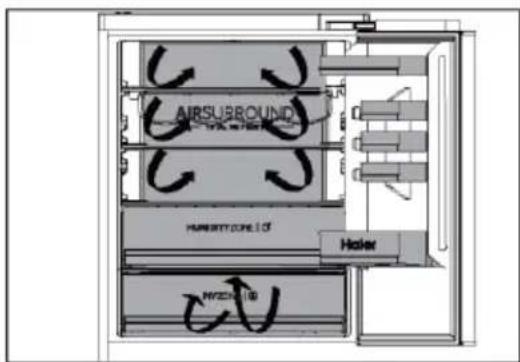

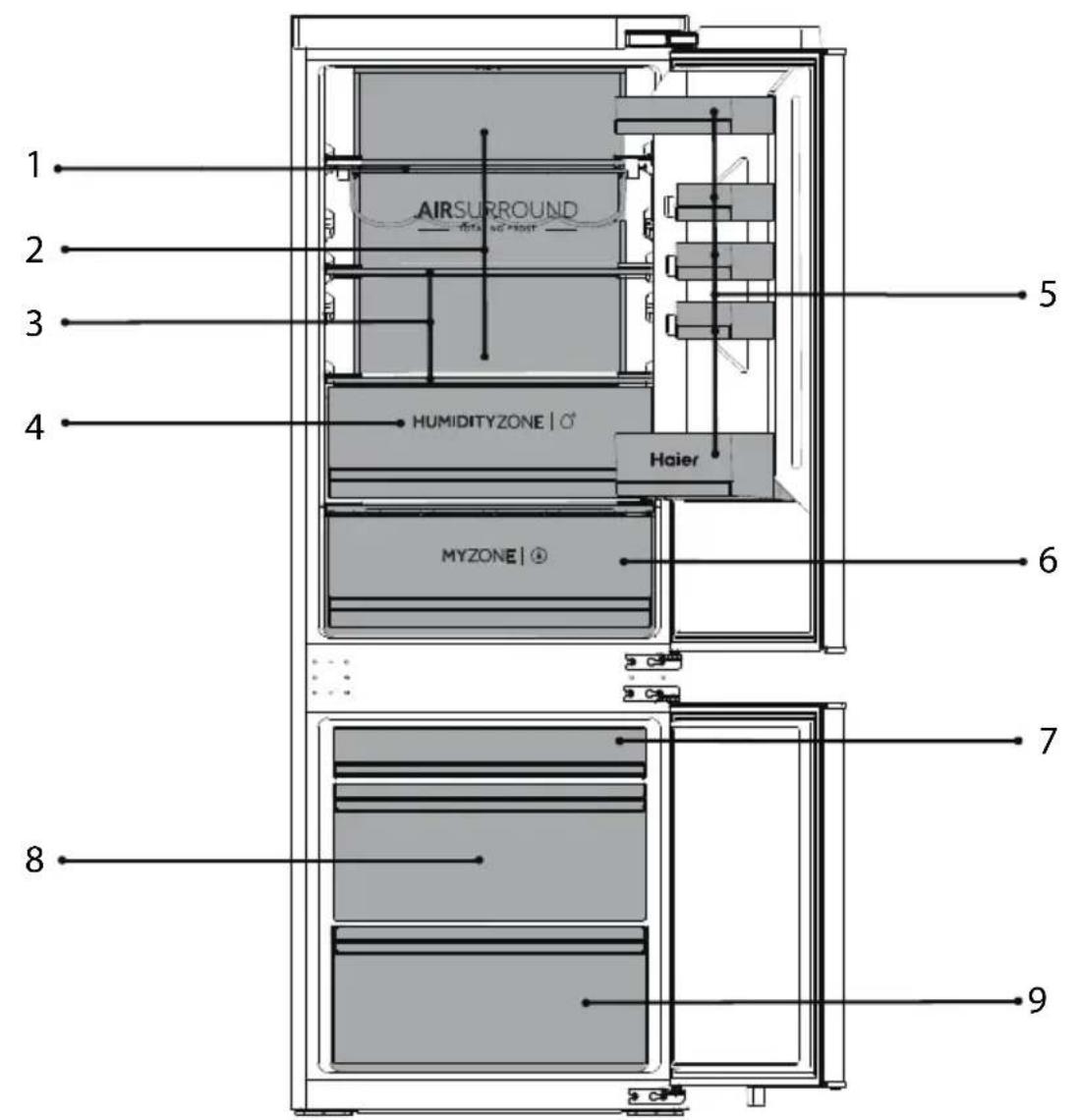

AIRSURROUND HUA WO FROUR HUMIDITYZONE | 0° Haier MYZONE | 4° 5 6 7 8 9

ÑËà'%! (Ì | ÑËà'%! (Í Y

A: Refrigerating chamber

1 Wine rack
2 Refrigerated air duct
3 Ordinary shelves
4 Humidity Zone drawer
5 Bottle holder
6 MyZone drawer

B: Freezing chamber

7 Upper freezer drawer
8 Middle freezer drawer
9 Lower freezer drawer

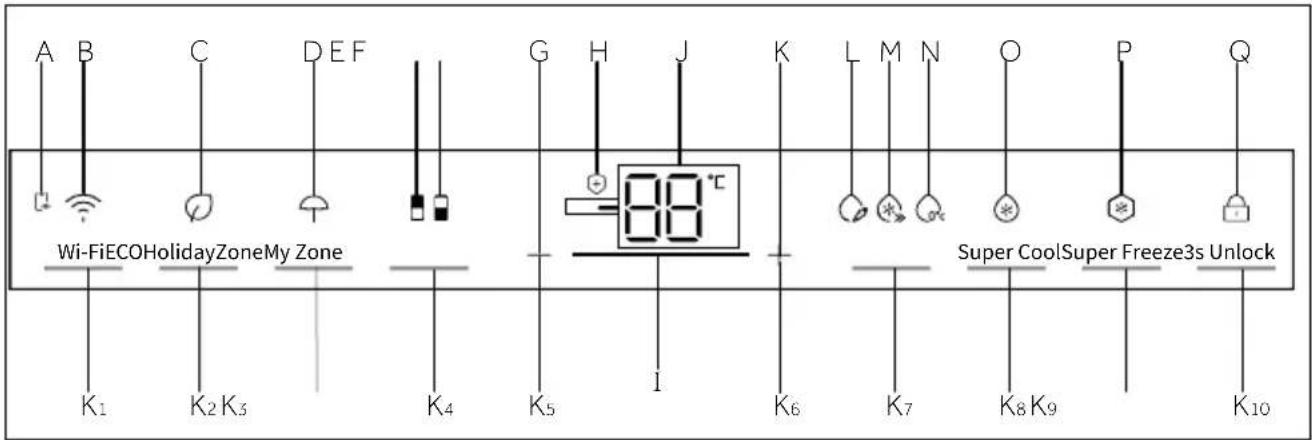

Control panel

A B C D E F G H J K L M N O P Q Wi-FiECOHolidayZoneMy Zone Super CoolSuper Freeze3s Unlock K₁ K₂ K₃ K₄ K₅ I K₆ K₇ K₈ K₉ K₁₀

Indicators:

A Mobile APP connection
B Wi-Fi function
C ECO function
D Holiday function
E Fridge indicator
F Freezer indicator
G Temperature adjustment "-"
H Bactericidal function
I Gear strength effect display
J Temperature display
K Temperature adjustment "+"
L Fruit&Veg function
M QuickCool function
N 0°C Fresh function
O Super Cool function
P Super Freeze function
Q Lock and Unlock

Buttons:

K_1 Wi-Fi setting button
K_2 ECO function button
K_3 Holiday function button
K_4 Zone select button
K5 Temperature adjustment button"-"
K_6 Temperature adjustment button“+”
K_7 My Zone function select button
K8 Super Cool select button
K9 Super Freeze select button
K_10 Lock and Unlock button

Sensor keys

The buttons on the control panel are sensor keys, which already respond when lightly touched with the finger.

Switch on /of the appliance

The appliance is in operation as soon as it is connected to the power supply.

When the refrigerator is first powered on, the indicator "J" (Temperature display) illuminates. The fridge temperature and freezer temperature are automatically set to 5°C and -18°C respectively. The indicator "M"(QuickCool display) illuminates.

The My Zone are automatically set to QuickCool function.

Maybe the panel lock is active.

NOTICE

When the appliance is switched on after disconnection from the main power supply, it may take up to 12 hours for the correct temperatures to be reached.

Empty the appliance before switching off. To switch off the appliance, pull the power cord out off the power socket.

Lock/unlock panel

Automatic lock: When the fridge door and freezer door are closed and there is no key operation within 30 seconds, the display screen will be automatically extinguished and locked.

Manual lock: When the display screen is unlocked, press the button "K10"(3S Unlock) and hold for 3 seconds, the buzzer rings once, the indicator "Q"(Panel lock) illuminates, and the display is locked.

Unlock: When the display screen is locked, press the button "K _10 " (3S Unlock) and hold for 3 seconds, the buzzer rings once, the indicator "Q" (Panel lock) gose off, and the display is unlocked.

Adjust the temperature

The indoor temperatures are influenced by the following factors:

Ambient temperature, Frequency of door opening, Amount of stored foods installation of the appliance.

Adjust the temperature for fridge

When the display screen is unlocked, press the button "K4"(Zone selector). The buzzer rings once, the indicator "E" (Fridge indicator) illuminates, and then here comes the temperature setting mode of the fridge.

Press the button "K5"(Temperature adjustment button "-" every time, the buzzer rings once, the set temperature of the fridge will be reduced by 1. The fridge tem-temperature will display in the sequence of "9°C->8°C->7°C->6°C->5°C->4°C->3°C->2°C->1°C".

Press the button "K6" (Temperature adjustment button "+") every time, the buzzer rings once, the set temperature of the fridge will be increased by 1. The fridge temperature will display in the sequence of "1°C->2°C->3°C->4°C->5°C->6°C->7°C->8°C->9°C".

NOTICE

After setting the temperature, if there is no operation within 5 seconds, the system will be automatically determined and save the set temperature.

Adjust the temperature for freezer

When the display screen is unlocked, press the button "K4"(Zone selector). The buzzer rings once, the indicator "F" (Freezer indicator) illuminates, and then here comes the temperature setting mode of the freezer.

Press the button "K5"(Temperature adjustment button "-") every time, the buzzer rings once, the set temperature of the freezer will be reduced by 1. The freezer temperature will display in the sequence of "-14°C->-15°C->-16°C->-17°C

$$ - > - 1 8 ^ {\circ} \mathrm{C} - > - 1 9 ^ {\circ} \mathrm{C} - > - 2 0 ^ {\circ} \mathrm{C} - > - 2 1 ^ {\circ} \mathrm{C} - > - 2 2 ^ {\circ} \mathrm{C} - > - 2 3 ^ {\circ} \mathrm{C} - > - 2 4 ^ {\circ} \mathrm{C} ^ {\prime \prime}. $$

Press the button "K6" (Temperature adjustment button "+") every time, the buzzer rings once, the set temperature of the freezer will be increased by 1. The freezer temperature will display in the sequence of "-24°C->-23°C->-22°C->-21°C

$$ - > - 2 0 ^ {\circ} \mathrm{C} - > - 1 9 ^ {\circ} \mathrm{C} - > - 1 8 ^ {\circ} \mathrm{C} - > - 1 7 ^ {\circ} \mathrm{C} - > - 1 6 ^ {\circ} \mathrm{C} - > - 1 5 ^ {\circ} \mathrm{C} - > - 1 4 ^ {\circ} \mathrm{C} ^ {\prime \prime}. $$

NOTICE

After setting the temperature, if there is no operation within 5 seconds, the system will be automatically determined and save the set temperature.

àviFíéonæiòn

1. When the display screen is unlocked, press the button "K 1" (Wi-Fi function button), the buzzer rings once, the indicator "B"(Wi-Fi function)the shining state until it is connected. After the connection succeeds, keep it on for a long time, and then the Wi-Fi function will be turned on.
2. When the display screen is unlocked, press the button "K1" (Wi-Fi function button), the buzzer rings once, the indicator "B"(Interconnection function) goes off, and then the Wi-Fi function will be turned off.

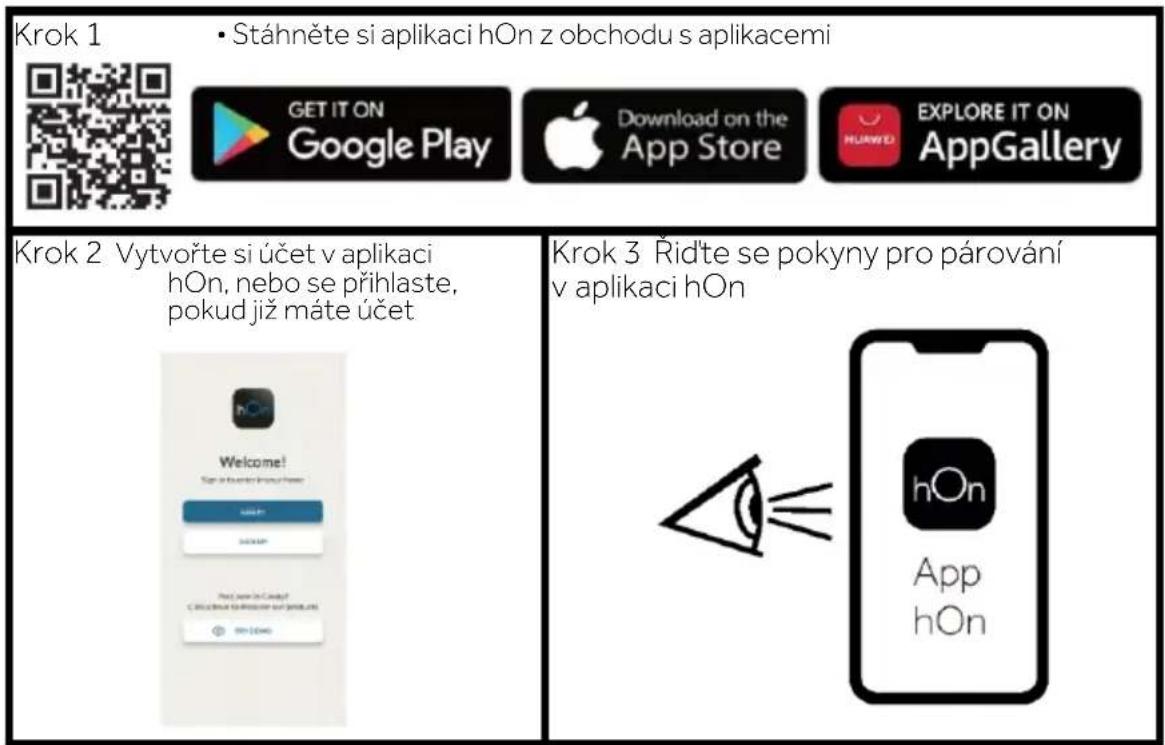

IN APP PAIRING PROCEDURE

Step 1 • wnload the hOn app on the stores

Step 2 Create your account on the hOn App or log in if you already have an account

Welcome! Up to access to your home 2024 2025 UP You're online Canada? One store additional or private. HKEY 3698

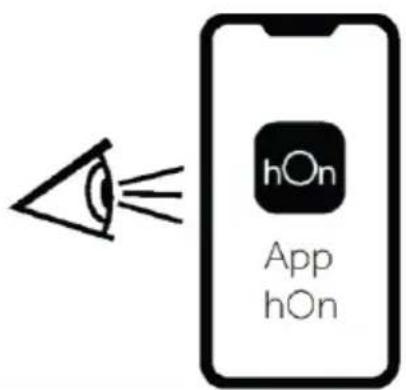

Step 3 Follow pairing instructions in the hOn App

hOn App hOn

ÊCÓléañeìon

1. When the display screen is unlocked, press the button "K2" (ECO function button), the buzzer rings once, the indicator "C" (ECO function) illuminates, and then the ECO function will be turned on.
2. When the display screen is unlocked, press the button "K₂" (ECO function button), the buzzer rings once, the indicator "C" (ECO function) goes off, and then the ECO function will be turned off.

Ñoligäü leóna-ìon

1. When the display screen is unlocked, press the button "K3" (Holiday function button), the buzzer rings once, the indicator "D" (Holiday function) illuminates, and then the Holiday function will be turned on.

2. When the display screen is unlocked, press the button "K 3" (Holiday function button), the buzzer rings once, the indicator "D" (Holiday function) goes off, and then the Holiday function will be turned off.

NOTICE

1. The Holiday function is mainly used for short-term travel and other life scenes, and the fridge room must be emptied when use the holiday function.
2. In the Holiday function, the temperature of the fridge room will be higher (about 17^ C), please pay attention to empty the food in the fridge room to avoid food deterioration.
3. In Holiday function, the setting of "Fruit&Veg, QuickCool, 0°C Fresh" icons in My zone will be switched off and the temperature of My zone cannot be adjusted. The fridge compartment and My zone will display in the previous setting once exiting the Holiday function.

Super Cool function

1. When the display screen is unlocked, press the button "K8" (Super Cool selector), the buzzer rings once, the indicator "O" (Super Cool function) illuminates, and then the Super Cool function will be turned on.
2. When the indicator "O"(Super Cool function) illuminates, press the button 8" (Super Cool selector), the buzzer rings once, the indicator "O"(Super Cool function) goes off, and then the Super Cool function will be turned off.
3. After the Super Cool function is turned on, the refrigerator will automatically turn off the function when it reaches the set temperature If you want to exit manually, you can press the button "K8"(Super Cool selector) to turn it off.

NOTICE

1. Under Super cool state, the fridge temperature cannot be adjusted. If either button "K5" ("Temperature adjustment button "-") or button (Temperature adjustment button "+") is pressed to adjust the temperature of fridge, the indicator "O"(Super Cool indicator) will flash with a prompt sound to indicate that this operation cannot be carried out.
2. In the state of Super cool function, the Auto-set function cannot be turned on at the same time due to different control modes. When you choose one function that conflicts with another function, the original function will automatically exit.
3. This function will be automatically disable after 4 hours.

ÜøóèðÏ õèèyèéøñæ÷ìòñ

1. When the display screen is unlocked, press the button "K9"(Super Freeze selector), the buzzer rings once, the indicator "P" (Super Freeze function) illuminates, and then the Super Freeze function will be turned on.

2. When the indicator "P" (Super Freeze function) illuminates, press the button "9" (Super Freeze selector), the buzzer rings once, the indicator "P" (Super Freeze function) goes off, and then the Super Freeze function will be turned off.

3. After the Super Freeze function is turned on, the refrigerator will automatically turn off the function when it reaches the set temperature If you want to exit manually, you can press the button "K9"(Super Freeze selector) to turn it off.

NOTICE

1. Under Super Freeze state, the freezer temperature cannot be adjusted. If either button "K5" ("Temperature adjustment button "-") or button 6" (Temperature adjustment button "+") is pressed to adjust the temperature of freezer, the indicator "P"(Super Freeze indicator) will flash with a prompt sound to indicate that this operation cannot be carried out.
2. Super Freeze function is designed to keep nutrition value of frozen food, it will be freeze food in the shortest time. If large quantities of frozen food are to be frozen at one time. Meanwhile, Super Freeze function should be set 24h in a- advance to make the freezer own relatively low temperature and put food in. At this time, the freezing speed of the freezer is improved, food can be frozen quickly, the nutrition of food is effectively kept, and the storage becomes quite convenient.
3. The Super Freeze function will automatically seitch off after 50 hours, The appliance is then operated at the previously set temperature.

Öüäöneéønæ÷iòñöèièæ÷

When the display screen is unlocked, press the button "K7"(My Zone function select button), the buzzer rings once, the indicator "L" (Fruit&Veg function) illuminates, and then the Fruit&Veg function will be turned on. If either button "K7" is pressed to select the My Zone function, the buzzer rings once again, and the indicator "M" (Quick Cool function) illuminates, and then the QuickCool function will be turned on. The My Zone function options are "Fruit&Veg, QuickCool, and 0°C Fresh" in turn.

NOTICE

1. When the refrigerator is first powered on, the indicator "L" illuminates, the My Zone are automatically set to QuickCool function. One of the three My Zone indicator must be lit. When you select the My Zone function again, the previously lit My Zone indicator cannot be selected. Only one of the three functions can be configured. The three functions are mutually exclusive.
2. My Zone storage temperature setting number cannot be higher than the feidge temperature setting number.
3. To reduce the refrigerator compartment temperature use the 0^ C Fresh function. To increase it, use the Fruit & Veg function.

Öüäöneçõäú èõ

The fridge compartment is equipped with a My Zone drawer. In accordance with the food's storage demands, the most suitable temperature can be selected to get the optimal nutritional value of the foods. Following modes are available.

Funciton Fruit&Veg

This function is suitable to store fruits and vegetables like apples and carrots, etc.

Function QuickCool

This function is suitable to store drinks like coke and beer, etc.

NOTICE : Fruit&Veg

Cold-sensitive fruits like pineapples, avocado, bananas, grapefruits and vegetables such as potatoes, aubergines, beans, cucumbers, zucchini and tomatoes and cheese should not be stored in the My Zone drawer.

Function 0 °C Fresh

This function sets the temperature in the My Zone drawer to 0^ C. Suitable to store of fresh food such as meat or instant products. Most foods stay fresh at 0^ C, but not frozen.

NOTICE : ℃ Fresh

1. Due to different water contents of meat, some meat with more moisture will be frozen at temperatures lower than 0^ C. So “inmediately cut”meat should be stored in My Zone drawer, with temperatures min 0^ C.
2. When you chose 0^ C Fresh set the temperature of the refrigerating compartment in the low level (below 5^ C), in order to preserve your food in the optimal storage environment.

Ñøð ¡çì÷üñāònèçōäú èõ

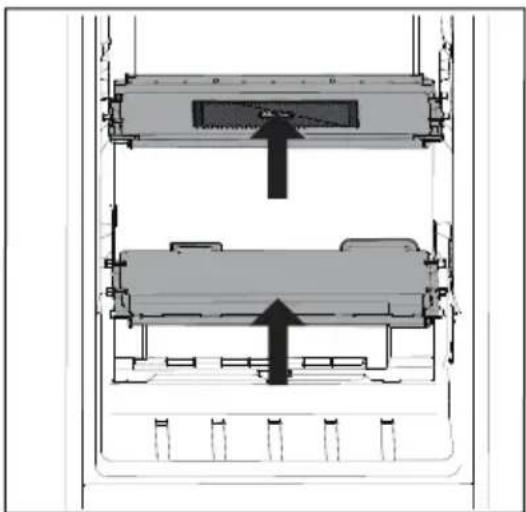

In this compartment the humidity level is higher than fridge compartment. It is controlled automatinally by the system and is suitable to store friuits, vegetable, salsads, etc.

NOTICE

1. Do not remove the plastic cover inside the two zones.
2. They maintain the humidity.
3. Clod-sensitive fruits like pineapple, avocado, bananas, graperfruits are not recommended to be stored in these two drawers.

Cross-sectional diagram of a mechanical assembly with two stacked components and an upward arrow indicating motion (no text or symbols)

AIRSUBROUND HUMIDITY ZONE Haier HVAC Zone HVAC Zone

Diagram showing two labeled arrows (① and ②) pointing to a tray with textured surfaces, likely illustrating a physics or engineering concept.

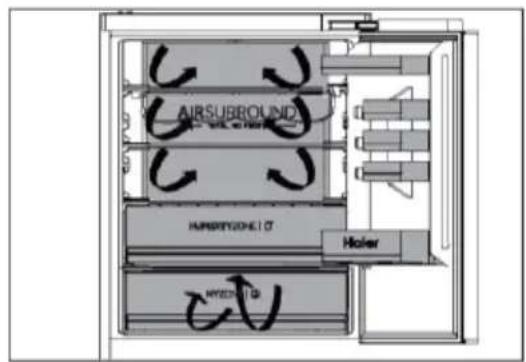

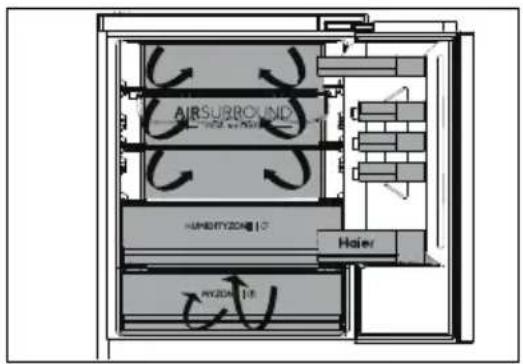

Multi-air-flow

1. The refrigerator is equipped with a multi-air-flow system, with which cool air flows are located on every shelf level. This helps to maintain a uniform temperature to ensure that your food is kept fresher for longer.

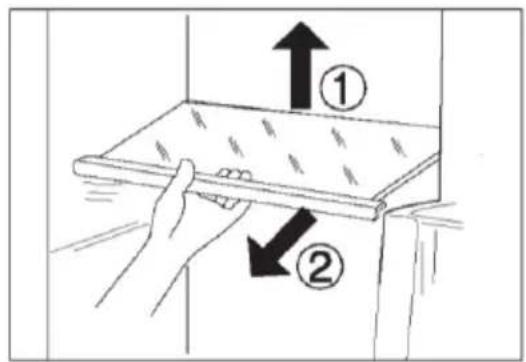

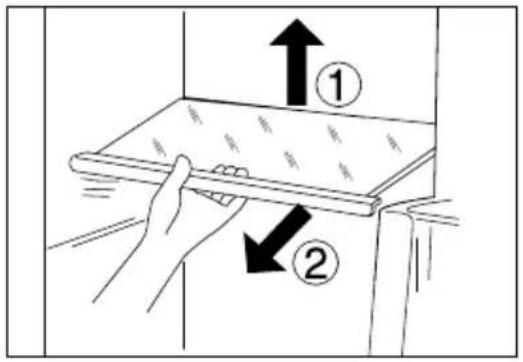

Adjustable shelves

1. The height of the shelves can be adjusted to fit your storage needs.
2. To relocate a shelf, remove it first by uplifting its hind edge ① and pulling it out ②
3. To reinstall it, put it on the lugs on both sides and push it to the most rearward position until the rear of the shelf is fixed inside the slots in the sides

NOTICE

Ensure that all ends of a shelf are level.

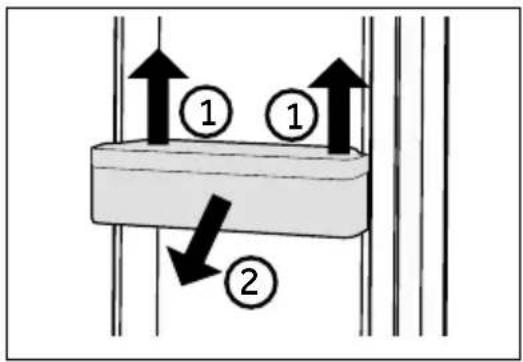

Removable door racks/bottle holder

1. The door racks can be removed for cleaning:
2. Place hands on each side of the rack, lift it upwards ① and pull it out ②.
3. In order to insert the door rack, the above steps are carried out in reverse order.

Diagram showing two labeled arrows (1 and 2) pointing upward and downward on a rectangular object, likely illustrating a mechanical or fluid system concept.

NOTICE

When the appliance is switched on, it may take up to 12 hours for the correct temperatures to be reached.

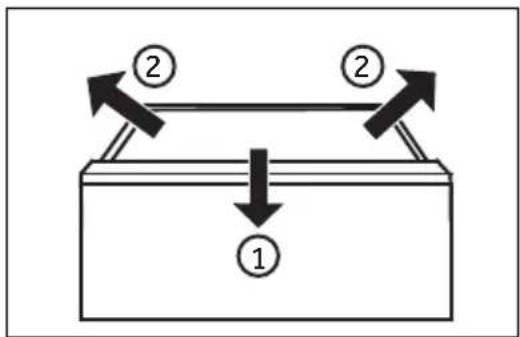

Removable drawer

To remove the drawer out, pull out to the maximum extent ①, lift and remove ②.

In order to insert the drawer, the above steps are carried out in reverse order.

The Light

The LED interior light comes on when the door is opened. The performance of the lights is not affected by any of the appliances other settings.

Energy saving tips

Make sure the appliance is properly ventilated (see INSTALLATION).

Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters).

- Avoid unnecessarily low temperature in the appliance. The energy consumption increases the lower the temperature in the appliance is set.

Functions like super Freeze consume more energy.

Allow warm food to cool down before placing it in the appliance.

Open the appliance door as little and as briefly as possible.

Do not the overfill appliance to avoid obstructing the air flow.

Avoid air within the food packaging.

sekisepeano so that the door always closes correctly.

Defreeze frozen food in the fridge storage compartment.

The most energy-saving configuration requires the appliance keep drawers, food box and shelves on factory-fresh condition, and food should be places as far as possible without blocking the air outlet of the duct.

WARNING!

Disconnect the appliance from the power supply before cleaning.

Cleaning

Clean the appliance when only little or no food is stored.

The appliance should be cleaned every four weeks for good maintenance and to prevent bad stored food odors.

WARNING!

Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.

Do not spray or flush the appliance during cleaning.

Do not use water spray or steam to clean the appliance.

Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.

Do not touch the inside surface of the freezer storage compartment, especially with wet hands, as your hands may freeze onto the surface.
\~ In case of heating check the condition of frozen goods.

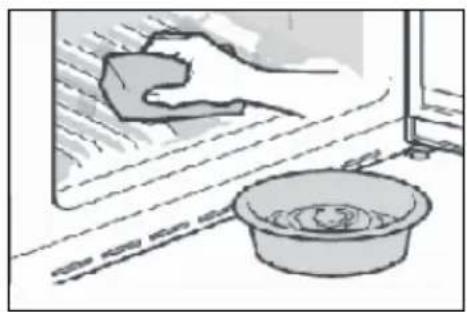

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

Always keep the door gasket clean.

- Clean the inside and housing of the appliance with a sponge dampened in warm water and neutral detergent.

1. Please scrub the interior and exterior of the refrigerator, including door sealing, door rack, glass shelves, boxes and so on, with a soft towel or sponge dipped in warm water (you may add neutral detergent into the warm water).

2. If there is liquid spilled, remove all the contaminated parts, directly rinse with the flow water, dry and place it back into the fridge.

3. If there is spilled cream (such as the cream, melting ice cream), please remove all the contaminated parts, put into the warm water with about 40 °C for some time, then rinse with the flow water, dry and place it back into the fridge.

4. In case some small part or component gets stuck inside of the fridge (between shelves or drawers), use small soft brush to release it. If you could not reach the part, please contact Haier service

\~ Rinse and dry with soft cloth.
\~ Do not clean any of the parts of the appliance in a dishwasher.
\~ Allow at least 5 minutes before restarting the appliance as frequent starting may damage the compressor.

Defrosting

The defrosting of the refrigerator and the freezer compartment are done automatically; no manual operation is needed.

Replacing the LED-lamps

WARNING!

Do not replace the LED lamp yourself, it must only be replaced by either the manufacturer or the authorised service agent.

The lamps adopts LED as its light source, featuring low energy consumption and long service life. If there is any abnormality, please contact the customer service. See CUSTOMER SERVICE.

Parameters of the lamps:

Refrigerator compartment: 12 V max 2 W

Freezer compartment: 12 V max 2 W

Non-use for a longer period

If the appliance is not used for an extended period of time, and you will not use the Holiday-function for the refrigerator:

Take out the food.

Unplug the power cord.

Clean the appliance as described above.

Keep the doors open to prevent the creation of bad odours inside.

NOTICE

Turn the appliance off only if strictly necessary.

Moving the appliance

1. Remove all food and unplug the appliance.
2. Secure shelves and other moveable parts in the fridge and the freezer with adhesive tape.
3. Do not tilt the refrigerator more than 45^ to avoid damaging the refrigerating system.

WARNING!

Do not lift the appliance by its handles.
\~ Never place the appliance horizontally on the ground.

Many occurring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE.

WARNING!

Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
- Electrical equipment should be serviced only by qualified electrical experts, because improper repairs can cause considerable consequential damages.
A damaged supply should only be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Problem Possible Cause Possible Solution
The compressor does not work.	Mains plug is not connected in the mains socket.The appliance is in the defrosting cycleConnect the mains plug.This is normal for an automatic defrosting
The appliance runs frequently or runs for a too long period of time.	The indoor or outdoor temperature is too high.The appliance has been off power for a period of time.A door of the appliance is not tightly closed.The door has been opened too frequently or for too long.The temperature setting for the freezer compartment is too low.The door gasket is dirty, worn, cracked or mismatched.The required air circulation is not guaranteed.In this case, it is normal for the appliance to run longer.Normally, it takes 8 to 12 hours for the appliance to cool down completely.Close the door/drawer and ensure the appliance is located on a level ground and there is no food or container jarring the door.Do not open the door/drawer too frequently.Set the temperature higher until a satisfactory refrigerator temperature is obtained. It takes 24 hours for the refrigerator temperature to become stable.Clean the door/drawer gasket or replace them by the customer service.Ensure adequate ventilation.
The inside of the refrigerator is dirty and/or smells.	The inside of the refrigerator needs cleaning.Food of strong odour is stored in the refrigerator.Clean the inside of the refrigerator.Wrap the food thoroughly..
It is not cold enough inside the appliance.	The temperature is set too high.Too warm goods has been stored.Too much food has been stored at one time.The goods are too close to each other.A door/drawer of the appli-ance is not tightly closed.The door/drawer has been opened too frequently or for too long.
It is too cold inside the appli-ance.	The temperature is set too low.The Super Freeze/Su-per Cool function is activated or is running too long.
Moisture forma-tion on the inside of the refrigerator compartment.	The climate is too warm and toodamp.A door/drawer of the appli-ance is not tightly closed.The door/drawer has been opened too frequently or for too long.Food containers or liquids are left open.
Moisture accumulates on the refrigerators outside surface or between the doors/door and drawer.	The climate is too warm and too damp.The door is not closed tightly. The cold air in appliance and warm air outside it condensates.It is in demo mode.
The display light works but does not feel cool.

Problem Possible Cause Possible Solution
Strong ice and frost in the freezer compartment.	The goods were not adequately packaged.A door/drawer of the appliance is not tightly closed.The door/drawer has been opened too frequently or for too long.The door/drawer gasket is dirty, worn, cracked or mismatched.Something on the inside prevents the door/drawer to close properly.	Always pack the goods well.Close the door/drawer.Do not open the door/drawer too frequently.Clean the door/drawer gasket or replace them by new ones.Reposition the shelves, door racks, or internal containers to allow the door/drawer to close.
The sides of the cabinet and door strip get warm.	This is normal.The appliance is not located on level ground.The appliance touches some object around it.	Adjust the feet to level the appliance.Remove objects around the appliance.
The appliance makes abnormal sounds.
A slight sound is to be heard similar to that of flowing water.	This is normal.
You will hear an alarm beep.	The fridge storage com- partment door is open.The anti-condensation system is workingMains plug is not connected in the mains socket.The power supply is not intact.The LED-lamp is out of order.	Close the door.This prevents condensation and is normalConnect the mains plug.Check the electrical supply to the room. Call the local electricity company!Please call the service for changing the lamp.
You will hear a faint hum.
The interior lighting or cooling system does not work.

To contact the technical assistance, visit our website: https://corporate.haier-europe.com/en/

Under the section "website", choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance.

Power interruption

In the event of a power cut, food should remain safely cold for about 5 hours. Follow these tips during a prolonged power interruption, especially in summer:

\~ Open the door/drawer as few times as possible.
Do not put additional food into the appliance during a power interruption.
If prior notice of a power interruption is given and the interruption duration is longer than 5 hours, make some ice and put it in a container in the top of the refrigerator compartment.
\~ An inspection of the goods is required immediately after the interruption.
As temperature in the refrigerator will rise during a power interruption or other failure, the storage period and edible quality of food will be reduced. Any food that defrosts should be either consumed, or cooked and refrozen (where suitable) soon afterwards in order to prevent health risks.

Memory function during power interruption

After restoration of power the appliance continues with the settings that were set before the power failure.

Unpacking

WARNING!

\~ The appliance is heavy. Always handle with at least two persons.
- Keep all packaging materials out of children's reach and dispose them in an environmentally friendly manner.
\~ Take the appliance out of the packaging.
\~ Remove all packaging materials.

Environmental conditions

The room temperature should always be between 10^ C and 43^ C, since it can influence the temperature inside the appliance and its energy consumption. Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation.

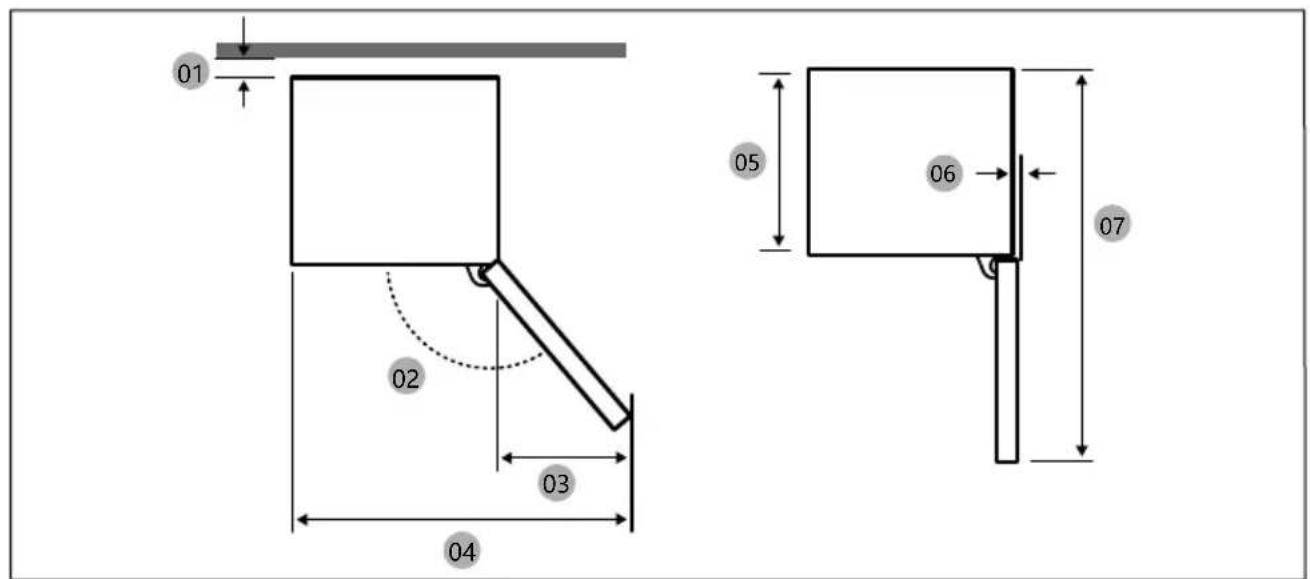

Space requirement

Required space when door is opened (Without cabinet door panel)

01 02 03 04 05 06 07

Model	HBW7518CHBW7518DT
01 *	10 (Min.) / 30 (Recommended)
02	95°(Recommended)
03 43
04	583
05	515
06	-3
07	1060

(unit : mm)

* 01: From cabinet to rear of product.

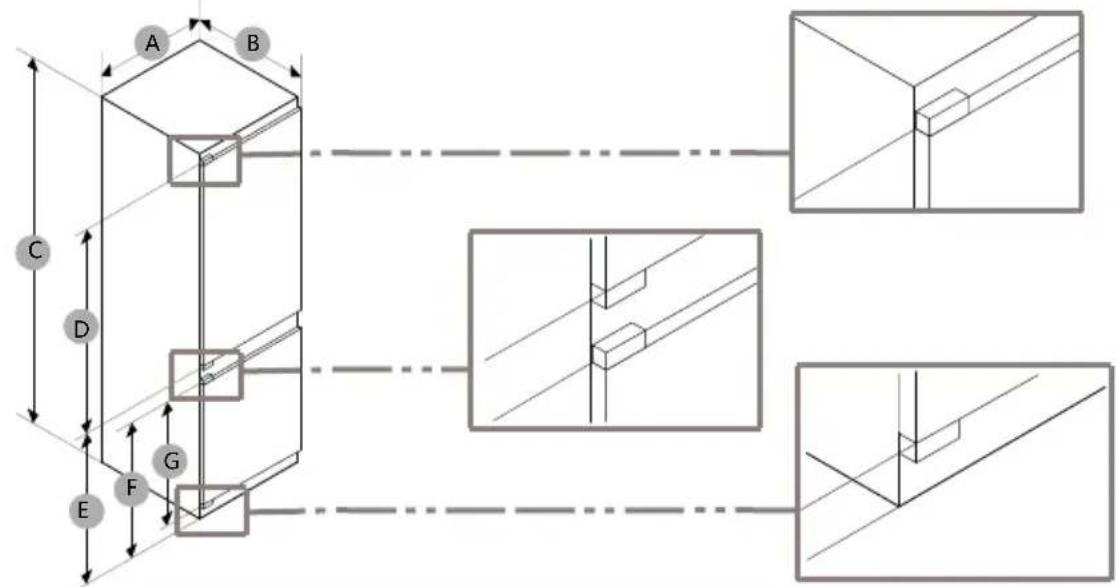

Product dimention

A B C D E F G

Model	A(mm) B(mm)	C(mm) D(mm)	E(mm) F(mm) G(mm)
HBW7518CHBW7518DT	540 ± 2550 ± 21772 ± 2970 74	5662		618

NOTICE

• The specified energy consumption is based on the condition of a 10 ~mm gap from cabinet to rear of product. The product will work properly even with a gap which is less than 10 ~mm , however it consumes slightly more energy.
  • We recommend using a cabinet that is 18mm thick with hinges less than 20mm thick.
  • The measurements in the above table may differ, depending on the measuring method.
• For built-in installation, see the Installation Guide.

Ventilaton cross-section

To achieve sufficient ventilation of the appliance for safety reasons, the information of the required ventilation cross sections must be observed.

200cm² 200cm² 200cm² 200cm² 200cm² A B

A :Air inlet ≥ 200cm^2 ;Ventilation options B :Air outlet ≥ 200cm^2 ;Ventilation options

Pure technical diagram showing two horizontal bars with arrows indicating direction, no text or symbols present

Simple line drawing of a corner structure with arrows indicating direction (no text or symbols)

Technical line drawing of a structural support frame with no text or symbols

Technical diagram showing a structural assembly with supports and a vertical wall, labeled A2 (no text or symbols present)

Cabinet dimension

Socket Max 2100mm A B C D E B A

CAUTION!

Any product failure due to the following is not covered by the Warranty.

1. Improper site conditions or incorrect cabinet sizes.
2. Defective cabinet.
3. Mistakes by the installer or the user.

Clearance

See the pictures and tables below for space requirements for installation.

Model		A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	Remar k
HBW7518CHBW7518DT	Min.	50400		560	1778	560	Hinge : 17mm
	Recommend			580 17	80 562
	Max.			-	178256	8

NOTICE

• If the width of a cabinet is larger than 568mm, the gasket (between the refrigerator and the cabinet) can become loose.
• If the cabinet is higher than the maximum dimension (1782 mm), you must use other finishing materials to fill the gap.

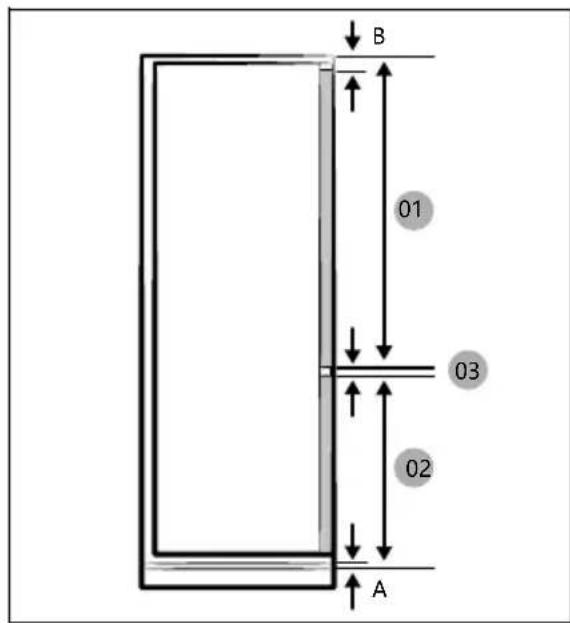

B 01 03 02 A

NOTICE

To install a cabinet requiring a 4 mm gap (03), see the cabinet reference table below.

A. Lower edge of the front panel above the air ventilation
B. Front panel overhang

(unit : mm)

Model	HBW7518CHBW7518DT
01	Min. 1028+BMax. 1106+B
02	Min. 662+AMax. 740+A
03	4 mm (fridge and freezer cabinet door panel gap)

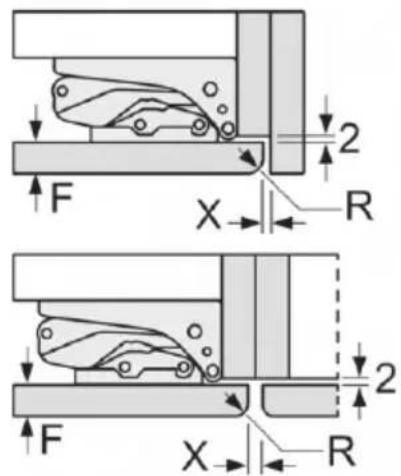

Recommended gap dimensions for flat hinges(For Fixed or soft hinge type).

F X R 2 2 F X R

(unit : mm)

FRX
16-19	0-3	2.5
20	0-1	3
	2-3	2.5
21	0-1	3
	2-3	2.5
22	0	4
	1	3.5
	2-3	3

The gap dimensions recommended in the table must be adhered to in order to ensure that appliance doors do not collide with anything when they are opened, and to avoid causing damage to kitchen units.

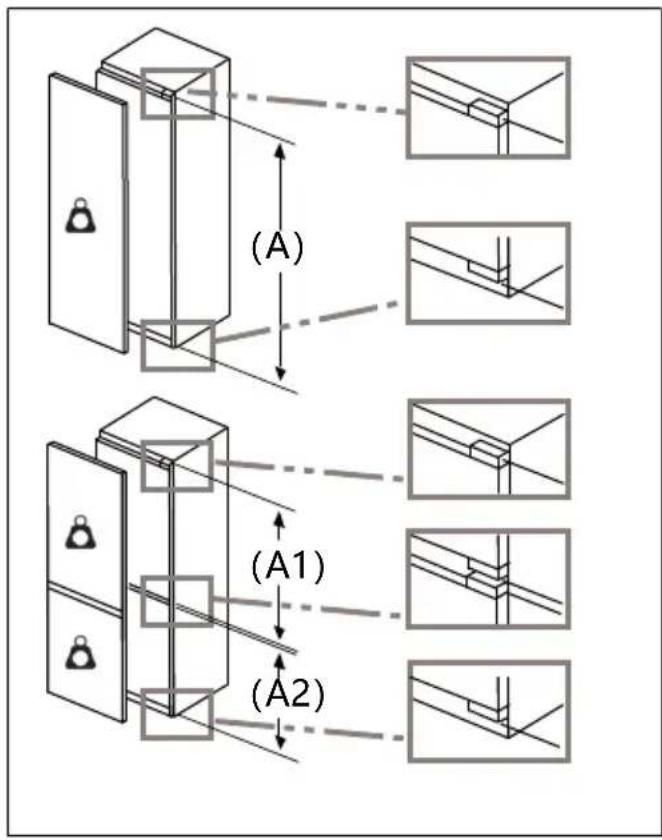

Maximal permissible weight of the unit fronts

(A) (A1) (A2)

Fitted unit fronts that exceed the permissible weight may cause damage and result in functional impairment of the hinges.

Weight (kg)

1500-1750 mm	22
720-1400 mm	19
A1	15
A2	15

Consideration for socket outlet location and required space

≥590mm ≥560mm ≤2100mm

NOTICE

If you install the refrigerator in a cabinet with a 560 mm depth, make sure the power cord is arranged on a side of the refrigerator before plugging into a power socket. If the power cord is in the rear of the refrigerator, it could decrease the energy efficiency.

Waiting time

2 h

To the maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during slanting transport. Before connecting the appliance to the power supply you have to wait at least 2 hours so that the oil runs back into the capsule.

Electrical connection

Before each connection check if:

\~ power supply, socket and fusing are appropriate to the rating plate.
\~ the power socket is earthed and no multi-plug or extension.
\~ the power plug and socket are strictly according.

Connect the plug to a properly installed household socket.

WARNING!

To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).

Product fiche according to regulation EU No. 2019/2016

Brand	Haier	Haier
Model name/identifier	HBW7518C	HBW7518DT
Category of the model	Refrigerator freezer	Refrigerator freezer
Energy efficiency class	C	D
Annual energy consumption(kWh/year)(1)	146	180
Total volume(L)	268	268
Volume refrigerator(L)	182	182
Volume freezer(L)	86	86
Volume chiller section(L)	/	/
Volume auto ice maker(L)	/	/
Star rating	4	4
Temperature of other compartments>14 °C	Non applicable	Non applicable
Frost-free system Yes		Yes
Freezing capacity(kg/24h)	8	8
Climate rating(2)	SN/N/ST/T SN/N/ST/T
Noise emission class and airborne acoustical noise emissions(db(A)re1pW)	B32	B32
Temperature rise time(h)	12	11
Ice making capacity	/	/
Type of appliance	Built-in	Built-in

Model name	Energy efficiency class
HBW7518C	C
HBW7518DT	D

Explanations:

- Yes, featured

(1) Based on the results of the standards conformance test over 24 hours. The actual consumption depends on the use and the location of the appliance.
(2) Climate rating SN: This appliance is intended for use in an ambient temperature of between +10°C and +32°C
Climate rating N: This appliance is intended for use in an ambient temperature of between +16°C and +32°C
Climate rating ST: This appliance is intended for use in an ambient temperature of between +16°C and +38°C
Climate rating T: This appliance is intended for use in an ambient temperature of between +16°C and +43°C

Additional technical data

Voltage / Frequency	220-240V ~/ 50Hz
Input current (A)	2
Main fuse (A)	16
Coolant	R600a
Dimensions (H/W/D in mm)	1772/540/550

We recommend our Haier Customer Service and the use of original spare parts. If you have a problem with your appliance, please first check section TROUBLE-SHOOTING.

If you cannot find a solution there, please contact

\~ your local dealer or
\~ our European Call Service-Center (see listed phone numbers below) or
\~ the Service & Support area at www.haier.com where you can activate the service
\~ claim and also find FAQs.

To contact our Service, ensure that you have the following data available. The information can be found on the rating plate.

Model

Serial No. ____

Also check the Warranty Card supplied with the product in case of warranty.

European Call Service-Center
Country*	Phone number Costs
Haier Italy (IT)	199 100 912
Haier Spain (ES)	902 509 123
Haier Germany (DE)	0180 5 39 3999	• 14 Ct/Min Landline• max 42 Ct/Min Mobile
Haier Austria (AT)	0820 001 205	• 14,53 Ct/Min Landline• max 20 Ct/Min all others
Haier United Kingdom (UK)	0333 003 8122
Haier France (FR)	0980 406 409

* For other countries please refer to www.haier.com

Haier Europe Trading S.r.l

Branch UK

Westgate House, Westgate, Ealing

London, W5 1YY

*Duration of the guarantee of the refrigerating appliance:

Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.

*The period of spare parts for the repair of the appliance:

Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market.

Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market.

*For further information about the product, please consult https://eprel.ec.europe.eu/ or scan the QR on the energy label supplied with the appliance.

Abstract geometric composition with four gray diamond shapes arranged in a cross pattern (no text or symbols)

Haier

专用号条码

0060536192

2024 Version A

Haier

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

WARNING: Risk of fire/flammable material EN

The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by igniting flammable material.

POSTUP PÁROVÁNÍ S APLIKACÍ

UPOZORN NÍ

UPOZORN NÍ: 0°C Fresh

Technical diagram of a mechanical assembly with two stacked components and an upward arrow indicating motion (no text or symbols)

Diagram showing two hands holding a tray with labeled arrows and numbered sections, likely illustrating a physical or technical process.

Diagram showing two labeled arrows pointing upward and downward to a rectangular object, with numbered circles ① and ② indicating positions or sections.

UPOZORN NÍ

Illustration of a hand cleaning a surface with a cloth and a basin nearby (no text or symbols)

A B C D E F G G

Model	A(mm) B(mm)	C(mm) D(mm)	E(mm) F(mm) G(mm)
HBW7518CHBW7518DT	540 ± 2550 ± 21772 ± 2970	745662		618

UPOZORN NÍ

F X R 2 2 F X R

(jednotky: mm)

F	R	X
16-19	0-3	2,5
20	0-1	3
	2-3	2,5
21	0-1	3
	2-3	2,5
22	0	4
	1	3,5
	2-3	3

(A) (A1) (A2)

Westgate House, Westgate, Ealing

London, W5 1YY

Abstract geometric composition with four gray triangles arranged in a cross pattern (no text or symbols)

Haier

专用号条码

0060536192

2024 Version A

Haier

Benutzerhandbuch

Refrigerator-Freezer

HBW7518C

HBW7518DT

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

WARNING: Risk of fire/flammable material EN

The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by igniting flammable material.

A B Wi-Fi ECO Holiday Zone H J K L M N O P Q K1 K2 K3 K4 K5 I K6 K7 K8 K9 K10 My Zone Super Cool Super Freeze 3S Unlock

Anzeigen:

Welcome Up to the following: 10 minutes Add to Add to Read away from a log? Use remote technical and interactive To the home

hOn App hOn

ECO-Funktion

HINWEIS

Technical diagram of a mechanical assembly with two stacked components and an upward arrow indicating motion (no text or symbols)

Diagram showing two hands holding a tray with labeled arrows and numbered sections, likely illustrating a physical or technical process.

Mehrfach-Luftstrom

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a rectangular object, with arrows indicating direction of movement.

HINWEIS

Illustration of a hand cleaning a surface with a washing machine and a basin nearby (no text or symbols)

A B C D E F G G

Modell	A(mm) B(mm)	C(mm) D(mm)	E(mm) F(mm) G(mm)
HBW7518CHBW7518DT	540 ± 2550 ± 21772 ± 2970 74	5662		618

HINWEIS

F X R 2 2 F X R

(Einheit: mm)

F	R	X
16-19	0-3	2,5
20	0-1	3
	2-3	2,5
21	0-1	3
	2-3	2,5
22	0	4
	1	3,5
	2-3	3

(A) (A1) (A2)

≥590mm ≤2100mm ≥560mm

HINWEIS

Westgate House, Westgate, Ealing

London, W5 1YY

Abstract geometric composition with four gray triangular shapes arranged in a radial pattern (no text or symbols)

Haier

专用号条码

0060536192

2024 Version A

Haier

Εγχειρίδιο χρήσης

Refrigerator-Freezer

HBW7518C

HBW7518DT

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

WARNING: Risk of fire/flammable material EN

The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by igniting flammable material.

Pure geometric line drawing of a diagonal rectangular shape with no text or symbols

Κάτω κάλυμμα

Simple line drawing of a diagonal line with no text or symbols

Taivía σφράγισης

Σφουγγάρι σφράγισης

Welcome! Sun is another news house! SIN! SIN Post user in Candy! Click before to submit our email. @12340

hOn App hOn

Λειτουργία ΕΖΟ

urτ ρι Humidity Zone

Technical diagram of a mechanical assembly with two stacked components and an upward arrow indicating motion (no text or symbols)

Diagram showing two hands holding a tray with labeled arrows and numbered sections, likely illustrating a physical or technical process.

o α ρo α pa

Diagram showing two labeled arrows pointing upward and downward to a rectangular object, with numbered circles ① and ② indicating positions or sections.

Illustration of a hand cleaning a window with a washing machine (no text or symbols)

A B C D E F G

O T O	A(mm) B(mm)	C(mm) D(mm)	E(mm) F(mm) G(mm)
HBW7518CHBW7518DT	540 ± 2550 ± 21772 ± 2970 74	5662		618

F X R 2 2 F X R

(μονάδα: mm)

F	R
16-19	0-3	2,5
20	0-1	3
	2-3	2,5
21	0-1	3
	2-3	2,5
22	0	4
	1	3.5
	2-3	3

(A) (A1) (A2)

≥590mm ≤2100mm ≥560mm

Westgate House, Westgate, Ealing

ovδívo, W5 1YY

Abstract geometric composition with four gray triangular shapes arranged in a cross pattern (no text or symbols)

Haier

专用号条码

0060536192

2024 Version A

Haier

Manual de usuario

Refrigerator-Freezer

HBW7518C

HBW7518DT

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

WARNING: Risk of fire/flammable material EN

The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by igniting flammable material.

Hello! SOSIP Buy online in Candy? Click a mobile website or your email.com Rin (240)

hOn App hOn

Función ECO

AVISO

Technical diagram of a mechanical assembly with two stacked components and an upward arrow indicating motion (no text or symbols)

Diagram showing two hands holding a tray with labeled arrows and numbered sections, likely illustrating a physical or technical process.

Diagram showing two labeled arrows pointing upward and downward to a rectangular object, with numbered circles ① and ② indicating positions or sections.

AVISO

Illustration of a hand cleaning a surface with a soap block and a basin (no text or symbols)

A B C D E F G G

Modelo	A(mm) B(mm)	C(mm) D(mm)	E(mm) F(mm) G(mm)
HBW7518CHBW7518DT	540 ± 2550 ± 21772 ± 2970 74	5662		618

AVISO

F X R 2 2 F X R

(unidad: mm)

F	R	X
16-19	0-3	2,5
20	0-1	3
	2-3	2,5
21	0-1	3
	2-3	2,5
22	0	4
	1	3,5
	2-3	3

(A) (A1) (A2)

Westgate House, Westgate, Ealing

Londres, W5 1YY

Abstract geometric composition with four gray triangles arranged in a cross pattern (no text or symbols)

Haier

专用号条码

0060536192

2024 Version A

Haier

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

WARNING: Risk of fire/flammable material EN

The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by igniting flammable material.

Pure geometric line drawing of a diagonal rectangular shape with no text or symbols

Couvercle inférieur

Simple line drawing of a diagonal line with no text or symbols

Bande d'étanchéité

Éponge d'étanchéité

Welcome! Get Info content to access them OK OK Take OK Now you need your Access information about your products. My Close

hOn App hOn

Fonction CO

REMARQUE

Technical diagram of a mechanical assembly with two stacked components and an upward arrow indicating motion (no text or symbols)

Diagram showing two hands holding a tray with labeled arrows and numbered sections, likely illustrating a process or movement.

Flux multi-air

Diagram showing two labeled arrows pointing upward and downward to a liquid container, with numbered circles indicating positions.

REMARQUE

Illustration of a hand cleaning a surface with a soap block and a basin (no text or symbols)

A B C D E F G G

Mod le	A(mm) B(mm)	C(mm) D(mm)	E(mm) F(mm) G(mm)
HBW7518CHBW7518DT	540 ± 2550 ± 21772 ± 2970 74	5662		618

REMARQUE

F X R 2 2 F X R

(unité : mm)

F	R	X
16-19	0-3	2,5
20	0-1	3
	2-3	2,5
21	0-1	3
	2-3	2,5
22	0	4
	1	3,5
	2-3	3

(A) (A1) (A2)

Westgate House, Westgate, Ealing

Londres, W5 1YY

Abstract geometric composition with four gray triangular shapes arranged in a cross pattern (no text or symbols)

Haier

专用号条码

0060536192

2024 Version A

Haier

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

WARNING: Risk of fire/flammable material EN

The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by igniting flammable material.

Welcome! Sign info order in your home? Add it Add SP Add Pay 0040

hOn App hOn

ECO funkció

MEG EG Z S

Cross-sectional diagram of a mechanical device showing internal components and directional arrows (no text or symbols)

Diagram showing two hands holding a tray with labeled arrows and numbered sections, likely illustrating a physical or technical process.

Diagram showing two labeled arrows pointing upward and downward to a rectangular object, with numbered circles ① and ② indicating positions or sections.

MEG EG Z S

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

A B C D E F G

Modell	A(mm) B(mm)	C(mm) D(mm)	E(mm) F(mm) G(mm)
HBW7518CHBW7518DT	540 ± 2550 ± 21772 ± 2970 74	5662		618

MEG EG Z S

F X R 2 2 F X R

(mértékegység: mn

F	R	X
16-19	0-3	2,5
20	0-1	3
	2-3	2,5
21	0-1	3
	2-3	2,5
22	0	4
	1	3,5
	2-3	3

(A) (A1) (A2)

Westgate House, Westgate, Ealing

London, W5 1YY

Abstract geometric composition with four gray triangular shapes arranged in a cross pattern (no text or symbols)

Haier

专用号条码

0060536192

2024 Version A

Haier

Manuale dell'utente

Refrigerator-Freezer

HBW7518C

HBW7518DT

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

WARNING: Risk of fire/flammable material EN

The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by igniting flammable material.

Welcome! Login to a customer for your request NEW Add new This is now in order If you need to access your website or http://www.100.com

hOn App hOn

Funzione ECO

AVVISO

Technical diagram of a mechanical assembly with two stacked components and an upward arrow indicating motion (no text or symbols)

Diagram showing two hands holding a tray with labeled arrows and numbered sections, likely illustrating a process or movement.

Flusso d aria multiplo

Diagram showing two labeled arrows pointing upward and downward to a liquid-filled container, with numbered circles ① and ② indicating positions or states.

AVVISO

Illustration of a hand cleaning a surface with a cloth and a basin nearby (no text or symbols)

A B C D E F G G

Modello	A(mm) B(mm)	C(mm) D(mm)	E(mm) F(mm) G(mm)
HBW7518CHBW7518DT	540 ± 2550 ± 21772 ± 2970 74	5662		618

AVVISO

F X R 2 2 F X R

(unità: mm)

F	R	X
16-19	0-3	2,5
20	0-1	3
	2-3	2,5
21	0-1	3
	2-3	2,5
22	0	4
	1	3,5
	2-3	3

(A) (A1) (A2)

Westgate House, Westgate, Ealing

London, W5 1YY

Abstract geometric composition with four gray triangular shapes arranged in a cross pattern (no text or symbols)

Haier

专用号条码

0060536192

2024 Version A

Haier

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention contexts.

WARNING: Risk of fire/flammable material EN

The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by igniting flammable material.

Welcome! Sign in order to access home login login OK Post user not valid? Exclusion to deliver your products http://80049

hOn App hOn

ECO-functie

LET OP

Cross-sectional diagram of a mechanical device showing internal components and directional arrows (no text or symbols)

Diagram showing two hands holding a tray with labeled arrows and numbered sections, likely illustrating a process or movement.

Diagram showing two labeled arrows pointing upward and downward to a rectangular object, with circled numbers ① and ② indicating positions or sections.

LET OP

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

A B C D E F G G

Model	A(mm) B(mm)	C(mm) D(mm)	E(mm) F(mm) G(mm)
HBW7518CHBW7518DT	540 ± 2550 ± 21772 ± 2970 745662			618

LET OP

F X R 2 2 F X R

(eenheid: mm)

F	R	X
16-19	0-3	2,5
20	0-1	3
	2 3	2,5
21	0-1	3
	2 3	2,5
22	0	4
	1	3,5
	2 3	3

(A) (A1) (A2)

Westgate House, Westgate, Ealing

Abstract geometric composition with four gray triangles arranged in a cross pattern (no text or symbols)

Haier

专用号条码

0060536192

2024 Version A

Haier

Instrukcja obsługi

Refrigerator-Freezer

HBW7518C

HBW7518DT

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

WARNING: Risk of fire/flammable material EN

The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by igniting flammable material.

Welcome! Sign In order to your home NAME: SOPSP Pay now in Candy? Click a Blue More than our website Pay:$2400

hOn App hOn

Funkcja ECO

UWAGA

Cross-sectional diagram of a mechanical or electrical component with two stacked chambers and an upward arrow indicating force or movement (no text or symbols present)

Diagram showing two hands holding a tray with labeled arrows and numbered sections, likely illustrating a process or movement.

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a rectangular object, with arrows indicating direction of movement.

UWAGA

Illustration of a hand cleaning a surface with a washing machine and a basin nearby (no text or symbols)

A B C D G E F

Model	A(mm) B(mm)	C(mm) D(mm)	E(mm) F(mm) G(mm)
HBW7518CHBW7518DT	540 ± 2550 ± 21772 ± 2970 74	5662		618

UWAGA

F X R 2 2 F X R

(jednostka: mm)

F	R	X
16-19	0-3	2.5
20	0-1	3
	2-3	2.5
21	0-1	3
	2-3	2.5
22	0	4
	1	3.5
	2-3	3

(A) (A1) (A2)

Westgate House, Westgate, Ealing

Londyn, W5 1YY

Abstract geometric composition with four gray triangular shapes arranged in a radial pattern (no text or symbols)

Haier

专用号条码

0060536192

2024 Version A

Haier

Manual do Utilizador

Refrigerator-Freezer

HBW7518C

HBW7518DT

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention contexts.

WARNING: Risk of fire/flammable material EN

The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by igniting flammable material.

Welcome! Login to order your code Add Delete Put user in card? Get store to deliver our grade. BY CARD

hOn App hOn

Função ECO

AVISO

Technical diagram of a mechanical assembly with two stacked components and an upward arrow indicating motion (no text or symbols)

Diagram showing two hands holding a tray with labeled arrows and numbered sections, likely illustrating a process or movement.

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a rectangular object, likely illustrating a physical or engineering concept.

AVISO

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

Substituir as lâmpadas LED

AVISO!

A B C D E F G

Modelo	A(mm) B(mm)		C(mm) D(mm)		E(mm) F(mm) G(mm)
HBW7518CHBW7518DT	540 ± 2550 ± 21772 ± 2970		5662				618

AVISO

F X R 2 2 F X R

(unidade: mm)

F	R	X
16-19	0-3	2,5
20	0-1	3
	2-3	2,5
21	0-1	3
	2-3	2,5
22	0	4
	1	3,5
	2-3	3

(A) (A1) (A2)

≥590mm ≤2100mm ≥560mm

AVISO

Westgate House, Westgate, Ealing

London, W5 1YY

Abstract geometric composition with four gray triangles arranged in a cross pattern (no text or symbols)

Haier

专用号条码

0060536192

2024 Version A

Haier

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

WARNING: Risk of fire/flammable material EN

The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by igniting flammable material.

hOn App hOn

Funcția ECO

OBSERVATIE

Technical diagram of a mechanical assembly with two stacked components and an upward arrow indicating motion (no text or symbols)

Diagram showing two hands holding a tray with labeled arrows and numbered sections, likely illustrating a physical or technical process.

Flux de aer multiplu

Diagram showing two labeled arrows pointing upward and downward to a rectangular object, with numbered circles ① and ② indicating positions or sections.

OBSERVATIE

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Compartiment congelator: 12 V max 2 W

A B C D E F G G

Model	A(mm) B(mm)	C(mm) D(mm)	E(mm) F(mm) G(mm)
HBW7518CHBW7518DT	540 ± 2550 ± 21772 ± 2970 74	5662		618

OBSERVATIE

F X R 2 2 F X R

(unitate: mm)

F	R	X
16-19	0-3	2,5
20	0-1	3
	2-3	2,5
21	0-1	3
	2-3	2,5
22	0	4
	1	3,5
	2-3	3

(A) (A1) (A2)

≥ 590mm ≤ 2100mm ≥ 560mm

OBSERVATIE

Westgate House, Westgate, Ealing

Londra, W5 1YY

Abstract geometric composition with four gray triangles arranged in a cross pattern (no text or symbols)

Haier

专用号条码

0060536192

2024 Version A

Haier

Chladnička s mrazničkou

HBW7518C

HBW7518DT

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

WARNING: Risk of fire/flammable material EN

The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by igniting flammable material.

Technical line drawing of a mechanical component with mounting holes and housing (no text or symbols)

Spodná pevná doska

Horná pevná doska

Simple line drawing of a rectangular object with a rounded top and a horizontal base (no text or symbols)

Spodný kryt

Spodný bočný kryt

Simple line drawing of a diagonal line with no text or symbols

Utesňovací průžok

Utesňovacia špongia

A B Wi-Fi ECO Holiday Zone H J K L M N O P Q K1 K2 K3 K4 K5 I K6 K7 K8 K9 K10 88° My Zone Super Cool Super Freeze 3s Unlock

Indikátory:

Tlačidlá:

A Pripojenie k mobilnej APP

B Funkcia Wi-Fi

C Funkcia ECO

D Funkcia Holiday

E Indikátor chladničky

F Indikátor mrazničky

Welcome! Get your own your home? OPEN NOT OK For you better? The description of your home? My name

Krok 3 Postupujte podla pokynov na párovanie v aplikácii hOn

hOn App hOn

Funkcia ECO

POZNÁMKA

POZNÁMKA := 0°C Fresh

Technical diagram of a mechanical assembly with two stacked components and an upward arrow indicating motion (no text or symbols)

AIRSUBROUND HAWBERRY ZONE 1 OF HOTTER WITCH 10

Diagram showing two labeled arrows (① and ②) pointing to a rectangular object with textured surfaces, possibly illustrating a physical or engineering concept.

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a rectangular object, with numbered circles indicating positions.

POZNÁMKA

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Mraziaci priestor: 12 V max 2 W

A B C D E F G H

Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
HBW7518CHBW7518DT	540 ± 2	550 ± 2	1772 ± 2	970	745	662	618

POZNÁMKA

F X R 2 2 F X R

(jednotka: mm)

F	R	X
16-19	0-3	2,5
20	0-1	3
	2-3	2,5
21	0-1	3
	2-3	2,5
22	0	4
	1	3,5
	2-3	3

(A) (A1) (A2)

Abstract geometric composition with four gray diamond shapes arranged in a cross pattern (no text or symbols)

Haier

专用号条码

0060536192

2024 Version A

Haier

Brugervejledning

Køle-fryseskab

HBW7518C

HBW7518DT

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

WARNING: Risk of fire/flammable material EN

The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by igniting flammable material.

A B Wi-Fi ECO Holiday Zone H J K L M N O P Q K1 K2 K3 K4 K5 I K6 K7 K8 K9 K10 My Zone Super Cool Super Freeze 3s Unlock

Indikatorer:

A Mobilapp-forbindelse
B Wi-Fi-funktion
C ECO-funktion
D Holiday-funktion
E Køleskabsindikator
F Fryser indikator
G Temperaturjustering "-"
H Antibakteriel funktion
1 Display for effekt
J Temperaturdisplay
K Temperaturjustering "+"
L Fruit&Veg-funktion
M QuickCool-funktion
N 0°C Fresh-funktion
O Super Cool-funktion
P Super Freeze-funktion
Q Lås og lås op

Knapper:

K_1 Wi-Fi-indstillingsknap
K_2 ECO-funktionsknap
K_3 Holiday-funktionsknap
K_4 Knap til zonevalg
K_5 Temperaturjusteringsknap "-"
K_6 Temperaturjusteringsknap "+"
K_7 Knap til valg af My Zone-funktion
K_8 Super Cool-knap
K_9 Super Freeze-knap
K_10 Lås- og lås op-knap

Sensortaster

Knapperne på betjeningspanelet er sensortaster, som allerede reagerer ved let berøring med fingeren.

Tænd/sluk apparatet

FREMGANGSMÅDE VED PARRING I APP

Trin 1

- Download hOn-appen i App-store eller Google Play

HENT DEN PÅ Google Play

Download på App Store

SE MERE OM DEN PÅ AppGallery

Welcome! Not to all users have been? OK Add to: Add to: Add to Add to: Add to Add to: Add to Add to: Add to Add to: Add to

hOn App hOn

ECO-funktion

BEMÆRK

Technical diagram of a mechanical assembly with two stacked components and an upward arrow indicating motion (no text or symbols)

AIRSUBROUND HYPICAL ZONE 10 HOLE HYDGING

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating direction or movement.

Multi-luftstrømning

Diagram showing two labeled arrows pointing upward and downward to a rectangular object, with circled numbers ① and ② indicating positions or sections.

BEMÆRK

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

A B C D E F G H

Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
HBW7518CHBW7518DT	540 ± 2	550 ± 2	1772 ± 2	970	745	662	618

BEMÆRK

F X R 2 2 F X R

(enhed: mm)

F	R	X
16-19	0-3	2,5
20	0-1	3
	2-3	2,5
21	0-1	3
	2-3	2,5
22	0	4
	1	3,5
	2-3	3

(A) (A1) (A2)

≥ 590 mm ≤ 2100 mm ≥ 560 mm R=200mm R=200mm

BEMÆRK

Westgate House, Westgate, Ealing

London, W5 1YY

Abstract geometric composition with four gray diamond shapes arranged in a cross pattern (no text or symbols)

Haier

专用号条码

0060536192

2024 Version A

Haier

Käyttöopas

Jääkaappi-pakastin

HBW7518C

HBW7518DT

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

WARNING: Risk of fire/flammable material EN

The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by igniting flammable material.

A B Wi-Fi ECO Holiday Alue G H J K L M N O P Q K1 K2 K3 K4 K5 I K6 K7 K8 K9 K10 My Zone Super Cool Super Freeze 3s Unlock

Merkkivalot:

K_1 Wi-Fi-asetuspainike

Welcome! Up to account for your home OK OK OK OK Help, www.123457 Shop-HomeApp store or pre-album

hOn App hOn

ECO-toiminto

HUOMAUTUS

HUOMAUTUS

Cross-sectional diagram of a mechanical device showing internal components with no visible text or symbols

AIRSUBROUND HYPICAL ZONE 17 HOLE HYDGING

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Moni-ilmavirtaus

Diagram showing two labeled arrows pointing upward and downward to a rectangular object, with circled numbers 1 and 2 indicating positions or sections.

HUOMAUTUS

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

A B C D E F G G

Malli	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
HBW7518CHBW7518DT	540 ± 2	550 ± 2	1 772 ± 2	970	745	662	618

HUOMAUTUS

F X R 2 2 F X R

(yksikkö: mm)

F	R	X
16-19	0-3	2,5
20	0-1	3
	2-3	2,5
21	0-1	3
	2-3	2,5
22	0	4
	1	3,5
	2-3	3

(A) (A1) (A2)

Westgate House, Westgate, Ealing

London, W5 1YY

Abstract geometric composition with four gray diamond shapes arranged in a cross pattern (no text or symbols)

Haier

专用号条码

0060536192

2024 Version A

Haier

Brukerhåndbok

Kjøleskap-fryser

HBW7518C

HBW7518DT

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

WARNING: Risk of fire/flammable material EN

The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by igniting flammable material.

A B Wi-Fi ØKO Holiday Sone G H J K L M N O P Q K1 K2 K3 K4 K5 I K6 K7 K8 K9 K10 My Zone Super Cool Super Freeze 3s Lås opp

Indikatorer:

UTFORSK DET PÅ AppGallery

Trinn 2 Opprett kontoen din på hOn-appen, eller logg på hvis du allerede har en konto

Welcome App Name: Login App Help you to get a new Email: [e-mail] 100% access

hOn App hOn

ECO-funksjon

OBS

OBS

Technical diagram of a mechanical assembly with two stacked components and an upward arrow indicating motion (no text or symbols)

AIRSUBROUND HYPICAL ZONE 17 HOLE HYDGING

Multi-luftstrøm

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating direction or movement.

Diagram showing two labeled arrows (1 and 2) pointing upward and downward to a rectangular object, with numbered circles indicating positions.

OBS

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

A B C D E F G G

Modell	A (mm)	B (mm)	C(mm)	D (mm)	E (mm)	F (mm)	G (mm)
HBW7518CHBW7518DT	540 ± 2	550 ± 2	1772 ± 2	970	745	662	618

OBS

F X R 2 2 F X R

(enhet: mm)

F	R	X
16-19	0-3	2,5
20	0-1	3
	2-3	2,5
21	0-1	3
	2-3	2,5
22	0	4
	1	3,5
	2-3	3

(A) (A1) (A2)

Westgate House, Westgate, Ealing

London, W5 1YY

Abstract geometric composition with four gray diamond shapes arranged in a cross pattern (no text or symbols)

Haier

专用号条码

0060536192

2024 Version A

Haier

Bruksanvisning

Kyl- och frysskåp

HBW7518C

HBW7518DT

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

WARNING: Risk of fire/flammable material EN

The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by igniting flammable material.

A B Wi-Fi ECO Holiday Zon G H J K L M N O P Q K1 K2 K3 K4 K5 I K6 K7 K8 K9 K10 My Zone Super Cool Super Freeze 3s Unlock

Indikatorer:

Welcome OK Cancel Help you to access your website or your product. OK OK

hOn App hOn

ECO-funktion

OBS!

Technical diagram of a mechanical assembly with two stacked components and an upward arrow indicating motion (no text or symbols)

AIRSUBROUND HYPICAL ZONE 17 HOLE HYDGING

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Flera luftflöden

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a rectangular object, likely illustrating a physical or engineering concept.

OBS!

Illustration of a hand cleaning a window with a basin nearby (no text or symbols)

A B C D E F G H

Modell	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
HBW7518CHBW7518DT	540 ± 2	550 ± 2	1 772 ± 2	970	745	662	618

OBS!

F X R 2 2 F X R

(enhet: mm)

F	R	X
16-19	0-3	2,5
20	0-1	3
	2-3	2,5
21	0-1	3
	2-3	2,5
22	0	4
	1	,3.5
	2-3	3

(A) (A1) (A2)

Westgate House, Westgate, Ealing

London, W5 1YY

Abstract geometric composition with four gray diamond shapes arranged in a cross pattern (no text or symbols)

Haier

专用号条码

0060536192

2024 Version A
