USER MANUAL 305673 Aplic

Minimale Temperatur (MIN-TEMP)

Thank you for choosing an Aplic product. Please read the following user manual carefully so as to get the most from the product you have purchased.

1. Scope of delivery

• Bicycle computer
• Bracket
• Reed-sensor, wireless
• Spoke magnet
• Mounting accessories

2. Technical data

Power supply • Two 3 V CR2032 batteries (main unit) • One 3 V CR2032 battery (sensor)
Frequency range	125 KHz
Transmitting power	-50.25 dBm
Protection category IP 65
Operating temperature -20°C to + 60°C (depending on the battery type)
Features • Time	• Stop watch • Temperature • Auto ON/OFF • Backlight • Speed display • Ride time display • Ride distance display • Built-in memory

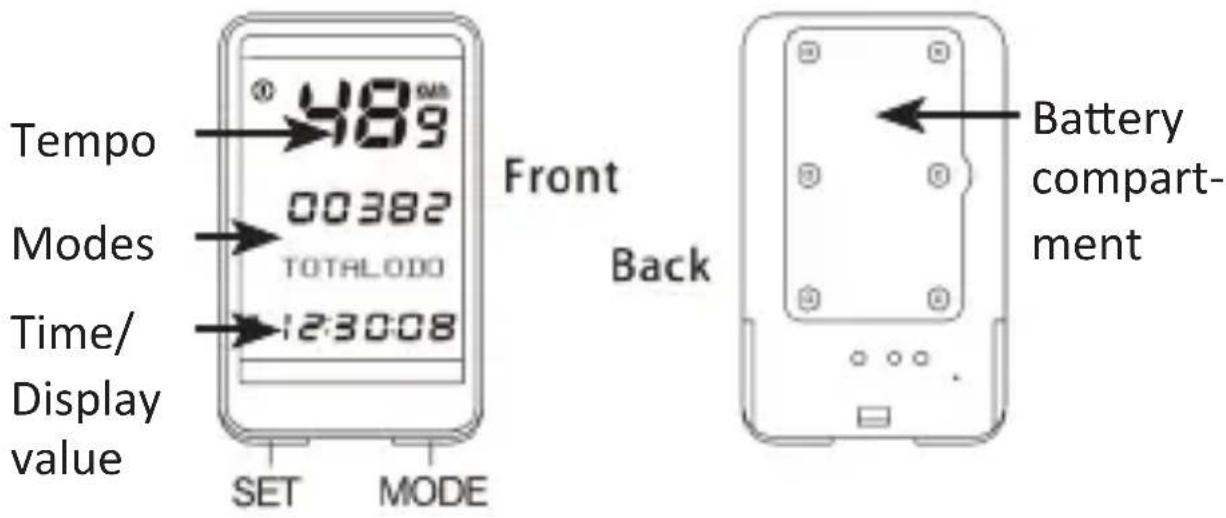

3. Product details

4. Installation and Assembly

Take the device out of the package and remove all the packaging material. Before installing, make sure that the device is not externally damaged.

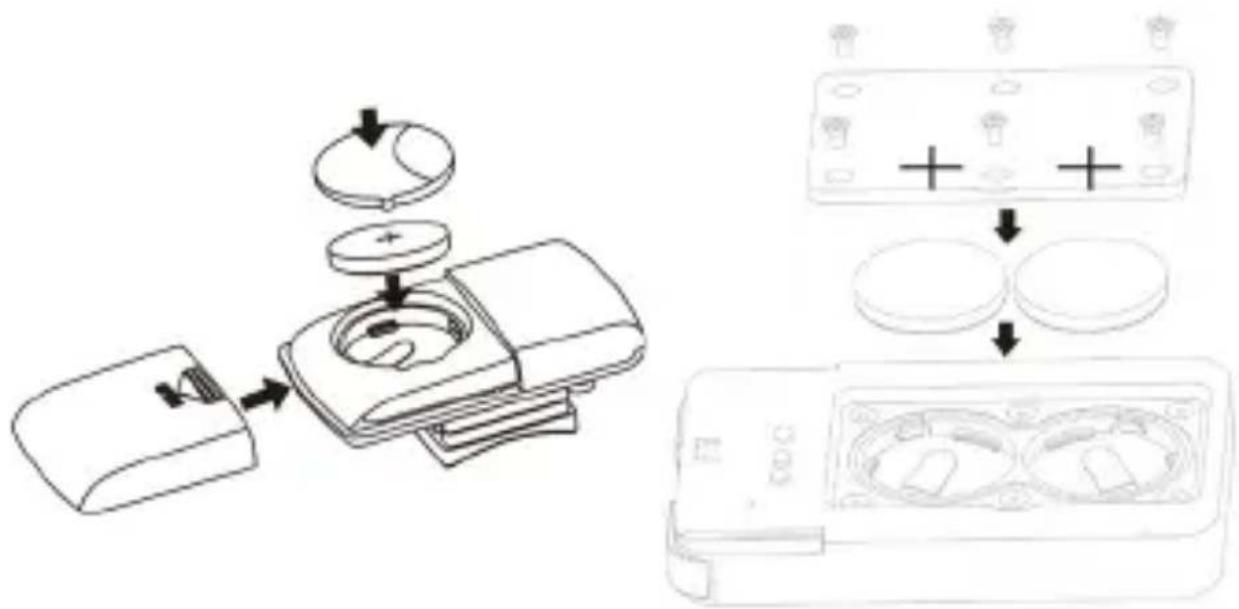

Insert the battery

Before commencing the installation, insert the battery into the battery compartment. To do this, open the battery compartment at the back of the device and the wireless sensor (Reed sensor). Insert one 3V type CR2032 battery in the battery compartment of the sensor and two 3V type CR2032 batteries in the battery compartment of the bicycle computer. Ensure that the positive pole of the battery is pointing towards the battery compartment cover. Then close the

battery compartments.

Installing the bracket

Glue the wide foam plate on the inside of the curve to avoid any possible slippage. Place the bracket with the curve facing down in the desired position on the handlebar of your bicycle. Fix the computer to the handlebar and secure it using the cable ties provided.

Place the bracket with the curve facing down in the desired position on the handlebar of your bicycle. Take the supplied rubber mounting ring and hook it into the bracket fixture provided for this purpose, so that the bracket sits firmly on the handlebar.

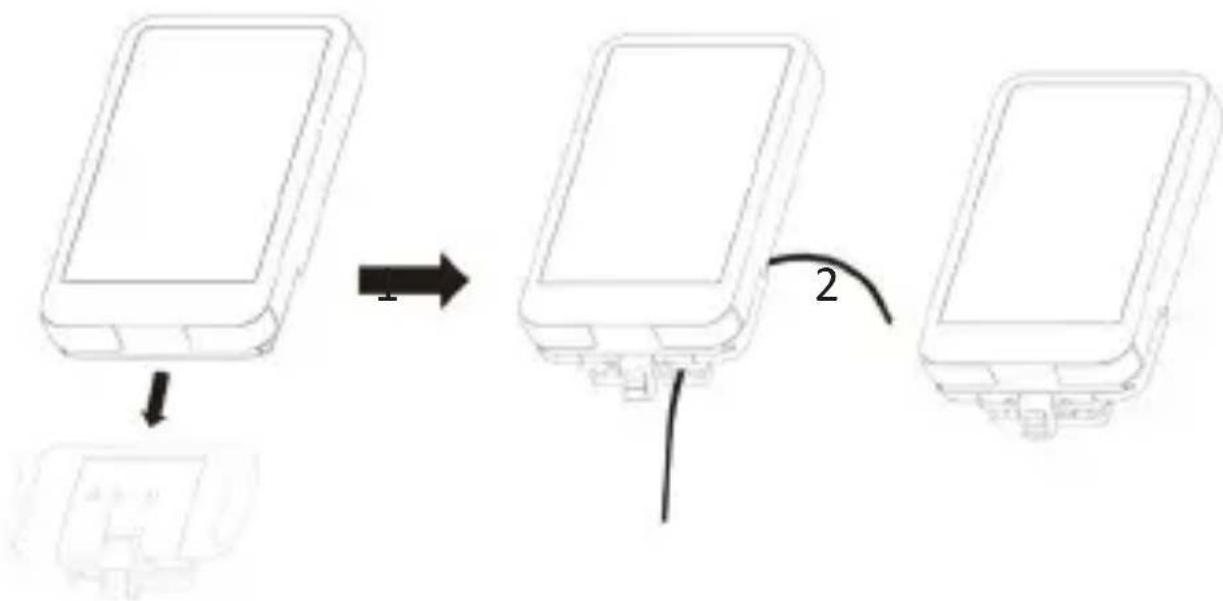

1. Please align the base with the computer and insert for mounting.
2. Thread the cable ties through the slits under the base to secure them to the handlebar.

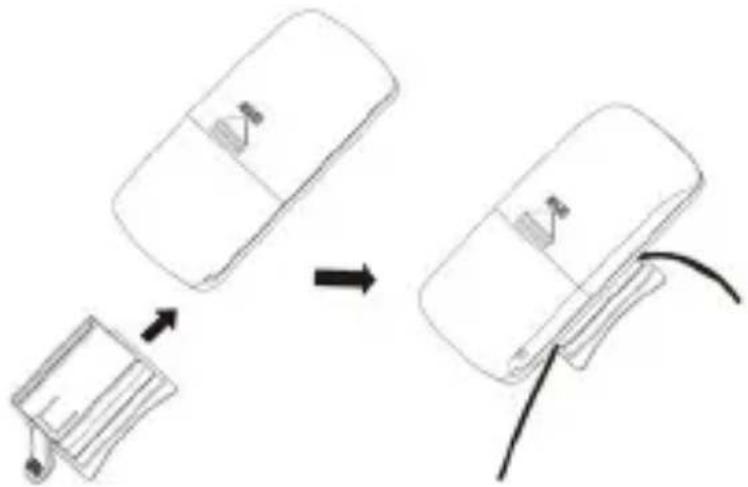

Installing the wireless transmitter

Glue the wide foam pad to the inside of the curve to avoid any slipping. Place the bracket with the curve facing down in the desired position on the handlebar of your bicycle. Fix the sensor using the cable ties provided. The sensor side of the transmitter should point towards the spokes. Ensure that the sensor makes contact with the spokes.

Installing the magnet

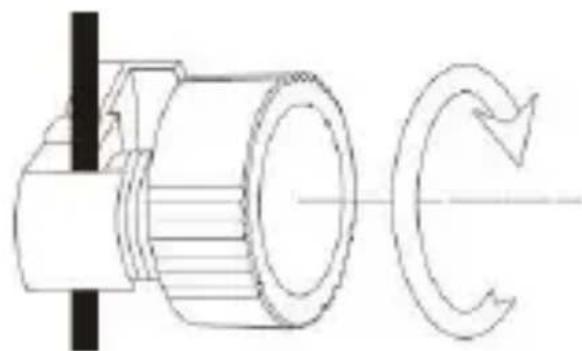

Unscrew the magnet from the magnet holder. Then place the plastic plate with the guide at the top in a spoke. Screw the magnets and the nut onto the plastic plate so that the spoke is tightened.

Guide the bicycle spokes through the plastic hole at the bottom of the magnet and tighten it. The magnet is designed for spokes with a thickness of less than 2mm .

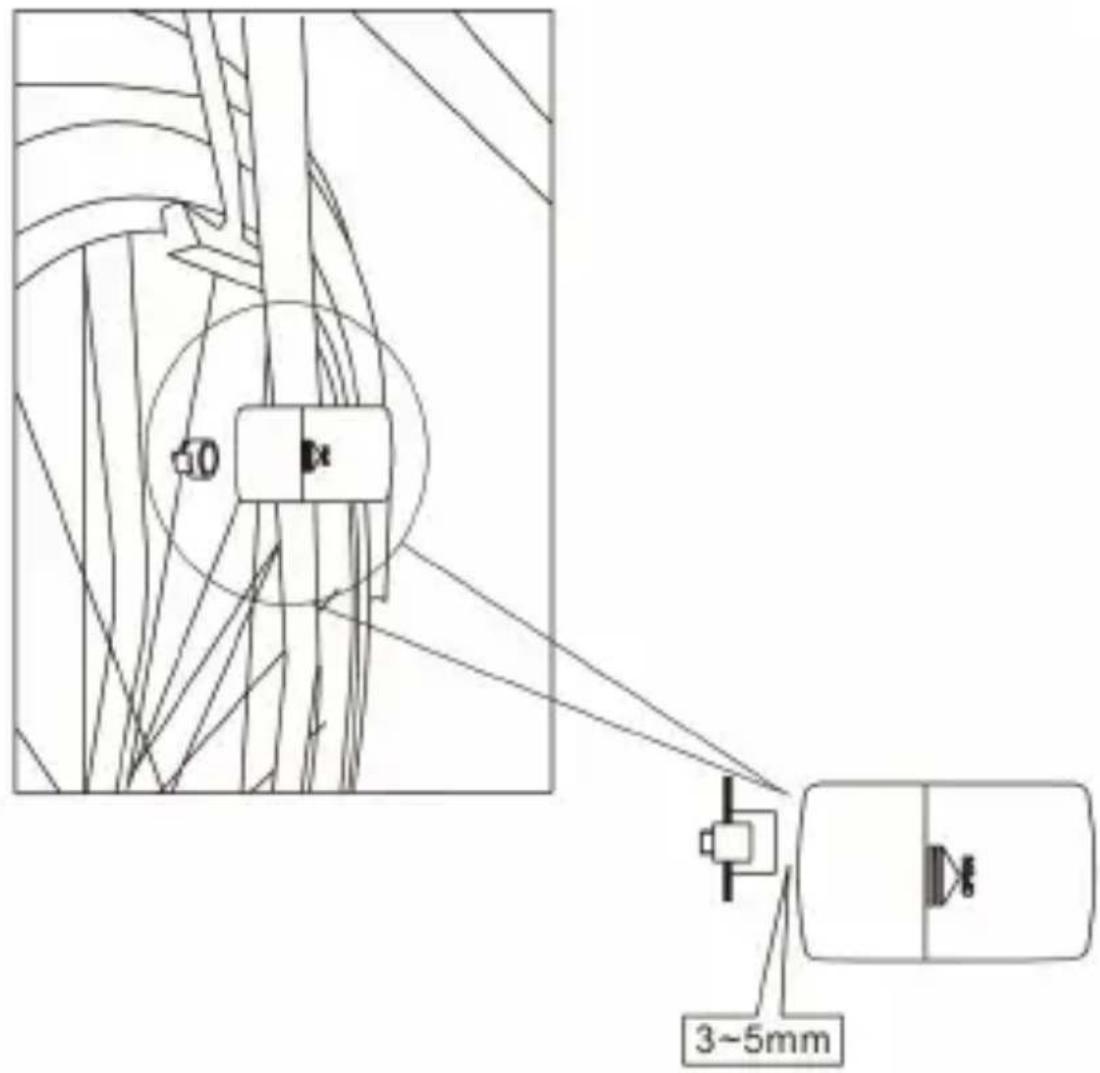

Fix the speed sensor to the front fork using the cable ties. The computer and sensor should be installed on the same side of the fork, with a distance of less than 60~cm between them. The arrow on the sensor should point towards the magnet. Fix the magnet as shown in the figure. The distance between the sensor and the magnet should be 3 - 5mm to ensure the best possible connection. To check the installation, turn the front wheel with the computer in speed mode and check the computer screen for any display. Adjust the sensor and magnet position if the signal is weak or absent.

Fixing the mode button

There is a cable with mode button extension on the bracket of the bicycle computer. You can fix it to the desired location using the adhesive pad on the back or by attaching it with cable ties.

5. Initial use

The system is completely reset when you replace the battery. We recommend you to reset the device once before using it. To do this, remove the battery and insert it again.

Settings

During initial commissioning, you have the option of setting the required language using the "MODE" and "SET" buttons.

There are two ways to access the system settings.

• The system settings can be accessed when the battery is replaced or newly inserted.
• Press the "SET" button in the time mode (Clock) or alternatively in the total kilometres (GESAMTKM / "TOTALODO") mode for 3 seconds in the default screen.

Press the "MODE" button to change the current value. Press the

"SET" button to access the next setting menu. The setting sequence is as follows: SET LANGUAGE (language setting) -> KM/h / Mp/h -> Wheel size -> Total kilometres -> Total riding time -> Weight -> Maintenance interval in km (main dist) -> Time format -> Hours -> Minutes -> Year -> Month -> Day -> Weekday (0-> Monday to 6-> Sunday)

Note: Measure the wheel circumference (WS) before specifying it. The following measurement methods can be used:

• Note the selected size of the wheel and refer to the table below to find the appropriate circumference.

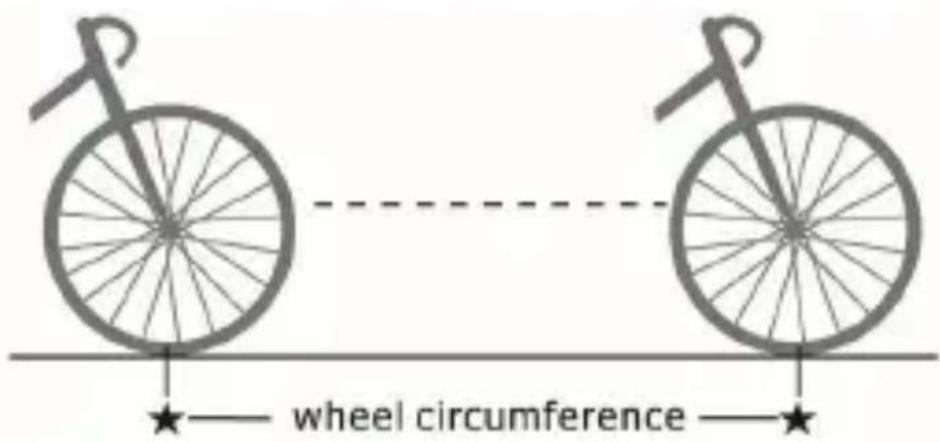

• Mark a point on the desired bicycle tyre and push the bicycle forward until the tyre rotates once. The wheel circumference is the distance covered.

Make sure that the wheel circumference is precise as this will greatly affect the accuracy of the readings.

An example for measurement method 1:

An example for measurement method 2:

If you cannot find your tyre size in the table below, you can also use this method to measure the tyre diameter and calculate the tyre circumference.

Circumference = Diameter x 3.14

Table of wheel sizes

Tyre average value Wheel circumference value (in mm)
20 inch 40-406 1530
20 inch 54-406 1590
24 inch 47-507 1860
24 inch 54-507 1920
26 inch 25-559 1940
26 inch 40-559 2000
26 inch 50-559 2040
26 inch 57-559 2100
26 inch 37-590 2090
26 inch 60-559 2150
27 inch 32-630 2180
28 inch 20-622 2110
28 inch 25-622 2130
28 inch 30-622 2260
28 inch 35-622 2185
28 inch 37-622 2190
28 inch 40-622 2220
28 inch 42-622 2230
28 inch 47-622 2280
28 inch 50-622 2280
28 inch 54-622 2295
28 inch 60-622 2350
28 inch 40-635 2240

6. Functions

The speed bar moves according to the current speed while riding. This means that the bicycle computer is receiving a speed signal. The display shows the current speed.

Other functions

Time countdown (Time DN / Zeitrück)

In the countdown setting mode, press and hold the "SET" button for 3 seconds and then use the "MODE" button to set the hour value. Press "SET" again to access the minute value. After entering the correct value, press the "SET" button to confirm and move on to the seconds value. Set the seconds value and press the SET button to confirm and return to the time countdown setting mode. The set timer is then shown in the display and counts down as long as the bicycle is moved.

Trip Countdown (Trip DN / Navirück)

In the trip countdown setting mode, press and hold the "SET" button for 3 seconds and then use the "MODE" button to set the hour value. Press "SET" again to access the minute value. After entering the correct value, press the "SET" button to confirm and move on to the seconds value. Set the seconds value and press the SET button to confirm and return to the time countdown setting mode. The set timer is then shown in the display and counts down as long as the bicycle is moved.

Hide menu items

You have the option of hiding the desired modes from the display and only showing the modes that are important to you.

In any mode, press and hold the "MODE" button for 3 seconds to access the "Hide menu items" mode. Press the "SET" button to access the setting. When "ON" flashes, the currently selected menu item is displayed. When "OFF" flashes, the odometer is hidden. You can change between "ON" and "OFF" using the mode button and confirm with the "SET" button. The setting sequence is as follows: Total KM -> Daily KM -> Average Km/h -> Max Km/h -> Riding time -> Total riding time -> Temperature - Max. temperature -> Min. temperature -> Stop watch -> Trip countdown -> Time countdown -> Calories -> Fat -> Panodisp

Menu change mode (scan)

In the cycle setting (SCAN) menu, press the "SET" button for 3 seconds to open the menu change. Press the "SET" button again to access the setting. Use the "MODE" button to change the current setting and confirm your setting with the "SET" button. If "OUT" flashes, it means that the current menu item has been removed from the cycle mode. Press the "MODE" button to change to "JOIN". This means that the current menu item is added to the cycle. Press the "SET" button to confirm the setting and to go to the next menu item.

Panaroma display settings

In the panorama display setting mode, press and hold the "SET" button for 3 seconds to change the panorama display. When the digit in the first line flashes, press the "Mode" button to set it. Press the "SET" button to confirm and move to the next line.

Stop watch (STPWATCH)

Press the "SET" button to start or stop the stopwatch. The stopwatch is reset if you press and hold the "SET" button for 3 seconds. This function works only in the stopwatch mode.

^ C / ^ change

In the temperature display, in the maximum temperature display or in the minimum temperature display, press and hold the "SET" button for approx. 3 seconds to change between Fahrenheit and Celsius.

Speed (SPEED)

The current speed is always shown on the screen. It ranges from 0 - 99.99 KM/h or MPH and is accurate to +/- 0.1 KM/h or MPH.

Total kilometres (GESAMT-KM / TOTALODO)

The odometer shows the total kilometres travelled when the computer is active. This ranges from 0.01 to 99,999 KM. Press and hold the SET button for 3 seconds in this mode to set the parameter.

Daily kilometres (TAGES-KM / DIST.DAY)

The daily distance shows the distance covered since the last reset. It ranges from 0.01 to 9999.9 KM and is reset to zero as soon as the maximum value is reached.

Average speed (DURCHKMH /AVGSPEED)

The average speed is shown in the display.

Maximum speed (MAX-KMH / MAXSPEED)

The maximum speed is shown in the display.

Riding time (FAHRZEIT / RIDETIME)

RIDE TIME shows the riding time of a single trip, which ranges from 0:00:00 to 99:59:59 and is reset to zero as soon as the maximum value is reached.

Total ride time (GESFAHRZ / TOT TIME)

Displays the total riding time. Press and hold the SET button for 3 seconds in this mode to set the parameter.

Temperature (TEMP)

Displays the current temperature, which ranges from -20^ to 60^ or -4^ to 140^ .

Maximum temperature (MAX-TEMP)

Displays the maximum temperature, which ranges from -20^ to 60^ or -4^ to 140^ .

Minimum temperature (MIN-TEMP)

Displays the minimum temperature, which ranges from -20^ to 60^ or -4^ to 140^ .

Trip countdown (NAVIRUCK/TRIP DN)

The trip distance countdown counts down from a certain distance at the beginning of a trip. If a value is not specified, there is no countdown.

Time countdown (ZEITRÜCK / TIME DN)

The Time countdown counts down from a certain time at the beginning of a trip. If a value is not specified, there is no countdown.

Calories (KALORIEN/ CALORIES)

This item shows the total calories burned since the last reset, with a range of 0 - 9,999.9 Kcal.

Fat Burning (FETT / FAT BURN)

This mode shows the total fat burned since the last reset, with a range of 0-9.999 kg.

7. Buttons and functions

Mode button:

You can change between the different functions using the "MODE" button.

Set button:

The values in the settings can be adjusted using the "SET" button or, for example, by starting the built-in stopwatch.

Reset data

To reset certain data, such as the speed or the temperatures, press and hold the "SET" button in the corresponding mode for about 3 seconds.

8. Replacing the battery

Replace the batteries when the battery icon appears on the display or the display becomes difficult to read. Before replacing the batteries, ensure that (if desired) you note the total distance covered (GESAMTKM/TOTALODO) and the total ride time (GESFAHRZ/TOT TIME) because these values are reset when the battery is replaced.

You can then open the battery compartment at the back and replace the battery. Only use CR2032 batteries. In addition, ensure that the battery polarity is correct when inserting. The positive pole of the battery should point towards the battery cover. Then close the battery compartment again.

Note! Caution!

9. Additional information about this device

• The bicycle computer can be used on rainy days. However, it should under no circumstances be immersed in water.
• Do not leave the bicycle computer unattended on the bicycle.
• Protect the device against bright sunlight.
• Check the distance between the sensor and the magnet at regular intervals.
• Do not use alcohol or any aggressive or chemical cleaning agents to clean the device.
• Pay attention to the traffic while riding. Do not allow yourself to be distracted by the bicycle computer.

10. Troubleshooting

Error Cause	of error Troubleshooting
Display is black	The bicycle computer may have been exposed to the sun for too long	Keep the bicycle computer in a shady and cool place when it is not being used
Display refreshes slowly	The ambient temperature is too low	Keep the device in a surrounding having a acceptable temperature.
Display is off	·Battery is low ·Battery is inserted incorrectly	·Replace the battery ·Insert the battery correctly
Speed is not displayed or displayed incorrectly	·Distance between magnet and sensor is too great ·Sensor not mounted properly ·Configured wheel circumference is incorrect	·Reduce the distance between magnet and sensor (max 60 cm) ·Check the sensor position and adjust if necessary ·Measure the wheel circumference again and correct it

11. Safety instructions and disclaimer

Never try to open the appliance to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not approved for outdoor use. Therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the product away from high temperatures. Do not expose the product to sudden changes in temperature or strong vibrations, as this could damage the electronic components.

Check the product for any damage before using it. The product should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the product for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the product, which is not carried out by the original supplier, will void any warranty and guarantee claims. The product should only be used by those who have read and understood this user manual. The specifications of the product may be changed without any special prior notification.

12. Disposal instructions

In line with the European WEEE directive, electrical and electronic products should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used products, you make an important contribution towards protecting our environment.

13. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of appliances that include batteries, the supplier is obliged to point out the following to the customer:

The customer is legally obliged to return used batteries. He can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries indicate the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery should not be disposed of in household waste.

WEEE directive: 2012/19/EU

WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 305673 complies with the fundamental requirements and all other relevant stipulations of the directive 2014/53/EU. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, http://downloads.ganziinfach.de/search/model/305673
