USER MANUAL 304752 Aplic
Inhaltsverzeichnis
- Deutsch....3
- Français....7
- Italiano....10
- Español....13
5.English....16
Thank you very much for choosing an aplic product. To ensure that you will enjoy your purchased device for a long time, please read the following brief instructions carefully.
1. Scope of delivery
• TV antenna amplifier
- Power adapter
- User manual
2. Technical data
| Operating voltage 100-240 V ~ AC 50/60 Hz 0.2 A |
| Entrance Antenna cable with IEC coupling |
| Output 2x IEC connectors |
| Impedance 75 Ohm |
| Reinforcement 2 x 16 dB |
| Noise < 2 dB |
| Isolation Out/Out 18 dB |
| Max. output 98 dBμV |
| Typ. 4G Protection > 45 dB |
| Protection class II |
| Frequency range 47 - 862 MHz |
3. Functions
With the aplic antenna amplifier an existing antenna signal can be amplified and distributed to two devices. It is also possible to switch programme contents on the devices independently of each other.

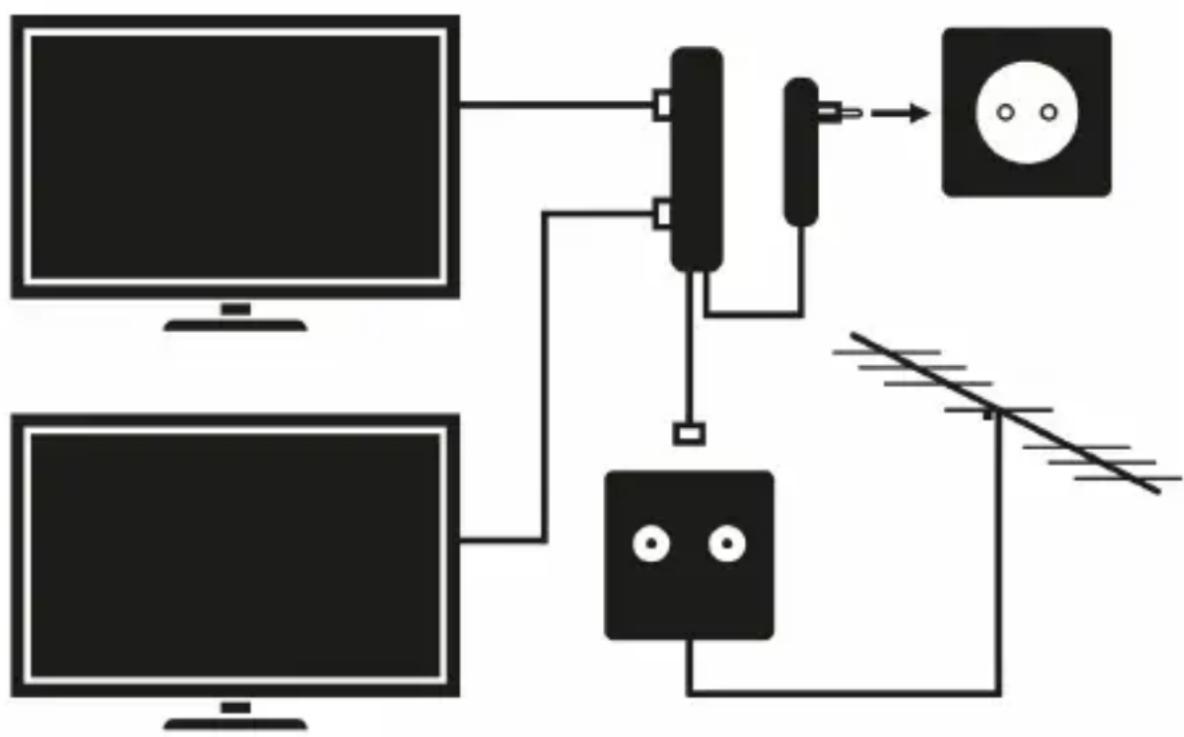

4. Start-up
Take the device out of the packaging and remove all packaging material. To start up, connect your antenna cable to the input port on the side of the device. You can connect your end devices to one of the two ports on the top side. Connect the TV connectors of the antenna amplifier to one TV at a time.
It is also possible to use it with a single television. To do this, connect the television to one of the two TV connections.
Then connect the input of the antenna amplifier on the side of the device via an antenna cable to the antenna socket.
Finally, connect the mains adapter to a correctly installed 230V\~ socket and the power connector of the antenna amplifier.
Attention!
5. Safety instructions and liability disclaimer
Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.
6. Disposal instructions
Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.
WEEE Directive: 2012/19/EU
WEEE Register No: DE 67896761
WD Plus GmbH hereby declares that the 304752/20200626NB014 is in compliance with the essential requirements and other relevant regulations. For a complete declaration of conformity, please contact us: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
WD Plus GmbH
