USER MANUAL 302981 Aplic
DVB-T Indoor Antenna, up to 28dB
Thank you for having chosen this aplic product and for placing your trust in our company. Please read this manual carefully before installation to ensure your long-term enjoyment of this product. For future reference, please keep this manual.
1 Scope of delivery
- Antenna
• USB-A to DC-Hollow (5,5 x 2,1mm) power cable - Power supply
2 Technical data
| Power supply • 5V DC 40mA | (Antenna) (-) ---(o--- (+)• 100-240V AC ~ 50/60Hz 200mA (Power supply) |
| Frequency range 470-790MHz | |
| Reception area UHF | |
| Max. gain 28dB | |
| Output max. 100dBuV |
3 Installation
Note: Before installation make sure that your TV receiver supports DVB-T2 if the antenna is to be used for this.
4 Commissioning

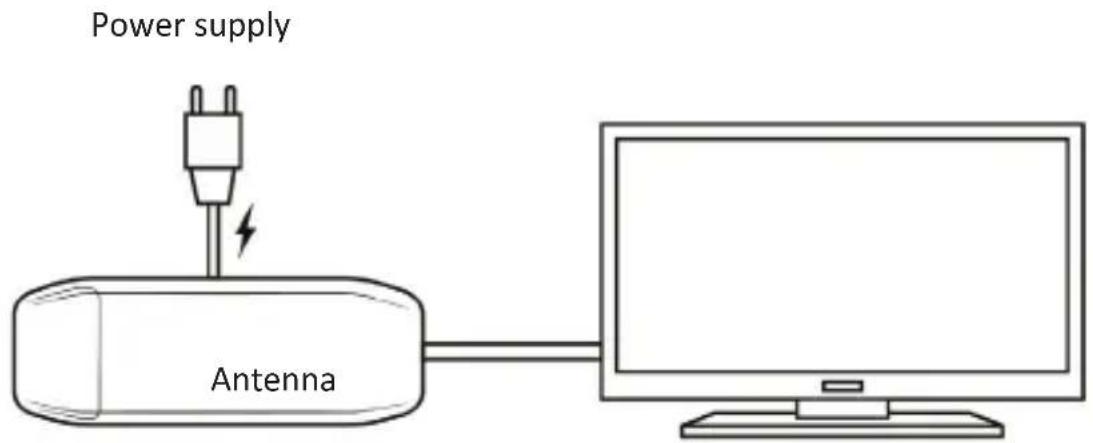

Take the device out of the package and remove all the packaging material. Connect the antenna to your desired device, e.g. a TV set. Then supply the amplifier of the antenna with power. For this, connect the supplied DC hollow plug cable to the antenna and the power supply. Alternatively, it is possible to link the cable to an USB port on your TV.
To ensure that the amplifier or antenna is working, check whether the red "POWER"-LED on the amplifier lights up. The on/off switch must be enabled on the back.
5 Additional note
If only a few or no stations are found during scanning, then the reason for this lies mostly likely in the installation site of the antenna. Check if the cable is properly connected, change the position of the antenna, and scan once again. Ensure that there are no objects near the antenna, which could shield the DVB-T / DVB-T2 signal. A location near a window is highly recommended.
On the internet you can find different websites, which indicate the signal strength and coverage of the DVB-T / DVB-T2 signal in your region. If you have any further questions, do not hesitate to contact our customer service.
Note: This antenna is suitable only for DVB-T and DVB-T2. UKW radio reception is not supported.
6 Safety instructions and liability disclaimer
Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it.
The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product
is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.
7 Disposal instructions
Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.
WEEE guideline: 2012/19/EU WEEE register number: DE 67896761
WD Plus GmbH, herewith declares that this product 302981/20170613SZ192 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
