USER MANUAL 302141 Aplic
Bluetooth Mouse
Thank you for having chosen this aplic product and for placing your trust in our company. Please read this manual carefully before installation to ensure your long-term enjoyment of this product. For future reference, please keep this manual.
1 Scope of delivery
- Bluetooth Mouse
- User manual
2 Technical specifications
| Polling rate | 800 / 1600 DPI |
| Sensor | optical |
| Port | Bluetooth V3.0 |
| Features | 2 buttons1 button scroll wheelVertical scroll wheel |
| Power supply | 1x 1,5V AA battery |

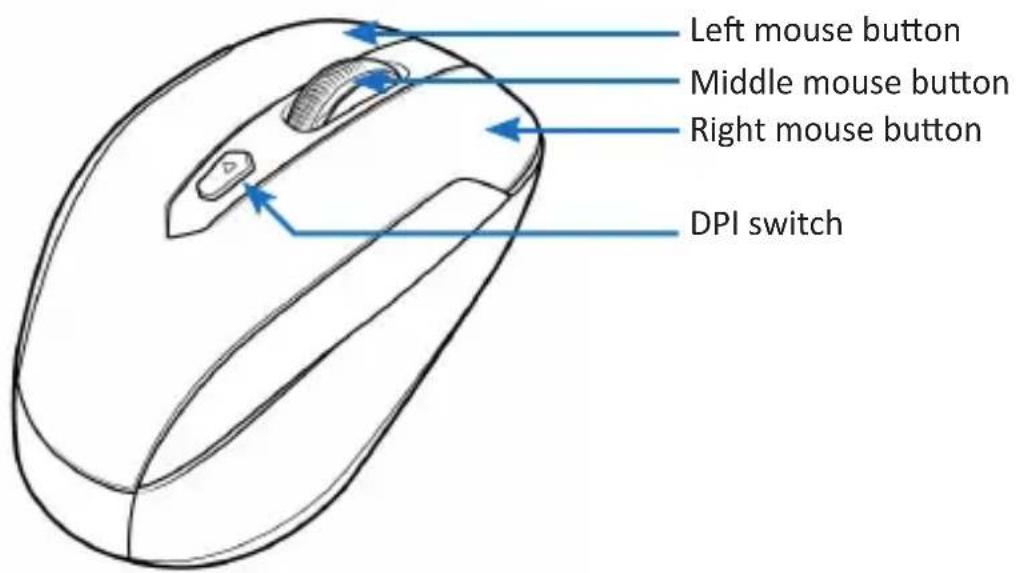

3 Product details


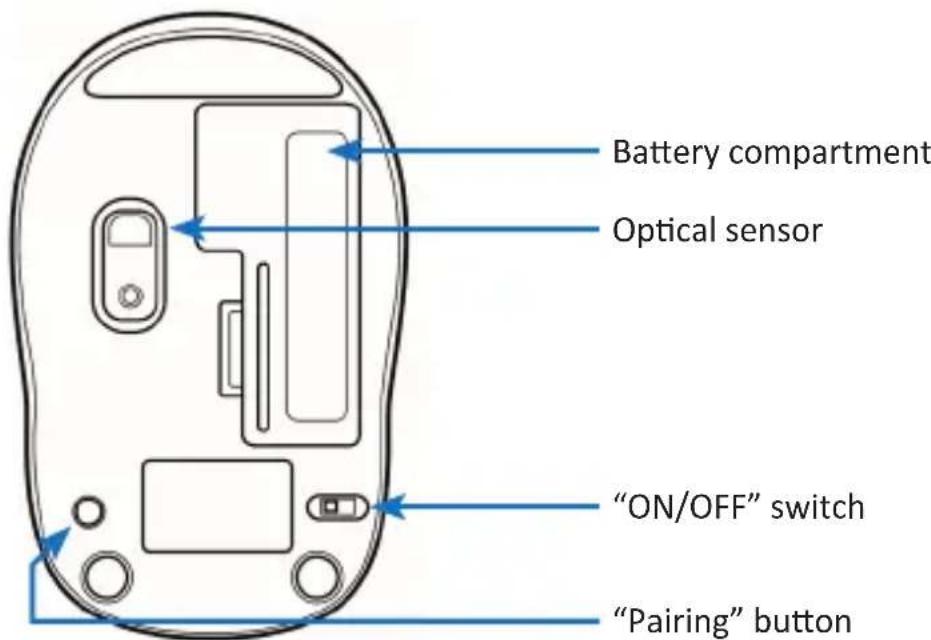

Remove the mouse from the packing. Now take the mouse and open the battery compartment on the bottom. Insert a new 1,5V AA battery into the provided holder. Please be sure to observe the correct polarity. Connect the mouse via Bluetooth with your desired device. More about connecting via Bluetooth is to be found in the 5th chapter. A symbol illustration on the bottom of the tray displays the correct polarity when inserting the batterie.
Important Information concerning use of batteries:
Due to the lower battery- voltage of 1,2V, the function of the mouse cannot be guaranteed for each type of battery. Moreover, it is possible that malfunctions like mouse pointer jumps or reduced battery life can occur. For that reason, we recommend the use of 1,5V alkaline batteries.
Close the battery compartment and switch the slider to position „ON“ on the bottom. The mouse is now ready to use.
5 Connecting via Bluetooth
First ensure that the device is switched off. Hold the on/off button to position “on”. Then you need to push the pairing button on the bottom. After it, you have to press the pairing button on the bottom. Activate Bluetooth on the device that you want to link with the mouse. Perform a search and connect to device “aplic-302141”.
Note: The Bluetooth pairing mode is deactivated for safety reasons when no connection has been established after several minutes. Please repeat the steps described above when pairing has failed.
6 Safety instructions and liability disclaimer
Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.
7 Disposal instructions
Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life
to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.
8 Instructions on the disposal of batteries
With regard to the sale of batteries or the supply of devices containing batteries, the supplier is obliged to draw the customer's attention to the following:
As the end user, the customer has a statutory obligation to return used batteries. He can return old batteries stocked or previously stocked by the supplier in the form of new batteries to the supplier's despatch warehouse (despatch address) free of charge. The symbols shown on the batteries have the following meanings: Pb = battery contains more than 0.004 percent by mass of lead, Cd = battery contains more than 0.002 percent by mass of cadmium, Hg = battery contains more than 0.0005 percent by mass of quicksilver.
The symbol of the rubbish bin with a cross through it indicates that the battery may not be put in household waste.
WEEE guideline: 2012/19/EU WEEE register number: DE 94495668
WD Plus GmbH, herewith declares that this product 302141/20170510SZ136 conforms to the principle requirements and other relevant stipulations of Directive 1999/5/EG. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
