303045 - Keyboard Aplic - Free user manual and instructions

Product Type	Keyboard
Brand	Aplic
Model	303045
Dimensions (W x D x H)	445 x 140 x 25 mm
Weight	780 g
Color	Black
Connectivity	Wired USB 2.0
Cable Length	1.5 m
Key Layout	QWERTY (US)
Number of Keys	104
Backlight	No
Numeric Keypad	Yes
Multimedia Keys	Yes (volume, media controls)
Compatible Operating Systems	Windows, macOS, Linux
Power Supply	USB powered (5V, 100mA)
Warranty	2 years
Maintenance	Clean with a soft, dry cloth. Avoid liquids.
Safety Precautions	Keep away from moisture and extreme temperatures.
Repairability	Spare parts available from manufacturer.

Frequently Asked Questions - 303045 Aplic

How do I connect the Aplic 303045 keyboard to my computer?

Simply plug the USB cable into an available USB port on your computer. The keyboard is plug-and-play and requires no additional drivers.

Is this keyboard compatible with macOS?

Yes, the Aplic 303045 keyboard works with macOS, though some multimedia keys may require configuration in System Preferences.

How do I clean the keyboard?

Unplug the keyboard and use a soft, dry cloth to wipe the surface. For stubborn dirt, slightly dampen the cloth with water and wring it out well. Do not use chemicals or submerge in water.

The keyboard is not working. What should I do?

1. Check the USB connection. 2. Try a different USB port. 3. Restart your computer. 4. If using a USB hub, connect directly to the computer. If the issue persists, test on another device.

Does this keyboard have a numeric keypad?

Yes, it includes a full numeric keypad on the right side, ideal for data entry.

Can I use this keyboard on a Linux system?

Yes, it is compatible with Linux. The keyboard is recognized as a standard HID device and works without additional drivers.

What is the cable length?

The cable is 1.5 meters long, providing flexibility for desk placement.

Is the keyboard spill-resistant?

No, it is not spill-resistant. Avoid liquids near the keyboard to prevent damage.

How long is the warranty?

The Aplic 303045 keyboard comes with a 2-year limited warranty. Contact Aplic support for details.

Where can I find spare parts or replacement keys?

Spare parts are available through Aplic's official website or authorized service centers. Contact customer support for assistance.

USER MANUAL 303045 Aplic

Blue abstract logo shape resembling a stylized letter 'Q' or droplet (no text or symbols)

WIRELESS TABLET KEYBOARD CASE

Line drawing of a laptop with visible keyboard and top panel (no text or symbols)

Line drawing of a foldable laptop with a keyboard and scroll, showing the open lid and keyboard (no text or symbols)

6. Inbetriebnahme

Thank you for choosing an aplic product. Please read the following user manual carefully so as to get the most from the product you have purchased.

1. Scope of delivery

• Bluetooth keyboard
• User manual

2. Technical data

Key assignment QWERTZ (German layout)
Battery Lithium ion, 180mAh
Connection Bluetooth version 3.0
Frequency range 2402MHz - 2480MHz
Transmitting power 5.32dBm
Range up to 10m
Compatible devices iPad Pro 12.9"

3. Functions

Thanks to the compact Bluetooth keyboard, you can now use your tablet PC or smartphone with a keyboard even when you are travelling. The keyboard is wirelessly connected to your devices via Bluetooth and is compatible with the iPad Pro (12.9").

4. Function keys

Please press and hold the function key (FN), and then press one of the above-mentioned keys to run the respective function.

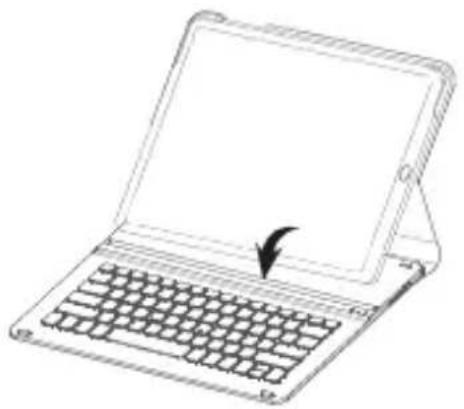

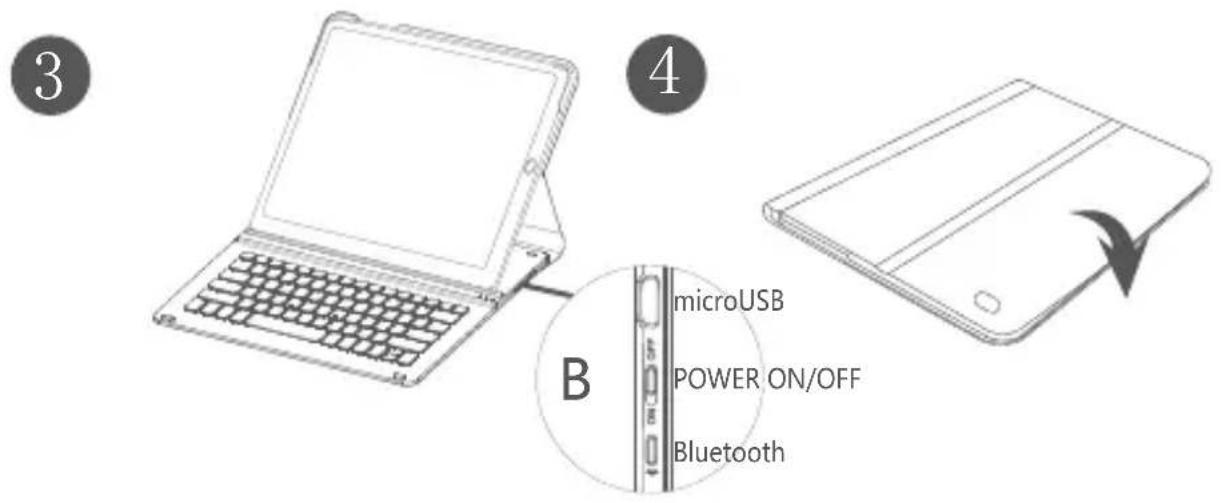

5. Assembly

Line drawing of a laptop with visible keyboard and top panel (no text or symbols)

Line drawing of a foldable laptop with a keyboard and scroll, showing the open lid and keyboard (no text or symbols)

6. Initial use

Remove the Bluetooth keyboard from the packing and charge it fully before using it for the first time. To do so, connect a microUSB connector of a connection cable to the Bluetooth keyboard. Then, connect the USB connector to a suitable charging source (e.g., computer or USB charging adapter). The red "Charge" LED glows when the battery is charging. Disconnect the Bluetooth keyboard from its power source after charging it each time to prevent constant recharging. It is advisable to use the device regularly to maintain the full capacity of the batteries.

7. Establishing a Bluetooth connection (iOS)

First, enable the Bluetooth function on your iPad. Then switch on the keyboard. To do this, slide the On/Off switch to the "ON" position. The power LED on the keyboard lights up for about 5 seconds. Then press the "Bluetooth" key on the keyboard for 3 seconds. The device is in pairing mode once the LED over the Bluetooth symbol on the Bluetooth keyboard starts flashing. Carry out a search now on your iPad and connect to "aplic-303045". Your device will display a security code. Enter this on the keypad and confirm your entry with the "Enter" key. The connection has been successfully established.

8. Safety instructions and disclaimer

Never try to open the device to repair or make modifications. Avoid contact with the mains voltage. The device is free of current only when disconnected. Do not short-circuit the product. Please disconnect the power cord when not in use or during storms.

The device is not approved for outdoor use. Therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the device away from high temperatures.

Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual.

This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims. The device should only be used by those who have read and understood this user manual. The specifications of the device may be changed without prior intimation.

9. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components must be sent for recycling or disposal separately, as improper disposal of toxic and dangerous components could permanently damage the environment.

According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their

service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

10. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer: The customer is legally obliged to return used batteries. The customer can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries indicate the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery may not be disposed of in household waste.

WEEE directive: 2012/19/EU

WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 303045/20200319SZ140 complies with the fundamental requirements and all other relevant stipulations of the directive 2014/53/EU. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, http://downloads.ganzeinfach.de/search/model/303045

Notes

WD Plus GmbH
