USER MANUAL 303183 Aplic

Abstract geometric logo design with a stylized letter 'C' inside a circular frame (no text or symbols)

BEDIENUNGSANLEITUNG

USER MANUAL

WIRELESS TABLET KEYBOARD

Mod.-Nr.: 303183

Table of contents

1. Deutsch .... 3
2. English 11
3. Italiano 19
4. Français 27
5. Español....35

QR code image containing encoded data, no visible human-readable text

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Thank you for choosing an aplic product. Please read the following user manual carefully so as to get the most from the product you have purchased. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Bluetooth keyboard
• User manual

2. Technical data

Key assignment QWERTZ (German layout)
Battery Lithium ion, 180 mAh
Connection Bluetooth version 3.0
Range up to 10 m
Frequency range 2402 MHz-2480 MHz
Transmission power (EIRP) -2.39 dBm
Compatible Tablets 9-12" Tablets

3. Functions

Thanks to the compact Bluetooth keyboard, you can now use your tablet PC or smartphone with a keyboard even when you are travelling. The keyboard is wirelessly connected via Bluetooth with your devices and is compatible with Microsoft Windows, Google Android and Apple iOS.

4. Function keys

Symbol Function
	Start screen
	Search
	Select all
	Copy
	Cut
	Insert
	Previous track
	Play/Pause
	Next track
	Mute
	Decrease the volume
	Increase the volume
	Delete
	Lock device

The commands printed in blue can be executed by pressing the corresponding key + the "FN" key.

Please press and hold the function key (FN), and then press one of the keys given below to assign the function to a key:

• Q – Android
• W – Windows
  • E - iOS
  • Y - <
• Shift + Y ->
• ALT + Y - |

5. LED indicator

CAPS	Glows in blue when the Caps Lock key has been pressed. This display is only available for Windows and iOS.
	The LED above the Bluetooth symbol will flash in blue when the keyboard is in pairing mode. The pairing mode is cancelled after 3 minutes for security reasons.
Charge	Glows in red while the keyboard is charging. The device is fully charged when the LED goes off. Please recharge the keyboard when the LED starts flashing in red.
Power	Glows for about 5 seconds in blue when the keyboard is switched on.

6. Initial use

Remove the Bluetooth keyboard from the packing and charge it fully before using it for the first time. To do so, connect a microUSB connector of a connection cable to the Bluetooth keyboard. Then, connect the USB connector to a suitable charging source (e.g., computer or USB charging adapter). The red "Charge" LED glows when the battery is charging. Disconnect the Bluetooth keyboard from its power source after charging it each time to prevent constant recharging. It is advisable to use the device regularly to maintain the full capacity of the batteries.

7. Establishing a Bluetooth connection (Android and IOS)

Firstly, enable the Bluetooth function on your Tablet PC or Smartphone. Then switch on the keyboard. Slide the On/Off switch to the right. The blue power LED on the keyboard lights up for about 5 seconds. Press the "Connect" key on the keyboard. The device is in pairing mode once the LED over the Bluetooth symbol on the Bluetooth keyboard starts flashing. Now scan for your tablet PC or Smartphone and connect with the "applic-303183". Your device displays a security code. Enter this on the keypad and confirm your entry with the "Enter" key. The connection has been successfully established.

8. Establishing a Bluetooth connection (Windows)

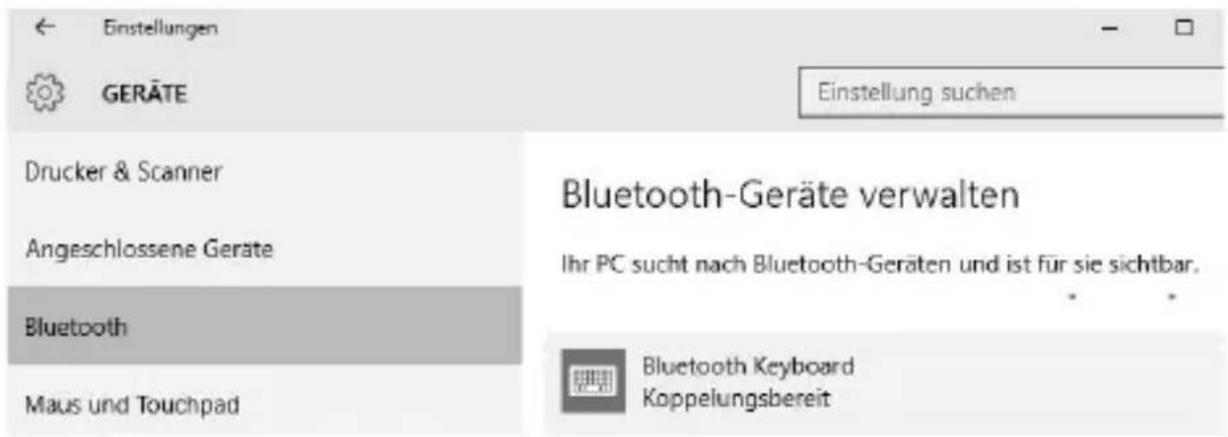

First, enable the Bluetooth function on your computer. Click the right mouse button on the Bluetooth symbol in the taskbar and select the "Add device" menu item. Then switch on the keyboard. Slide the On/Off switch to the right. The blue power LED on the keyboard lights up for about 5 seconds. Press the "Connect" key on the keyboard. The device is in pairing mode once the LED over the Bluetooth symbol on the Bluetooth keyboard starts flashing.

The Bluetooth keyboard is detected after some time. Select the keyboard and click the "Pair" key. Select the "Generate your own pairing code" option in the next window. Read the pairing code from the screen and enter it on the keypad. Confirm your entry using the "Enter" key. The connection is successfully established. Finally, click the "Close" key.

9. Safety instructions and disclaimer

Never try to open the device to repair or make modifications. Avoid contact with the mains voltage. The device does not carry current only when it is disconnected. Do not short-circuit the product. Please disconnect the power cord when not in use or during storms.

The device is not approved for outdoor use. Therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the device away from high temperatures.

Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual.

This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modifications to the device, which is not carried out by the original supplier will void any warranty and guarantee claims. The device should only be used by those who have read and understood this user manual. The specifications of the device may be changed without prior notice.

10. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components must be sent for recycling or disposal separately, as improper disposal of toxic and dangerous components could permanently damage the environment.

According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

11. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer: The customer is legally obliged to return used batteries. The customer can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries indicate the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight. For information on authorised collection points in your area, please contact your local city or municipal administration.

The symbol of the crossed-out dustbin means that the battery may not be disposed of in household waste.

WEEE directive: 2012/19/EU

WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 303183 complies with the fundamental requirements and all other relevant stipulations of the directive 2014/53/EU. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, https://model.ganzeinfach.de/303183

MO-FR 9:30am - 18pm CET
