Brand	Aplic
Model	302101
Product type	Compact Bluetooth keyboard
Compatibility	Windows, Android, iOS
Connection technology	Bluetooth 3.0
Range	Up to 10 m
Battery	Lithium-ion 150 mAh, rechargeable
Charging	Micro USB
Key layout	QWERTZ (German)
Function keys	Yes, with FN combination
LED indicators	Caps Lock, Bluetooth, charging, power
Package contents	Bluetooth keyboard, user manual
Frequency range	2.402 GHz - 2.480 GHz
Transmission power (EIRP)	4.23 dBm
WEEE registration number	DE 67896761
Directives	Compliant with directive 2014/53/EU
Usage precautions	Avoid humidity and high temperatures

Frequently Asked Questions - 302101 Aplic

How to connect the keyboard to an Android smartphone?

Enable Bluetooth on your smartphone, turn on the keyboard by sliding the switch to the right, then press the Connect key. On your smartphone, search for devices and select aplic-302101. Enter the security code displayed on the keyboard and confirm with Enter.

How to connect the keyboard to an iPhone running iOS?

Enable Bluetooth in iPhone settings, turn on the keyboard, press Connect, then select aplic-302101 from the list. Enter the displayed code and press Enter.

How to connect the keyboard to a Windows PC?

Enable Bluetooth on the PC (right-click on the Bluetooth icon in the taskbar > Add a device). Turn on the keyboard, press Connect, then select the keyboard in the list. Choose Create a custom connection code, enter the code displayed on the PC using the keyboard, then press Enter.

What to do if the keyboard does not connect?

Check that the keyboard is turned on (blue LED for 5 seconds) and in pairing mode (blue LED flashing). Make sure Bluetooth is enabled on the device and that you select the correct name (aplic-302101). If necessary, put the keyboard into pairing mode by pressing the Connect key. Pairing mode stops after 3 minutes.

How to change the function key assignment (iOS/Android/Windows)?

Hold the FN key and then press the corresponding key: Q for iOS, W for Android, E for Windows. The blue functions on the keyboard are activated with FN + the key.

How to recharge the keyboard?

Plug the supplied micro USB cable into the keyboard and the other end into a charging source (computer or USB adapter). The red LED lights up during charging. Disconnect once fully charged (LED off). Use the device regularly to preserve the battery.

What does the red LED mean?

The red LED indicates that the keyboard is charging. It turns off when the battery is fully charged. If it flashes red, the battery is low and needs to be recharged.

What does the flashing blue LED mean?

The blue LED above the Bluetooth symbol flashes when the keyboard is in pairing mode. It stops after 3 minutes for safety reasons.

How to lock the device with the keyboard?

The lock function depends on the key combination. On iOS and Android, use FN + the Lock key (padlock symbol) or the corresponding combination. For Windows, use FN + the Lock key (?/β symbol). Refer to the manual for details.

What to do if the keyboard does not work after charging?

Make sure the keyboard is turned on (on/off switch). If the LED does not light up, recharge it for at least 2 hours. If the problem persists, perform a reset by holding the Connect key for 5 seconds. Also check that the device is properly paired.

USER MANUAL 302101 Aplic

Blue abstract logo shape resembling a stylized letter 'Q' or droplet (no text or symbols)

aplic

WIRELESS TABLET KEYBOARD CASE, 7" (17,8 cm) - 8" (20,3 cm)

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.

Thank you for choosing an aplic product. Please read the following user manual carefully so as to get the most from the product you have purchased. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Bluetooth keyboard
• User manual

2. Technical data

Key assignment QWERTZ (German layout)
Battery Lithium ion, 150mAh
Frequency range 2.402GHz - 2.480 GHz
Transmission power (EIRP) 4.23 dBm
Connection Bluetooth version 3.0
Range up to 10m

3. Functions

Thanks to the compact Bluetooth keyboard, you can now use your tablet PC or smartphone with a keyboard even when you are travelling. The keyboard is wirelessly connected via Bluetooth with your devices and is compatible with Microsoft Windows, Google Android and Apple iOS.

4. Function keys

	iOS Android Windows			Windows function keys (in combination with FN key)
	back back ° / ^ back
	Home button Home button 1 / !		Open the browser
	Search Search 2 / “ Search
	N/A Email 3 / § Email
	Computer Computer 4/ $ Computer
	Previous music track	Previous music track	5 / %	Previous music track
	Play / Pause Play / Pause 6 / & Play / Pause
	Next music track	Next music track	7 / / Next music track
	Volume down Volume down 8 / ( Volume down
	Volume up	Volume up	9 / ) Volume up	up
	Media player	Media player	0 / =	Media player
	Lock device	Lock device	? / β	N/A

Please press and hold the function key (FN), and then press one of the keys given below to assign the function to a key:

• Q-iOS
• W – Android
• E - Windows

Note: The functions printed in blue can be executed by pressing the function key (FN) and the respective key where the function is printed.

5. LED indicator

CAPS	Glows in blue when the Caps Lock key has been pressed. This display is only available for Windows and iOS.
[08KC]	The LED above the Bluetooth symbol will flash in blue when the keyboard is in pairing mode. The pairing mode is cancelled after 3 minutes for security reasons.
Charge	Glows in red while the keyboard is charging. The device is fully charged when the LED goes off. Please recharge the keyboard once the LED starts flashing in red.
Power	Glows for about 5 seconds in blue when the keyboard is switched on.

6. Initial use

Remove the Bluetooth keyboard from the packing and charge it fully before using it for the first time. To do so, connect a microUSB connector of a connection cable to the Bluetooth keyboard. Then, connect the USB connector to a suitable charging source (e.g., computer or USB charging adapter). The red "Charge" LED glows when the battery is charging. Disconnect the Bluetooth keyboard from its power source after charging it each time to prevent constant recharging. It is advisable to use the device regularly to maintain the full capacity of the batteries.

7. Establishing a Bluetooth connection (Android and IOS)

First, enable the Bluetooth function on your Tablet PC or Smartphone. Then switch on the keyboard. Slide the On/Off switch to the right. The blue power LED on the keyboard lights up for about 5 seconds. Press the "Connect" key on the keyboard. The device is in pairing mode once the LED over the Bluetooth symbol on the Bluetooth keyboard starts flashing. Now scan for your tablet PC or Smartphone and connect with the "applic-302101". Your device displays a security code. Enter this on the keypad and confirm your entry with the "Enter" key. The connection has been successfully established.

8. Establishing a Bluetooth connection (Windows)

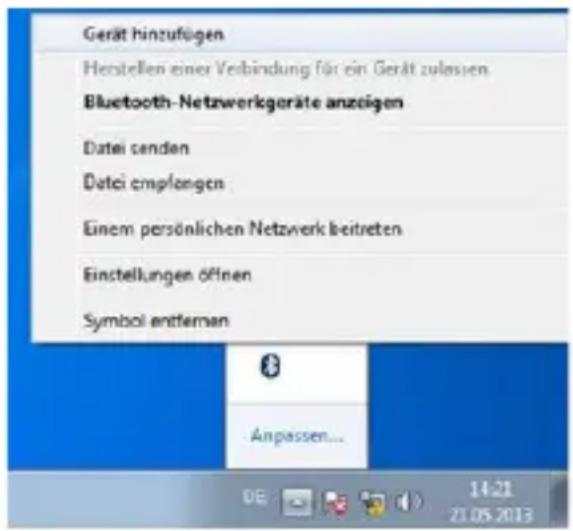

First, enable the Bluetooth function on your computer. Click the right mouse button on the Bluetooth symbol in the taskbar and select the "Add device" menu item. Then switch on the keyboard. Slide the On/Off switch to the right. The blue power LED on the keyboard lights up for about 5 seconds. Press the "Connect" key on the keyboard. The device is in pairing mode once the LED over the Bluetooth symbol on the Bluetooth keyboard starts flashing.

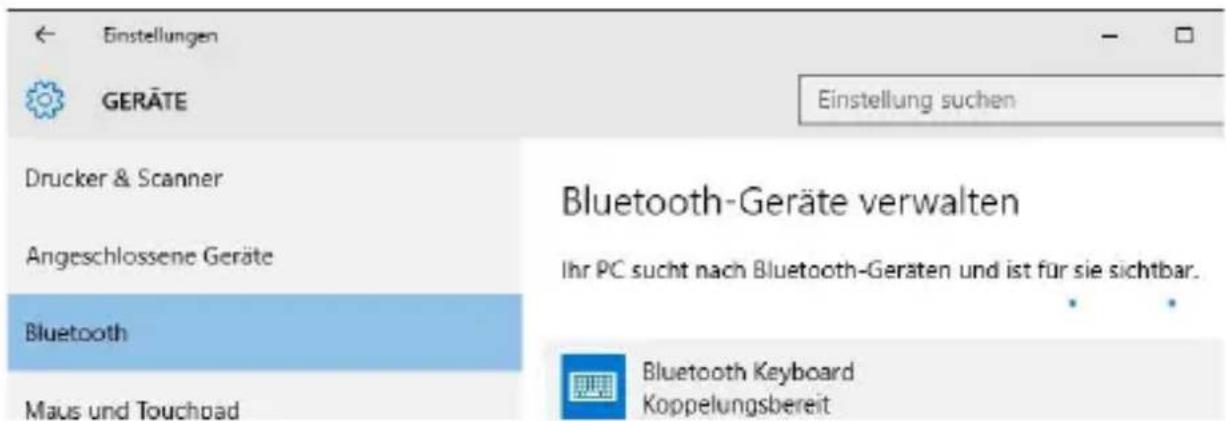

The Bluetooth keyboard is detected after some time. Select the keyboard and click the "Pair" key. Select the "Generate your own pairing code" option in the next window. Read the pairing code from the screen and enter it on the keypad. C o n - firm your entry using the "Enter" key. The connection is successfully established. Finally click the "Close" key.

9. Safety instructions and disclaimer

Never try to open the device to repair or make modifications. Avoid contact with the mains voltage, the device does not carry current only when it is disconnected. Do not short-circuit the product. Please disconnect the power cord when not in use or during storms.

The device is not approved for outdoor use. Therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the device to high temperatures.

Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual.

This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modifications to the device, which is not carried out by the original supplier will void any warranty and guarantee claims. The device should only be used by those who have read and understood this user manual. The specifications of the device may be changed without prior notice.

10. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment.

According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

11. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer: The customer is legally obliged to return used batteries. The customer can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries indicate the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery may not be disposed of in household waste.

WEEE directive: 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 302101/20200305SZ055 complies with the fundamental requirements and all other relevant stipulations of the directive 2014/53/EU. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, https://www.ganzeinfach.de/
