USER MANUAL 709001 LAGRANGE

CONDITIONS DE GARANTIE

Please read this manual carefully and ensure you keep it for future reference.

Ensure that the mains voltage corresponds to the voltage that is shown on the appliance's indicator plate.

Fully unwind the cable and carefully examine it before use.

Regularly check the condition of the power cable, and do not use the appliance if any damage is detected.

If the power cord is damaged, to avoid any danger it must be replaced by LAGRANGE

after-sales service, or a qualified

person that has been approved by LAGRANGE.

Place your appliance on a flat, dry, surface.

Never place the appliance near a heat source.

Never place your appliance on a hot surface or near an open flame.

Place your appliance as far as possible from flammable objects (curtains, ...).

Keep the product at least 20 cm away from anything sensitive to heat.

*Connect the cord to a 10/16 A socket outlet with an earth contact.

The appliance must be connected to an earthed socket outlet.

If this appliance is used with an extension cord, it is essential that the cord's plug has an earthing connection and that the cross-section of the wiring is 1 mm ^2 or greater.

Never immerse your appliance in water or any other liquid, either for cleaning or for any other reason.

Never clean it in the dishwasher.

Do not clean the product using a jet of water (either low or high pressure).

Never use or store the appliance outside in the rain. Store it in a dry place.

Never move the appliance by pulling its cord.

*Prevent the appliance accidentally falling by ensuring that the power cord can not become entangled.

Do not wind the cord around the appliance, do not twist it, and ensure that it does not come into contact with any of the appliance's hot parts.

Accessible surfaces may be extremely hot when the appliance is in use.

Never place cardboard, plastic, paper, silicone or other flammable materials into the oven.

Never use greaseproof paper or reusable baking sheets. Always remove all sheets of paper such as those provided with frozen products, even if the manufacturer indicates that they can be put in an oven.

Never put large volumes of food in the oven that could touch the heating elements, as there is a risk of fire. Be careful; some preparations can increase drastically in volume during cooking. Always check how well-cooked the preparation is throughout the heating process. This appliance can be used by children from the age of 8 and up, and persons with limited physical, sensory or cognitive capacities or who lack adequate experience or knowledge, provided they are supervised or receive instructions for the safe use of the appliance and insofar as they fully understand the potential dangers. Children should not play with the appliance. Cleaning and upkeep should not be performed by children unless they are over the age of 8 and are under supervision.

Keep the appliance and its power cord out of the reach of children younger than 8 years old.

These appliances are not intended to be used with an external timer or a separate remote control system.

WARNING: Risk of injury if the product is used incorrectly.

Residual heat causes the surface of the heating element and the cooking stone to remain hot after use.

Do not use your appliance if it has been damaged and contact

LAGRANGE after-sale services.

For your safety, only use

LAGRANGE accessories and spare parts which are compatible with your appliance.

Keep the appliance's original packaging for its storage.

This appliance is intended for use in domestic and similar settings such as:

- staff kitchen facilities in shops, offices, and other professional environments;

- farms;

- for the use of customers in hotels, motels, or other residential environments;

- home-stay type environments.

Refer to the "Maintenance" section for cleaning parts in contact with food.

1 2 3 4 5 6 7 8 9 LADRANGE Surgelée Mode manuel Pan New-yorkaise Napolitaine Pains et snacks Fine et croustillante Taveme 10 11 17161512 13 14 18 19

Pizza oven
Type 709

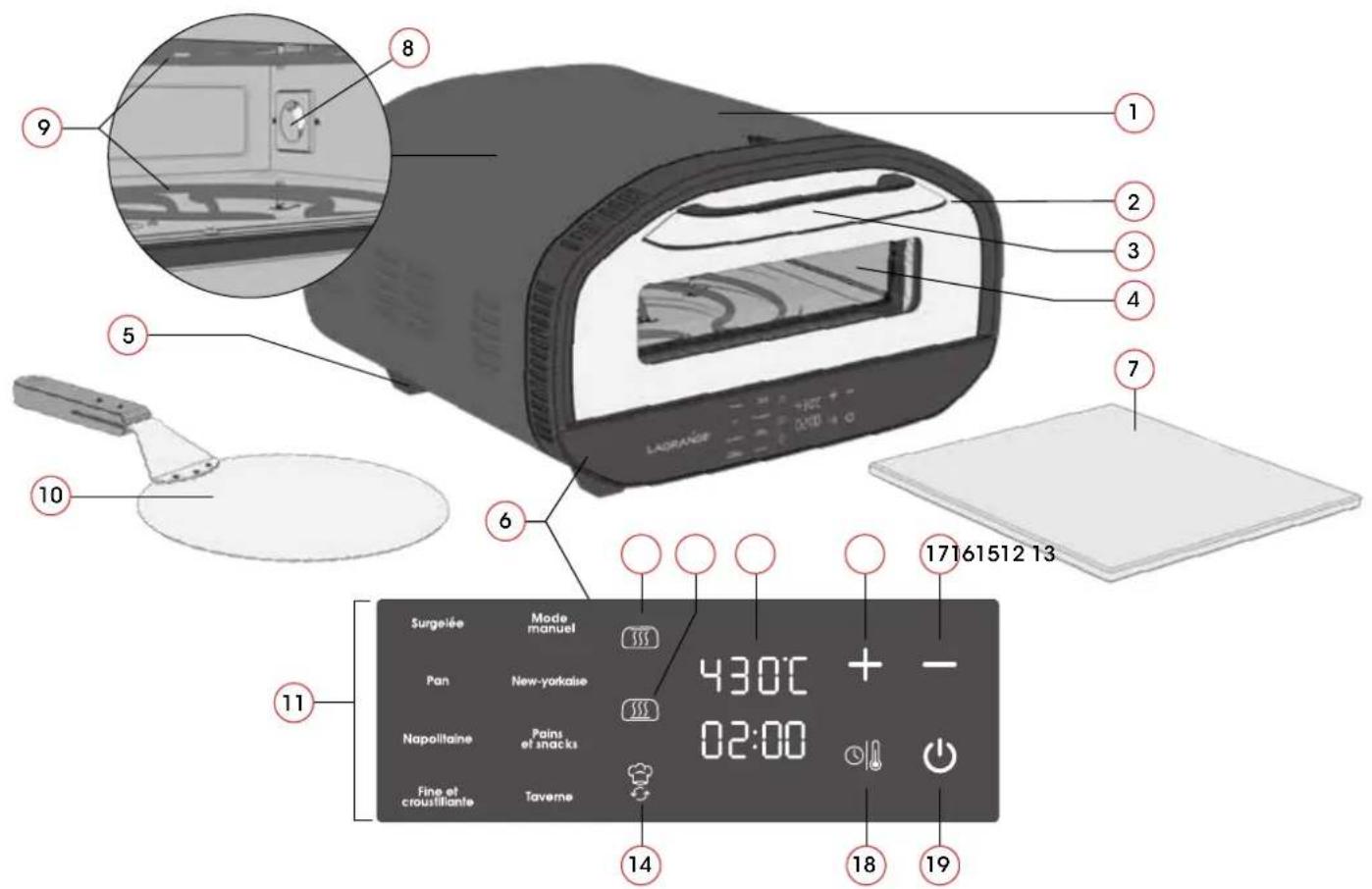

DESCRIPTION OF THE APPLIANCE

1. Body
2. Door
3. Door-handle
4. Window
5. Feet
6. Touch-sensitive control panel
7. Stone
8. Light
9. Heating elements

Depending on the model:

1. Pizza paddle

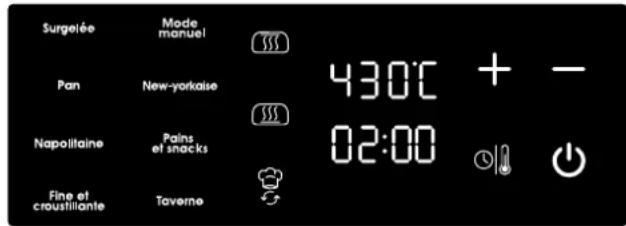

Control panel:

1. Program listing
2. "Top heating element" button
3. "Bottom heating element" button
4. "Menu" button for selecting programmes and button for resetting default settings
5. Temperature and time display
6. "+" button for time and temperature adjustment (+)
7. "-" button for time and temperature adjustment (-)
8. "Time/Temperature/Preheat" buttons for time and temperature selection and preheating
9. "On/Off" button

TECHNICAL DETAILS

* Painted steel body
* Viewing window during cooking - triple thickness
* Internal light
* Top and bottom heating elements
* Stone 32 x 32 cm
* Menu with 8 predefined and customisable cooking programmes
* Temperature setting from 80°C to 430°C
* On/Off button
* 0.80-metre fixed cord
* Weight: 12.30 kg (oven with stone included)
* Power: 1700W - 230V - 50Hz
* The cable used is a H05RR-F 3 G 0.75 mm ^2

Depending on the model:

* 25 cm diameter pizza paddle

These appliances comply with directives 2014/35/EU, 2014/30/EU, WEEE 2012/19/EU, RoHS 2011/65/EU, 2015/863/EU and food contact regulation 1935/2004/EC.

ENVIRONNEMENT

Protection of the environment – DIRECTIVE 2012/19/EU

In order to protect our environment and our health, electrical units at the end of their working lives must be disposed of according to very specific rules requiring the involvement of everyone, both suppliers and users.

That is why your unit, as indicated by the symbol on its nameplate, must not be put into a public or private garbage can intended for household wastes.

At the time of its disposal, it is your responsibility to bring your unit to a public collection center designated for the recycling of electrical and electronic equipment. If you need information about centers for the collection and recycling of discarded units, please contact the local authorities in your region, the household waste collection services or the store where you bought your unit.

USER INSTRUCTIONS

FIRST USE

* When unpacking your appliance, ensure that you carefully remove all cushioning material, bags and other packaging labels.
* Check that all parts and accessories are included and have no defects.
* Fully unwind the cable and carefully examine it before use.
* Clean your appliance with soapy water before use to remove any impurities from the packaging, not forgetting the cooking stone and the paddle. Rinse with a soft sponge and clean water and dry thoroughly.

USER INSTRUCTIONS

* Place the appliance on a firm, flat and heat-resistant surface.
* Open the oven door and place the cooking stone on the casters at the front of the cavity and slide it all the way to the base.
* Close the oven door and plug the power cord into an earthed socket. The interface lights up for a few seconds and then turns off. The On/Off button ⏻ remains lit and flashes.
* Press the Start/Stop button 🔊: the initial default programme that is selected is "Surgelée" (Frozen). Press the "Menu" button to select the desired programme.
* Select the desired programme on the control panel and adjust the temperature and time (see "Setting the time and temperature" section). The time displayed corresponds to the duration of one cycle required to cook your preparation.
* Press the On/Off button ⏻ start preheating. The time displayed will then remain static throughout the pre-heating period. Allow up to 20 minutes for pre-heating, depending on the programme.
* Once pre-heating is finished, 5 beeps will sound and the time will flash. Open the oven and use the pizza paddle to quickly place your preparation onto the cooking stone. Close the door immediately.
* Tips: make sure you use just enough flour or semolina to prevent the mixture sticking to the paddle.

ARNING:

Make sure you use just enough flour or semolina to prevent the mixture sticking to the paddle. Excess flour will burn on the stone and give a bitter taste to your preparation.

Excess flour will also increase the amount of smoke and the risk of fire in the oven once the preparation has been removed. If flames begin to appear, don't worry. Close the door if it is still open. If the fire does not extinguish itself within 20 seconds, unplug the appliance and keep the door closed until the fire is out.

* Press the Start/Stop button ⏻ start the cooking cycle countdown. Think about rotating your preparation on the stone once during the cooking cycle to ensure perfectly even cooking.
* Once the cycle is complete, 5 beeps will sound and the time will flash. Open the door and remove your preparation from the oven using the pizza paddle. Close the door immediately.
* To cook a new batch, start a new cycle. Open the door and place your preparation on the cooking stone. Close the door and press the On/Off button restart the cooking cycle countdown.

Note: if no button is pressed for ten minutes after the cycle has finished (the appliance has beeped 5 times), the appliance will switch off automatically and the display will show "END". If this is the case and you wish to continue cooking, you will need to restart the appliance by selecting the desired programme and waiting for the necessary preheating time.

Note : at any time, to stop a cycle or return to the control panel's initial status to change programmes, simply press and hold the On/Off button 📋r at least 3 seconds.

SETTING THE TIME AND TEMPERATURE:

To adjust the time of a cycle, press the "Temperature/Time/Preheat" button for 3 seconds and the time will flash. Adjust the time using the "+" and "-" buttons. The countdown will then start automatically. To adjust the temperature, press the "Temperature/Time/Preheat" button and the time will flash. Press the "Preheat" button a second time and the temperature will flash. Adjust the temperature using the "+" and "-" buttons.

* If the selected temperature changes from low to high, the time displayed will remain fixed: the oven preheats to reach the required temperature. Once the appliance has reached the required temperature, 5 beeps will sound to signal the end of pre-heating. You can start a new cycle as described above.

* If the selected temperature changes from high to low, the appliance displays the message "COOL" and beeps 5 times every 10 seconds. "COOL" flashes to indicate that the temperature is high (you can open the door to dissipate the heat). Once the appliance has reached the desired temperature, the temperature and time display will appear and 5 beeps will sound. You can start a new cycle as described above.

The operation is identical for the manual mode, but you can independently select top or bottom heating by pressing the "top heating element" or "lower heating element" button.

DESCRIPTION OF PROGRAMMES :

Cooking times vary depending on the preparation (weight, thickness, ingredients, temperature). The cooking times given in this table are for guidance only and should be adjusted according to your preparation and preferences.

Surgelée Mode manuel Pan New-yorkaise Napolitaine Pains et snacks Fine et croustitante Taverne 430°C + - 02:00

Programme	Default temperature	Customisable temperature range	Default time	Customisable time range
Surgelée 245°C 80-430°C 9 min 1-20 min
Mode manuel 430°C 80-430°C 2 min 1-60 min
Pan 340°C 80-430°C 3 min 1-30 min
New-yorkaise 270°C 80-430°C 5 min 1-20 min
Napolitaine 430°C 200-430°C 2 min 1-10 min
Pains et snacks	430°C 80-430°C 3 min 1-60 min
Fine et croustillante	330°C 80-430°C 2 min 1-10 min
Taverne	430°C 80-430°C 2 min 1-60 min

Surgelée (Frozen): cooks your frozen preparations to perfection. Mode manuel (Manual): personalise the cooking of all your preparations by adjusting the temperature of the top and bottom heating elements. This programme allows you to use a wide variety of recipes.

Pan: use a suitable pan (not supplied) to cook your pan pizzas and prepare very thick, well-topped pizza. The frying pan must be suitable for a temperature of 430^ C, such as a cast iron or full stainless steel frying pan. It is strictly forbidden to use a pan with a non-stick coating.

New-yorkaise (New York-style): cook your pizzas New York-style so that you get a thick crust that can be easily folded to eat.

Napolitaine (Neapolitan): cook your Neapolitan pizzas so that you get a soft, thin centre and a thick, chewy crust. You can know when it's cooked by the leopard effect on its crust (brown spots)

Pains et snacks (Breads and snacks): for baking all your preparations such as focaccias, pita bread, naans and other breads.

Fine et croustillante (Thin and crispy): for cooking your pizzas with a crispy crust.

Taverne (Tavern): cook your pizzas tavern-style for a crispy crust and a thick-topped pizza.

Note : If an error code (E1, E2, E3, or E5) appears on the display, unplug the appliance and contact the LA-ORANGE sales service.

STOPPING THE APPLIANCE

* To stop the appliance, press the On/Off button ⏻ his will flash, indicating that the appliance is in standby mode.
* Allow your appliance to cool down and do not unplug it while the fan is running.
* Unplug the cord once the appliance's fan has stopped running.

MAINTENANCE

WARNING: Always unplug the appliance and allow it to cool completely before cleaning.

* Never immerse your appliance in water or put it in the dishwasher.

* Never use oven strippers. Note: The appearance of the cooking stone will change following the first use. This is normal and does not affect the operation of your appliance.

* Body: Wash the body of the appliance with a damp sponge, using some washing-up liquid if necessary. Rinse with a sponge and clean water.

*Cleanthe window: Wash the window glass with a soft sponge soaked in water and washing-up liquid. Rinse with a sponge and clean water.

* Stone: Wipe with a dry cloth or soft brush. To remove any marks, wipe with a damp cloth. The stone must not be immersed in water or placed in the dishwasher.

* Internal cavity: Clean with a soft brush to remove any residue, particularly on the heating element.

* Paddle: Clean with a soft sponge soaked in water and washing-up liquid. Rinse with a sponge and clean water.

GUARANTEE TERMS

Guarantees for LACREHOLDAppliances.

Your unit is guaranteed for 2 years.

In order to receive an additional year of guarantee free of charge, register on the LAGR(www.lagrange.fr).The

guarantee includes parts and labor and covers manufacturing defects.

The guarantee does not cover deterioration due to poor use or non-observance of the instructions for use or breakage due to falling.

THIS GUARANTEE APPLIES TO HOUSEHOLD USES. IT CANNOT APPLY TO PROFESSIONAL OR SEMI-PROFESSIONAL USES.

The legal guarantee due from the seller does not in any way exclude the legal guarantee due from the Manufacturer for manufacturing flaws or defects according to articles 1641 to 1649 of the Civil Code. In the event of a breakdown or malfunction, contact your retailer. In the event of technical defects observed within one week of purchase, the units will be exchanged.

Beyond this period, they will be repaired by the LAGRANGE after-sale service.

To benefit from this guarantee, the user must present a copy of the invoice specifying the date of purchase of the unit.

Duration of availability of spare parts

In accordance with article L 111-2 of the consumer code, the availability of spare parts that we provide for a repairable product is 5 years as of its date of manufacturing.

However, this availability is only guaranteed in the country where the product was purchased.

Shipping costs for returns

After the first year which benefits from the dealer's guarantee, you will only have to pay the costs for returning the product to the factory.

We will ship it back to you at our expense as quickly as possible.

If you have any other questions about our products, you can contact us at the following address:

LAGRANGE
