USER MANUAL 38387 Lindy

Please read the following safety information carefully and always keep this document with the product.

Failure to follow these precautions can result in serious injuries or death from electric shock, fire or damage to the product.

Touching the internal components or a damaged cable may cause electric shock, which may result in death.

DANGER ELECTRIC SHOCK RISK

This device is a switching type power supply and can work with supply voltages in the range 100 - 240 VAC For worldwide usability four different AC adapters are enclosed: Euro type, UK type, US/Japan type and Australia/New Zealand type. Use the appropriate AC adapter as shown in the picture and ensure it is firmly secured in place and does not detach by pulling before installing into a power socket.

To reduce risk of fire, electric shocks or damage:

• Do not open the product nor its power supply. There are no user serviceable parts inside.
  ■ Only qualified servicing personnel may carry out any repairs or maintenance.
  ■ Never use damaged cables.
• Do not expose the product to water or places of moisture.
• Do not use this product outdoors it is intended for indoor use only.
• Do not place the product near direct heat sources. Always place it in a well-ventilated place.
• Do not place heavy items on the product or the cables.
• Please ensure any adapters are firmly secured and locked in place before inserting into a wall socket

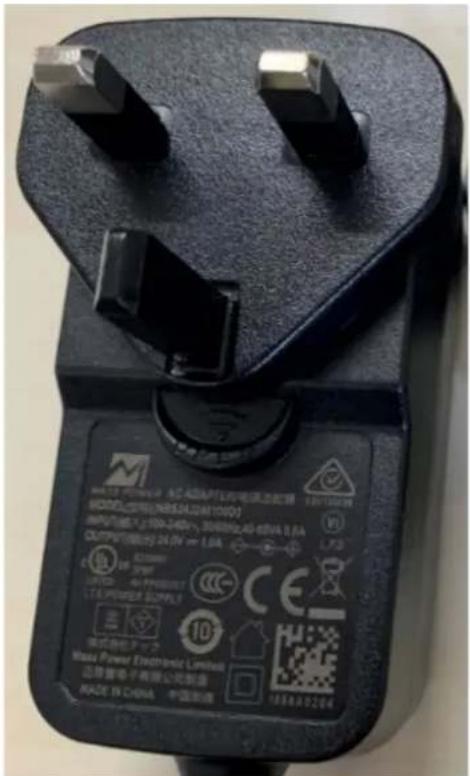

Instructions for Use of Power Supply

To connect the adapter

Slide the desired plug adapter into the power supply and rotate clockwise until it locks into place.

To remove the adapter

Press the push button latch.

While pressed, rotate the adapter anticlockwise.

MUSTO POWER WSP AC ADAPTE內電流控制器 MODEL: CTEL N85.04.DA1 10000 I2P/167 1:100-340V, 30000x40-60VA 2.6A OUTPUTING: 24.0V cm LGA CE: 10 LTD: 40 PWR 1.6 POWER SIMPLY 模式馬氏デフ Mass Power Electronic Limiter 台灣電容器有限公司製造 MADE IN CHINA 中国電源 1888A0204

Introduction

Thank you for purchasing the 150m Cat.6 HDMI 4K60/Type C, USB 2.0, IR & RS-232 HDBaseT KVM Extender. This product has been designed to provide trouble free, reliable operation. It benefits from both a LINDY 2 year warranty and free lifetime technical support. To ensure correct use, please read this manual carefully and retain it for future reference.

The Lindy Cat.6 HDMI/Type C 4K60, USB 2.0, IR & RS-232 HDBaseT KVM Extender is a complete high-performance solution for extending HDMI signals over long distances via Cat.6 network cable.

HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.

This solution consists in 3 items: two wall-plate transmitters (one for UK and one for EU wall box) with one Type C and one HDMI with USB ports also for KVM applications, and one receiver unit.

Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.

HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

Please Note: The quoted lengths and resolutions are possible with a direct connection between Transmitter and Receiver using good quality Cat.6 cable. Using a different cable type, or introducing wall plates, couplers or patch panels may result in a reduction of possible distances.

Package Contents

38387:

■ HDBaseT HDMI/Type C 1-gang UK Wall Plate Extender, Transmitter
■ 2 x 3-Pin Terminal Block
■ 2 x 2-Pin Terminal Block
■ 24VDC 1A Multi-country Power Supply (UK, EU, US & AUS), 2-Pin Terminal Block DC connector
■ Lindy Manual

38388:

■ HDBaseT HDMI/Type C 2-gang EU Wall Plate Extender, Transmitter
■ 2 x 3-Pin Terminal Block
■ 2 x 2-Pin Terminal Block
■ 24VDC 1A Multi-country Power Supply (UK, EU, US & AUS), 2-Pin Terminal Block DC connector
■ Lindy Manual

38389:

■ HDBaseT HDMI & USB Extender, Receiver
- IR Emitter Cable, 1.5m
■ IR Receiver Cable, 1.5m
■ 2 x Mounting Ears & 4 x Screws
■ 2 x 3-Pin Terminal Block
■ 24VDC 1A Multi-country Power Supply (UK, EU, US & AUS), Screw Type DC Jack: 5.5/2.1mm
- Lindy Manual

Features

■ Supports resolutions up to 3840x2160@60Hz 4:4:4 8bit, with additional support for HDR up to 4:2:2 10/12bit (STD Mode)
■ Long Reach Mode (LRM) supports 4K30 resolutions up to 150m
■ Audio Pass-through of all HDMI audio formats including Dolby Atmos & DTS:X
■ Analog Audio embedding 48KHz with dip-switch on transmitter units to set up HDMI or analog audio
- PoC (Power over Cable) support with dip-switch, when it's turned on in both sides only one power supply connection is required
■ USB 2.0 support to connect mouse, keyboard and other USB devices
■ EDID management with dip-switch on transmitter units
■ Bi-directional IR Control (20-60KHz) of equipment via the extender
■ RS-232 Pass-through
■ 2-pin phoenix DC connector on transmitter units, screw type DC Jack connection on the receiver

Specification

■ HDMI 2.0b 18Gbps, USB Type C 5.4Gbps compliant
■ HDCP 2.2/1.4 Pass-through

The following distance and resolution combinations are possible when using high quality Cat.6 U/UTP or F/UTP cable:

STD Mode - 90m:

■ 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit
■ 3840x2160@30Hz 4:4:4 8bit
■ 1920x1080@60Hz 4:4:4 8bit
■ 3D@1920x1080

LRM Mode - 150m:

■ 3840x2160@30Hz 4:4:4 8bit
■ 1920x1080@60Hz 4:4:4 8bit
■ 3D@1920x1080

38387-8 Transmitter Ports

Input:

■ HDMI (Female)
■ USB Type C (Female)
■ USB Type B (Female)
■ 3.5mm Audio (Female)
■ IR (3-pin phoenix)

Output:

■ HDBaseT RJ-45 (Female)
- IR (3-pin phoenix)

■ ESD Protection: ± 8kV (air-gap discharge)
■ Human Body Model: ± 4kV (contact discharge)
■ Operating Temperature: 0°C - 40°C (32°F - 104°F)
■ Storage Temperature: -20°C - 60°C (-4°F - 140°F)
■ Relative Humidity: 20 - 90% RH (Non-condensing)

■ Metal Housing

■ Colour: white wall plates, black receiver

■ Power Requirements: AC100-240V 50/60Hz

■ Power Consumption: 12.48W

38389 Receiver Ports

Input:

■ HDBaseT RJ-45 (Female)
■ 3.5mm IR (Female)
Output:
■ HDMI (Female)
■ Analog Audio (3-pin phoenix)
■ 3.5mm IR (Female)
■ 2x USB Type A

Installation and Operation

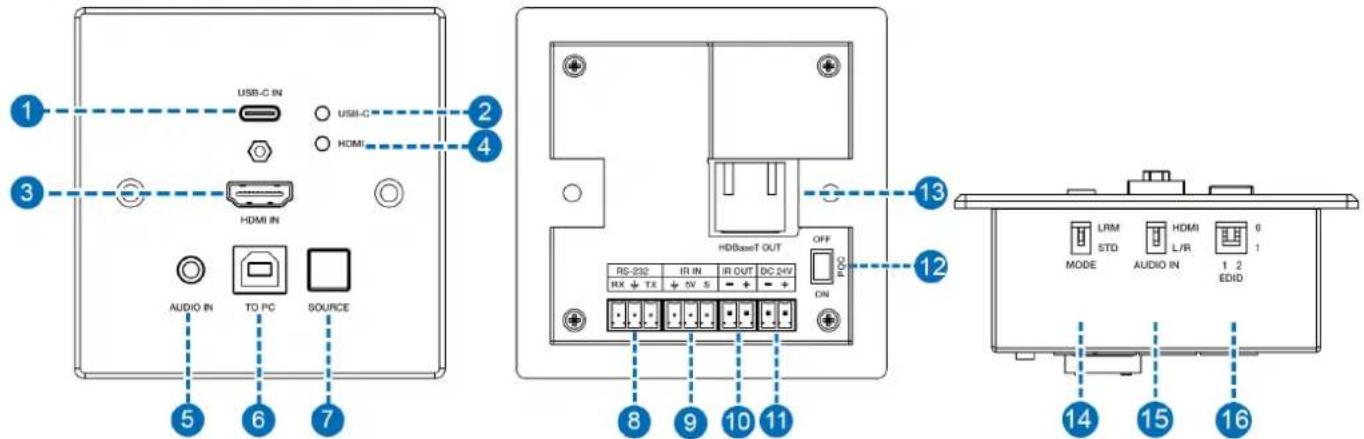

38387-8 Transmitter Front and Rear

USB-C IN USB-C HDMI HDMI IN AUDIO IN TO PC SOURCE 1 2 3 4 5 6 7 HDBusnT OUT OFF PDC RS-232 IR IN IR OUT DC 24V RX + TX + SV 5 - + - + 8 9 10 11 12 13 14 15 16 LRM HDMI 0 STD L/R MODE AUDIO IN 1 2 EDID

1. USB-C IN: Connect to a USB Type C source device, video up to 4K60 and USB 2.0 signals are supported.
2. USB-C LED: This will illuminate green when the USB-C IN port is selected as input source.
3. HDMI IN: Connect to a HDMI source device.
4. HDMI LED: This will illuminate green when the HDMI IN port is selected as input source.
5. AUDIO IN: Connect to a 3.5mm Audio source for audio embedding.
6. TO PC: USB Type B Female port combined with HDMI IN port, connect to a USB port on a PC.
7. SOURCE: Button to switch between USB-C and HDMI inputs.
8. RS-232: Connect to a PC, Serial Controller or Serial device via a phoenix block 3-way connection for the pass-through transmission of RS-232 commands.
9. IR IN: Connect the supplied IR Receiver cable for IR signal reception. Ensure the remote being used is within the direct line-of-sight of the IR Extender.
10. IR OUT: Connect the supplied IR Transmitter Cable for IR signal transmission. Place the IR Transmitter in direct line-of-sight of the equipment to be controlled.
11. DC 24V: Connect the 24VDC 1A PSU to an AC wall outlet and securely connector to the phoenix block 2-way connection. When PoC function is enabled, this is only required at one side of the installation.
12. POC ON/OFF: DIP switch to turn ON/OFF the PoC function.
13. HDBASET OUT: Connect a compatible HDBaseT receiver using a single Cat.6 or above cable for all data signals. Please do not connect to a network port.
14. MODE STD/LRM: DIP switch to select STD or LRM mode.

- STD: Standard HDBaseT mode, supports 4K60 up to 90m distance.

- LRM: Long Reach HDBaseT mode, supports 4K30 up to 150m distance.

1. AUDIO IN LR/HDMI: DIP switch to select the Audio signal source:

- L/R: Will output the analog audio embedded from the AUDIO IN port.

- HDMI: Will output the de-embedded audio from the HDMI IN port.

1. EDID: DIP switches to set up the following presets:

2. 00: Copy EDID from the display connected to the Receiver (default)

3. 01:4K30 4:4:4
4. 10: 1080p60 4:4:4
5. 11: 1200p60 4:4:4

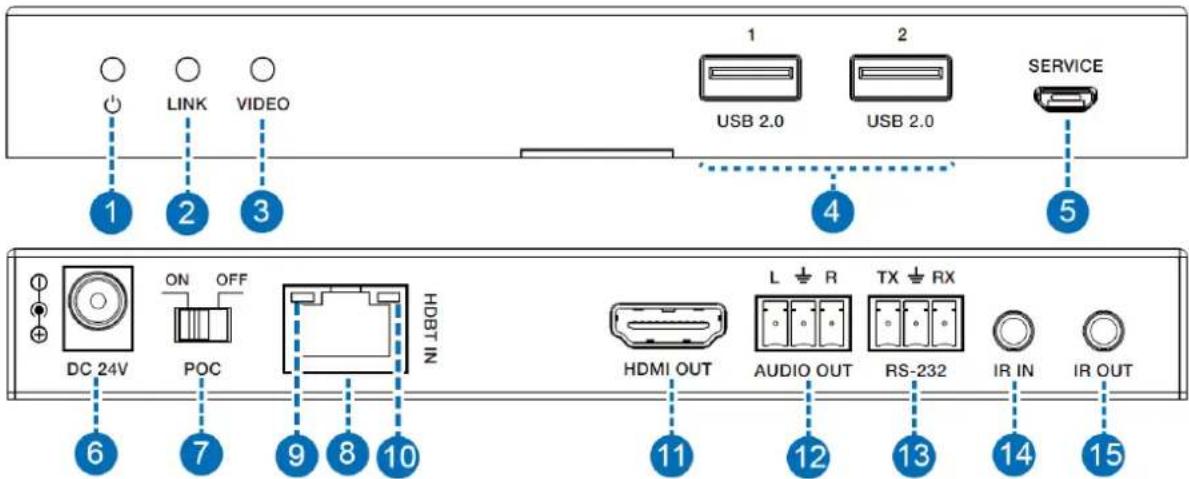

38389 Receiver Front and Rear

LINK VIDEO 1 2 3 4 5 USB 2.0 USB 2.0 SERVICE DC 24V ON OFF HDBT IN HDMI OUT L ± R AUDIO OUT TX ± RX RS-232 IR IN IR OUT 6 7 9 8 10 11 12 13 14 15

1. Power LED: Indicates Power
2. LINK LED: This will illuminate green when Transmitter and Receiver are connected, will flash when connection is poor or not stable, will stay off where there is no connection.
3. VIDEO LED: This will flash when there is an active signal output, will stay off if there is no signal.
4. USB 2.0: USB 2.0 Type A ports, connect USB devices such as mouse, keyboard or flash drive.
5. SERVICE: USB Micro-B port for firmware updates.
6. DC 24V: Connect the 24VDC 1A PSU to an AC wall outlet and securely connector to the transmitter or receiver. When PoC function is enabled, this is only required at one side of the installation.
7. POC ON/OFF: DIP switch to turn ON/OFF the PoC function.
8. HDBT IN: Connect a compatible HDBaseT Transmitter using a single Cat.6 or above cable for all data signals. Please do not connect to a network port.

9. Link Indicator LED:

10. Illuminated Green: Link is Okay

11. Flashing: Link is poor or not stable

12. Not Illuminated: No Link

13. Data Signal Indicator LED:

14. Illuminated Yellow: Signal is Okay

15. Not Illuminated: No signal

16. HDMI OUT: Connect to a HDMI display.

17. AUDIO OUT: Phoenix block 3-way connection, analog audio output port.
18. RS-232: Connect to a PC, Serial Controller or Serial device via a phoenix block 3-way connection for the pass-through transmission of RS-232 commands.
19. IR IN: Connect the supplied IR Receiver cable for IR signal reception. Ensure the remote being used is within the direct line-of-sight of the IR Extender.
20. IR OUT: Connect the supplied IR Transmitter Cable for IR signal transmission. Place the IR Transmitter in direct line-of-sight of the equipment to be controlled.

Important! Before starting the installation, please ensure that all devices are powered off.

1. Connect an HDMI source device to the Transmitter unit using an HDMI or Type C cable.
2. Connect one end of the Cat.6 cable to the HDBaseT Out port on the Transmitter and the other end to the HDBaseT In port of the Receiver. U/UTP or F/UTP installation cables are recommended. For cable lengths please see the Specifications of this manual.
3. Use another HDMI cable to connect an HDMI display device to the HDMI output port on the Receiver unit.
4. Please ensure that all the dip-switches are in the correct position, see above for details.
5. Plug the DC power supply into either the Transmitter or Receiver and switch on.
6. Power on the source device and display to complete the installation.

In addition to the installation steps outlined above this HDMI KVM Extender can also provide the following additional/optional functionality:

USB

The Transmitter feature a USB Type B port for the connection to a USB source such as a PC or laptop when the HDMI input port is selected. The receiver feature two USB 2.0 Type A ports to connect a keyboard, mouse or other devices to control the source connected to the transmitter.

Connecting a PC to the Transmitter via USB Type B port, make possible to use the following serial commands (baud rate 115200, 8bits):

s reboot! = reboot the unit
r fw version! = show fw version
s auto switch on! = set auto switch on
s auto switch off! = set auto switch off
r auto switch! = show auto switch status

RS-232 Serial

The Transmitter and Receiver both feature a phoenix block serial connection for the extension of control signals.

Audio

The Transmitter feature an Analog 3.5mm input port for audio embedding, with a dip-switch is possible to select if the Receiver will output the de-embedded audio from the HDMI IN or AUDIO IN port on the Transmitter.

Infrared Control

The Transmitter and Receiver units both feature an IR In and Out port, with two pairs of IR extension cables provided. The extension cables allow an IR remote control to be used from the Transmitter to the Receiver or vice versa.

Troubleshooting

There is no display on the screen.

It has been found that there are significant differences in the cable lengths/types and even input ports which can be used on different brands of display using HDMI 18G 4K@60Hz resolutions. If problems are experienced, please apply the following steps:

■ Try a different input port on the display.
■ Reduce the cable length on the Input and Output to 1m.
■ Try a different type of 1m HDMI or Type C cable.
- Check that the DC plug and jack used by the external power supply is firmly connected and that the power LED is illuminated on both the Transmitter and Receiver.
- Check that the Cat.6/7 cable is plugged in correctly and that the Connection LED on the left side of both the HDBaseT In and Out ports are illuminated.
- Check that the indicator LEDs on HDBaseT In port are illuminated, if not please power cycle the source and display.
- For several HDMI devices it may be helpful to unplug and re-connect their HDMI connection to reinitiate the HDMI handshake and recognition.
- Power off all the devices, then power on in this order: first, the extender, then the display and finally the source.
- Reduce the length of Cat.6/7 or HDMI cable used or use an higher quality cable.
- Check that the dip-switches are in the correct position.

Lindy regularly checks and tests our product range to ensure maximum compatibility and performance. For the most up to date version of this manual, please refer to your local Lindy website, search for the relevant part number and find the manual under Downloads.

Sicherheitshinweise

! GEFAHR !

GEFAHR GEFAHR EINES STROMSCHLAGS

Einführung

38389 Receiver Ports

Eingänge:

■ HDBaseT RJ-45 (Buchse)

■ 3.5mm IR (Buchse)

Ausgänge:

■ HDMI (Female)
■ Analog Audio (3-pin phoenix)
■ 3.5mm IR (Buchse)
■ 2x USB Typ A

WEEE (Waste of Electrical and Electronic Equipment), Recycling of Electronic Products

Europe, United Kingdom

In 2006 the European Union introduced regulations (WEEE) for the collection and recycling of all waste electrical and electronic equipment. It is no longer allowable to simply throw away electrical and electronic equipment. Instead, these products must enter the recycling process. Each individual EU member state, as well as the UK, has implemented the WEEE regulations into national law in slightly different ways. Please follow your national law when you want to dispose of any electrical or electronic products. More details can be obtained from your national WEEE recycling agency.

LINDY declares that this equipment complies with relevant European CE requirements.

LINDY declares that this equipment complies with relevant UKCA requirements.

FCC Certification

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

You are cautioned that changes or modification not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

The enclosed power supply has passed Safety test requirements, conforming to the US American versions of the international Standard IEC 60950-1 or 60065 or 62368-1.
