SLAGBOREMASKINE

DW518

Tillykke!

RSEL: For at reducere

You have chosen a DEWALT tool. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional power tool users.

Technical Data

DW518
VoltageV230(U.K. & Ireland only) V 230/115
Type 2
Power input	W	770
No-load speed
1st gear	min ^-1	0-1,050
2nd gear	min ^-1	0-2,400
Load speed
1st gear	min ^-1	700
2nd gear	min ^-1	1,600
No load impact
1st gear	min ^-1	0-17,800
2nd gear	min ^-1	0-40,800
Load impact
1st gear	min ^-1	11,900
2nd gear	min ^-1	27,200
Maximum drilling range insteel/wood/concrete	mm	13/30/16
Chuck spindle thread size	UNF	1/2" x 20
Collar diameter	mm	43
Maximum chuck capacity	mm	16
Weight	kg	2.3
L_w (sound pressure)	dB(A)	94
K_g (sound pressure uncertainty)	dB(A)	3
L_wA (sound power)	dB(A)	105
K_wA (sound power uncertainty)	dB(A)	3.4

Vibration total values (triax vector sum) determined according to EN 60745:

Vibration emission value an
Percussion drilling
R, ID =	m/s2	18.1
Uncertainty K =	m/s2	1.5

Vibration emission value (ah)

Drilling into metal

a_,D =	m/s2	2.8
Uncertainty K =	m/s2	1.5

Vibration emission value (ah)

Screwdriving without impact

a_R =	m/s2	< 2.5
Uncertainty K =	m/s2	1.5

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

WARNING: The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Fuses

Europe	230 V tools	10 Amperes, mains
U.K. & Ireland	230 V tools	13 Amperes, in plugs
U.K. & Ireland	115 V tools	16 Amperes, mains

Definitions: Safety Guidelines

The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

NG: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

N: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

Denotes risk of electric shock.

risk of fire.

EC-DeclarationofConformity

MACHINERY DIRECTIVE

DW518

DEWALT declares that these products described under “technical data” are in compliance with: 98/37/EC (until Dec. 28, 2009), 2006/42/EC (from Dec. 29, 2009), EN 60745-1, EN 60745-2-1, EN 60745-2-2.

These products also comply with Directive 2004/108/EC. For more information, please contact DEWALT at the following address or refer to the back of the manual.

The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of DEWALT.

H. Jopsmann

Horst Grossmann

Vice President Engineering and Product Development

D-65510, Idstein, Germany

03.08.2009

WARNING: To reduce the risk of injury, read the instruction manual.

General Power Tool Safety Warnings

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accid
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

ENGLISH

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in accordance with these instructions taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Additional Specific Safety Rules for Drills

• Wear ear protectors. Exposure to noise can cause hearing loss.
• Hold power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and shock the operator.
• Use clamps or other practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control.
• Wear safety goggles or other eye protection. Drilling operations cause chips to fly. Flying particles can cause permanent eye damage.
• Bits and tools get hot during operation. Wear gloves when touching them.
• Keep handles dry, clean, free from oil and grease. it is recommended to use rubber gloves. This will enable better control of the tool.

ResidualRisks

The following risks are inherent to the use of drills:

- Injuries caused by touching the rotating parts or hot parts of the tool.

In spite of the application of the relevant safety regulations and the implementation of safety devices, certain residual risks cannot be avoided. These are:

- Impairment of hearing.

• Risk of squeezing fingers when changing accessories.
• Health hazards caused by breathing dust developed when working in wood.
  – Risk of personal injury due to flying particles.
  – Risk of personal injury due to prolonged use.

Markings on Tool

The following pictograms are shown on the tool:

Read instruction manual before use.

DATE CODE POSITION (FIG. 1)

The Date Code (I), which also includes the year of manufacture, is printed into the housing.

Example:

2009 XX XX

Year of Manufacture

Package Contents

The package contains:

1 Percussion Drill
1 Side handle
1 Depth gauge
1 Chuck key
1 Kitbox (K-models only)

1 Instruction manual

1 Exploded drawing

- Check for damage to the tool, parts or accessories which may have occurred during transport.

• Take the time to thoroughly read and understand this manual prior to operation.

Description (fi g. 1)

WARNING: Never modify the power tool or any part of it. Damage or personal injury could result.

a. Variable speed switch
b. Lock-on button
c. Forward/reverse slider
d. Two-gear selector
e. Mode selector

f. Side handle

g. Depth adjustment rod

h. Chuck

i. Sleeve

j. Chuck key

k. Main handle

INTENDED USE

Your DW518 percussion drill has been designed for professional drilling and impact drilling as well as for screwdriving applications.

DO NOT use under wet conditions or in presence of flammable liquids or gases.

This percussion drill is a professional power tool.

DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.

Torque Limiting Clutch

All Rotary Drills are equipped with a torque limiting clutch that reduces the maximum torque reaction transmitted to the operator in case of jamming of a drill bit. This feature also prevents the gearing and electric motor from stalling. The torque limiting clutch has been factory-set for heavy duty performance and cannot be adjusted.

WARNING: For safe operation, always use the side handle, particularly when working in the low speed/high torque position (1st gear).

Synchronized Gear Shifting Mechanism

Your drill is equipped with a synchronized gear shifting mechanism which allows to use the two gear selector when the tool is switched OFF or running under no load condition.

ENGLISH

Electronic Speed Control

The electronic speed control offers the following advantages:

– optimal tool control for accurate drilling

- easier screwdriving

Electrical Safety

The electric motor has been designed for one voltage only. Always check that the power supply corresponds to the voltage on the rating plate.

Your DEWALT tool is double insulated in accordance with EN 60745; therefore no earth wire is required.

VG: 115 V units have to be operated via a fail-safe isolating transformer with an earth screen between the primary and secondary winding.

If the supply cord is damaged, it must be replaced by a specially prepared cord available through the DEWALT service organization.

Mains Plug Replacement (U.K. & Ireland Only)

If a new mains plug needs to be fitted:

• Safely dispose of the old plug.
- Connect the brown lead to the live terminal in the plug.
- Connect the blue lead to the neutral terminal.

VG: No connection is to be made to the earth terminal.

Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 13 A.

Using an Extension Cable

An extension cord should not be used unless absolutely necessary. Use an approved extension cable suitable for the power input of your charger (see technical data). The minimum conductor size is 1 mm ^2 ; the maximum length is 30 m.

When using a cable reel, always unwind the cable completely.

ASSEMBLY AND ADJUSTMENTS

NG: To reduce the risk of injury, turn unit off and disconnect machine from power source before installing and removing accessories, before adjusting or changing set-

ups or when making repairs. Be sure the trigger switch is in the OFF position. An accidental start-up can cause injury.

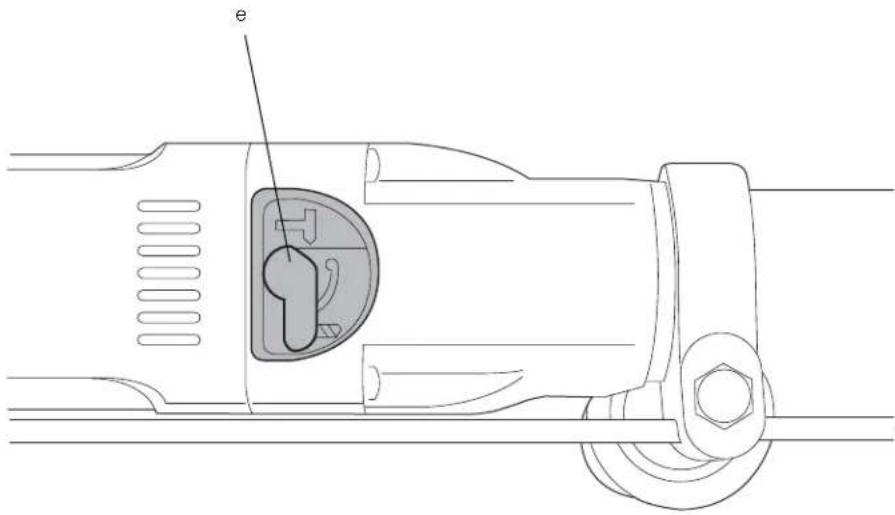

Selecting the Operating Mode (fi g. 2)

The tool can be used in two operating modes:

Rotary drilling: for steel, wood and plastics.

Percussion drilling: simultaneous rotating and impacting for concrete and masonry drilling operations.

Select the required operating mode by rotating the mode selector (e) to the required position.

Inserting and Removing a Bit (fi g. 1)

KEYED CHUCK

1. Open the chuck by turning the sleeve (i) counterclockwise and insert the bit shank.
2. Put the chuck key (j) into each hole in the side of the chuck and turn clockwise until tight.

KEYLESS CHUCK

1. Open the chuck by turning the sleeve counterclockwise and insert the bit shank.
2. Tighten firmly by turning the sleeve clockwise.
3. To remove the bit, proceed in reverse order.

Fitting the Side Handle (fi g. 1)

The side handle (f) can be fitted to suit both RH- and LH-users.

WARNING: Always use the tool with the side handle properly assembled.

1. Loosen the side handle.

- For RH-users, slide the side handle clamp over the 43 mm collar behind the chuck, handle at the left.

- For LH-users, slide the side handle clamp over the 43 mm collar behind the chuck, handle at the right.

1. Rotate the side handle to the desired position and tighten the handle.

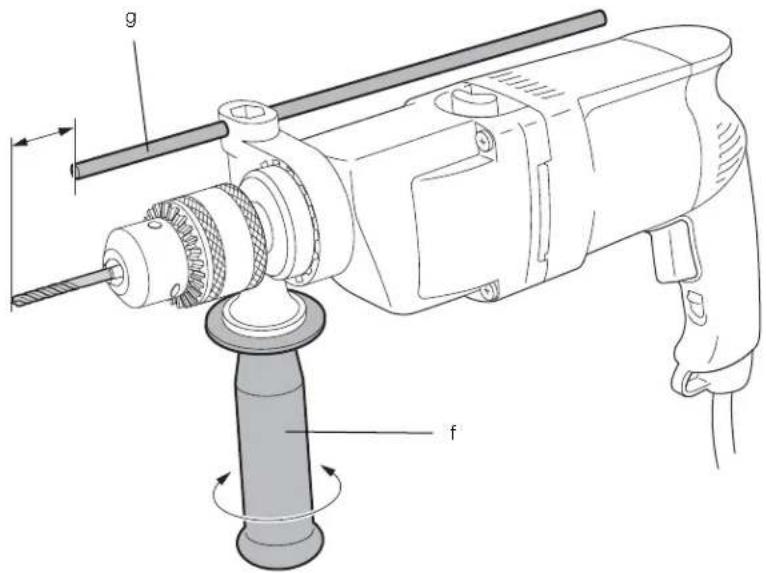

Setting the Drilling Depth (fi g. 3)

1. Insert the required drill bit into the chuck.
2. Slacken the side handle (f).
3. Fit the depth adjustment rod (g) through the hole in the side handle clamp.
4. Adjust the drilling depth as shown.
5. Tighten the side handle.

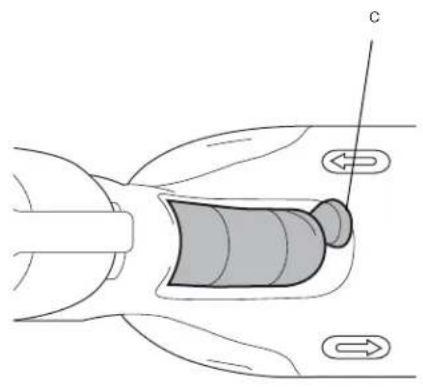

Forward/reverseSlider(fi g. 4)

To select forward or reverse rotation, use the forward/reverse-switch (c) (see arrow on tool).

WARNING: Always wait until the motor has come to a complete standstill before changing the direction of rotation.

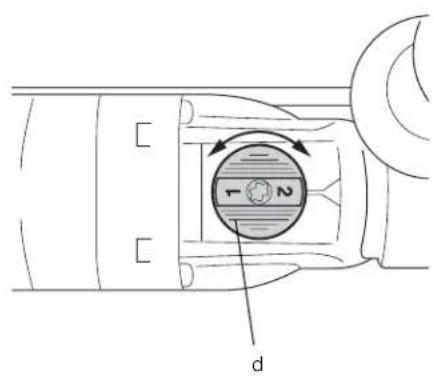

Two-gearSelector(fi g. 5)

Your tool is fitted with a two gear selector (d) to vary the speed/torque ratio.

Release the variable speed switch and select the required position. This can be done either with the tool switched off or running under no load condition. Always align the selector with the arrow on the gear housing:

1 low speed/high torque (drilling large holes, driving large screws)
2 high speed/low torque (drilling smaller holes, drilling in wood)

For speed rates, refer to the technical data.

Do not change gears at full speed or during use.

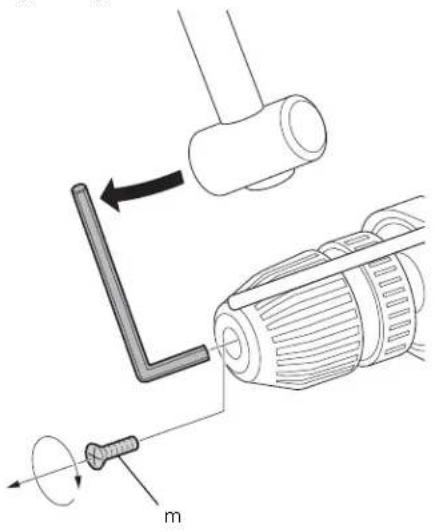

Chuck Removal (fi g. 6, 7)

KEYEDCHUCK

1. Open the chuck jaws as far as possible.
2. Insert a screwdriver into the chuck and remove the chuck retaining screw (m) by turning clockwise as shown.
3. Insert the chuck key (j) into one of the holes in the side of the chuck and strike it with a hammer as shown.
4. Hold the spindle with a spanner if necessary.

KEYLESSCHUCK

1. Open the chuck jaws as far as possible.
2. Insert a screwdriver into the chuck and remove the chuck retaining screw (m) by turning clockwise.

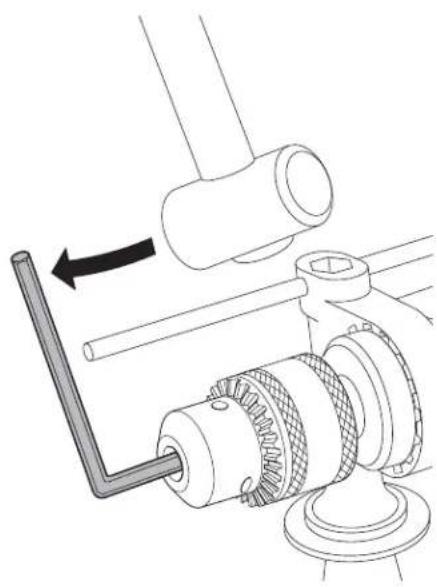

3. Tighten an hex key into the chuck and strike it with a hammer as shown.

Prior to Operation

1. Insert the appropriate bit.
2. Mark the spot where the hole is to be drilled.

OPERATION

Instructions for Use

WARNING: Always observe the safety instructions and applicable regulations.

WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect tool from power source before making any adjustments or removing/installing attachments or accessories.

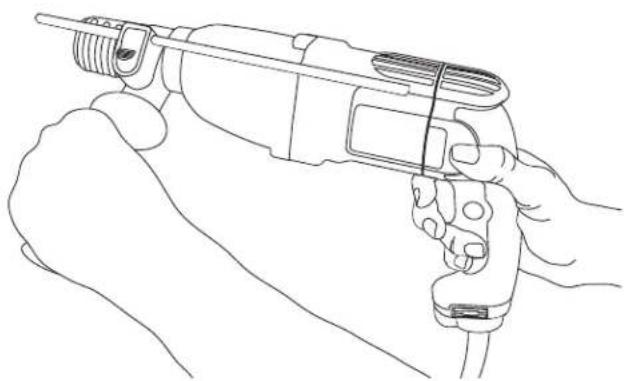

Proper Hand Position (fi g. 1, 8)

WARNING: To reduce the risk of serious personal injury, ALWAYS use proper hand position as shown.

WARNING: To reduce the risk of serious personal injury, ALWAYS hold securely in anticipation of a sudden reaction.

Proper hand position requires one hand on the side handle (f), with the other hand on the main handle (k).

Switching On and Off (fi g. 1)

To run the tool, press the variable speed switch (a). The pressure exerted on the variable speed switch determines the tool speed.

Screwdriving

Select forward or reverse rotation.

Percussion Drilling (fi g. 1)

1. Select the percussion mode.
2. Press the switch (a).

If necessary, press the lock-on slide (b) upwards for continuous operation and release the switch. The lock-on slide works only in full speed, forward rotation.

To stop the tool, release the switch.

To stop the tool in continuous operation, press the switch briefly and release it. Always switch off the tool when work is finished and before unplugging.

ENGLISH

Rotary Drilling (fi g. 1)

• Select the rotary drilling mode.
  • Proceed as described for percussion drilling.

WARNING:

- Do not use this tool to mix or pump easily combustible or explosive fluids (benzine, alcohol, etc.).

• Do not mix or stir inflammable liquids labelled accordingly. Consu

MAINTENANCE

Your DEWALT power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

NG: To reduce the risk of injury, turn unit off and disconnect machine from power source before installing and removing accessories, before adjusting or changing set-ups or when making repairs. Be sure the trigger switch is in the OFF position. An accidental start-up can cause injury.

Lubrication

Your power tool requires no additional lubrication.

Cleaning

WARNING: Blow dirt and dust out of the main housing with dry air as often as dirt is seen collecting in and around the air vents. Wear approved eye protection and approved dust mask when performing this procedure.

VG: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Optional Accessories

WARNING: Since accessories, other than those offered by DEWALT, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only DEWALT, recommended accessories should be used with this product.

Consult your dealer for further information on the appropriate accessories.

Protecting the Environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your DEWALT product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

DEWALT provides a facility for the collection and recycling of DEWALT products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local DEWALT office at the address indicated in this manual. Alternatively, a list of authorised DEWALT repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.

GUARANTEE

DEWALT is confident of the quality of its products and offers an outstanding guarantee for professional users of the product. This guarantee statement is in addition to and in no way prejudices your contractual rights as a professional user or your statutory rights as a private non-professional user. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

• 30 DAY NO RISK SATISFACTION GUARANTEE •

If you are not completely satisfied with the performance of your DEWALT tool, simply return it within 30 days, complete with all original components, as purchased, to the point of purchase, for a full refund or exchange. The product must have been subject to fair wear and tear and proof of purchase must be produced.

• ONE YEAR FREE SERVICE CONTRACT •

If you need maintenance or service for your DEWALT tool, in the 12 months following purchase, it will be undertaken free of charge at an authorised DEWALT repair agent. Proof of purchase must be produced. Includes labour. Excludes accessories and spare parts unless failed under warranty.

• ONE YEAR FULL WARRANTY •

If your DEWALT product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, DEWALT guarantees to replace all defective parts free of charge or – at our discretion – replace the unit free of charge provided that:

• The product has not been misused;
- The product has been subject to fair wear and tear;
• Repairs have not been attempted by unauthorised persons;
• Proof of purchase is produced;
- The product is returned complete with all original components.

If you wish to make a claim, contact your seller or check the location of your nearest authorised DEWALT repair agent in the DEWALT catalogue or contact your DEWALT office at the address indicated in this manual. A list of authorised DEWALT repair agents and full details of our after-sales service is available on the Internet at:

www.2helpU.com.

ESPAÑOL

Vice President Engineering and Product Development

BEWAAR ALLE WAARSCHUWINGEN EN INSTRUCTIES ALS TOEKOMSTIG REFERENTIEMATERIAAL

1) SIKKERHET PÅ ARBEIDSOMRÅDET

Vice President Engineering and Product Development

DEWALT, Richard-Klinger-Strasse 11,

D-65510, Idstein, Germany

03.08.2009

DATUMKODPLACERING (FIG. 1)
