Product Type	Docking station / Portable Bluetooth speaker
Brand	NGS
Model	Street Breaker Mini
Output Power	100 W
Audio System	2.2 (dual 2.5" tweeters and dual 3" subwoofers)
Wireless Connectivity	Bluetooth with TWS (pairing of two speakers)
Bluetooth Range	10 m
Audio Inputs	USB, Micro SD, Auxiliary (3.5 mm), microphone
Karaoke Function	Yes (with microphone input)
Display	LED screen
Lighting	Multicolored LED indicators (blue, green, red, etc.) with random mode
Power Supply	Rechargeable battery 3.7 V / 3600 mAh
Charging	Adapter 5 V / 1 A (charging time 4-5 hours)
Battery Life	6 hours (3 hours at 70% volume, 4 hours at 50%)
Frequency Response	80 Hz - 16 kHz
Controls	On/Off, volume, equalizer (BASS/SITE), mode, play/pause, previous/next, bass control
Cleaning and Maintenance	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Do not expose to water or humidity. Unplug after full charge.
Spare Parts and Repairability	Not available. In case of failure, contact after-sales service.

Frequently Asked Questions - Street Breaker Mini NGS

How to turn on and off the Street Breaker Mini?

Press the On/Off button (mark 6) to turn the device on or off.

How to connect my phone via Bluetooth?

Press the MODE button until 'BT' appears on the screen. Enable Bluetooth on your phone, search for 'NGS STREET BREAKER MINI', and select it for pairing.

How to charge the battery?

Use a 5 V / 1 A power adapter and connect it to the DC 5V charging port (mark 9). The indicator turns red during charging and turns off once the battery is fully charged (4-5 hours).

What to do if Bluetooth does not connect?

Make sure the speaker is in Bluetooth mode (screen shows 'BT'). On your phone, forget the device and search again. If necessary, restart the speaker.

How to use the TWS function to connect two speakers?

Turn on the two identical speakers (same model). On one of them, press and hold the Play/Pause button for 4 seconds until you hear a 'beep' and see 'BU' on the screen. The two speakers are synced. Select them from your Bluetooth device.

Can I use a USB drive?

Yes, insert a USB drive into the USB port (mark 11). Playback of MP3 files starts automatically. Use the Previous/Next buttons to change tracks.

How to connect a microphone?

Insert the microphone into the dedicated input (mark 10). The speaker has a built-in karaoke function. Adjust the volume via the main button.

How to change the LED colors?

Press the * button multiple times to cycle through colors (blue, green, red, etc.) or the random mode. Press and hold the button for 2 seconds to turn the LEDs off or on.

What is the battery life?

The announced battery life is 6 hours at moderate volume (50% volume). At full power, the battery life is about 2 hours.

How to use the auxiliary input?

Connect your audio source (PC, smartphone) to the AUX IN port (mark 8) via a 3.5 mm jack cable. Press MODE until 'AUX IN' appears on the screen.

USER MANUAL Street Breaker Mini NGS

ENGLISH I FRANÇAIS I ESPAÑOL I DEUTSCH

ITALIANO I PORTUGUÊS I POLSKI I NEDERLANDS

ČEŠTINA I SLOVENČINA I EΛΛΗΝΙΚΑ

www.ngs.eu

USER'S MANUAL

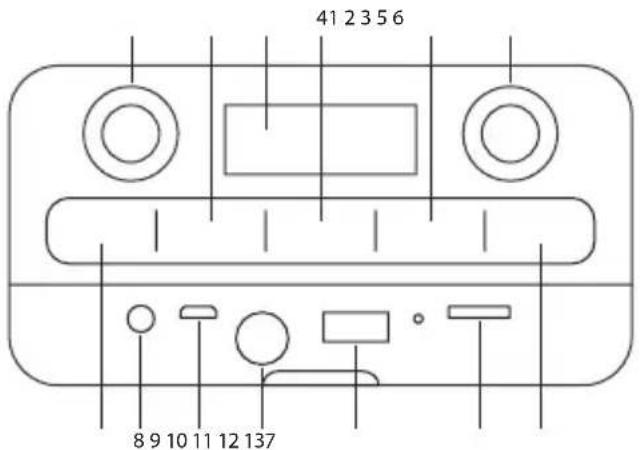

OVERVIEW

1 Bass control
2 Previous
3 LED display
4 Play / Pause
5 Next
6 On / Off / Volume control / Equaliser (BASS / SITE)
7 Mode (Bluetooth, USB, Micro SD and Aux-in)
8 Aux-in
9 DC 5V charging port
10 Microphone input
11 USB port
12 Micro SD input
13 Lights

ENGLISH

USB CARD / BLUETOOTH / TWS

USB CARD PLAYING

When power ON the product, if USB card inserted, it can play the MP3 format music from the USB. Press 1◄◄ buttons to select the song you want. Press and hold to fast forward / delay the song. Press the play/pause button to pause / resume the music.

BLUETOOTH MODE

A. Press the MODE button until the screen displays the word BT. In Bluetooth mode the device goes into searching / paring / reconnect mode for pair.
B. Now, turn ON the Bluetooth function on your mobile phone.
C. Search for "NGS STREET BREAKER MINI" and select it to pair (for first time pairing or pairing a new mobile device).
D. The Bluetooth speaker will be reconnecting automatically if your mobile phone has been paired (depend on the mobile phone's type and configuration, manual reconnection may require on some devices).

TWS

If you have a second identical BT speaker with the same Bluetooth name, press and hold PLAY / PAUSE for four seconds to sync them. The speaker will play the "di" sound and the display will show "BU". Then both will be synced. Select them in BT settings of your device and start playing music.

USER'S MANUAL

AUX IN LIGHTS

You can connect the device to external multimedia audio sources via the "AUX IN" port. After connection, press the MODE button on the device to enter into AUX IN mode on the screen. The device can play the audio files from multimedia sources like PC, mobile phone, MP3 and MP4, etc.

Press the *button several times to switch the colour between blue, green, red, deep blue, violet, yellow, white or randomised (random change). You can turn off the lights by pressing the *button for two seconds. Press the *button again for two seconds to turn them back on.

CHARGING INSTRUCTIONS

This speaker has a high capacity 3600mAh battery. Please use a 5V/1A power adapter for charging. The charging indicator light will turn red to indicate that it is charging. It takes 4-5 hours for the battery to reach full charge. Disconnect the adaptor as soon as battery is fully charged (charge light turns off). Battery run time: 3 hours.*

ENGLISH

NGS

TECHNICAL SPECIFICATIONS

Power output: 100W

System 2.2

· Double Tweeter 2.5"

· Double Subwoofer 3"

Bluetooth (TWS. Connects two at the same time)

Karaoke mode

Working range: 10m

Battery: 3.7V / 3600mAh

Battery life: 3 hours*

Frequency response: 80Hz-16kHz

USB audio input

Micro SD input

Auxiliary input

Microphone input

LED display

LED lights

* 2 hours at max volume

3 hours at 70% volume

4 hours at 50% volume

If at any time in the future you should need to dispose of this product please note that:

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.

Check with your Local Authority or retailer for recycling advice.

(Waste Electrical and Electronic Equipment Directive)

MANUEL DE L'UTILISATEUR

VUE D'ENSEMBLE

HAS BEEN TESTED AND FOUND IN CONFORMITY WITH THE FOLLOWING HARMONIZED EUROPEAN STANDARDS:

HA SIDO TESTADO EN CONFORMIDAD CON LAS SIGUIENTES NORMAS STANDARD EUROPEAS ARMONIZADAS:

ETSI EN 301 489-1 V 2.1.1 (2017-02) IEC 62321-4:2013

ETSI EN 301 489-17 V 3.1.1 (2017-02) IEC 62321-5:2013

ETSI EN 300 328 V 2.1.1 (2016-11) IEC 62321-7-1:2015

ETSI EN 303 345 V 1.1.7 (2017-03) IEC 62321-7-2:2017

EN 62479:2010 IEC 62321-6:2015

EN 60065:2014

AND THEREFORE COMPLY WITH THE ESSENTIAL REQUIREMENTS AND PROVISIONS OF THE FOLLOWING DIRECTIVES OF THE EUROPEAN PARLIAMENT AND EUROPEAN COUNCIL:

Y, POR LO TANTO, CUMPLE CON LOS REQUERIMIENTOS Y PROVISIONES DE LAS SIGUIENTES DIRECTIVAS DEL PARLAMENTO EUROPEO:

RADIO EQUIPMENT DIRECTIVE 2014/53/EU

ROHS DIRECTIVE 2011/65/EU

RAÚL MARTÍN

PRODUCT MANAGER

technical support: www.ngs.eu/support
