FreeBuds 5i - Earphones HUAWEI - Free user manual and instructions

USER MANUAL FreeBuds 5i HUAWEI

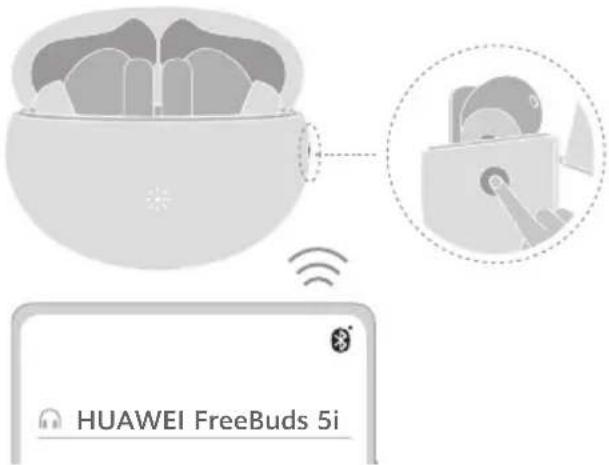

Pairing and connection

1. Open the charging case and press and hold the Function button for 2s until the indicator flashes white. The earphones will then enter Pairing mode.

2. Enable Bluetooth on the device that is to pair with the earphones. Search for and connect with the earphones.

The earphones will automatically enter Pairing mode when you open the case for the first time.

HUAWEI FreeBuds 5i

Restoring to factory settings

Open the charging case. Press and hold the Function button for 10s until the indicator flashes red. The earphones will then enter Pairing mode again.

App download and installation

Scan the QR code to download and install the HUAWEI AI Life app, to try more features and customize your earphone settings.

QR code with a blue logo in the center, likely linking to a digital service or website.

Shortcut controls

	Swipe	Swipe up to turn up the volume
		Swipe down to turn down the volume
	Double-tap	Play/Pause
		Answer/End a call
	Press and hold	Switch between noise canceling modes
		Reject a call

You can create a custom operation in the HUAWEI AI Life app for the double-tap gesture, such as waking up the voice assistant or switching to the previous or next track.

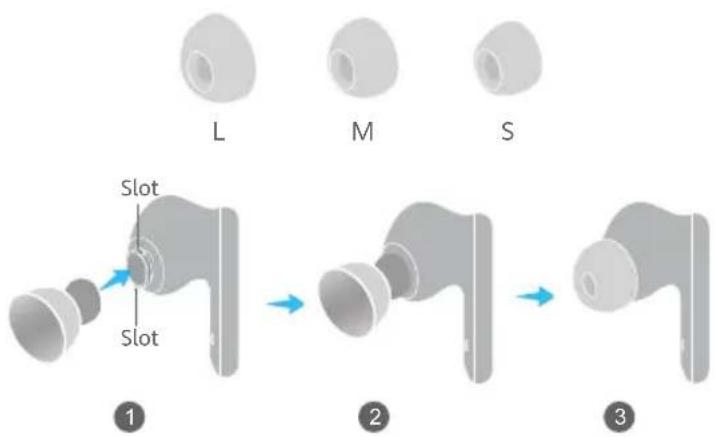

Changing ear tips

Choose the size that provides the desired noise canceling effects and comfort when worn.

1. Turn the ear tip inside out, and align the smaller end of the ear tip with the corresponding slot on the earphone.
2. Gently push the ear tip onto the upper part of the slot, and then stretch it over the slot completely so that it fits securely.
3. Flip the ear tip back.

L M S Slot Slot ① ② ③

Charging the case

Connect the case to a power source via a USB-C cable to begin charging it.

Illustration of a medical device with a blue arrow pointing to a circular component (no text or symbols)

Charging the earphones

Place the earphones in the case, and then close the case. The earphones will automatically start charging.

Diagram showing a device before and after transformation, with no visible text or symbols

The earphones inside will not be charged when the case is open.

Safety Information

Before using and operating this device, read the following precautions to ensure an optimal device performance and avoid dangerous use or unauthorized operations.

• To protect your hearing, do not listen to audio at a high volume for a long period of time.
- Some wireless devices may interfere with implantable medical devices and other medical equipment, such as pacemakers, cochlear implants, and hearing aids. When using the product, keep it at least 15 cm away from such medical devices. Consult the manufacturer of your medical equipment for more information.
- Ideal temperatures: 0^ to 35^ for operating; -20^ to +45^ for storage.
- Ensure that the power adapter meets the requirements of IEC/EN 62368-1 and has been tested and approved according to national or local standards.
- Observe all local traffic laws and regulations while using this product. Do not use this device when you are driving.
- Keep this device and its accessories that may contain small components out of the reach of children. Otherwise, children may damage this device and its accessories by mistake, or swallow the small components, which may cause choking.
- Avoid using the device in dusty, damp, or dirty environments, or near sources of magnetic interference.

- Keep the battery away from fire, excessive heat, and direct sunlight. Do not place it on or in heating devices. Do not disassemble, modify, throw, or squeeze it. Do not insert foreign objects into it, submerge it in liquids, or expose it to external force or pressure, as this may cause it to leak, overheat, catch fire, or even explode.

- Do not attempt to replace the battery yourself — you may damage the battery, which could cause overheating, fire, and injuries.

- Avoid disassembling or modifying your device and its accessories. Unauthorized disassembly and modifications may result in voiding the factory warranty. If your device is faulty, visit an authorized Huawei Customer Service Center for assistance.

- The earbuds meet requirements of (excluding the charging case) IP54 (IEC 60529).

- Open or close the charging case to enable or disable Bluetooth.

- The power delivered by the charger must be between min 3.5 Watts required by the radio equipment, and max 5.0 Watts in order to achieve the maximum charging speed.

Precautions

• In order for the earphones to function correctly, keep the mesh, ear tips, as well as the metal contact points on the earphones and charging case clean.
- If you experience any skin irritation while wearing the earphones, remove them and clean them thoroughly. If the issue persists, seek advice from a medical professional.
- Enabling noise canceling may affect your awareness of surrounding sounds and alarms. Ensure that you are in a safe environment when using this function.
- This device's firmware will automatically update whenever it connects to a previously paired Honor device (released before the end of 2020) or a previously paired Huawei device, and Wi-Fi or mobile data is enabled. You can disable automatic firmware updates in Settings.

Disposal and recycling information

This symbol on the product, battery, literature, or packaging means that the products and batteries should be taken to separate waste collection points designated by local authorities at the end of the lifespan. This will ensure that EEE waste is recycled and treated in a manner that conserves valuable materials and protects human health and the environment. For more information, please contact your local authorities, retailer, or household waste disposal service, or visit the website https://consumer.huawei.com/en/.

Reduction of Hazardous Substances

This device and its electrical accessories comply with local applicable rules on the restriction of the use of certain hazardous substances in electrical and electronic equipment, such as EU REACH regulation, RoHS and Batteries (where included) directive. For declarations of conformity about REACH and RoHS, please visit the website https://consumer.huawei.com/certification.

UK regulatory conformance

Hereby, Huawei Device Co., Ltd. declares that this device T0014/T0014L is in compliance with the relevant statutory instruments in the UK. The full text of the declaration of conformity is available at the following internet address: https://consumer.huawei.com/certification.

UK PSTI Compliance

This product meets the relevant security requirements specified in Schedule 1 of the Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023. The full text of the PSTI Statement of Compliance is available at the following website: https://consumer.huawei.com/certification.

EU Regulatory Conformance

Hereby, Huawei Device Co., Ltd. declares that this device T0014/T0014L is in compliance with the following Directive: RED 2014/53/EU, RoHS 2011/65/EU, ErP 2009/125/EC. The full text of the EU declaration of conformity, the detailed ErP information and most recent information about accessories & software are available at the following internet address: https://consumer.huawei.com/certification.

Frequency Bands and Power

Bluetooth: 2.4 GHz 14.5 dBm.

ISED Statement

This device complies with CAN ICES-3 (B)/NMB-3(B).

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.

(2) This device must accept any interference, including interference that may cause undesired operation of the device.

RF Exposure Information

This device is a low-power radio transmitter and receiver. As recommended by international guidelines, the device meets applicable national SAR limits of 2.0 W/kg (10g) and 1.6 W/kg (1g).

10g SAR: The highest reported SAR value: Head SAR: 0.67 W/kg.

1g SAR: The highest reported SAR value: Head SAR: 1.09 W/kg.

Legal Notice

Copyright © Huawei Device Co., Ltd. 2022-2024. All rights reserved.

All contents in the documents in the packaging box, including but not limited to information about and portrayals of the appearance, color, size, and supported features of the product (the latest features will come with software updates), are for reference only. The actual product may vary.

The Bluetooth ^® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of this mark by Huawei Technologies Co., Ltd. is under license. Huawei Device Co., Ltd. is an affiliate of Huawei Technologies Co., Ltd.

Privacy Protection

To better understand how we protect your personal information, please see the privacy policy at https://consumer.huawei.com/privacy-policy, or read the privacy policy and service terms using the corresponding app.

Software License Agreement

Please read the software license agreement carefully before using this device. By using the device, you indicate that you agree to be bound by the license agreement. To read the agreement, please visit the following website: https://consumer.huawei.com/en/legal/eula/.

Open Source Software Notice

For the open source software statement of your device, please visit https://consumer.huawei.com/en/opensource/ and search for the device name.

Restrictions in Norway

Use of this radio equipment is not allowed in the geographical area within a radius of 20 km from the center of Ny-Ålesund, Svalbard.
