USER MANUAL FreeBuds 6i HUAWEI

Downloading and installing the app

Scan the QR code to download and install the HUAWEI AI Life app, where you can try out more features and customize the settings for your earbuds.

QR code with a blue square logo in the center containing a white stylized 'S' symbol.

Pairing and connecting

1. Enable Bluetooth on the device you wish to pair with the earbuds.

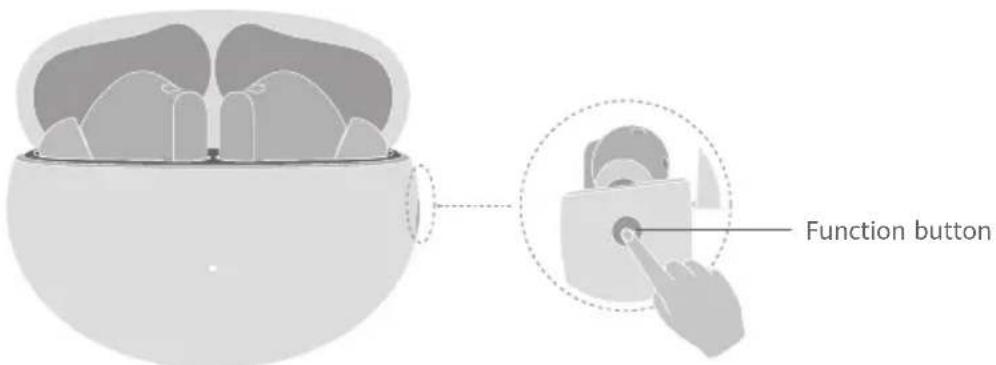

2. Open the charging case and leave the earbuds inside. Hold down on the Function button for 2 seconds until the indicator flashes white. The earbuds will then enter Pairing mode.

The earbuds will automatically enter Pairing mode when you open the charging case for the first time.

Function button

1. Pair the earbuds in either of the following ways:

Method 1: Bluetooth pairing

Search for the earbuds in the Bluetooth settings on your phone/tablet and complete the pairing.

HUAWEI FreeBuds 6i

Method 2: Proximity pairing

Place the earbuds close to your phone/tablet, and touch CONNECT on the displayed pop-up.

HUAWEI FreeBuds 6i CANCEL CONNECT

Proximity pairing is supported on select HUAWEI phones/tablets running EMUI 10.0/HarmonyOS 2 or later.

Restoring the earbuds to their factory settings

Open the charging case and leave the earbuds inside. Hold down on the Function button for 10 seconds until the indicator flashes red. The earbuds will then be restored to their factory settings before re-entering Pairing mode.

Changing ear tips

Choose the size that provides the desired noise canceling effects and comfort when worn (the following uses the left earbud as an example).

The tighter the fit, the better the noise cancellation performance.

L

M

S

(attached by default)

Slot Slot ①

1. Turn the ear tip inside out, and align the smaller end of the ear tip with the corresponding slot on the earbud.

2. Gently push the ear tip onto the upper part of the slot, and then stretch it over the slot completely so that it fits securely.

3. Flip the ear tip back.

Shortcut controls

	[CZST] Swipe	[CAA] Swipe up to raise the volume
		[BCDT] Swipe down to lower the volume
	Double-tap	/[11] Play/Pause
		/ [Answer/End a call
	Triple-tap	[0Y7H] Next track
	Touch and hold	Switch between noise canceling modes (Noise cancelling, Off, and Awareness)
		[A760] Reject an incoming call

You can customize gesture settings in the HUAWEI AI Life app, such as waking up the voice assistant or skipping tracks.

Charging the case

Connect the case to a power source via a USB-C cable to begin charging it.

3D illustration of a medical device with a blue arrow pointing to a circular component (no text or symbols)

Charging the earbuds

Place the earbuds in the charging case and close the case to initiate automatic charging.

Diagram showing a cross-section of a biological structure before and after transformation, with no visible text or symbols.

The earbuds inside will not be charged when the case is open.

Safety Information

Before using and operating this device, read the following precautions to ensure an optimal device performance and avoid dangerous use or unauthorized operations.

To protect your hearing, do not listen to audio at a high volume for a long period of time.
- Some wireless devices may interfere with implantable medical devices and other medical equipment, such as pacemakers, cochlear implants, and hearing aids. When using the product, keep it at least 15 cm away from such medical devices. Consult the manufacturer of your medical equipment for more information.
- Ideal temperatures: 0^ to 35^ for operating; -20^ to +45^ for storage.
- Ensure that the power adapter meets the requirements of IEC/EN 62368-1 and has been tested and approved according to national or local standards.
- Observe all local traffic laws and regulations while using this product. Do not use this device when you are driving.
- Keep this device and its accessories that may contain small components out of the reach of children. Otherwise, children may damage this device and its accessories by mistake, or swallow the small components, which may cause choking.
- Avoid using the device in dusty, damp, or dirty environments, or near sources of magnetic interference.
- Avoid disassembling or modifying your device and its accessories. Unauthorized disassembly and modifications may result in voiding the factory warranty. If your device is faulty, visit an authorized Huawei Customer Service Center for assistance.
- The earbuds meet requirements of (excluding the charging case) IP54 (IEC 60529).
- The power delivered by the charger must be between min 2.5 Watts required by the radio equipment, and max 7.5 Watts in order to achieve the maximum charging speed.

Warning:

• This device contains a coin, button, or small-sized cell battery. Do not swallow the battery, as it constitutes a chemical burn hazard.
• If the coin, button, or small size cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
• Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
• Keep the battery away from fire, excessive heat, extremely low air pressure and direct sunlight. Do not place it on or in heating devices. Do not disassemble, modify, throw, or squeeze it. Do not insert foreign objects into it, submerge it in liquids, or expose it to external force or pressure, as this may cause it to leak, overheat, catch fire, or even explode.
• Do not attempt to replace the battery yourself — you may damage the battery, which could cause overheating, fire, and injury. The built-in battery in your device should be serviced by Huawei or an authorized service provider.
• The nameplate of this device is attached to the inside of the charging case lid.
• Open or close the charging case to enable or disable Bluetooth.

Precautions

• In order for the earbuds to function correctly, keep the mesh, ear tips, as well as the metal contact points on the earphones and charging case clean.
- If you experience any skin irritation while wearing the earbuds, remove them and clean them thoroughly. If the issue persists, seek advice from a medical professional.
- Enabling noise canceling may affect your awareness of surrounding sounds and alarms. Ensure that you are in a safe environment when using this function.
- This device's firmware will automatically update whenever it connects to a previously paired Honor device (released before the end of 2020) or a previously paired Huawei device, and Wi-Fi or mobile data is enabled. You can disable automatic firmware updates in Settings.

Disposal and recycling information

This symbol on the product, battery, literature, or packaging means that the products and batteries should be taken to separate waste collection points designated by local authorities at the end of the lifespan. This will ensure that EEE waste is recycled and treated in a manner that conserves valuable materials and protects human health and the environment. For more information, please contact your local authorities, retailer, or household waste disposal service, or visit the website https://consumer.huawei.com/en/.

Reduction of Hazardous Substances

This device and its electrical accessories comply with local applicable rules on the restriction of the use of certain hazardous substances in electrical and electronic equipment, such as EU REACH regulation, RoHS and Batteries (where included) directive. For declarations of conformity about REACH and RoHS, please visit the website https://consumer.huawei.com/certification.

UK regulatory conformance

Hereby, Huawei Device Co., Ltd. declares that this device T0019/T0019L is in compliance with the relevant statutory instruments in the UK. The full text of the declaration of conformity is available at the following internet address: https://consumer.huawei.com/certification.

UK PSTI Compliance

This product meets the relevant security requirements specified in Schedule 1 of the Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023. The full text of the PSTI Statement of Compliance is available at the following website: https://consumer.huawei.com/certification.

EU Regulatory Conformance

Hereby, Huawei Device Co., Ltd. declares that this device T0019/T0019L is in compliance with the following Directive: RED 2014/53/EU, RoHS 2011/65/EU, ErP 2009/125/EC. The full text of the EU declaration of conformity, the detailed ErP information and most recent information about accessories & software are available at the following internet address: https://consumer.huawei.com/certification.

Frequency Bands and Power

Bluetooth: 2.4 GHz 15 dBm.

RF Exposure Information

For the countries that adopt the SAR limit of 2.0 W/kg over 10 grams of tissue. The device complies with RF specifications when used near your ear. The highest reported SAR value: Head SAR: 0.449 W/kg.

ISED Statement

IC: 25182-T0019

This device complies with CAN ICES-3 (B)/NMB-3(B).

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.

(2) This device must accept any interference, including interference that may cause undesired operation of the device.

Industry Canada compliance

The device complies with RF specifications when used near your ear. Ensure that the device accessories, such as a device case and device holster, are not composed of metal components. Keep the device away from your body to meet the distance requirement.

Certification information (SAR)

This device is also designed to meet the requirements for exposure to radio waves established by the Industry Canada.

The SAR limit adopted by Canada is 1.6 W/kg averaged over 1 gram of tissue for use on the head. The highest SAR value reported to the IC for this device type complies with this limit.

The SAR limit adopted by Canada is 4.0 W/kg averaged over 10 grams of tissue for use on the limbs. The highest SAR value reported to the IC for this device type complies with this limit.

The highest SAR value reported to the IC for this device type when using at the ear is 0.17 W/kg, and when using on the limbs is 0.45 W/kg.

Legal Notice

Copyright © Huawei Device Co., Ltd. 2024. All rights reserved.

All contents in the documents in the packaging box, including but not limited to information about and portrayals of the appearance, color, size, and supported features of the product (the latest features will come with software updates), are for reference only. The actual product may vary.

The Bluetooth ^® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of this mark by Huawei Technologies Co., Ltd. is under license. Huawei Device Co., Ltd. is an affiliate of Huawei Technologies Co., Ltd.

Privacy Protection

To better understand how we protect your personal information, please see the privacy policy at https://consumer.huawei.com/privacy-policy, or read the privacy policy and service terms using the corresponding app.

Software License Agreement

Please read the software license agreement carefully before using this device. By using the device, you indicate that you agree to be bound by the license agreement. To read the agreement, please visit the following website: https://consumer.huawei.com/en/legal/eula/.

Open Source Software Notice

For the open source software statement of your device, please visit https://consumer.huawei.com/en/opensource/ and search for the device name.

Australia/New Zealand

Restrictions in Norway

Use of this radio equipment is not allowed in the geographical area within a radius of 20 km from the center of Ny-Ålesund, Svalbard.
