20119 - Kettle KORONA - Free user manual and instructions

Product type	Electric kettle
Brand	Korona
Model	20119
Capacity	1 liter (min level 0.5 L)
Rated power	1850 - 2200 W
Voltage	220 - 240 V ~ 50/60 Hz
Protection class	I
Automatic shut-off	Yes
Dry boil protection	Yes
Anti-limescale filter	Yes (integrated into spout)
Water level indicator	Yes
Lid	With opening button
Power base	Provided
Cord storage	Compartment under the base
Warranty	2 years
Use	Private domestic, for water only
Maintenance	Cleaning with damp cloth; regular descaling (every 3-6 months)
Safety	Do not immerse; do not open the lid during operation

Frequently Asked Questions - 20119 KORONA

How to descale the Korona 20119 kettle?

Use a suitable mild descaler. Fill the kettle with the mixture, bring to a boil, let it sit, then empty. Rinse by boiling fresh water 4 to 5 times. Do not use metal objects.

What to do if the kettle does not turn on?

Check the mains connection, the base and the position of the kettle. Make sure the lid is properly closed. If the problem persists, contact customer service.

Can other liquids besides water be heated?

No, this kettle is designed for water only. Heating other liquids may damage the appliance and pose a burn risk.

Does the kettle turn off automatically?

Yes, it has an automatic shut-off when water reaches boiling, provided the lid is closed.

What is the maximum capacity of the kettle?

The maximum capacity is 1 liter. Do not exceed this level to avoid overflow of boiling water.

How to clean the exterior of the kettle?

Unplug the appliance and let it cool down. Clean with a soft damp cloth. Never immerse the kettle or base in water.

What to do if the kettle turns off without water?

The dry boil protection has been activated. Unplug the appliance, let it cool for 10 minutes, then fill with water before reuse.

Should the lid be closed during boiling?

Yes, the lid must be tightly closed for the automatic shut-off to work and to prevent hot water splashes.

Can I use the kettle without the base?

No, the kettle operates only with the provided base. Never use another base.

How to store the power cord?

After use, wind the cord around the storage compartment under the base. Store in a dry place out of reach of children.

USER MANUAL 20119 KORONA

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is only intended for boiling water. Never attempt to heat any other liquids in it. This appliance is only intended for private household use!

Safety:

This symbol identifies hazards which may cause injuries!

This symbol warns of hot surfaces. Risk of burns!

This symbol identifies electric shock hazards!

This symbol warns of evaporating steam!

General Safety Instructions

• Manufacturer takes no responsibility for any damage caused by incorrect use.
• Incorrect or improper use can damage the appliance and cause injuries to the user.
• Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or any other liquid.
• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Always unplug your appliance when it is not in use, and before cleaning.
• Always pull the plug - not the cord.
• Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.
• Make sure the cord may not inadvertently be pulled or cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.
• Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
• in case of malfunction.
• if the appliance was dropped or is damaged otherwise. Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.
• Only use accessories evaluated for use with this appliance.
• Never attempt to drive any objects into the appliance.
• Never attempt to open the housing yourself!
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Special Safety Instructions

1 4

Warning! To avoid the possibility of injury/damage to the appliance, electric shock, and risk of burns.

• Your kettle is only intended for boiling water. Never attempt to heat any other liquids in it.
• Place the appliance on an even and heat-resistant surface.
• Do not place the kettle near any inflammable objects.
• Never exceed the maximum filling level (1 L) to avoid any boiling water from spilling from the kettle. Danger of serious burns!
• Never open the lid during operation.
• Always remove the kettle from the power base when filling it with water.

• To prevent the kettle from boiling dry, make sure the water level is never below minimum filling (0.5L)

• The automatic switch-off function will automatically switch off the appliance as soon as the boiling temperature has been reached, provided that you have thoroughly closed the lid. Otherwise boiling water could spill.

• Your kettle also features a boil-dry cut-out, which will switch off the kettle, should it accidentally be operated without water. In the event of such a safety cut-out switch off the appliance immediately, unplug it and let it cool down for approx. 10 minutes. Afterwards, your kettle is ready for use again.
• Only use the appliance with the base provided.

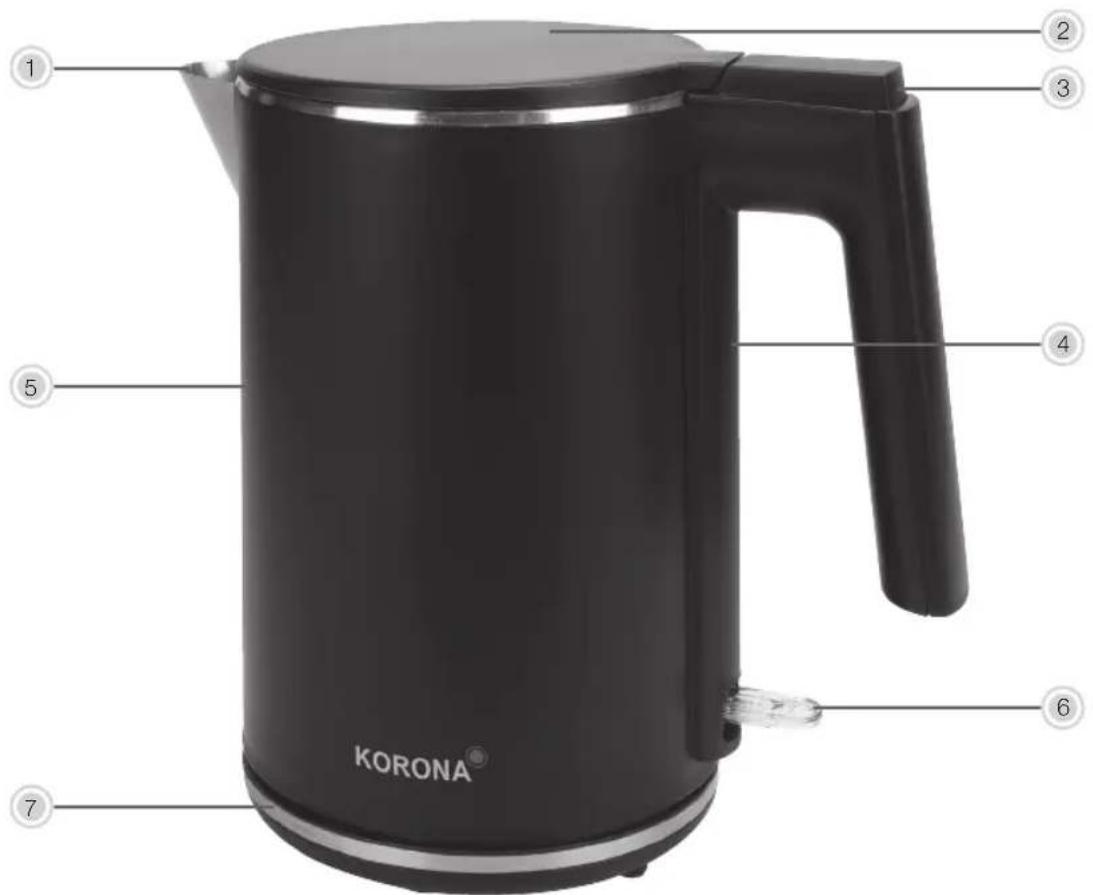

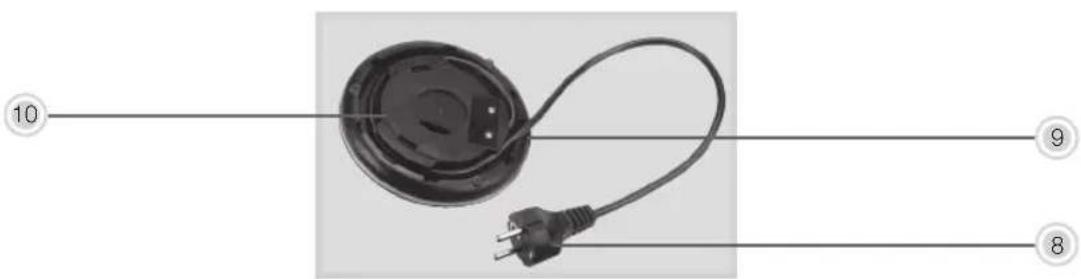

Product Description

1. Spout with filter
2. Lid
3. Lid button
4. Water level indicator
5. Kettle
6. On/Off button
7. Base
8. Power cord and plug
9. Cable guide
10. Cord storage

Before First Use

• Remove all packaging material and check whether the appliance is complete and undamaged.
• Fully unwind the power cord (8) and make sure that the power cord (8) is clamped into the cable guide (9) underneath the appliance.
• Place the appliance on an even and heat resistant surface. Do not place it on top of a metal surface.
• Connect the appliance to a properly installed wall socket and boil 4-5 kettles of water using fresh water with each boiling cycle. Do not use this water but pour it away.

Do not use the appliance if it shows any signs of damage!

Warning: Plastic bags are a danger to toddlers and babies, therefore keep them away to avoid

suffocation.

Operation

Your appliance is fitted (inside the spout) with a scale filter that prevents scale particles ending up in your beverage.

1. Open the lid (2) and hold the kettle (5) in an upright position to fill it with water. Make sure to fill in the MIN amount of water (0.5L) to avoid overheating.

The kettle can also be filled with water when the lid (2) is closed by filling it through the spout (1).

1. Close the lid (2) and make sure it is properly closed.
2. Place the kettle (5) onto the base (7) and make sure it properly fits onto the contact unit.
3. Connect the appliance to the mains and switch on the water kettle by pressing the On/Off button (6).
4. As soon as the water boils, the appliance switches off automatically provided that you have thoroughly closed the lid (2). Otherwise boiling water could spill.
5. Lift the kettle (5) off the base (7). The water is now ready for use.

You can switch off the appliance resp. stop the boiling process any time by simply pressing the ton upwards or by removing the kettle from the base.

Water left over from a previous boiling cycle can be re-used in the next boiling cycle. However, always make sure that the water level is not too low.

Always unplug the appliance after use.

Dry-boil cut-out

Your kettle is equipped with a boil-dry cut-out, which will switch off the kettle automatically, should it accidentally be operated without water or by not observing the minimum water level. In the event of such a safety cut-out, switch off the appliance immediately, unplug it and let it cool down for approx. 10 minutes. Afterwards, your kettle is ready for use again.

Cleaning and Care

Before cleaning, always switch off the appliance and disconnect it from the mains and let

it completely cool down.

Never immerse the appliance in water. Danger! Electric Shock!

Clean the body of the appliance with a moistened soft cloth.

Do not use any aggressive cleaning agents and/or other hard objects to clean the appliance.

DESCALING

Descale your appliance in regular intervals (approx. every 3 - 6 months), depending on the frequency of use and the local water quality.

Never use any sharp, pointed or metal objects to remove limescale built up in the kettle.

To remove limescale, use a common gentle descaler, which is suitable for your appliance.

After descending, always boil 4-5 kettles of water, which you do not use but pour away. Use fresh water with each boiling cycle. This procedure is necessary to remove any descaler residues in the kettle.

Descaler mixtures should not be poured down enamel coated sinks.

Storage

After use and after the appliance has completely cooled down wind the power cord (8) around the cord storage (10).

Keep it away from children and store it in a clean and dry place.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your Water Kettle 20119 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Voltage: 220 - 240 V ~ 50 - 60 Hz

Rated Power: 1850 - 2200 W

Capacity: 1 Litre

Protection Class: I

Technical data subject to change!

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions
• for damages due to wear and tear (batteries, etc.)
• for damages known by customer at time of purchase
  for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a customer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.
