Product Type	Electric Kettle
Brand	KORONA
Model	20116
Capacity	1.0 L
Rated Power	1850 - 2200 W
Voltage	220 - 240 V ~ 50/60 Hz
Protection Class	I
Housing Material	Plastic and Stainless Steel
Dimensions (Approx.)	Height: 25 cm, Width: 20 cm, Depth: 15 cm
Weight (Approx.)	1.2 kg
Auto Shut-Off	Yes, when water reaches boiling point
Boil-Dry Protection	Yes, automatic cut-out
Removable Scale Filter	Yes, in spout
Water Level Indicator	Yes, with MIN and MAX marks
Indicator Light	Yes, lights up when heating
Cordless Base	Yes, with 360° contact
Cord Storage	Yes, underneath base
Lid Opening	Push-button or manual lift
Descaling Interval	Every 3 to 6 months
Guarantee	2 years

Frequently Asked Questions - 20116 KORONA

How do I descale the kettle?

Use a common gentle descaler suitable for kettles. Fill the kettle with the descaler solution up to the MAX mark, boil, and let sit for 15 minutes. Empty and rinse thoroughly. Then boil 4-5 kettles of fresh water, discarding each batch, to remove any residues. Do not use sharp objects for descaling.

What happens if I operate the kettle without water?

The kettle has a boil-dry cut-out feature that automatically switches it off. Unplug the kettle immediately and let it cool down for about 10 minutes before reusing. It will be ready for normal operation after cooling.

Can I heat other liquids besides water?

No, this kettle is only intended for boiling water. Heating other liquids can damage the appliance and cause injury.

What is the minimum and maximum water level?

The minimum level is 0.5 L and the maximum is 1.0 L. Operating below the minimum can cause overheating; overfilling may result in boiling water spilling out.

How do I clean the kettle?

Always unplug and let the kettle cool completely. Wipe the exterior with a damp soft cloth. Do not immerse in water. Clean the removable filter under running water with a soft nylon brush. Do not use abrasive cleaners.

Why doesn't the kettle turn off automatically?

Ensure the lid is properly closed; automatic shut-off only works if the lid is secure. If the problem persists, the kettle may need descaling or professional inspection.

Can I open the lid while boiling?

No, never open the lid during operation. Steam can cause burns. Wait until the kettle has switched off and cooled down.

Is the kettle cordless when removed from the base?

Yes, the kettle lifts off the base for cordless pouring. The base remains plugged in. Always switch off the kettle before removing it from the base.

Where can I get replacement filters?

Replacement filters can be obtained from KORONA service or authorized dealers. Contact KORONA at [e-mail] or call 02933 90284-80.

What should I do if the cord is damaged?

Stop using the kettle immediately. Do not attempt to repair it yourself. Contact KORONA service or a qualified electrician for replacement. A damaged cord poses an electric shock hazard.

USER MANUAL 20116 KORONA

Black-and-white photo of a glass teacup filled with tea, placed on a saucer with a leaf (no text or symbols visible)

White Korona water heater with control buttons and price tags (no visible text beyond branding)

CE

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is only intended for boiling water. Never attempt to heat any other liquids in it. This appliance is only intended for private household use!

Safety:

This symbol identifies hazards which may cause injuries!

This symbol warns of hot surfaces. Risk of burns!

This symbol identifies electric shock hazards!

This symbol warns of evaporating steam!

General Safety Instructions

• Manufacturer takes no responsibility for any damage caused by incorrect use.
• Incorrect or improper use can damage the appliance and cause injuries to the user.
• Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

- Never put the appliance, cord or plug into water or any other liquid.

• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of reach of children less than 8 years.

- Always unplug your appliance when it is not in use, and before cleaning.

- Always pull the plug – not the cord.

- Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.

- Make sure the cord may not inadvertently be pulled or cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.

- Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
  • in case of malfunction.
• if the appliance was dropped or is damaged otherwise.
  Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.
• Only use accessories evaluated for use with this appliance.

• Never attempt to drive any objects into the appliance.

• Never attempt to open the housing yourself!

• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Special Safety Instructions

To avoid the possibility of injury/damage to the appliance, electric shock, and risk of burns!

• Your kettle is only intended for boiling water. Never attempt to heat any other liquids in it.
• Place the appliance on an even and heat-resistant surface.
• Do not place the kettle near any inflammable objects.
• Never exceed the maximum filling level (1.0 L) to avoid any boiling water from spilling from the kettle. Danger of serious burns!

- Never open the lid during operation.

- Always remove the kettle from the power base when filling it with water.

- To prevent the kettle from boiling dry, make sure the water level is never below minimum filling (0.5 L).

- The automatic switch-off function will automatically switch off the appliance as soon as the boiling temperature has been reached, provided that you have thoroughly closed the lid. Otherwise boiling water could spill.

- Heating element surface is subject to residual heat after use

- Your kettle also features a boil-dry cut-out, which will switch off the kettle, should it accidentally be operated without water. In the event of such a safety cut-out unplug the appliance immediately and let it cool down for approx. 10 minutes. Afterwards, your kettle is ready for use again.

- Only use the appliance with the base provided.

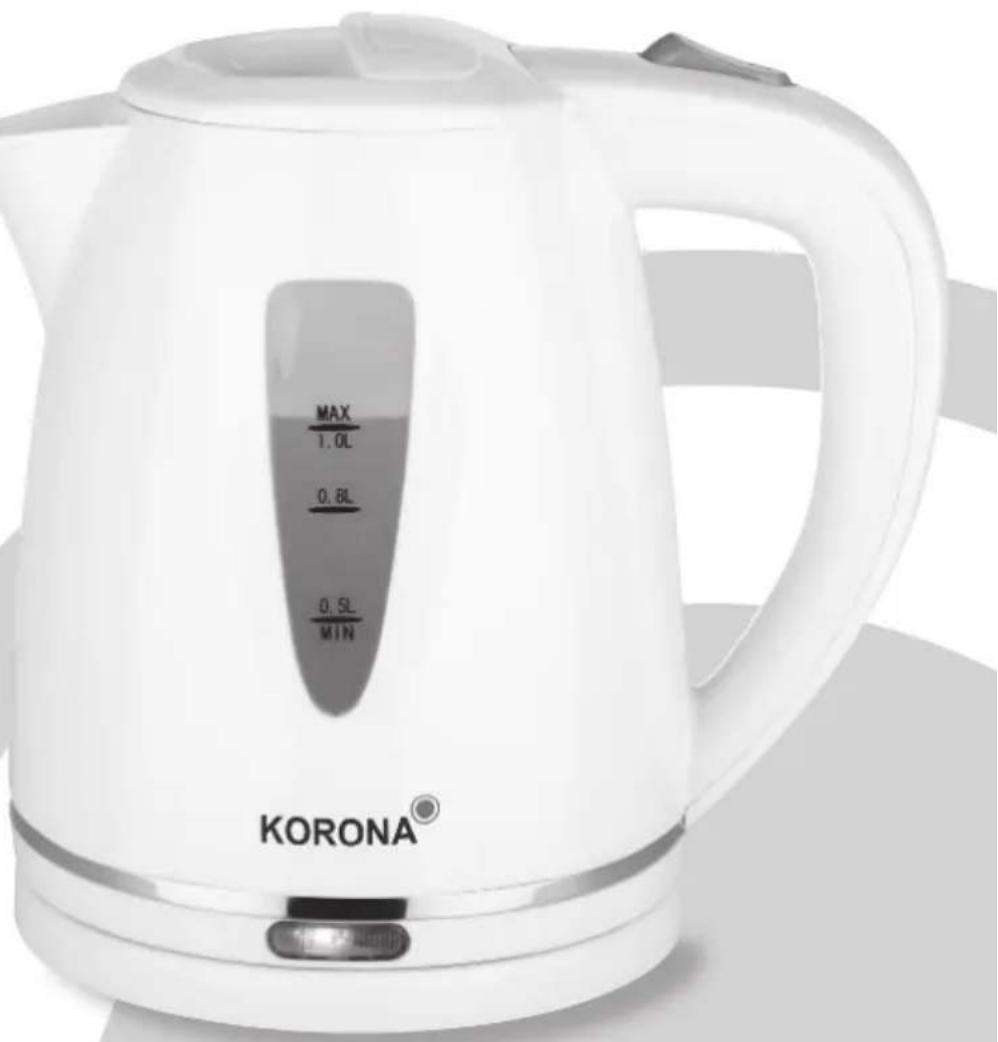

Product Description

1. Spout with filter
2. Lid
3. Water level indicator
4. Kettle
5. On/Off switch
6. Indicator light
7. Base
8. Power cord and plug
9. Cable guide (rear side base)
10. Cord storage (rear side base)

Before First Use

• Remove all packaging material and check whether the appliance is complete.
• Fully unwind the power cord (8) and make sure that the power cord (8) underneath the appliance is clamped into the cable guide (9).
• Place the appliance on an even and heat resistant surface. Do not place it on top of a metal surface.
• Connect the appliance to a properly installed wall socket and boil 4-5 kettles of water using fresh water with each boiling cycle. Do not use this water but pour it away.

Warning: Plastic bags are a danger to toddlers and babies, therefore keep them away to avoid suffocation.

Operation

Your appliance is fitted (inside the spout) with a removable scale filter that prevents scale particles ending up in your beverage.

1. Open the lid (2) and hold the kettle (4) in an upright position to fill it with water. Make sure to fill in the MIN amount of water (0.5L) to avoid overheating.

Info: The kettle can also be filled with water when the lid (2) is closed by filling it through the spout (1).

1. Close the lid (2) and make sure it is properly closed.

2. Place the kettle (4) onto the base (7) and make sure it properly fits onto the contact unit.

3. Connect it to the mains and switch on the water kettle by pressing the On/Off switch (5). The indicator light (6) lights up.

4. As soon as the water boils, the appliance switches off automatically provided that you have thoroughly closed the lid (2). Otherwise boiling water could spill. The indicator light goes off as well.

5. Lift the kettle (4) off the base (7). The water is now ready for use.

You can stop the boiling process any time by pushing the On/Off button (5).

Attention: The boiling process is not stopped by only removing the unit from the power base. The unit must properly be switched off (0-position). Otherwise, once put back onto the base (7) the unit will resume the boiling process as the switch is still set to On-position.

Water left over from a previous boiling cycle can be re-used in the next boiling cycle. However, always make sure that the water level is not too low.

Always unplug the appliance after use.

Dry-boil cut-out

Your kettle is equipped with a boil-dry cut-out, which will switch off the kettle automatically, should it accidentally be operated without water or by not observing the minimum water level. In the event of such a safety cut-out unplug the appliance immediately and let it cool down for approx. 10 minutes. Afterwards, your kettle is ready for use again.

Cleaning and Care

Before cleaning, always switch off the appliance and t it from the mains and let it completely cool down.

Never immerse the appliance in water. Danger! Electric Shock!

Clean the body of the appliance with a moistened soft cloth.

Do not use any aggressive cleaning agents and/or other hard objects to clean the appliance.

Open the lid (2) and remove the filter (1). Clean it under running tap water, if necessary, with a soft nylon brush. Dry it afterwards and reinsert the filter into the spout.

DESCALING

Descale your appliance in regular intervals (approx. every 3 – 6 months), depending on the frequency of use and the local water quality.

Never use any sharp, pointed or metal objects to remove limescale built up in the kettle.

To remove limescale, use a common gentle descaler, which is suitable for your appliance.

After descaling, always boil 4-5 kettles of water, which you do not use but pour away. Use fresh water with each boiling cycle.

This procedure is necessary to remove any descaler residues in the kettle.

Note: Descaler mixtures should not be poured down enamel coated sinks.

Storage

After use and after the appliance has completely cooled down wind the power cord (9) around the cord storage (11).

Keep it away from children and store it in a clean and dry place.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but – according to the EU directive on Waste Electric And Electronic Equipment of 24th March 2005 – are to to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your Water Kettle 20116 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Voltage: 220 - 240 V \~ 50/60 Hz

Rated Power: 1850 - 2200 W

Capacity: 1.0 Litre

Protection Class: I

Technical data subject to change!

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions
  • for damages due to wear and tear (batteries, etc.)
  • for damages known by customer at time of purchase
  • for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service

Am Steinbach 9

59872 Meschede-Enste

Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.
