Product Type	Uninterruptible Power Supply (UPS)
Brand	EnerGenie
Model	UPS-PC-1202AP
Apparent Power	1200 VA
Active Power	720 W
Waveform	Simulated sine wave
Input Voltage	230 V AC, 50/60 Hz
Output Voltage (Battery Mode)	230 V AC ± 10%
Number of Output Sockets	8 sockets (4 with surge protection)
Battery Type	Maintenance-free lead-acid
Battery Voltage	12 V
Battery Capacity	9 Ah
Typical Recharge Time	4 to 6 hours
Protection	Overvoltage, undervoltage, short-circuit, overload, deep discharge
User Interface	LED indicators (mains power, battery mode, fault)
Dimensions (L × W × H)	350 × 120 × 195 mm
Net Weight	5.5 kg
Noise Level	< 40 dB
Operating Temperature	0 to 40 °C
Relative Humidity	20 to 90% non-condensing
Maintenance	Clean with a dry, soft cloth. Do not use solvents.
Safety	Compliant with CE standards, built-in surge protection
Warranty	24 months

Frequently Asked Questions - UPS-PC-1202AP EnerGenie

What is the function of this UPS?

The UPS EnerGenie UPS-PC-1202AP protects your electronic equipment against power outages, surges, and voltage fluctuations. It provides temporary battery power to allow you to properly shut down your devices.

How to install the UPS?

Plug the UPS directly into a wall outlet, without using a power strip. Connect your essential devices (PC, monitor) to the protected outlets. Turn on the UPS and let it charge for at least 4 hours before first use.

What to do in case of a power outage?

The UPS switches automatically to battery power. An intermittent beep sounds. Turn off your devices within a few minutes to avoid complete discharge of the battery. When mains power returns, the UPS recharges automatically.

How long does the battery backup last?

The backup time depends on the connected load. For a 300 W PC, expect about 10 to 15 minutes. For a light load, the backup time can reach 30 minutes. Consult the manual for more details.

How to replace the battery?

The battery is replaceable. Unplug the UPS, open the battery compartment with a screwdriver. Disconnect the terminals, insert the new battery (same type: 12 V 9 Ah) and close. Observe polarity. See the manual for details.

Are the sockets protected against surges?

Yes, 4 sockets out of 8 are equipped with surge protection and noise filtering. Plug your sensitive equipment (PC, monitor) into these outlets, identifiable by a mark on the casing.

What do the LED indicators mean?

The green LED indicates the UPS is on mains power and the battery is charging. The yellow LED indicates the UPS is operating on battery. The red LED indicates a fault (overload, defective battery). Consult the manual for specific codes.

Can I connect a laser printer to the UPS?

It is not recommended to connect a laser printer to this UPS because it draws a lot of power during printing and may overload the UPS. Use a non-protected outlet or a separate power strip instead.

How to clean the UPS?

Unplug the UPS from the mains. Clean the casing with a dry, soft cloth. Do not use solvents or abrasive products. Make sure the ventilation openings are not blocked by dust.

What to do if the UPS beeps continuously?

A continuous beep usually indicates an overload or a defective battery. Disconnect some devices to reduce the load. If the problem persists, check the battery: it may need replacement. Contact customer service if necessary.

USER MANUAL UPS-PC-1202AP EnerGenie

Exterior view of a black energy megaphone (ECMP) device with control panel and indicator lights (no visible text or symbols on body)

UPS-PC-652A

UPS-PC-850AP

UPS-PC-1202AP

UPS WITH AVR, 650 VA, 850 VA, 1200 VA

USER MANUAL

HANDBUCH

HANDLEIDING

MANUEL DESCRIPTIF

UPS with AVR, advanced

UPS mit AVR

UPS with AVR, advanced

Image displaying a grid of national flags, including Germany, the European Union, Switzerland, Austria, Netherlands, Belgium, France, Russia, Ukraine, and Poland.

Features

- Uninterruptable power supply for PC's:

• 650 VA – for UPS-PC-652A model
• 850 VA – for UPS-PC-850AP model
• 1200 VA – for UPS-PC-1202AP model

• Automatic AC voltage regulation (AVR)
- Surge protected output sockets protect your equipment against harmful power surges, lightning strikes and short-circuits

• Audible and visual alarms
• LED status indication
- Internal battery with overcharge and over-discharge protection

Specifications

• UPS type: line interactive
  • Input: AC 162 - 295 V, 50 Hz / 60 Hz ± 10 %
  • Output: AC 188 - 254 V, 50 Hz / 60 Hz ± 0.5 % (on battery)
  • Waveform: sine wave (AC mains), simulated sine wave (battery)
  • Temperature compensation: -20mV/1 °C (per cell)
• Switching time: no more than 10 ms
• Backup time: (8 to 20) min (depending on connected load)
• "Cold-start" function
  • Charge time: up to 12 hours
• Operating conditions: 0°C to 40°C, at 20% to 90% humidity (RH non-condensing)

UPS-PC-652A

• Battery: sealed lead-acid 12 V / 7Ah
- Sockets: 1x C14 input, 2x C13 output
• Power: 650 VA (390 W)
• Dimensions: 320 mm x 160 mm x 95 mm

• Product weight: 4.8 kg

UPS-PC-850AP

• Battery: sealed lead-acid 12V/7Ah x 1 pc
- Sockets: 1x C14 input, 2x C13 outputs; USB-BF connector
• Power: 850 VA (520 W)
• Dimensions: 340 x 95 x 165 mm
• Product weight: 7 kg

UPS-PC-1202AP

• Battery: sealed lead-acid 12V/7Ah x 2pcs
- Sockets: 1x input (C14), 4x output (C13 / Shuko - optional); 2x telephone RJ11 connectors; 1x USB-BF connector
• Power: 1200 VA (720 W)
• Dimensions: 382 x 222 x 124 mm
• Product weight: 10.4 kg

energenie

UPS-PC-652A, -850AP, -1202AP UPS with AVR

①

All brands and logos are registered trademarks of their respective owners

energenie

UPS-PC-652A, -850AP, -1202AP UPS with AVR

UPS-PC-652A

UPS-PC-850AP

UPS-PC-850AP * For UPS-PC-850AP CAUTION OUTPUT AC INPUT AC IN WARNING NO OK

All brands and logos are registered trademarks of their respective owners

energenie

UPS-PC-652A, -850AP, -1202AP UPS with AVR

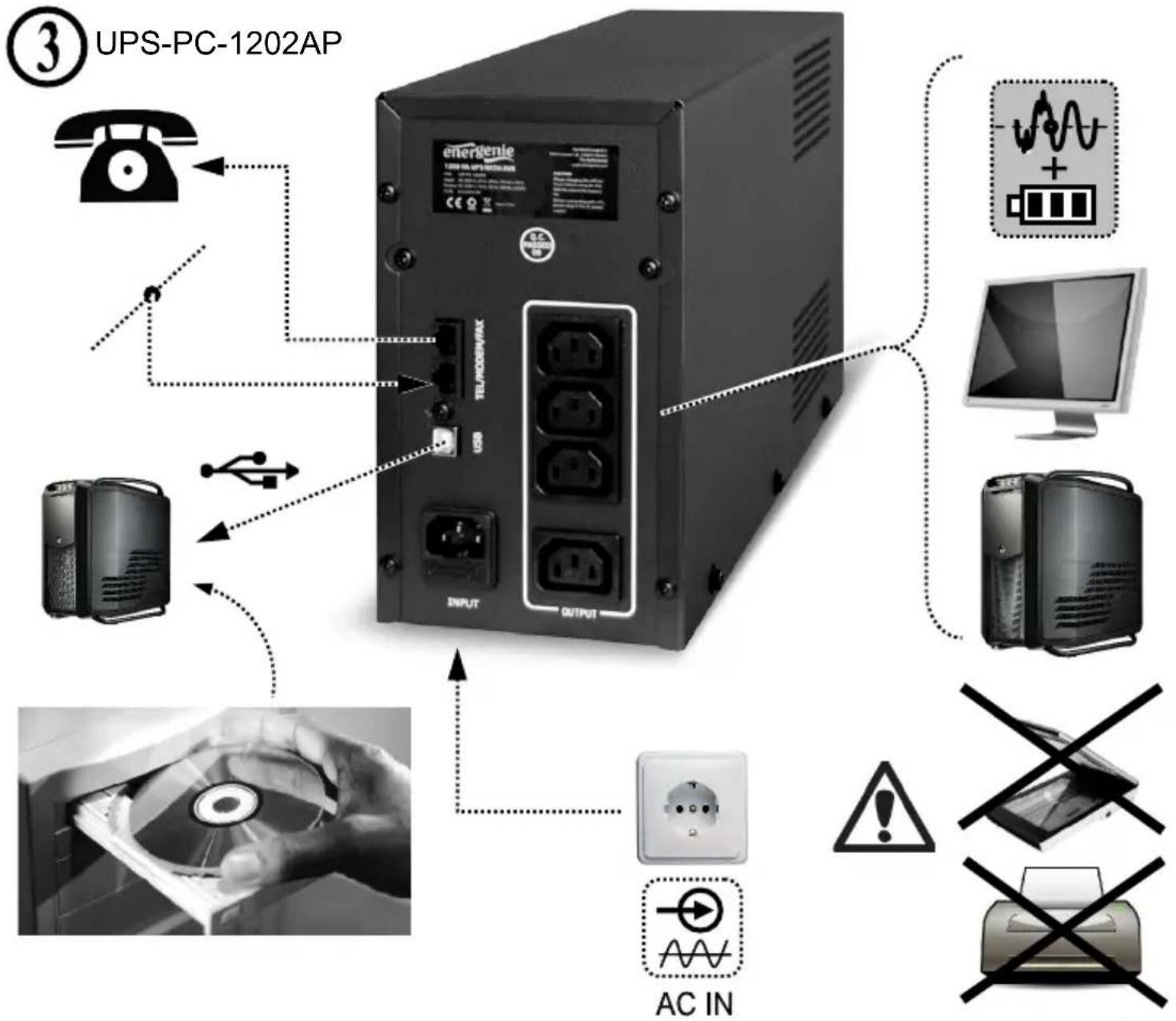


All brands and logos are registered trademarks of their respective owners

(ENG) Declaration of conformityThis product is tested and complies with the essential requirements of the laws of member states concerning EMC(2014/30/EU), RoHS (2011/65/EU). The CE declaration can be found underwww.gembird.eu	(NL/BE) Verklaring van overeenstemmingDit product is getest en voldoet aan alle geldende nationale en Europese richtlijnen en regelgeving met betrekking tot EMC(2014/30/EU), RoHS (2011/65/EU). Dit product heeft een CE-markering en de bijbehorende CE-verklaring van overeenstemming is beschikbaar op onze website: www.gembird.eu
(FR/BE) Déclaration de conformitéLe produit est contrôlé et rempli les exigences des directives nationales et de la directive EMC(2014/30/EU), RoHS (2011/65/EU). La conformité CE a été démontrée et les déclarations correspondantes sont déposées chez le fabricant a:www.gembird.eu	(DE) KonformitätserklärungDieses Produkt wurde getestet und stimmt mit den grundlegenden Anforderungen der Richtlinie EMC(2014/30/EU), RoHS (2011/65/EU) überein. Die Konformitätserklärung kann auf unserer Webseitewww.gembird.euheruntergeladen werden.
Deklaracja zgodnościTen produkt został przetestowany i jest zgodny z zasadniczymi wymaganiami przepisów ustawowych państw członkowskich dotyczących EMC(2014/30/EU), RoHS (2011/65/EU). Deklaracja CE znajduje się pod adresemwww.gembird.eu

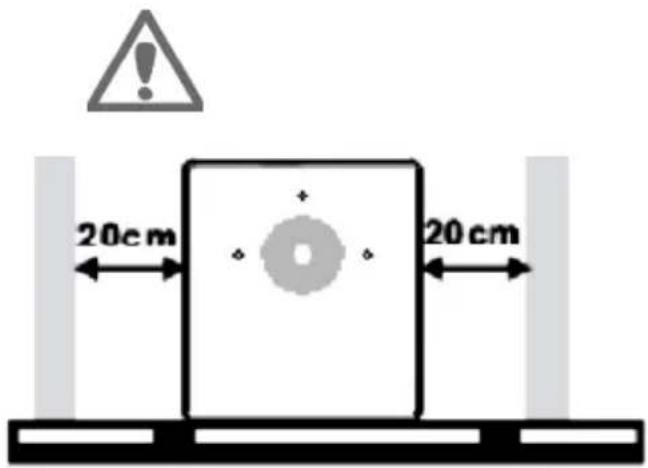

20cm 20cm

Three symbolic icons: sun, speech bubble, and fence with crossed X signs

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
