Product Type	Uninterruptible Power Supply (UPS)
Brand	EnerGenie
Model	EG-UPS-B650
Capacity (VA)	650 VA
Maximum Power (W)	390 W (power factor 0.6)
Input Voltage	230 V AC
Output Voltage	230 V AC (regulated)
Frequency	50/60 Hz
Runtime (at full load)	Approximately 5 to 10 minutes
Battery	Sealed lead-acid, 12 V
Number of outlets	2 to 4 Schuko outlets
Protections	Overvoltage, undervoltage, short circuit, overload
Main functions	Automatic Voltage Regulation (AVR), sine wave inverter
Dimensions (W x D x H)	Approximately 300 x 150 x 100 mm
Weight	Approximately 5 to 6 kg
Power source	Mains 230 V AC
Maintenance and cleaning	Dust regularly, avoid moisture and liquids
Safety	Do not open the casing, risk of electric shock. Do not short-circuit the battery.
Spare parts and repairability	Replaceable battery, accessible fuses
General information	Complies with CE standards. Do not dispose of with household waste.

Frequently Asked Questions - EG-UPS-B650 EnerGenie

What is the real power of the EG-UPS-B650 UPS in watts?

The real power is approximately 390 watts (capacity of 650 VA with a power factor of 0.6). This power is suitable for typical computer equipment.

How long can the UPS power my devices?

The runtime depends on the connected load. At full load (390 W), it is approximately 5 to 10 minutes. With a lighter load, the runtime can reach 30 minutes or more.

How to replace the battery of the EG-UPS-B650?

Unplug the UPS and open the battery compartment (usually by unscrewing the cover screws). Disconnect the cables and replace the battery with an identical 12 V lead-acid model. Reconnect the cables and close.

What to do if my UPS does not turn on?

First check that the mains outlet works and the power cable is properly connected. Then check the fuse located at the back of the UPS. If the fuse is blown, replace it with an identical one.

Does the UPS protect against power surges?

Yes, the EG-UPS-B650 includes protection against overvoltages and undervoltages. It regulates the output voltage to protect your devices.

Can I plug a refrigerator or motor into this UPS?

No, UPS units in this range are not designed for inductive loads such as motors or refrigerators. Use it only for sensitive electronic equipment (computers, monitors, internet boxes).

How to clean my UPS?

Unplug the device and use a dry cloth to dust the ventilation grilles. Never use liquids or chemicals.

What to do in case of a prolonged power outage?

Turn off your connected devices as soon as the UPS emits a continuous beep (low battery). Do not let the battery discharge completely to avoid damaging it.

The UPS emits a regular beep, what does it mean?

A beep every few seconds indicates that the UPS is running on battery. A rapid continuous beep signals a low battery or overload. Check the load and battery level.

Where to download the complete manual for the EG-UPS-B650?

You can download the manual for free in PDF format from notice-facile.com by searching for the model EG-UPS-B650.

USER MANUAL EG-UPS-B650 EnerGenie

Exterior view of a black rectangular electronic device with ventilation slots and a cable (no visible text or symbols)

EG-UPS-B650

650 VA "BASIC 650" UPS, SHUKO OUTPUT SOCKETS

USER MANUAL

HANDBUCH

HANDLEIDING

MANUEL DESCRIPTIF

Image displaying a grid of national flags including Germany, the European Union, Switzerland, Austria, Netherlands, Belgium, France, Russia, and Ukraine.

Features

• Uninterruptable 650 VA power supply for PC's
  • Automatic output voltage regulation (AVR)
  • LED status indication
• Short circuit protection
• Surge, spike and lightning protection
  • Audible and visual alarms
  • Overcharge and overdischarge protection

Specifications

• UPS type: line interactive
  • Input: AC 220V±25%, 50Hz/60Hz ±10%
  • Output: AC 220V±10%, 50Hz/60Hz ±0.5% (on battery)
• Switching time: no more than 10 ms
• Backup time: up to.20 mins (depends on the load)
• Battery: 151 x 65 x 95 mm, sealed lead-acid 12V/7Ah x 1 pc
  • Charge time: up to 12 hours
• Sockets: 2 x Schuko output (CEE 7/4)
• Operating conditions: 0°C\~40°C, at humidity 10\~90%RH non condensing
  • Power: 650 VA (390 W)
  • Dimensions: 100 x 280 x 140 mm
  • Product weight: 4.3 kg

energenie

650 VA "Basic 650" UPS, Shuko output sockets

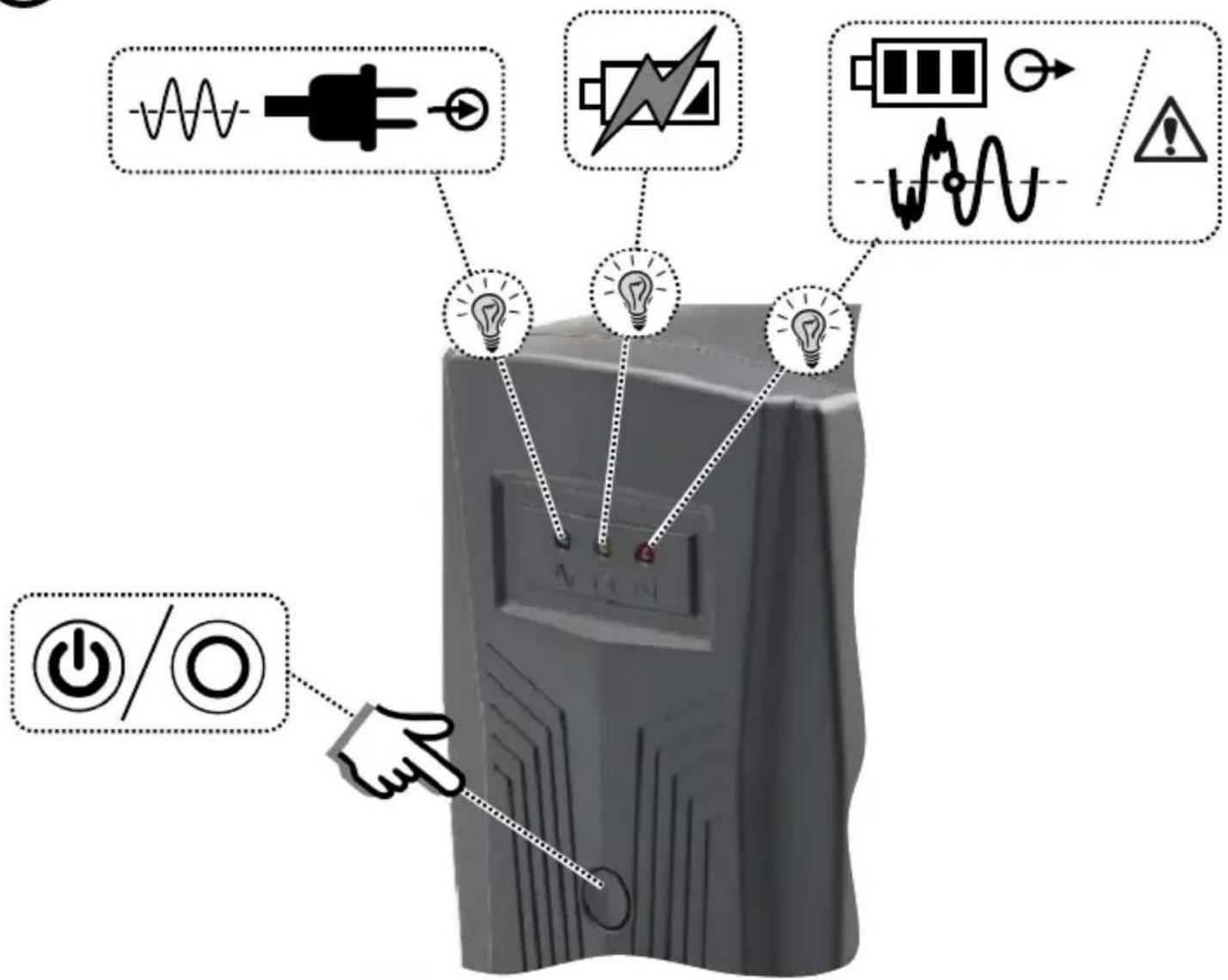

①

Diagram illustrating the principle of a power supply, showing components like power switch, battery, and warning symbols with Chinese labels.

All brands and logos are registered trademarks of their respective owners

energenie

650 VA "Basic 650" UPS, Shuko output sockets

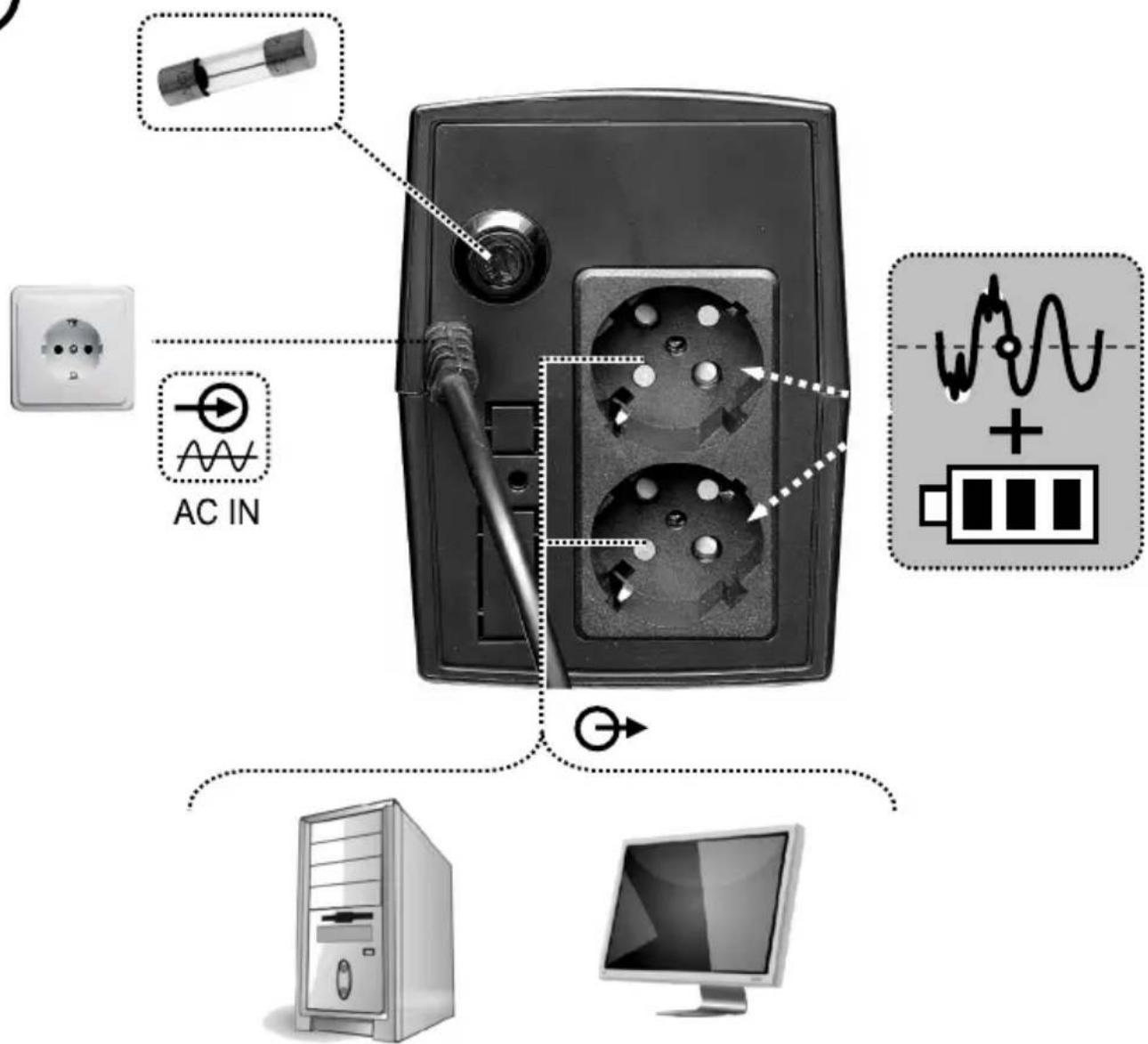

②

AC IN +

All brands and logos are registered trademarks of their respective owners

This product is tested and complies with the essential requirements of the laws of member states concerning EMC(2004/108/EC). The CE declaration can be found under www.gembird.eu

Simple line drawing of a hand washing a cup with water droplets falling (no text or symbols)

Safety warning sign showing sun and fever with crossed-out lines indicating no heat or illness

Simple line drawing of a hand using a tool to cut a screwdriver into a screwdriver (no text or symbols)

Simple line drawing of a box with a hand crossed out, no text or symbols present

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.

All brands and logos are registered trademarks of their respective owners
