| Product Type | Uninterruptible Power Supply (UPS) |
| Brand | EnerGenie |
| Model | EG-UPS-B850 |
| Capacity | 850 VA / 510 W |
| Typical autonomy (half load) | Approximately 10-15 minutes depending on load |
| Dimensions (L x W x H) | 310 x 150 x 180 mm |
| Weight | 5.2 kg |
| Battery Type | Sealed lead-acid, 12 V / 7 Ah |
| Replaceable Battery | Yes, user-accessible |
| Power Outlet(s) | 4 protected AC outlets (surge protection) |
| Surge Protection | Yes (built-in surge protector) |
| EMI/RFI Filter | Yes |
| Display | LED indicators (mains, charge, low battery, fault) |
| Audible Alarm | Yes (low battery, overload) |
| Voltage Regulation (AVR) | Yes (automatic stabilization) |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 20% to 90% non-condensing |
| USB / RS-232 Connection | Yes (USB port for software management) |
| Management Software | Compatible with PowerPanel or equivalent |
| Certifications | CE, RoHS, TÜV |
| Warranty | 2 years (battery included) |
| Maintenance and Cleaning | Dust with a dry cloth; check battery condition every 6 months |
| General Information | Home and office use; protects sensitive equipment from power outages and voltage variations |
Frequently Asked Questions - EG-UPS-B850 EnerGenie
How do I connect my device to the EG-UPS-B850 UPS?
Plug your critical devices (computer, monitor, router) into the protected outlets on the back of the UPS. Do not connect a laser printer or electric saw, as their peak power consumption could damage the UPS.
What to do in case of a prolonged power outage?
The UPS provides limited runtime (10-15 min at half load). Save your work and shut down your equipment properly as soon as the audible alarm sounds to avoid deep battery discharge.
How do I replace the battery of the EG-UPS-B850?
Unplug the UPS and open the front or back panel (depending on model). Disconnect the terminals, remove the old battery, and replace it with an identical battery (12 V / 7 Ah). Close the casing and plug back in. Recycle the old battery at an approved collection point.
The UPS emits a continuous beep. What does it mean?
A continuous beep generally indicates a mains failure: the UPS is running on battery. If the beep is rapid, the battery is almost exhausted. In case of a regular intermittent beep, check the battery status or the connected load.
Can I use the UPS without a battery?
No, the UPS requires a battery to function properly. Without a battery, it will not provide protection and could be damaged.
How do I install the UPS management software?
Download the PowerPanel software from the EnerGenie website. Connect the UPS to your PC using the provided USB cable. Run the installer and follow the on-screen instructions to configure alerts and automatic shutdown.
What to do if the UPS does not turn on?
Check that the power cable is properly plugged in and the wall outlet is working. Try pressing the power button for 2 seconds. If nothing happens, the battery may be discharged or defective; replace it.
Is it normal for the UPS to heat up?
Slight heat is normal when running on battery or charging. If the device becomes burning hot, place it in a well-ventilated area away from direct sunlight and heat sources.
How to test the proper functioning of the UPS?
Plug in a non-critical device (e.g., a lamp). Unplug the UPS from the wall: the lamp should remain lit for a few seconds. The audible alarm should sound. Plug it back in.
What is the battery lifespan?
Under normal use, the lead-acid battery lasts 2 to 3 years. Frequent discharge cycles or high temperatures can shorten this lifespan. Replace it as soon as runtime becomes insufficient.
User questions about EG-UPS-B850 EnerGenie
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Uninterruptible power supply in PDF format for free! Find your manual EG-UPS-B850 - EnerGenie and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. EG-UPS-B850 by EnerGenie.
USER MANUAL EG-UPS-B850 EnerGenie
850 VA "BASIC 850" UPS, SHUKO OUTPUT SOCKETS
USER MANUAL
HANDBUCH
HANDLEIDING
MANUEL DESCRIPTIF
- Uninterruptable 650 VA power supply for PC's
• Automatic output voltage regulation (AVR)
• LED status indication - Short circuit protection
- Surge, spike and lightning protection
• Audible and visual alarms
• Overcharge and overdischarge protection
Specifications
- UPS type: line interactive
• Input: AC 220V±25%, 50Hz/60Hz ±10%
• Output: AC 220V±10%, 50Hz/60Hz ±0.5% (on battery) - Switching time: no more than 10 ms
- Backup time: up to.20 mins (depends on the load)
- Battery: 151 x 65 x 95 mm, sealed lead-acid 12V/8Ah x 1 pc
• Charge time: up to 12 hours - Sockets: 2 x Schuko output (CEE 7/4)
- Operating conditions: 0°C\~40°C, at humidity 10\~90%RH non condensing
• Power: 850 VA (510 W) - Dimensions: 280 × 140 × 100 ~mm
• Product weight: 5.5 kg
energenie
850 VA "Basic 850" UPS, Shuko output sockets

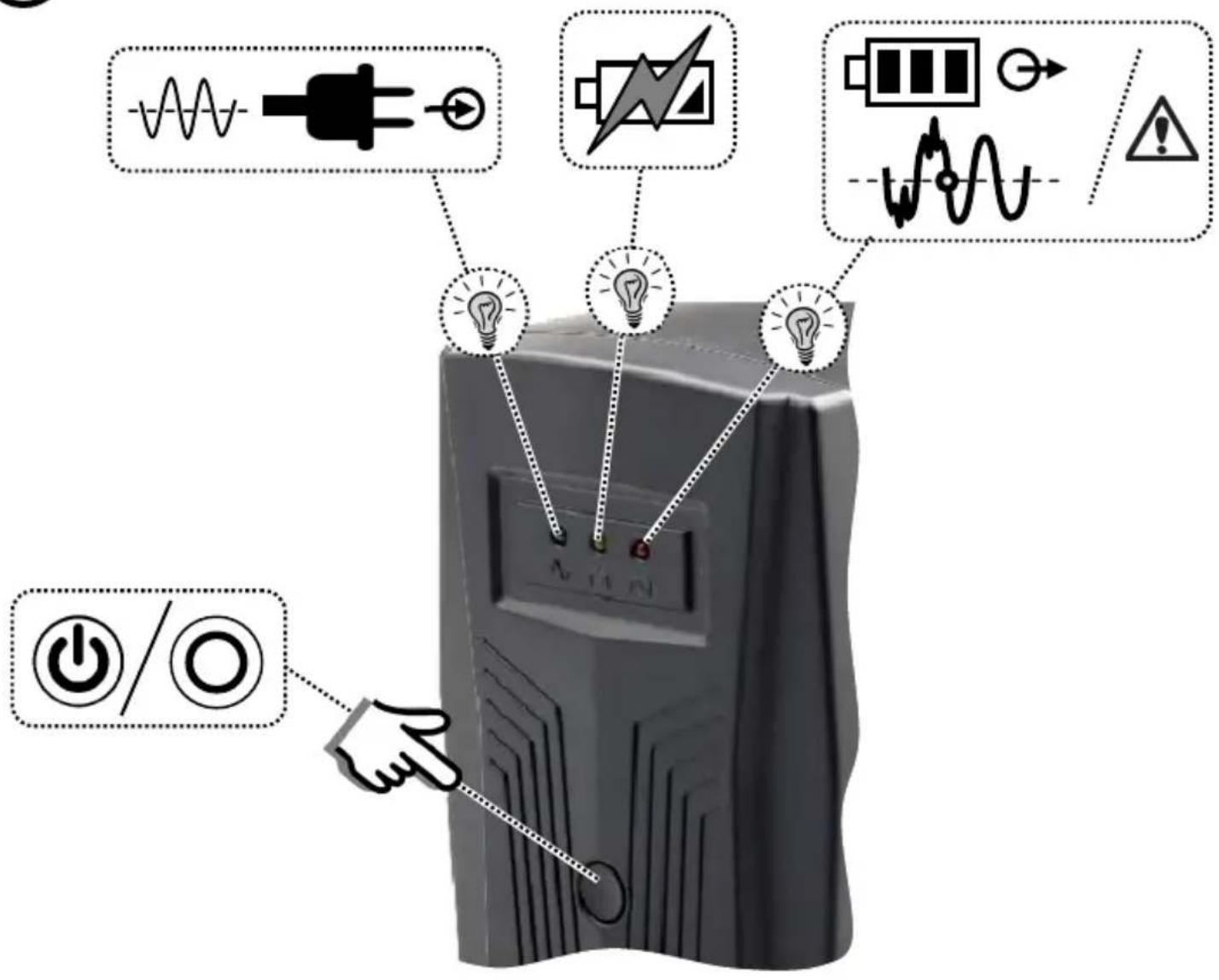

①
energenie
850 VA "Basic 850" UPS, Shuko output sockets

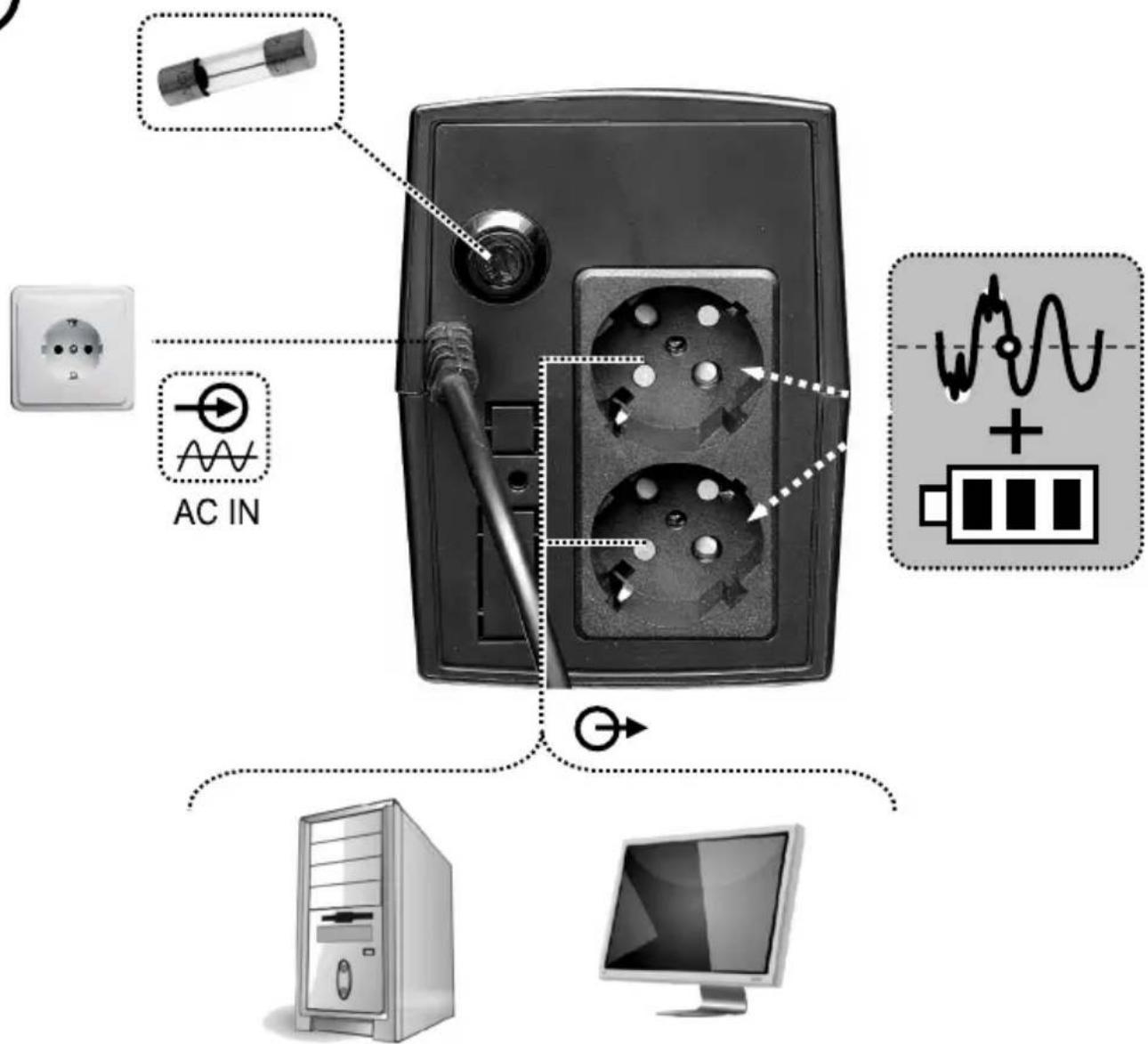

②
This product is tested and complies with the essential requirements of the laws of member states concerning EMC(2004/108/EC). The CE declaration can be found under www.gembird.eu
Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
