Product Type	Uninterruptible Power Supply (UPS)
Brand	EnerGenie
Model	UPS-PC-652A
Usage	Protection of computer equipment against power outages and fluctuations
Apparent Power	650 VA
Active Power	390 W
Number of Outlets	4 Schuko outlets
Surge Protection	Yes
EMI/RFI Filter	Yes
Full Load Runtime	Approximately 3 to 5 minutes
Half Load Runtime	Approximately 10 to 15 minutes
Battery	12 V / 7 Ah, replaceable
Recharge Time	4 to 6 hours
Visual Indicators	Status LEDs (on, battery, fault)
Audible Alarm	Yes (low battery, fault)
Dimensions (W × D × H)	100 × 280 × 140 mm
Weight	4.5 kg
Housing Material	Flame-retardant ABS plastic
Operating Temperature	0 °C to 40 °C
Humidity	0 % to 90 % non-condensing
Maintenance	Clean with a dry cloth; avoid dust
Safety	Do not open the device, do not expose to water
Spare Parts	Replacement battery (12 V / 7 Ah), fuse
Repairability	Replaceable battery, accessible fuse
Standards	CE, RoHS

Frequently Asked Questions - UPS-PC-652A EnerGenie

How to install my EnerGenie UPS-PC-652A UPS?

Plug the UPS into a wall outlet. Do not use a power strip. Connect your equipment (PC, monitor) to the UPS outlets. Turn on the UPS using the on/off button. Let the battery charge for 6 hours before first use.

What to do in case of a power outage?

The UPS automatically switches to battery. You have 3 to 15 minutes depending on the load to save your work and properly shut down your equipment. An audible alarm sounds to alert you.

How to replace the UPS battery?

Unplug the UPS and remove the access panel (usually on the front or back). Disconnect the terminals of the old battery and replace it with an identical battery (12 V / 7 Ah). Observe polarity. Close the panel and reconnect the UPS.

Why does my UPS beep?

A continuous beep indicates a mains power failure. An intermittent beep signals a low battery or a fault. Check the indicator lights to identify the issue. If the beeping persists, check the battery.

How to clean the EnerGenie UPS?

Unplug the device. Use a soft, dry cloth to wipe the casing. Never use liquid or abrasive cleaners. Make sure the ventilation openings are not obstructed by dust.

Can I plug a laser printer into the UPS?

It is not recommended to plug in a laser printer because it draws high peak power (drum heating) that can overload the UPS. Use a direct wall outlet instead.

How long does the UPS battery last?

The typical lifespan of a sealed battery is 3 to 5 years depending on usage and temperature conditions. A decrease in runtime is a sign of aging.

What do the LED indicators mean?

Solid green LED: normal operation. Flashing green LED: battery charging. Solid red LED: fault. Flashing red LED: low battery or overload. Refer to the manual for more details.

How to extend battery life?

Keep the UPS in a moderate environment (15-25 °C). Avoid repeated deep discharges. Fully recharge the battery after each use. Clean the ventilation grilles regularly.

What to do if the UPS does not turn on?

Check that the UPS is properly plugged into a live outlet. Press the on/off button for 2 seconds. If nothing happens, the battery may be discharged: check the fuse and replace it if necessary. Contact support if the problem persists.

USER MANUAL UPS-PC-652A EnerGenie

Exterior view of a black energy megaphone (no visible text or symbols on body)

UPS-PC-652A

UPS-PC-850AP

UPS-PC-1202AP

UPS WITH AVR, 650 VA, 850 VA, 1200 VA

USER MANUAL

HANDBUCH

HANDLEIDING

MANUEL DESCRIPTIF

UPS with AVR, advanced

UPS mit AVR

UPS with AVR, advanced

Image displaying a grid of national flags, including Germany, the European Union, Switzerland, Austria, Netherlands, Belgium, France, Russia, Ukraine, and Poland.

Features

- Uninterruptable power supply for PC's:

• 650 VA – for UPS-PC-652A model
• 850 VA – for UPS-PC-850AP model
• 1200 VA – for UPS-PC-1202AP model

• Automatic AC voltage regulation (AVR)
- Surge protected output sockets protect your equipment against harmful power surges, lightning strikes and short-circuits

• Audible and visual alarms
• LED status indication
- Internal battery with overcharge and over-discharge protection

Specifications

• UPS type: line interactive
  • Input: AC 162 - 295 V, 50 Hz / 60 Hz ± 10 %
  • Output: AC 188 - 254 V, 50 Hz / 60 Hz ± 0.5 % (on battery)
  • Waveform: sine wave (AC mains), simulated sine wave (battery)
  • Temperature compensation: -20mV/1 °C (per cell)
• Switching time: no more than 10 ms
• Backup time: (8 to 20) min (depending on connected load)
• "Cold-start" function
  • Charge time: up to 12 hours
• Operating conditions: 0°C to 40°C, at 20% to 90% humidity (RH non-condensing)

UPS-PC-652A

• Battery: sealed lead-acid 12 V / 7Ah
- Sockets: 1x C14 input, 2x C13 output
• Power: 650 VA (390 W)
• Dimensions: 320 mm x 160 mm x 95 mm

• Product weight: 4.8 kg

UPS-PC-850AP

• Battery: sealed lead-acid 12V/7Ah x 1 pc
- Sockets: 1x C14 input, 2x C13 outputs; USB-BF connector
• Power: 850 VA (520 W)
• Dimensions: 340 x 95 x 165 mm
• Product weight: 7 kg

UPS-PC-1202AP

• Battery: sealed lead-acid 12V/7Ah x 2pcs
- Sockets: 1x input (C14), 4x output (C13 / Shuko - optional); 2x telephone RJ11 connectors; 1x USB-BF connector
• Power: 1200 VA (720 W)
• Dimensions: 382 x 222 x 124 mm
• Product weight: 10.4 kg

energenie

UPS-PC-652A, -850AP, -1202AP UPS with AVR

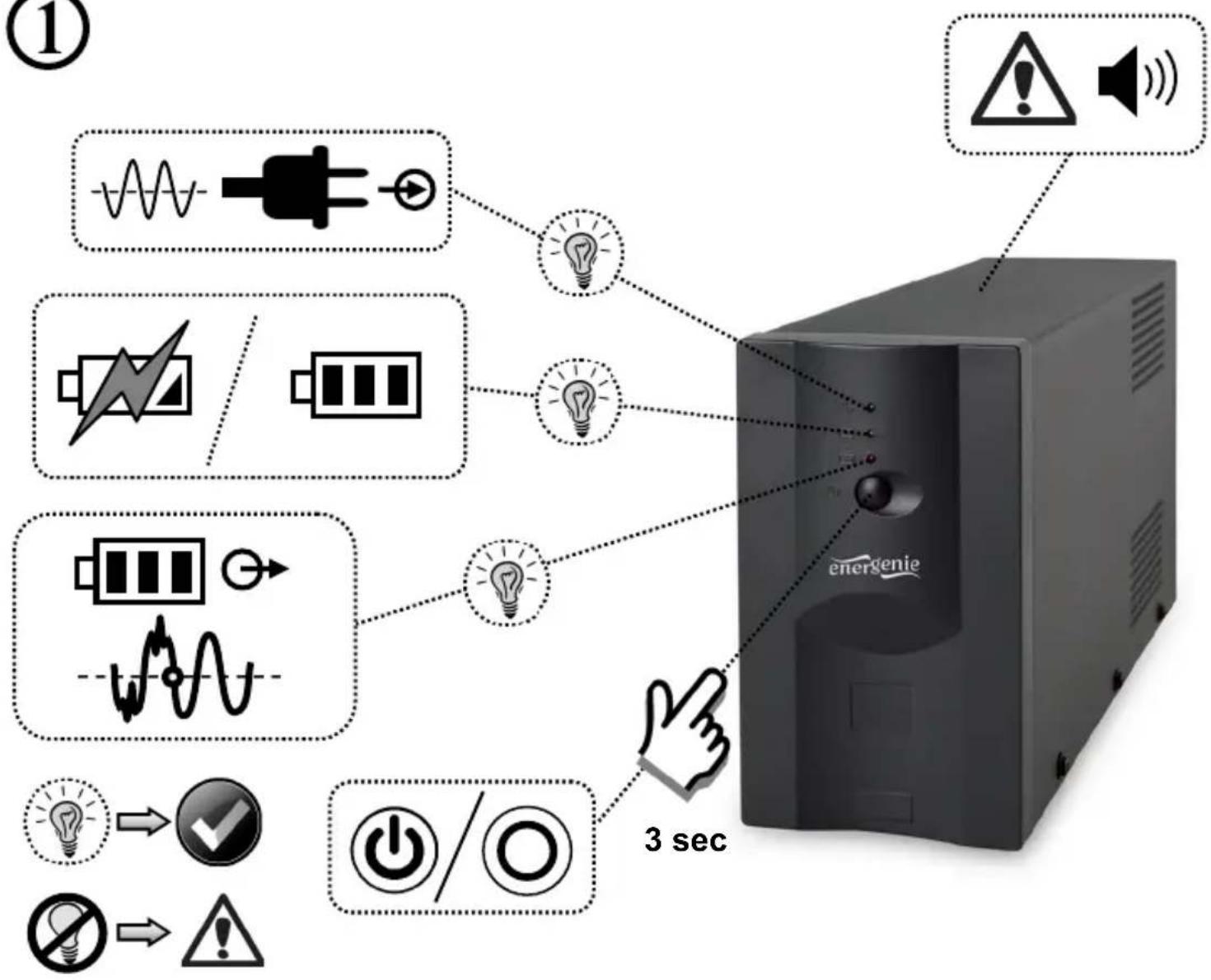

①

All brands and logos are registered trademarks of their respective owners

energenie

UPS-PC-652A, -850AP, -1202AP UPS with AVR

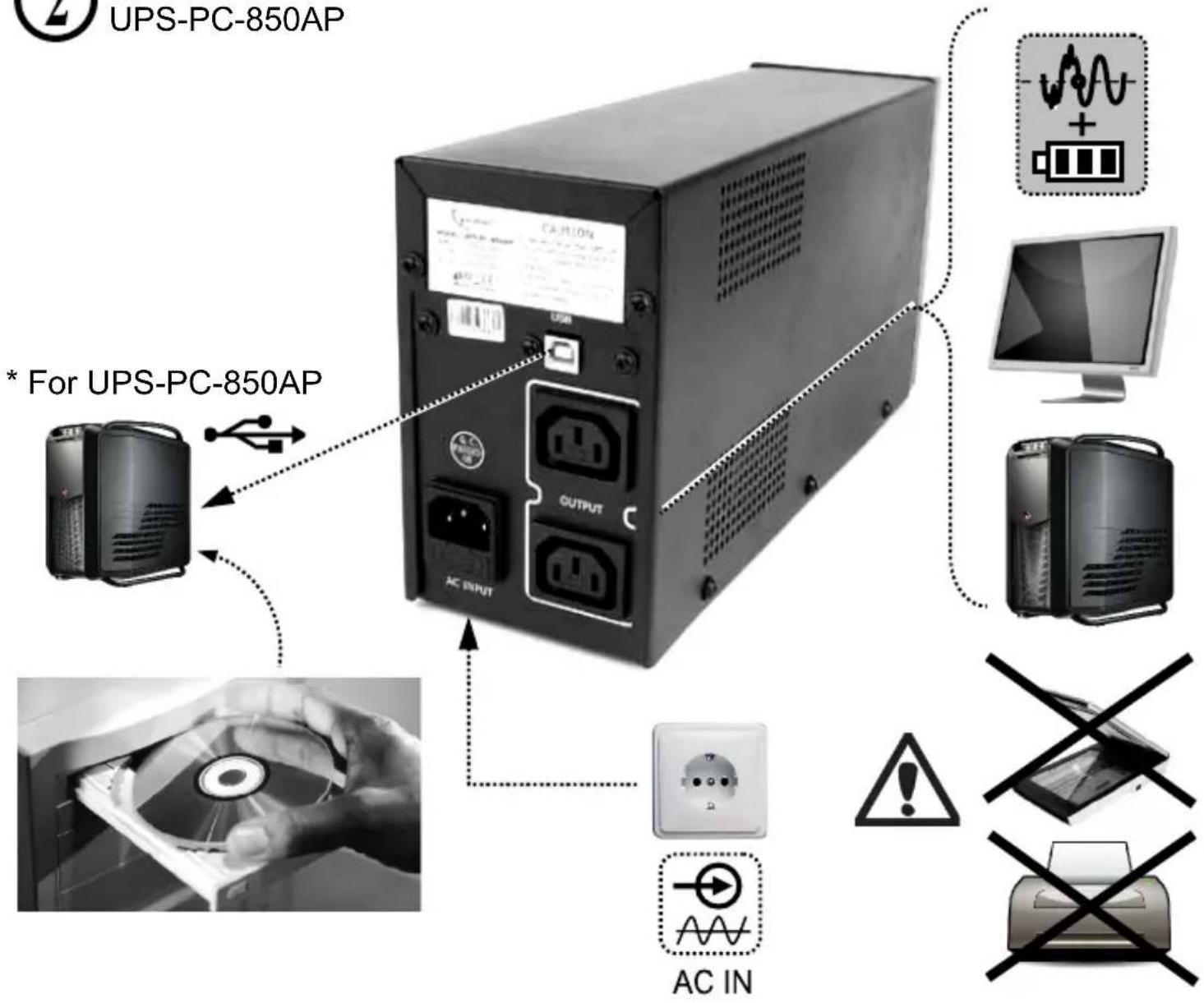

UPS-PC-652A

UPS-PC-850AP

UPS-PC-850AP * For UPS-PC-850AP CAUTION OUTPUT AC INPUT AC IN WARNING NO OK

All brands and logos are registered trademarks of their respective owners

energenie

UPS-PC-652A, -850AP, -1202AP UPS with AVR

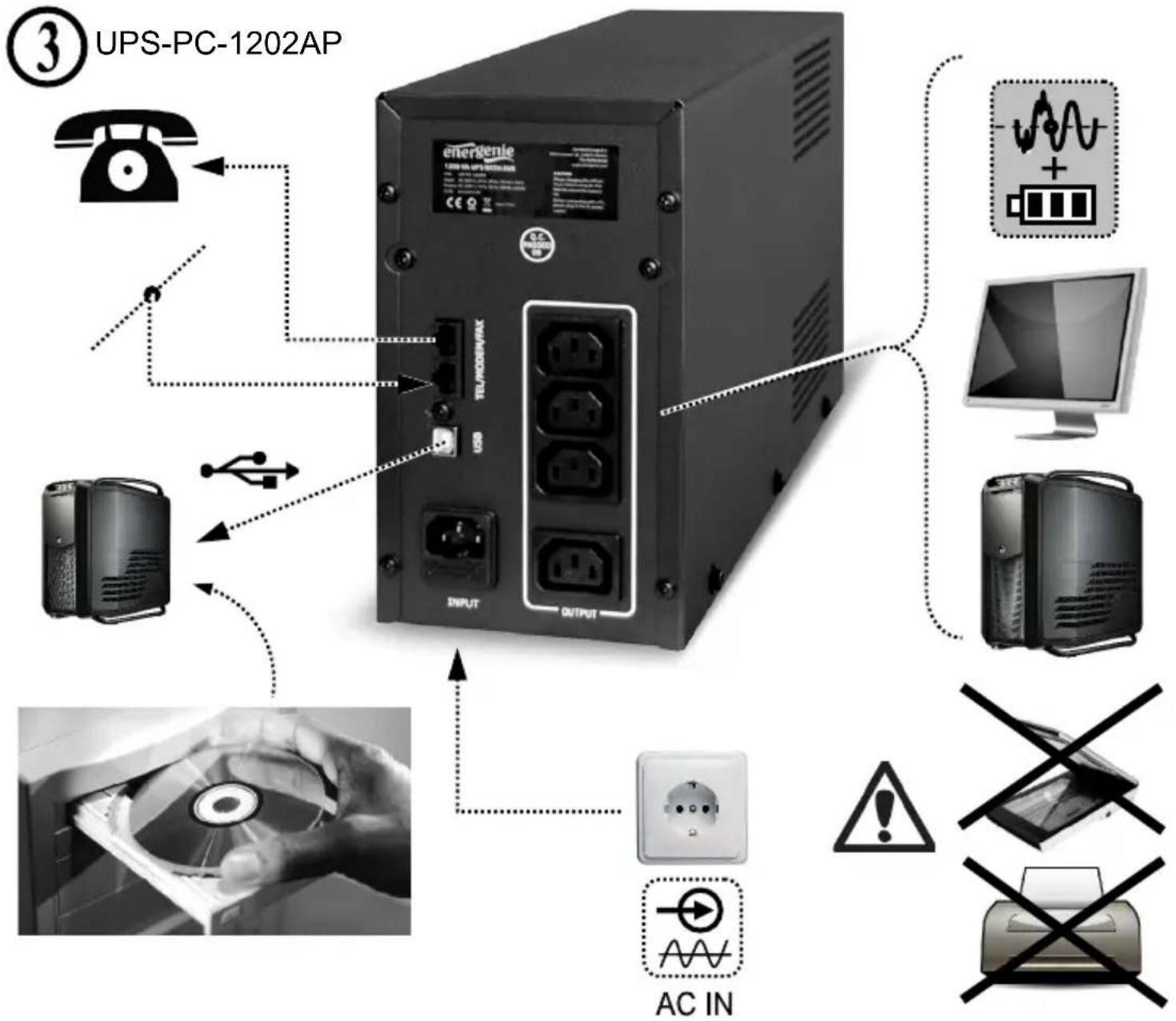


All brands and logos are registered trademarks of their respective owners

(ENG) Declaration of conformityThis product is tested and complies with the essential requirements of the laws of member states concerning EMC(2014/30/EU), RoHS (2011/65/EU). The CE declaration can be found underwww.gembird.eu	(NL/BE) Verklaring van overeenstemmingDit product is getest en voldoet aan alle geldende nationale en Europese richtlijnen en regelgeving met betrekking tot EMC(2014/30/EU), RoHS (2011/65/EU). Dit product heeft een CE-markering en de bijbehorende CE-verklaring van overeenstemming is beschikbaar op onze website:www.gembird.eu
(FR/BE) Déclaration de conformitéLe produit est contrôlé et rempli les exigences des directives nationales et de la directive EMC(2014/30/EU), RoHS (2011/65/EU). La conformité CE a été démontrée et les déclarations correspondantes sont déposées chez le fabricant a:www.gembird.eu	(DE) KonformitätserklärungDieses Produkt wurde getestet und stimmt mit den grundlegenden Anforderungen der Richtlinie EMC(2014/30/EU), RoHS (2011/65/EU) überein. Die Konformitätserklärung kann auf unserer Webseitewww.gembird.euheruntergeladen werden.
Deklaracja zgodnościTen produkt został przetestowany i jest zgodny z zasadniczymi wymaganiami przepisów ustawowych państw członkowskich dotyczących EMC(2014/30/EU), RoHS (2011/65/EU). Deklaracja CE znajduje się pod adresemwww.gembird.eu

20cm 20cm

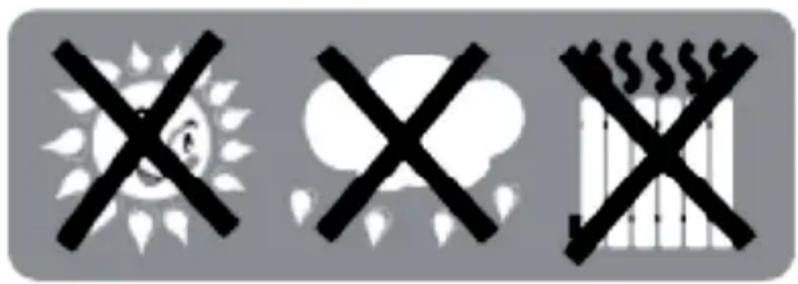

Three symbolic icons: sun, smoke, and fence crossed out with 'X' symbols

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
