Product Type	Uninterruptible Power Supply (UPS)
Brand	EnerGenie
Model	UPS-RACK-1500
Rated Power	1500 VA / 900 W
Form Factor	19-inch Rack (2U)
Dimensions (W x D x H)	438 x 380 x 89 mm
Weight	14.5 kg
Input Voltage	230 V AC, 50/60 Hz
Battery Type	Sealed lead-acid, maintenance-free
Typical Runtime (half load)	Approximately 10 minutes at 50% load
Number of Output Outlets	8 outlets (4 with surge protection)
Surge Protection	Yes (built-in)
Key Features	Automatic Voltage Regulation (AVR), surge protection, noise filtering
Indicators	LED: power, battery, overload, fault
Connectivity	USB port and RS-232 serial port
Included Software	UPS management tool (Windows/Mac/Linux)
Maintenance and Cleaning	Regularly dust ventilation grilles; do not use liquid products
Safety	Resettable fuse, short-circuit and overload protection
Spare Parts and Repairability	User-replaceable battery; other repairs by authorized center
General Information	2-year warranty (battery: 6 months)

Frequently Asked Questions - UPS-RACK-1500 EnerGenie

What is the actual power of the UPS-RACK-1500 UPS?

The UPS-RACK-1500 delivers a rated power of 1500 VA (volt-amps) and an active power of 900 W (watts).

How long can I run my equipment on battery?

Runtime depends on the connected load. At 50% load, expect approximately 10 minutes. For lower loads, runtime increases.

How do I install the UPS in a 19-inch rack?

The UPS is designed for a standard 19-inch rack (2U). Use the supplied mounting brackets and secure it firmly with suitable screws. Ensure adequate ventilation.

Can I replace the battery myself?

Yes, the battery is accessible from the front panel. Purchase a compatible replacement battery (lead-acid 12 V, 7 Ah or 9 Ah). Follow the instructions in the manual for safe replacement.

What do the LED indicators on the front panel mean?

The LEDs indicate: Power (green): normal operation; Battery (orange): on battery; Overload (red): excessive load; Fault (flashing red): internal problem.

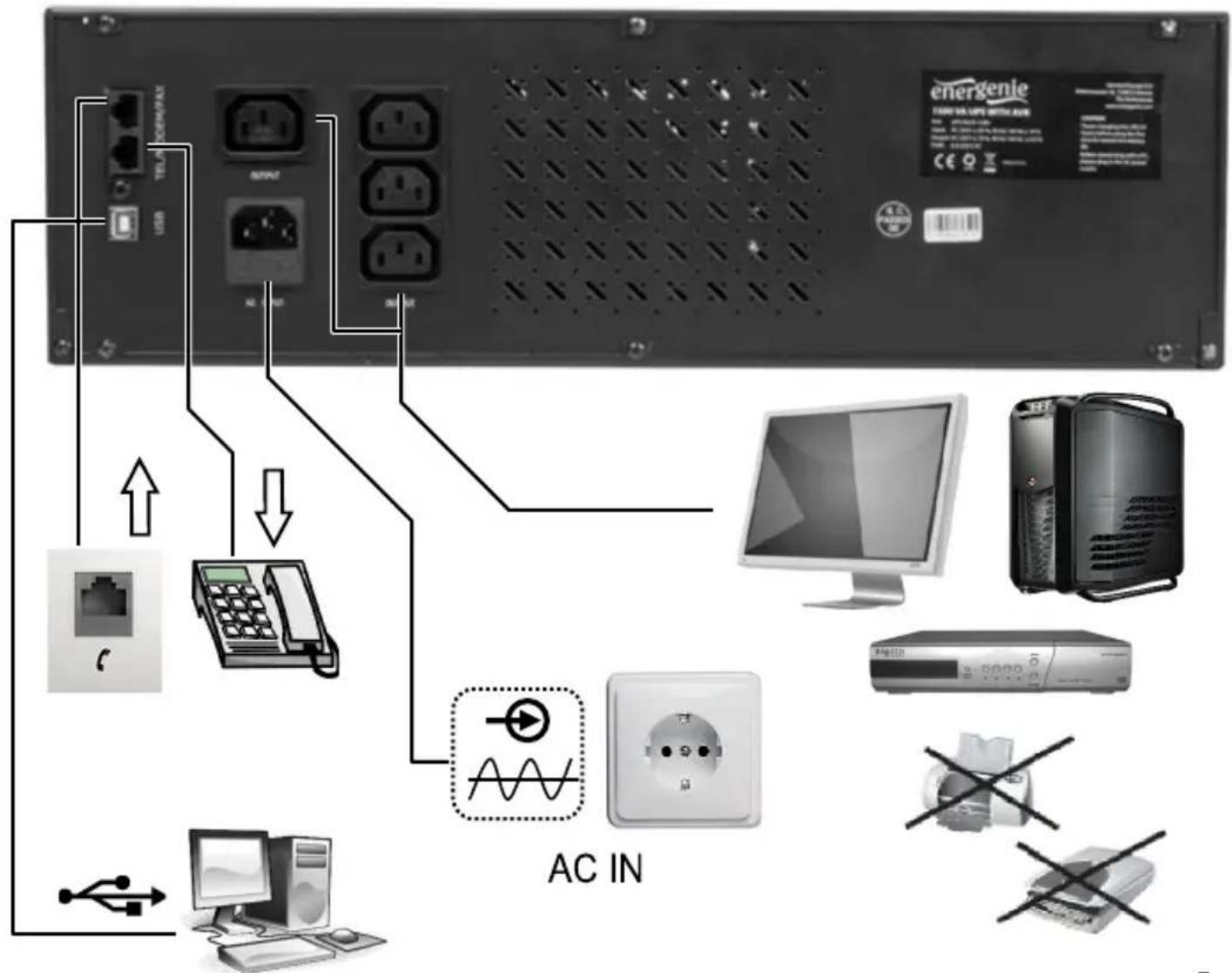

How do I connect the UPS to my computer?

Use the provided USB cable to connect the UPS's USB port to your PC. Install the management software (PowerPanel or equivalent) to monitor status and configure automatic shutdown.

Can I plug a power strip or extension cord into the UPS?

It is not recommended to plug power strips or extension cords, as this may reduce protection and cause overload. Plug essential equipment directly into the UPS outlets.

What should I do if the UPS emits a continuous beep?

A continuous beep usually indicates an overload. Disconnect some devices to reduce the load. If the beep persists, check the battery condition or contact support.

What is the battery lifespan?

The lead-acid battery has a typical lifespan of 3 to 5 years depending on usage conditions and ambient temperature. Replace it as soon as runtime becomes insufficient.

How do I clean my UPS RACK 1500?

Unplug the UPS and use a dry or slightly damp (not wet) cloth to clean the casing. Never use solvents. Regularly dust the ventilation grilles with a vacuum cleaner or soft brush.

USER MANUAL UPS-RACK-1500 EnerGenie

Automatic output voltage regulation (AVR)
- Rack 3.4U metal case
USB control interface
LCD display
- Short circuit protection
- Compatible with power generators of any brand
Surge, spike and lightning protection
Audible and visual alarms
Overcharge and overdischarge protection

Specifications

UPS type: line interactive
Input: 220 VAC ± 25% ,50 Hz/60 Hz ± 10%
Output: 220V AC ± 10%, 50Hz / 60Hz ± 0.5% (on battery)
- Switching time: no more than 10 ms (typically 6 ms)
- Backup time: 8...20 mins (depends on the load)
- Battery: 151 × 65 × 95 mm ,sealed lead-acid 12 V/8Ah/2.3 kg × 2 pcs
Charge time: up to 12 hours
- Sockets: Schuko EU type output x 2 pcs, input IEC14
- Operating conditions: 0^ircC 40^ircC , at humidity 10 - 90% RH non condensing
- Noise: < 45 dB (at 1 meter distance)
Power: 1500 VA (900 W)
- Dimensions: 480 × 150 × 350 mm
Product weight: 15.8kg
- "Cold-start" function

All brands and logos are registered trademarks of their respective owners

All brands and logos are registered trademarks of their respective owners

2

All brands and logos are registered trademarks of their respective owners

(ENG) Declaration of conformity This product is tested and complies with the essential requirements of the laws of member states concerning LVD(2006/95/EC), EMC(2004/108/EC). The CE declaration can be found under www.gembird.eu	(NL/BE) Verklaring van overeenstemming Dit product is getest en voldoet aan alle geldende nationale en Europese richtlijnen en regelgeving met betrekking tot LVD(2006/95/EC), EMC(2004/108/EC). Dit product heeft een CE-markering en de bijbehorende CE-verklaring van overeenstemming is beschikbaar op unsere website: www.gembird.eu
(FR/BE) Déclaration de conformité Le produit est contrôle et rempli les exigences des directives nationales et de la directive LVD(2006/95/EC), EMC(2004/108/EC). La conformité CE a été démontrée et les déclarations correspondantes sont déposées chez le fabricant a: www.gembird.eu	(DE) Konformitätserklärung Dieses Produkt wurde getestet und stimmt mit den grundlegenden Anforderungen der Richtlinie LVD(2006/95/EC), EMC(2004/108/EC) überein. Die Konformitätserklärung kann auf unserer Webseite www.gembird.eu heruntergeladen werden.
Deklaracja zgodność Ten produkt zostawPTRzetestowy i jest zgodny z zasadniczymi wymaganianiemi przyepsów ustawowych państwoczłonkowskich dotycznych LVD(2006/95/EC), EMC(2004/108/EC). Deklaracja CE znejduje są pod adresemwww.gembird.eu

All brands and logos are registered trademarks of their respective owners

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
