EG-UPSRACK-12 - Uninterruptible power supply EnerGenie - Free user manual and instructions

Product type	Uninterruptible Power Supply (UPS)
Brand	EnerGenie
Model	EG-UPSRACK-12
Form factor	19" rack mountable
Rack height	2U
Apparent power	1200 VA
Active power	1080 W
Wave type	Simulated sine wave
Input voltage	230 V AC
Input frequency	50/60 Hz automatic
Number of output sockets	8 IEC C13 sockets
Battery type	Sealed lead-acid, maintenance-free
Typical runtime (full load)	Approximately 10 minutes
Recharge time	4 to 6 hours
Built-in protection	Surge protection, EMI filter, automatic voltage regulation (AVR)
Dimensions (W x D x H)	482 x 400 x 88 mm
Net weight	18 kg
Operating temperature	0 °C to 40 °C
Operating humidity	20 % to 90 % RH non-condensing
Noise level	< 45 dB at 1 meter
Communication interfaces	USB port, RS-232 serial port
Compatible operating systems	Windows, Linux, macOS
Maintenance and cleaning	Dust with a soft, dry cloth. Do not use liquid products.
Safety instructions	Do not open the device, do not plug into a power strip, avoid overloads.
Spare parts and repairability	User-replaceable battery. Contact customer service for any other repairs.

Frequently Asked Questions - EG-UPSRACK-12 EnerGenie

What is the battery life of the EG-UPSRACK-12?

The lead-acid battery typically lasts 3 to 5 years depending on usage conditions and ambient temperature. It is recommended to replace it as soon as the runtime decreases significantly.

Can I replace the battery myself?

Yes, the battery is designed to be user-replaceable. Make sure to order a compatible replacement battery and follow the safety instructions in the manual.

How do I install the UPS in a rack?

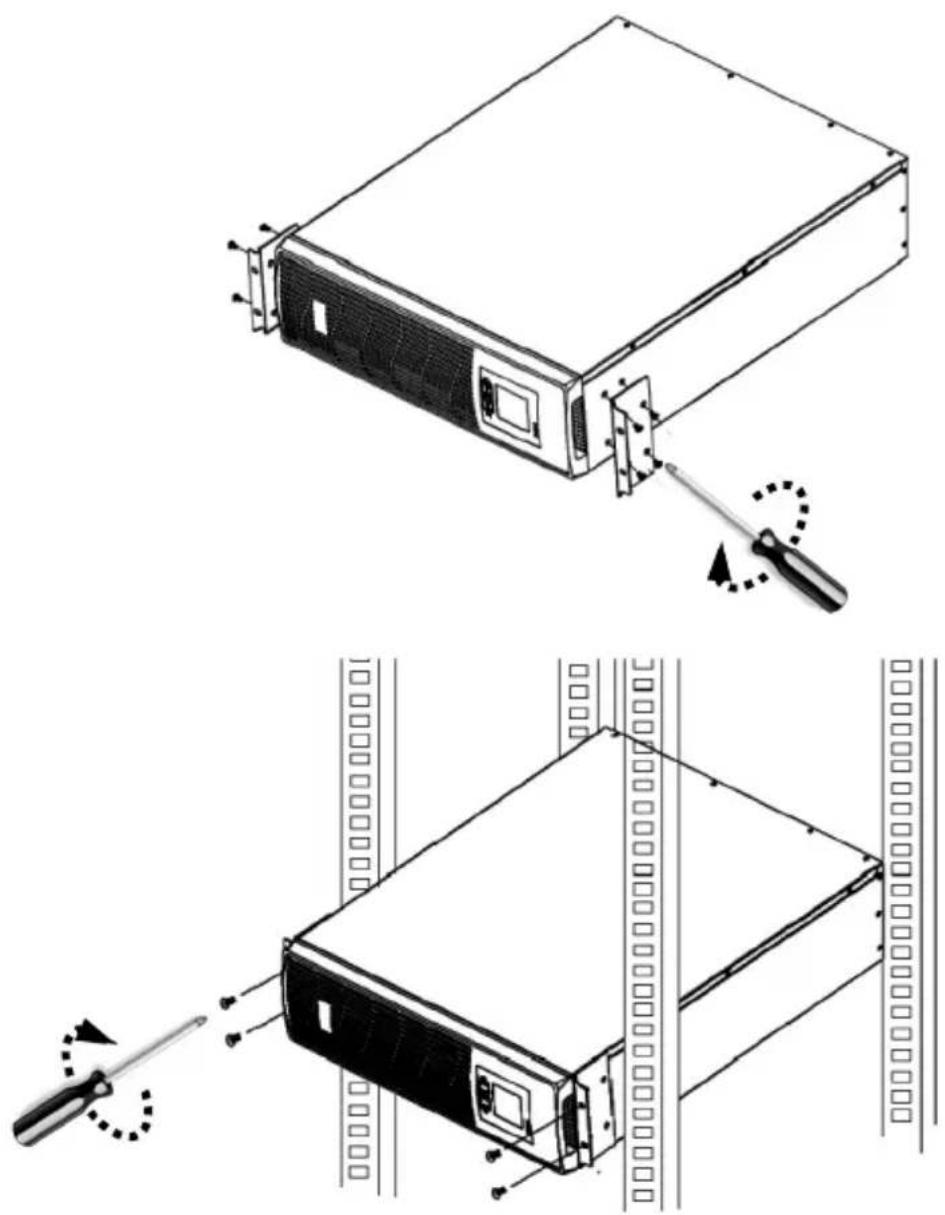

The EG-UPSRACK-12 is a 2U rack model. Attach the included mounting brackets to the sides of the UPS, then screw the assembly into the rack using appropriate screws. Ensure the rack is well-ventilated.

What should I do if the UPS emits a continuous beep?

A continuous beep usually indicates a discharged or faulty battery. Plug the UPS into the mains and let it charge for at least 6 hours. If the beep persists, the battery must be replaced.

Can I plug the UPS into a power strip?

No, it is not recommended to plug the UPS into a power strip. Plug it directly into a grounded wall outlet to avoid overload and fire risks.

What is the maximum power I can connect?

The maximum power is 1200 VA or 1080 W. Do not exceed this limit to avoid overload that could damage the UPS and connected equipment.

Does the UPS protect against surges?

Yes, the EG-UPSRACK-12 includes surge protection and an EMI filter to protect your equipment from voltage spikes and electromagnetic interference.

How do I clean the UPS?

Unplug the UPS and use a soft, dry cloth to dust the casing. Never use water, solvents, or abrasive products.

What should I do in case of a prolonged power outage?

The UPS provides a few minutes of runtime, enough to save your data and shut down equipment properly. If the outage lasts longer, the batteries will fully discharge and the UPS will turn off.

Is the UPS compatible with inverters?

No, never plug an inverter into another UPS or an unstable generator. This could damage the devices.

USER MANUAL EG-UPSRACK-12 EnerGenie

Black industrial server rack with a tall tower and power unit, no visible text or symbols

EG-UPSRACK-12 RACK UPS, 2000 VA

EG-UPSRACK-13 RACK UPS, 3000 VA

USER MANUAL

HANDBUCH

HANDLEIDING

MANUEL DESCRIPTIF

Collection of national flags including Germany, the European Union, Switzerland, Austria, Netherlands, France, Russia, and Ukraine arranged in a cross pattern.

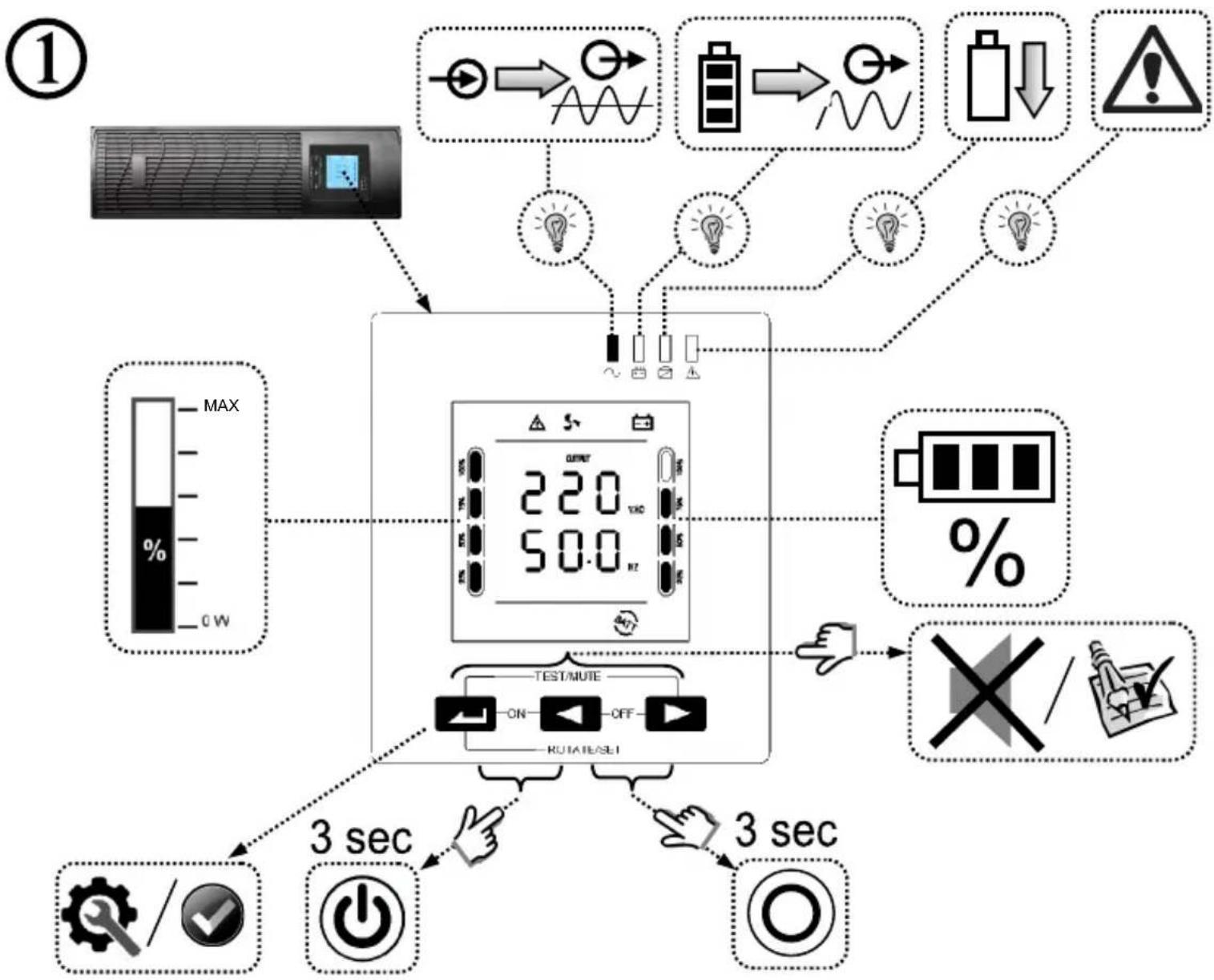

Features EG-UPSRACK-12 (EG-UPSRACK-13)

• Automatic output voltage regulation (AVR)
- Rack 3.4U metal case
• USB control interface
- LCD display
- Short circuit protection
- Compatible with power generators of any brand
- Surge, spike and lightning protection
• Audible and visual alarms
• Overcharge and overdischarge protection

Specifications EG-UPSRACK-12 (EG-UPSRACK-13)

• UPS type: line interactive, pure sine wave
  • Input: 220V AC ± 25%, 50Hz / 60Hz ± 10%
  • Output: 220V AC ± 10%, 50Hz / 60Hz ± 0.5% (on battery)
  • Output power factor: 0.8
• Inverter output efficiency (resistive load): 85%, any load type is allowed
• Switching time: no more than 10 ms (typically 6 ms)
• Backup time: 8...20 mins (depends on the load)
• Battery: 151 x 65 x 95 mm, sealed lead-acid 12 V / 9 Ah / 2.3 kg x 3 pcs (4 pcs for EG-UPSRACK-13)
  • Charge time: up to 12 hours
• Sockets: input IEC C14, outputs: Schuko EU type x 1 pc, IEC C13 x 6 pcs
• Operating conditions: 0°C\~40°C, at humidity 10\~90%RH non condensing
  • Noise: < 45 dB (at 1 meter distance)
  • Power: 2000 VA (1200 W) (3000 VA (1800 W) - for EG-UPSRACK-13)
  • Dimensions: 440 x 410 x 132 mm
  • Product weight: 19.8 kg (28.1 kg for EG-UPSRACK-13)

CE ReHS MADE IN CHINA

energenie

EG-UPSRACK-12 RACK UPS, 2000 VA

EG-UPSRACK-13 RACK UPS, 3000 VA

All brands and logos are registered trademarks of their respective owners

energenie

EG-UPSRACK-12 RACK UPS, 2000 VA

EG-UPSRACK-13 RACK UPS, 3000 VA

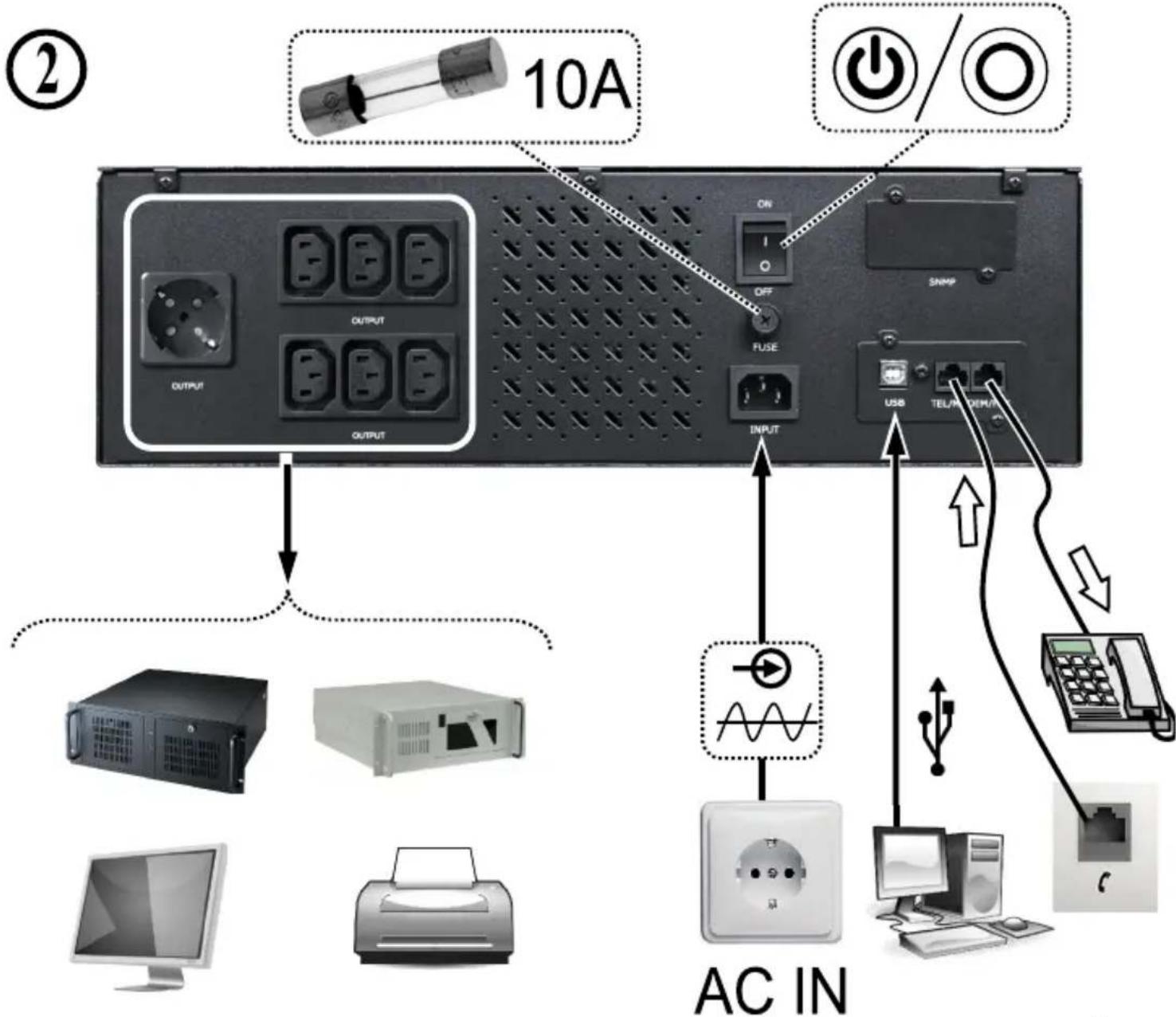


All brands and logos are registered trademarks of their respective owners

energenie

EG-UPSRACK-12 RACK UPS, 2000 VA

EG-UPSRACK-13 RACK UPS, 3000 VA

③

Technical line drawing showing a server rack with screwdriver and cable attachment, no text or symbols present

All brands and logos are registered trademarks of their respective owners

This product is tested and complies with the essential requirements of the laws of member states concerning LVD(2006/95/EC), EMC(2004/108/EC). The CE declaration can be found under www.gembird.eu

Simple line drawing of a hand washing a cup with water droplets falling (no text or symbols)

Safety warning symbol showing a sun and a person with fever, crossed by a diagonal line indicating no heat.

Simple line drawing of a hand using a tool to cut a screwdriver into a screw (no text or symbols)

Simple line drawing of a hand holding a cup with a diagonal line crossing through it, no text or symbols present.

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
