EG-PC-005 - Power bank EnerGenie - Free user manual and instructions

Product type	Portable battery / Manual battery charger
Brand	EnerGenie
Model	EG-PC-005
Battery capacity	10,000 mAh (estimated)
Input voltage	5V / 2A (Micro USB)
Output voltage	5V / 2.1A (USB-A)
Output ports	1 USB-A port
Input port	1 Micro USB port
Charging indicator	Blue LED (charging), green LED (full)
Housing material	Flame-retardant ABS plastic
Dimensions	140 x 70 x 15 mm (estimated)
Weight	220 g (estimated)
Battery life	Up to 5 full charges for a smartphone (estimated)
Battery charging time	Approximately 6 hours with 2A charger
Number of charge cycles	500 cycles (typical)
Built-in protection	Overcurrent, overvoltage, short circuit, overheating
Main functions	Charging mobile devices, manual charging via wall outlet
Care and cleaning	Clean with a dry, soft cloth. Do not use abrasive products.
Safety	Do not expose to water or extreme temperatures. Use only the provided cable.
Spare parts and repairability	Not user-repairable. Contact EnerGenie customer service.
Warranty	2 years (standard)
General information	Compliant with CE and RoHS standards

Frequently Asked Questions - EG-PC-005 EnerGenie

How to charge the EG-PC-005 portable battery?

Plug the provided Micro USB cable into the battery input and a 5V/2A wall charger. The blue LED indicates charging. When full, the LED turns green.

How long does it take to fully charge the battery?

With a 2A charger, charging time is about 6 hours. Using a less powerful charger may increase this time.

Can I charge the battery and my phone at the same time?

No, it is not recommended to charge and discharge simultaneously. This may reduce battery life.

What devices can I charge with this battery?

Any device that charges via USB with a consumption under 2.1A, such as smartphones, tablets, Bluetooth earphones, etc.

How do I know if the battery is fully charged?

The LED changes from blue (charging) to green (full). If the battery is discharged, the LED may flash or turn off.

What to do if the battery no longer charges?

Check the cable and wall charger. Try another outlet. If the problem persists, contact EnerGenie customer service.

Does the battery heat up during charging?

Slight heat is normal. If it becomes very hot, unplug it immediately and let it cool. If it happens again, stop using it.

Can I use a different cable than the one provided?

Yes, a standard Micro USB cable works. Make sure it supports 2A current for optimal charging.

How to clean the portable battery?

Use a soft, dry cloth. Never use water, solvents, or abrasive products.

Is the battery recyclable?

Yes, do not dispose of the battery with household waste. Take it to an approved collection point for used batteries.

USER MANUAL EG-PC-005 EnerGenie

Product photo of a light bulb and rear light fixture with attached cables and accessories (no text or symbols visible)

EG-PC-005 BICYCLE HAND CHARGER

USER MANUAL

HANDBUCH

HANDLEIDING

MANUEL DESCRIPTIF

Collection of national flags including the European Union, Germany, Switzerland, Austria, Netherlands, France, Russia, and Ukraine arranged in a vertical pattern.

Features

• Clean crank dynamo energy: no need to have extra battery or power source!

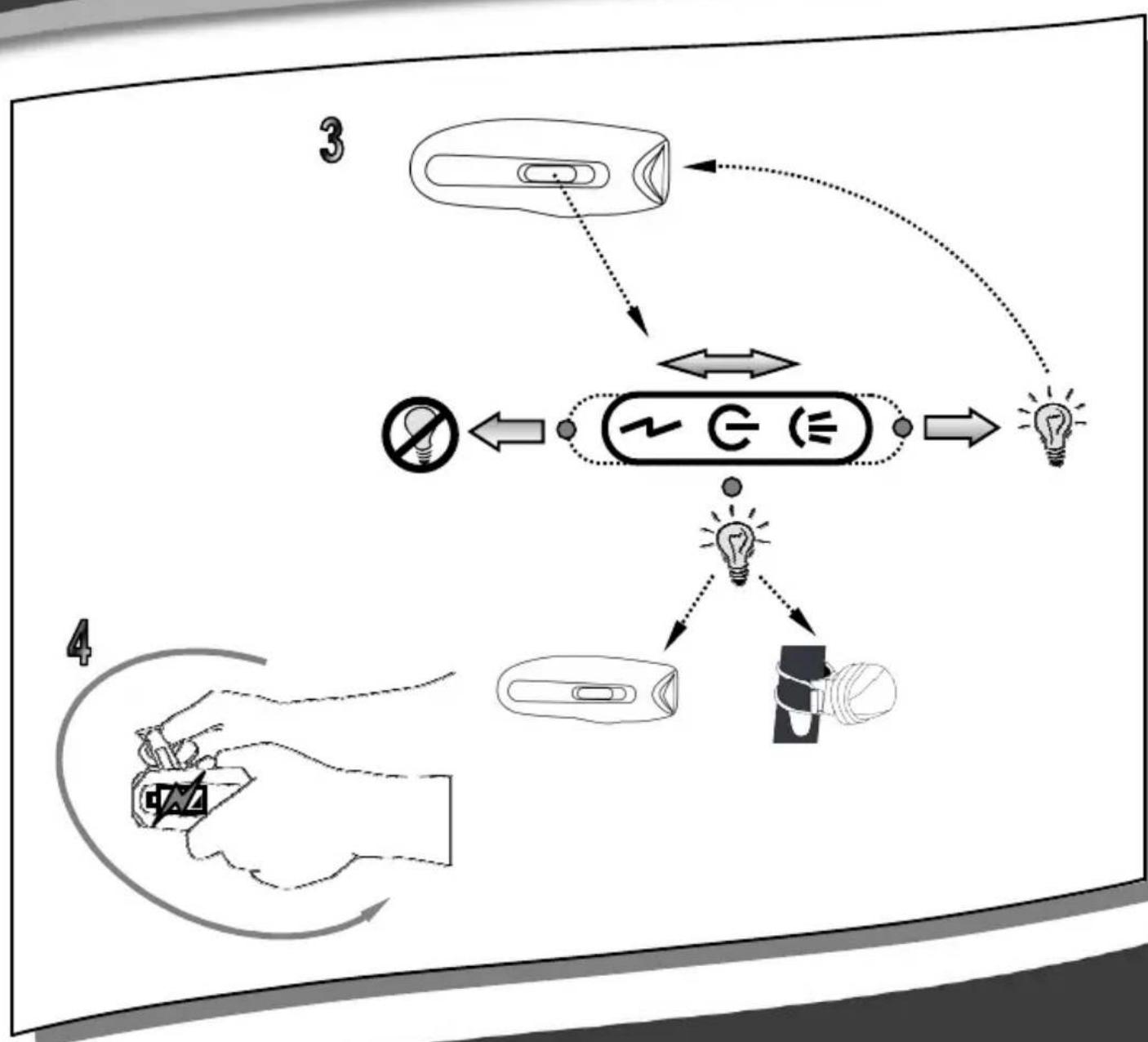

• Rotate the handle for 1 minute to power up your bike headlights for 15 minutes

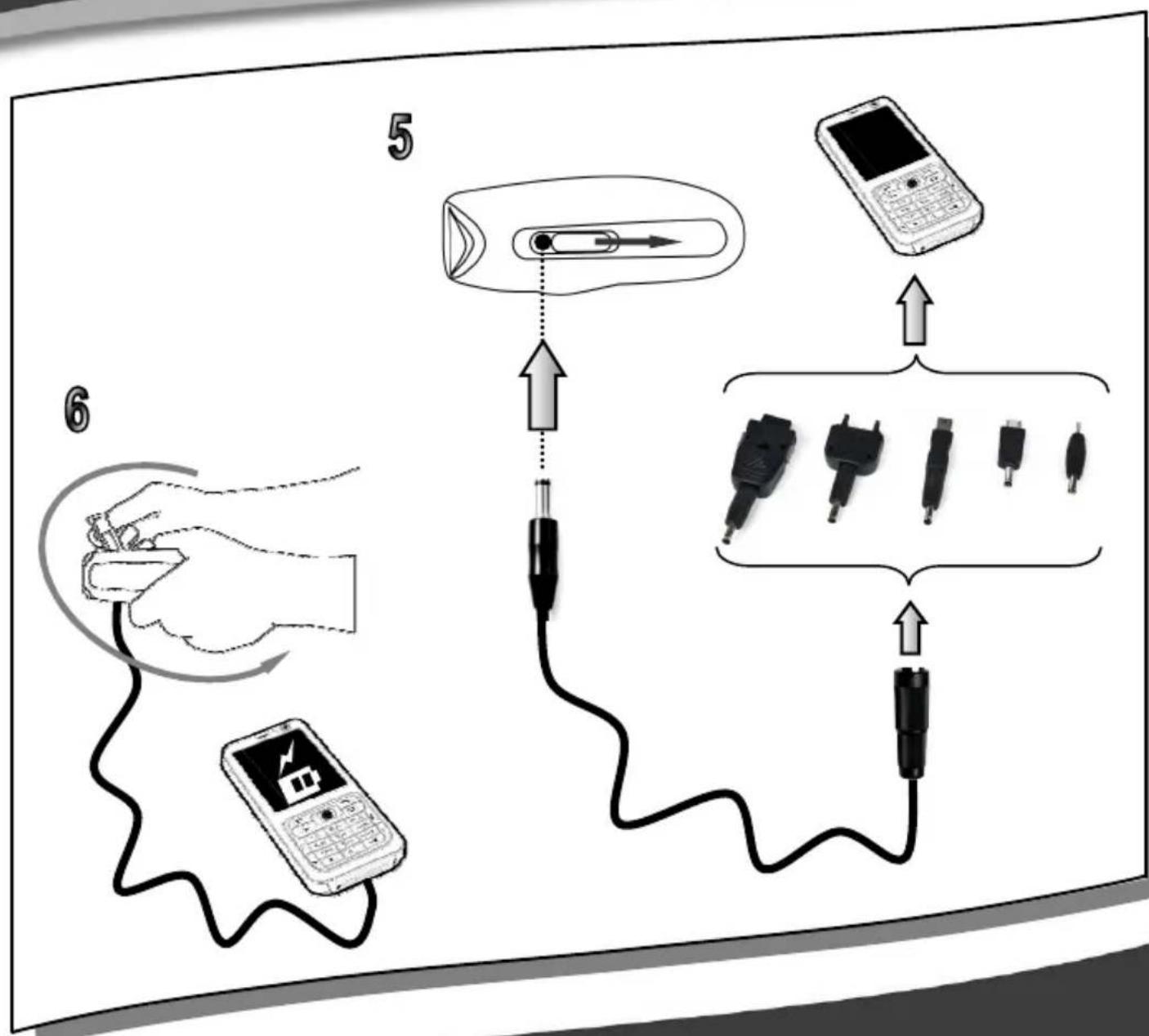

• Rotate the handle for 3 minutes to charge your mobile phone for up to 8 min conversation
  • LEDs instead of bulbs, high-quality switch and water-resistant design guarantee a very long product life

Specifications

• Output: 4...5.5 V DC up to 400 mA
• Built-in battery: Ni-MH 3.6 V DC, rechargeable 80 mAh
• Battery lifetime: at least 500 full recharging cycles
- Headlight: 3 super-bright LEDs illuminating area up to 10 m away with 9 degrees beam angle
• Tail light: red LED
• Lights charging: 10 min cranking provides up to 50 min light
• Supports mobile phones: Nokia 6101 and 8210 series, Samsung A288 series, Blackberry/HTC Mini USB 5 pin connector, Sony Ericsson K750 series, Micro-USB
- Mobile phone charging: 3 min cranking provides up to 8 min conversation time (depending on the phone model)
- Dimensions: headlight 91 × 45 × 39 ~mm , tail light 51 × 47 × 37 ~mm
• Total net weight: 0.2 kg

7

mm 6 3 0 0

Safety warning sign showing sun and a person with fever, crossed by a diagonal line indicating no heat.

Simple line drawing of a hand using a tool to adjust or repair a screwdriver, with no text or symbols present.

Simple line drawing of a container with a crosshair and abstract shapes, no text or symbols present.

EC Declaration of Conformity

We hereby certify that the following product complies with all the relevant

Safety Requirements of § 4 EMVG and of the Directives 2006/95/EC: 93/68/EC and 2004/100/EC.

Applicant :

Gembird Europe BV

Wittevrouwen 56.

1959CD, Almere, The Netherlands

Equipment :

Computer parts

Mode Nos. :

EG-PC-005

Product description :

EG-PC-005 Bicycle hand charger

European standards:

EN60035-1:2302+A1:2004-A11:2004; EN60335-Q-29,2004;

EN60366:2003; EN61000-3-2:2000+A2:2005; EN61000-3-3:1988+

A1:2081; EN55014-1:2090-A1:2081+A2:2082; EN55014-2:1997+

A1:2037

The following manufacture/WITHIN Europe is responsible for this declaration.

Gembird Europe BV

Wittewrouwen 56, 105800, Almere, The Netherlands

Tel: [phone], Fax: [phone]

Director

The Netherlands/ May, 24, 2010

Place and Date

Authorized Signature

WARRANTY CONDITIONS	GARANTIE BEDINGUNGEN
The warranty period is 36 months and begins with the sale to the end user. The receipt must clearly list the date of purchase and the part number, in addition it should be printed. Keep the receipt for the entire warranty period since it is required for all warranty claims. During the warranty period the defective items will be credited, repaired or replaced at the manufacturer's expense. Work carried out under the warranty neither extends the warranty period nor starts a new warranty period. The manufacturer reserves the right to void any warranty claim for damages or defects due to misuse, abuse or external impact (falling down, impact, ingress of water, dust, contamination or break). Wearing parts (e.g. rechargeable batteries) are excluded from the warranty. Upon receipt of the RMA goods, Gembird Europe B.V. reserves the right to choose between replacement of defective goods or issuing a credit note. The credit note amount will always be calculated on the basis of the current market value of the defective products	Die Garantie beträgt 36 Monate ab Verkaufsdatum an den Endverbraucher. Das Kaufdatum und der Gerätetyp sind durch eine maschinell erstellte Kaufquittung zu belegen. Bitte bewahren Sie Ihren Kaufbeleg daher für die Dauer der Garantie auf, da er Voraussetzung für eine eventuelle Reklamation ist. Innerhalb der Garantiezeit werden alle Mängel, wahlweise durch den Hersteller entweder durch Instandsetzung, Austausch mangelhafter Teile oder im Austausch, behoben. Die Ausführung der Garantieleistung bewirkt weder eine Verlängerung noch einen Neubeginn der Garantiezeit. Eine Garantieleistung entfällt für Schäden oder Mängel die durch unsachgemäße Handhabung oder durch äußere Einwirkung (Sturz, Schlag, Wasser, Staub, Verschmutzung oder Bruch) herbeigeführt wurden. Verschleißteile (z.B. Akkus) sind von der Garantie ausgenommen.
Gembird Europe B.V.Wittevrouwen 56, 1358CD AlmereThe Netherlandswww.gembird.nl/[e-mail]. [phone](0900-4362473 inside The Netherlands, € 0,15 p/m, mobile costs not included)	Gembird Deutschland GmbHOverweg 27, 59494 SoestDeutschlandwww.gembird.de/[e-mail]. [phone]€0,14 aus dem deutschen Festnetz. Mobilfunkpreise können abweichen
GARANTIE VOORWAARDEN	CONDITIONS DE GARANTIE
De garantietermijn bedraagt 36 maanden en gaat in op de aankoopdatum van het product door de eindgebruiker. Op de aankoopbon moeten de aankoopdatum en productomschrijving duidelijk vermeld staan. Gelieve de aankoopbon de gehele garantieperiode te bewaren, deze is ten alle tijden benodigd voor alle garantie aanspraken. Tijdens de garantieperiode zullen alle gebreken verholpen of vervangen worden door de fabrikant d.m.v. reparatie, omruiling van het defecte onderdeel of het gehele apparaat. Aanspraken tijdens de garantieperiode leiden niet tot verlenging hiervan. Garantieaanspraak vervalt bij schade of gebreken die ontstaan zijn door oneigenlijk gebruik, misbruik of invloeden van buitenaf (vallen, stoten, water, stof, vuil of breken). Slijtagegevoelige onderdelen (b.v. batterijen) zijn uitgesloten van garantie. Bij ontvangst van de RMA goederen behoudt Gembird zich het recht om te kiezen tussen vervanging van de defecte waren of het uitgeven van een kreditnota. Het bedrag van de kreditnota zal altijd gecalculeerd zijn op basis van de huidige marktprijs voor het defecte produkt.	Garantie est de 36 mois a partir de la date d'achat de l'utilisateur final.Le talon de garantie doit énumérer clairement la date d'achat et le type d'appareil.Conservez le reçu d'achat pendant toute la durée de la garantie car elle est nécessaire pour toute réclamation.Au cours de la période de garantie tous les défauts doivent être remplacé aux frais du fabricant, soit par la réparation ou la remplacement de la pièce défectueuse ou l'ensemble du produit.Les travaux effectués sous garantie ne prolongent pas la période de garantie ni ne commencent pas une nouvelle période de garantie.Le fabricant se réserve le droit d'annuler toute demande de garantie pour les dommages ou défauts dus à une mauvaise utilisation, abus ou les effets externes (chute, choc, pénétration de l'eau, la poussière, etc..).Les pièces d'usure (par exemple les piles rechargeables) sont exclus de la garantie.Dès réception de la marchandise sous garantie, le SAV de Gembird Europe BV se réserve le droit de choisir entre le remplacement des produits défectueux ou de délivrer un avoir.Le montant d'avoir sera toujours calculée sur la base de la valeur actuelle du marché des produits défectueux.
Gembird Europe B.V.Wittevrouwen 56, 1358CD AlmereThe Netherlandswww.gembird.nl/[e-mail]. 0900-4362473€ 0,15 p/m binnen NederlandExclusief mobiele telefoonkosten	Gembird Europe B.V.Wittevrouwen 561358CD Almere, The Netherlandswww.gembird.nl/[e-mail]. [phone]Prix d'appel depuis telephone fixe Pays-Bas : 0.15 euro / minPrix d'appel depuis telephone mobile / autre pays - selon operateur

ГАРАНТИЙНЫЙ ТАЛОН
