USER MANUAL Classic MLL11 SANUS

SANUS™ CLASSIC

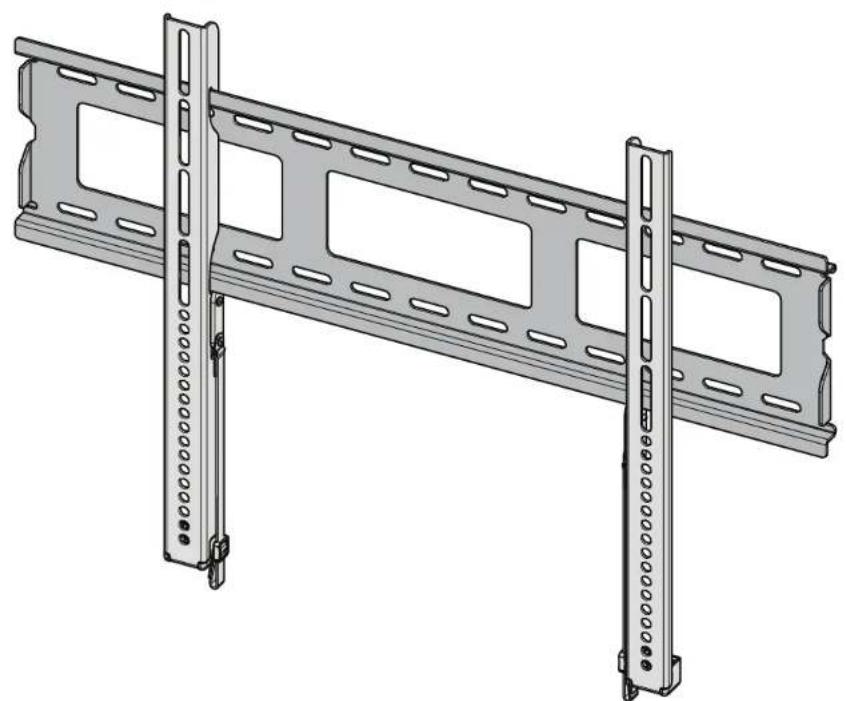

Technical illustration of a metal shelving unit with vertical supports and mounting holes (no text or symbols)

MLL11 Instruction Manual

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

Before getting started, let's make sure this mount is perfect for you!

1

Does your TV weigh more than 130 lb (58.9 kg) including accessories?

No — Perfect!

Yes — This mount is NOT compatible. Visit MountFinder.Sanus.com or call 1-800-359-5520 (UK: 0800-056-2853) to find a compatible mount.

2

Drywall with wood studs?

Perfect!

Solid concrete or concrete block?

Perfect!

Unsure?

Call 1-800-359-5520

(UK: 0800-056-2853)

3

Do you have all of the tools needed?

4

Ready to begin?

Please read through these instructions completely to be sure you're comfortable with this easy install process. Also check your TV owner's manual to see if there are any special requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service at 1-800-359-5520 (UK: 0800-056-2853).

▲ CAUTION: Avoid potential personal injuries and property damage!

• This product is designed for use in wood stud, solid concrete, and concrete block walls - DO NOT install into drywall alone
- The wall must be capable of supporting five times the weight of the TV and mount combined
- Do not use this product for any purpose not explicitly specified by manufacturer
- Manufacturer is not responsible for damage or injury caused by incorrect assembly or use

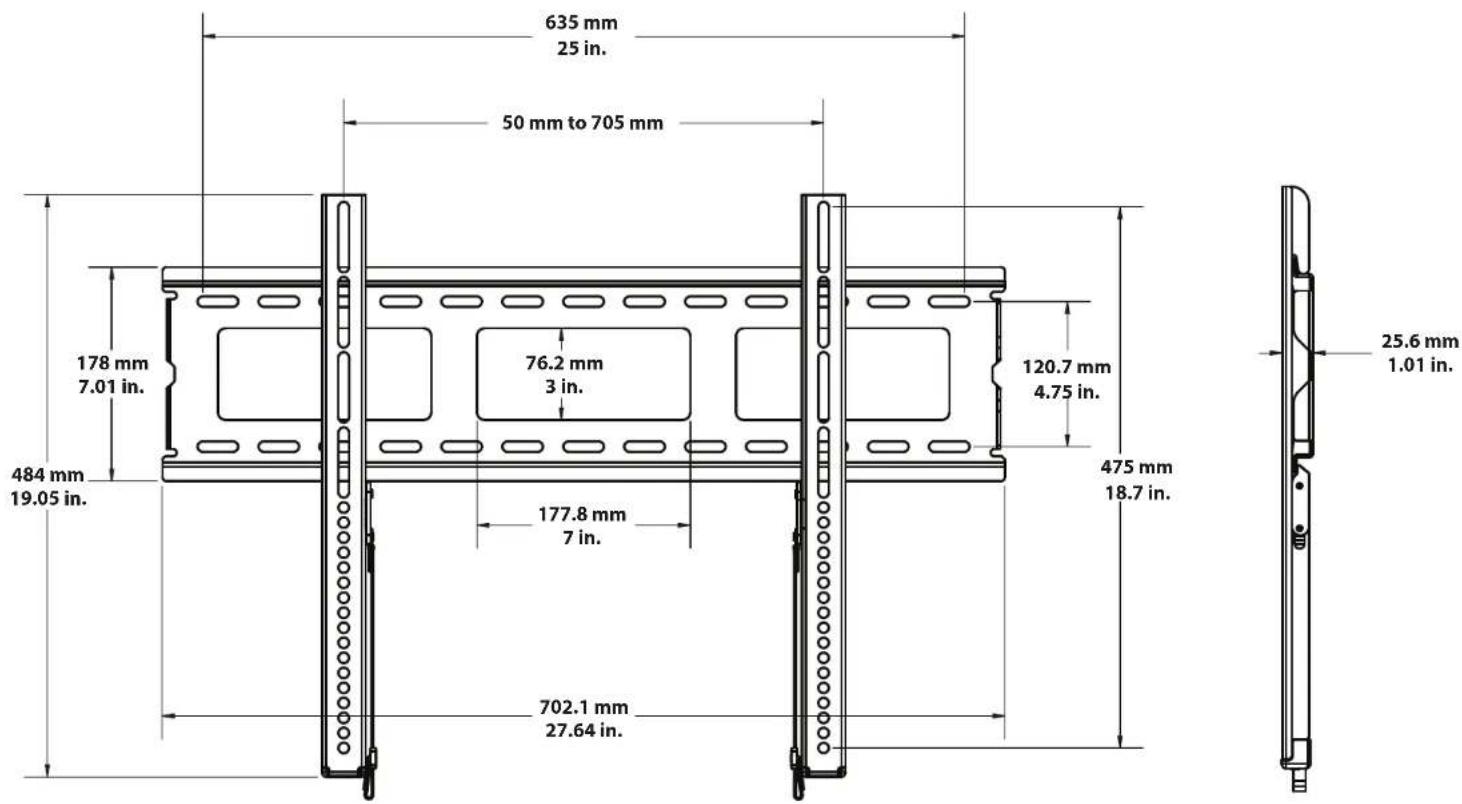

Dimensions

Parts and Hardware

⚠ WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

NOTE: Not all hardware included will be used.

Parts and Hardware for STEP 1

TV Brackets

Two identical mechanical components with ribbed and mounting features, shown side by side (no text or symbols)

M5 x 12mm

03 x4

M6 x 12mm M6 x 20mm M6 x 35mm

04 x4

05 x4

TV Screws

06 x4

07 x4

M5 × 35mm

08 x4

09 x4

10 x4

Washers

M5 M6/M8

12 x4

Spacers

13 x4

02 x1

Parts and Hardware for STEP 2

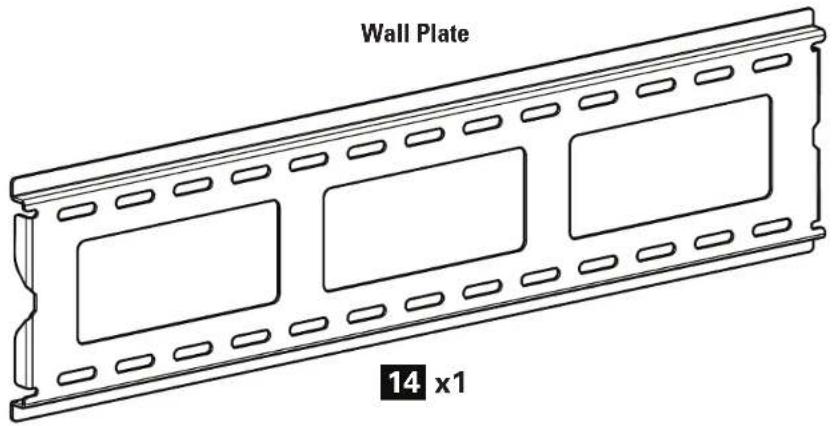

Wall Plate 14 x1

Concrete Anchors

15 x4

Washers

16 x4

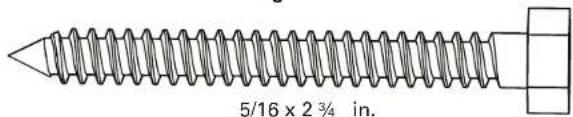

Lag Bolts

5/16 x 2 ¾ in.

17 x4

STEP 1 Attach Brackets to TV

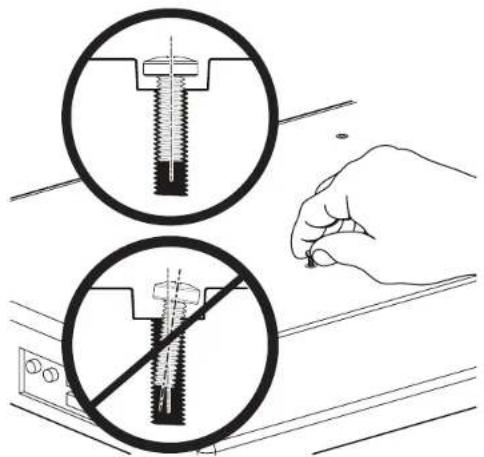

1-1 Select TV Screw Diameter

Hand thread screws into the threaded inserts on the back of your TV to determine which screw diameter (M5, M6, or M8) to use.

M5 M6 M8

Technical diagram showing two circular insets of a bolt with cross-sectional views and a hand holding a tool, illustrating mechanical assembly or inspection.

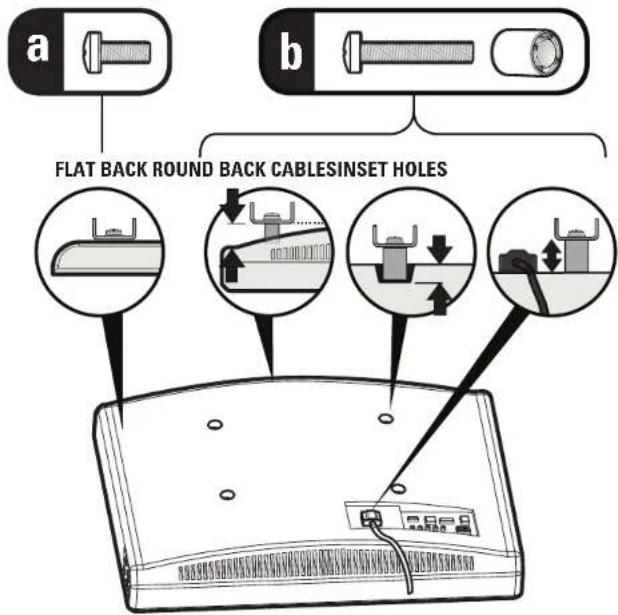

1-2 Select TV Screw Length

If your TV has a flat back AND you want your TV closer to the wall, use the shorter screws (a). Use the spacers and longer screws (b) to accommodate:

• Round/irregular back TVs
• TVs with inset mounting holes
• Extra space needed for cables

a b FLAT BACK ROUND BACK CABLESINSET HOLES

Standard configurations are shown. For special applications, or if you are uncertain about your hardware selection, contact Customer Service at 1-800-359-5520.

CAUTION:

Verify adequate thread engagement with the screw or screw/spacer combination.

• Too short will not hold the TV.
• Too long will damage the TV.

Too Short

Too Long

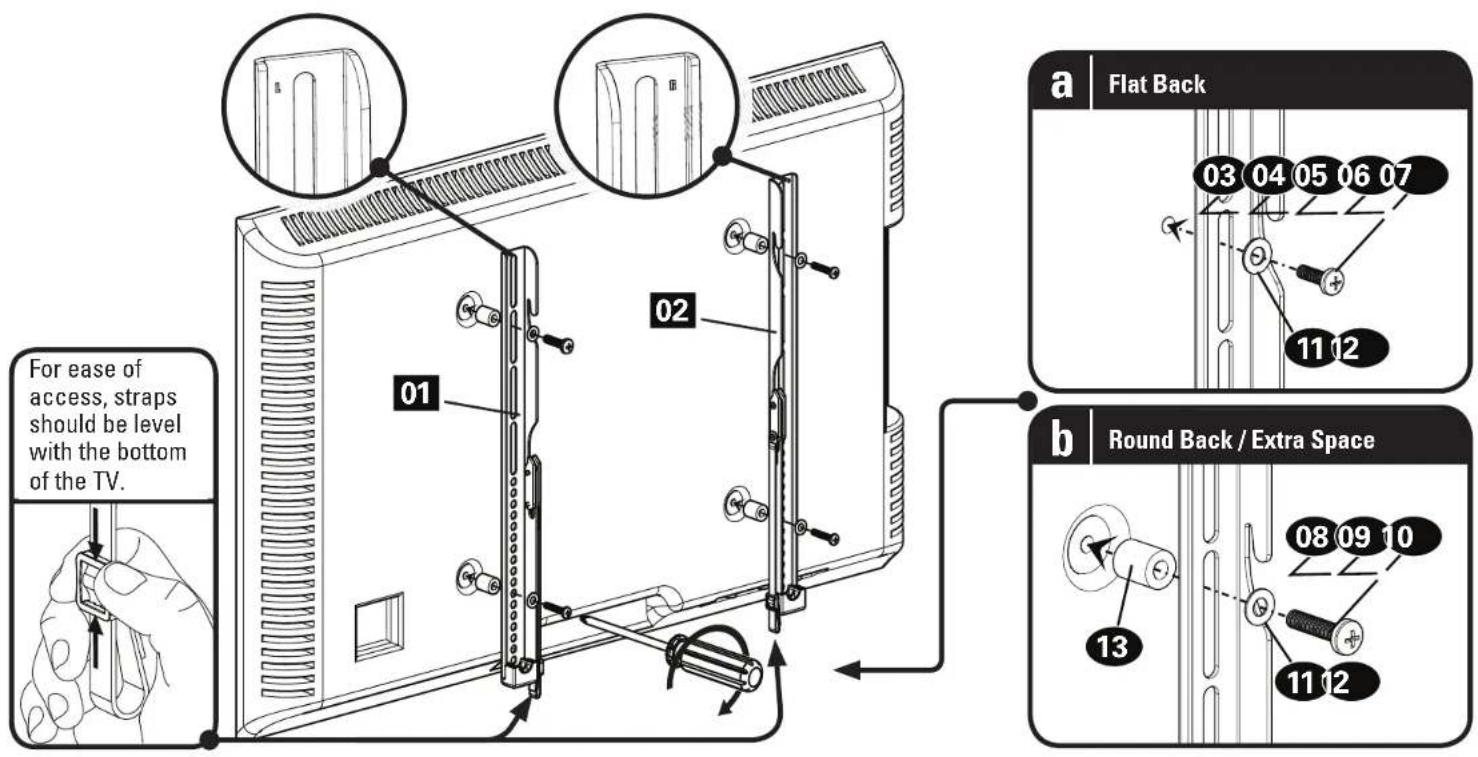

1-3 Attach TV Brackets

Ensure that your brackets 01 and 02 are level on the back of the TV. Standard configurations are shown. For special applications, or if you are unsure about your hardware selection, contact Customer Service.

For ease of access, straps should be level with the bottom of the TV. 01 02 a Flat Back 03 04 05 06 07 11 12 b Round Back / Extra Space 08 09 10 13 11 12

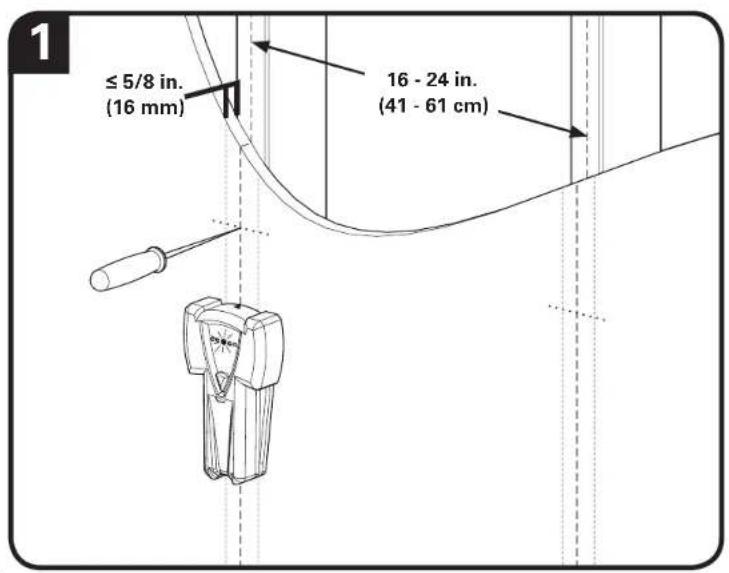

STEP 2A Attach Wall Plate to Wall - Wood Stud

CAUTION: Avoid potential personal injuries and property damage!

• Drywall covering the wall must not exceed 5/8 in. (16 mm)
  • Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm)
  • Minimum horizontal space between fasteners: 16 in. (406 mm)

• Locate your studs. Verify and mark the center of the stud by finding the stud edges using an awl, a thin nail, or an edge to edge stud finder.

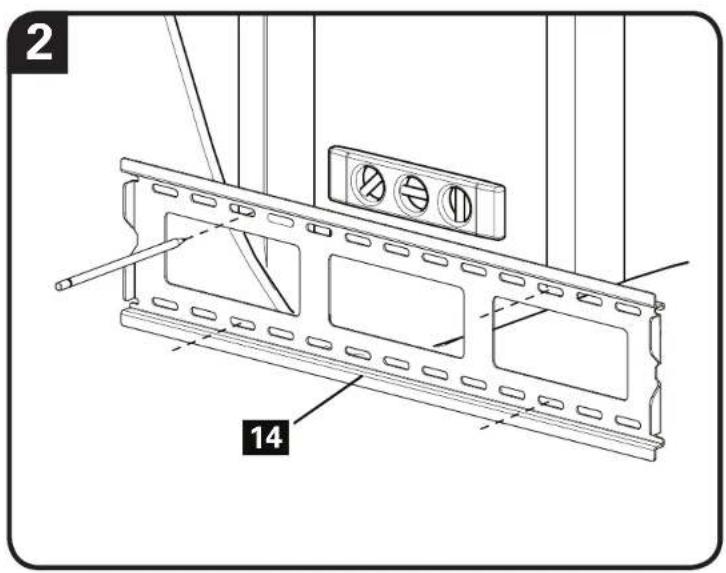

• Level the wall plate 14 and mark the hole locations.

≤ 5/8 in. (16 mm) 16 - 24 in. (41 - 61 cm)

2 14

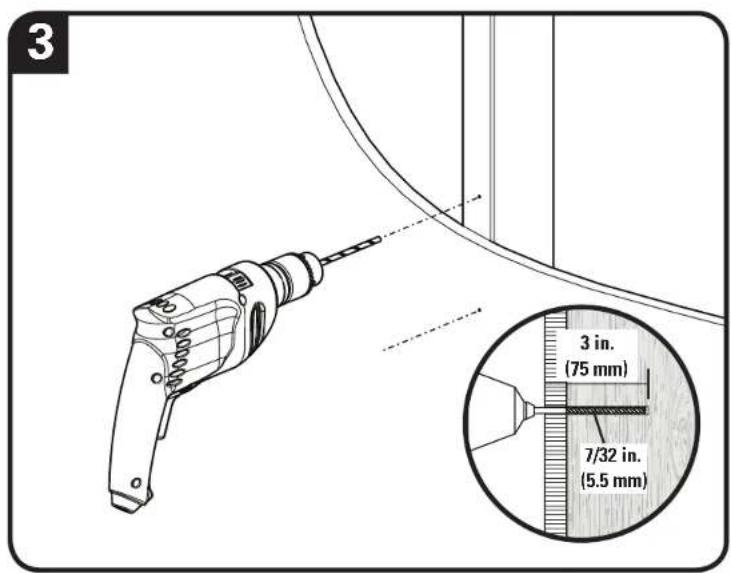

1. Pilot holes MUST be drilled to a depth of 3 in. (75 mm), using a 7/32 in. (5.5 mm) diameter drill bit.
2. Tighten the lag bolts 17 only until the washers 16 are pulled firmly against the wall plate 14.

CAUTION: Avoid potential injuries or property damage! Improper use could reduce the holding power of the lag bolt 17.

To avoid potential injuries or property damage. DO NOT over-tighten the lag bolts 17.

3 3 in. (75 mm) 7/32 in. (5.5 mm)

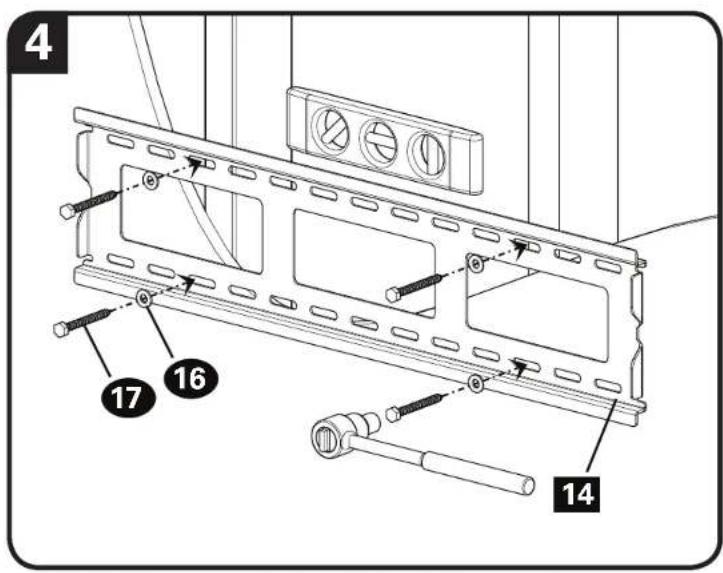

4 17 16 14

STEP 2B Attach Wall Plate to Wall - Solid Concrete or Concrete Block

▲ CAUTION: Avoid potential personal injuries and property damage!

• Mount the wall plate 14 directly onto the concrete surface
  • Minimum solid concrete thickness: 8 in. (203 mm)

• Minimum concrete block size: 8 x 8 x 16 in. (203 x 203 x 406 mm)
  • Minimum horizontal space between fasteners: 16 in. (406 mm)

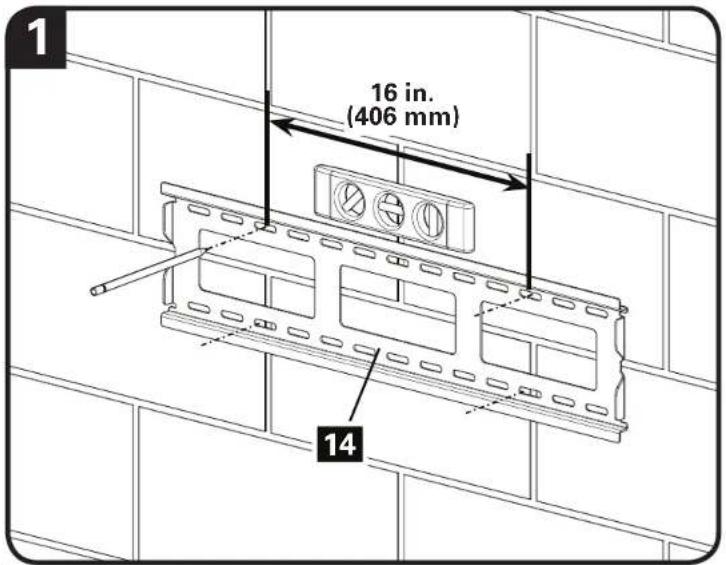

• Level the wall plate 14 and mark the hole locations.

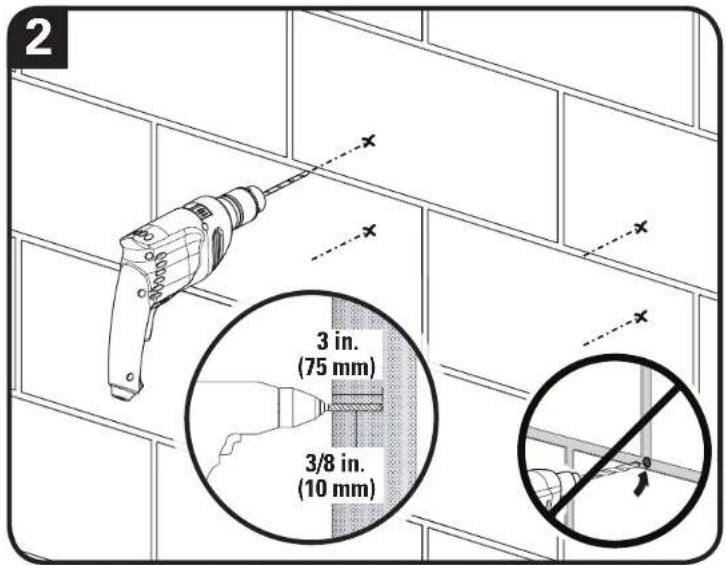

• Drill four pilot holes using a 3/8 in. (10 mm) diameter masonry drill bit.

IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm). Never drill into the mortar between blocks.

16 in. (406 mm) 14

2 3 in. (75 mm) 3/8 in. (10 mm)

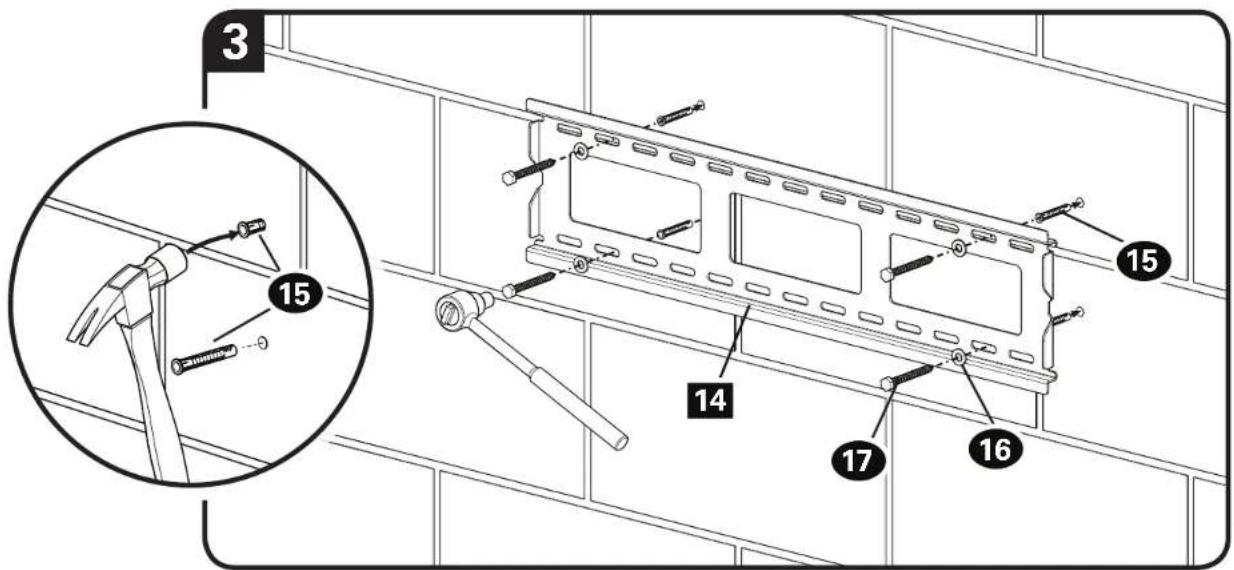

1. Insert four anchors 15 and install the wall plate 14 using four lag bolts 17 and four washers 16. Tighten the lag bolts 17 only until the washers 16 are pulled firmly against the wall plate 14.

CAUTION: Be sure the anchors 15 are seated flush with the concrete surface.

CAUTION: Improper use could reduce the holding power of the lag bolt 17. DO NOT over-tighten the lag bolts 17.

Technical diagram showing assembly of a mechanical component with numbered parts and a magnified detail view.

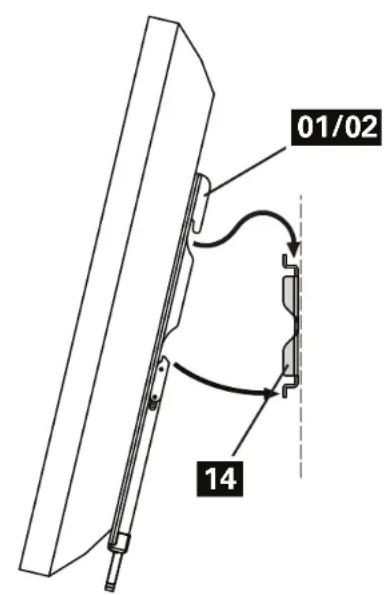

STEP 3 Hang the TV with Mounting Brackets on the Wall Plate

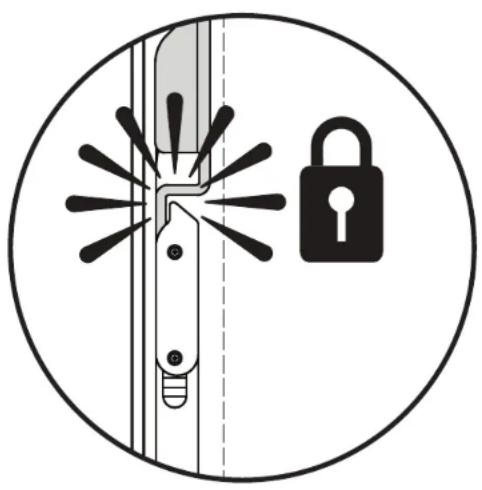

Install the TV / Bracket assembly by fitting the top hook of the mounting brackets 01 and 02 over the top edge of the wall plate 14. Swing the mounting brackets down until the spring loaded locking tabs slip over and fully engages the bottom edge of the wall plate 14. You will hear an audible "CLICK".

HEAVY! You may need assistance with this step.

01/02 14

Diagram showing a lock and fuse with no text or symbols

Technical line drawing of a mechanical component with a curved base and vertical shaft (no text or symbols)

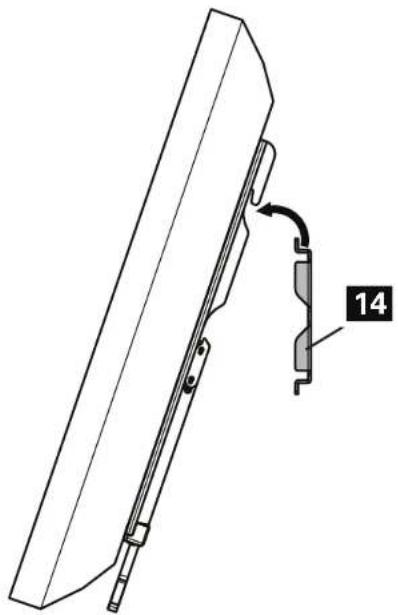

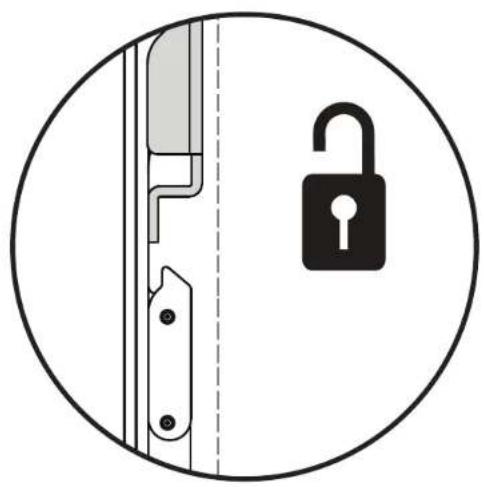

To remove the TV, pull the straps down to disengage the locking tabs, swing the TV / bracket assembly forward from the bottom, and then lift the TV up and off, away from the wall plate 14.

HEAVY! You may need assistance with this step.

14

Diagram showing a door lock mechanism with an open padlock symbol, enclosed in a circle (no text or labels)

Technical line drawing of a mechanical component with a labeled part '14' (no text or symbols beyond label)
